LAUNCH ES200 EV Insulation Resistance Tester
Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.
Item No. COBD212706 Price Down Notice
In Stock
- Price:
- US$637.26/ piece
- Discount Price:
- US$531.05/ piece 17%
- Quantity:
-
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
-
Online Chat
WhatsApp
Skype
Ask a question
US$89.00 / piece
US$599.00 / piece
US$79.00 / piece
US$379.05 / piece
US$599.00 / piece
US$129.00 / piece
US$199.00 / piece
US$79.90 / piece
US$199.00 / piece
US$109.00 / piece
US$289.00 / piece
US$159.00 / piece
US$9.99 / piece
US$1,198.50 / piece
US$119.00 / piece
US$43.90 / piece
- Product Details
- Product's Reviews
- Write a Review
- Related Products

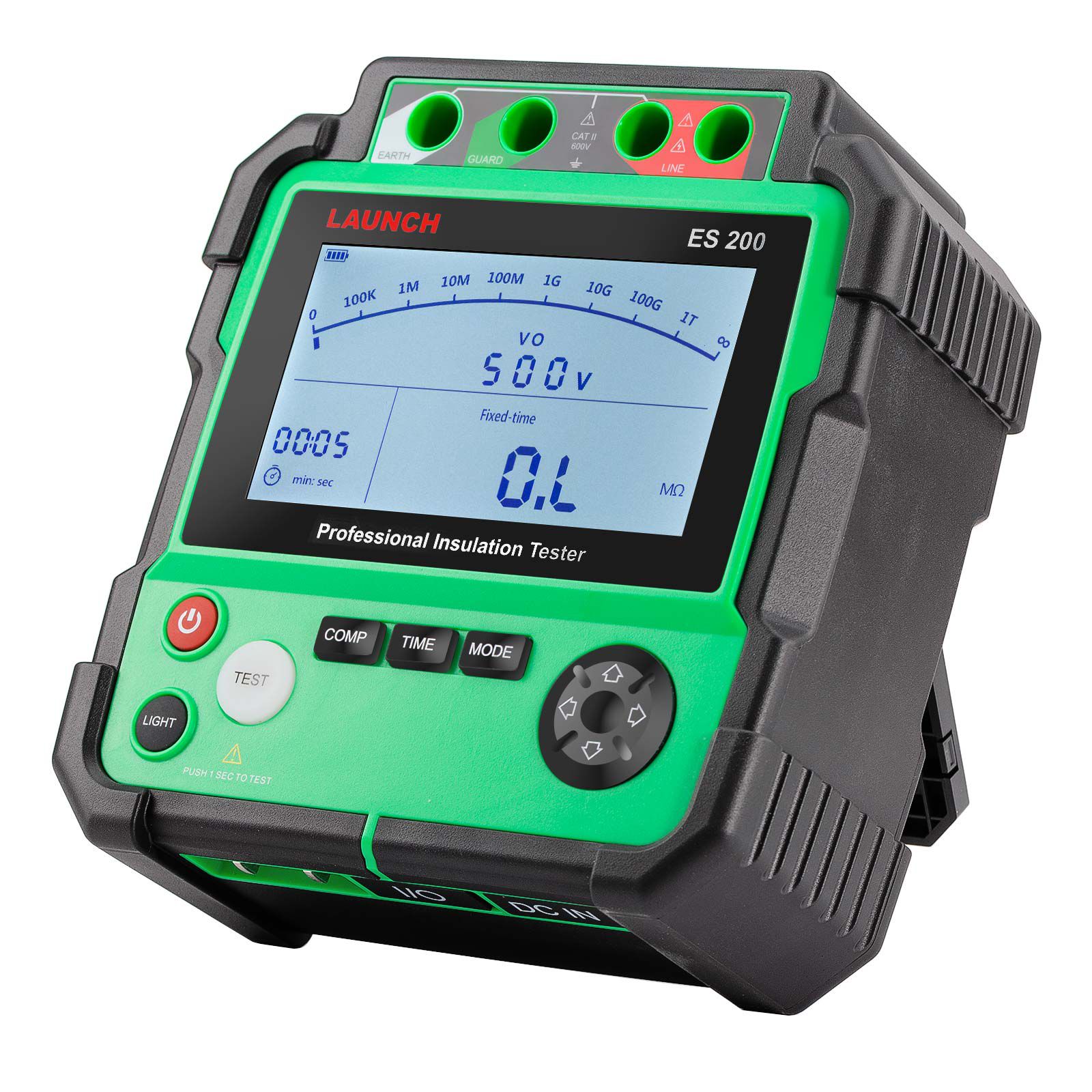

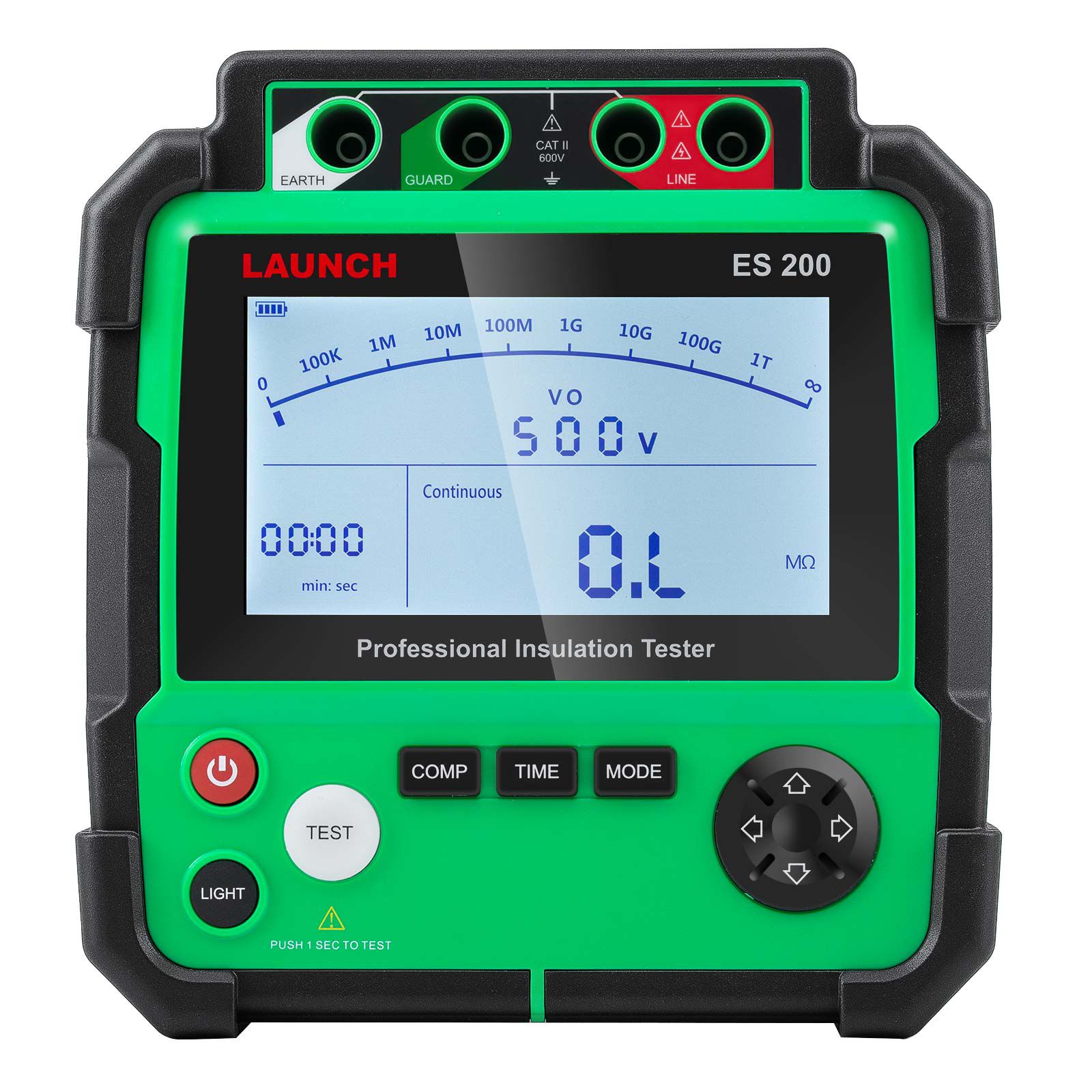

LAUNCH ES200 EV Insulation Resistance Tester
Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.
Product Features:
Product Features:
1. ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
2. Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
3. Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.
Product Specification:
Package includes:
Product Specification:
ES200 Specification
Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180*174*65.5(mm)
Weight: 1.7kg
AC and DC Voltage Test Performance Parameters
Voltage Type DC Voltage AC Voltage
Measuring Range ±30~±600V 30~600V(50/60Hz)
Resolution 1V 1V
Measurement Accuracy ±3% ±3%
Insulation Resistance Test Performance Parameters
Test Voltage: 500V 1000V 2000V 5000V
Measuring Range: 0.0MΩ～20GΩ 0.0MΩ～40GΩ 0.0MΩ～100GΩ 0.0MΩ～1000GΩ
Open Circuit Voltage: DC500V(0～20%) DC1000V(0～20%) DC2000V(0～20%) DC5000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5) 10.0GΩ～40.0GΩ: ±(10%+5) 10.0GΩ～100GΩ: ±(10%+5) 10.0GΩ～99.9G: ±Ω(10%+5)
Short Circuit Current： <3.0mA
Short Circuit Current： <3.0mA

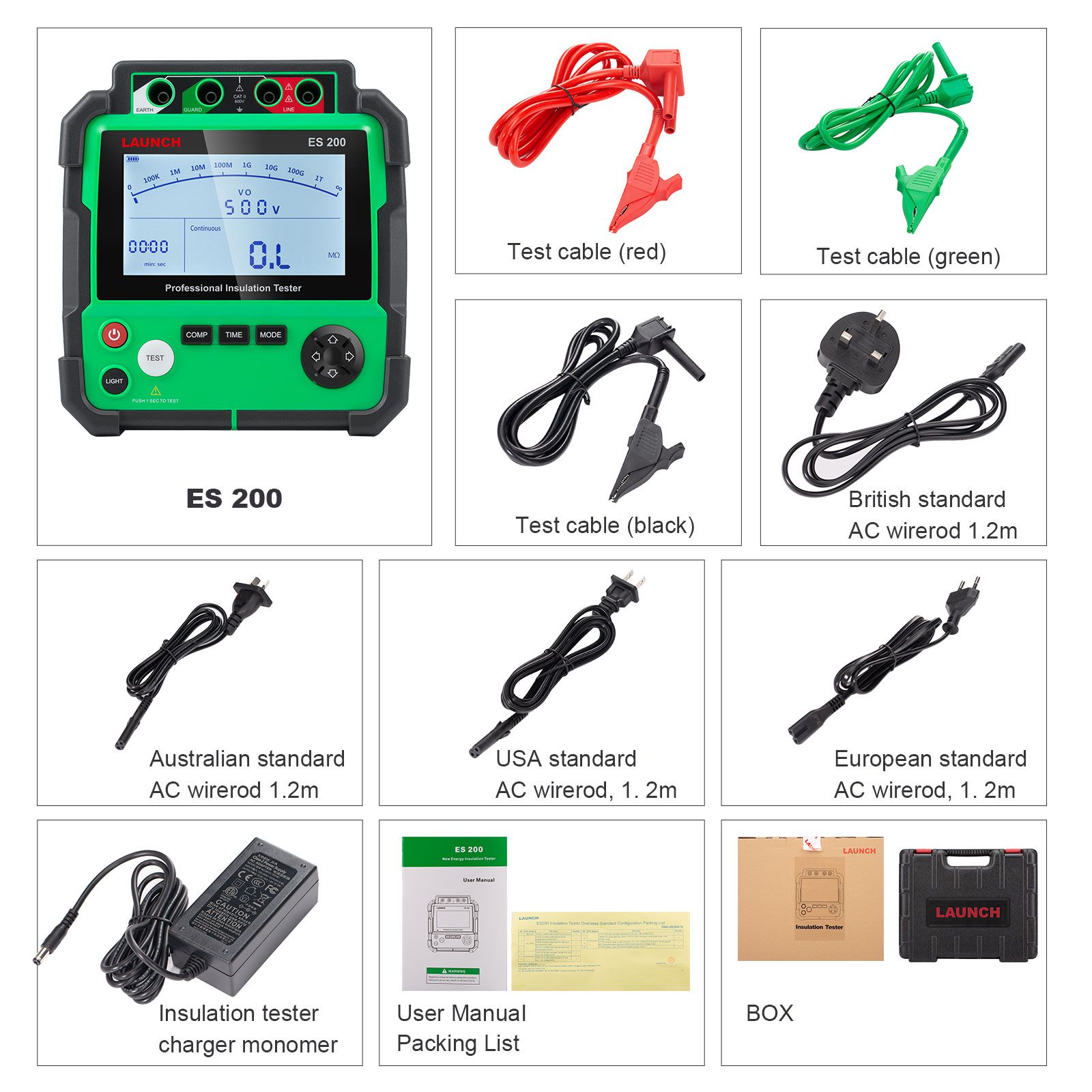

Package includes:
1pc x LAUNCH ES200 EV Insulation Resistance Tester
