AUTEL MaxiCheck MX808 Android Tablet Diagnostic Tool Code Reader

Support Update Online Free for One Year, after one year, it will cost 150usd per year.
Language: English Only

MaxiCheck MX808 Features

• Read/clear codes for all available systems
• Display live data in text, graph & analog for easy data review
• Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
• Relearn parking brake pad after replacement
• Support IMMO functions
• Support forced DPF regeneration and adjusting injectors
• Reset Steering Angle Sensor (SAS)
• Reset service mileage and service intervals
• Support TPMS sensor relearn
• Support battery registration and reset

MaxiCheck MX808 Specifications

Recommended Use

Indoor

Operating System

Android™ 4.4.4

Processor

Cortex-A9 processor (1.5 GHz)

Memory

32GB

Display

7-inch LCD capacitive touch screen with 1024x600 resolution

Connectivity

Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)

Sensors

Ambient light sensor for brightness auto changing

Audio Input/Output

Input: N/A • Output: buzzer

Power and Battery

3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply

Tested Battery Life

Around 4.5 hours of continuous use

Battery Charging Input

5 V/1.5 A

Power Consumption

500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temp.

-10 to 60°C (14 to 140°F)

Storage Temp.

-20 to 70°C (-4 to 158°F)

Operating Humidity

5% - 95% non-condensing

Dimensions (W x H x D)

237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)

Net Weight

788 g (2.42 lb.)

Supported Automotive Protocols

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

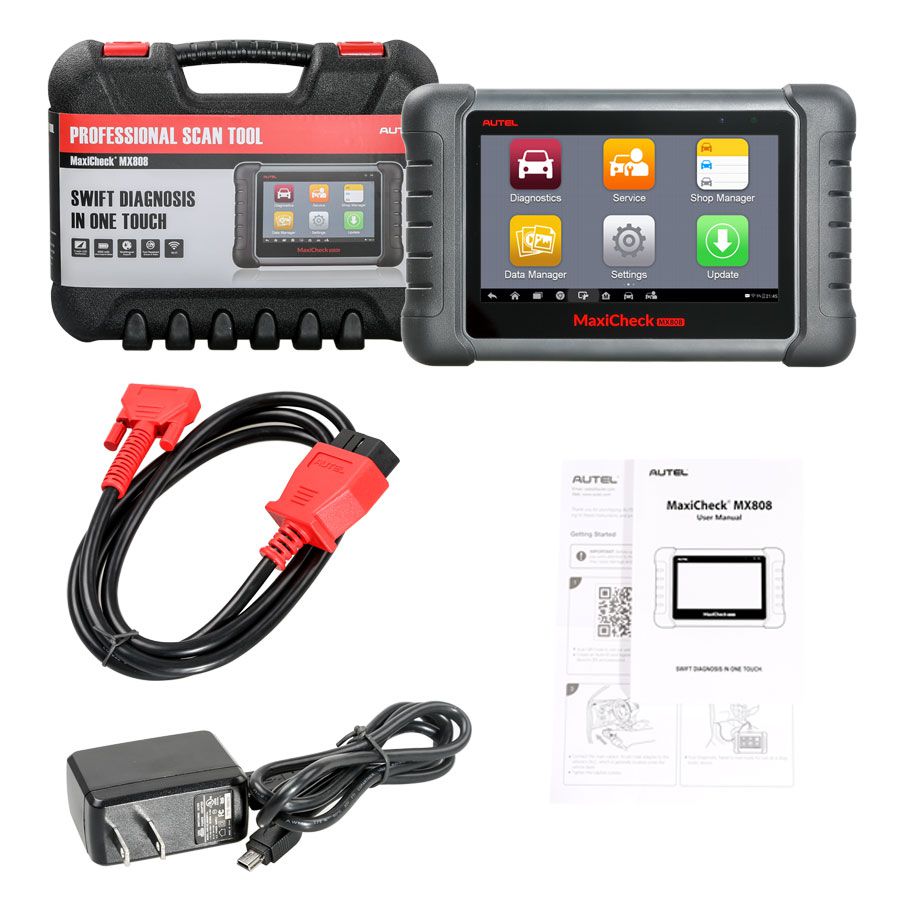

Accessories

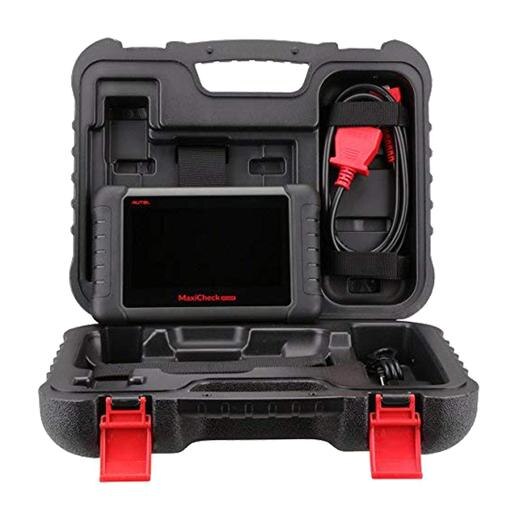

• 1x MX808 Main Unit

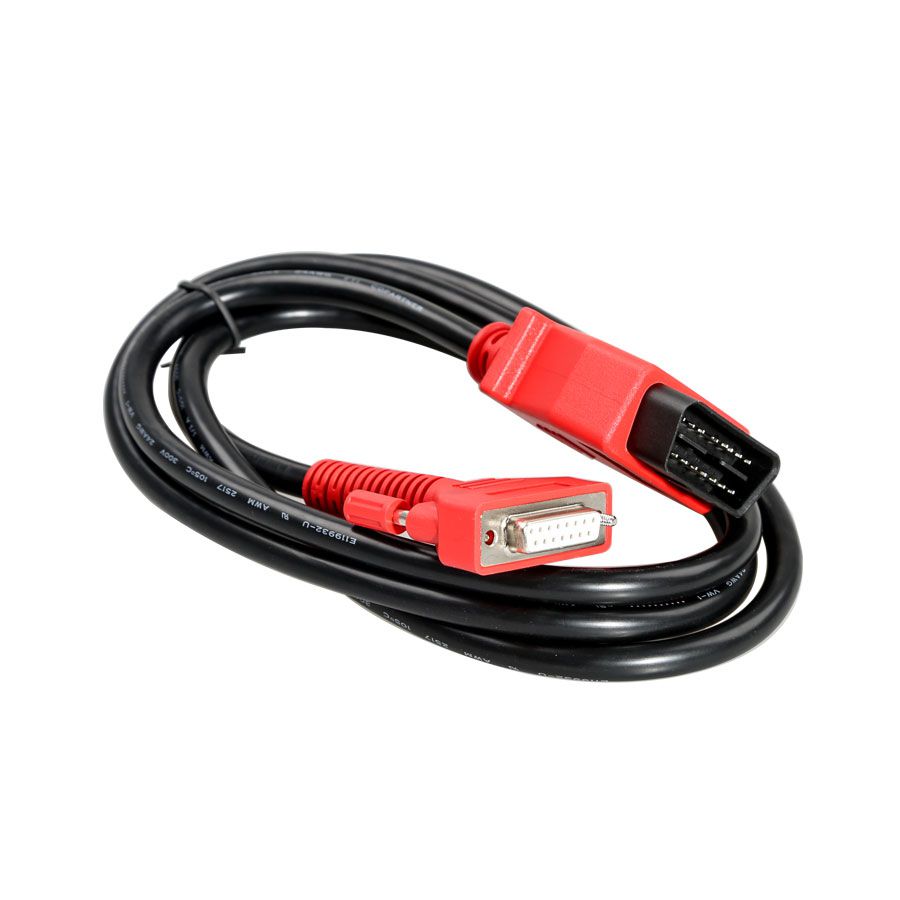

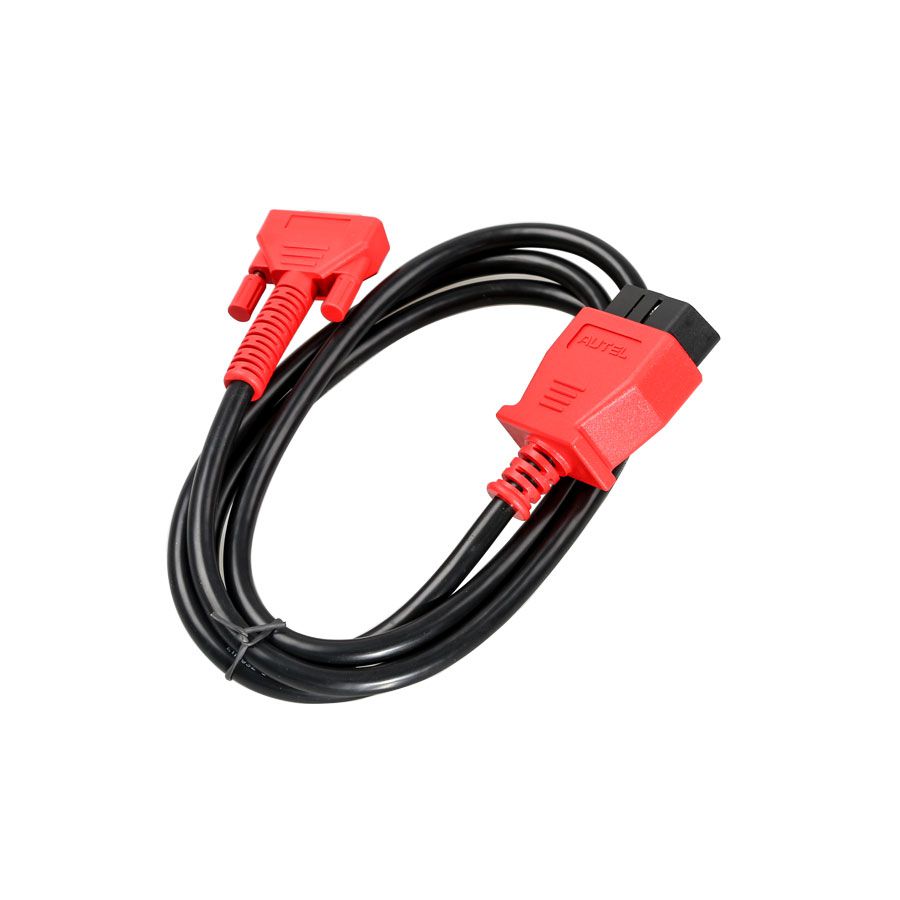

• 1x Main Cable
• 1x USB External Power Adapter

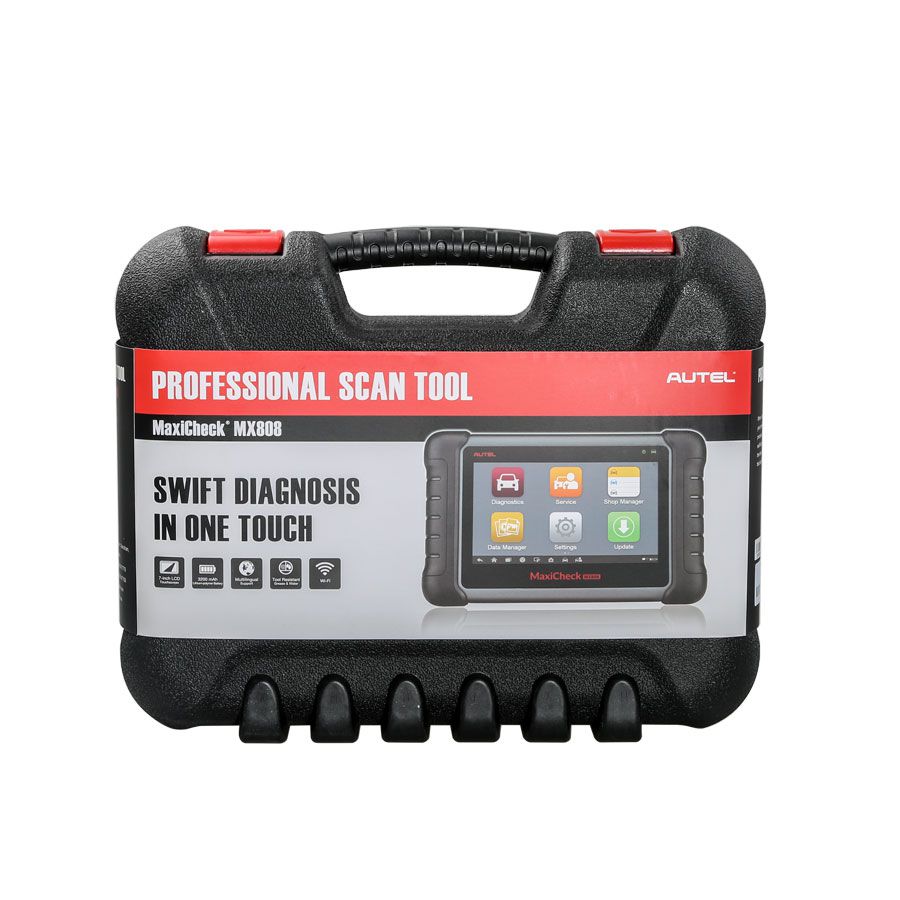

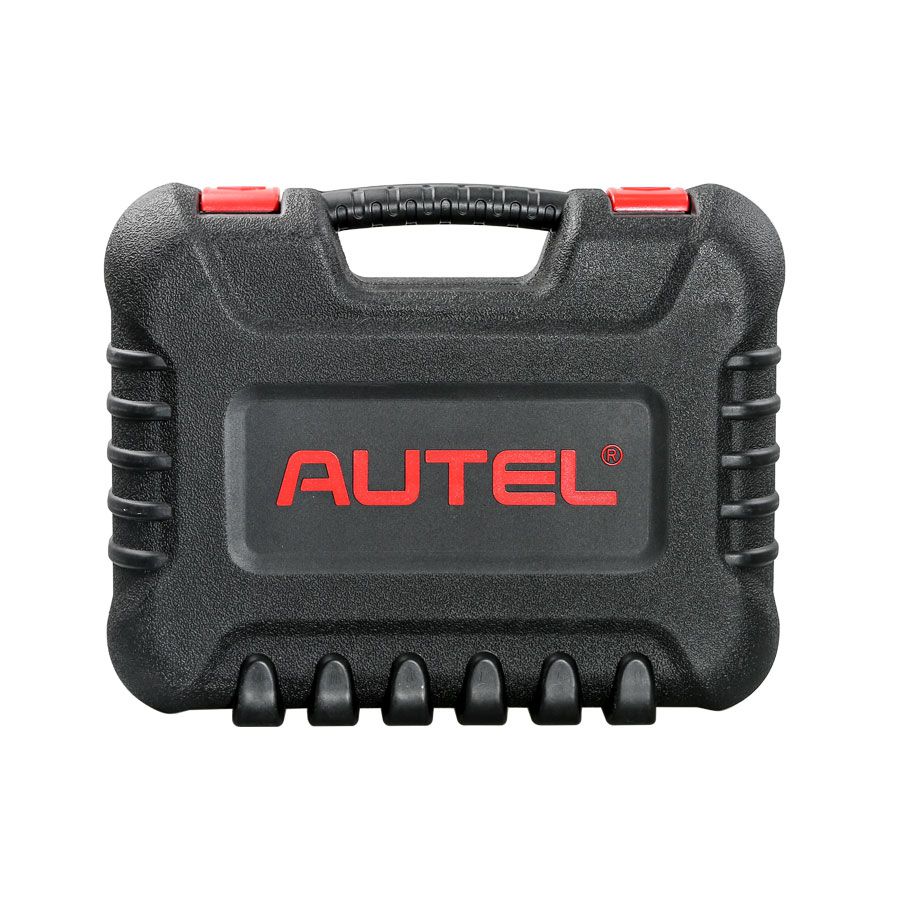

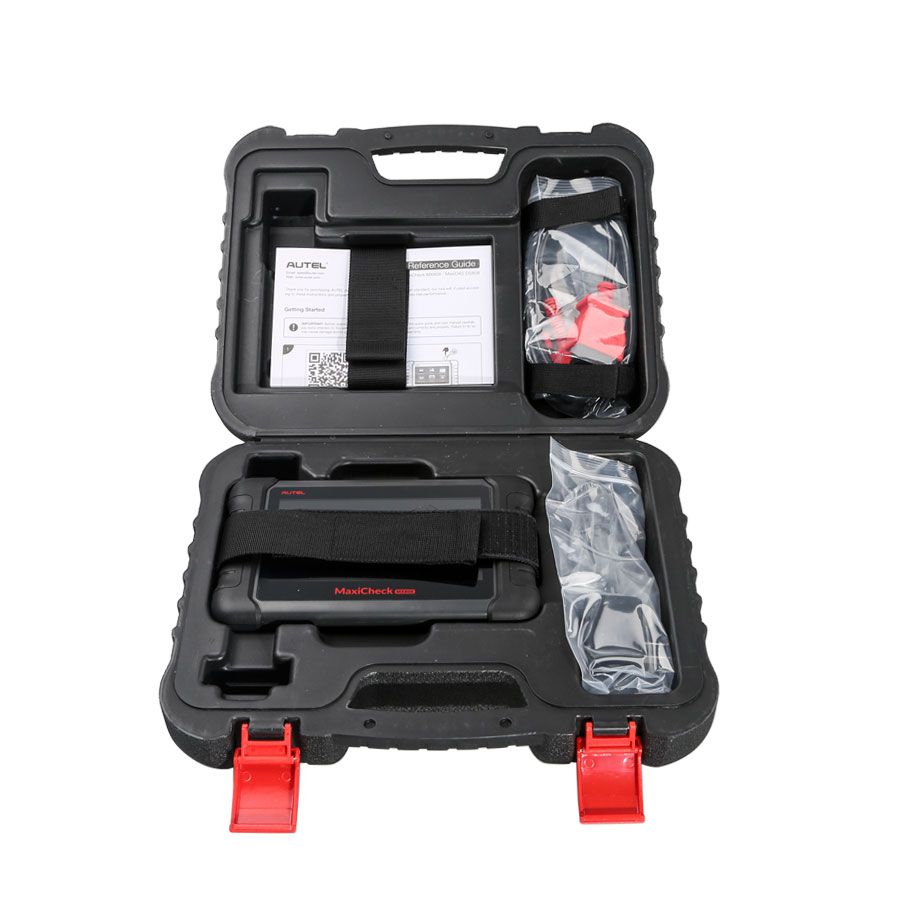

• 1x Carry Case
• 1x Mini USB Cable

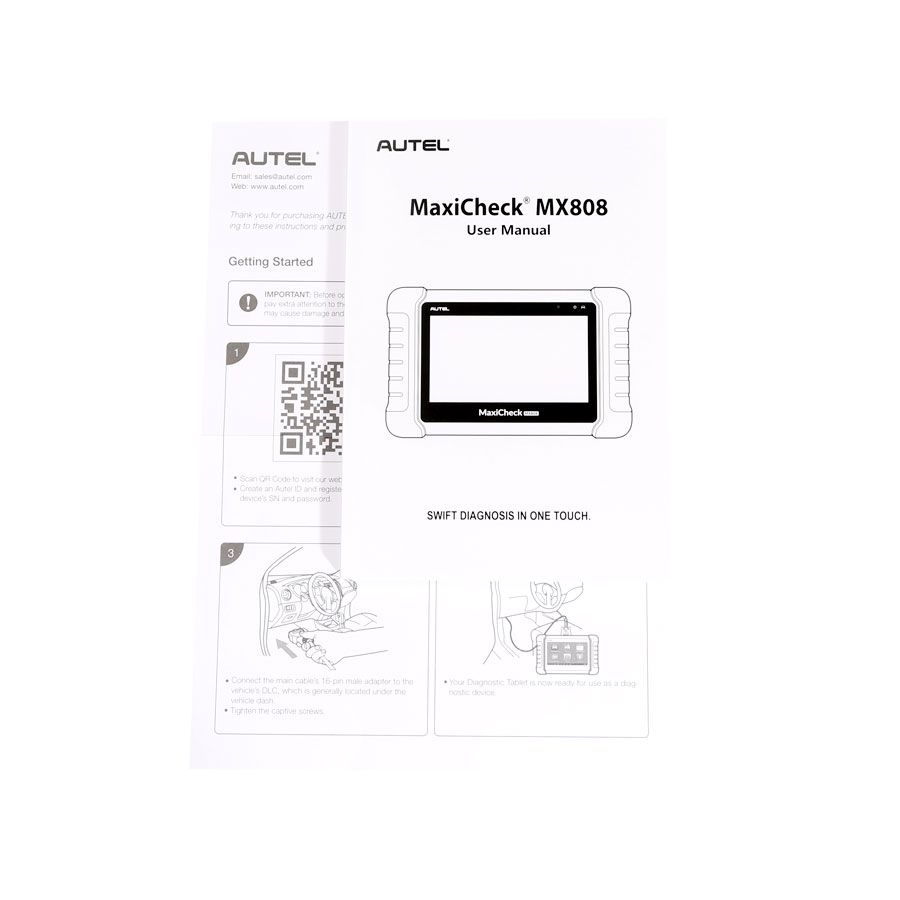

• 1x User Manual
• 1x Quick Reference Guide
