HDS272 Oscilloscope
Features:

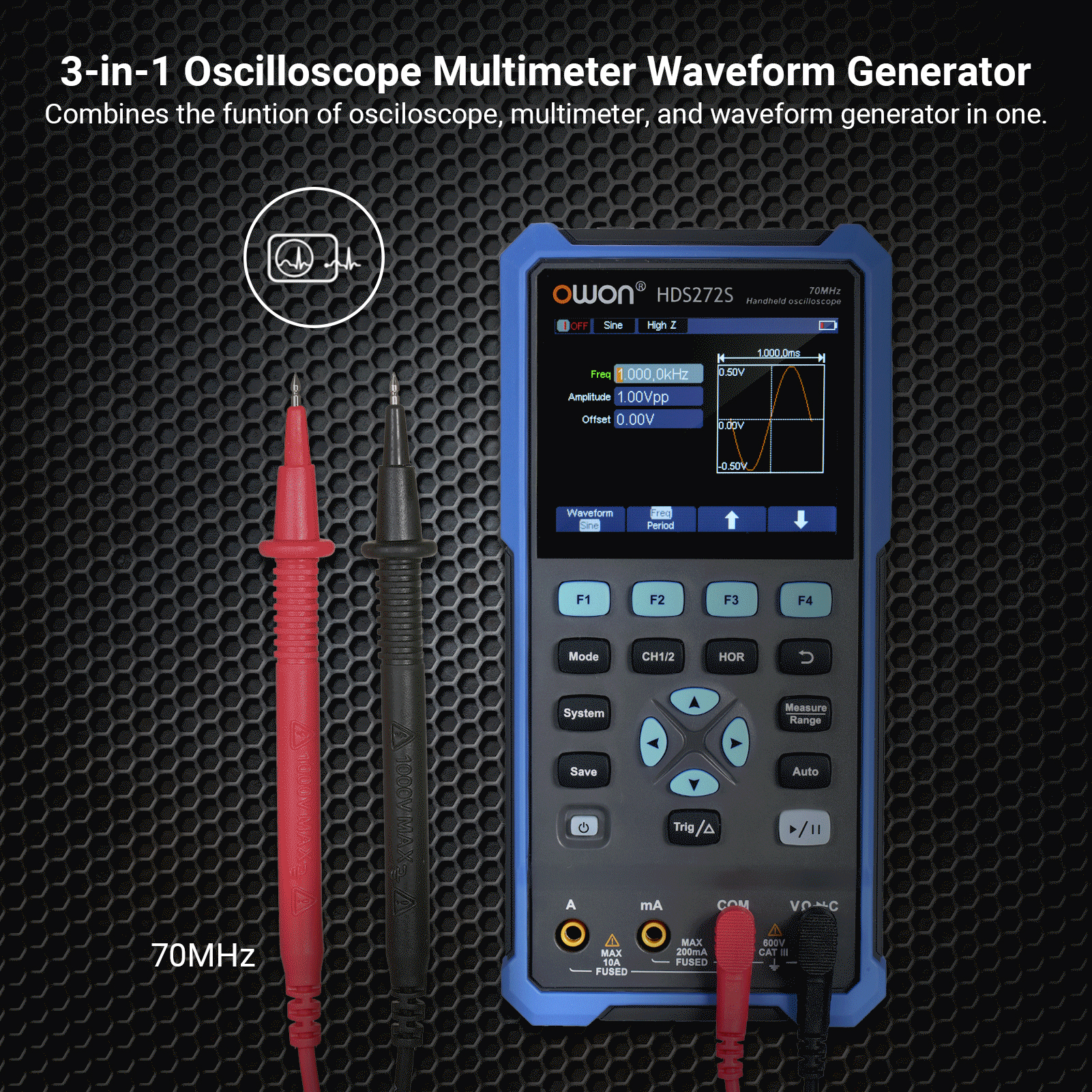

Versatile Handheld Test Instrument -- Handheld Oscilloscope Function + Digital Multimeter Function + Waveform Generator, 3-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, compact size with stand bracket suit for outdoor maintenance, rapod on-site measurement, automobile maintenance, power detection, etc.
Ergonomic Design -- 3.5-inch high-resolution, high-contrast color LCD display; High reliability with self-calibration function; SCPI supported through USB Type-C interface you can analyze and print data from the oscilloscope. 2pcs 2200mAh 18650 lithium battery, less then 3W power consumption can work continuously for about 6 hours; Included USB Type-C cable for convenient charging.

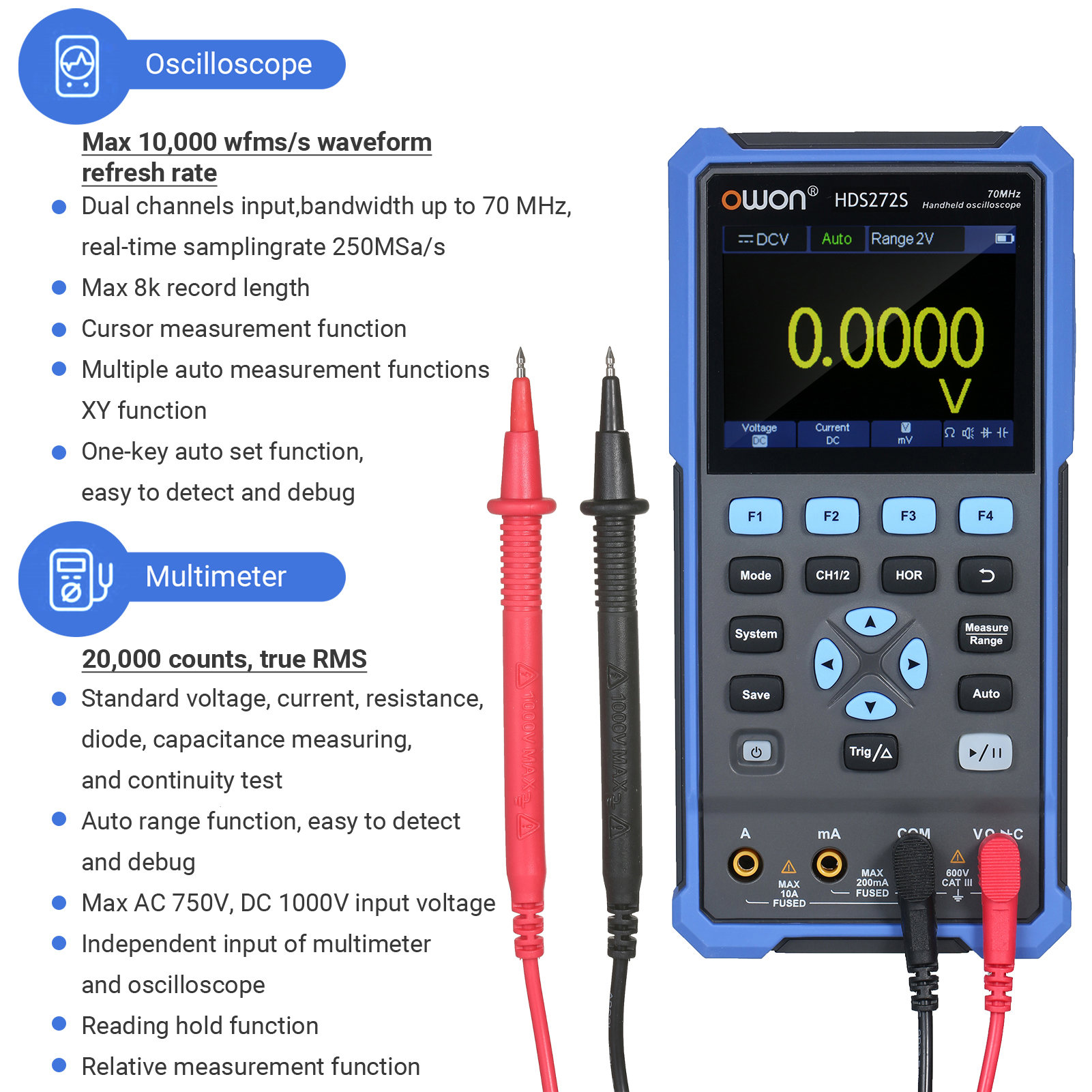

Digital Oscilloscope Main Function -- 2-channel input, 70MHz bandwidth, 250MSa/s real-time sampling rate, Max 8k record length. Cursor measurement function; Multiple auto measurement functions; XY function; One key auto set function, easy to detect and debug.
Digital Handheld Multimeter -- Auto ranging 20000 counts true RMS multimeter with hold function can be used to measure standard voltage, current, resistance, diode, capacitance and continuity test, easy to detect and debug. Max AC 750V, DC 1000V input voltage; Independent input of multimeter and oscilloscope support relative measurement function.
Waveform Generator -- Max 25MHz frequency output, 0.1Hz resolution; 14-bit vertical resolution, 125MSa/s high sampling rate; 8K waveform length, Max 5Vpp output amplitude. Output sine, square, ramp, pulse and built-in special waveforms.

Specification:

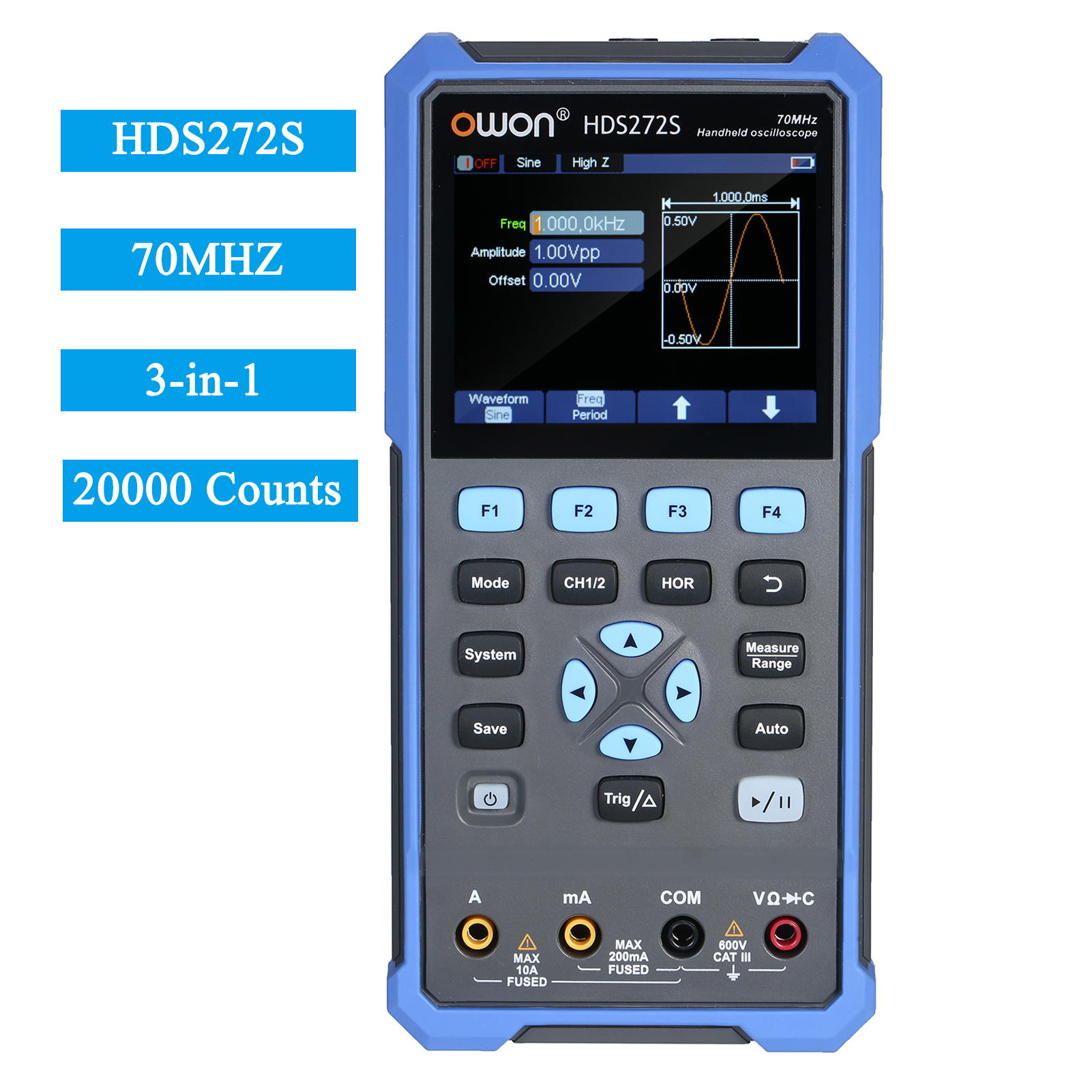

Brand: OWON
Model: HDS272S
Function: Oscilloscope+ Multimeter + Waveform Generator
Plug: US/EU/UK (optional)
Battery: 2 * 2200mAh 18650 Lithium Battery
Charging Method: USB Type-C
Product Size: 198*96*38mm
Product Weight: Approx. 0.6kg (main device, without battery)

Oscilloscope Specifications:
Bandwidth: 70MHz
Bandwidth Limit (typical): 20MHz
Channels: 2-CH Oscilloscope + 1-CH Generator

Sample Rate: 250MSa/s
Record Length: 8K
Vertical Resolution: 8 bits

Acquisition Model: Normal, Peak detect
Display: 3.5-inch LCD
Waveform Refresh Rate: 10,000 wfrms/s
Input Coupling: DC, AC, and Ground
Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors: 1X,10X,100X,1000X
Max. input Voltage: 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Horizontal Scale: 5ns/div - 500s/div, step by 1 - 2 - 5
Vertical Sensitivity: 10mV/div - 10V/div
Trigger Type: Edge
Trigger Modes: Auto, Normal, single
Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Communication Interface: USB Type-C

Multimeter (Standard):
Max. Resolution: 20,000 counts
Testing Mode: Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance: 10MΩ
Max Input Voltage: AC 750V, DC 1000V
Max Input Current: DC: 10A AC: 10A
Diode: 0 - 2V

Waveform Generator:
Channel: 1-CH
Vertical Resolution: 14bits
Waveform Length: 8K
Sampling Rate: 125MSa/s
Frequency Output:
Sine: 0.1Hz - 25MHz
Square: 0.1Hz - 10MHz
Ramp: 0.1Hz - 1MHz
Pulse: 0.1Hz - 5MHz
Arbitrary: 0.1Hz - 5MHz
Amplitude Range: 20mVpp-5Vpp
Output Impedance: 50Ω

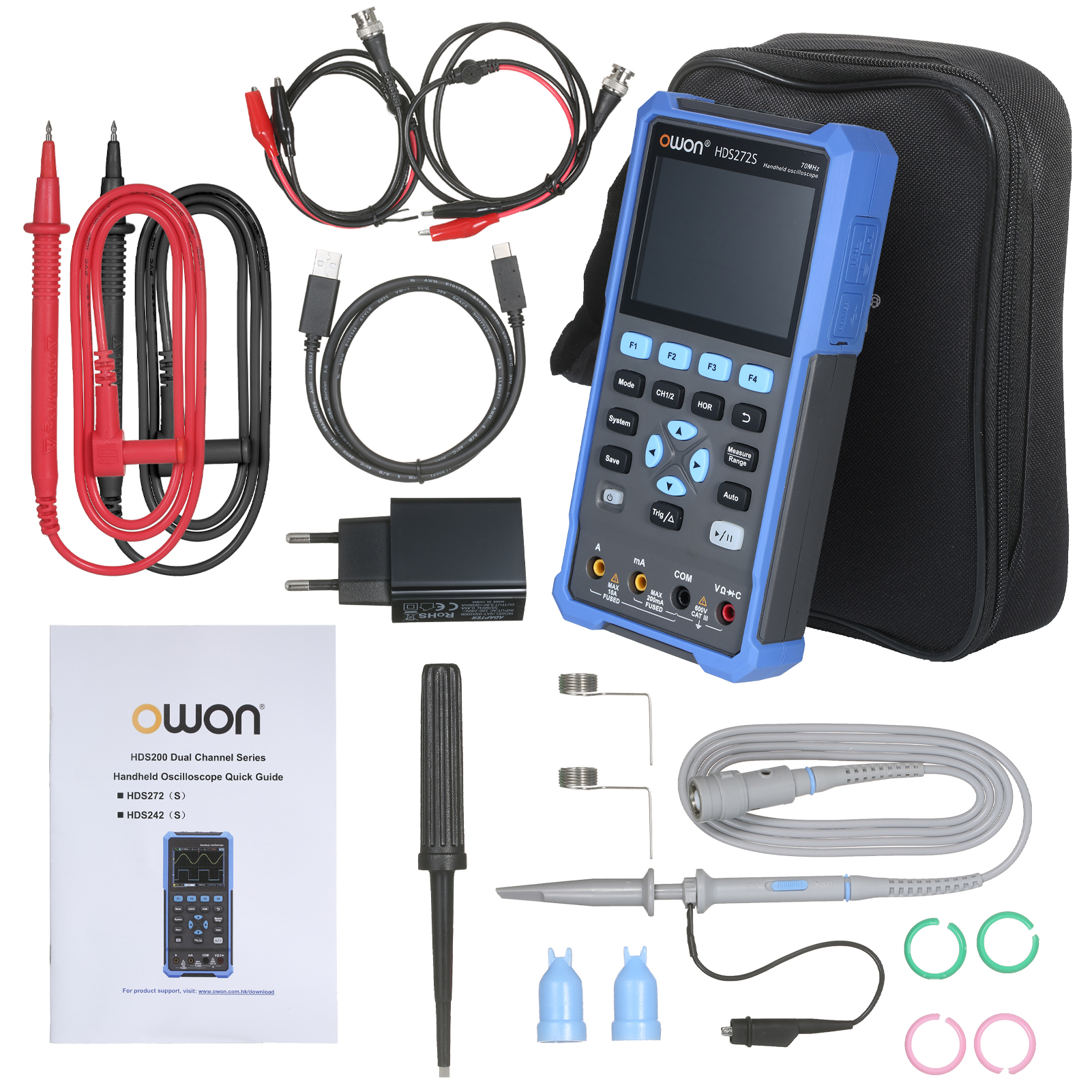

Packing List:
1 * Handheld Digital Oscilloscope Multimeter
1 * Quick Guide
1 * USB Cable
1 * Probe Adjust
1 * Multimeter Lead
1 * Soft Bag
1 * Bolt Driver
1 * Probe
1 * BNC to Alligator Clip
