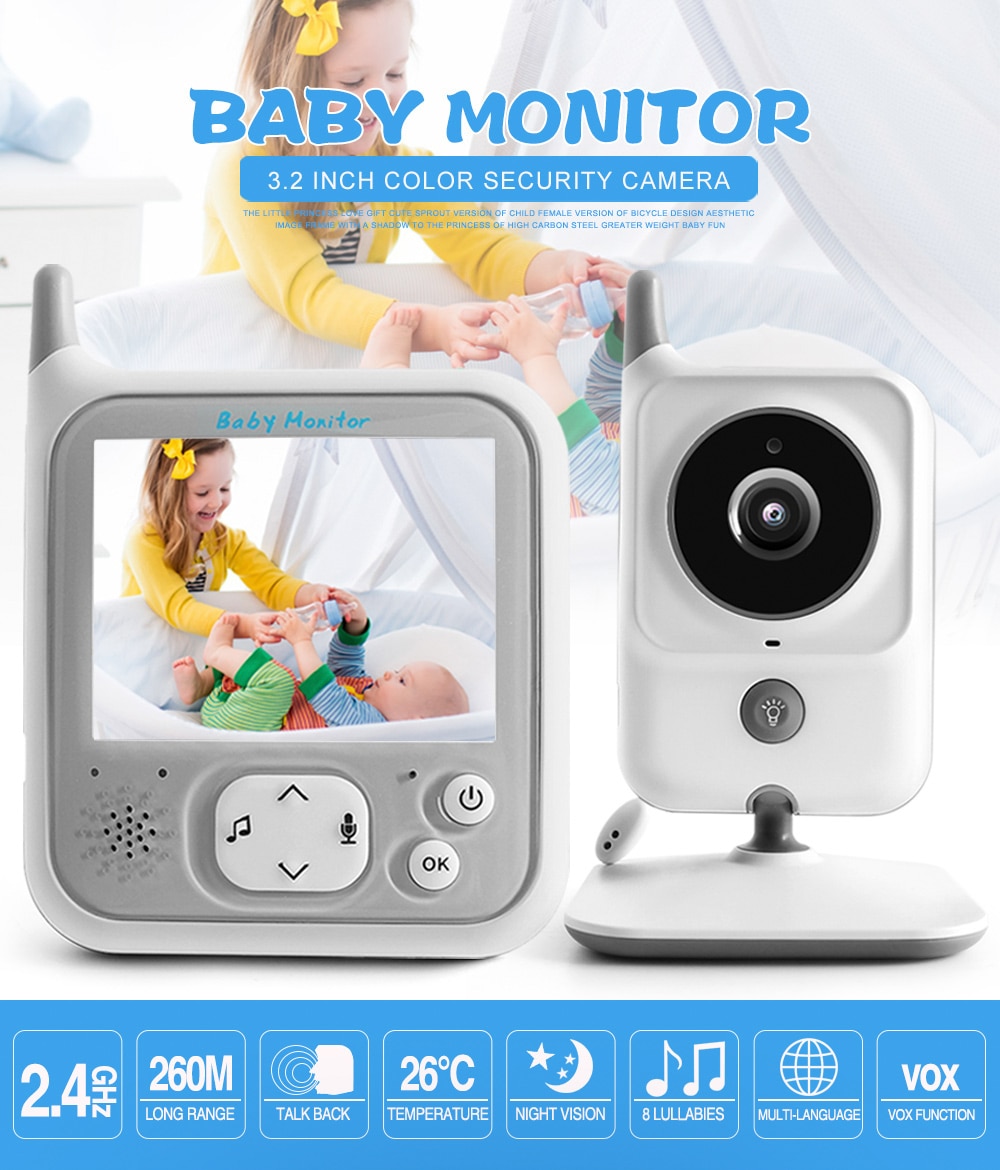

Baby Monitor
3.2 Inch Color Security Camera

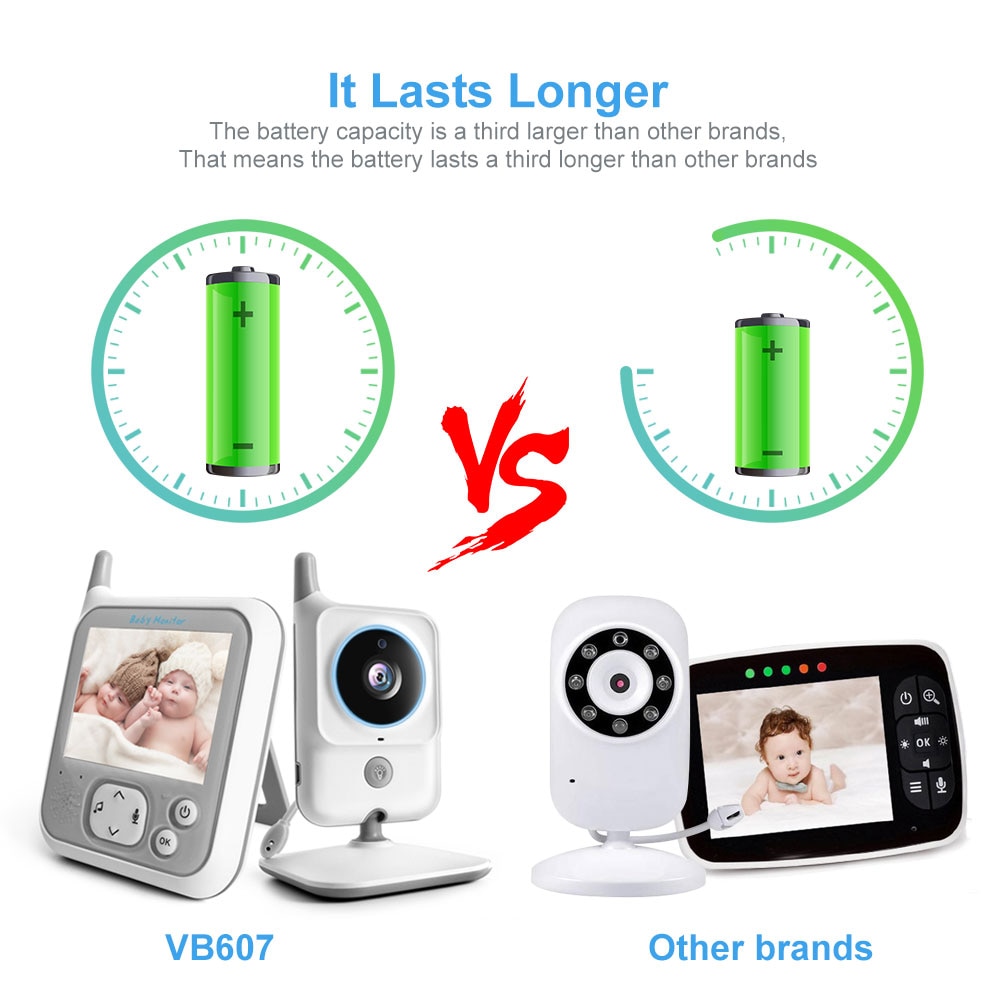

It Lasts Longer
The Battery Capacity Is 1/3 Larger Than Other Brands
Which Means The Battery Life is 1/3 Longer Than Other Brands

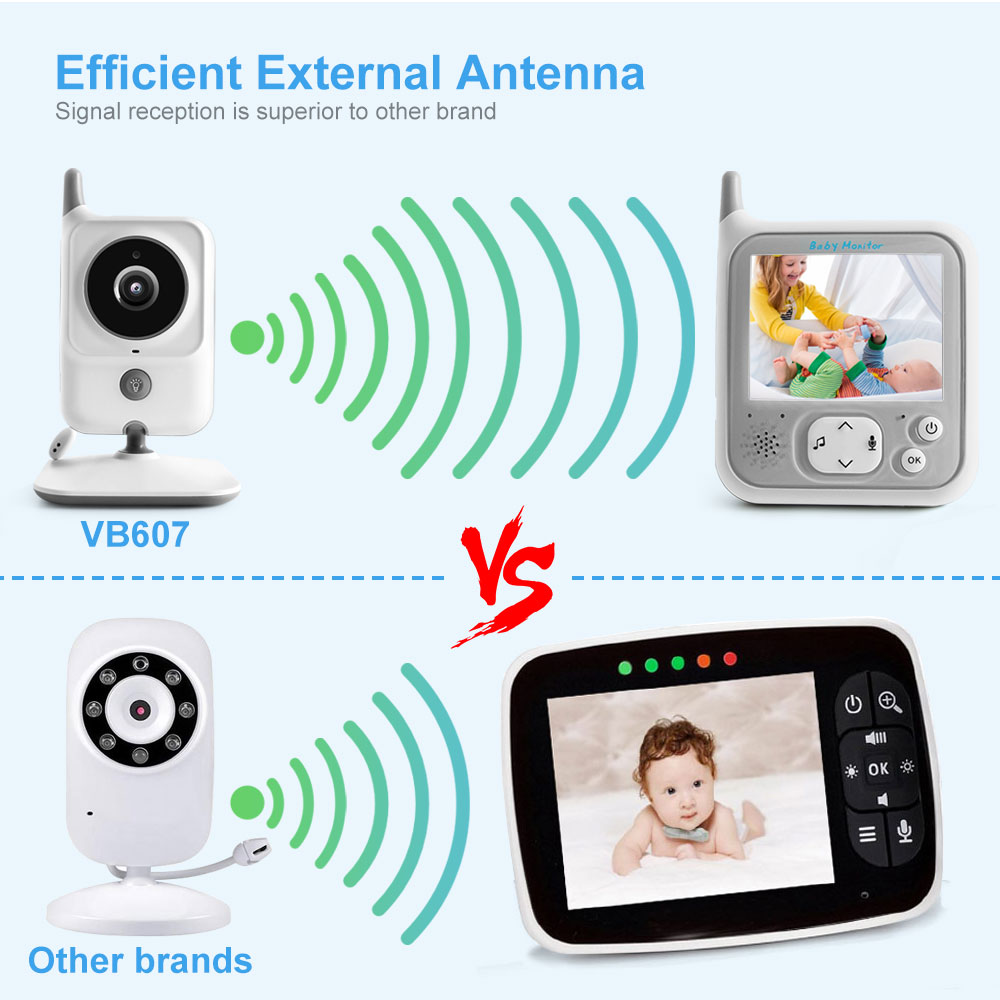

Efficient External Antenna
Signal Reception Is Superior Than Other Brands

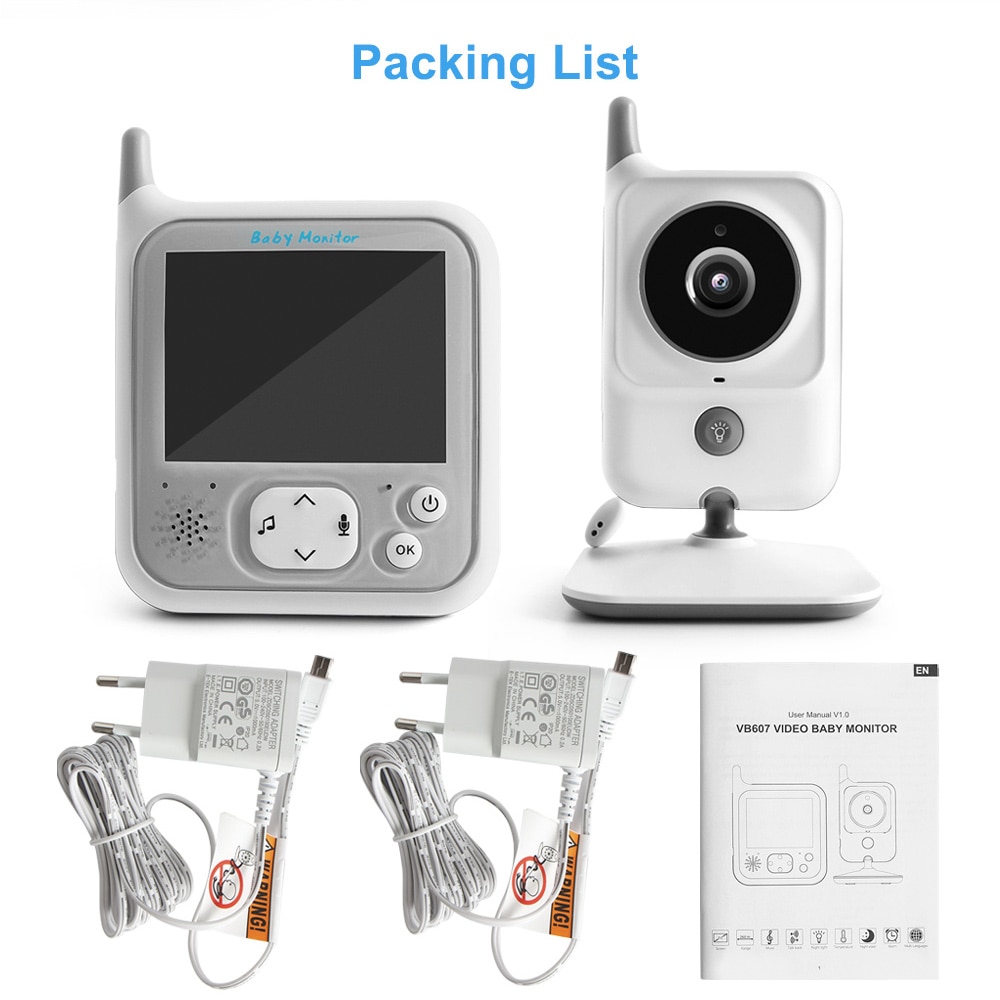

Packing List
Model: VB607
Product Description:
Small size
- Portable design, convenient to carry
Temperature display
- With temperature sensor, supervise baby's room temperature all the day, help to care your baby's health

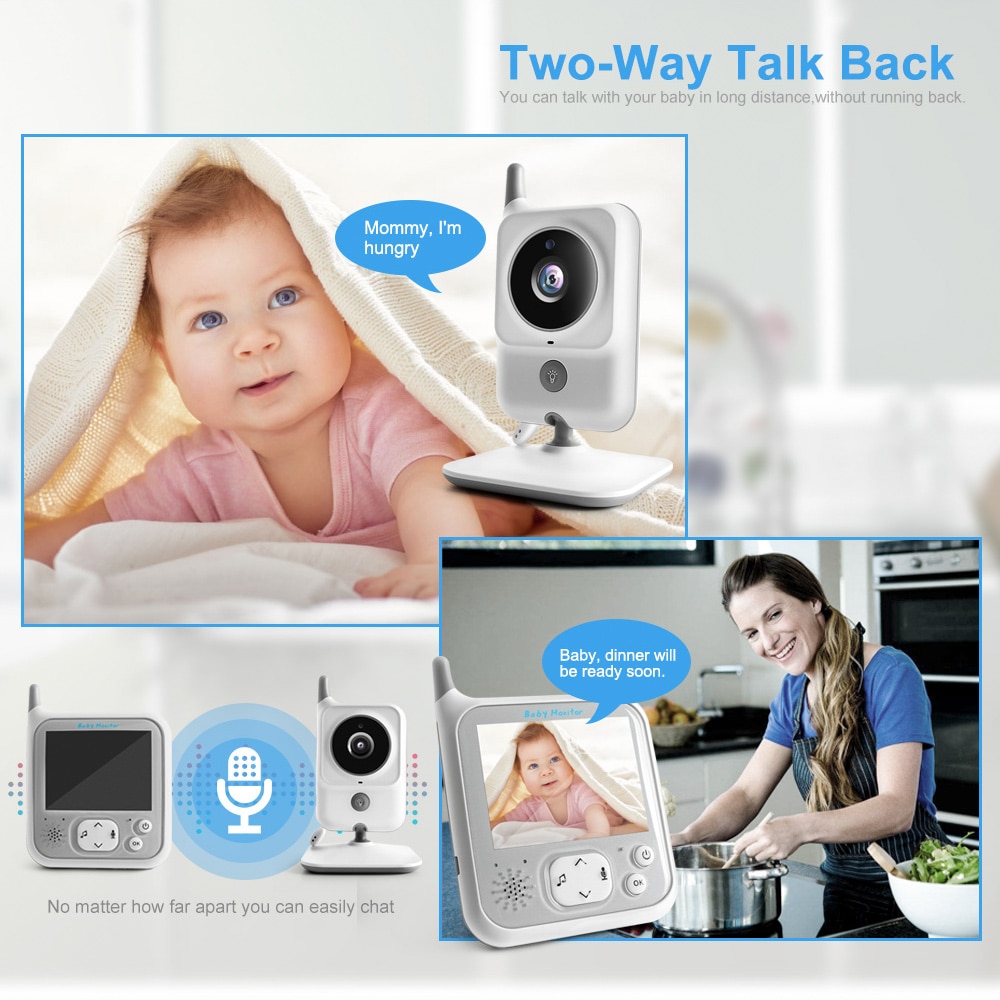

2-way talk back & Unobstructed effective range

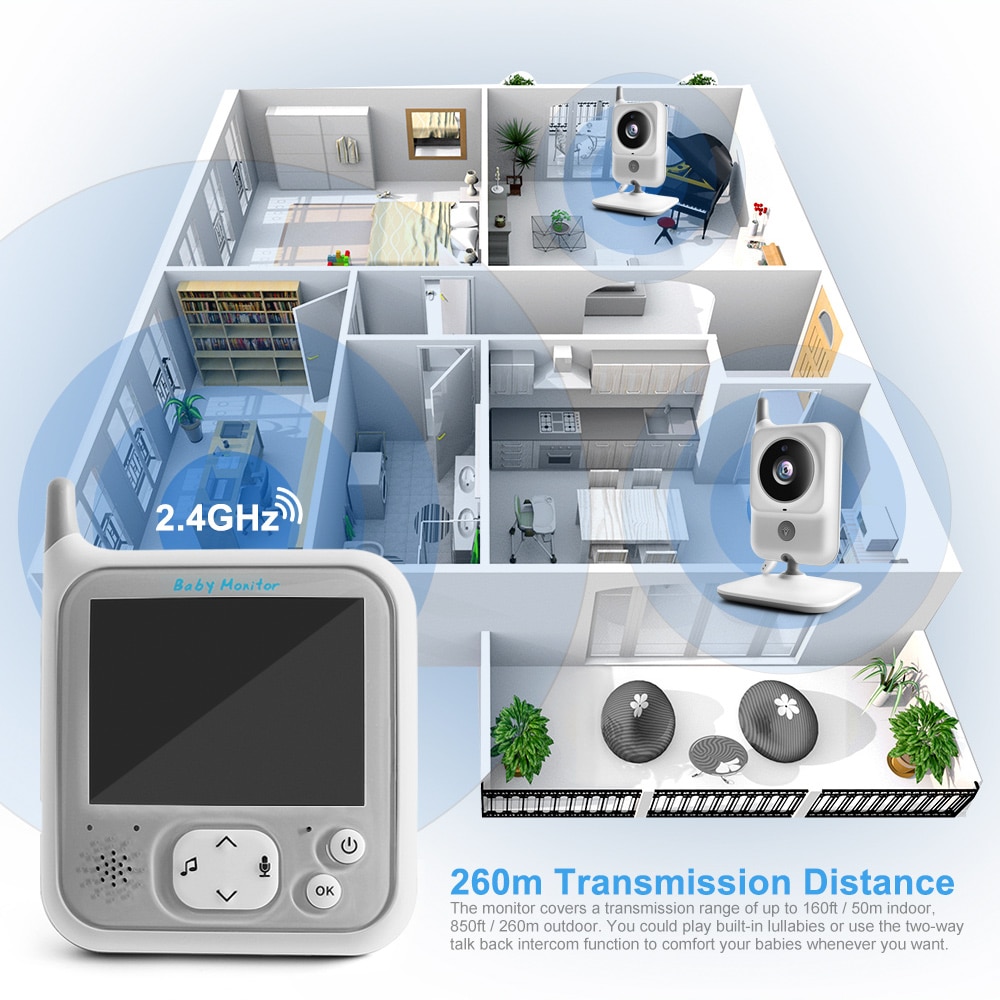

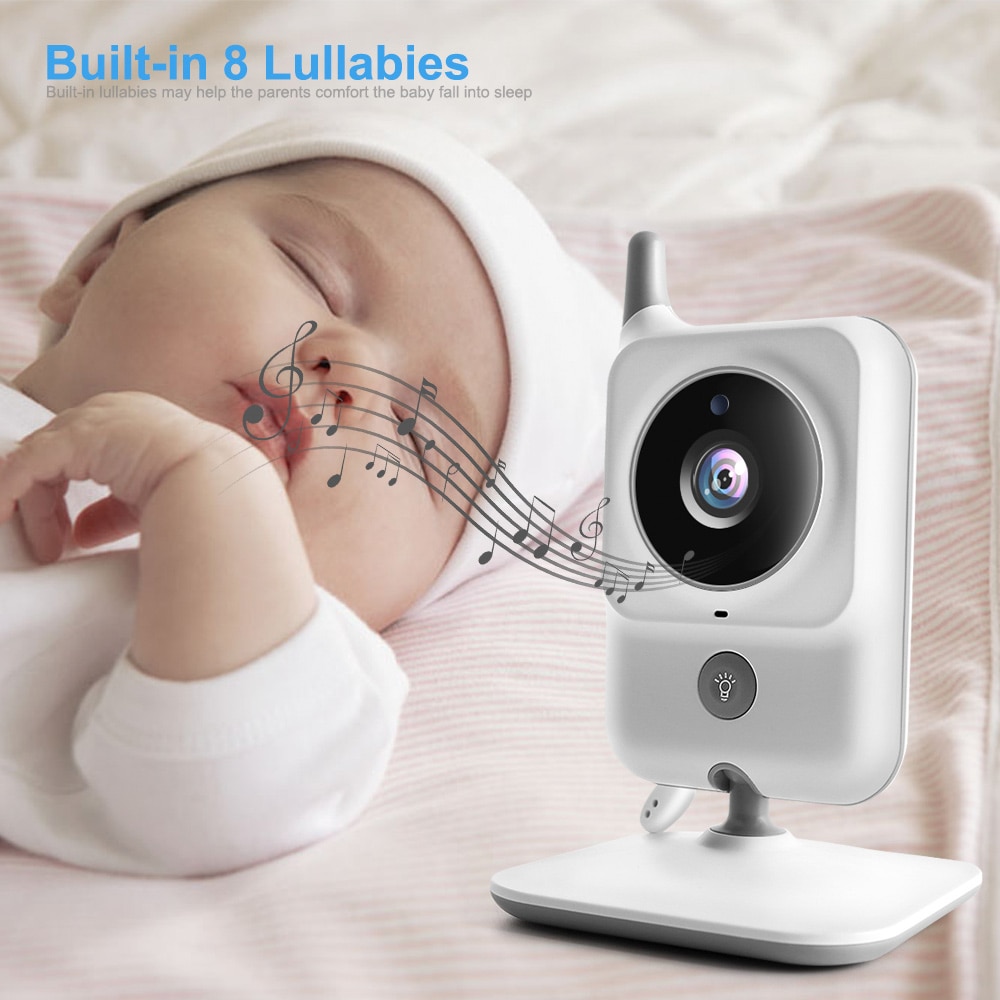

- The monitor covers a transmission range of up to 160ft / 50m indoor, 850ft / 260m outdoor. You could play built-in lullabies or use the two-way talk back intercom function to comfort your babies whenever you want

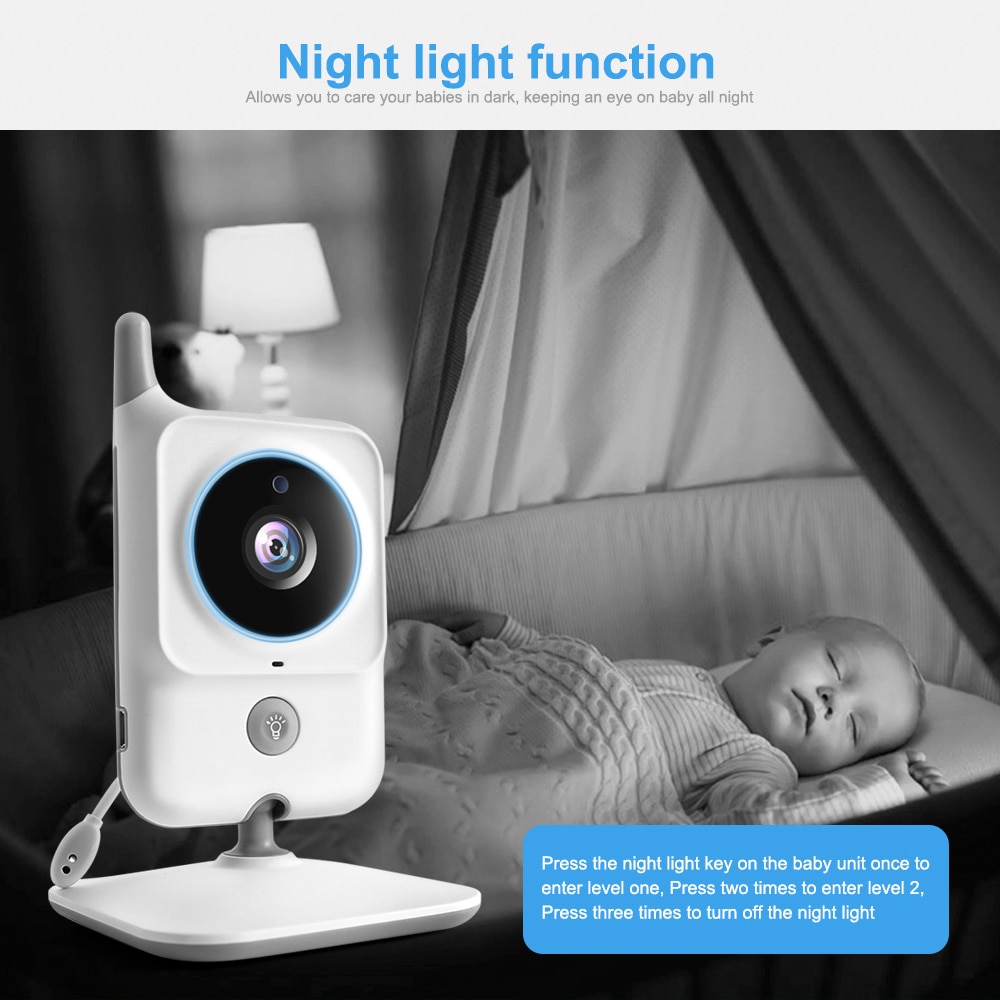

Automatic night vision
- Allows you to care your babies in dark, keeping an eye on baby all night
3.2 inch high contrast color LCD monitor
- This video baby monitor is equipped a 3.2 inch LCD screen and connected to the baby camera via enhanced 2.4GHz wireless technology, clearly show our babies without WiFi interference
Long battery life
- Up to 24 hours in Vox mode

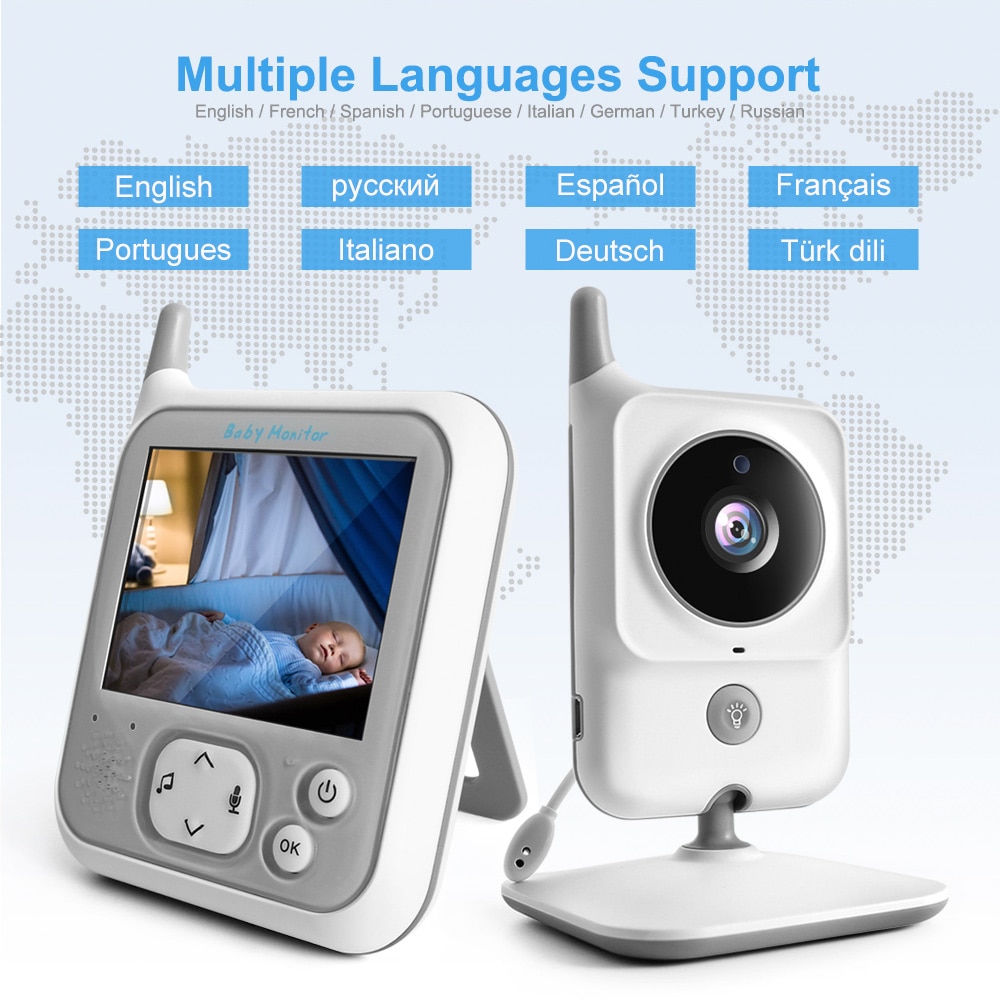

Multiple languages support
- English / French / Spanish / Portuguese / Italian / German / Turkey / Russian
Specifications:
General:
Transmission frequency: ISM 2400 - 2483.5 MHz
Transmission power: 17dBm
Unobstructed effective range: 160ft / 50m indoor, 850ft / 260m outdoor, line of sight
Spread spectrum: AFH and TDMA ( Frequency-hopping spread spectrum and Time division multiple access )
Modulation mode: GFSK
Operating temperature: 32 - 104 Degree Fahrenheit / 0 - 40 Degree Centigrade
Operating humidity: under 85 percent
Monitor:
LCD size: 3.2 inch
Resolution supported: 320 x 240 pixel
Receiving sensitivity: -90dBm
Consumption current: 200mA
Battery: Li-ion / 1150mAH
Power supply: 5V / 1000mA DC
Weight: 0.139kg
Camera:
Image sensor: COMS
Total picture pixels: 640 x 680
Minimum illumination: 0 Lux ( IR on )
Night vision distance: 15 ft ( 5m )
Power consumption: 200mA
Power supply: 5V / 1000mA DC
Weight: 0.079 kg
Using Methods:
Step 1: connect the mains socket to get start the baby unit, a blue light led will display when working
Step 2: charging the parent unit fully before using, press and hold the power key at least 3 seconds to turn on it

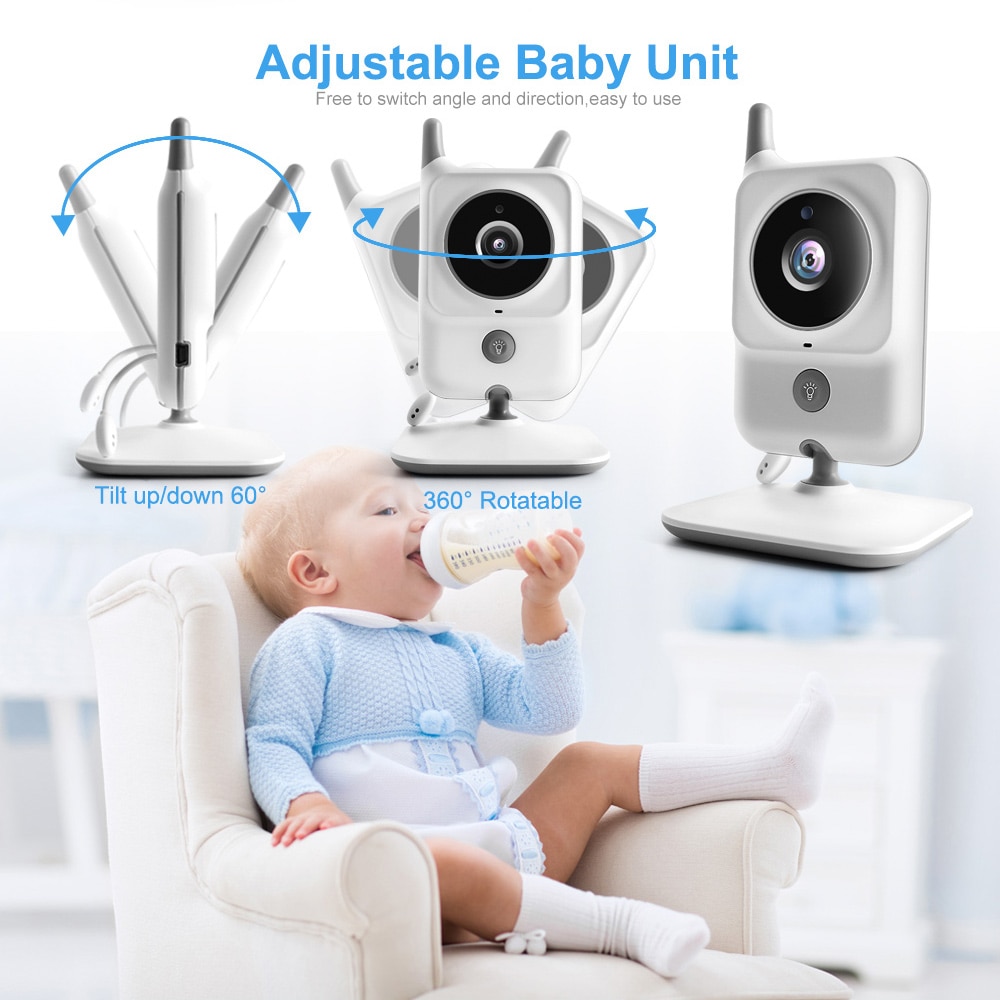

Step 3: place the baby unit in a convenient location and adjust the camera until you are satisfied with the image in the parent unit
Powered Source: Electric
Display type: Color
Feature: LCD Display,Music,Nightvision,Portable,Two Receiver
Pattern Type: Solid
Battery: Yes
LCD Size: 3.2 inch
Batteries Required: Yes
Alert type: None
Frequency(GHz): 2.4
Technical Feature: Other
Viewing Angle: Diagonal 45 degree
camera performance: Night Vision
Resolution: 320 x 240
Package weight: 0.54 kg
Package size (L x W x H): 20.2 x 16.7 x 7.0 cm / 7.95 x 6.57 x 2.75 inches
Package Contents:
1 x VB607 Baby Monitor

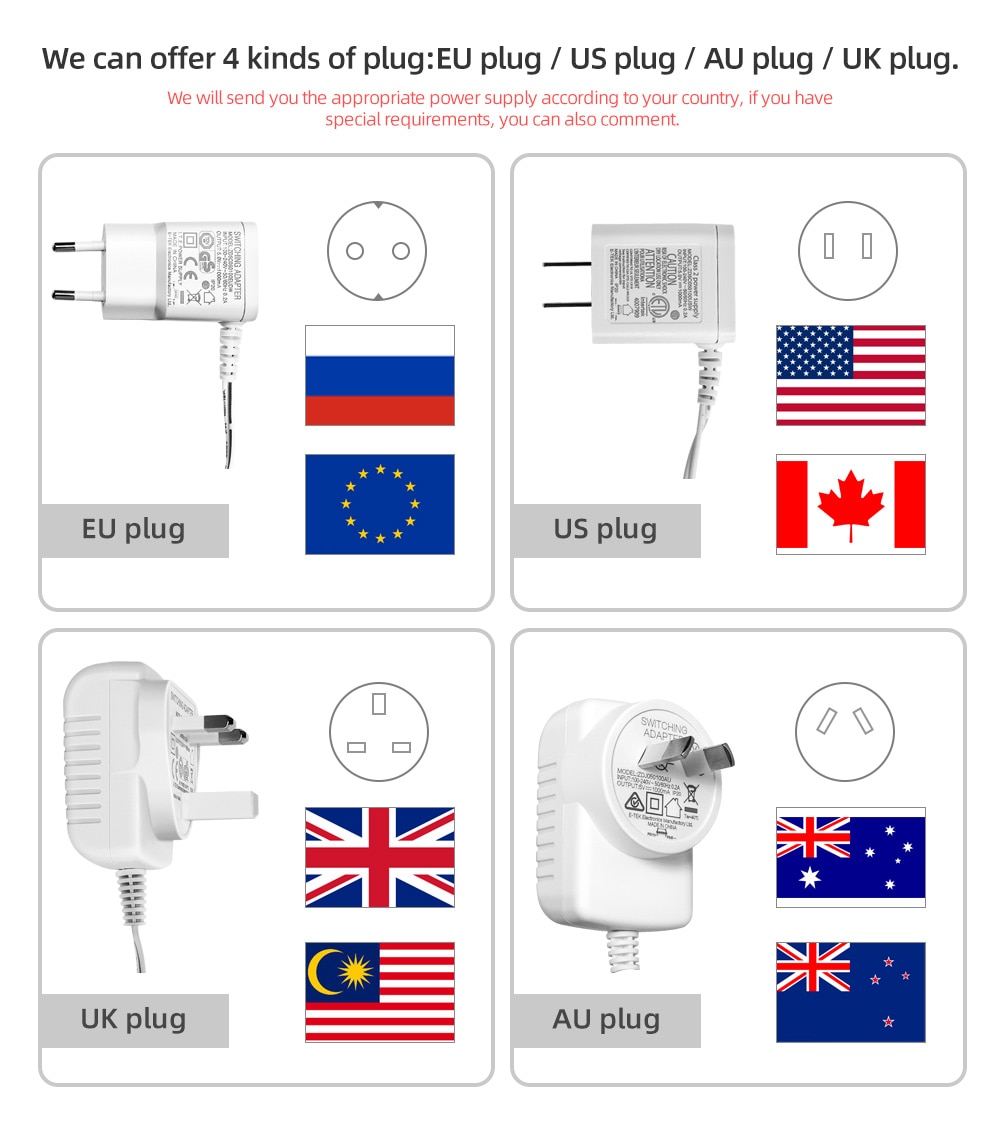

2 x Power Adapter
1 x English User\'s Guide
