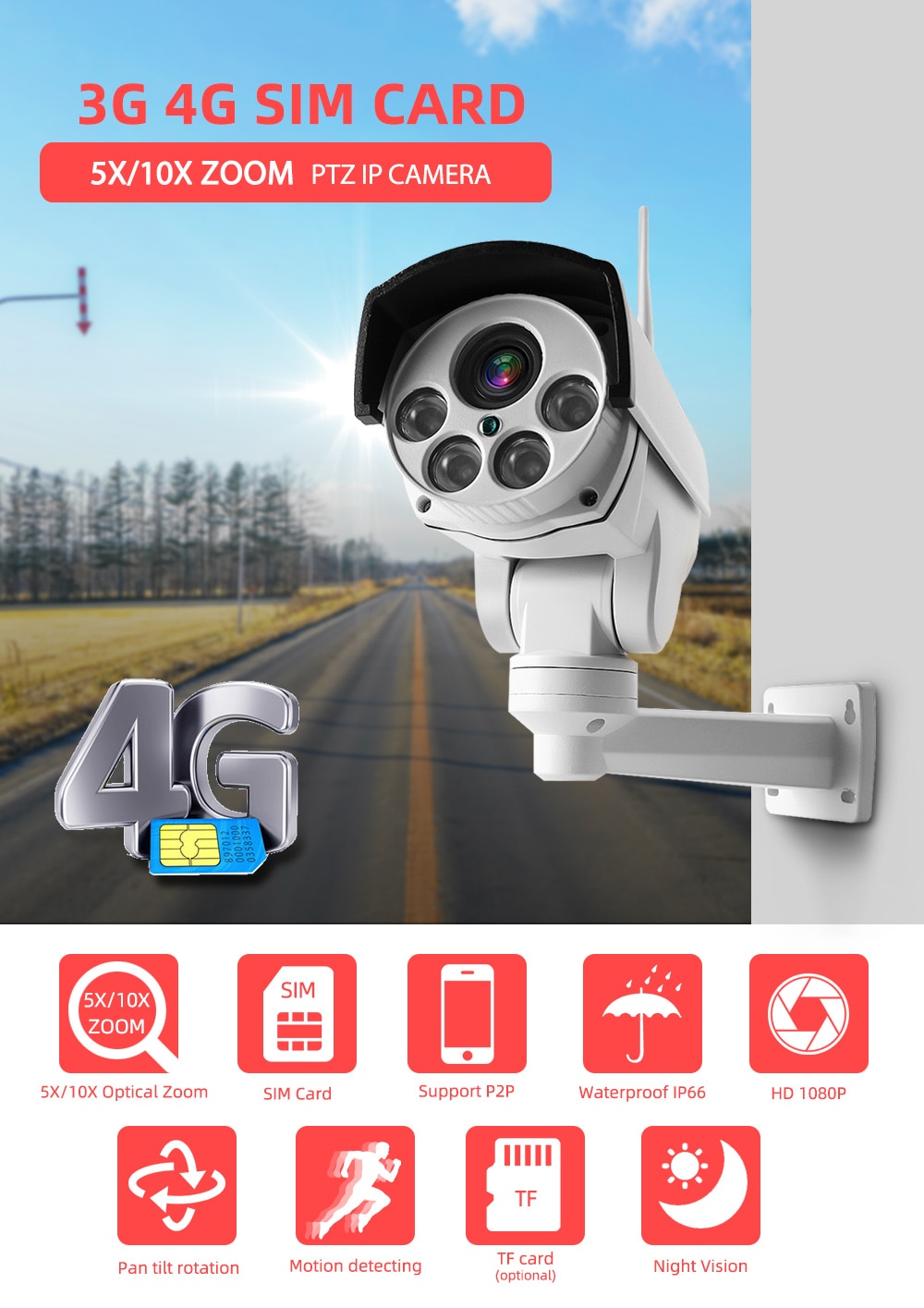

5X /10X ZOOM PTZIP CAMERA
USAGE SCENARIOS

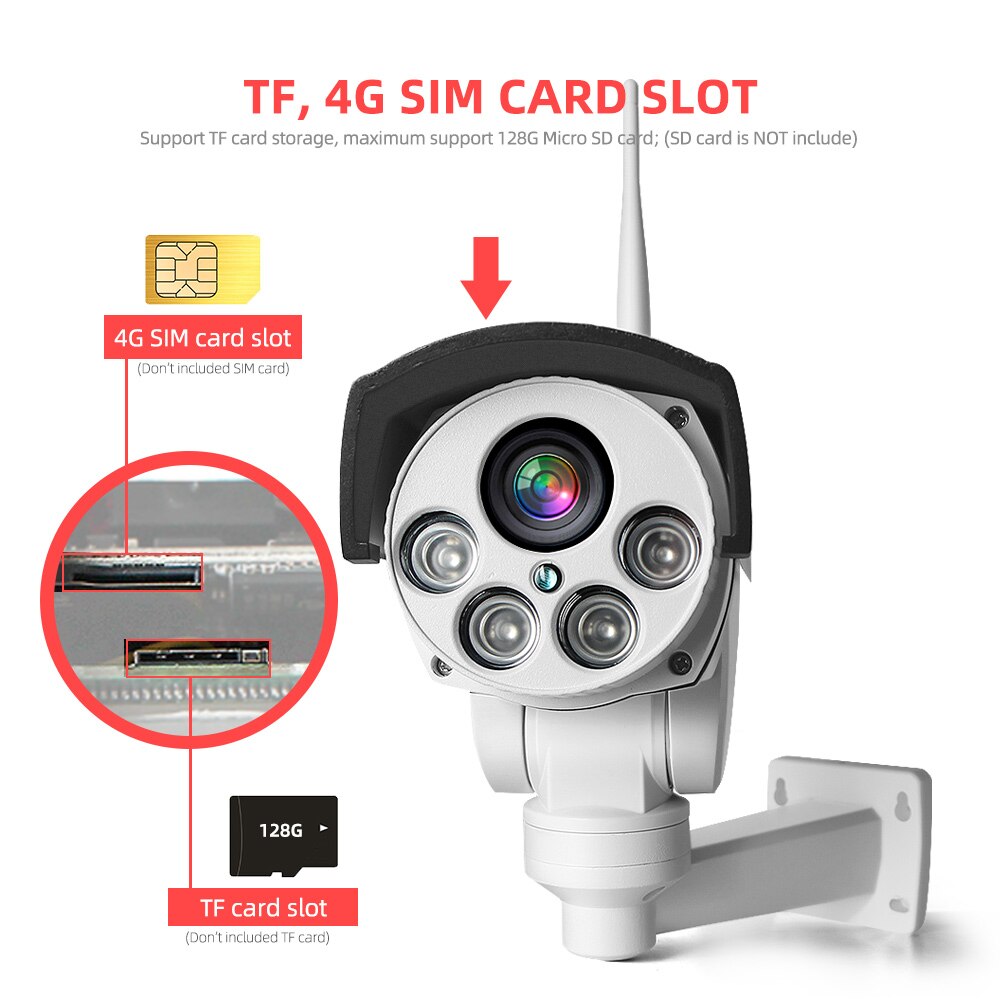

TF 4G SIM CARD SLOT
Support TF card storage,maximum support 128G micro SDcard;(SD card is NOTinclude
SUPPORT P2P
WATERPROOF IP66
PAN TILT ROTATION
MOTION DETECTING ALARM
DAY AND NIGHT VISION
5X OPTICAL ZOOM
5X Optical zoom auto focus lens2.7-13.5mm
10X OPTICAL ZOOM
10X Optical zoom auto focus lens 4.7-47mm
PRODUCT SIZE

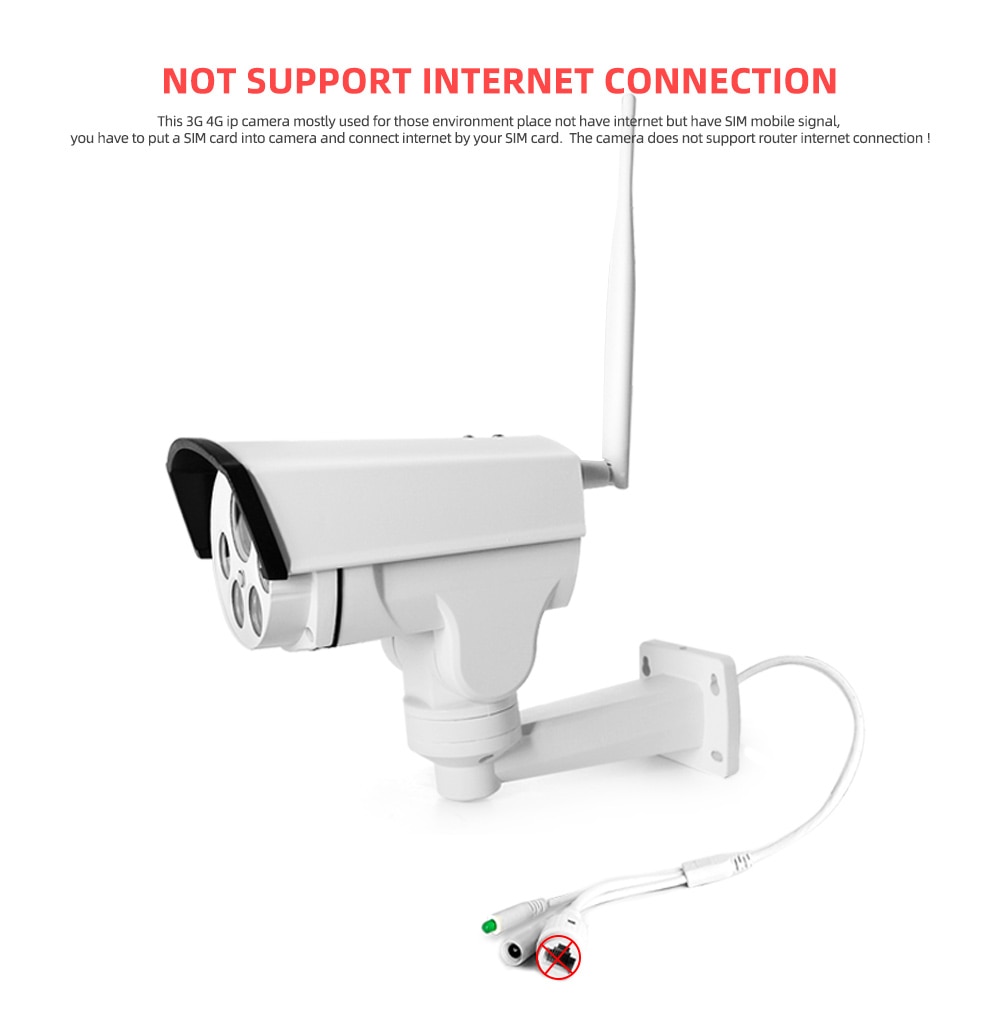

NOT SUPPORT INTERNET CONNECTION

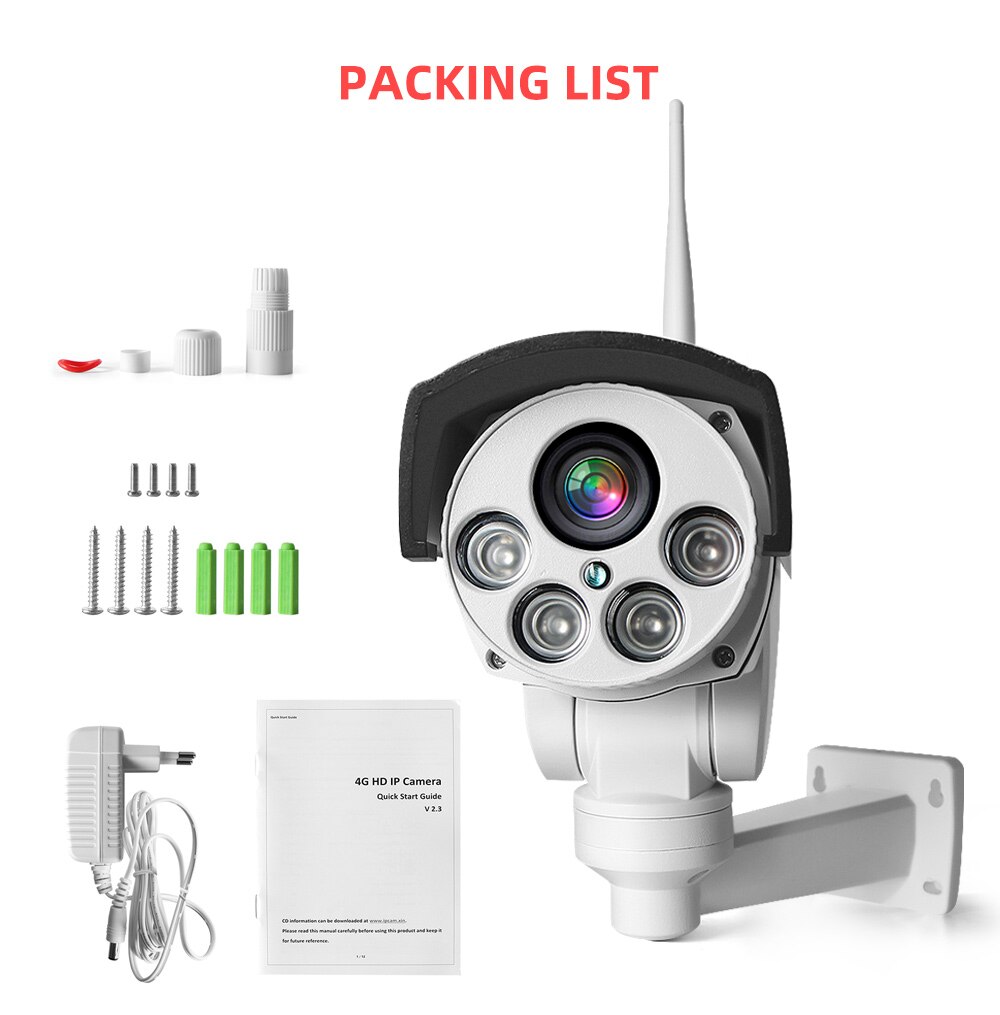

PACKING LIST

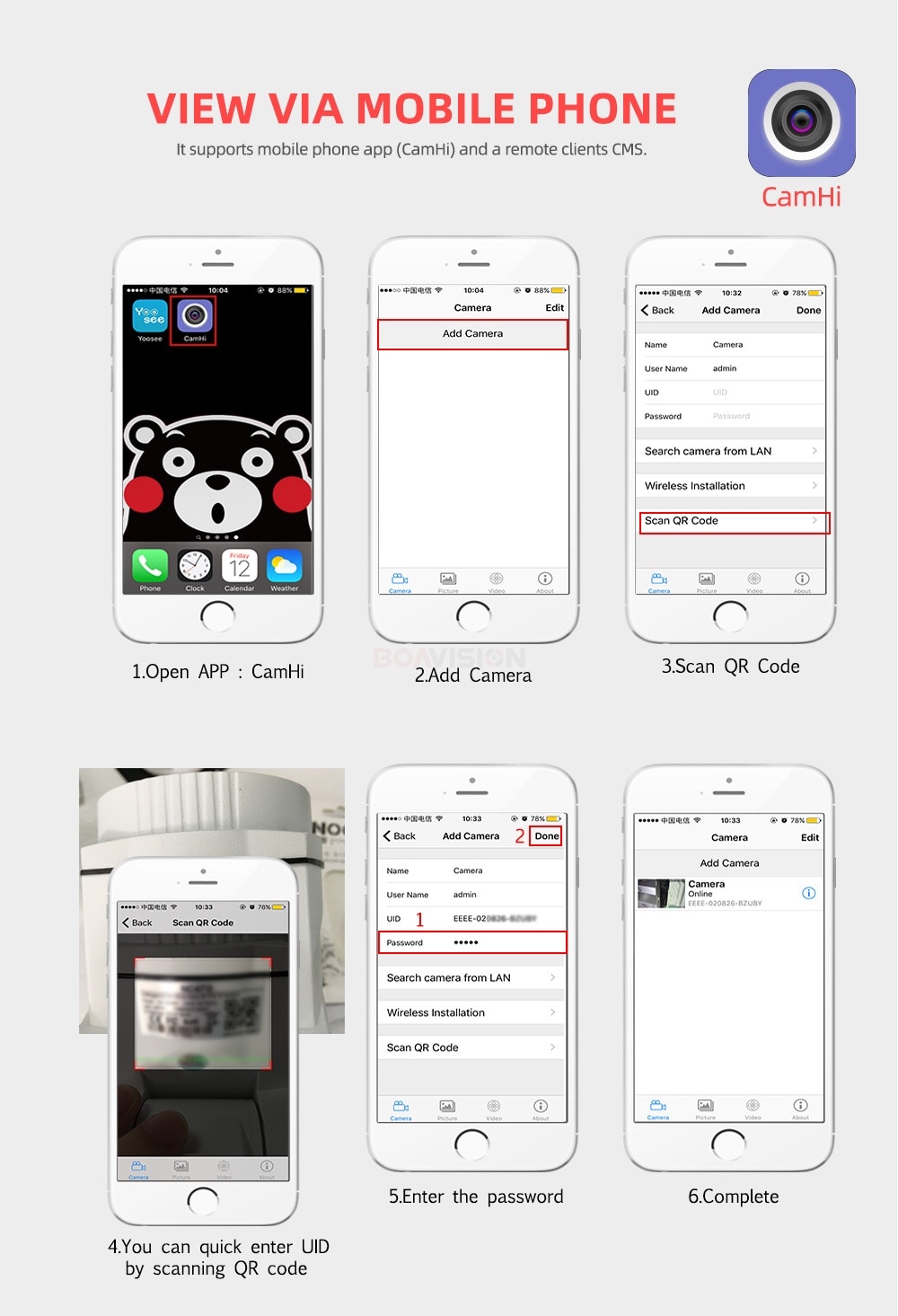

VIEW VIA MOBILE PHONE
Important Warning:
You MUST check your SIM card frequency range MUST be in below listed range if you want to use this 3G 4G Camera, we will not agree any dispute for your own reason for your wrong order.
3G standard: WCDMA
Frequency range: B1(2100MHz), B8(900MHz)
4G standard: FDD-LTE
Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
This 3G 4G camera mostly used for those environment place not have internet but have SIM mobile signal, you have to put a SIM card into camera and connect internet by your SIM card. The camera does not support router internet connection !
This 3G 4G camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.
No need to connect network LAN cable ! No need to setup wifi !
The 3G 4G camera does not support local PC clients . It supports mobile phone app(CamHi)and a remote clients CMS.
The 3G 4G camera does not support Cloud FTP storage !
Features:
2.0 megapixel HD camera, maximum resolution 1920*1080 (For model NC947G 1080p Camera);
Support 3G/4G, support AP mode;
Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)
5X Optical Zoom Auto Focus lens 2.7-13.5mm, View angel 89.9°-26.2°
10X Optical Zoom Auto Focus lens 4.7-47mm, View angel 70°-9° (Optional Choose)
Pan tilt rotation, horizontal:300°& vertical:60°;
Waterproof IP66;
4pcs array infrared LEDs, 50m Night Vision;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
Specificaitons:
| Model Number | NC947G | NC947G-10X | |
| Camera | Operating system | Embedded Linux OS | |
| Processor | HI3516C | HI3518E | |
| Sensor | 1/2.8" SONY323 low lux CMOS | 1/2.9" SONY307 | |
| Lens interface type | M12 | ||
| Lens | 2.7-13.5mm 5X optical zoom | 4.7-47mm 10X optical zoom | |
| View angle | 89.9°-26.2° | 70°-9° | |
| Min.illumination | 0.05lux/0lux (IR on) | ||
| Day&Night mode | Auto IR-CUT | ||
| Night vision distance | 4pcs array IR LEDs. IR radiation distance 50m | ||
| Video | Video compression | H.264 | |
| Video streaming | Three streaming | ||
| Video resolution | 1080P(1920x1080), 720P(1280x720), Q720P(640x352) | ||
| Second stream:Q720P(640x352), QQ720P(320x176) | |||
| Third stream:QQ720P(320x176) | |||
| Video code rate | 32~6144Kbps. supports constant bitrate/variable bitrate | ||
| Video frame rate | 25fps | 20fps | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | ||
| Image enhancement | Backlight compensation,Automatic white balance,Digital WDR, | ||
| 3D digital noise reduction | |||
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) | |
| Alarm linkage | Alarm send pictures to the specified mailbox, alarm upload pictures and | ||
| videos to the FTP server, alarm write pictures and videos to Micro SD card, | |||
| alarm mobile phone message push | |||
| Privacy mask | maximum support 4 users to simultaneously browse | ||
| OSD | support camera name, date and time information superimposed | ||
| User management | Supports user and rights management | ||
| Simultaneous viewers | Maximum support 4 users to simultaneously browse | ||
| Network protocol | TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, | ||
| DDNS, NTP, UPNP, RTSP etc | |||
| Connection protocol | N/A | ||
| 4G | 4G standard | FDD-LTE | |
| Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) | ||
| Transmission rate | Upload max:50Mbps, download max: 150Mbps | ||
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | ||
| 3G | 3G standard | WCDMA | |
| Frequency range | B1(2100MHz), B8(900MHz) | ||
| Transmission rate | Upload max:5.76Mbps, download max: 21Mbps | ||
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | ||
| PTZ | Rotation angle | Horizon: 0 to 300°. Vertical: 0 to 60° | |
| Horizontal speed | 12°/S | ||
| Vertical speed | 12°/S | ||
| Preset | Support 8 preset points | ||
| Interface | Power interface | 5.5mm power interface | |
| Ethernet | RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | ||
| TF card Slot | maximum support 128G TF card, can set the automatic capture and timer recording | ||
| Reset button | Support | ||
| General | Power supply | DC 12V 2A | |
| power | Day:3W, Night:8W | ||
| Operating temperature | -20 to +60 degree | ||
| Operating humidity | 10% to 95%(non-condensing) | ||
| Waterproof level | IP66 | ||
| Material | Aluminum | ||
| Installation | Rack mounting | ||
| Product size(W×D×H)(mm) | 150*90*125 | ||
| Product weight(kg) | 1.1kg | ||
| Accessories | 1*1.5m Power supply, 1bag*Screws, 1*antenna, 1*manual | ||
| Package Weight(kg) | 1.3kg | ||
| Package Size(W×D×H)(mm) | 22*20.5*11cm | ||
Packing List:
1*4G Sim Card Camera
1*Power Supply
1*Manual
1*Screws Bag
1*Antenna
