Super HD 5MP WIFI IP PTZ Camera Outdoor 5X Optical Zoom Mini PTZ Dome Wireless Camera Color Night Vision Two Way Audio P2P CamHi
HD 5MP 2.5 Inch Super Mini PTZ Dome WIFI IP Camera
5X Zoom Lens: Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Usage Scenarios
Can Be Used A Variety Of Environments
Different Pixel Resolution Compare
Support P2P Multi-Platforms Remote Monitoring
Support P2P, View & Anywhere & Anytime.
Provide Android & IOS APP (CamHi) And Professional CMOS PC Client Software
Two Way Audio Talk Back
Built-in Microphone, Loud Speaker, Support Two Way Audio Talk Back
Pan Tilt Rotation
Horizontal: 355 Deg & Vertical: 90 Deg
Waterproof IP66
ABS Plastic + Metal Housing Material, Outdoor Use
Full Color Night Vision
High Definition Night Vision Effect
Alarm Linkage
Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,
Alarm Write Pictures And Videos To The Micro TF Card, Alarm Message Push

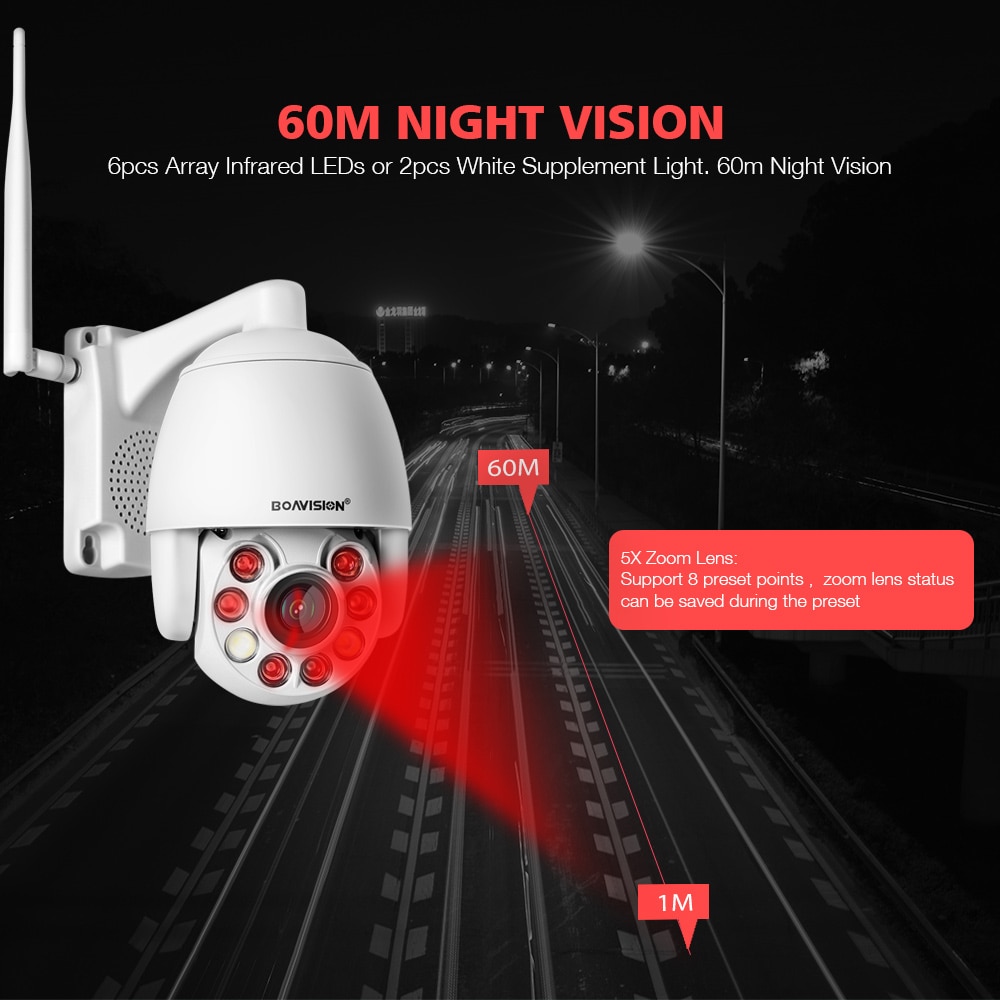

60m Night Vision
6Pcs Array IR LEds Or 2Pcs White Supplement Light.
Support 8 Preset Points
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Day And Night Vision
6Pcs Array IR Leds Or 2Pcs White Supplement Light.
5X Optical Zoom Auto Focus Lens
2.7-13.5mm 5X Optical Zoom Auto Focus Lens

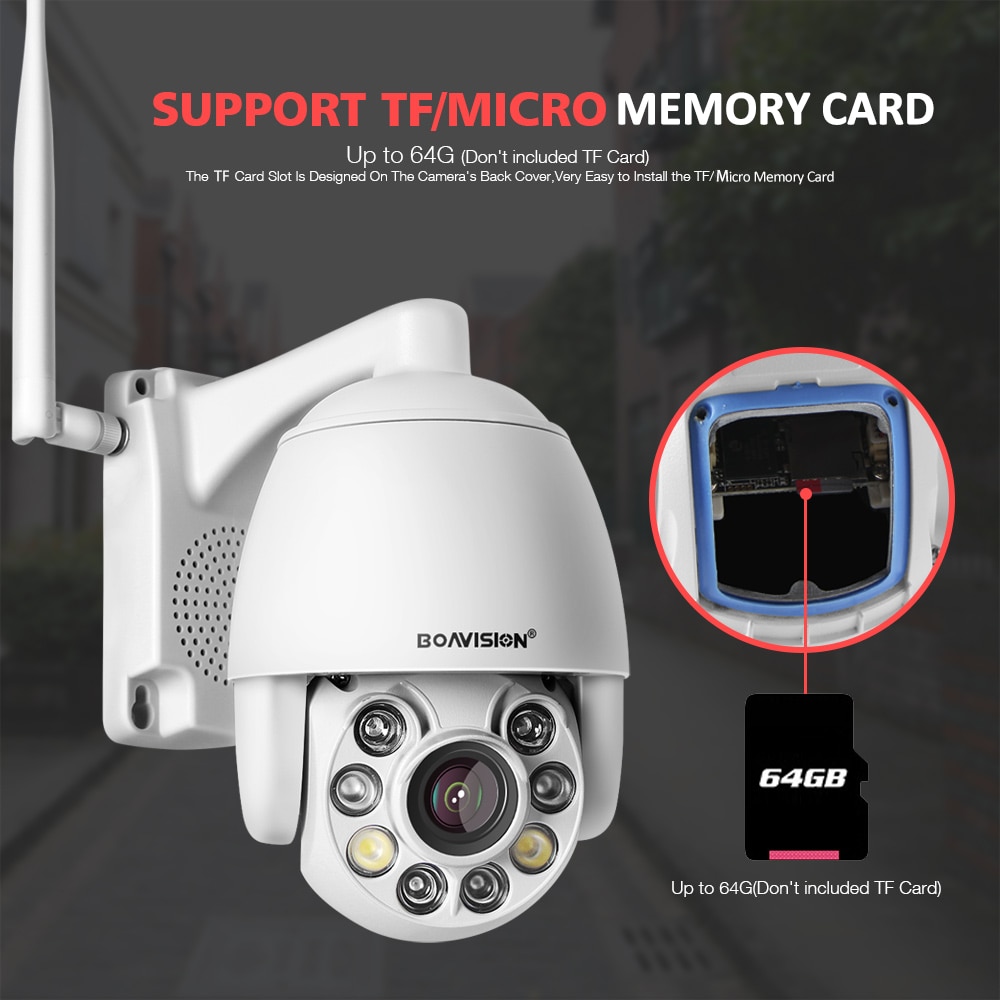

Support TF / Micro memory Card, Upto 64G (Not Included )
The SD Card Slot Is Designed On The Camera's Back Cover, Very Easy To Install To TF/ Micro memory Card
2.5 Inch Super Mini Size
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset

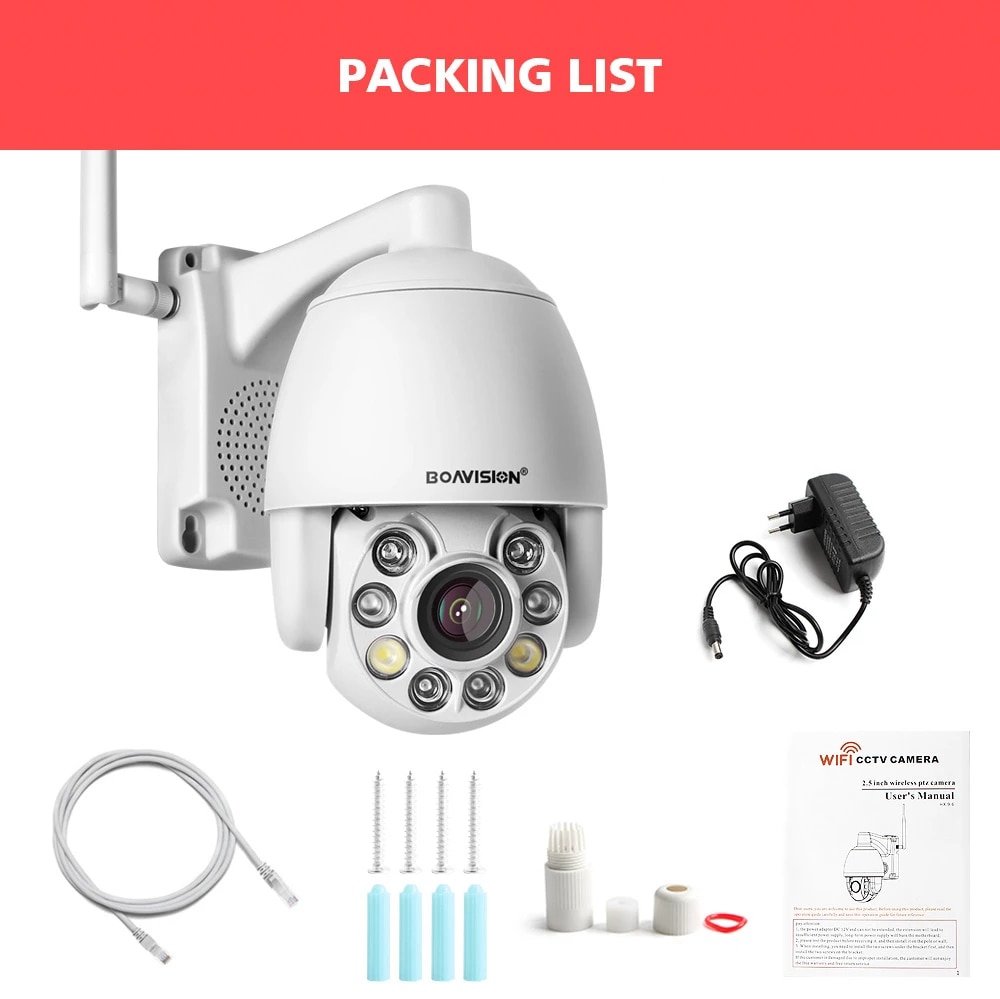

Packing List

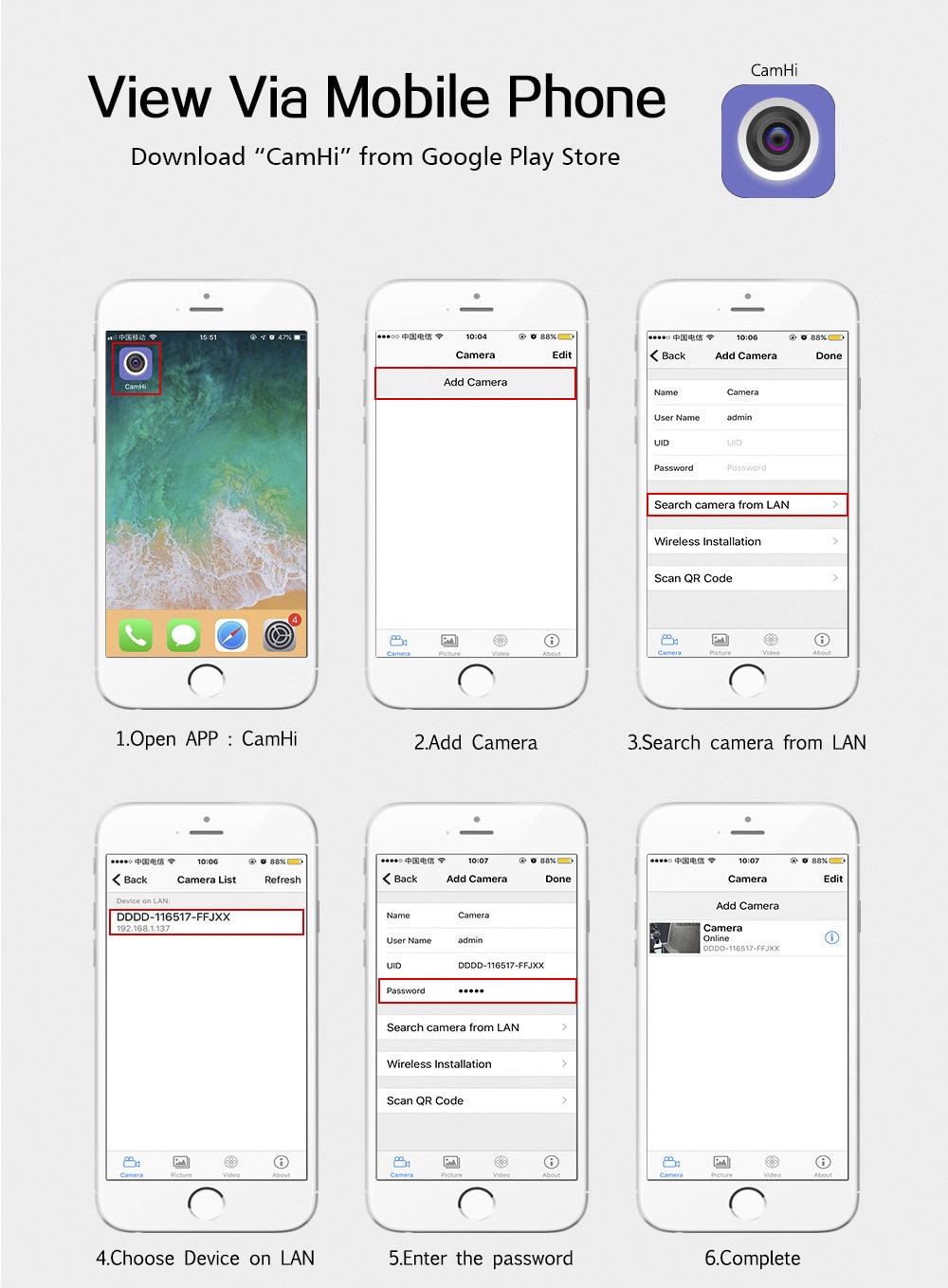

View Via Mobile Phone
Download "CamHi" From Google Play Store
Set Action With Alarm
Features :
2.5 Inch Super Mini Size Case PTZ Dome WIFI IP Camera
5MP(2560x1920) Sensor
Support 5MP Super High Quality Resolution
Support TF/Micro memory Card, up to 64G(Don't included TF Card)
2.7-13.5mm 5x Optical Zoom Auto Focus Lens
Pan Tilt Rotation, Horizontal:355° & Vertical:90°Ø
6pcs Array Infrared LEDs or 2pcs White Supplement Light. 60m Night Vision
Support P2P, View & Anywhere & Anytime
Provide Android & IOS APP (CamHi) and professional CMS PC client software
Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
ABS Plastic + Metal Housing Material,Outdoor Use,Waterproof IP66
Built-in Microphone,Loud Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters, Loudspeaker Effective Range 60 Meters
The SD Card Slot Is Designed On The Camera's Back Cover,Very Easy to Install the TF/Micro Memory Card .
Support 8 preset points , Zoom lens status can be saved during the preset
Specifications:
| Model | HX-HD50M58AS | |
| Camera | Operating system | Embedded Linux OS |
| Image Sensor | HI3516EV300+IMX335 | |
| Megapixel | 5MP(2560x1920) | |
| Lens interface type | M12 | |
| Lens | 2.7-13.5mm 5x Optical Zoom Auto Focus Lens | |
| View angle | 89.9°-26.2° | |
| Min.illumination | 0.05 Lux / 0 Lux(IR on) | |
| Day&Night mode | Auto IR-CUT | |
| Night vision distance | 6pcs Array Infrared LEDs or 2pcs White Supplement Light. 60m Night Vision | |
| Video | Video compression standard | H.265/H.264 Main Profile/H.264 Baseline |
| Video streaming | Dual streaming | |
| Video resolution | First stream: 2560x1920 or 2560x1440 | |
| Second stream: 800x600 or 800x448 | ||
| JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) | ||
| Video code rate | 32 to 8192Kbps. supports constant bitrate/variable bitrate | |
| Video frame rate | 15fps(PAL 50HZ/NTSC 60HZ) | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |
| Image enhancement | Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction | |
| Audio | Audio compression standard | G.726/G.711 |
| Audio code rate | Rate adaptive | |
| Audio Input | Support, Built-in Microphone | |
| Audio Output | Support Two Way Audio Talk , Built-in Loud Speaker | |
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage | Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro TF card, alarm message push | |
| Privacy mask | Maximum support 4 users to simultaneously browse | |
| OSD | Support camera name, date and time information superimposed | |
| User management | Supports user and rights management | |
| Simultaneous viewers | maximum support 12 users to simultaneously browse (each stream supports 4 users) | |
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP, DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |
| Connection protocol | Support ONVIF 2.1(backward compatible) | |
| Wireless | Wireless standards | IEEE802.11b. 802.11g. 802.11n Draft |
| Frequency range | 2.4 GHz to 2.4835 GHz | |
| Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | |
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | |
| PTZ | Rotation angle | Horizon:0° to 355°. Vertical: 0° to 90° |
| Horizontal speed | 1° to 40°/S | |
| Vertical speed | 1° to 20°/S | |
| Preset | Support 8 preset points , Zoom lens status can be saved during the preset | |
| Interface | Power interface | 1*5.5mm power interface |
| Ethernet | 1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
| TF card Slot | 1*TF card slot. up to 64G(Don't included TF Card) | |
| Reset button | Support | |
| General Specification | Power supply | DC 12V 2A |
| power | Day: 3W; Night: 12W | |
| Operating temperature | -20 to +60 degree | |
| Operating humidity | 10% to 95% | |
| Material | ABS Plastic + Metal Housing ,Outdoor Use,Waterproof IP66 | |
| Installation | Rack mounting | |
| Size(W×D×H)(mm) | 175*115*110mm | |
| Weight(kg) | 0.9kg | |
| Package Size(W×D×H)(mm) | 250*250*100mm | |
| Package Weight(kg) | 1.1kg | |
Packing List:
1*WIFI PTZ IP Camera Built-in Mic,Loud Speaker (Don't included TF Card)
1*Power Supply
1*CD & Manual
1*Screws Bag
1*Antenna
1*Network Cable
