5MP PTZ Bullet IP Camera Outdoor 4X Optical ZOOM Network PTZ Camera Waterproof IP66 IR 50M CCTV Security Bullet Camera 48V POE
New Mini 5MP PTZ IP Camera
Support P2P Multi-Platforms Remote Monitoring
New Mini 5MP PTZ IP Camera
Support Onvif Protocol GB/T28281, Work With HikVision, Dahua, XM

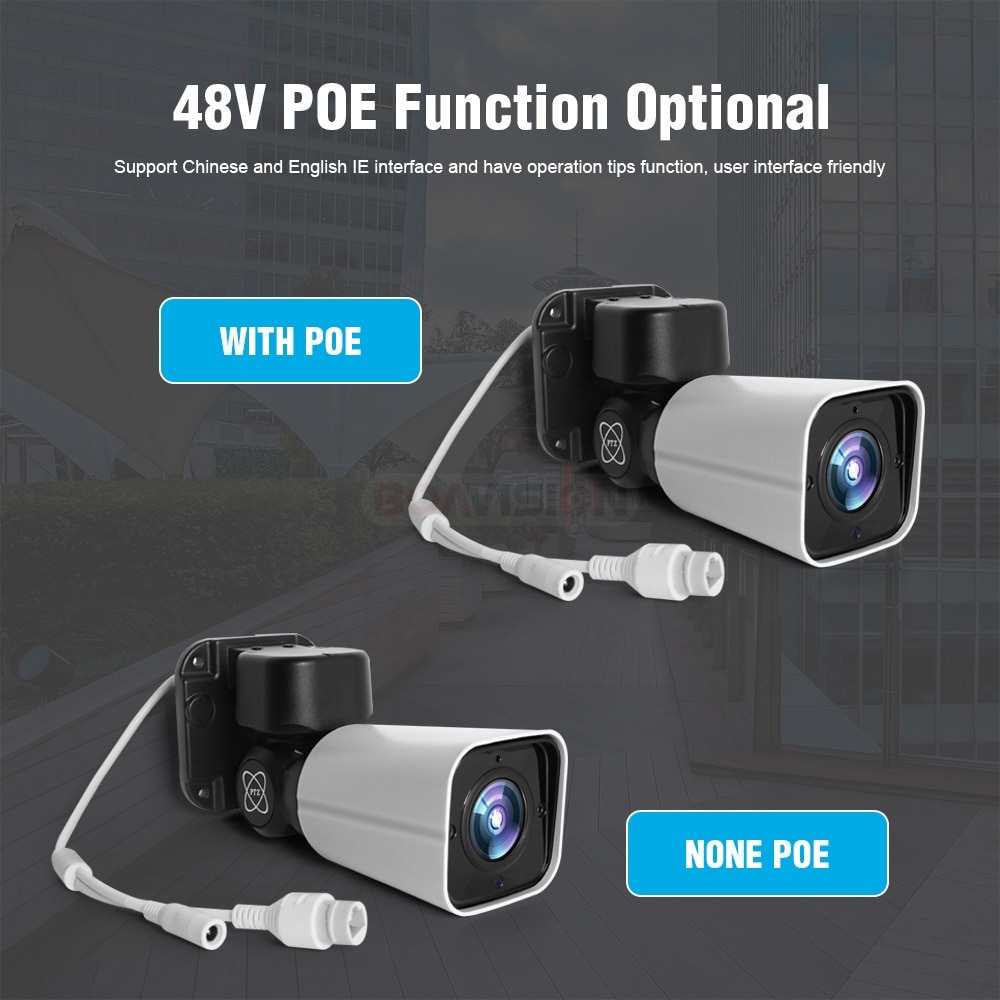

48V POE Function Optional

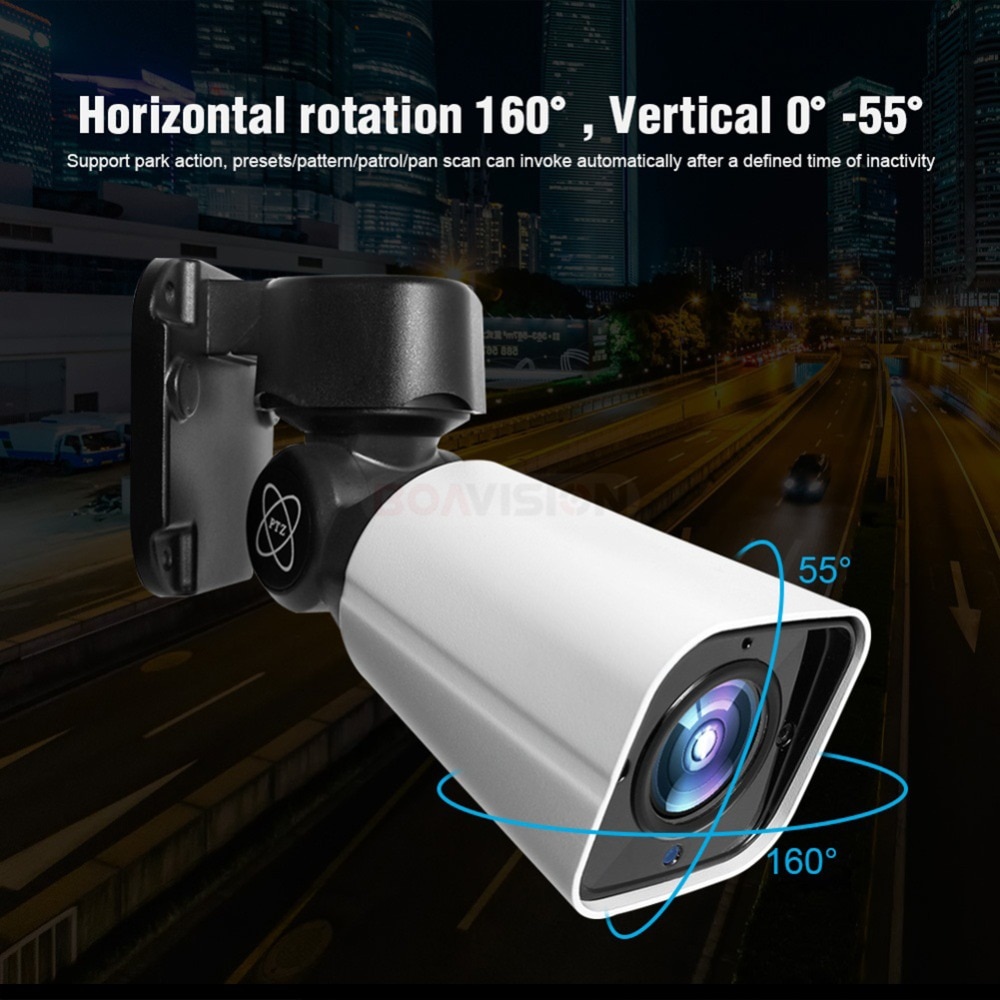

Horizontal Rotation 160 Degree, Vertical 0 - 55 Degree

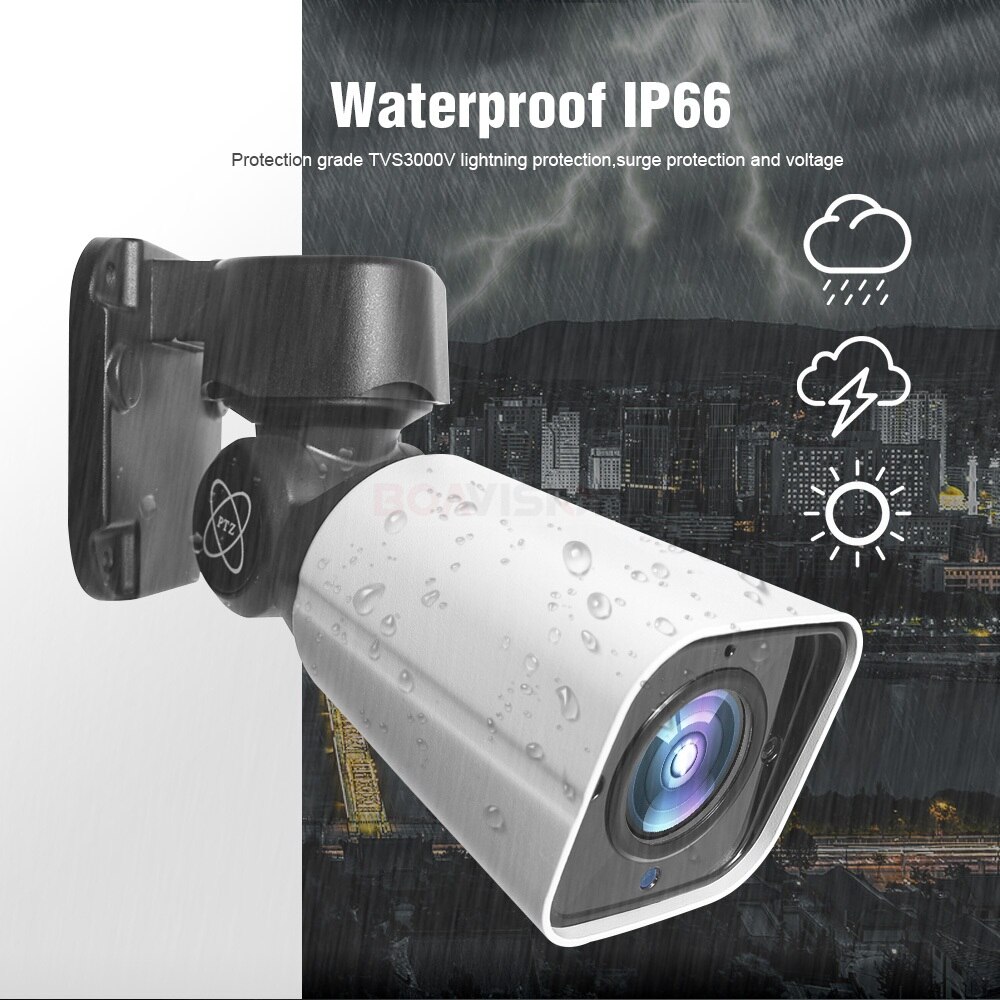

Waterproof IP66

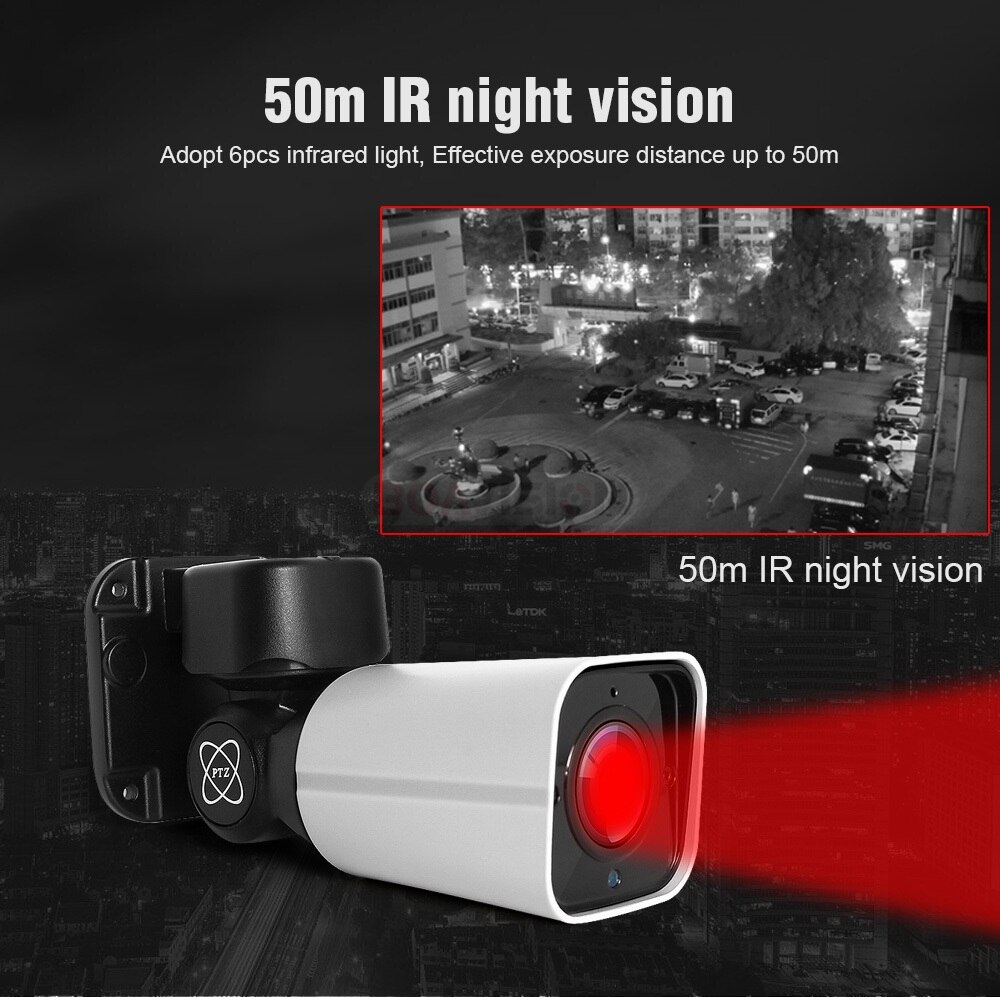

50M IR Night Vision

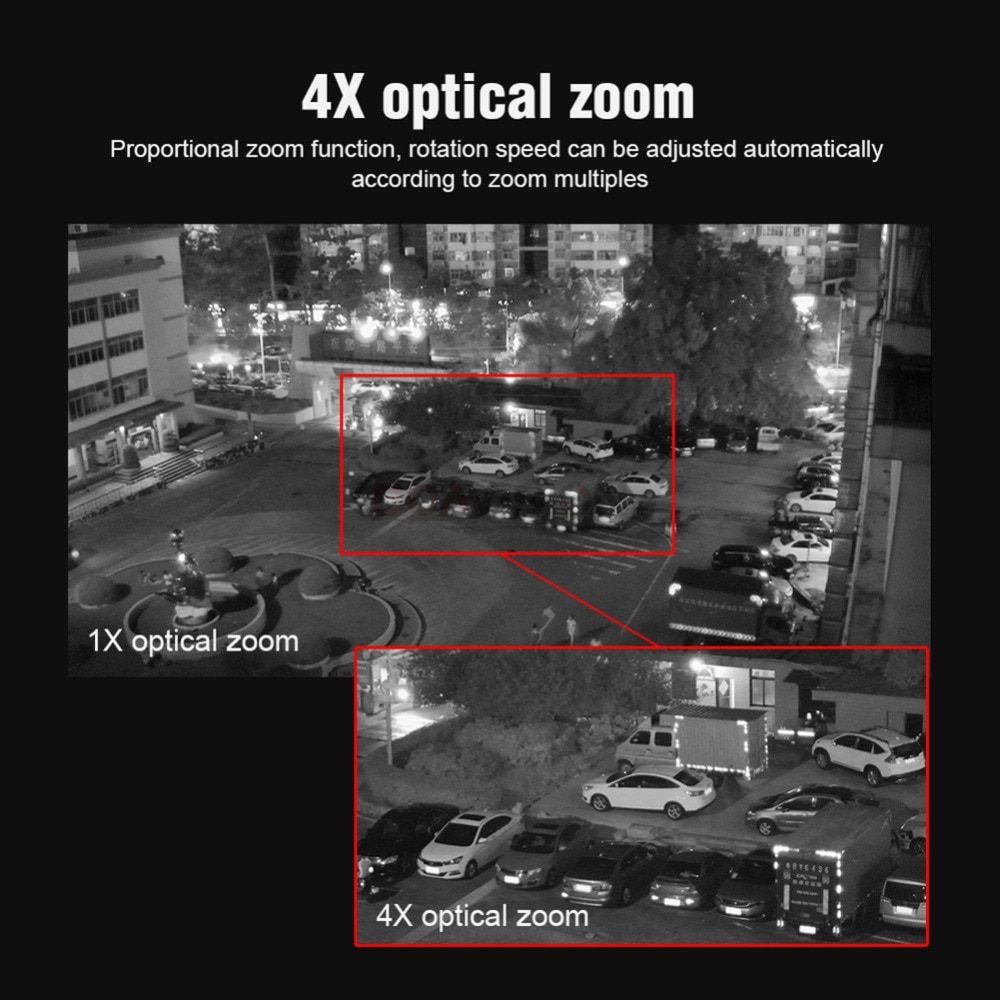

4X Optical Zoom
Product Size
Packing List
Connection Methods
WAN Connection
Quick Connect Complete The Installation
Six Steps To Complete The Installation
Product overview：
* 5.0MP 1/2.5 AR0521 Low illumination CMOS,4X optical zoom；
* Resolution: 5MP: 2592*1944,15fps
* Support Onvif protocol GB/T28281,work with Hikvision , dahua, XM
* Support lightning protection,anti surge;
* Outdoor speed bullet camera protection grade:IP66;
* Support Chinese and English IE interface and have operation tips function, user interface friendly；
Feature：
* Adopt 6pcs infrared light, Effective exposure distance up to 50m
* Horizontal rotation 160 ° continuous rotation, Vertical 0 ° -55 °, support automatic flip, no monitoring blind spot.
* Pan speed max 25°/s,tilt speed max 20°/s
* Pan speed 0°/s～25°/s,tilt speed 0°/s～20°/s,
* Support Moblie Phone APP View:Hisee
* 48V POE Function Optional
Specifications:
| Model | HD360F-5MP | HD360F-5MP-P |
| Image sensor | HI3516D+AR0521 | |
| Resolution | 5MP:2592*1944, 15fps | |
| Low illumination | color:0.2Lux @ F1.2;black-white 0.01Lux @ F1.2 | |
| Signal / scan system | PAL/NTSC;Progressive | |
| Electronic shutter | Auto/manual(1/5-1/50000 ) | |
| Day-night mode | Auto ICR | |
| Optical zoom | 2.8-12mm;4x Zoom | |
| Pan angel | 89.9°-26.2° | |
| IR distance | 50M | |
| Pan speed | Horizontal rotation 160 ° continuous rotation,0°~25°/S | |
| Tilt speed | 0-20°/S | |
| Tilt range | 0°-55° | |
| Max image size | 2592*1944 | |
| Output bit rate | 32Kbps-16Mbps | |
| Video compression | H.265/H.264/MJPEG | |
| Network protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP | |
| Interface protocol | Onvif-compatible,hikvision,xm,jovision personal protocol | |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA | |
| Application interface | Provide Linux,NindoNs SDK develop bag and CGI protocol,can be second fast developed | |
| PTZ control protocol | Pelco-d,Pelco-p | |
| Power consumption | DC 12V2A,10W(max) Not Included In The Packing | |
| Support 48V POE Function | NO | YES |
| Working tem and hum | -30℃~+60℃,≤90%RH(no frostless) | |
| Protection grade | TVS3000V lightning protection,surge protection and voltage | |
| Transient protection, weather proof (for outdoor): IP66 | ||
| Package Weight(kg) | 0.7 | |
| Size(WxD×H)(mm) | 185x70x67 | |
Packing List:

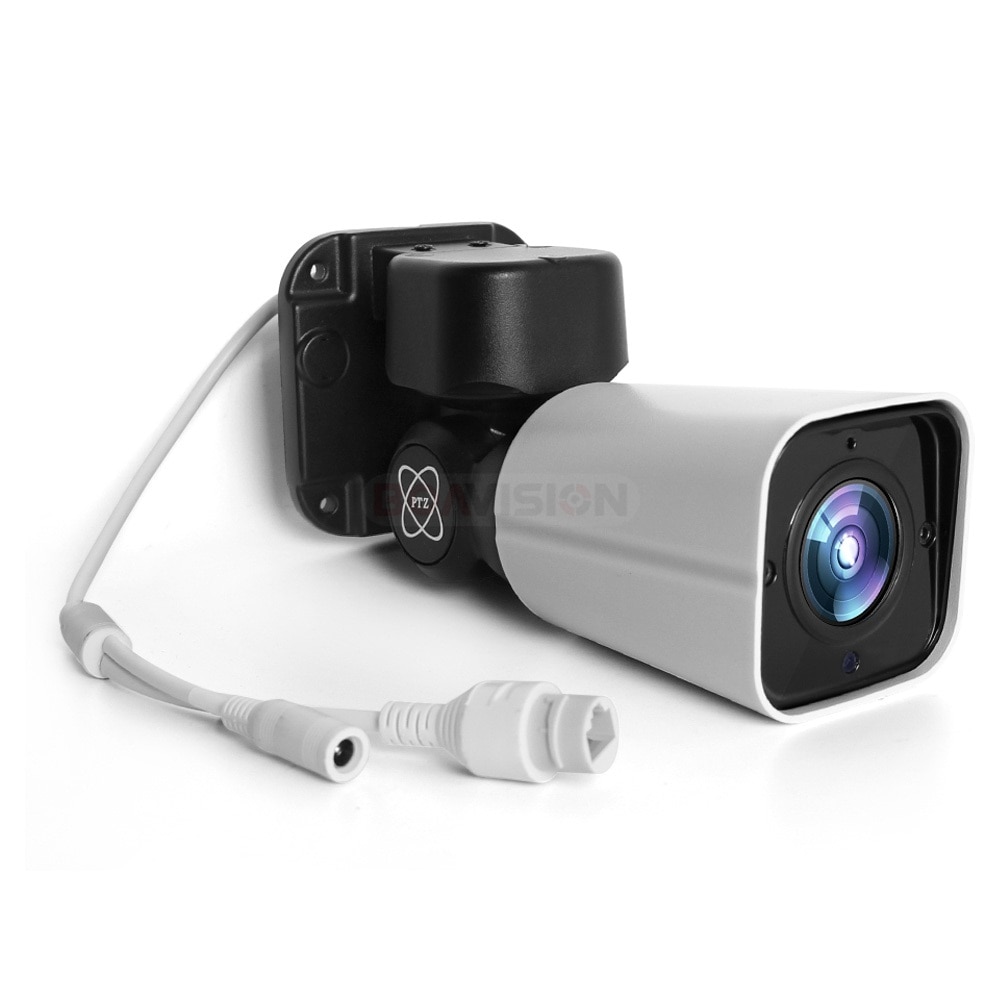

1 *5MP PTZ Bullet IP Camera
1 * Screws Bag
1 *CD
1* User Manual
(The power supply is not included in the packing )
