Highlights
1.Supports All OBDII functions, turn off check engine light, reset monitor, monitor live data stream,etc.
2.Supports All OBDII functions, read and clear A / T (gearbox) faults, monitor A / T (gearbox) real-time data flow.
3.Supports 12v standard vehicles battery voltage test.(See if support for starting a car)
4. Multilingual menu options : English, Czech, Deutsch, Spanish, French, Hungarian, Italian, Portugues, Russia, Svenska, Slovak
Note: There is no Polish and Netherland language
When you receive, there is only 5 languages on the screen, get others languages by update tool.

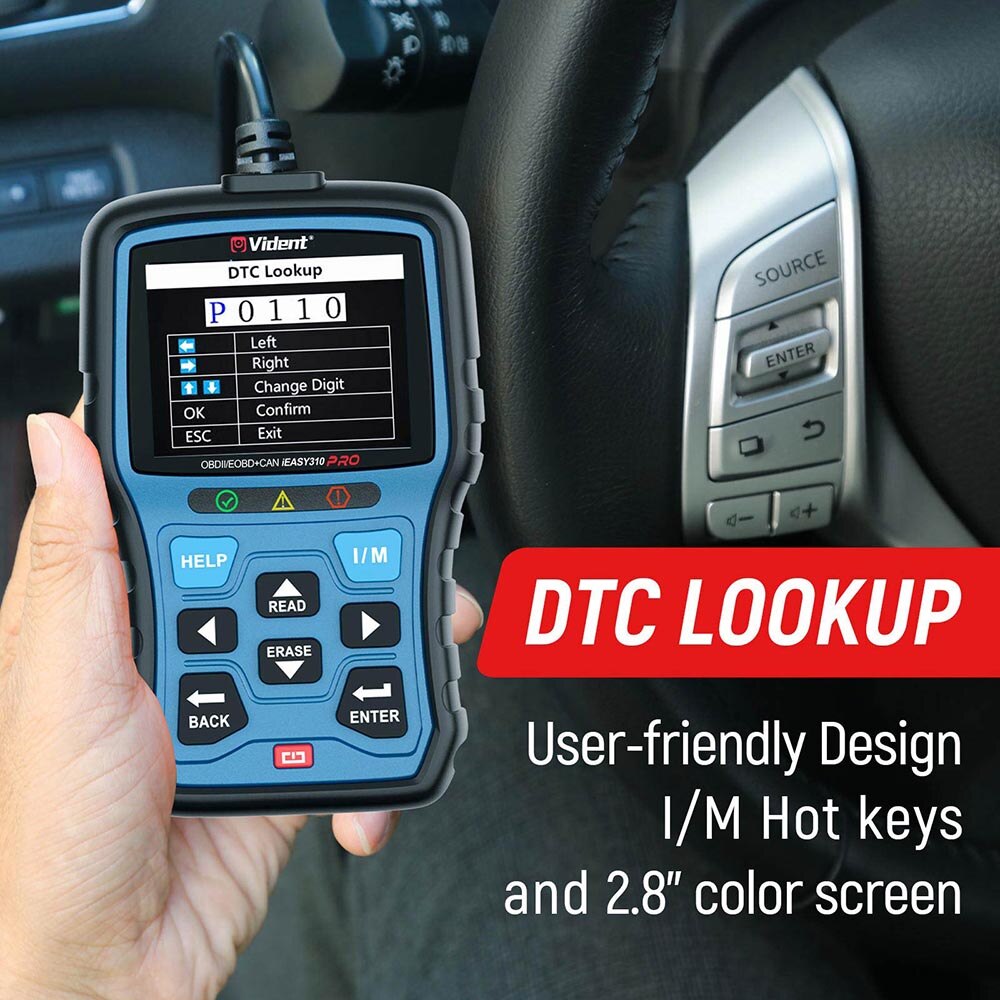

5.User-friendly Design,I/M Hot keys and 2.8'' color screen
6.Maintenance technicians can select 4 data streams for comparison based on the phenomenon and analyze vehicle problems
7.Data waveform display and comparison of 4 data waveforms for easy observation of digital changes.
8.One-click read/ clear fault.
9.Help to realize the full name interpretation of data, to solve professional shorthand.
10.Emission Test Helper,Red-Yellow-Green LEDs and build-in speaker indicate emission monitor status.
11.No battery required, it is charged directly from the OBDII car scanner interface in your vehicle( just need to turn on the ignition of your vehicle).
12.Lifetime free upgrade online via USB cable.
Note: （This product only supports voltage test and does not support battery parameter detection. If you need a professional battery testing instrument, please purchase Vident iBT100
1. Works with most 1996 and newer OBDII& CAN compliant cars,works with all 12V standard obd2 protocols vehicles(Cars, Light-duty trucks, SUVs, Mini VANs, Mini trucks,12v minibus and hybrid sold worldwide)
2. Supports all the 10 OBDII test modes.
Read Codes Component Test
Erase Codes On-Board Monitor Test
Live Data Unit of Measure
View Freeze Frame Vehicle Information
I/M Readiness Modules Present
3. One-click I/M for quick view of car emissions.
4. Color indicator (green, yellow, red) display, making the test results more intuitive.
5. Buzzer, all operations and test results, increase the intuitive experience of the test.
6. OBDII product VIN code automatic positioning function, saving customers' custom code selection time.
7. Supports battery voltage test.
8. One-click read/clear fault.
9. Supports waveform display and supports maximum 4-channel waveform comparison.
10. Supports selected data flow test; Support DTC lookup
11. Supports playback,convenient for customers to check maintenance history
12. Supports connection to PC computer and prints test result.
13. Support machine self-test
Vehicle Coverage
Note: if your car is not obd2 diagnostic interface, this device cannot connect .
America(USA) :
Compatible with 12V Standard OBD2 Cars from 1996 to Now:
For Chrysler; For Ford; For GM; For Jeep; For GMC; For BUICK; For Saturn; For Pontiac; For Chery
Europe:
Compatible with 12V Standard OBD2 Cars from 1996 to Now:
For Alfa Romeo; For SAAB; For Acura; For Opel; For Audi; For Seat; For Bentley; For Skoda; For Daewoo; For Benz; For Daihatsu; For Land Rover ( after 2005 year - ) , For BMW; For Vauxhall; For Volvo;For Fiat;For VW ( after 2005 year - ) ; For Ford;For Jaguar
For Peugeot;For Citroen
Not support for all for Re-nault vehicles, such as:not support for Renault Clio 2/Megane/Dacia Logan / .etc
Asian:
Compatible with 12V Standard OBD2 Cars from 2005 to Now:
For KIA;For Isuzu; For Honda; For Mitsubishi; For Hyundai; For Dacia; For Lexus; For Mazda; For Nissan; For Subaru; For Suzuki; For Toyota
Australia:
Compatible with 12V Standard OBD2 Cars from 2004 to Now:
For Holden; For For-d
China:
Compatible with 12V Standard OBD2 Cars from 2011 to Now:
For BYD; For Chery; For Geely; For Great Wall; For Karry; For JAC
NOTE:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.
Warning:
Not Support Russian Cars VAZ,UAZ,LADA ;Not works with trucks
Not Support for Re-nault Clio 2/Megane/Dacia Logan etc.
Not Support for Ssangyong Actyon , from 2009 to 2017 years.
Not Support for Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
Not Support for Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
Not Support for Ssangyong Rexton , 2011 to 2017 years.
Customer feedback :
For passat 1.9Tdi 2000 , not support.

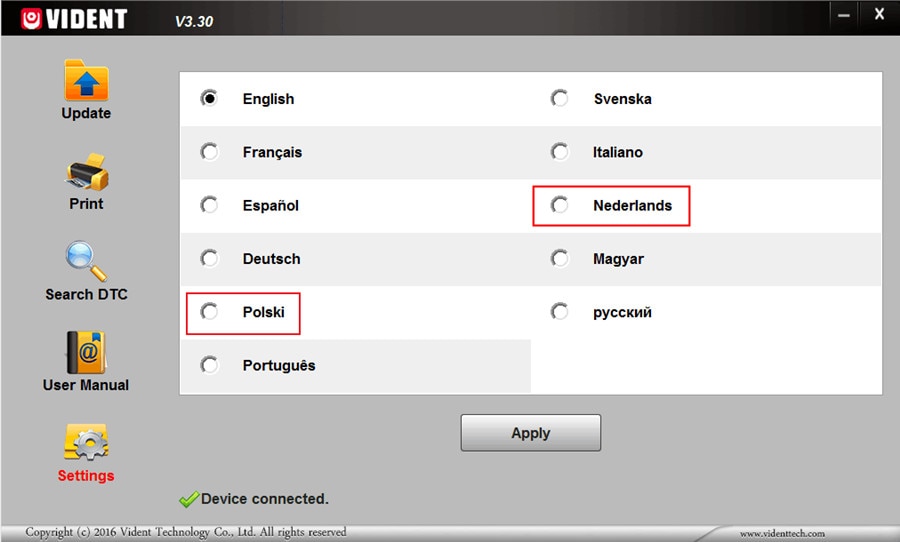

Update Tool Settings
Settings option opens a screen that allows you to set the language of the tool.

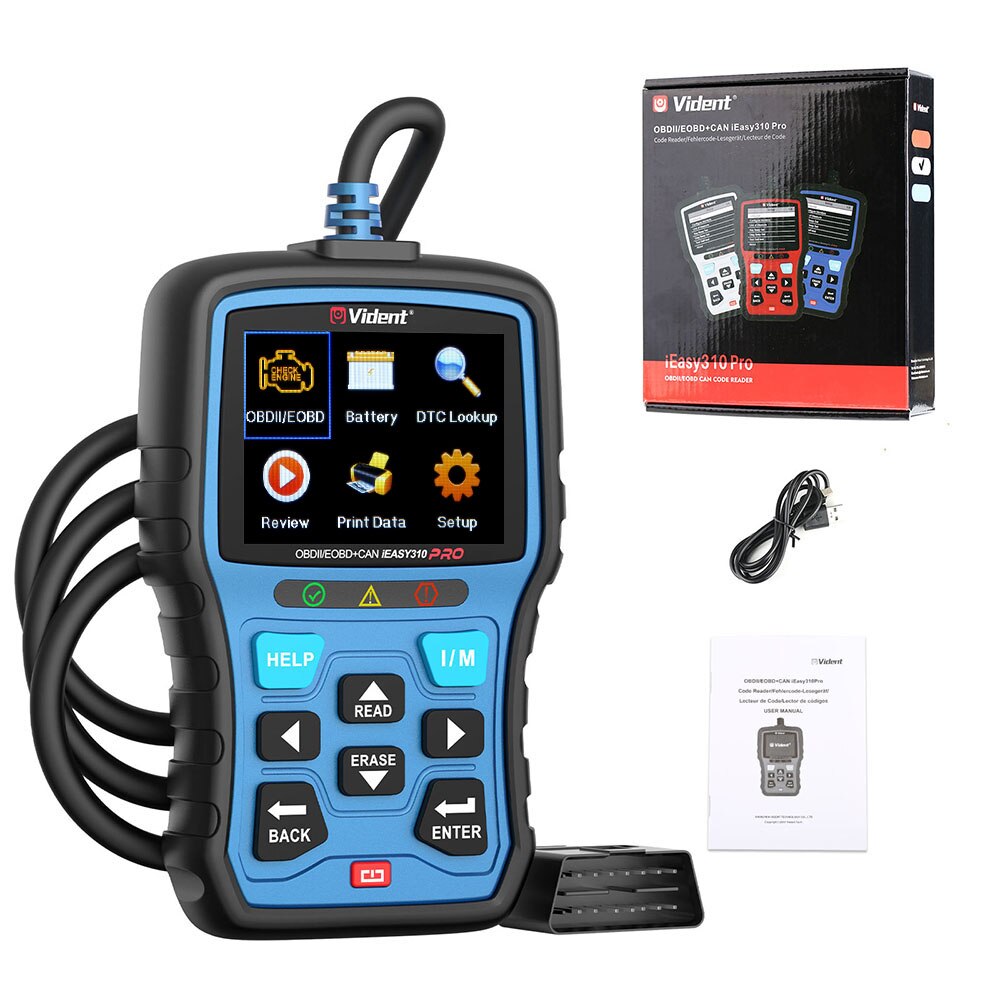

1PC x Vident iEasy310 pro ODB2 Scanner
1PC x USB cable
1PC x English version of the manual
(other versions of German, Spanish, French, please download online)
