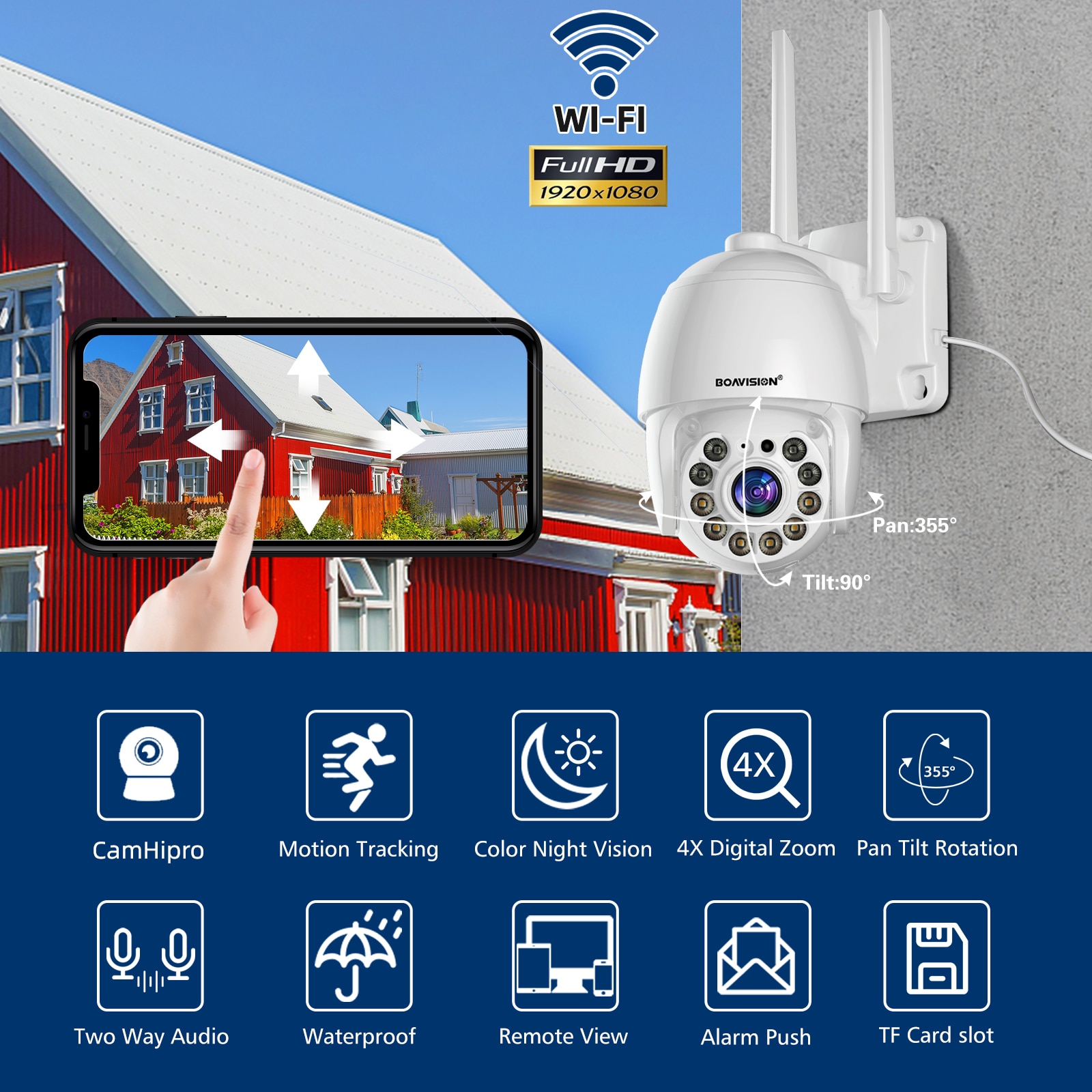

2 Inch HD 1080P MINI WIFI PTZ IP Camera
CCTV Security Surveillance IP Camera Outdoor Waterproof IR 30M Two Way Audio Motion Tracking P2P CamHipro

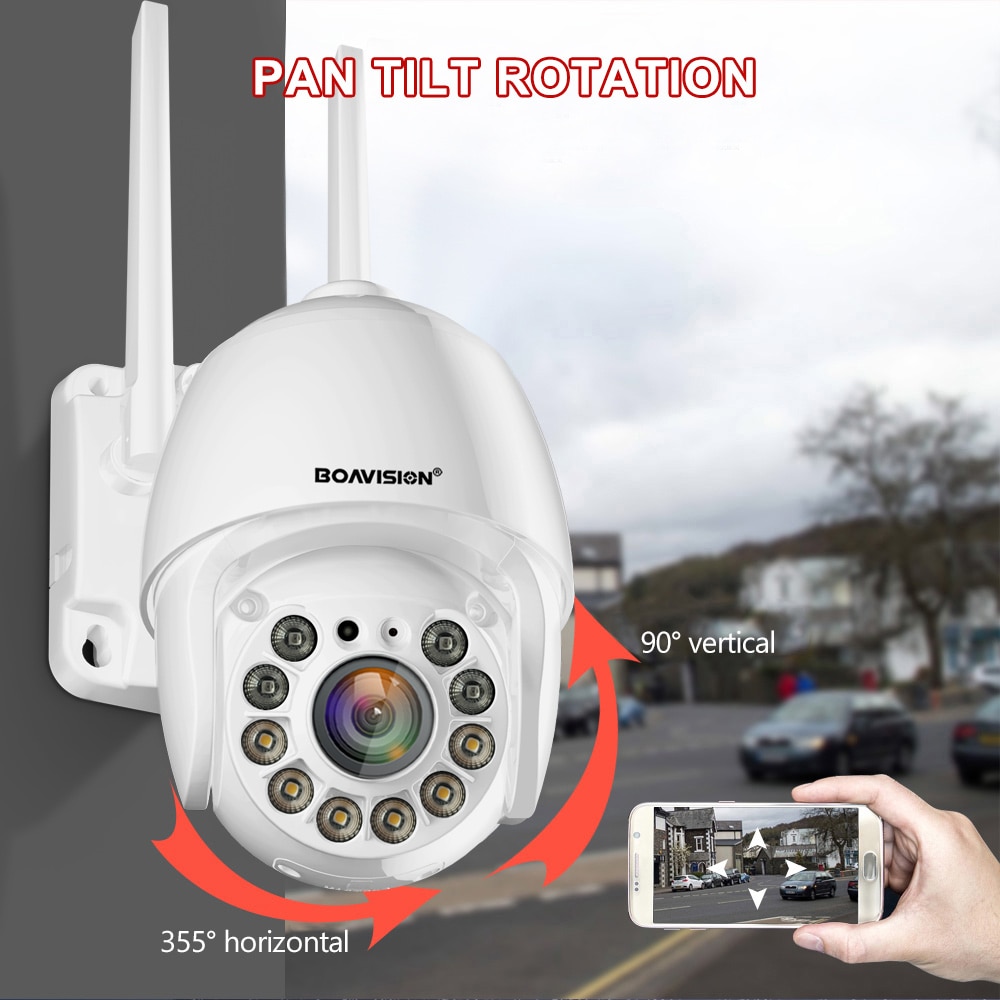

Pan Tilt Rotation
Horizontal: 355 Degree & Vertical: 90 Degree
4X Digital Zoom (APP: CamHipro)
Three Night vision modes
6Pcs Spot White light LED+4 Array IR LEDs, 30m B&W Night Vision,20M Color Night vision

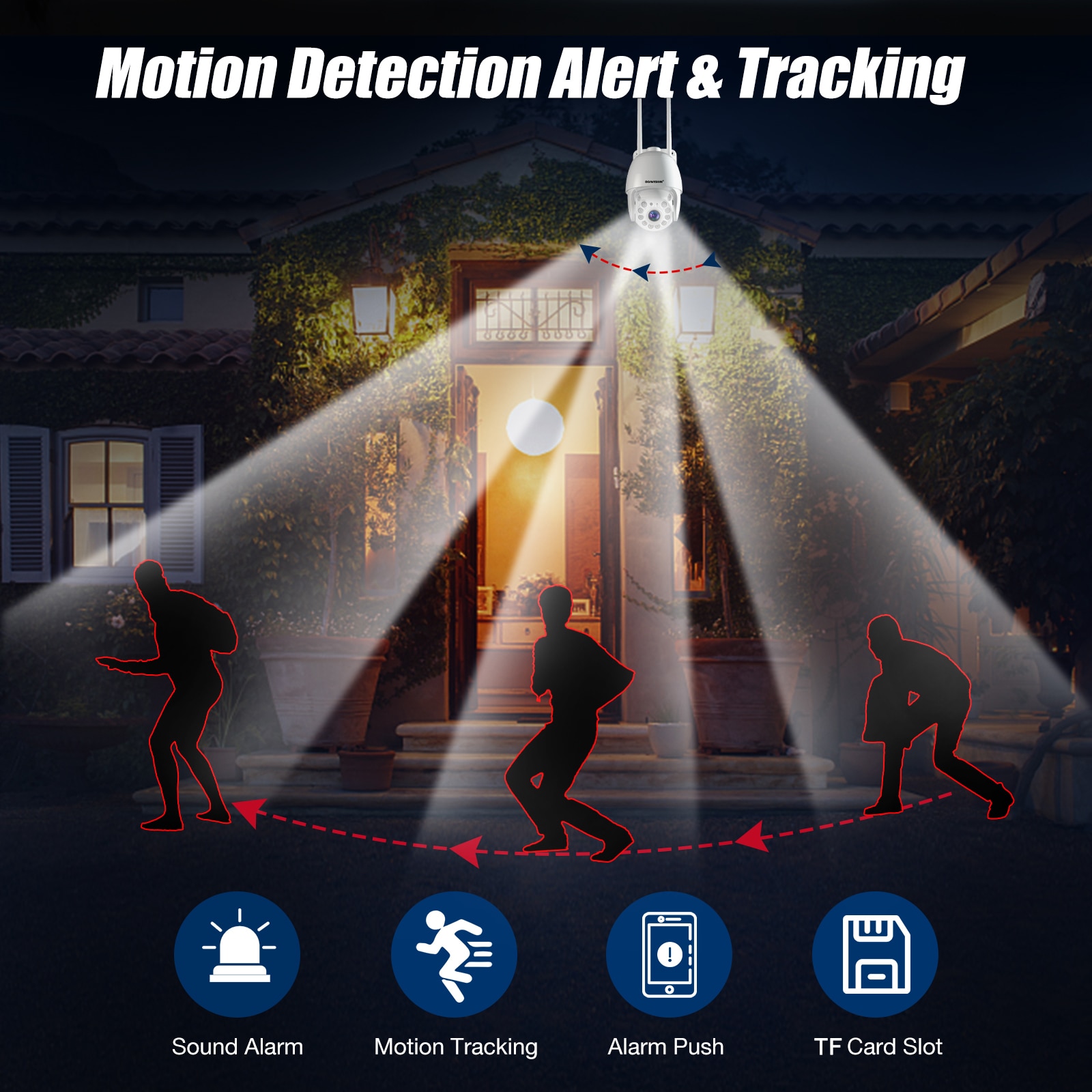

Motion-Tracking&Alerts
If you turned on the Intelligent Tracking function,
When the moving objects enter into the monitor area, camera will adjust the pan/tilt rotation automatically , Auto Track the moving Objects . It also can push alerts via email or notifications to your smartphones (iOS, Android) when you enable the alarm function .
Floodlight&Alarm Siren
The floodlight can be set to turn on when the moving objects detected in the darkness,you can also set sound alarm to make loud siren when the moving object is detected. The built-in advanced microphone & speaker allows you scare away uninvited guests,send commands to your pets, say hello to welcome guests.

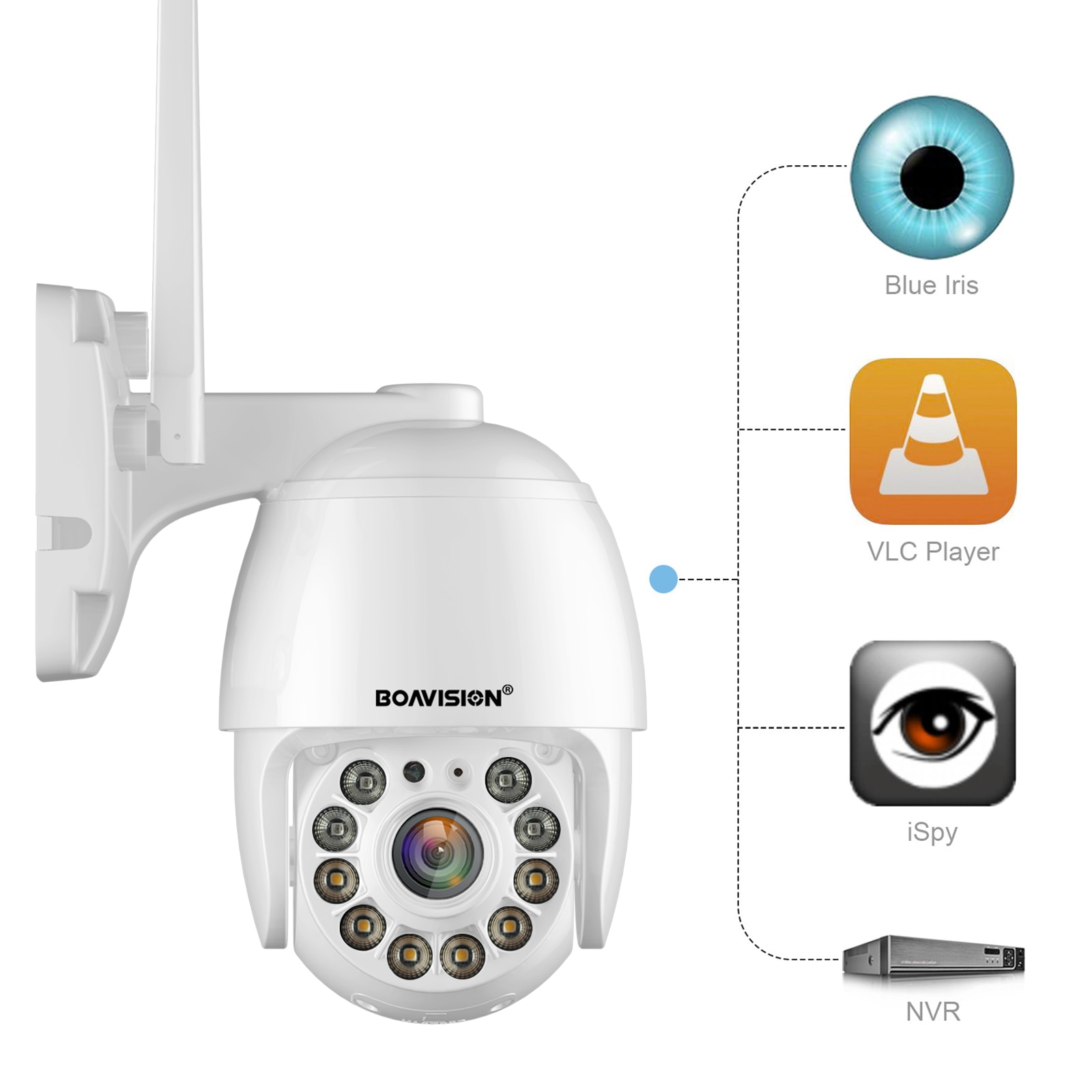

Third Party Software Support
This camera allows you to connect most famous NVR , NAS and Third Party software, like Blue iris, ispy, Synology, QNAP, 2K/4K NVR, etc
Two Way Audio Talk Back
Built-In Microphone and speaker, Support Two Way Audio Talk Back
Motion Detection & Alarm Linkage
Can Set 4 Independent Detection Region (1-100 Sensitivity Can Be Set)
Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos
To The FTP Server, Alarm Write Pictures And Videos To TF Card, Alarm Message Push
P2P Remote control ,Everywhere & Everytime
Provide Android & IOS APP (CamHipro) And Professional CMS PC Client Software
Support TF Card / Micro memory card
Up To 128GB ( TF Card is optional choose ) . Convenient to watch the video playback on Phone or PC anytime .

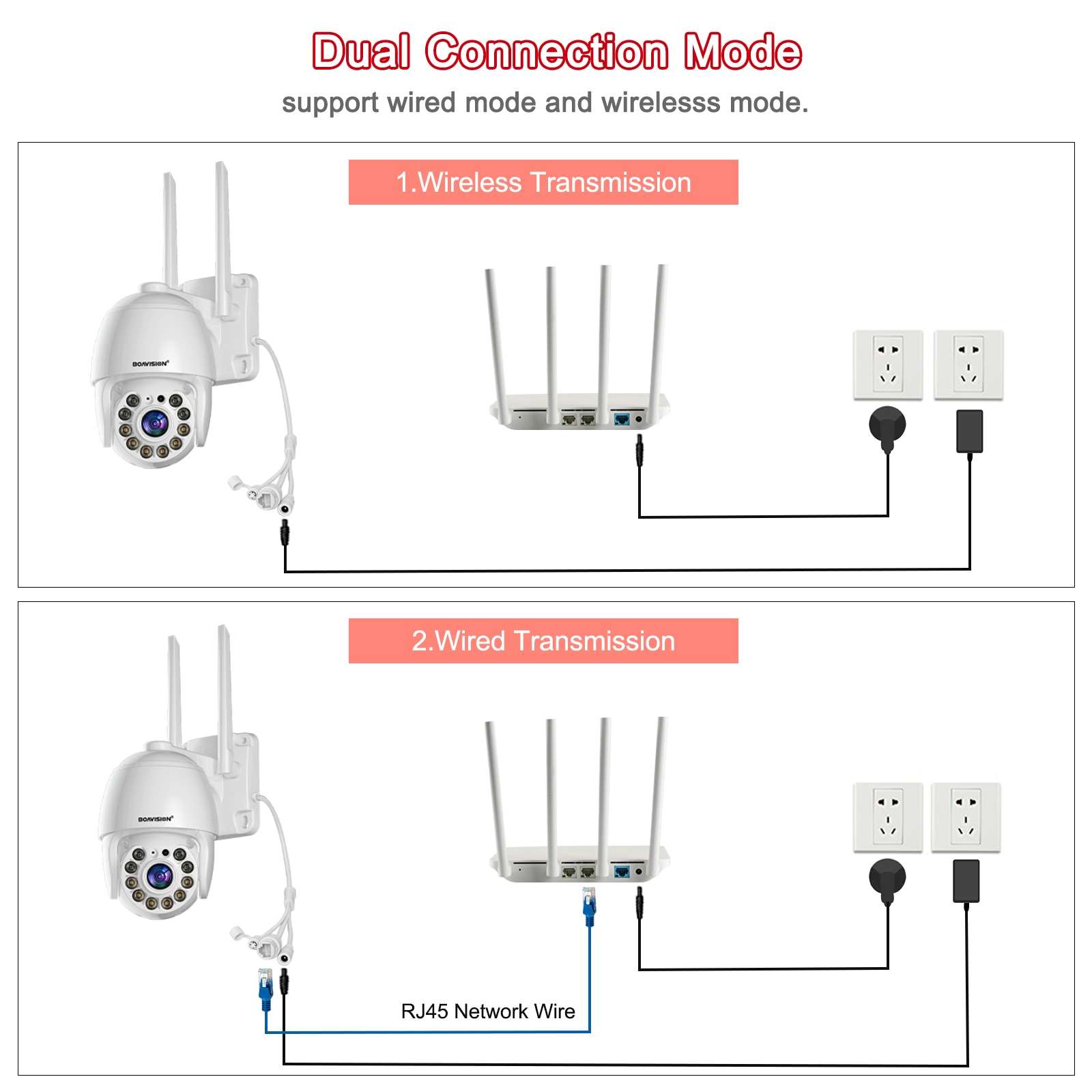

Two Connection Method ( Wire & Wireless )
Do not need network wire . If you want to connect the network wire , it also support . Flexibility to choose the connection method that suits you

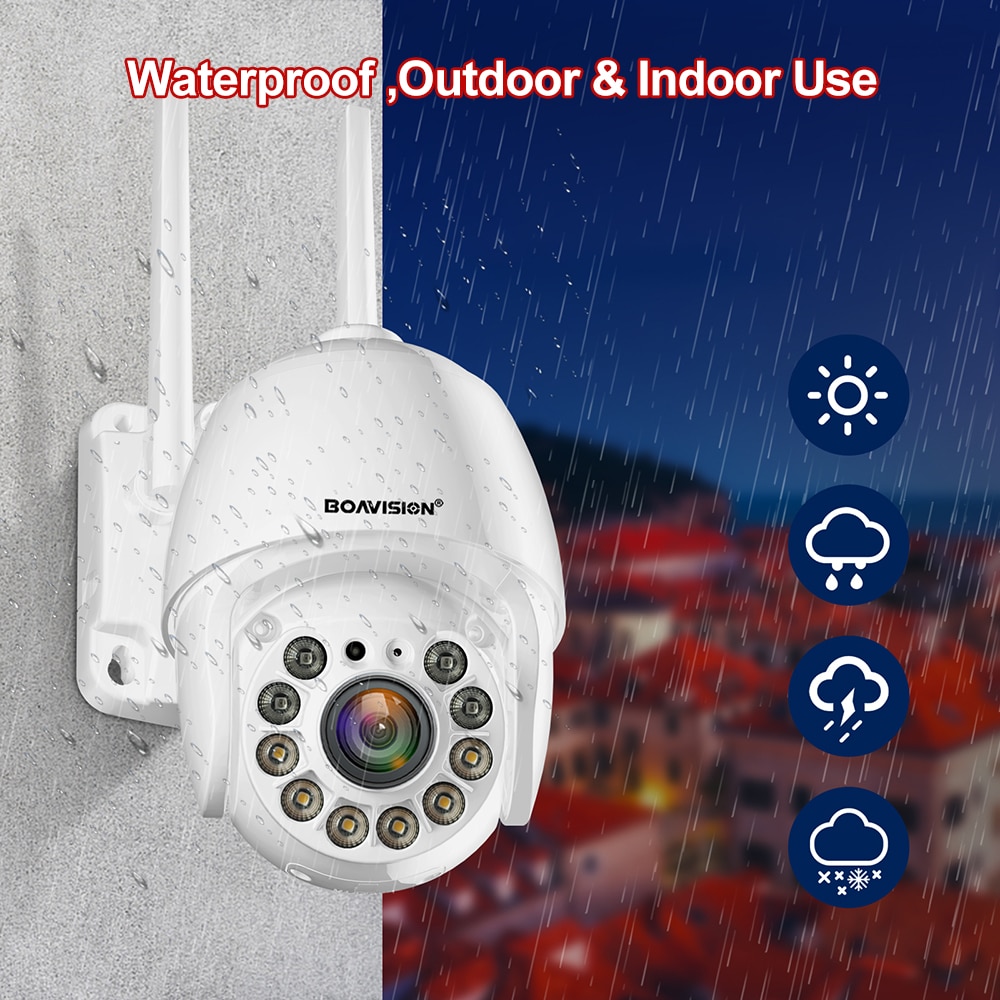

Waterproof IP65
ABS Plastic Housing Material, Outdoor & indoor Use, suit for any weather condition . -4~140°F
Usage Scenarios
Can Be Used In A Variety Of Environments, Whether It Is Rain Or Dust Can Be Effectively Isolated
2 Inch Super Mini Size
3.6mm Fixed Lens ( 4X Digital Zoom)
Packing List
Specification selection
Features :
2 Inch Auto Tracking Super Mini Size PTZ Dome WIFI IP Camera
3.6mm Fixed Lens (4X Digital zoom )
Support HD 1080P High Quality Resolution
Support TF Card, up to 128G (TF Card Optional Choose)
Pan Tilt Rotation, Horizontal:355° & Vertical:90°Ø
6pcs Spotlight LED+4Pcs Array Infrared LEDs,30m B/W Night Vision/20M Color Night vision
Support P2P, View & Anywhere & Anytime
Provide Android & IOS APP (CamHi) and professional CMS PC client software
Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
ABS PlasticHousing Material,Outdoor Use,Waterproof IP65
Built-in Microphone,LoudSpeaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters,LoudSpeaker Effective Range 60 Meters
The TF Card Slot Is Designed On The Camera's Back Cover
Very Easy to Install the TF Card .(TF Card Optional Choose)
Specifications:
| Model | HX-HD22M102M | |
| Camera | Operating system | Embedded Linux OS |
| Megapixel | 1920*1080 | |
| Lens interface type | M12 | |
| Lens | 3.6mm Fixed Lens(4X Digital zoom ) | |
| View angle | 75deg | |
| Min.illumination | 0.05 Lux / 0 Lux(IR on) | |
| Day&Night mode | Auto IR-CUT | |
| Night vision distance | 6pcs Spotlight LED(20M)+4PcsArrayInfrared LEDs(30M) | |
| Video | Video compression standard | H.264 Main Profile/H.264 Baseline |
| Video streaming | Dual streaming | |
| Video resolution | First stream: 1080P(1920x1080), 720P(1280x720) | |
| Second stream: Q720P(640x480/640x352), QQ720P(320x240/320x176) | ||
| JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) | ||
| Video code rate | 32 to 8192Kbps. supports constant bitrate/variable bitrate | |
| Video frame rate | 12fps(PAL 50HZ). 12fps(NTSC 60HZ) | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |
| Image enhancement | Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction | |
| Audio | Audio compression standard | G.726/G.711 |
| Audio code rate | Rate adaptive | |
| Audio Input | Support, Built-in Microphone | |
| Audio Output | Support Two Way Audio Talk , Built-in Loud Speaker | |
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage | Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to TF card, alarm message push | |
| Privacy mask | Maximum support 4 users to simultaneously browse | |
| OSD | Support camera name, date and time information superimposed | |
| User management | Supports user and rights management | |
| Simultaneous viewers | maximum support 12 users to simultaneously browse (each stream supports 4 users) | |
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |
| Connection protocol | onvif-compatible (backward compatible) | |
| Wireless | Wireless standards | IEEE802.11b. 802.11g. 802.11n Draft |
| Frequency range | 2.4 GHz to 2.4835 GHz | |
| Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | |
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | |
| PTZ | Rotation angle | Horizon:0° to 355°. Vertical: 0° to 90° |
| Horizontal speed | 1° to 40°/S | |
| Vertical speed | 1° to 20°/S | |
| Preset | N/A | |
| Interface | Power interface | 1*5.5mm power interface |
| Ethernet | 1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
| TF card Slot | 1*TF card slot. up to 128G(Don't included TF Card) | |
| Reset button | Support | |
| General | Power supply | DC 12V 2A |
| power | Day: 3W; Night: 12W | |
| Operating temperature | -20 to +60 degree | |
| Operating humidity | 10% to 95% | |
| Material | ABS Plastic Housing ,Outdoor Use,Waterproof IP65 | |
| Installation | Rack mounting | |
| Size(W×D×H)(mm) | 137x128x92mm | |
| Weight(kg) | 0.65kg | |
Packing List:
1*Auto Tracking WIFI PTZ IP Camera Built-in Microphone,Loud Speaker (TF Card Optional Choose)
1*DC 12V 2APower Supply(Optional Choose)
1*CD& Manual
1*Screws Bag
2*Antenna
1*Network Cable
