Outdoor IP Camera 5MP 4g Sim card /WIFI AI Auto Tracking 30X Zoom Wireless PTZ Speed Dome CCTV Camera Two Way Audio IR 80m Camhi
5MP 30X Zoom (20X Optical Zoom+10X Digital zoom) Wireless PTZ Speed Dome IP Camera WIFI Outdoor Waterproof 80M IR Night vision.
WIFI/4G Version Optional
AI Human Tracking Auto Zoom
The camera will adjust the pan/tilt rotation and zoom in automatically, capturing clear monitoring targets and auto-tracking moving human,and push alerts via email or notifications to your phone.
30X Zoom(20X optical+10X Digital)
Anytime, Anywhere To See Where You Want To See
Mobile App Support
Provide Android & IOS APP (CamHi) And Professional CMS PC Client Software
Two Way Audio
Built-In Microphone, Support Two Way Audio Talk Back (With Speaker)
Pan Tilt Rotation
Horizon: 0 To 360 Degree ; Vertical: 0 To 93 Degree
80m IR Night Vision
6Pcs Array Infrared LEDs. 80m IR Night Vision
Motion Detection & Alarm Linkage
Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server, Alarm Write Pictures And Videos To Micro SD Card, Alarm Message Push
Support Cruise Zoom
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Waterproof IP66
Metal Housing Material, Outdoor Use, Waterproof IP66
Product Size
TF/Micro SD Card
Don't Included TF Card
Packing List
Features :
Support AI Human Feature Tracking&Automatically Zoom
30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital)
Support Wifi/4G (Depends on the models you choose,See Detail on Specification )
Support HD 5MP High quality resolution
6pcs Array Infrared LEDs. 80m IR Night Vision
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters
Loudspeaker Effective Range 60 Meters
Support TF/Micro SD card, up to 128G(Don't included TF Card)
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHi) and professional CMS PC client software
Support 8 preset points , zoom lens status can be saved during the preset
Support Cruise Zoom /Auto Tracking AI Human Detection
Metal Housing Material,Outdoor Use,Waterproof IP66
Specifications:
| Products Model | HX-W56F5MP | HX-4G56F5MP | |
| Operating system | Embedded Linux OS | ||
| Effective pixels | 5MP(2560x1920) | ||
| CMOS Sensor | 1/2.8" | ||
| Lens interface type | M12 | ||
| Lens | 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital) | ||
| View angle | 68.5°-4.2° | ||
| Min.illumination | 0.05 Lux / 0 Lux(IR on) | ||
| Day&Night mode | Auto IR-CUT | ||
| Night vision distance | 6pcs Array Infrared LEDs. 80m IR Night Vision | ||
| Video compression Standard | H.264 Main Profile/H.264 Baseline | ||
| Video streaming | Dual streaming | ||
| Video resolution | First stream:2560x1920 or 2560x1440 | ||
| Second stream:800x600 or 800x480 | |||
| JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) | |||
| Video code rate | 32 to 8192Kbps. supports constant bitrate/variable bitrate | ||
| Video frame rate | 15fps(PAL 50HZ/NTSC 60HZ) | ||
| Audio | Audio compression standard: G.726/G.711 | ||
| Audio code rate: Rate adaptive | |||
| Audio Input: Support, built-in Microphone | |||
| Audio Output: Support Two Way Audio Talk Back(With Speaker) | |||
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | ||
| Image enhancement | Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction | ||
| Audio function | Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker) | ||
| Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) | ||
| Alarm linkage | Alarm send pictures to the specified mailbox, | ||
| alarm upload pictures and videos to the FTP server, | |||
| alarm write pictures and videos to Micro TF card, alarm message push | |||
| Privacy mask | Maximum support 4 users to simultaneously browse | ||
| OSD | Support camera name, date and time information superimposed | ||
| User management | Supports user and rights management | ||
| Simultaneous viewers | maximum support 12 users to simultaneously browse (each stream supports 4 users) | ||
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, | ||
| FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |||
| Connection protocol | Support ONVIF 2.1(backward compatible) | ||
| Network Support | 2.4 GHz to 2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft | GSM 900/1800 MHz UTRA FDD Band I/VIII E-UTRA FDD Band 1/3/7/8/20/28 E-UTRA TDD Band 38/40/41 | |
| Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | ||
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | ||
| Rotation angle | Horizon:0° to 355°. Vertical: 0° to 90° | ||
| Horizontal speed | 1° to 40°/S | ||
| Vertical speed | 1° to 20°/S | ||
| Preset | Support 8 preset points , zoom lens status can be saved during the preset | ||
| Cruise Zoom | Support Cruise Zoom/Auto Tracking Zoom In | ||
| Power interface | 1 5.5mm power interface | ||
| Ethernet | 1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | ||
| TF card Slot | 1 TF card slot. up to128GB (TF Card Optional Choose) | ||
| Reset button | Support(On the side of the TF Card Slot) | ||
| Power supply | DC 12V 3A | ||
| power | Day: 3W; Night: 12W | ||
| Operating temperature | -20 to +60 degree | ||
| Operating humidity | 10% to 95% | ||
| Material | Metal Housing ,Outdoor Use,Waterproof IP66 | ||
| Installation | Rack mounting | ||
| Size(mm) | 239*137*215 | ||
| Weight(kg) | 1.45kg | ||
| Package Size(mm) | 295*285*160 | ||
| Package Weight(kg) | 2.15kg | ||

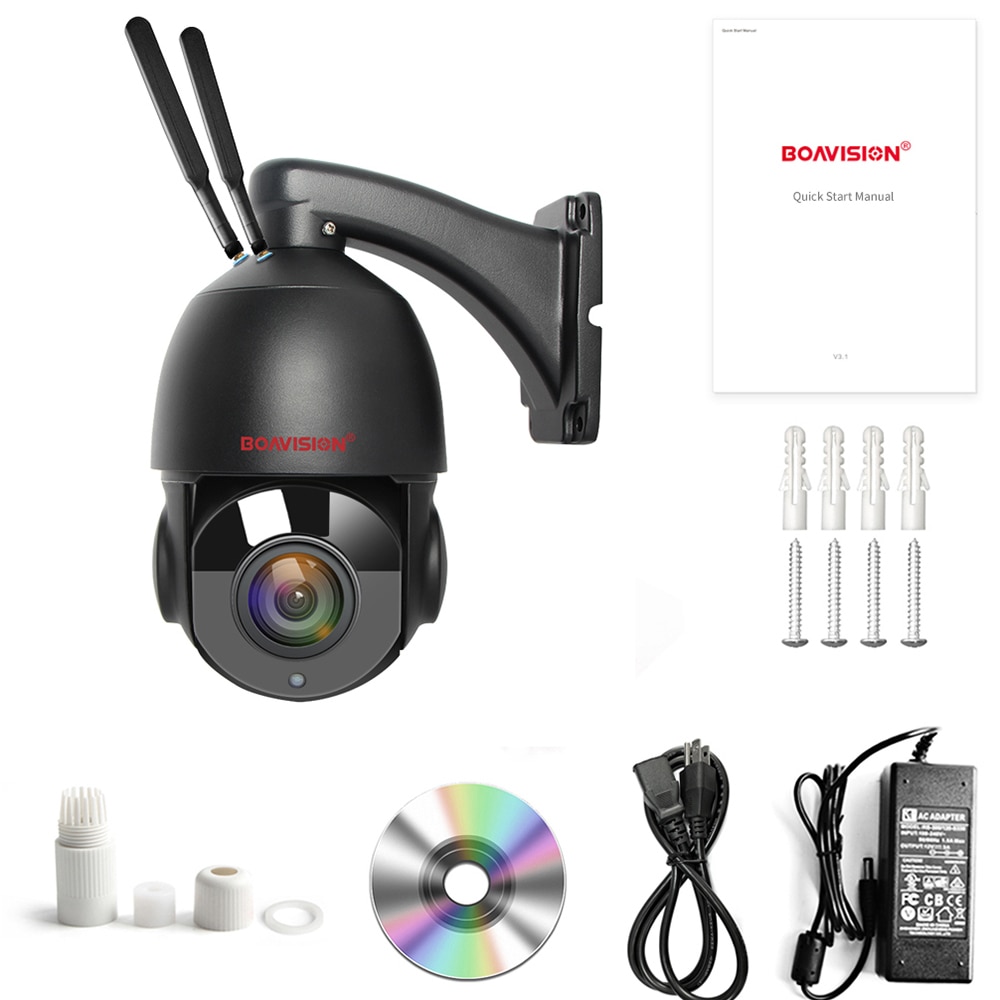

Packing List:
1*Dome Speed IP Camera Built-in Microphone&Speaker (TF Card Optional Choose)
1*DC 12V 3A Power Supply
1*CD & Manual
1*Screws Bag
1*Antenna
