1080P / 5MP WIFI/4G 2.5 Inch AI Auto Tracking Super Mini PTZ Speed Dome WIFI IP Security Camera

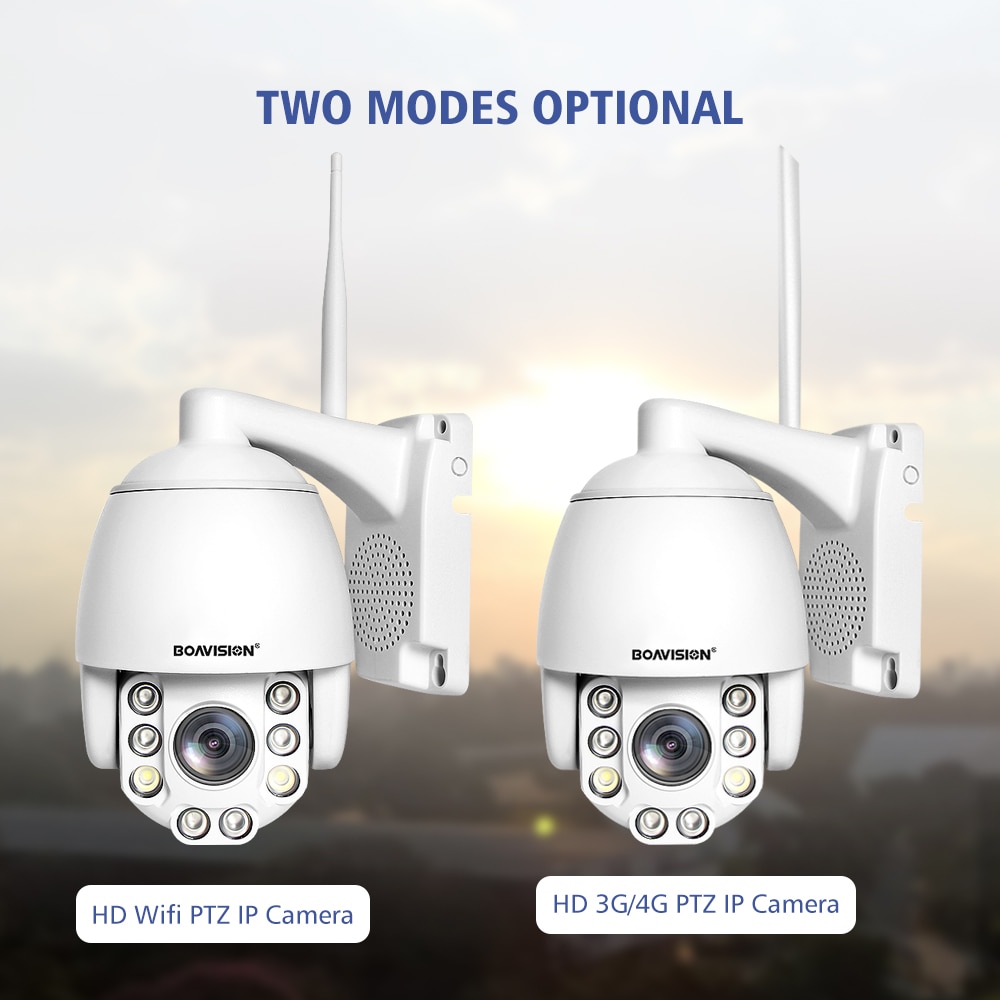

Two Modes Optional
( WIFI / 4G )
AI Human Auto Tracking
Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.
Full HD Resolution
HD 1080P(1920X1080)/5MP(2560x1920)
5X Optical Zoom Auto Focus Lens
2.7-13.5mm 5X Optical Zoom Auto Focus Lens
Three Night Vision Modes
Full Color High Definition Night Vision Effect
60m Night Vision
6Pcs Array IR LEds Or 2Pcs White Supplement Light.
Support 8 Preset Points
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Two Way Audio Talk Back
Built-in Microphone, Loud Speaker, Support Two Way Audio Talk Back
Pan Tilt Rotation
Horizontal: 355 Deg & Vertical: 90 Deg
Waterproof IP66
ABS Plastic + Metal Housing Material, Outdoor Use
Support P2P Multi-Platforms Remote Monitoring
Support P2P, View & Anywhere & Anytime.
Provide Android & IOS APP (CamHi/CamHipro) And Professional CMOS PC Client Software Windows/Mac
Alarm Linkage
Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,
Alarm Write Pictures And Videos To The Micro TF Card, Alarm Message Push
Day And Night Vision
6Pcs Array IR Leds Or 2Pcs White Supplement Light.
Support TF / Micro memory Card, Upto 128G ( optional choose )
The SD Card Slot Is Designed On The Camera's Back Cover, Very Easy To Install To TF/ Micro memory Card
2.5 Inch Super Mini Size
Packing List
View Via Mobile Phone
Download "CamHi" From Google Play Store
Features :
Support AI Human Feature Tracking
5X Zoom Auto Focus Lens(2.7-13.5mm5X Optical)
Support Wifi/4G (Depends on the models you choose,See Detail on Specification )
Support HD 5MP High quality resolution
6pcs Array Infrared LEDs+2pcs White light Floodlight. 60m IR Night Vision
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters
Loudspeaker Effective Range 60 Meters
Support TF/Micro memory card,up to 128G(TF Card Optional Choose)
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHi/CamHipro) and professional CMS PC client software
Support 8 preset points , zoom lens status can be saved during the preset
Support Auto Tracking AI Human Detection
Outdoor Use,Waterproof IP65
3 Models For Optional Choose :
HX-HD20M28AS:WIFI 1080P 2.7-13.5mm 5X Zoom Lens
HX-HD50M28AS:WIFI 5MP2.7-13.5mm 5X Zoom Lens
HX-4G50M28AS:4G 5MP 2.7-13.5mm 5X Zoom Lens
Specifications:
| Product | HX-HD20M28AS | HX-HD50M28AS | HX-4G50M28AS | |
| Operating system | Embedded Linux OS | |||
| Effective pixels | 2MP(1920x1080) | 5MP(2560x1920) | 5MP(2560x1920) | |
| CMOS Sensor | 1/2.8" | |||
| Lens interface type | M12 | |||
| Lens | 2.7-13.5mm 5X zoom lens | |||
| View angle | 68.5°-4.2° | |||
| Min.illumination | 0.05 Lux / 0 Lux(IR on) | |||
| Day&Night mode | Auto IR-CUT | |||
| Night vision distance | 6pcs Array Infrared LEDs+2pcs Floodlight LEDs. 60m IR Night Vision/30M Color Nightvision | |||
| Video compression Standard | H.264 Main Profile/H.264 Baseline | |||
| Video streaming | Dual streaming | |||
| Video resolution | First stream:2560x1920 or 2560x1440 | |||
| Second stream:800x600 or 800x480 | ||||
| JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) | ||||
| Video code rate | 32 to 8192Kbps. supports constant bitrate/variable bitrate | |||
| Video frame rate | 15fps(PAL 50HZ/NTSC 60HZ) | |||
| Audio | Audio compression standard: G.726/G.711 | |||
| Audio code rate: Rate adaptive | ||||
| Audio Input: Support, built-in Microphone | ||||
| Audio Output: Support Two Way Audio Talk Back(With Speaker) | ||||
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |||
| Image enhancement | Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction | |||
| Audio function | Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker) | |||
| Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) | |||
| Alarm linkage | Alarm send pictures to the specified mailbox, | |||
| alarm upload pictures and videos to the FTP server, | ||||
| alarm write pictures and videos to Micro TF card, alarm message push | ||||
| Privacy mask | Maximum support 4 users to simultaneously browse | |||
| OSD | Support camera name, date and time information superimposed | |||
| User management | Supports user and rights management | |||
| Simultaneous viewers | maximum support 12 users to simultaneously browse (each stream supports 4 users) | |||
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, | |||
| FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | ||||
| Connection protocol | Support ONVIF 2.1(backward compatible) | |||
| Network Support | 2.4 GHz to 2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft | GSM 900/1800 MHz UTRA FDD Band I/VIII E-UTRA FDD Band 1/3/7/8/20/28 E-UTRA TDD Band 38/40/41 | ||
| Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | |||
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | |||
| Rotation angle | Horizon:0° to 355°. Vertical: 0° to 90° | |||
| Horizontal speed | 1° to 40°/S | |||
| Vertical speed | 1° to 20°/S | |||
| Preset | Support 8 preset points , zoom lens status can be saved during the preset | |||
| Auto Tracking | AI Humanoid Dection Auto Tracking | |||
| Power interface | 1 5.5mm power interface | |||
| Ethernet | 1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |||
| TF card Slot | 1 TF card slot. up to128GB(TF Card Optional Choose) | |||
| Reset button | Support(On the side of the TF Card Slot) | |||
| Power supply | DC 12V 2A | |||
| power | Day: 3W; Night: 12W | |||
| Operating temperature | -20 to +60 degree | |||
| Operating humidity | 10% to 95% | |||
| Material | Outdoor Use,Waterproof IP65 | |||
| Installation | Rack mounting | |||
| Size(mm) | 175*115*110mm | |||
| Weight(kg) | 0.9kg | |||
| Package Size(mm) | 250*250*100mm | |||
| Package Weight(kg) | 1.1kg | |||
Packing List:
1*2.5 Inch AI Auto Tracking Dome Speed IP Camera Built-in Microphone&Speaker(TF Card Optional Choose)
1*DC 12V 2A Power Supply
1*CD & Quck Start Manual
1*Screws Bag
1*Antenna
