Specification:
Specifications
Model
UTP3313TFL-II
UTP3315TFL-II
Output voltage
0~30V
0~30V
Output current
0~3A
0~5A
Output power
90W
150W
Load regulation
CV≤0.01%+3mV, CC≤0.1%+5mA
CV≤0.01%+5mV, CC≤0.1%+10mA

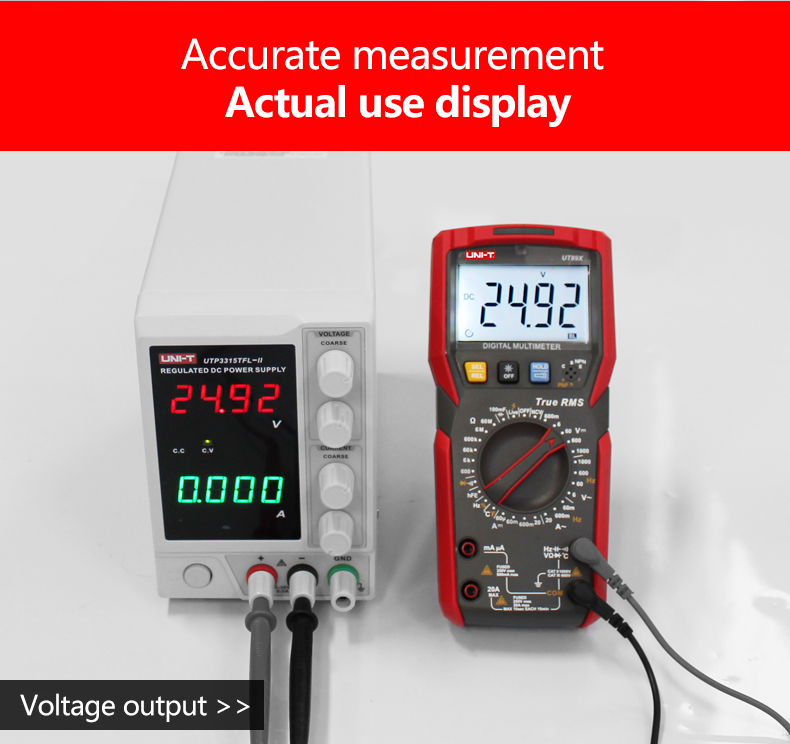

Accuracy (25℃±5℃)
Voltage
<0.5%+20mV
<0.5%+20mV
Current
<0.5%+5mA
<0.5%+10mA

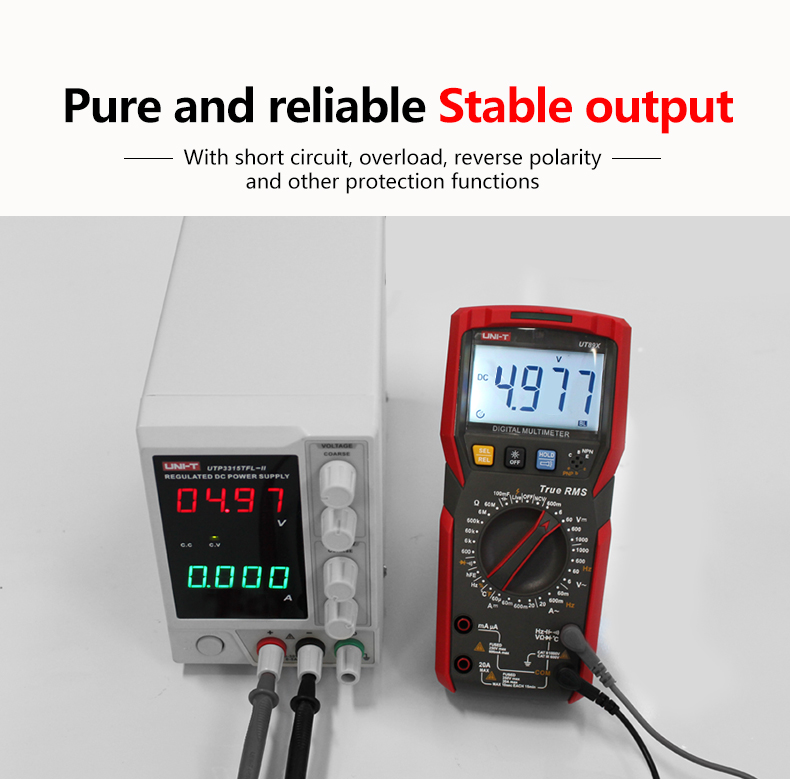

Ripple and noise
≤1mVrms
≤2mVrms

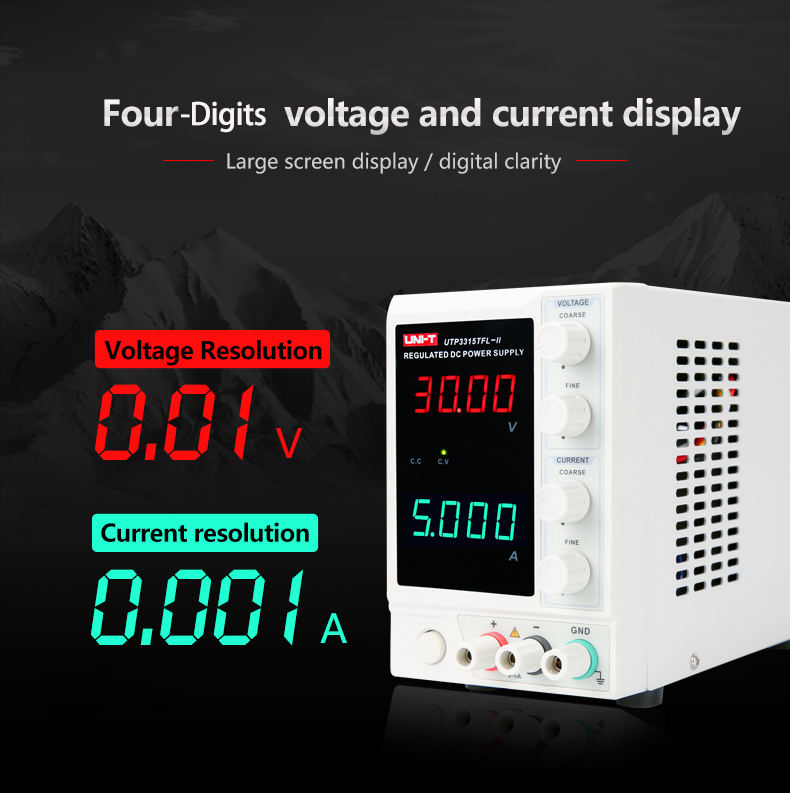

Output regulation resolution
CV: 10mV (typical), CC: 1mA (typical)
Reliability
MTBF(e): ≥2000hrs
Display mode
LED voltage and current dual display
Feature
Auto conversion of constant voltage and current with current limit protection
General Characteristics
Power

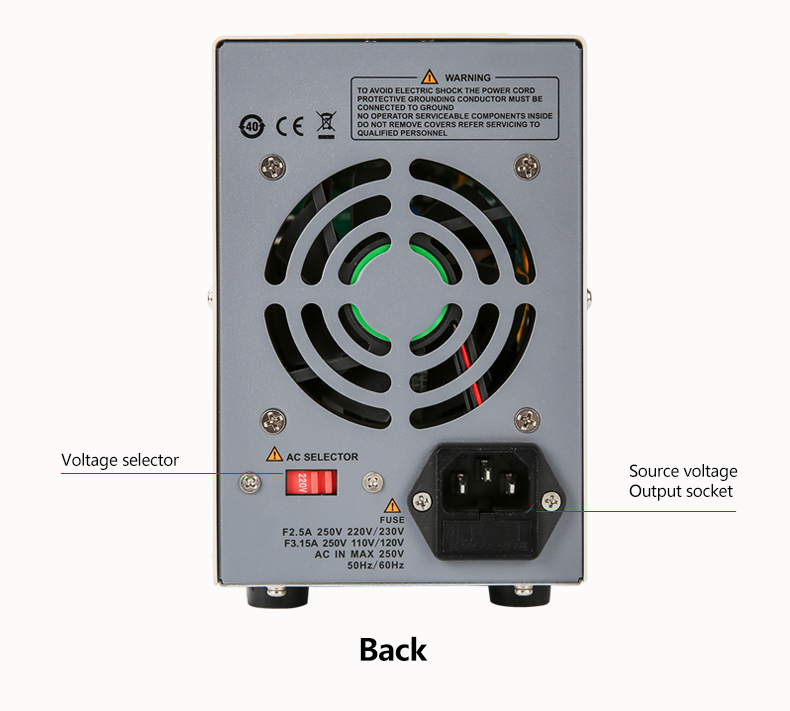

Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz
Product color
White and grey
Product net weight
3kg (UTP3313TFL-II); 4kg (UTP3315TFL-II)
Product size
105mm x 165mm x 249mm
Standard accessories
Power cord, output cables
Standard individual packing
Carton box, English manual
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-1.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-2.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-3.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-4.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-5.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-6.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-7.jpg)
![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-8.jpg)

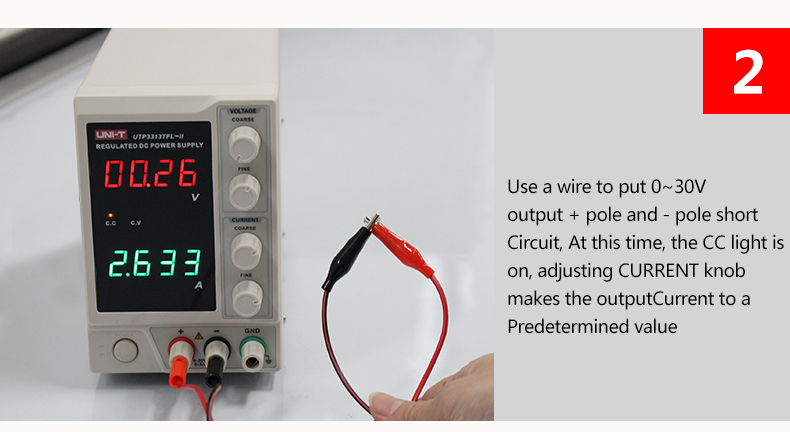

![](/upload/temp/uni-t-utp3313tfl-ii-3315tfl-ii-linear-dc-power-10784-9.jpg)
