Digital power supply case S400/S12D and 400W switch power supply for RD6006/RD6006P voltage converter (no RD6006 included)

those 2 choice S400 case and S12D caseare only case, not containing any power supply, S12D case is suitable for RD6006/RD6006W/RD6012/RD6012W case2, there are 2 choice,S400 case and S12D cas, wholesale Digital power .
Item No. COBD210504
4.64 stars, 11 reviews.
In Stock
Price:
US$23.45/ piece
Discount Price:
US$18.99/ piece 19%
Option:
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
Description

Note before buying:

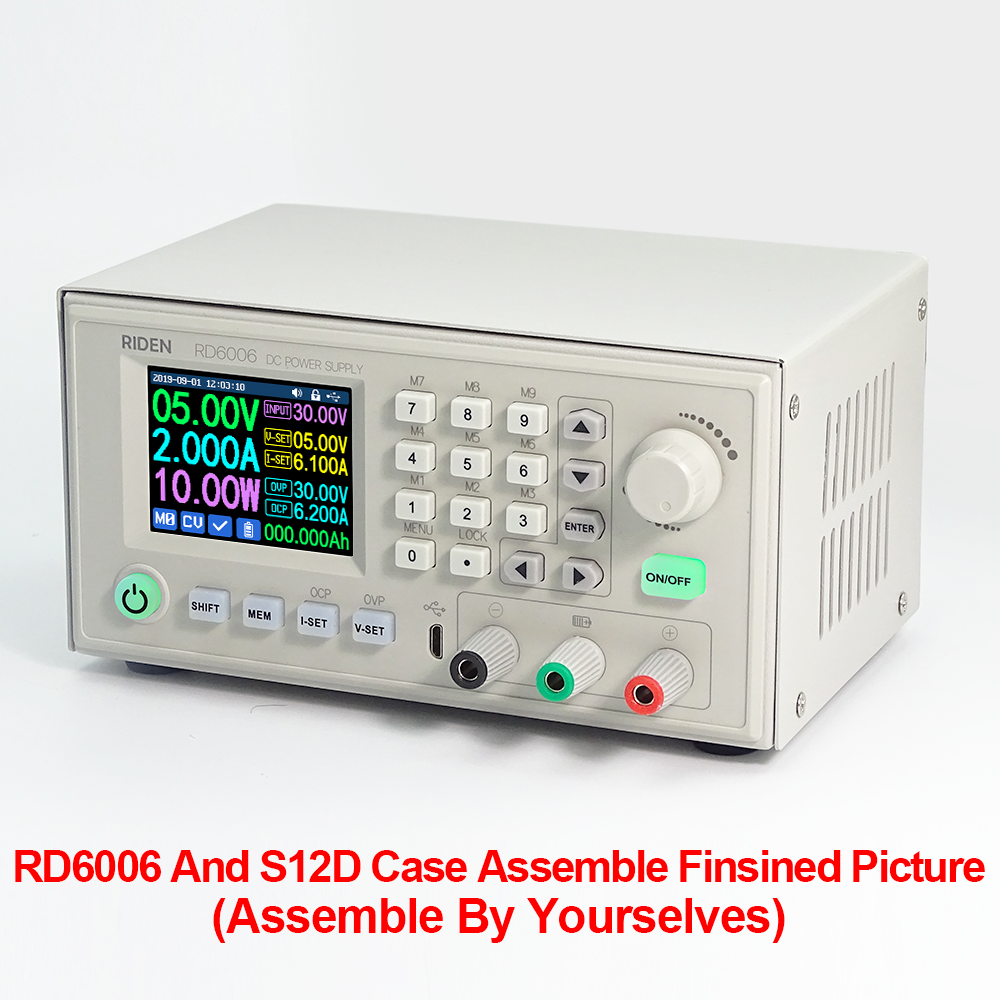

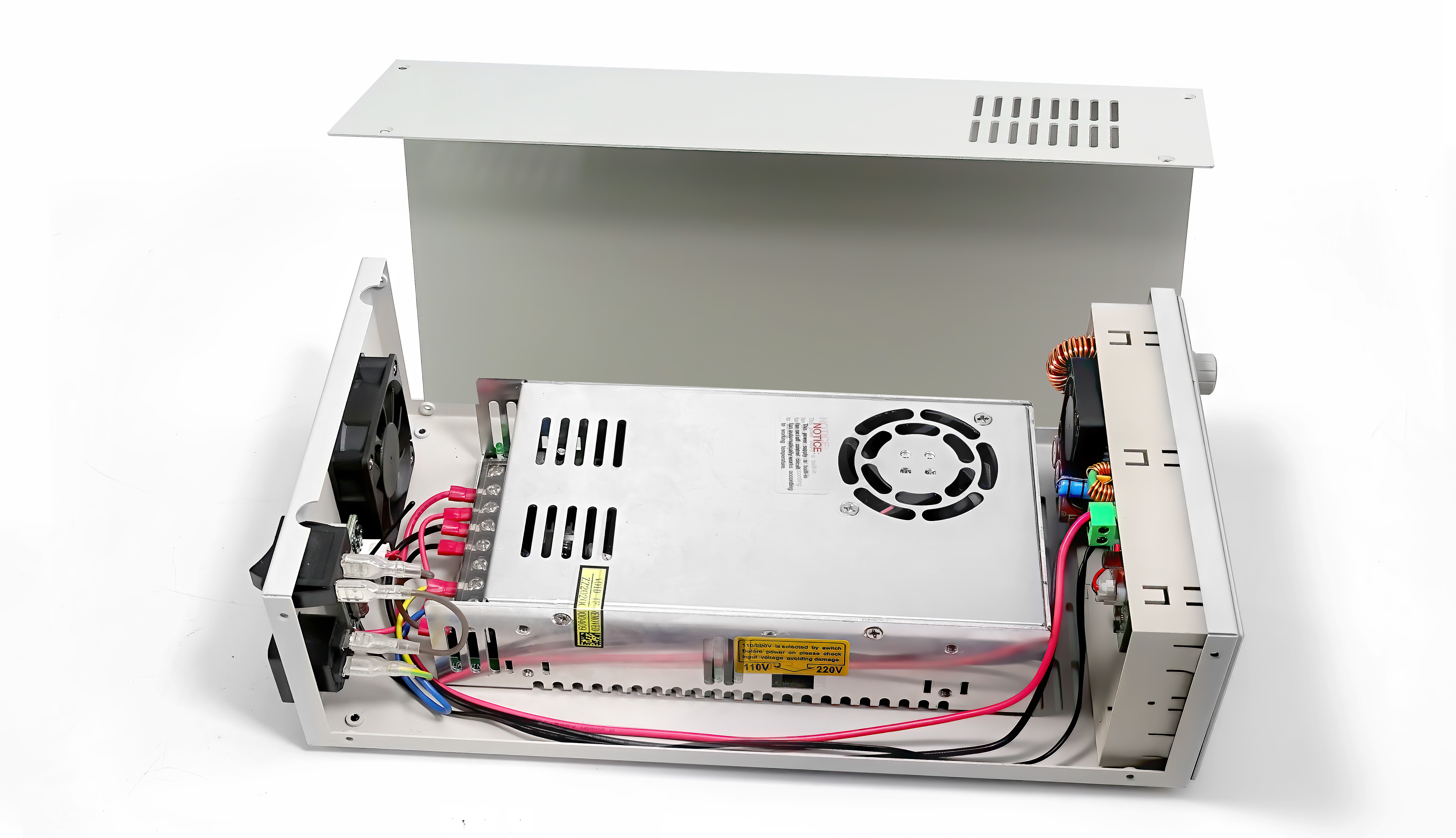

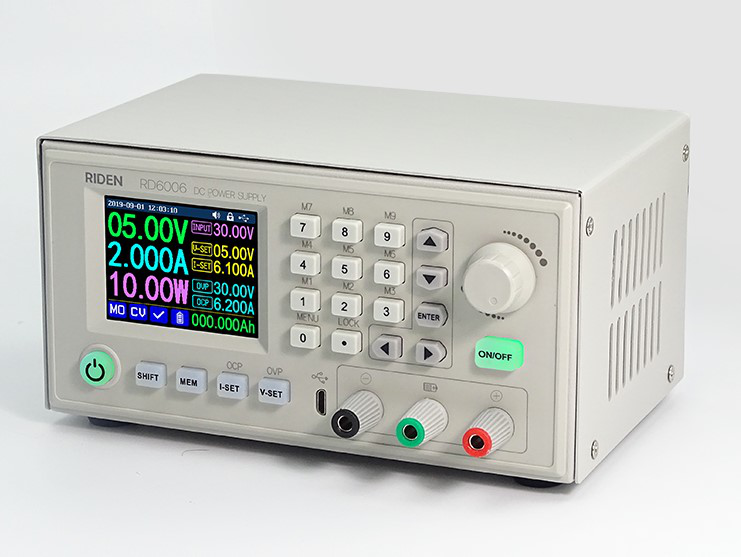

1, those 2 choice S400 case and S12D caseare only case, not containing any power supply. some picture show installation finished by RD6006 , switch power and case .S12D case is suitable for RD6006/RD6006W/RD6012/RD6012W case

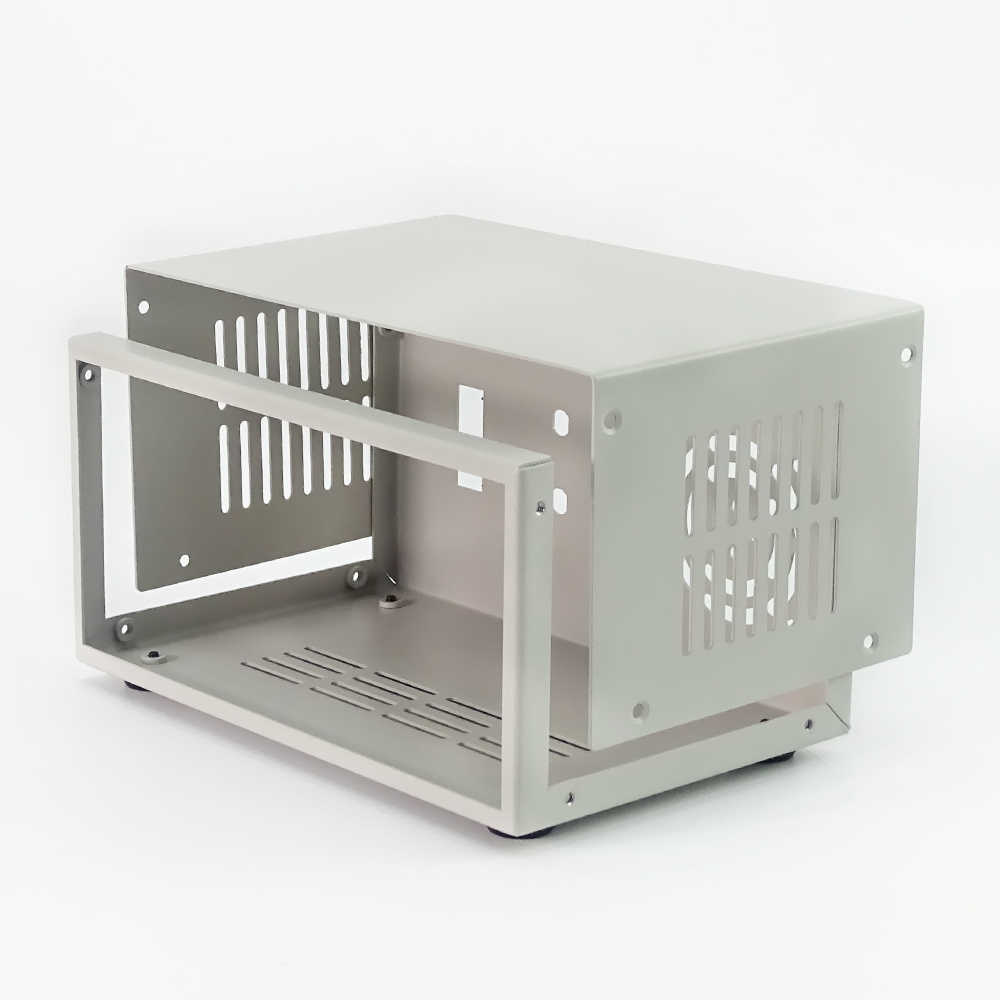

2, there are 2 choice,S400 case and S12D case. For S400 case, you can put AC-DC switch power and RD6006 into this case. for S12D, you only put RD6006.

RD6006 and S400 case assemble instruction: https://drive.google.com/drive/folders/1amKj1B2c2w3NYEQjY7_17ouiZIPQoOwp?usp=sharing

RD6006 and S12D case assemble instruction:https://drive.google.com/drive/folders/155ySRz6Ksvr1JBHdXWVc4mM6cCtqHVoI?usp=sharing

Installation video: https://www.youtube.com/watch?v=RMRuErdv2LM

the option 3 is the 400W switch power supply used for RD6006/RD6006W and Case S400

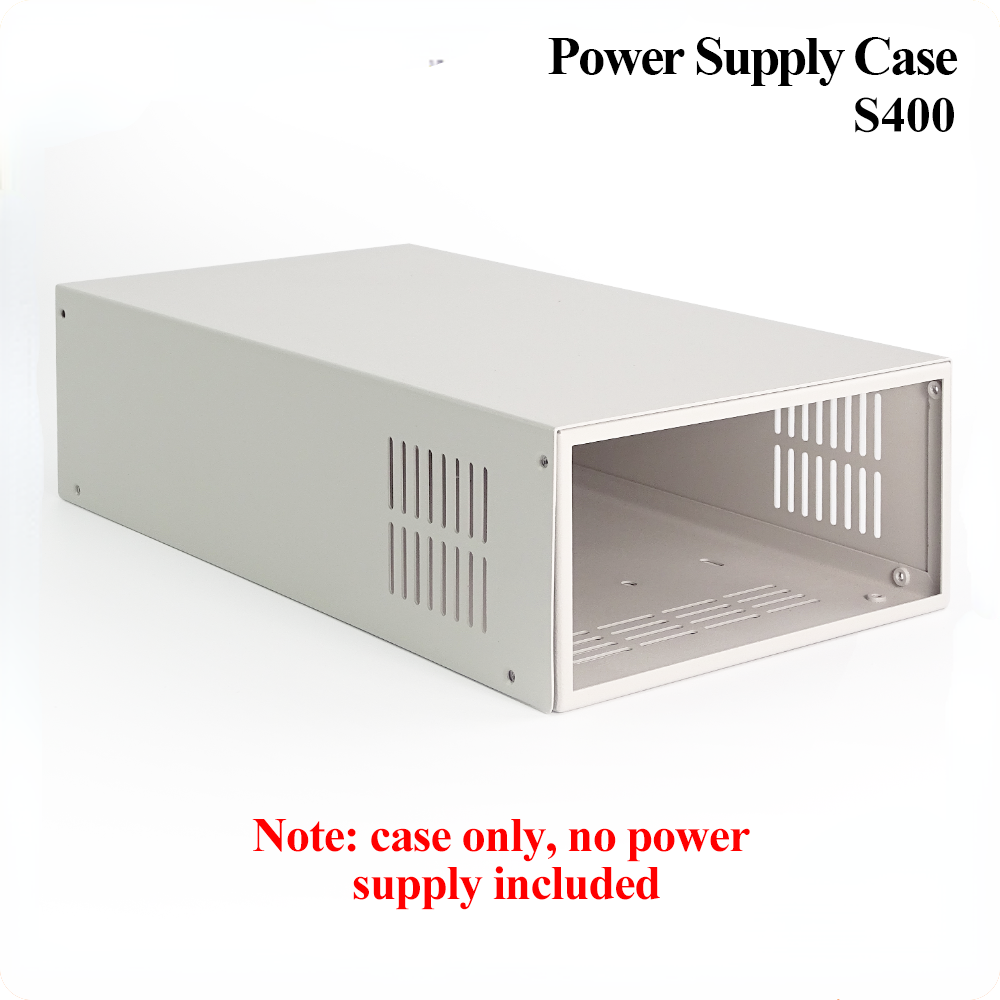

3, for S400 case, it is just case, not conntaining any power supply, but it is suitable for RD6006/RD6006W and AC-DC 400W 65V switch power supply, you can buy them seperately to assemble easy.

4,for input AC-DC switch power supply, we recommend 400W 65V switch power supply (S400 case leave fix hole size for this version)

Note: Please use the power supply we recommend or some qualified brand power suuply to power on RD6006, Poor quality power supplies may occasionally provide over-voltage when turned on, and the resulting damage must be borne by the customer.

there may be scratches on the surface but it doesn't affect the product performance, please do not be over picky, and if you do mind this, please do not buy this product

Digital power

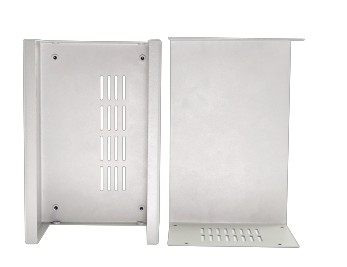

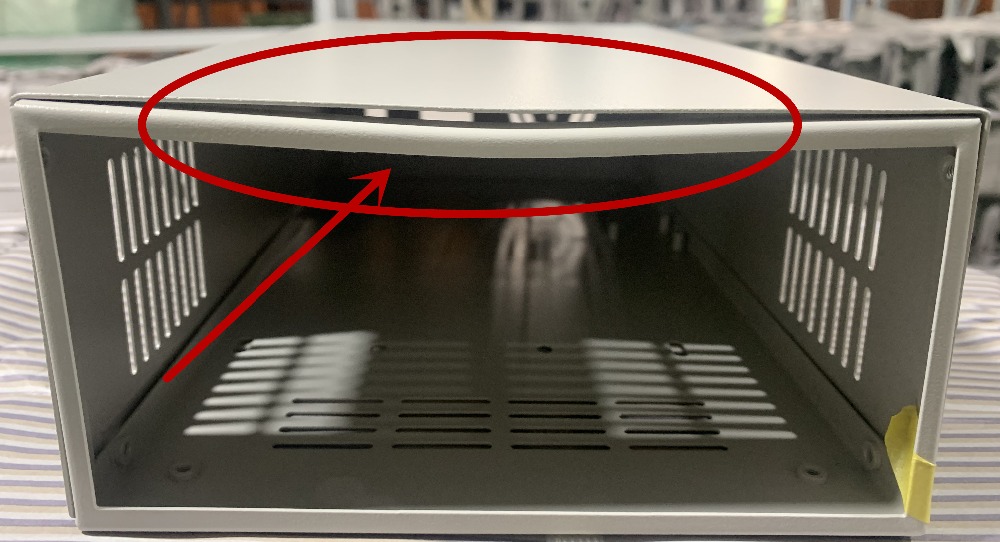

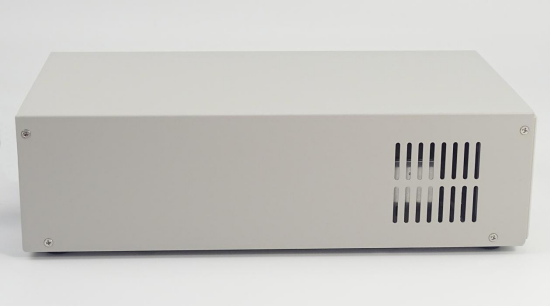

5,for S400 case, durning the shipping,maybe the case side wiil be a littledeformation (just like picture ), you can use your hand to ajust, that's ok, if you are mind this , please stop buying.

Digital power

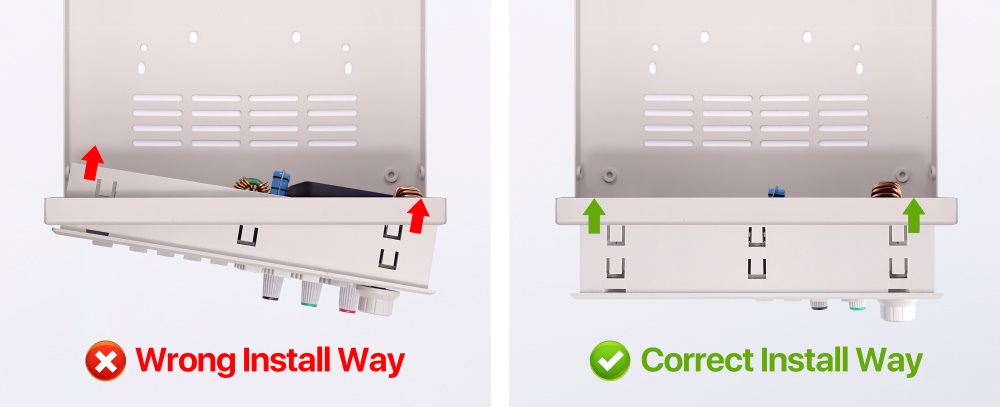

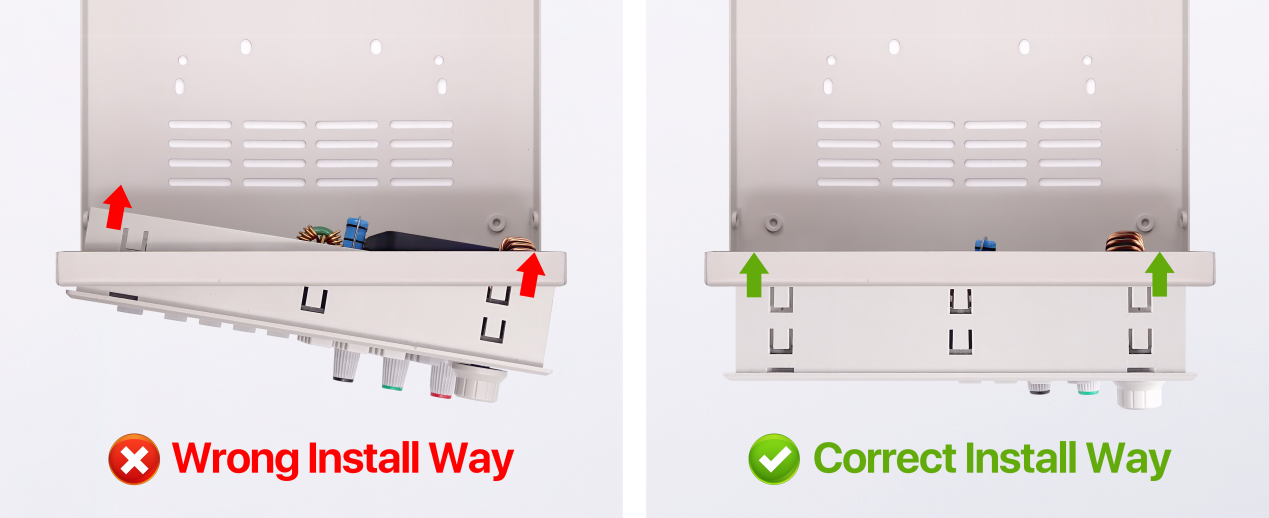

6.install the device in the right way

Digital power

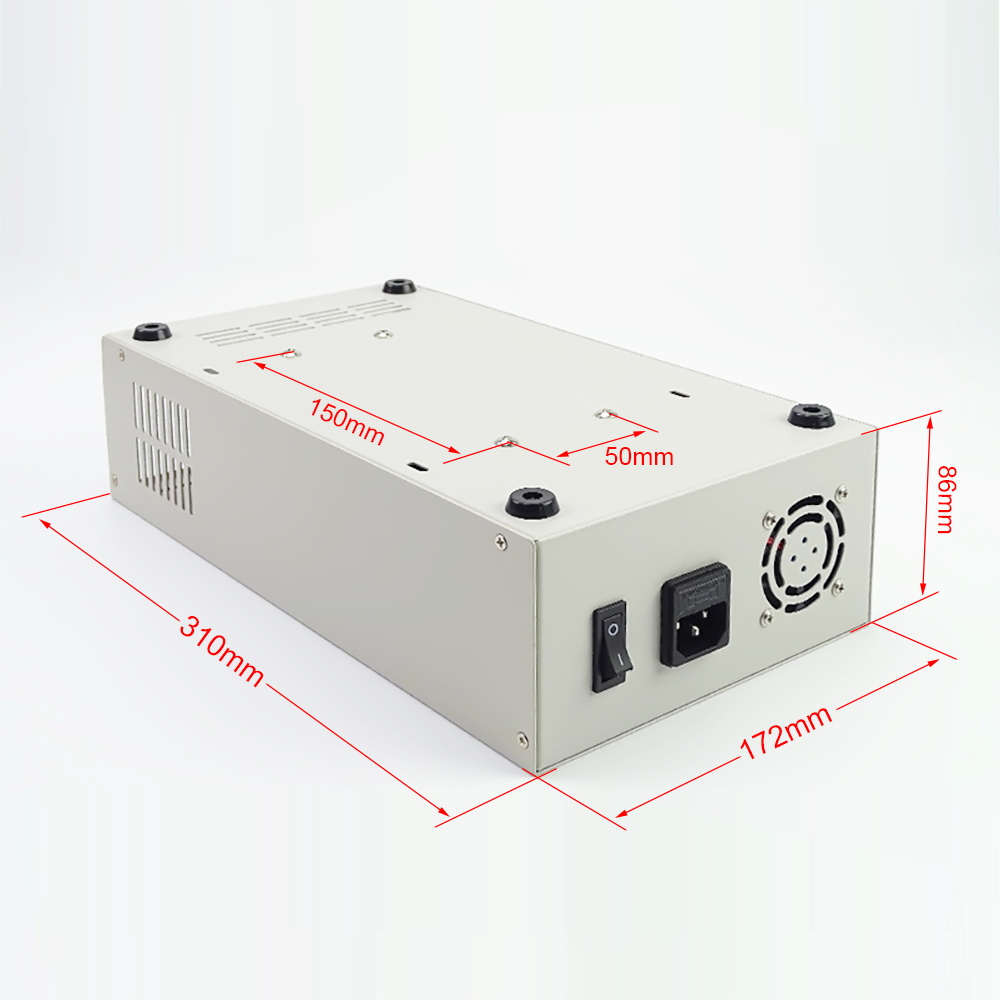

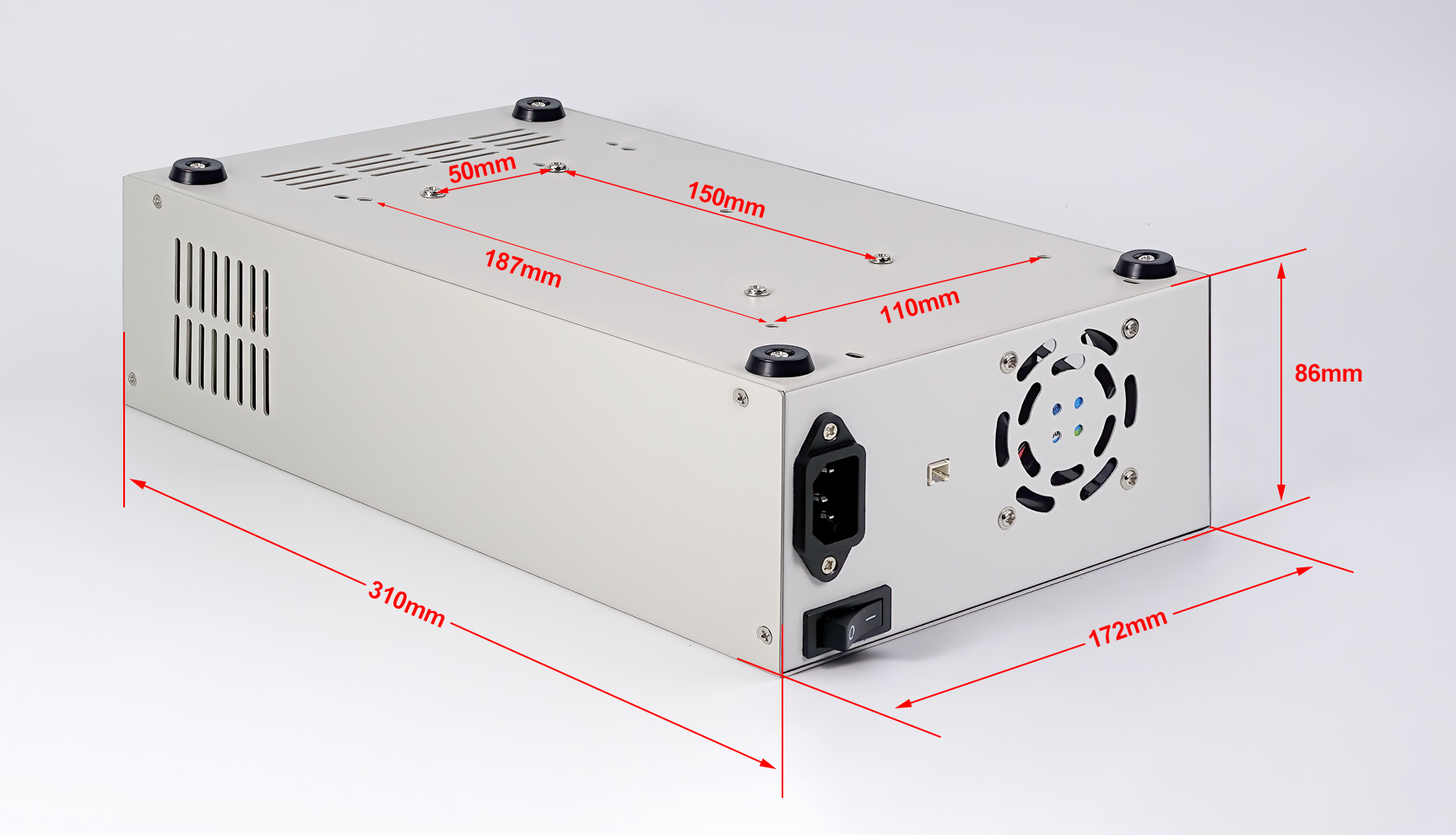

2.Product Dimension

Digital power

3.Accessory List

NAME

SPECIFICATION

QUANTITY


Upper Board

S400 upper board

1

Digital power

Lower Board

S400 lower board

1

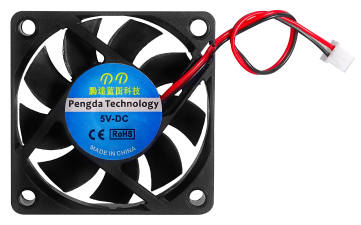

Fan

60mm*15mm

1

Digital power

Fan power board

33mm*33mm

1

Digital power

Screws for

fan power board

M3*5*7

3

Digital power Digital power

Foot pad fixing screws

M3*5*7

4

Screws forfanfixing

Round screw

M3*16

4

Digital power

Nuts for fan fixing

M3 nut

4

Digital power

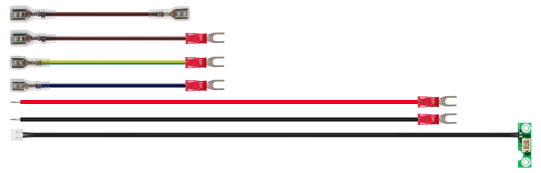

Cables

Brown(9cm):2
yellow-green(9cm):1

blue(10cm):1

red(40cm):1

black(40cm):1

Temperature sensor connection

cable with board:1

7

Digital power

Rocker switch

KCD3KCD3

1

Digital power

AC power socket

AC-04

1

Digital power

Non-slip mat

Φ13*4

4

Digital power

switch power supply fixing screws

M4*6mushroomhead

4

Digital power

Case fixing screws

M3*6 flat head white

10

Digital power

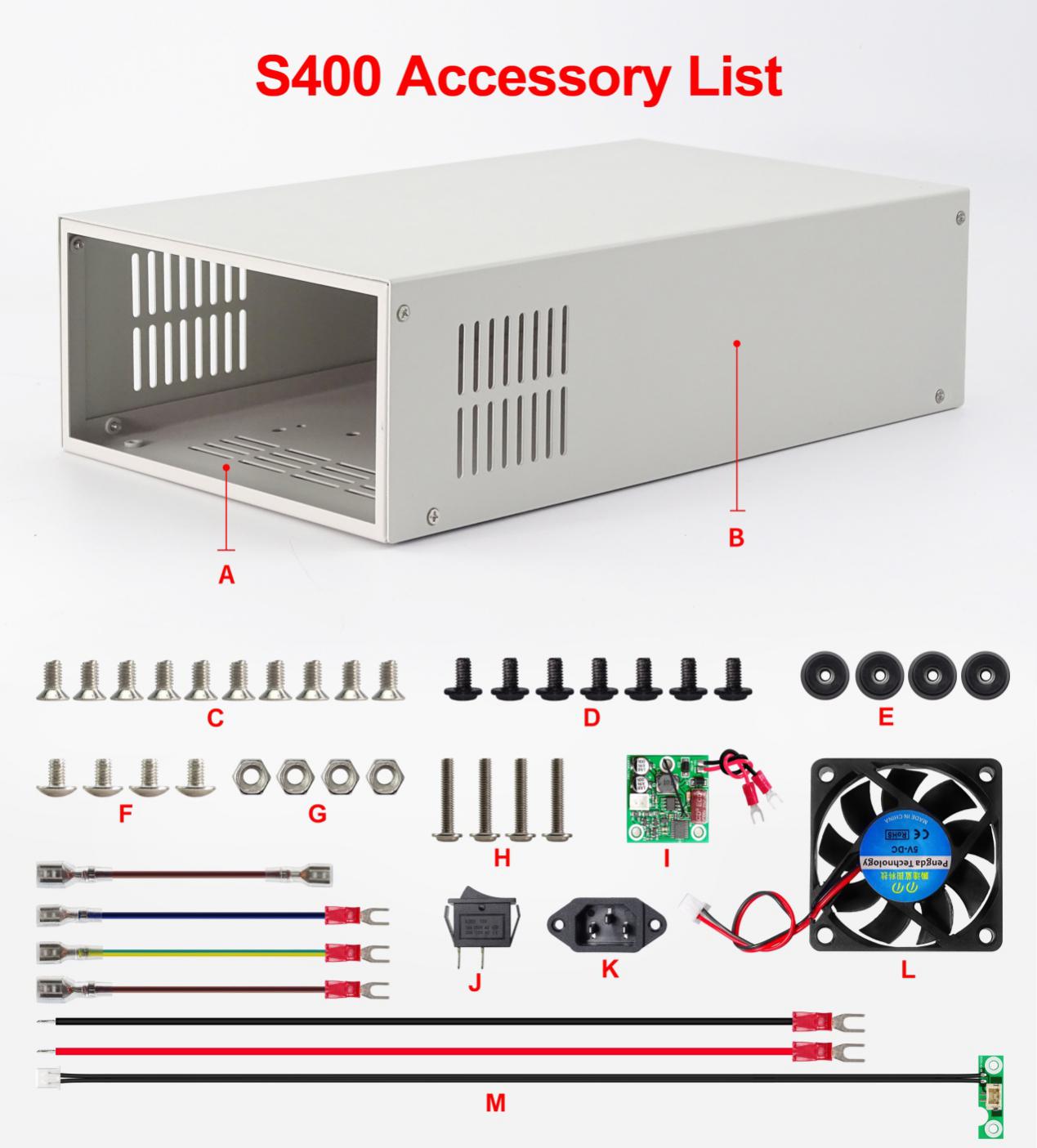

4.Accessory Picture

Digital power

A:Lower Board

B:Upper Board

C:CaseandAC power socketfixing screws

D:Screws forfan power boardand Mats

E:Non-slip mat

F:Switch power supply fixing screws

G:Nuts for fan fixing

H:Screws forfanfixing

I:Fan power board

J:Rocker switch

K:AC power socket

L:Fan

M:Cables

5.AssemblyProcedure

5.1 Assembly Preparation

● RD6006/RD6006W/RD6006Pdigital power supply*1, S400case*1,400W65Vswitch power supply*1, DC regulated power supply*1

● Tools, accessory (3 pin plug cable, multimeter, screw driver, test pencil...)

● Proper assembly environment

It is recommend to use a 400W 65V switch power supply as shown below.

Digital power

5.2 Assembly step

Note:The case material is a bit soft and may be slightly deformed during transportation. If there is a gap during the assembly, please straighten it before assemble it.

①Check the accessories: check if the accessories of S400 are same as accessory list or accessory picture.

②Check RD6006: connect the power cables to the input terminal of RD6006, and then adjust input power supply to 12v/1A to power on RD6006, and set 5V/1A output on RD6006, turn on the output to see if the output is normal.

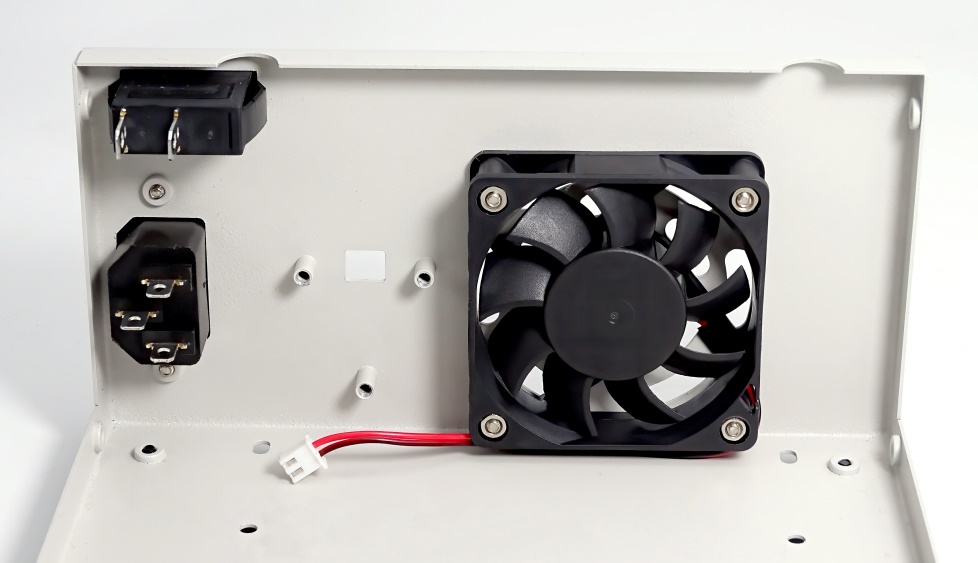

③Back board assembly: install the rocker switch,AC power socket and fan on the lower board.

Digital power

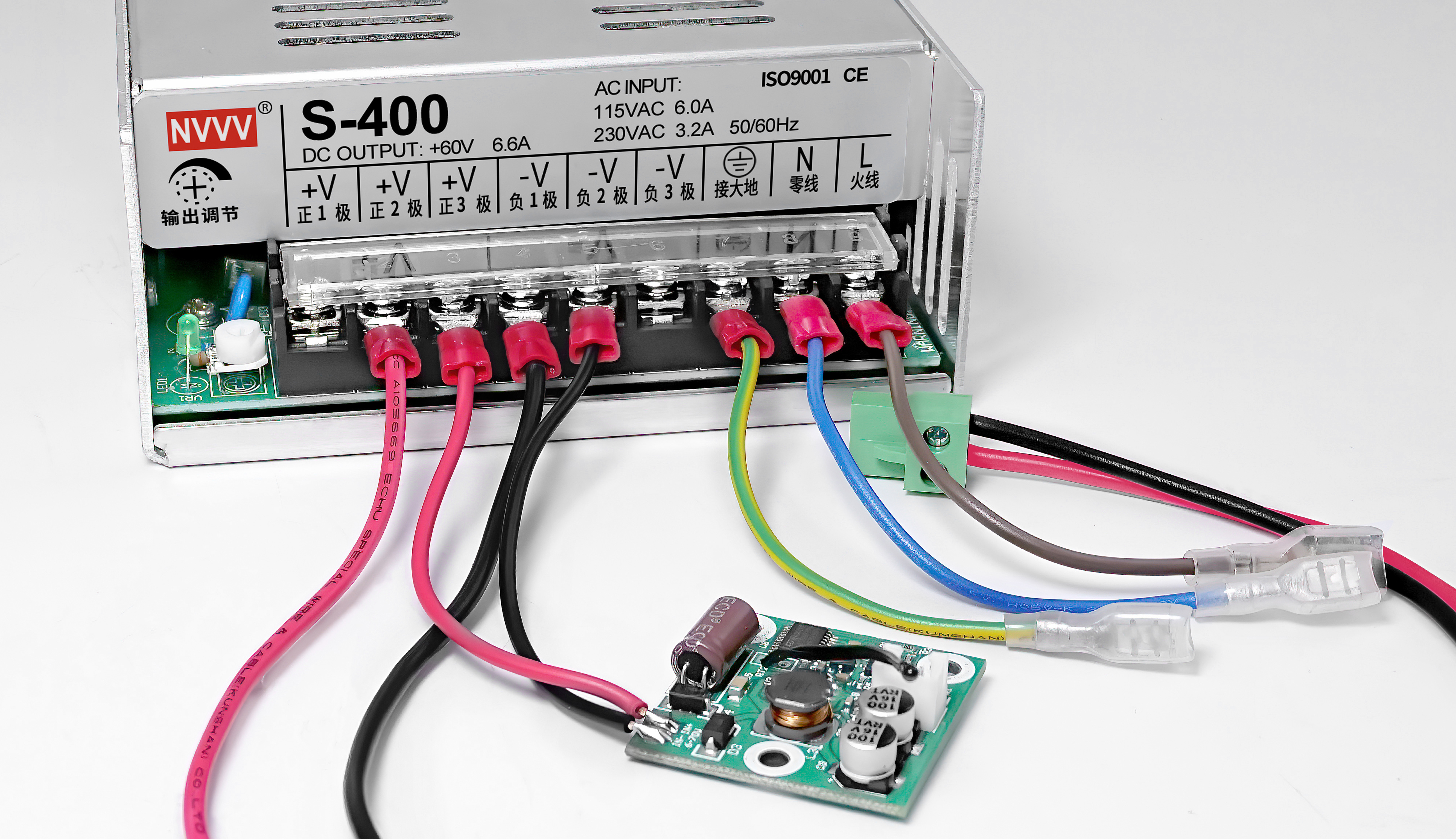

④Connect the cables to Switch power supply: connect the brown cable to the (L) terminal, connect blue cable to the (N) terminal, connect yellow-green cable to the (〨) terminal, connect the black cable of the fan board and the output black cable to the (-V) terminals, connect the red cable of the fan board and the output red cable to the (+V) terminals.As shown below.Connect the output

Digital power

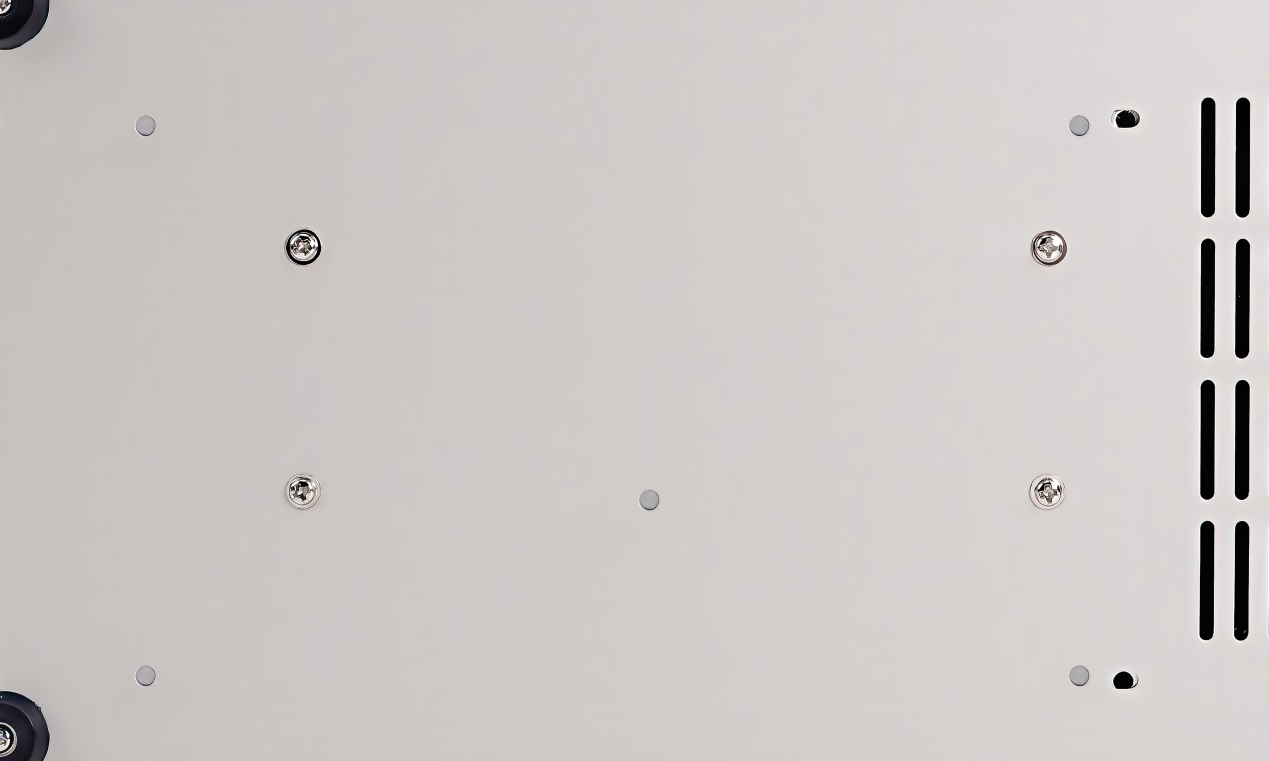

⑤Install the switch power supply

Install the switch power supply on the lower board

Digital power

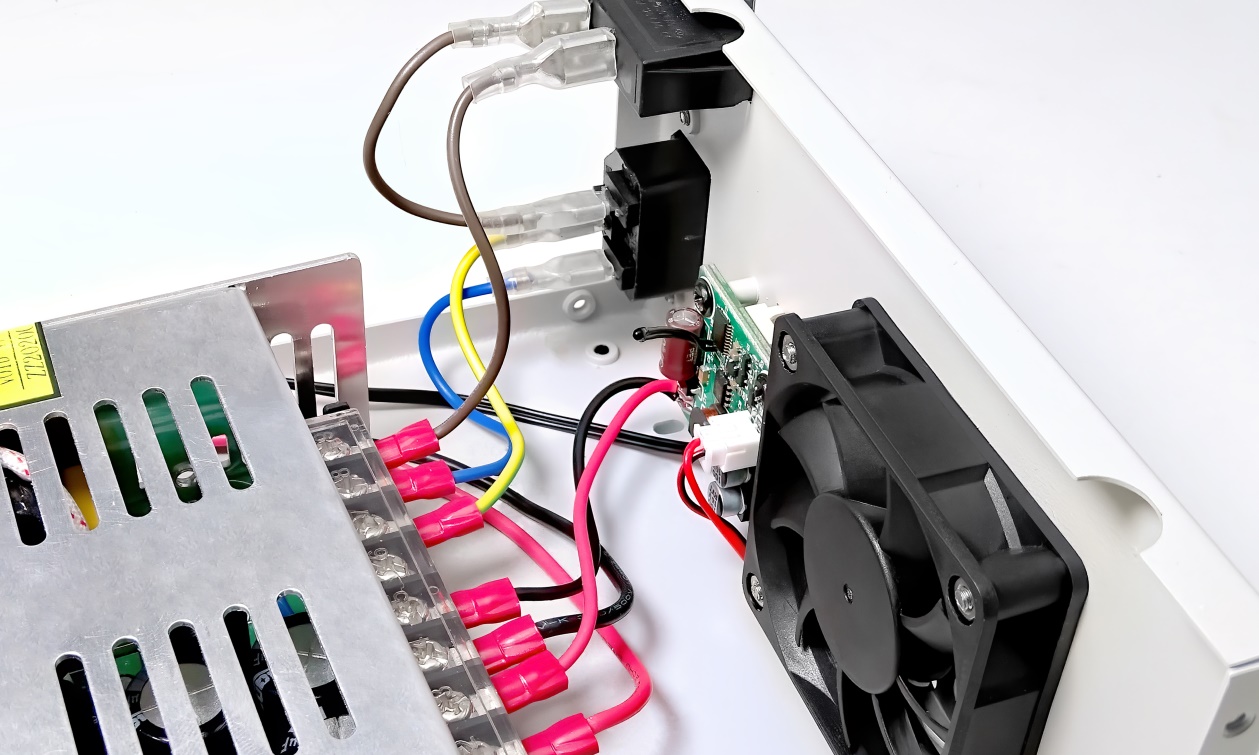

⑥Install the board and connect the power cable (dangerous,non-professionals should not operate)

Install the board of temperature sensor extension cable and fan board on the back panel, use brown cable to connect therockerswitch and the live wire (L) of the switch power supply;then use the brown cable to connect therockerswitch and the live wire (L) of the AC power socket;Use the blue cable to connect the neutral wire (N) ofAC power socket and the neutral wire (N) of switch power supply;Use a yellow-green two-colorcableto connect the ground wire (E) ofAC power socket and the ground wire (〨) of switch power supply.Insert the cable of the fan to the fan board as shown below.

Digital power

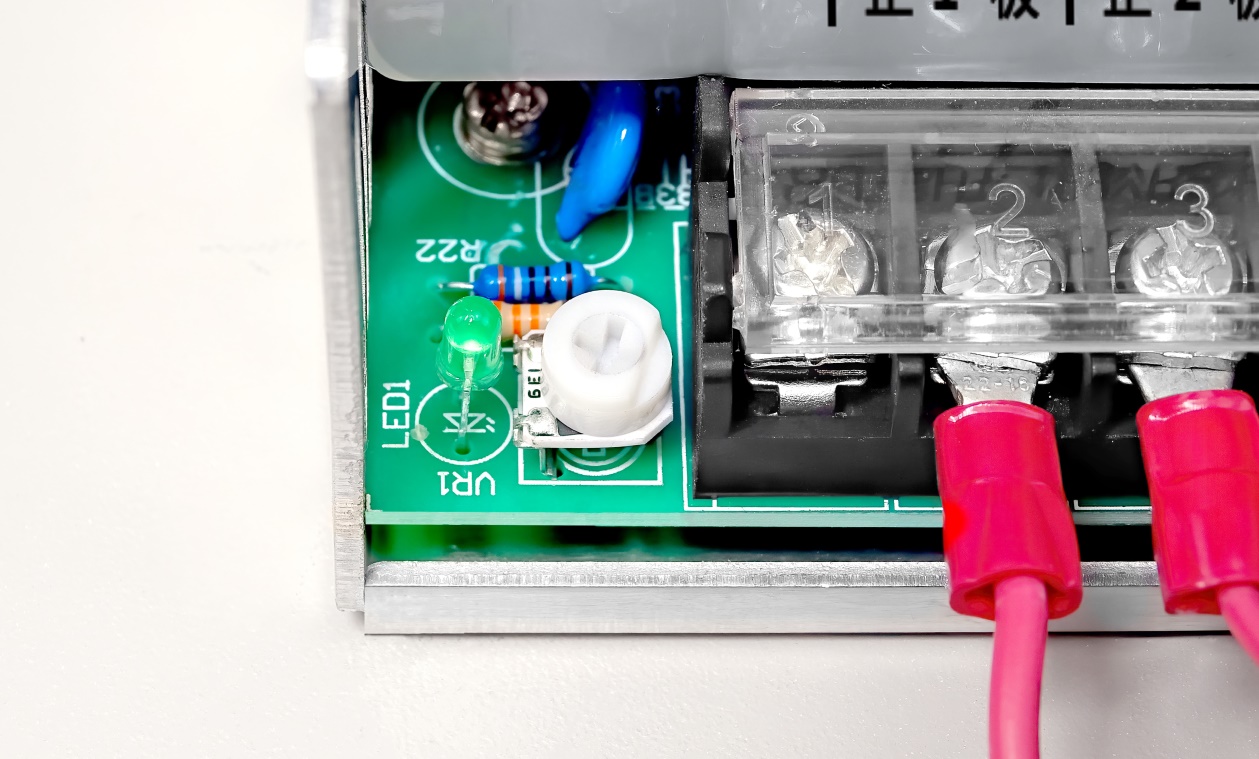

⑦Switch power supply test:

Check the wring again and power on the switch power supply, and use test pencil to check the power and insulation status. Then use multimeter to check if the 65V output is normal, then use screw driver to adjust the output of the switch power supply to 68V.

Digital power

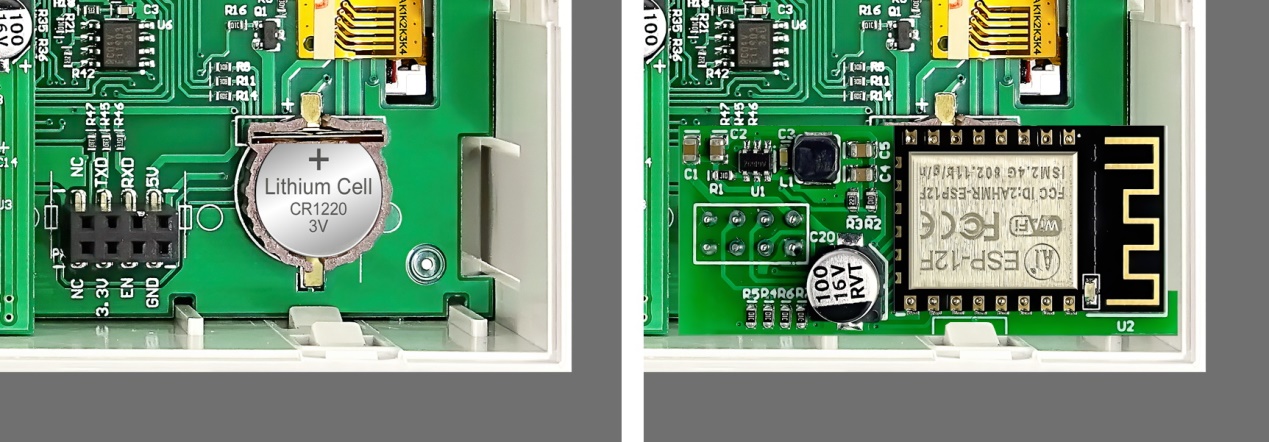

⑧Install RD6006, install the CR1220 battery (prepare yourself) and wifi board (if you order the wifi version), then insert the RD6006 in the right way

Digital power Digital power

⑨Connect the rest cables: connect thegreenterminalto the input of RD6006 and insert the temperature sensor extension cable to the socket on the back of RD6006.

Digital power

⑩Power on and test

Connect power cable and turn on the switch, the fan start to work.

(Note: Temperature-controlled fan, when the RD6006 is powered on below 40℃, it will work for 3 seconds and then stop, and it will run at low speed below 40℃-50℃, run at medium speed below 50℃-60℃, run at full speed when the temperature exceeds 60℃)

⑪Install the screws of the case

Digital power

⑫Install the foot pads.

Digital power

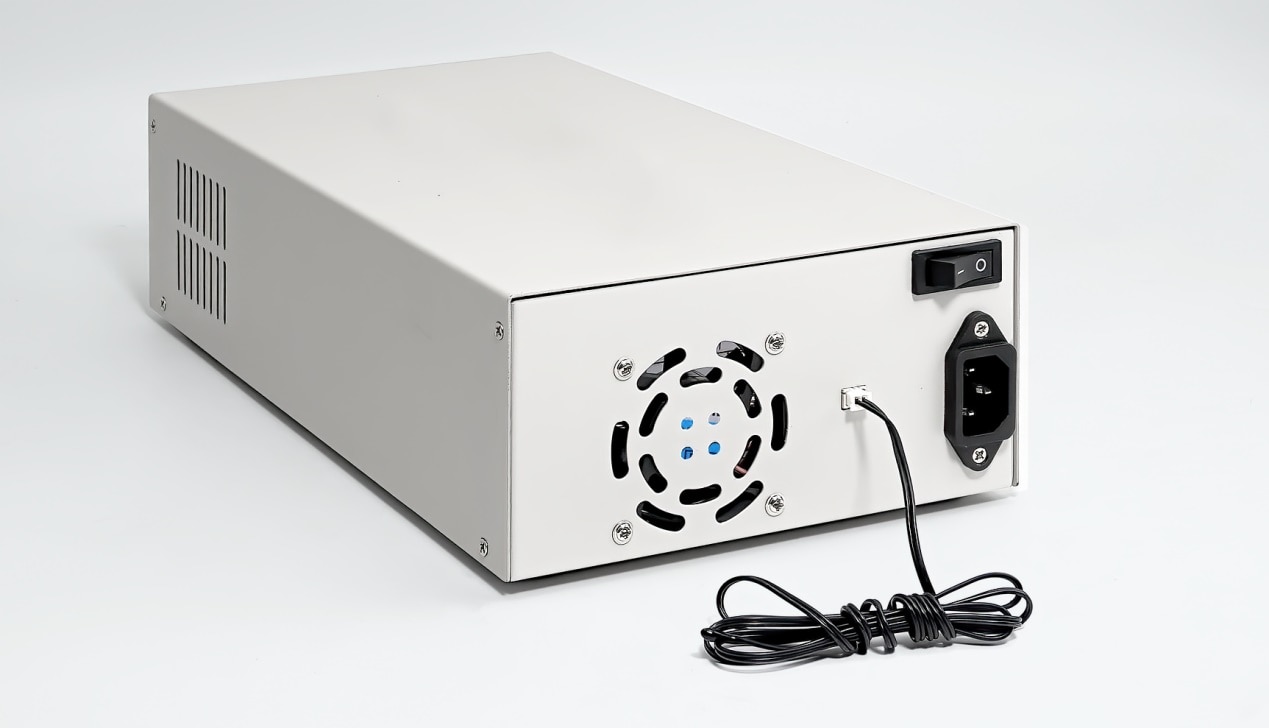

⑬If you want to use the temperature sensor, you just need to insert the cable on the back panel as shown below:

Digital power


S12D Case Instruction:

Digital power supply case (S12D) assembly instruction

This case is suitable for RD6006/RD6006W/RD6012/RD6012W

Date:2019.10.18

Dear users, thank you for purchasing the digital power supply accessory-metal case produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about the full function of this product, get a better experience and avoid misuse. Please read this instruction carefully before assembly. Keep it for future reference.

Digital power

1.Notes

● Read this instruction carefully before assembly, if you still have question, please contact us.

Since the assembly process involves voltage that exceeds the human body's safety, non-professionals should not operate, do insulation and protective measures during the assembly process, check the wiring several times for safety, and place the product at a place which children and old people can not get.

● This case is made of cold-rolled steel plate and the surface is sprayed. When assembling and using, prevent it from scratching by sharp objects, and avoid direct sunlight and humid environment.

● Avoid short circuit when assembling, connect the electrode correctly.

● NEVER connect the cables with the power ON.

● Try to avoid vibration and fall.

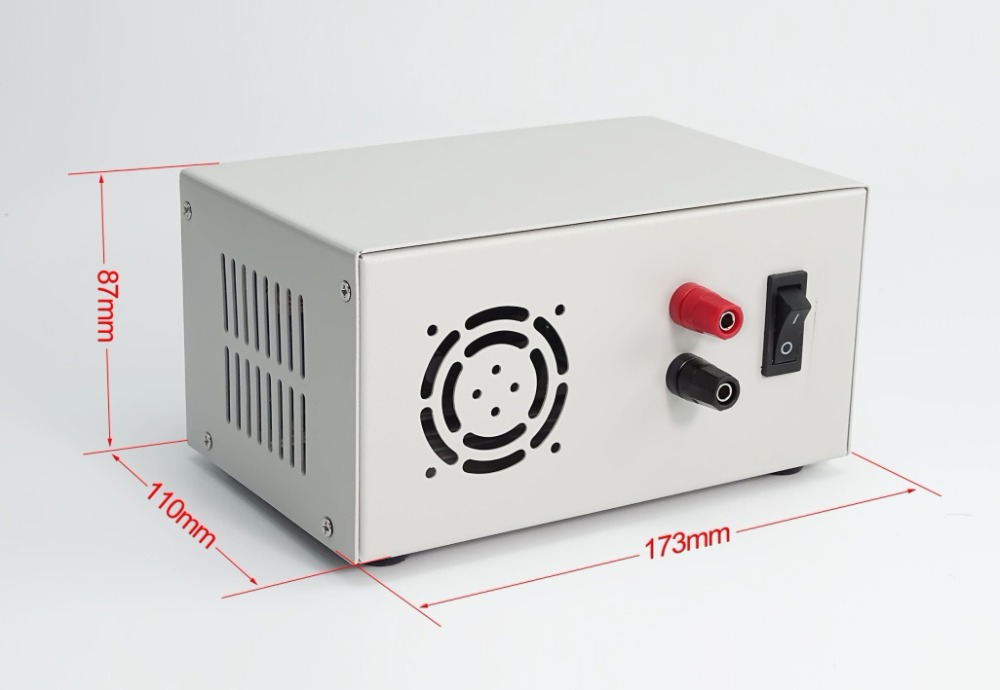

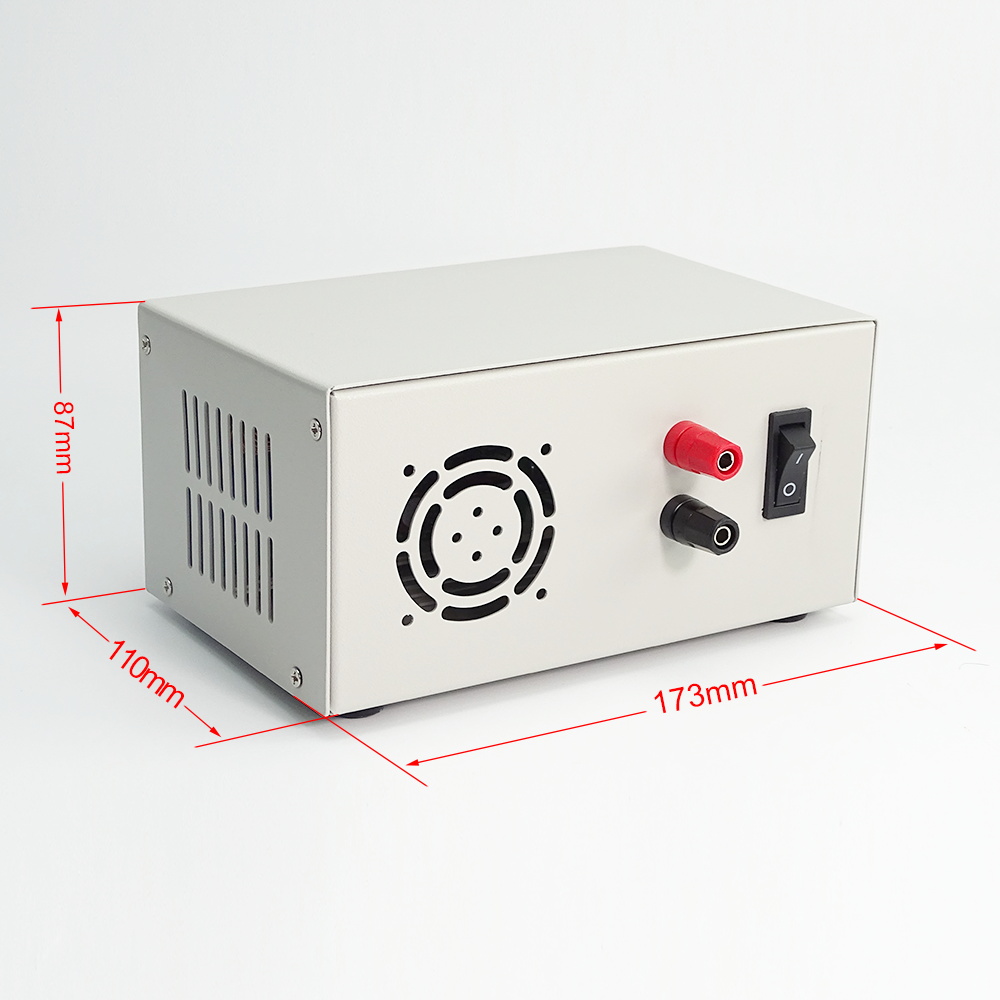

2.Product Dimension

Digital power

3.Accessory List

NAME

SPECIFICATION

QUANTITY


Upper Board

S12D

1

Digital power

Lower BoardS12D

S12D

1

Cables

RED:2

BLACK:1

3

Digital power

Female Banana Socket

M4*36

2

Digital power

Rocker switch

KCD3

1

Digital power

Non-slip mat

Φ13*4

4

Digital power

Mat fixing screws

M3*5*7

4

Digital power

case fixing screws

M3*6

flat head white

8

Digital power

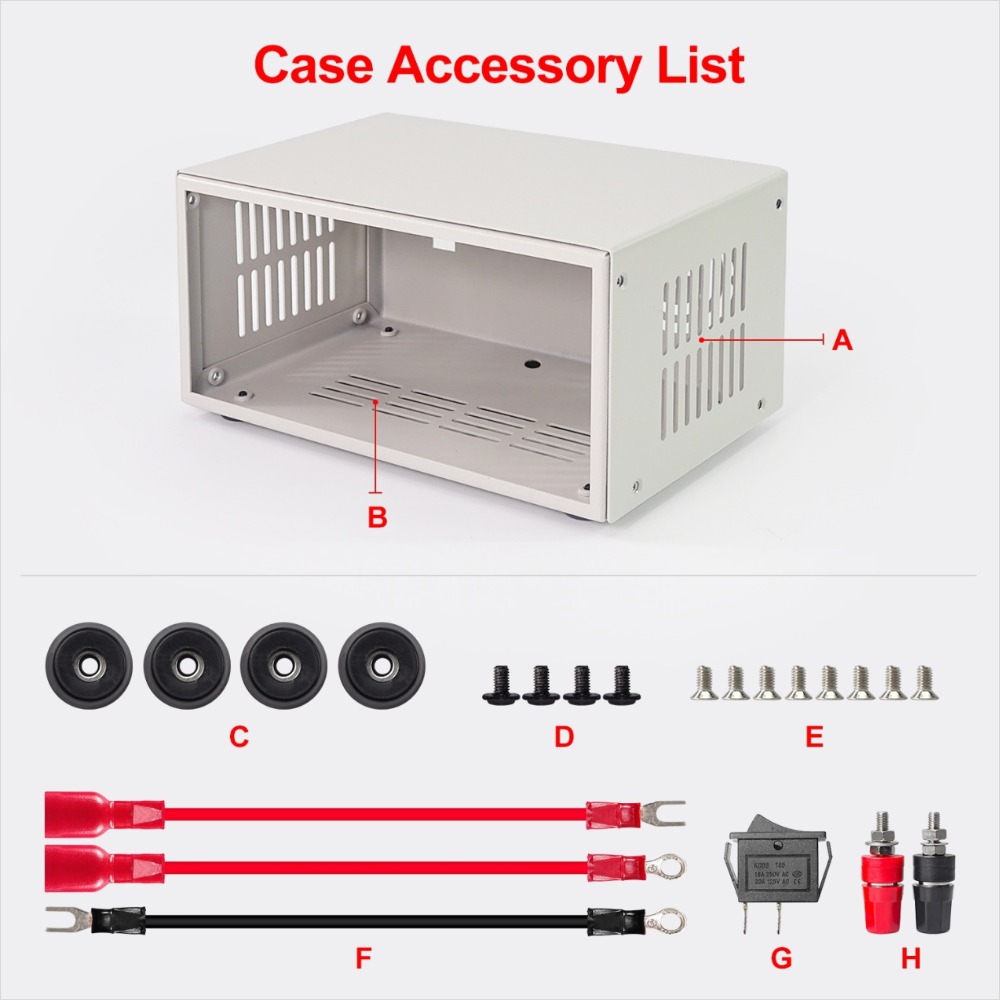

4.AccessoryPicture

A: Upper Board

B:Lower Board

C: Non-slip Mats

D: Screws for Non-slip Mats

E: Case Fixing Screws

F: Cables

G: Rocker Switch

H: Female Banana Socket

Digital power

5.AssemblyProcedure

5.1 Assembly Preparation

● RD6006 digital power supply*1,S12Dcase*1

● Tools, accessory(DC power supply,screw driver)

● Proper assembly environment

Note:The case material is a bit soft and may be slightly deformed during transportation. If there is a gap during the assembly, please straighten it before assemble it.

5.2 AssemblyStep

1. Check the accessories:

Check if the accessories ofS12Dare same as accessory list or accessory picture.

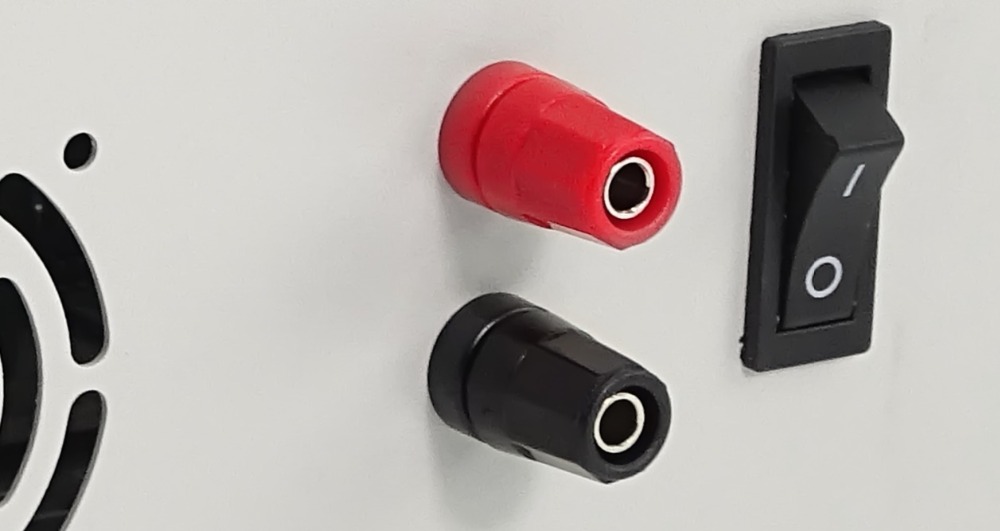

2. Install the female banana sockets and switch:

Please put the female banana sockets and rocker switch on the corresponding position of back board, the red female banana socket is positive electrode and the black female banana socket is negative electrode. Screw the fixing screws.

Digital power

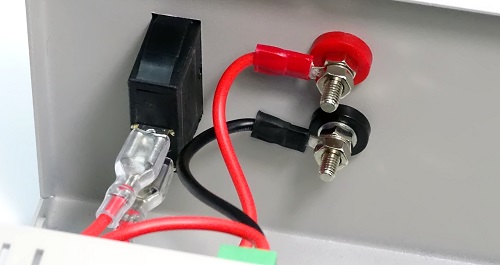

3. Connect cables

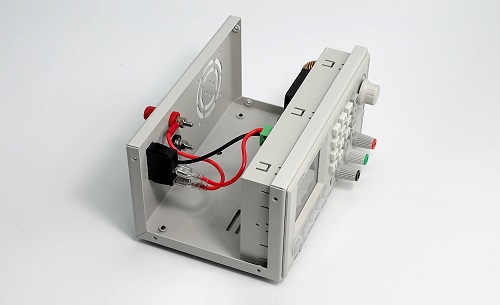

Use cables to connect switch and female banana sockets, and tighten with nuts, the wiring is completed, you can see the final connection below:

Digital power

4. Install RD6006: install RD6006 on the front side and connect the external sensor.

Digital power

5. Use 12V/1A DC power supply to power on RD6006, check if the connection succeeds(check the wring before power on)

6. Install the upper board: install the upper board on lower board, and use screws to fix it.

Digital power

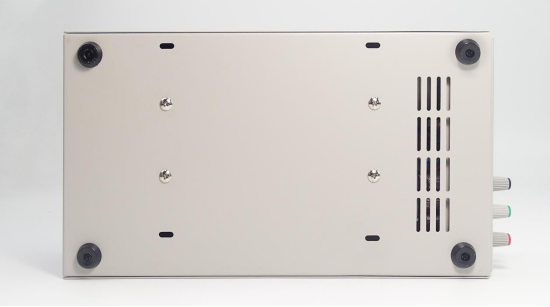

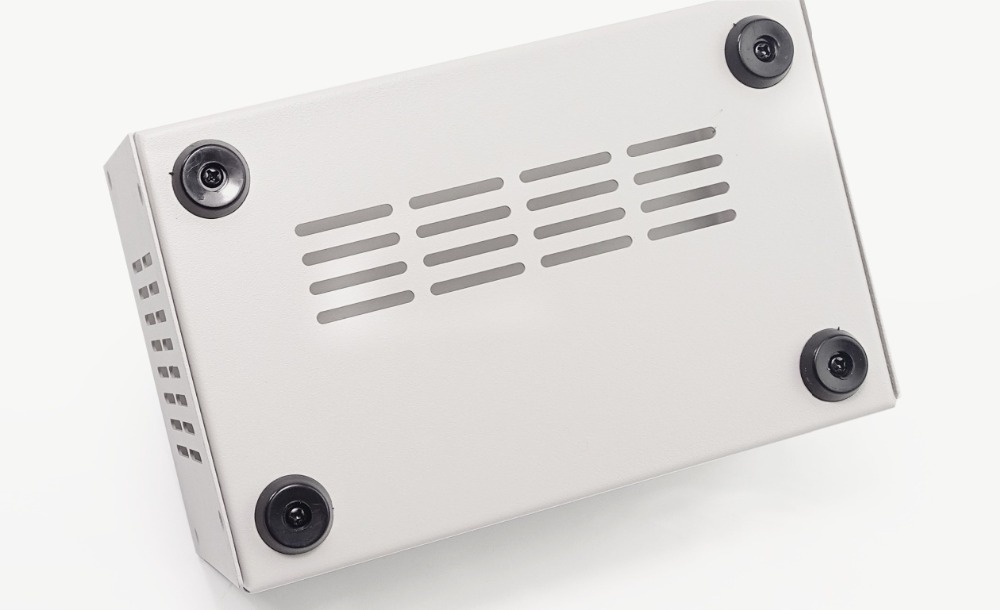

7. There are four Non-slip mats, please use screws to fix them.

Digital power
