Description

2.4" TFT Digital Oscilloscope Kit with Power Supply BNC-Clip Cable Probe DS0150 (Assembled Finished Machine) VS DSO138

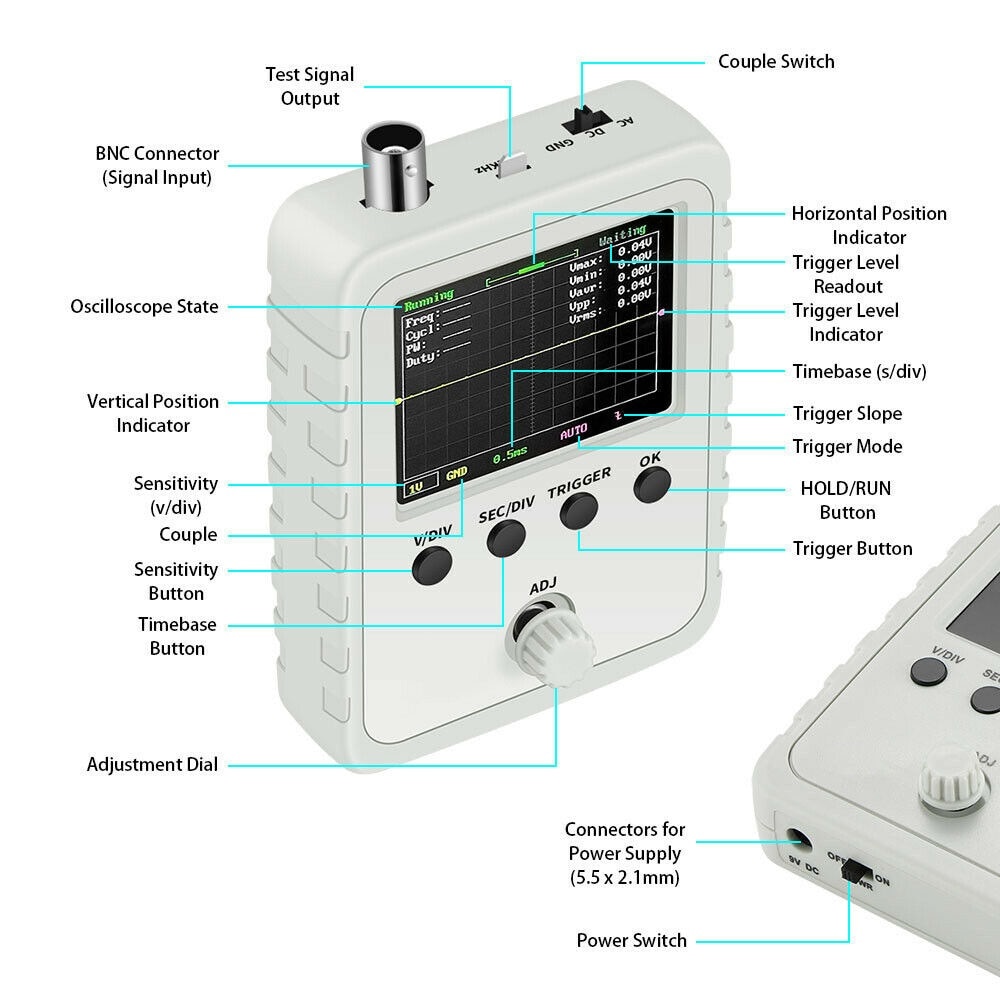

Features:

Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Come with instructions, easy to install and operate.
With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous waveform before trigger(negative delay).
Can freeze waveform display at any time(HOLD function).

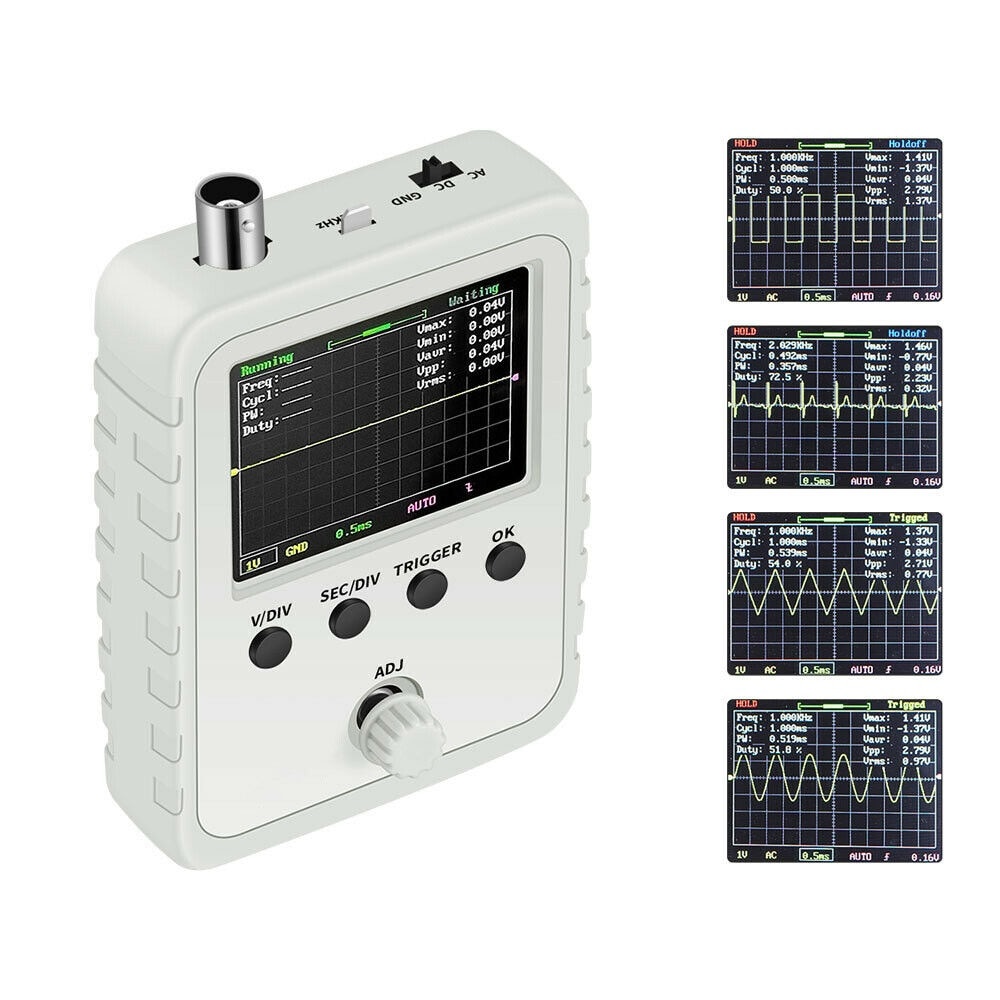

With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
With 1KHz / 3.3v square wave test signal source.
Trigger level position adjustable and with indication.
The analog plate patch elements have been welded, more suitable for electronic beginner.

Specifications:
Item Type: Digital Oscilloscope
Quantity: 1pc
Material: Plastic
Item Color: As shown
Maximum Real-time Sampling Rate: 1Msps
Analog Bandwidth: 0-200KHz
Vertical Sensitivity Range: 5mV/div-20V/div (progressive in 1-2-5 mode)
Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Input Impedance: 1MΩ
Accuracy: 12 Bits
Record Length: 1024 points
Coupling Modes: DC / AC / GND
Horizontal time base range: 10μs/Div – 50s/Div (progressive in 1-2-5 mode)
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption:~120mA @ 9V

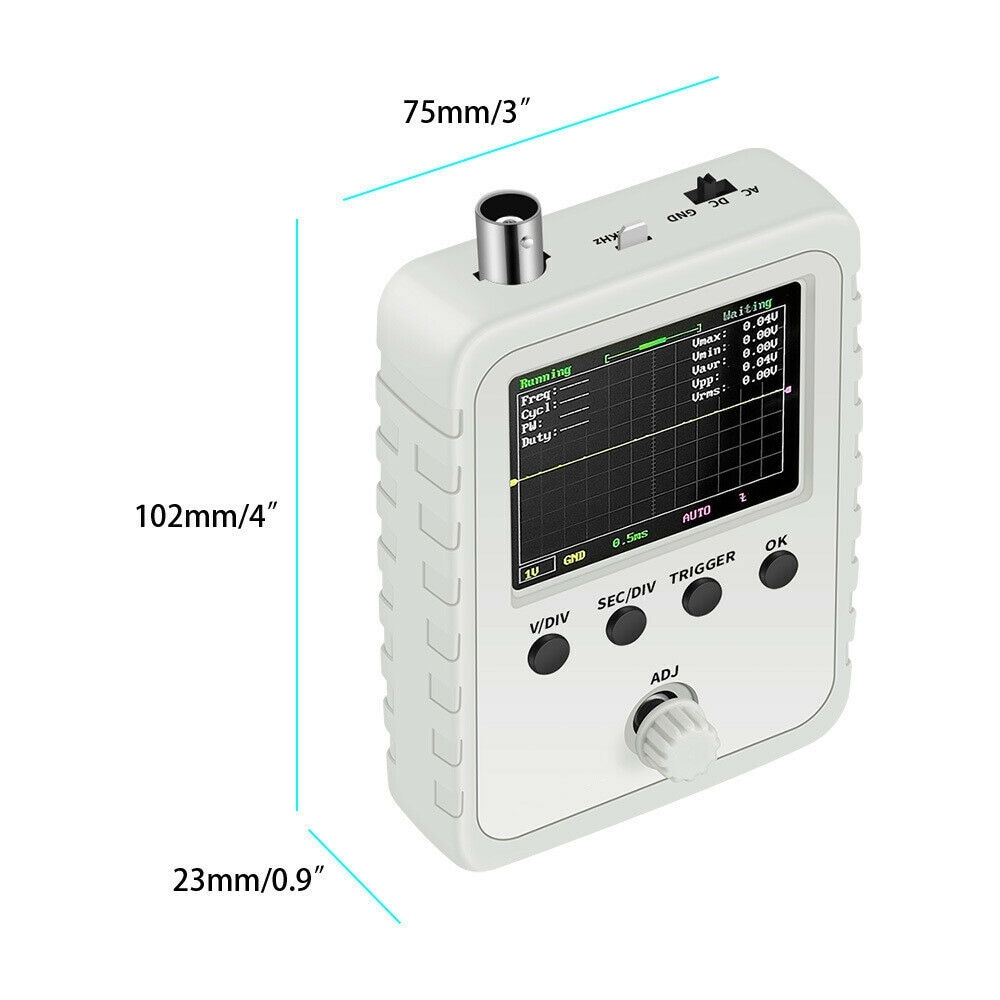

Item Size: 102*75*23mm/4*3*0.9” (L*W*H)
Net Weight:140g/4.9oz

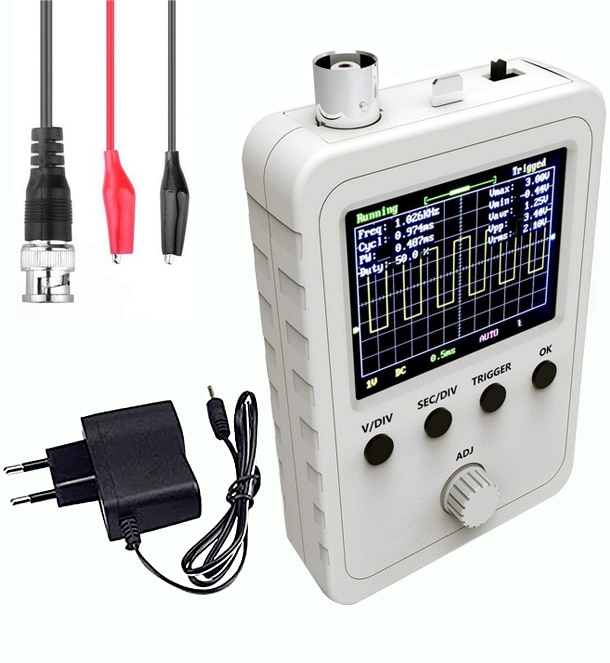

Package Includes:
1 x Oscilloscope
1 x BNC-clip cable
1 x US plug

1 x English manual
