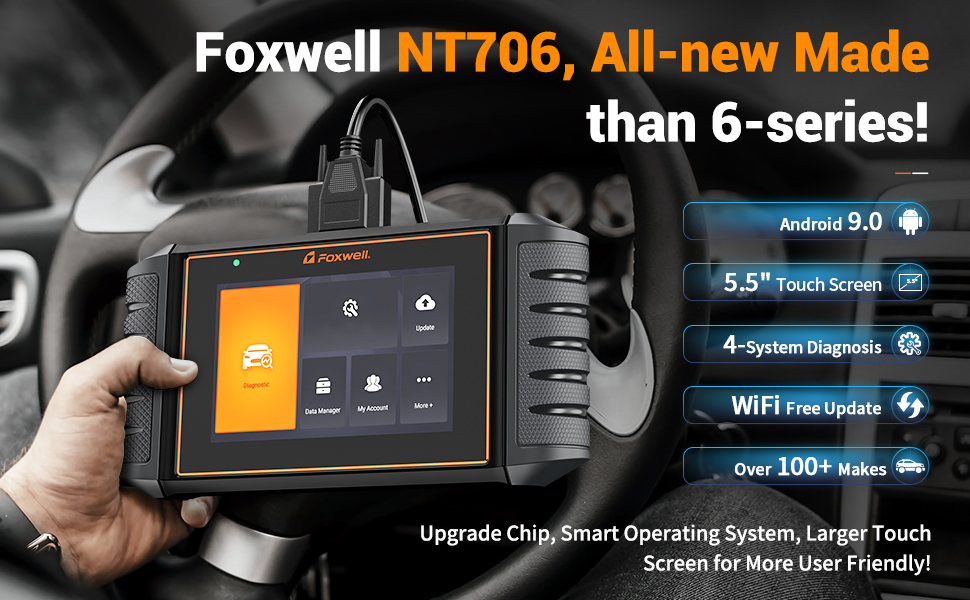

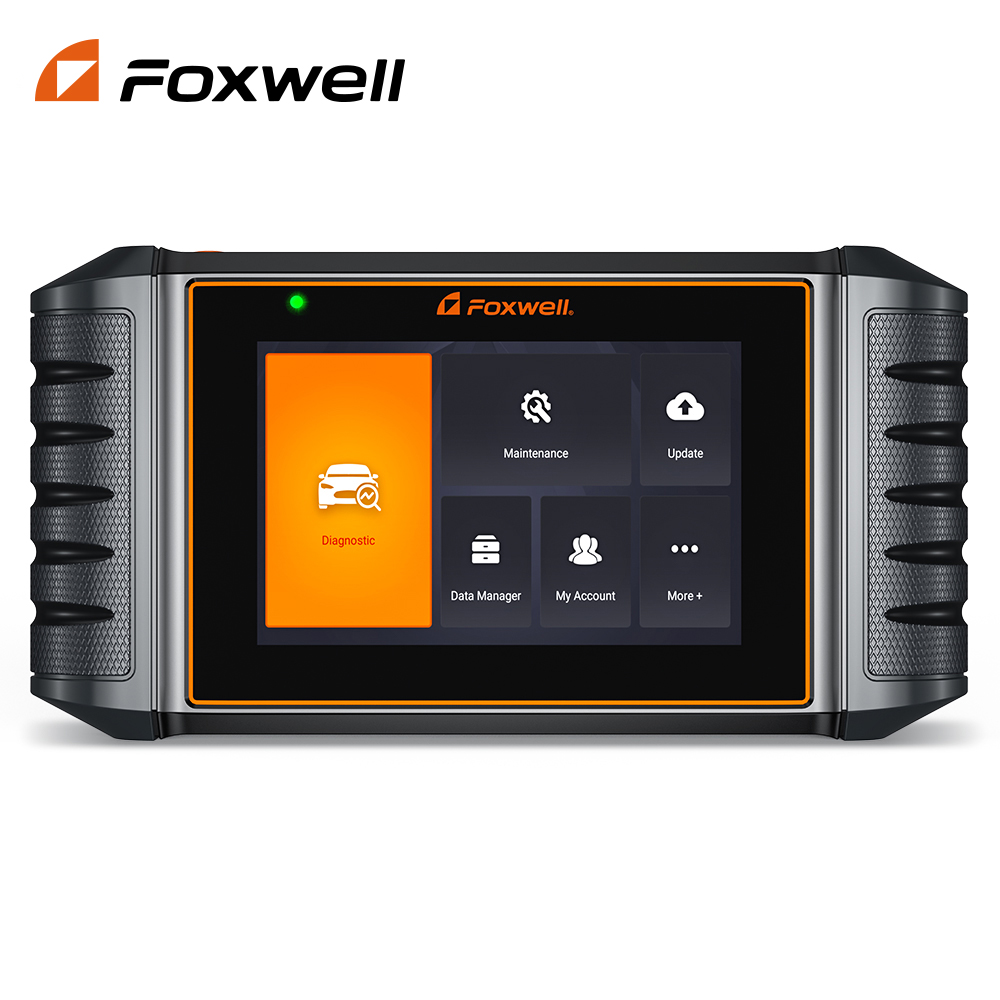

Foxwell All-new NT706 vehicle code reader is a new innovation based on 6-series in FOUR systems diagnosis, inherit the same Foxwell advantage in car fault diagnostic tech plus newly developed chip and Android 9.0 operating system, let Foxwell car code reader enter into a new world.
Smart Scan: Android 9.0 operating system + 5.5" Touch Screen
Scan & Diagnose: Check Engine/ABS/ SRS/ Transmission System + Full OBDII Functions
New Update: WiFi Online Touch Update & Automotive Update(Open in “Setting”)
Auto VIN: Click “VIN” on the top to start to scan vehicle.(Some car models may do not support, please type it in manually)
Screen Display: Show the real-time battery voltage & vehicle model on the top of page
Live Data Record & Playback: Merge 4 in 1 live data in graph + In Single & Multi-graph Type
Diagnostic Report: Allow to generate and save it in PDF + Diagnostic results share via E-mail/ Bluetooth/ Printer(When connect with same Internet)
Online Feedback & Suggestions: Submit your issues in the diagnostic process and get Foxwell professional troubleshooting
1. Adopted the newly developed chip
2. Changed the system from ARM to Android 9.0
3. Redesigned the screen size from 4.3” to 5.5”
4. Updated the control mode from Navigation Key to Touch Control
5. Set new update type from PC to WiFi Update
6. Covers more car makes from dozens to 108 brands
Foxwell NT706 OBD2 scanner is coming to slove your headache problems!
This vehicle scanner is capable of diagnosing all modules of engine. Scan all parts to display the live data in graph and figure out the reason that caused the warning light. This Foxwell automotive scanner will help you to read/ clear error codes after repair or maintenance and turn off the MIL light.
ABS Scanner Diagnostic Tool
Foxwell NT706 scanner for car will check if the brake pad return to the original position or other brake components’ failure reasons. Reading the ABS fault codes and show live data to locate the problems. Clearing the error codes and reset the warning light to normal after repair or maintenance.
Airbag Scanner/ SRS Code Reader
When the control module identify a bug with the airbag or sensor, the warning light will turn on. This Foxwell engine scanner will find the SRS issues timely and help you to erase the error codes after repair or maintenance. When the problems solved, the warning light will turn to normal.
TCM Scan Tool/ OBD2 Scanner Transmission Code Reader
This odb2 reader will read the information about the success of up and downshifts, solenoid action (too harsh, too soft), fluid temperature and so on. Graph the live data and quickly point out the existing or potential issues. Reset the error codes and turn off the MIL.
---Read and clear the vehicle’s fault codes, turn off the MIL.
---Display I/M readiness status, check if the vehicle is ready for “S-m-o-g Test”.
---Displays the oxygen sensor monitor and Request on-board monitoring test & EVAP test results.
---Displays freeze frame data of the fault occurred moment of the vehicle.
---Merge 4 PIDs live data in graph; Request Vehicle Information
Choose Foxwell NT706 Car Scanner wihtout Regret!
--- Android 9.0 operating system KO Arm system
--- 5.5" screen size KO 4.3" or less
--- Touch Control Mode KO Navigation Keys
--- WiFi Online Update KO PC Update
--- 4 in 1 Live Data KO 2 in 1
--- Diagnostic Results Transfer via E-mail/ Blue-tooth/ Printer
--- Display Battery Voltage & Vehicle Information
--- Record & Playback Diagnostic Results
--- Support Online Feedback & Suggestions + Store Vehicle History for Second Fast Start
--WiFi Update, No Subscription. lifetime free
--Auto Detection, One Click
--Diagnostic Report Transfer
--TroubleShooting Online
--Single, Merge &Multi-graph Live Data
--Data Record & Playback
The device only can install 2 languages , one is English , the other one you can choose from the following :
Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Greek
English is Default Language, if you need other language, please send me the SN Number when you receive it (please register account and activation the sn number first), I will help you change it.
American Coverage:
For Chrysler,For Dodge,For Jeep,For Ford,For GM,For GMbrazil(For Brazilian Market Only)
Asian Coverage:
For Acura,For Daewoo,For Daihatsu,For Fordau,For Fuso,For Hino,For Holden,For Honda,For Hyundai,For Hyundaicv,For Infiniti,For Isuzu,For Isuzu Truck,For Kia,For Lexus,For Maruti,For Mazda,For Mitsubishi,For Nissan,For Perodua,For Proton,For Scion,For Ssangyong,For Subaru,For Suzuki,For Toyota,For GTR,,For Mahindra, For Tata(For India Market Only)
European Coverage:
For Abarth,For Alfa,For Astonmartin,For Audi,For Bentley,For Benz,For Bmw,For Bugatti,For Citroen,For Dacia,For Ferrari,For Fiat,For Fordeu,For Jaguar,For Lamborghini,For Lancia,For Landrover,For Maserati,For Maybach,For Mini,For Opel,For Peugeot,For Porsche,For Renault,For Rolls-Royce,For Saab,For Samsung,For Seat,For Skoda,For Smart,For Sprinter,For Vauxhall,For Volvo,For Vw,For Vw_Cv
Screen: 5.5" daylight readable color screen
System: Android 9.0
Memory & Hard Drive: 1GB+32GB
Communication Interface: WiFi
Built-in Battery: 4000mAh
Support Protocols: ISO9141-2, IOS14230-2,ISO15765-4, K/L lines, Double K line SAE- J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle speed, Lows-peed and Single wire CAN, KW81, KW82, GM UART Echo Byte Protocol, Honda Diag-H protocol, TP2.0, TP1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
Dimensions: 236*124*38mm (L*W*H)
NT706 main unit *1
Diagnostic Cable *1
Quick Start Guide *1
USB Type C Cable *1
User's Gide *1
Pastic Box *1
