KT200 ECU Programmer Master Auto Version Support ECU Maintenance Chip Tuning DTC Code Removal OBD/BOOT/BDM/JTAG Multiple Protocols
Highlights:
1. KT200 Has 2 Versions:
Auto Version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear. This one is auto version, now can pay $250 and update to full version with the serial number.
Full Version: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear
2. Support Checksum Calculation
3. Multi-language: English, Italian, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
4. Free Update Online No Annual Subsription
5. Additional TCU package available for Automatic Transmissions for free
6. Get free VR files and Damaos files
7. Operation System: Windows 7, Windows 8/8.1, Windows 10, Windows 11, CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
8. KT200 is same as KTM200/ECUTuner
9. KT200 Software Free Download
Notice:

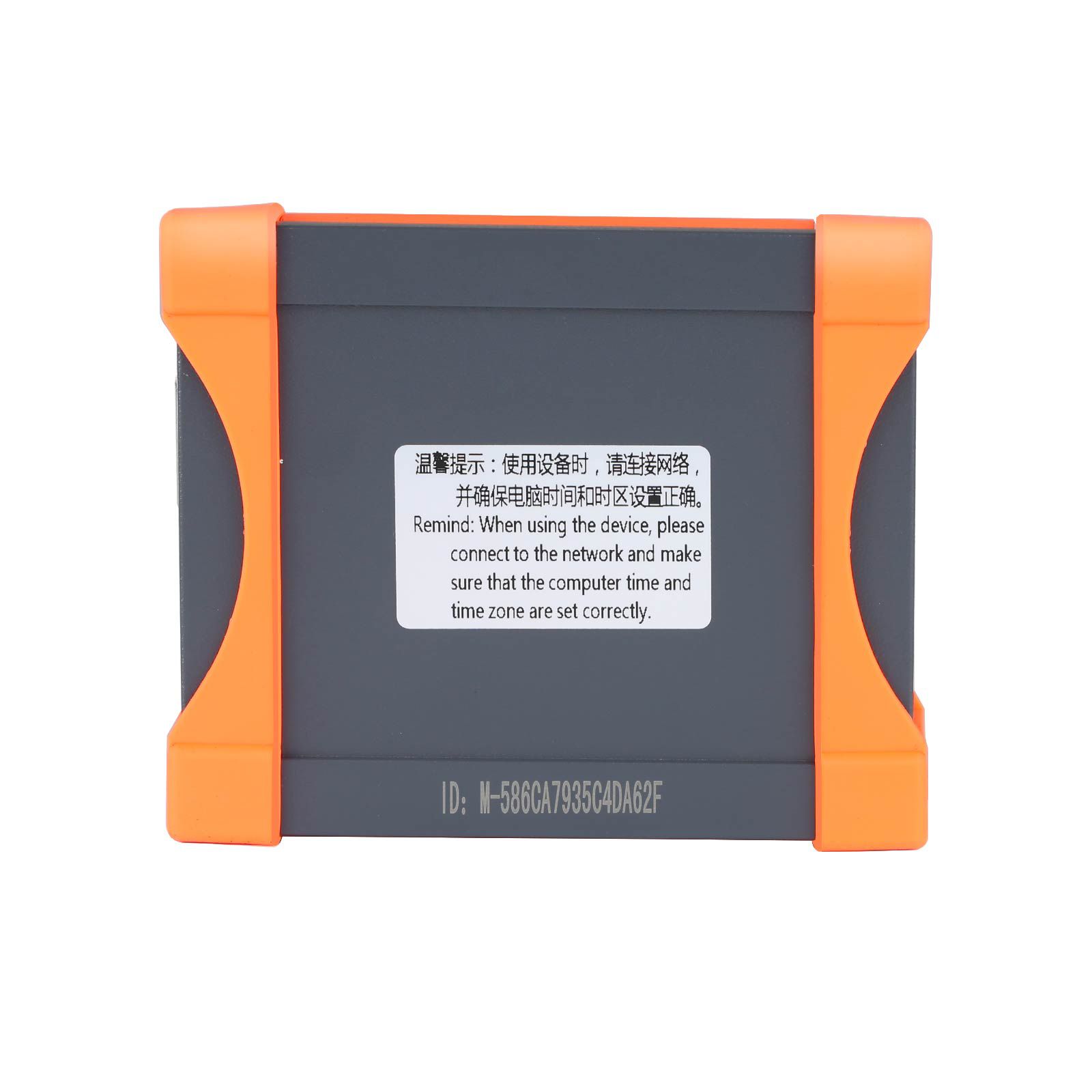

1. KT200 needs to work online, it connects to our server, no lock issue.
2. KT200 cannot support DCM7.1 now, it will support after the update soon.
KT200 ECU List
KT200 TCU List
KT200 User Manual
Product Function:
Highlights:
1. KT200 Has 2 Versions:
Auto Version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear. This one is auto version, now can pay $250 and update to full version with the serial number.
Full Version: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear
2. Support Checksum Calculation
3. Multi-language: English, Italian, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
4. Free Update Online No Annual Subsription
5. Additional TCU package available for Automatic Transmissions for free
6. Get free VR files and Damaos files
7. Operation System: Windows 7, Windows 8/8.1, Windows 10, Windows 11, CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
8. KT200 is same as KTM200/ECUTuner
9. KT200 Software Free Download
Notice:
1. KT200 needs to work online, it connects to our server, no lock issue.
2. KT200 cannot support DCM7.1 now, it will support after the update soon.
KT200 ECU List
KT200 TCU List
KT200 User Manual
Product Function:

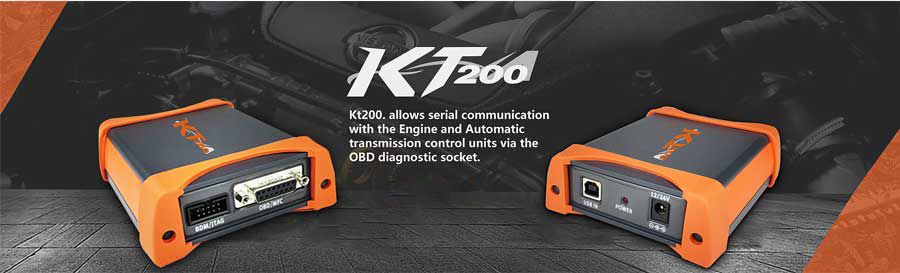

Support OBD/BOOT/BDM/JTAG
ECU programmer multiple protocols KT200
Covering a full range of German, ECU Programmer
Japanese, American and Chinese models
Read and write ECU data, and the data can be used for ECU services.
What is the ECU service?
EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
Support Volkswagen Audi clone(local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.
Read and write ECU data, and the data can be used for ECU services.
What is the ECU service?
ECU service includes 2 major items:
1. Chip tuning.
Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data, Stage 2 data, and Stage 3 data.
2. ECU maintenance.
ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal
KT200 Auto version includes 7 licenses:
KT200 Auto version includes 7 licenses:
Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear
Professional software for reading and programming the control units of car and truck
Additional TCU package available for Automatic Transmissions.
Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9/MED9
Full Read And Write Via Pinout in Bench Mode:
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
Full Read And Write Via Pinout in Bench Mode:
BOSCH EDC17
BOSCH MED17/ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)

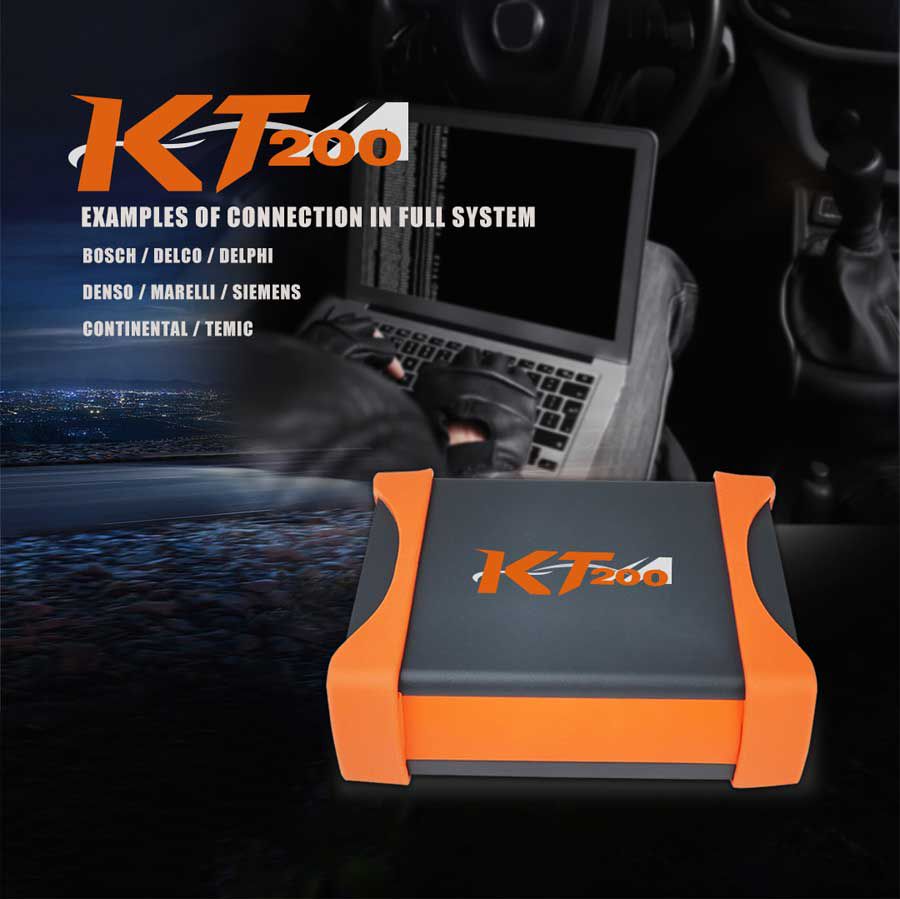

Full System Via Pin Out (Micro/Flash+EEPROM)of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC
BDM EJTAG Modes For:
BDM MPC55x
BDM MPC56x
BDM MC32/ZC32
BDM HC12/S12x
JTAG NEXUS MPC/SPC56xx
JTAG NEXUS MPC55xx
JTAG RENESAS
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085
BOOT Modes:
-BOOT MODEC16729Fxxx
-BOOT MODE ST K-LINE/RX-TX/CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296
-BOOT Mode Tricore for micro
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797
-BOOT Mode Renesas
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
-BOOT Mode Mitsubishi
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F
-BOOT BAM System MOTOROLA
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi

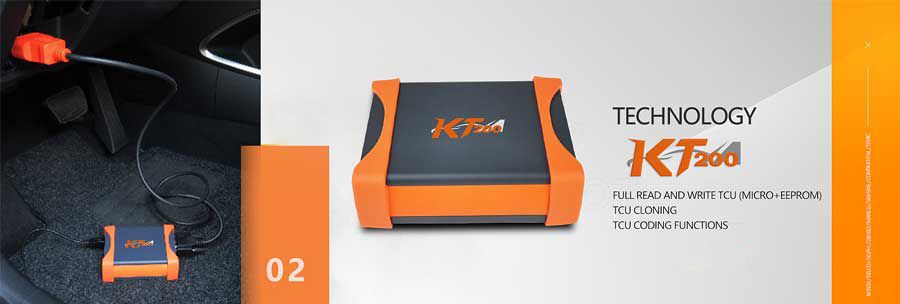

Additional Package For Automatic Transmission
Full Read And Write TCU(MICRO+EEPROM)
TCU CLONING
TCU CODING FUNCTIONS

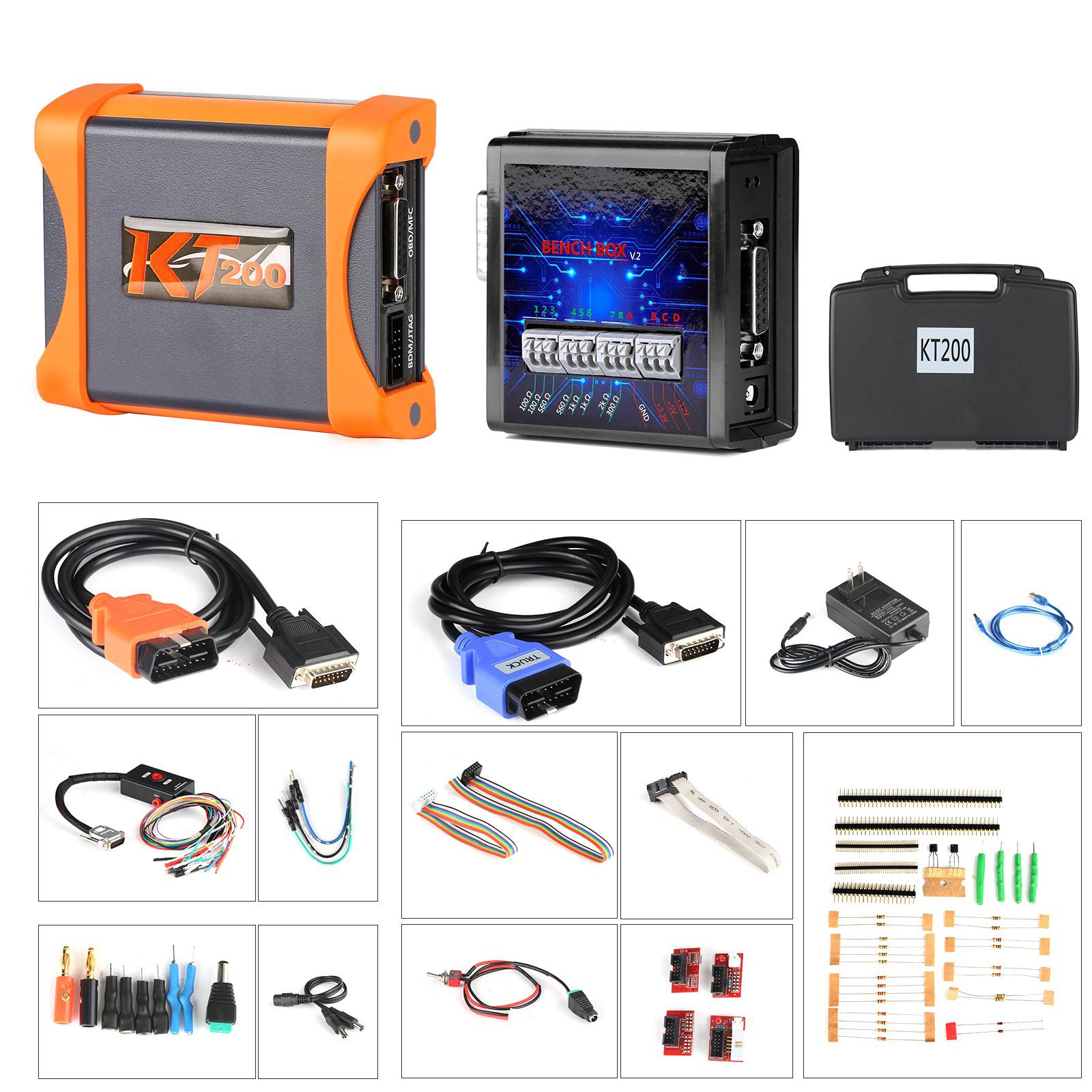

Package Includes:
1pc x Master,

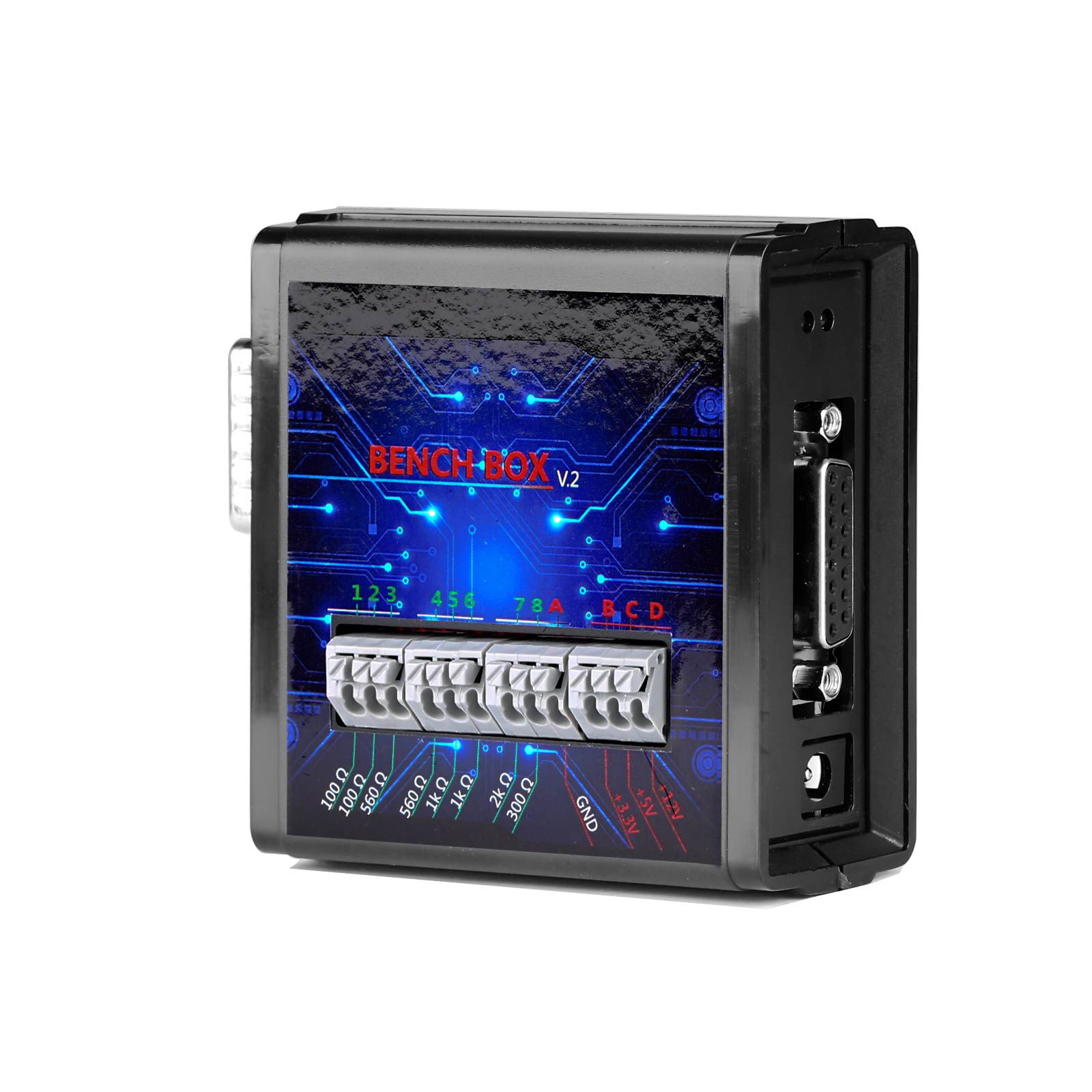

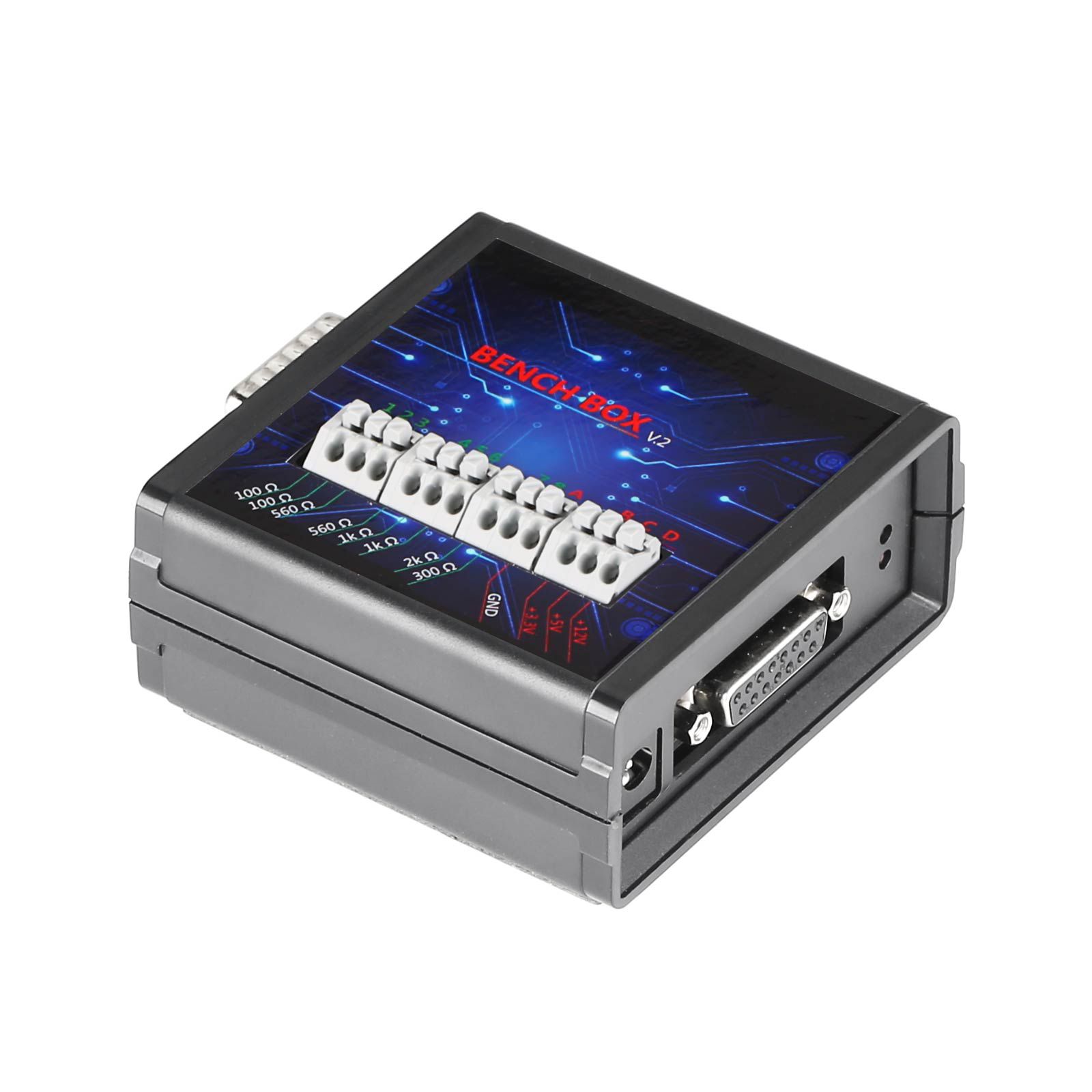

1pc x BENCH box,
2pcs x OBD wires,
1pc x pinout line,
4pcs x BOM adapters,
3pcs x Transfer cables,
4pcs x Power wire,
1pc x Set of resistors,
4pcs x Adapter plugs,
5pcs x Power adapters
