ANENG AN302 Mini Digital Ammeter Multimeter
1999 Count Portable AC DC Voltmeter Resistance Meter Tester with LED Light
Introduction

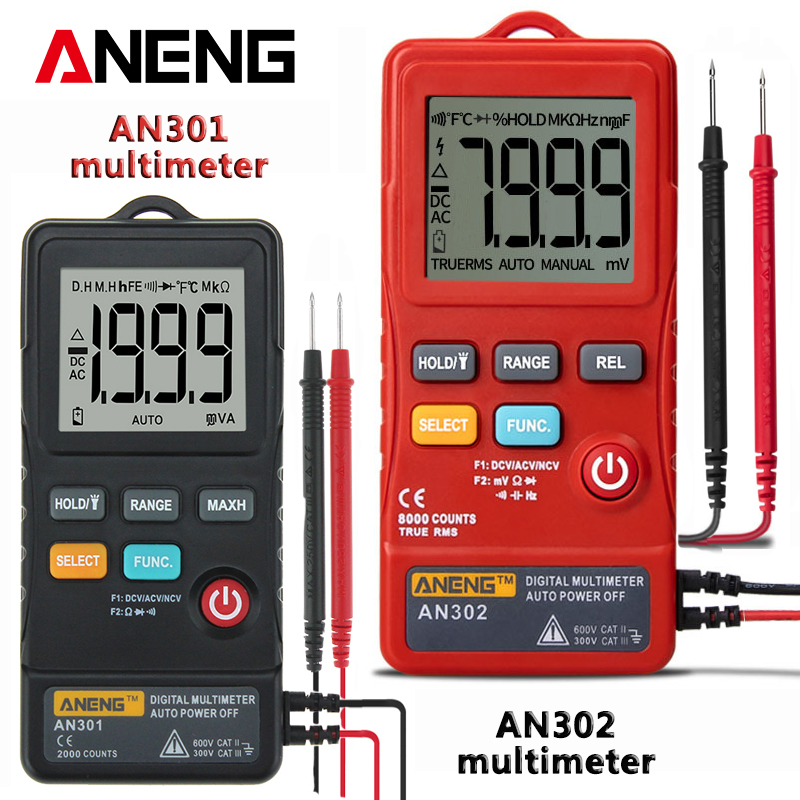

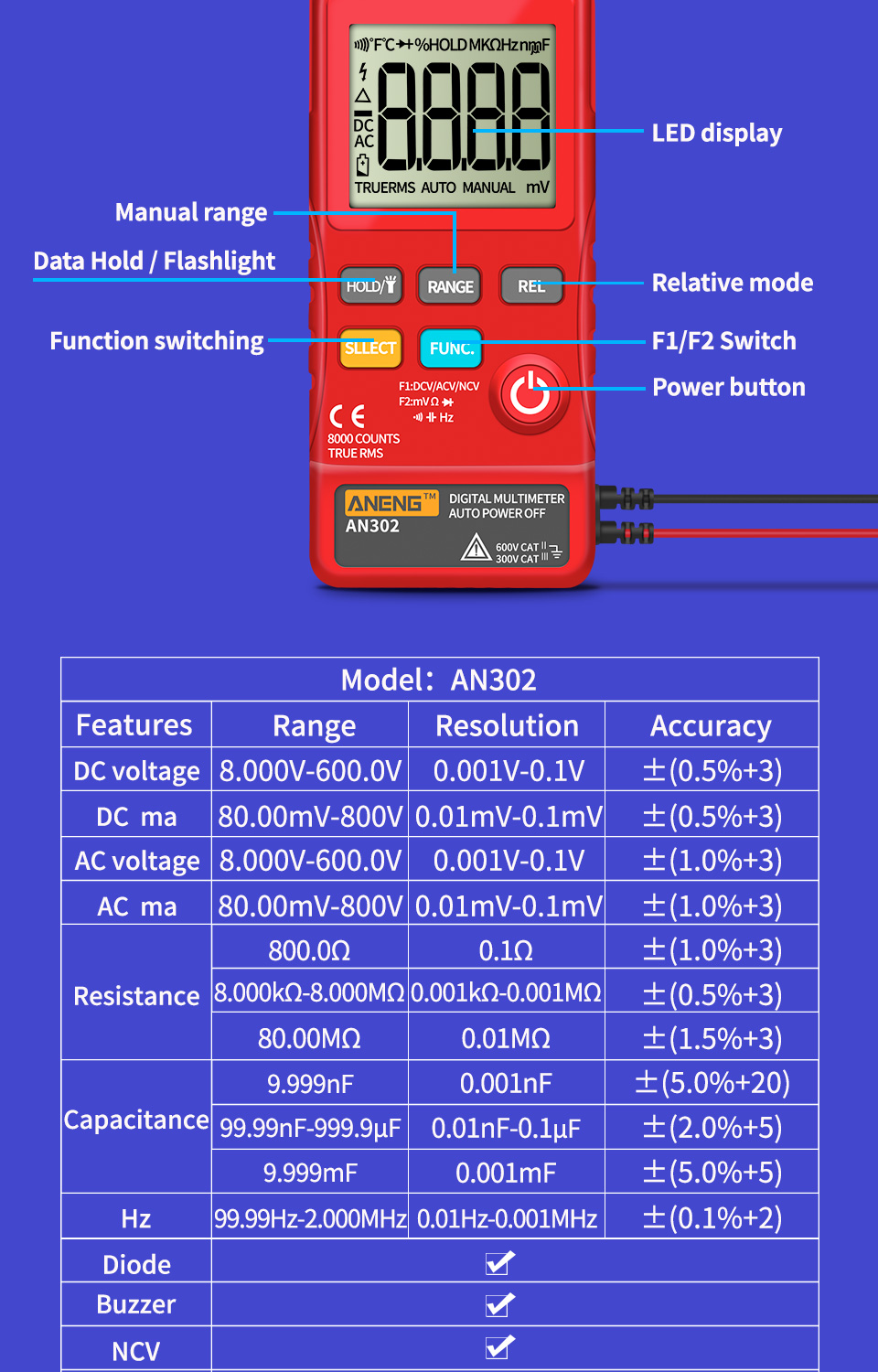

| model | AN301 | AN302 |
| function | range | range |
| DC | 2.000V/20.00V/200.0V/600V/20.00mV/200mV | 8.000V/80.00V/600.0V/80.00mV/800.0mV |
| AC | 2.000V/20.00V/200.0V/600V/20.00mV/200mV | 8.000V/80.00V/600.0V/80.00mV/800.0mV |
| Resistance | 200.0/2.000k/20.00k/200.0k/2.000M/20.00M ohm | 800.0/8.000k/80.00k/800.0k/8.000M/80.00M |

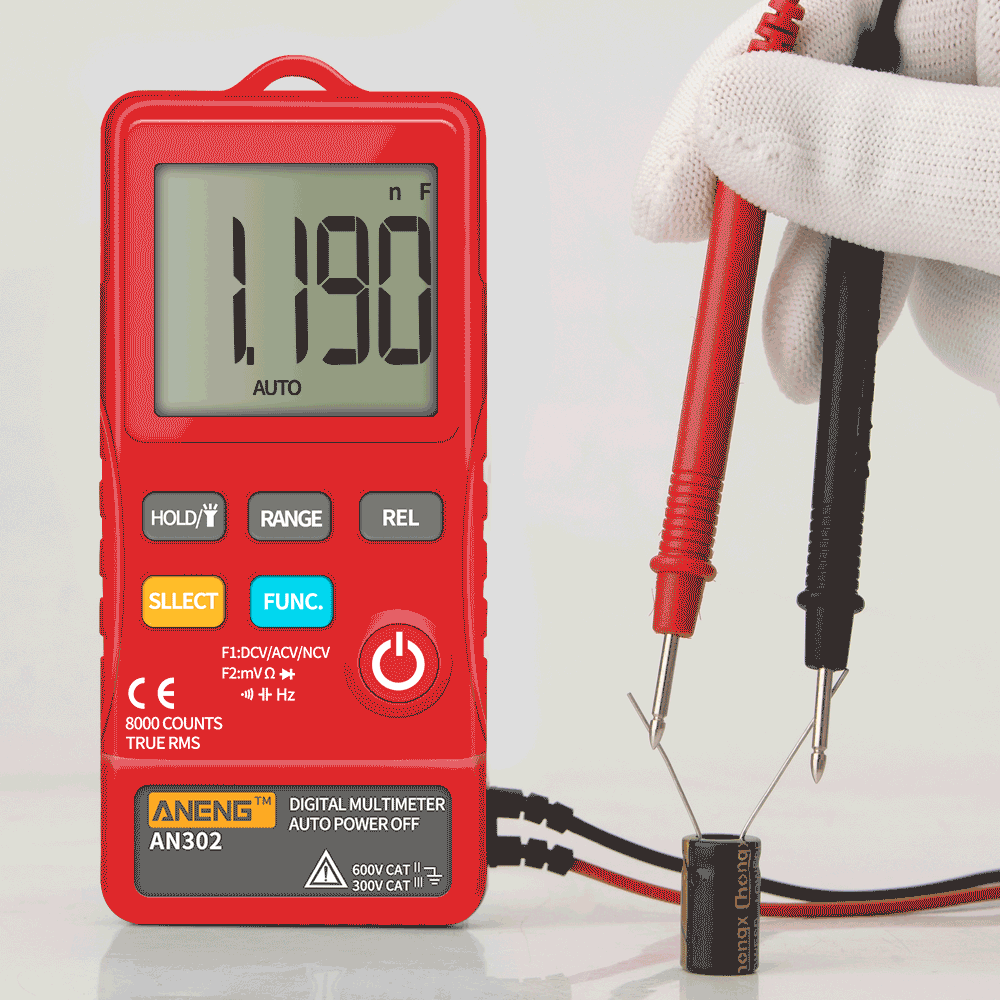

| capacitance | - | 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF |
| Diode | yes | yes |
| Continuity | yes | yes |

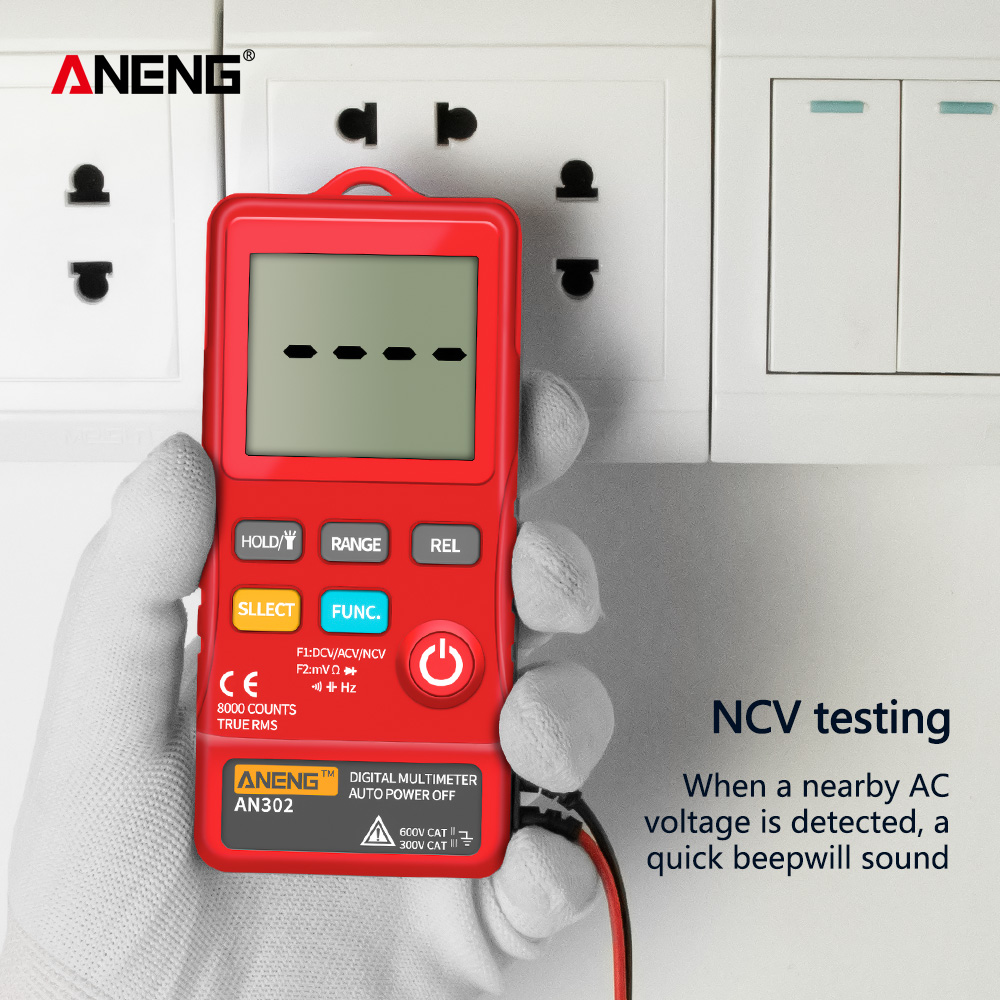

| NCV | yes | yes |
| Frequency | 40HZ-1KHZ | 40HZ-1KHZ |
| Display | 1999 counts | 8000 counts |
| Ture RMS | yes | yes |
| Ranging | auto/manual | auto/manual |
| data hold | yes | yes |
| material | ABS | ABS |
| backlight | no | no |
| update rate | 3/s | 3/s |
| flashlight | yes | yes |
| low battery indication | yes | yes |

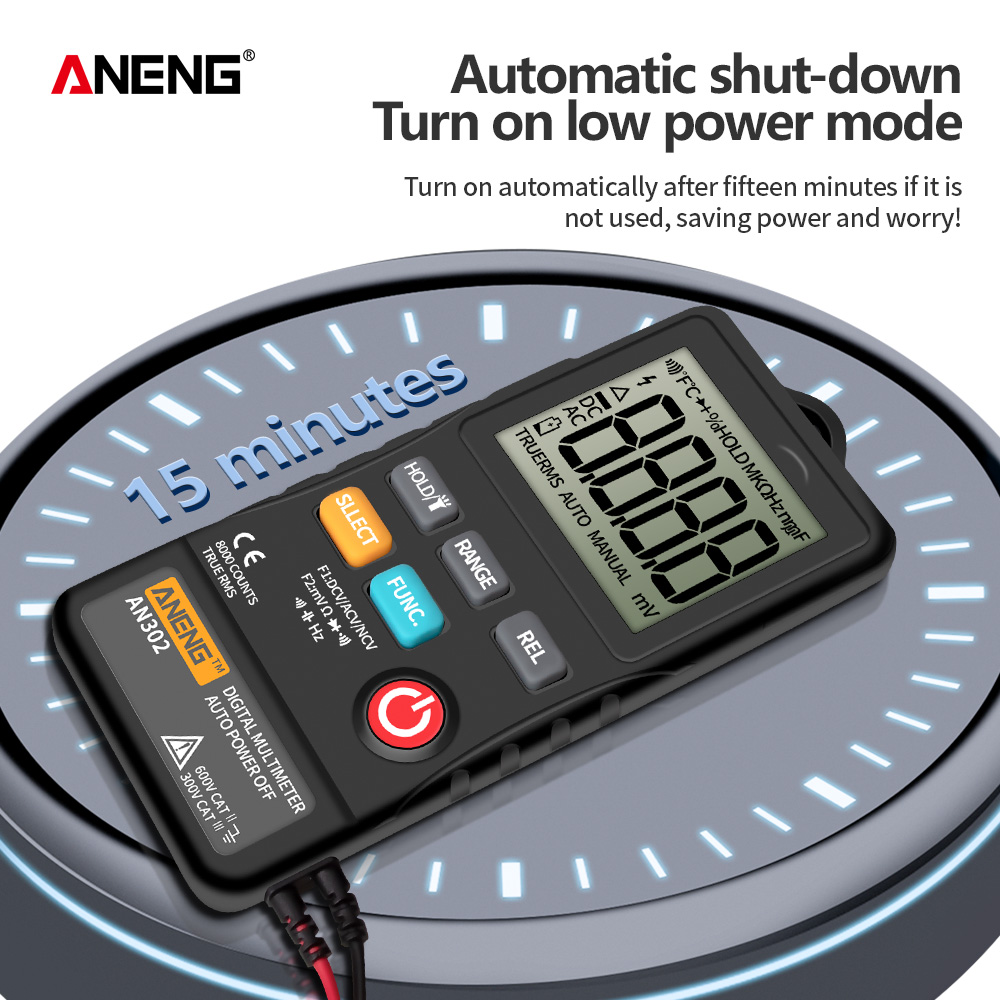

| auto power off | yes | yes |
Package Include:
1 x Multimeter
1 x Test Lead(pair)
