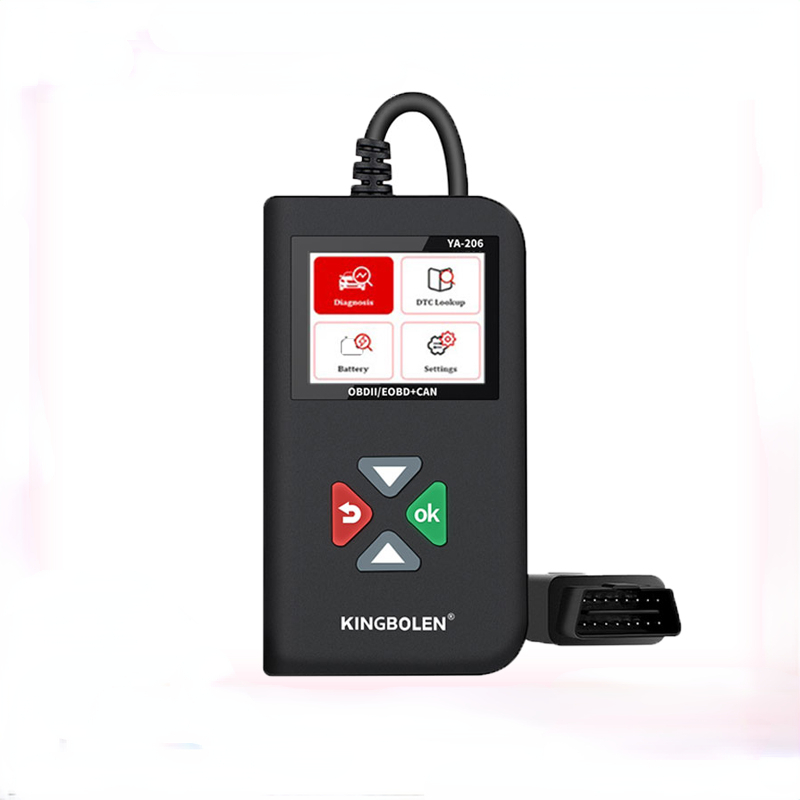

YA206 scanner is a professional car barcode reader that supports all OBD functions and protocols-ISO9141, KWP2000, J1850 PWM, J1850 VPW, and CAN (Controller Area Network). Can effectively save you time and money.
Correct the problems with the engine
Turn off the MIL (Malfunction Indicator Light).
Monitor car exhaust emissions
Check the condition of the car battery quickly and efficiently
1.Read/Erase codes - Using these two functions, you can read and erase error codes.
2.Live data - The real-time data stream will be displayed in the form of a chart, which is easy to view.
3.I/M Readiness - Check that the various emission-related systems of the vehicle are functioning normally.
4. Freeze Frame - Is a snapshot of the operating conditions at the time of an emissions failure.
5. O2 sensor test - Show the test results of the oxygen sensor monitoring from the vehicle memory.

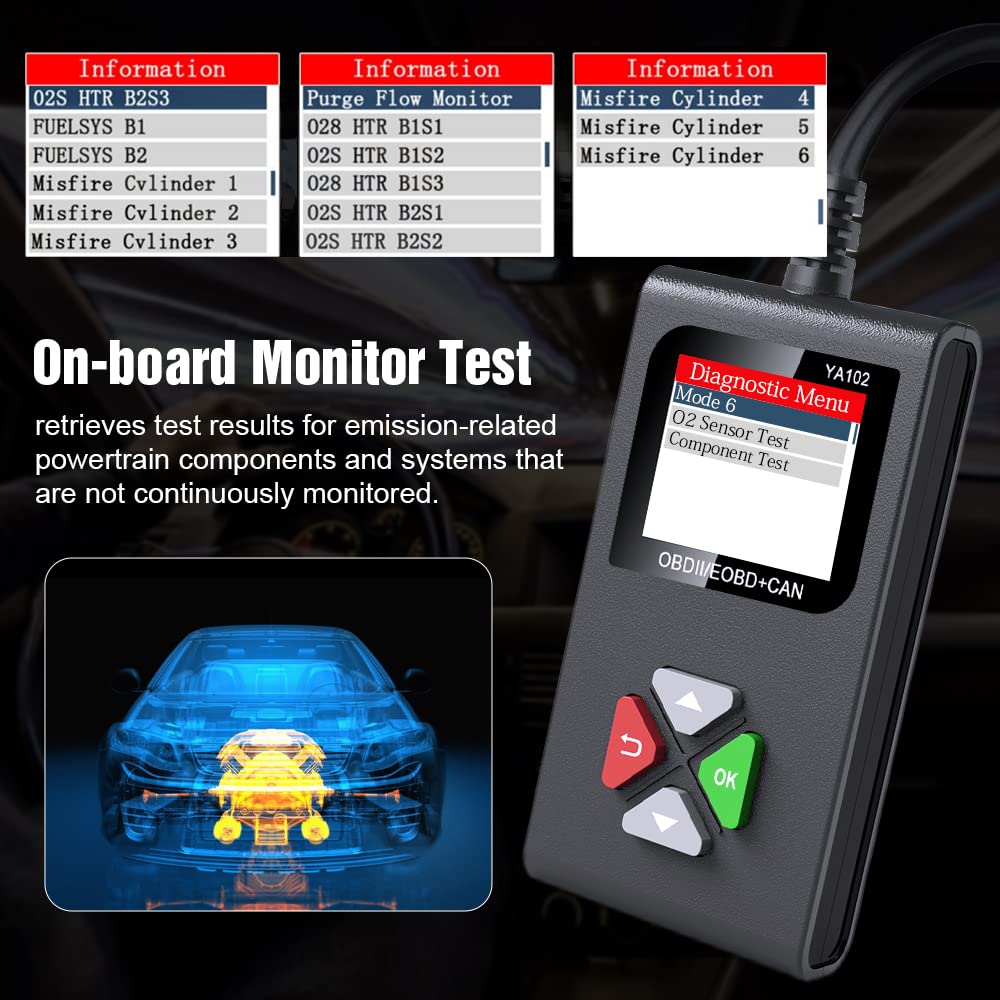

6. On-Board Monitoring Test - Can be used to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Component Test - Show a list of the components and their positions in the vehicle.
9. Vehicle Information - You can view the relevant information of the vehicle including VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Check Number).
English, Spanish, German, French, Italian, Russian, Portuguese, Japanese and Chinese

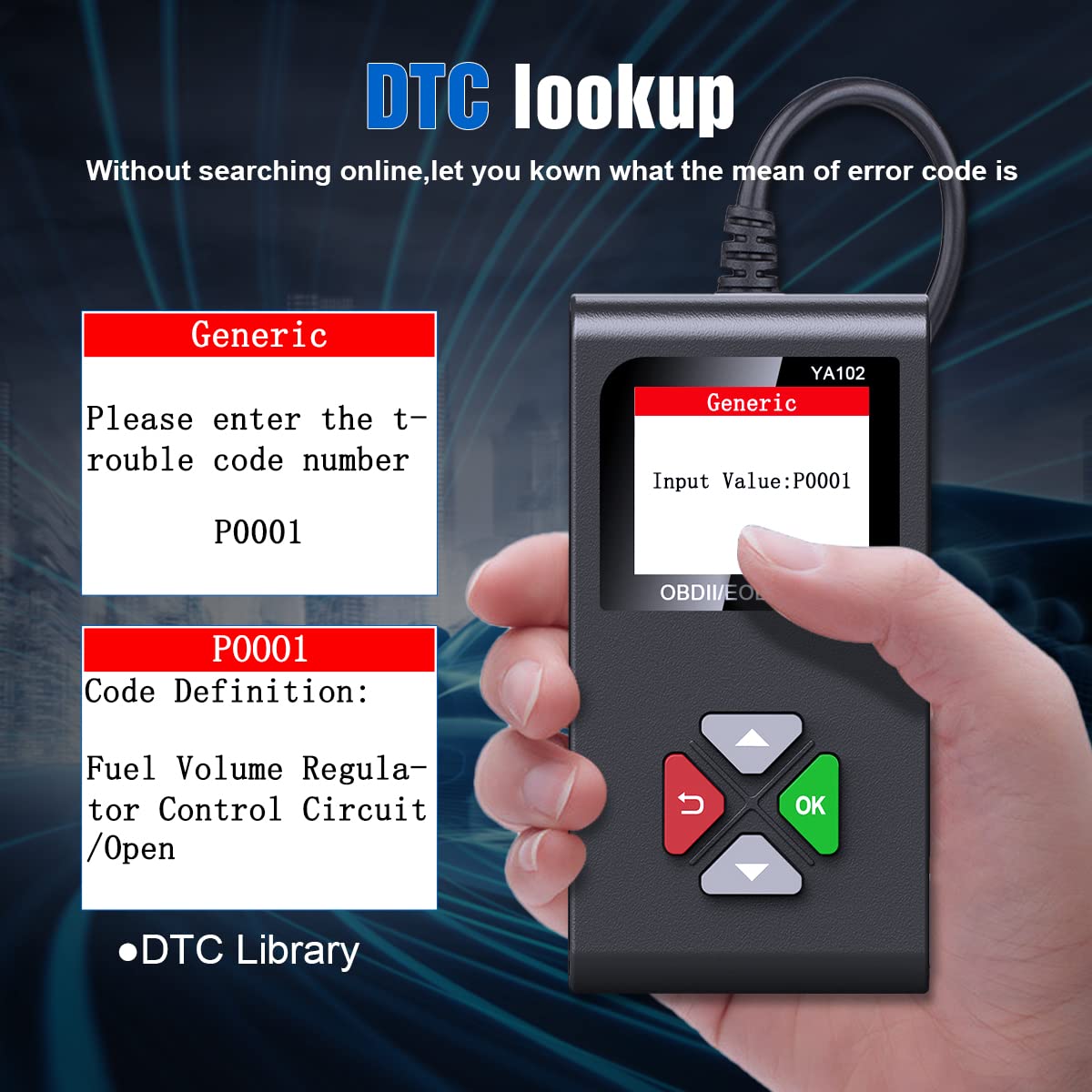

No need to search online, let you know what the error code means
Works on most American after1996, 2000 European and 2008 Asian cars based vehicles, including car, SUV, and light trucks
(Apply to OBD2 protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN).
* Connect to computer, and find a new removable disk.
* Delete all files in the removable disk
* Copy the upgrading files to the removable disk
Screen: 2.4 " TFT, 160*128dpi
Voltage Range: 9-18V
Operating Temperature :0℃ -50 ℃ (32 ℉ -122 ℉ )
Environment Temperature:-20 ℃ -70 ℃ (-4 ℉ -158 ℉ )
Dimension :125mm*70mm*22mm(4.65" *2.68 " *0.88 " )
Weight: 0.35kg

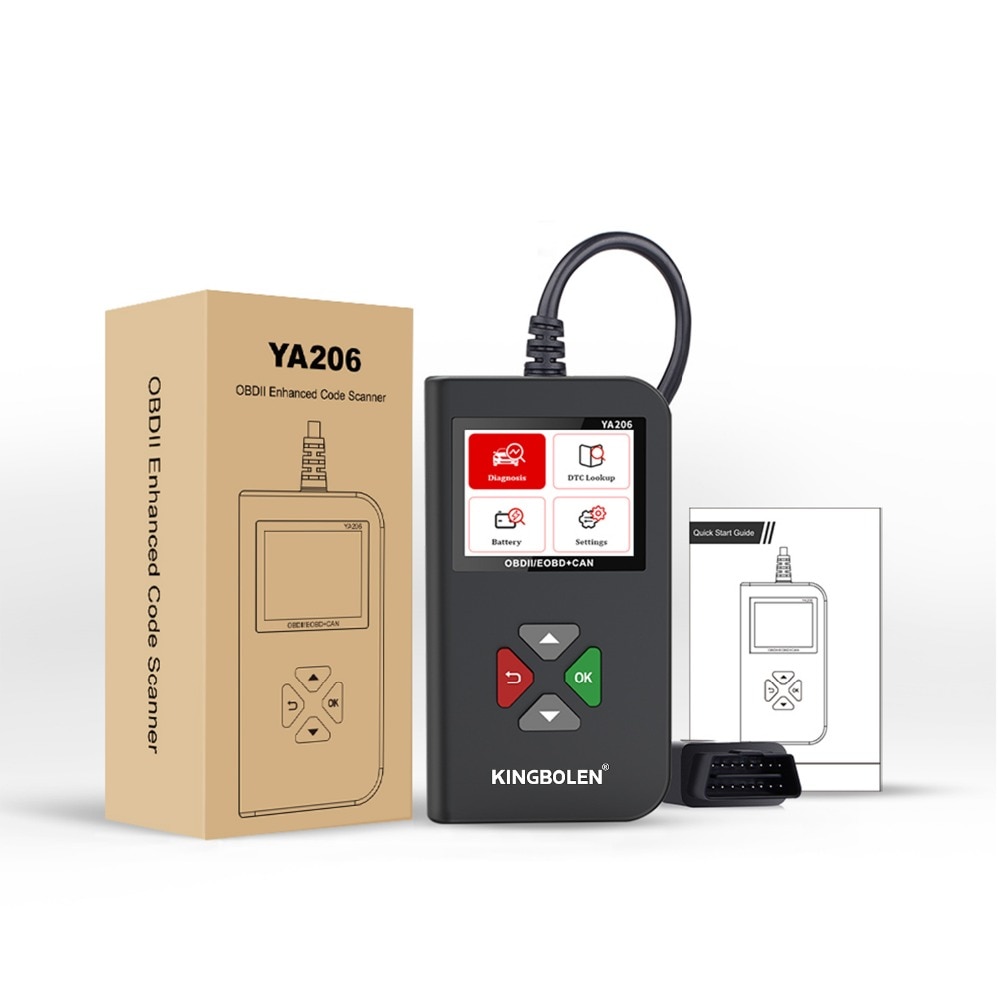

1pc * YA201 Code Reader
1pc * English User Manual
1pc* box
