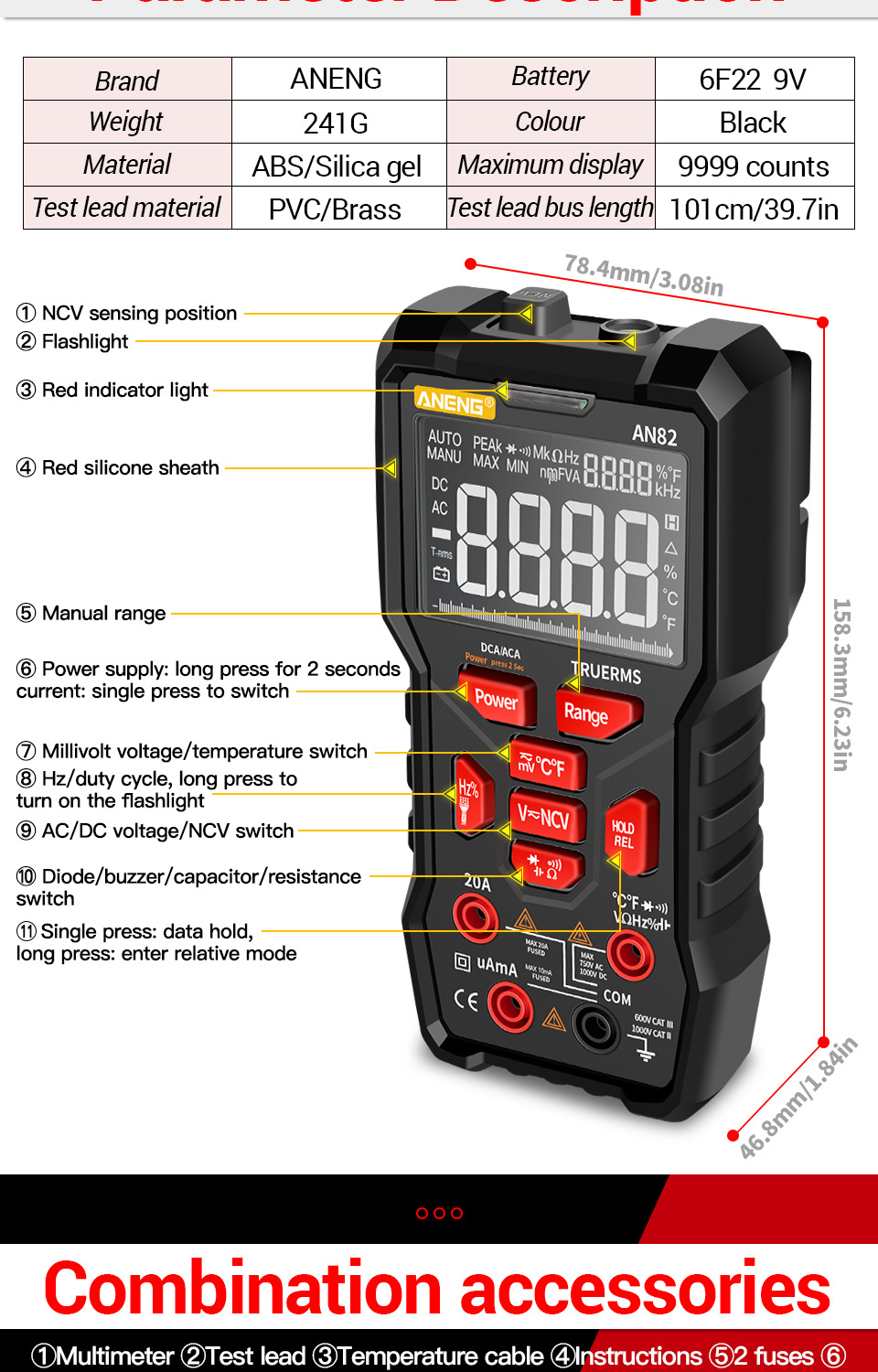

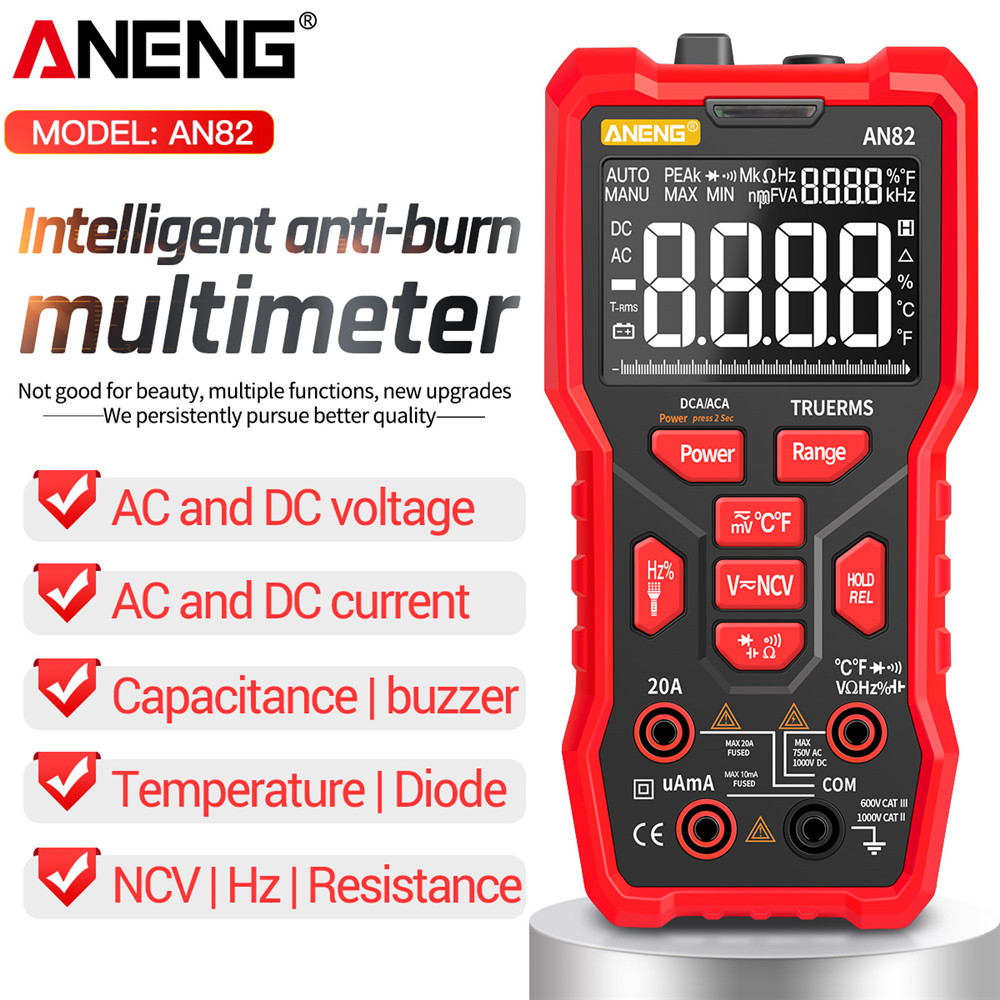

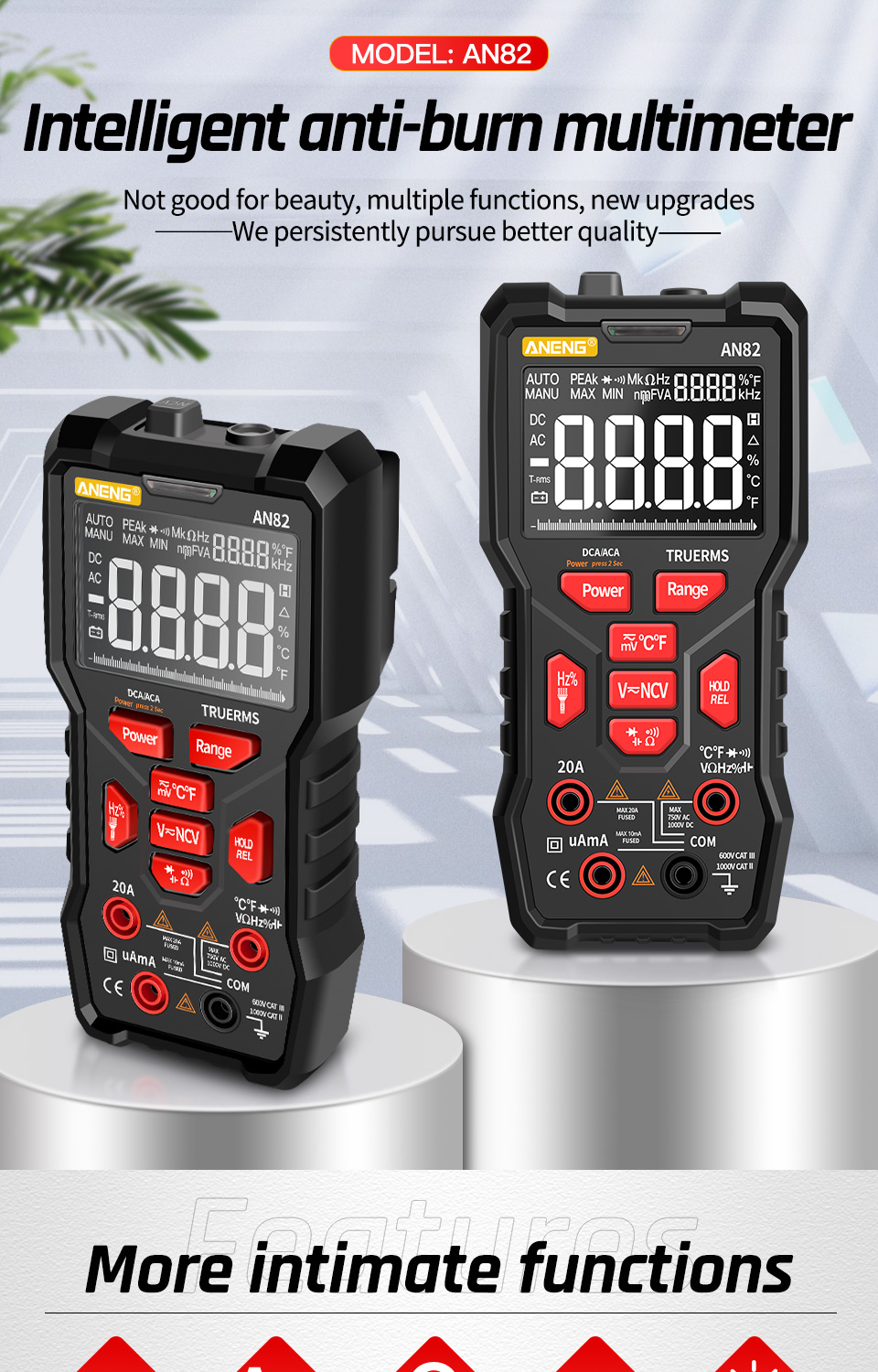

ANENG AN82 9999 True-RMS Digital Multimeter
9999 Counts Analog Bar Graph AC/DC Voltage Ammeter Current Detector Tool
- The instrument has an automatic range function.
- The meter has a reading hold function.

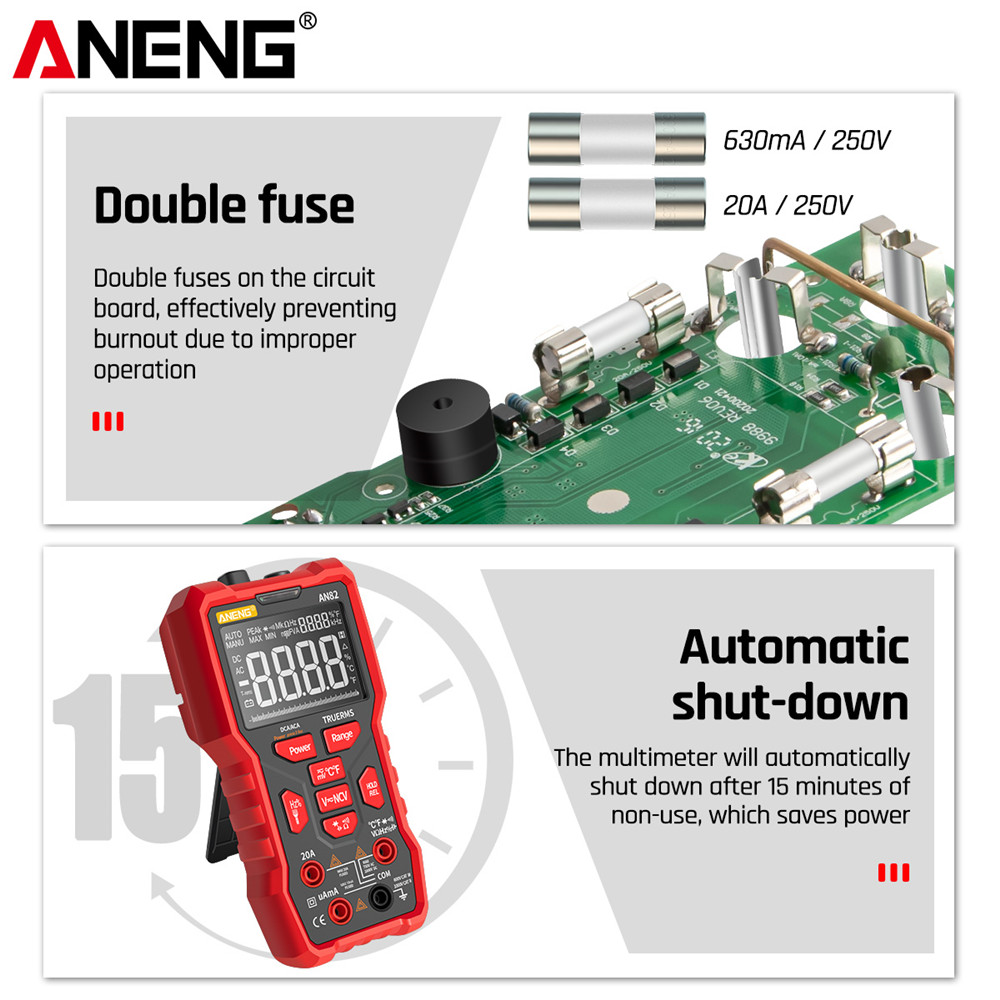

- The instrument has an automatic shutdown function.
- Maximum display value: 9999 counts
- Automatic range and Manual range
- Full ranges overload protection
- Battery Type: 6F22 9V Battery (Not Included)
| Funtion | Range | Accuracy |
| DC voltage | 999.9mV /9.999V /99.99V /9.999mV /99.99mV | ± (0.5% + 3) |
| DC voltage | 999.9 V | ± (0.8% + 5) |
| AC voltage | 999.9mV / 750V /9.999mV /99.99mV | ±(1.0% + 10) |
| AC voltage | 9.999V /99.99V | ± (1.0% + 3) |

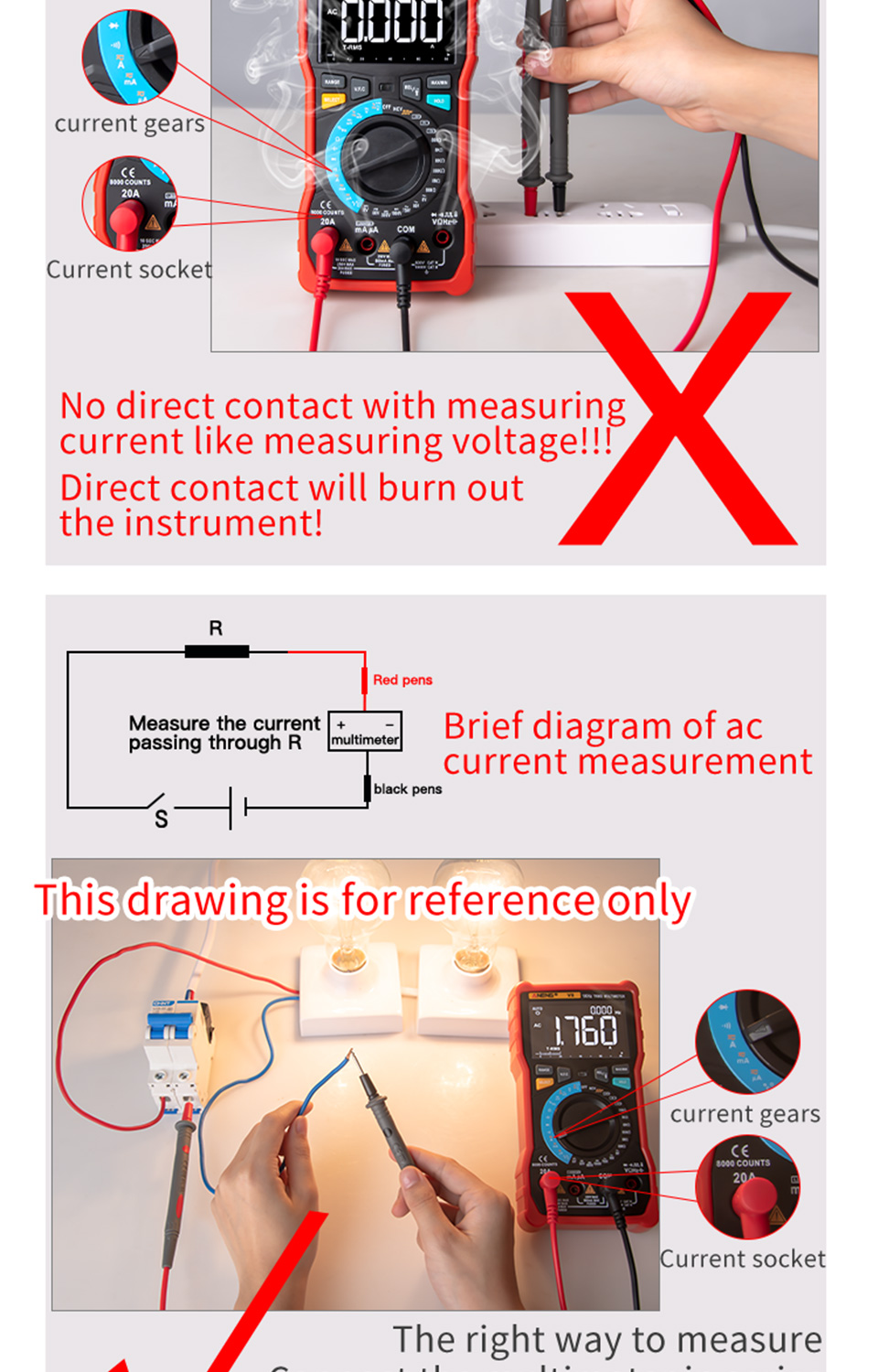

| AC current | 999.9uA /9.999mA /999.9mA | ± (1.0% +3) |
| AC current | 9.999A | ± (2.5% +10) |
| DC Current | 999.9uA /9.999mA /999.9mA / | ±(0.8% + 3) |
| DC Current | 9.999A | ± (2.0% +10) |
| Frequency | 99.99Hz /999.9Hz /9.999kHz /99.99KHZ /999.9KHZ /5.000MHZ | ± (0.1% + 2) |
| Duty Ratio | 0.1 – 99.9% | ± (0.1% + 2) |
| Resistance | 999.9W | ±(0.5% + 3) |
| Resistance | 9.999KW /99.99KW /999.9KW /9.999MW | ±(1.5% + 35) |
| Resistance | 99.99MW | ±(3.0% + 5) |
| Capacitance | 9.999nF | ±(5.0% + 20) |
| Capacitance | 99.99nF /999.9nF /99.99MF /999.9MF /9.999MF | ± (2.0% + 5 ) |
| Capacitance | 9.999mF | ±(5.0% + 5) |
| Capacitance | 99.99mF |
|
| Temperature test | -20 ° C to 300 ° C | ± (2.5% + 5d) |
|
| 301 ℃ －1000 ℃ | ± (2.5% + 5d) |

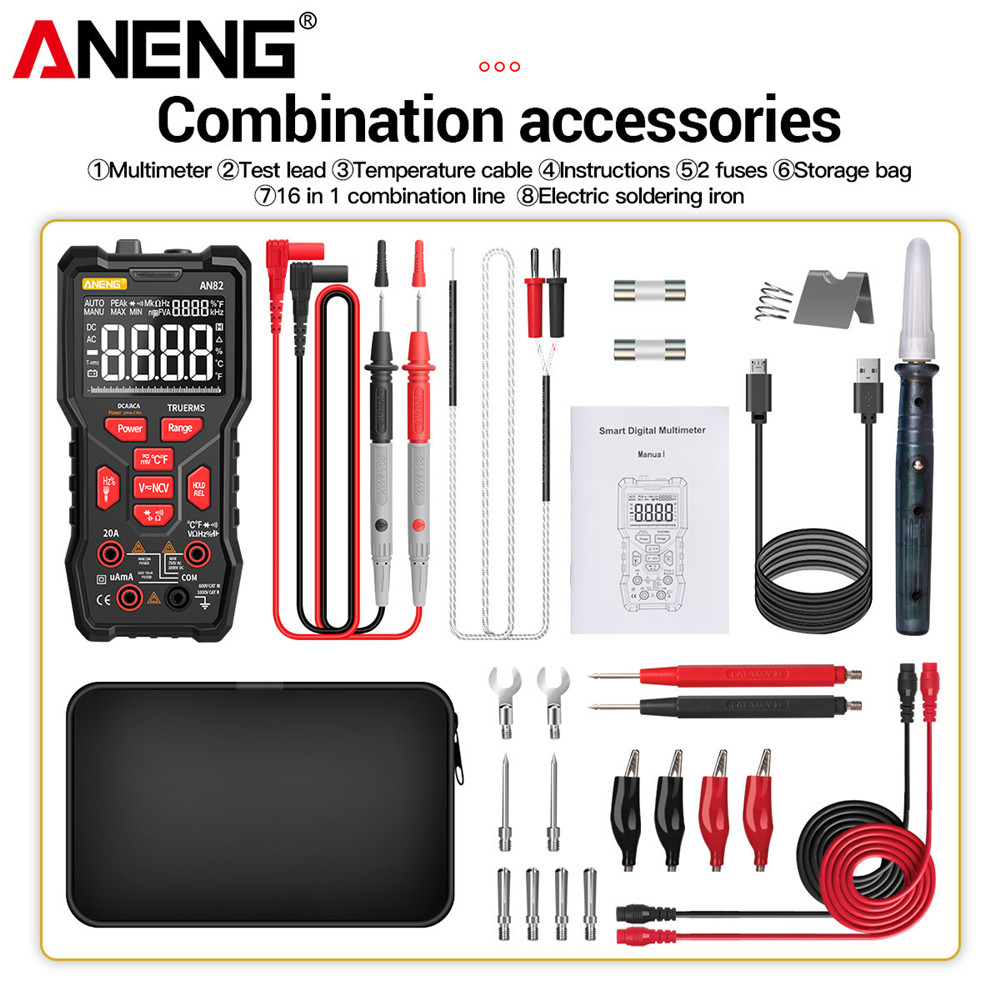

1 x LT002 Electric soldering iron
