ANENG V04B
High-Precision Automatic Digital Multimeter
Introduction
1.This product is a battery-powered,auto-ranging,true RMS digital multimeter with a 4000 counts LCD display.
When the measured voltage exceeds 36Vdcor25Vac, the operator should fully avoid electric shock.
2.Misuse of patterns or changes can lead to image distortion, so when input is within range, "OL" will be displayed on the screen.
3.Low battery power can lead to incorrect readings. Please change the battery power when the battery power is low.
Range

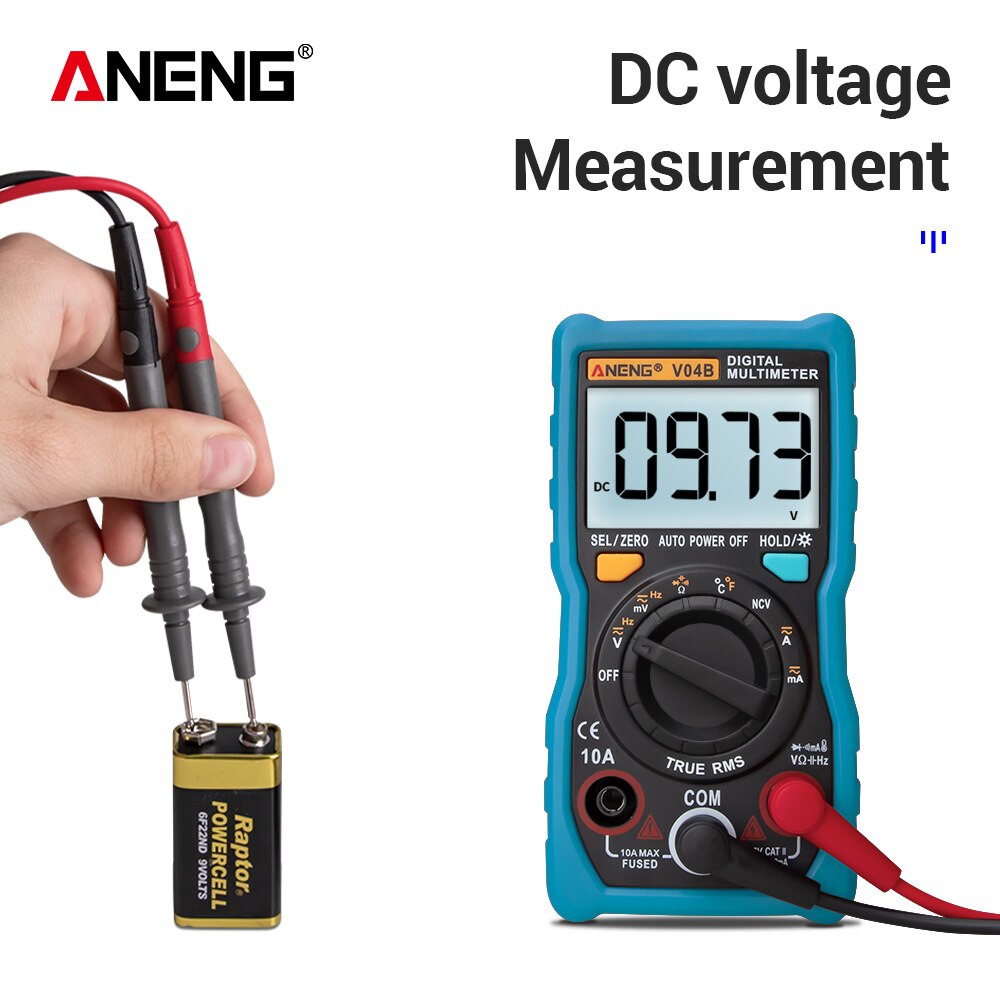

DC Voltage(V): 4.000V- 40.00V- 400.0V- 600V Accuracy +-(0.5%+3)

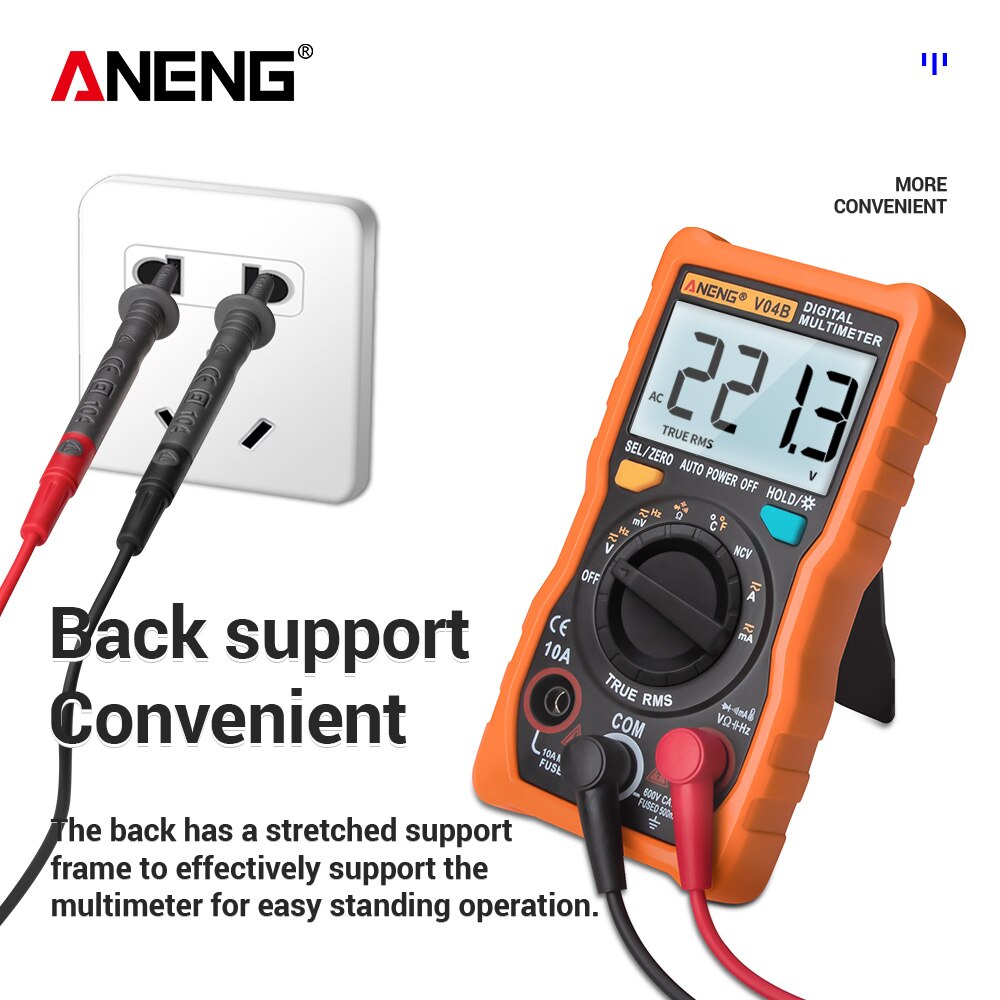

AC Voltage(V): 4.000V- 40.00V- 400.0V- 600V Accuracy +-(1%+3)
Resistance: 4.000K-40.00K-400.0K-4.000M-40.00M Accuracy +-(1.5%+3)
DC current range: 40.00mA-400.0mA-4.000A-10.00A Accuracy +-(1%+3)

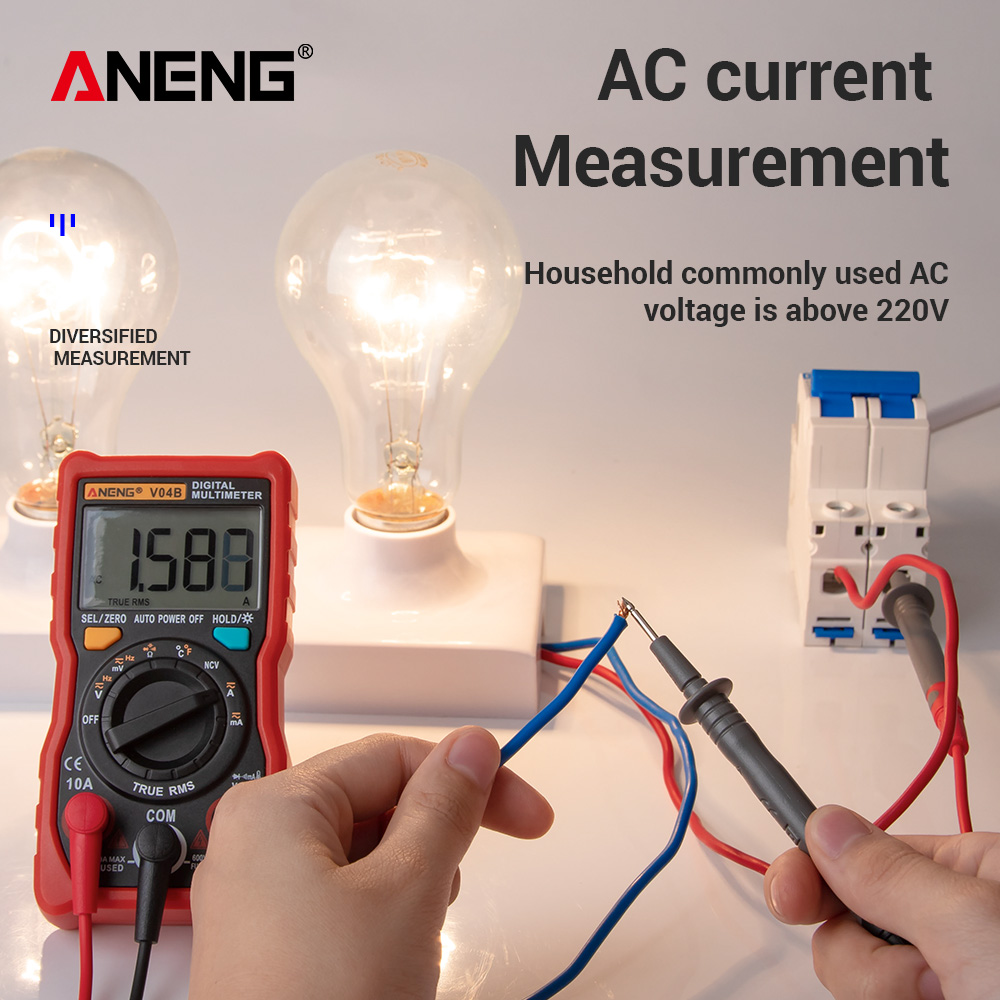

AC current range: 40.00mA-400.0mA-4.000A-10.00A Accuracy +-(2%+3)
Capacitance: 4.000nF-40.00nF-400.0nF-4.000uF-40.00uF-400.0uF-4.000mF Accuracy +-(4%+4)
Frequency: 4.000Hz-40.00Hz-400.0Hz- 4.000KHz-40.00KHz-400.0KHz-4.000MHz-10.00MHz Accuracy +-(1%+2)

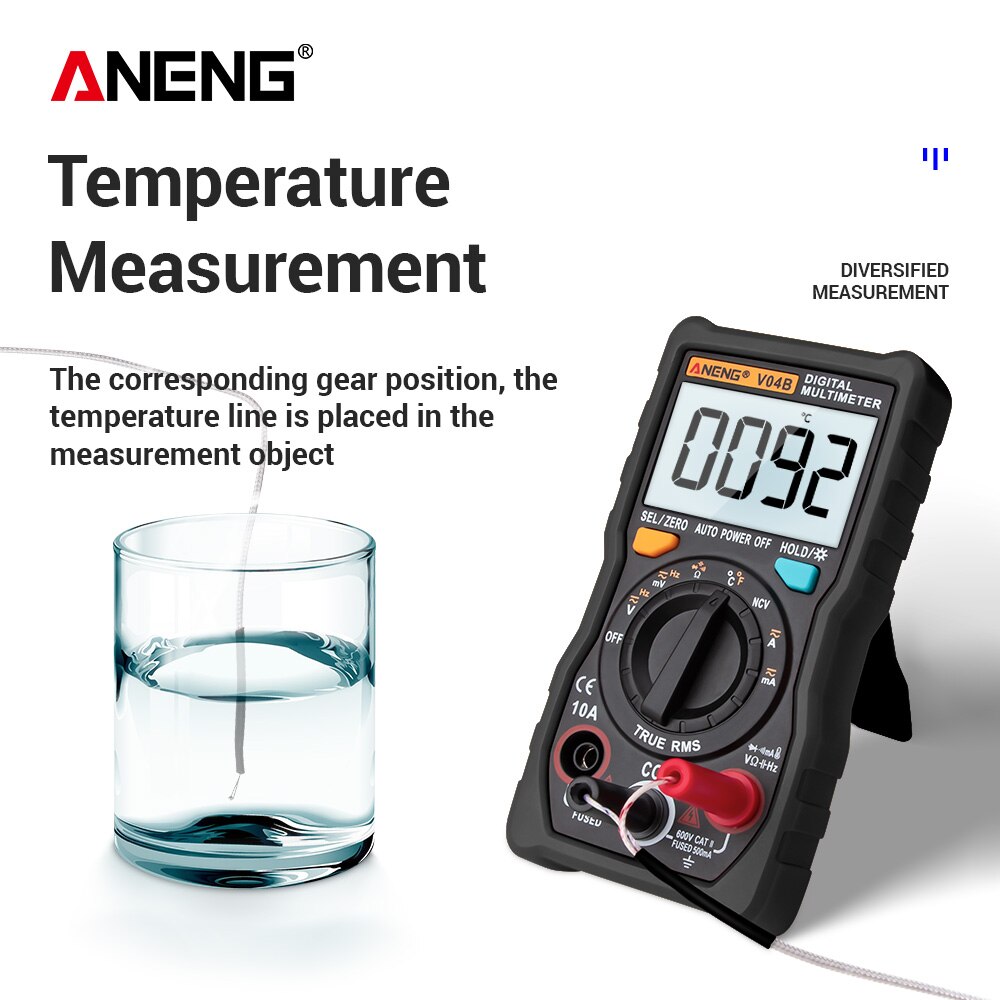

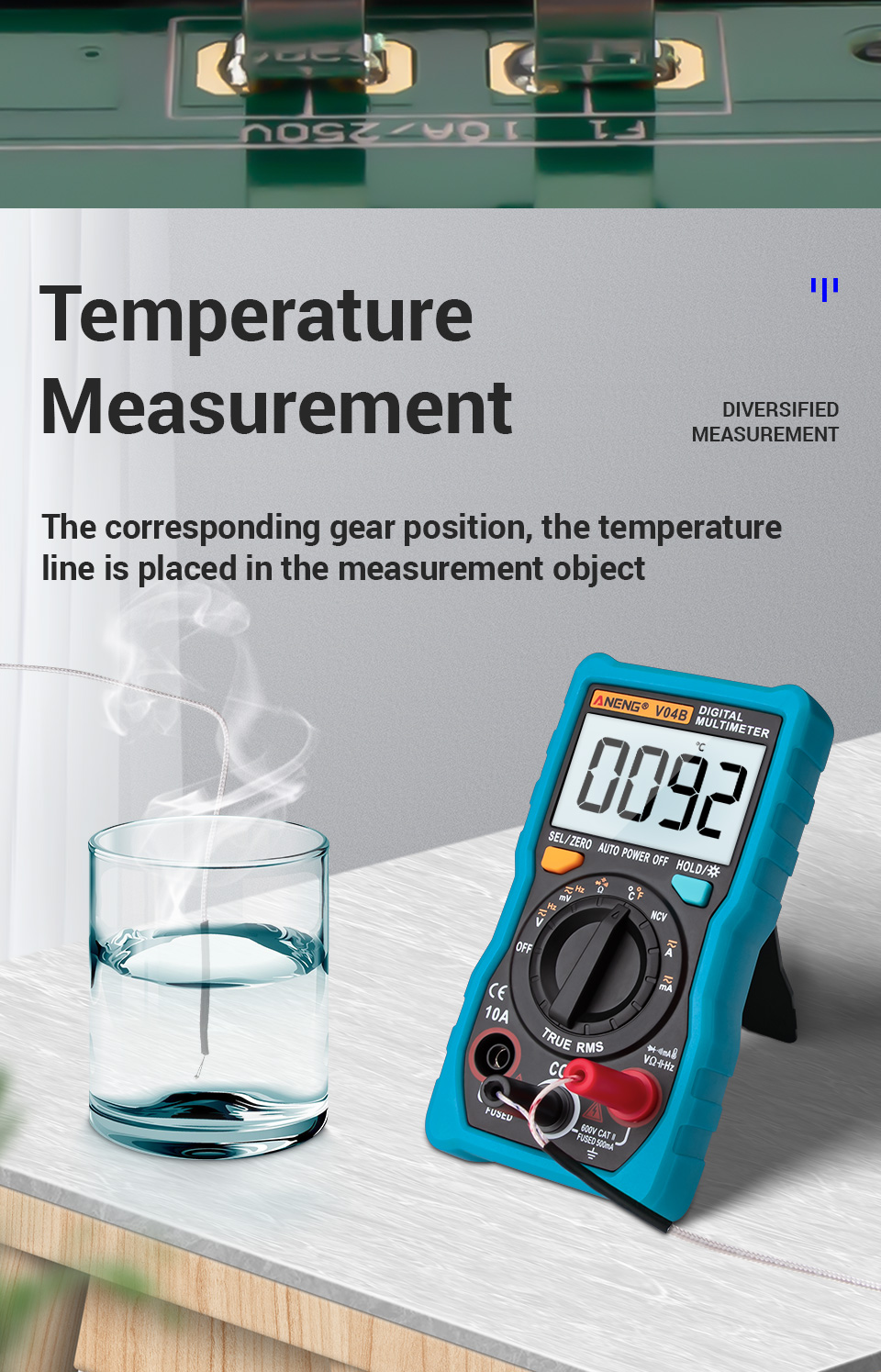

Temperature Measurement: (Centigrade -30/1000) (Fahrenheit -22/1832) Accuracy +-(3%+5)
Working environment temperature: (Centigrade 0-40) (Fahrenheit 32-104)
Humidity of Working Environment: Less than 70%
True RMS: Yes
Continuity: Yes Diode measurement: Yes

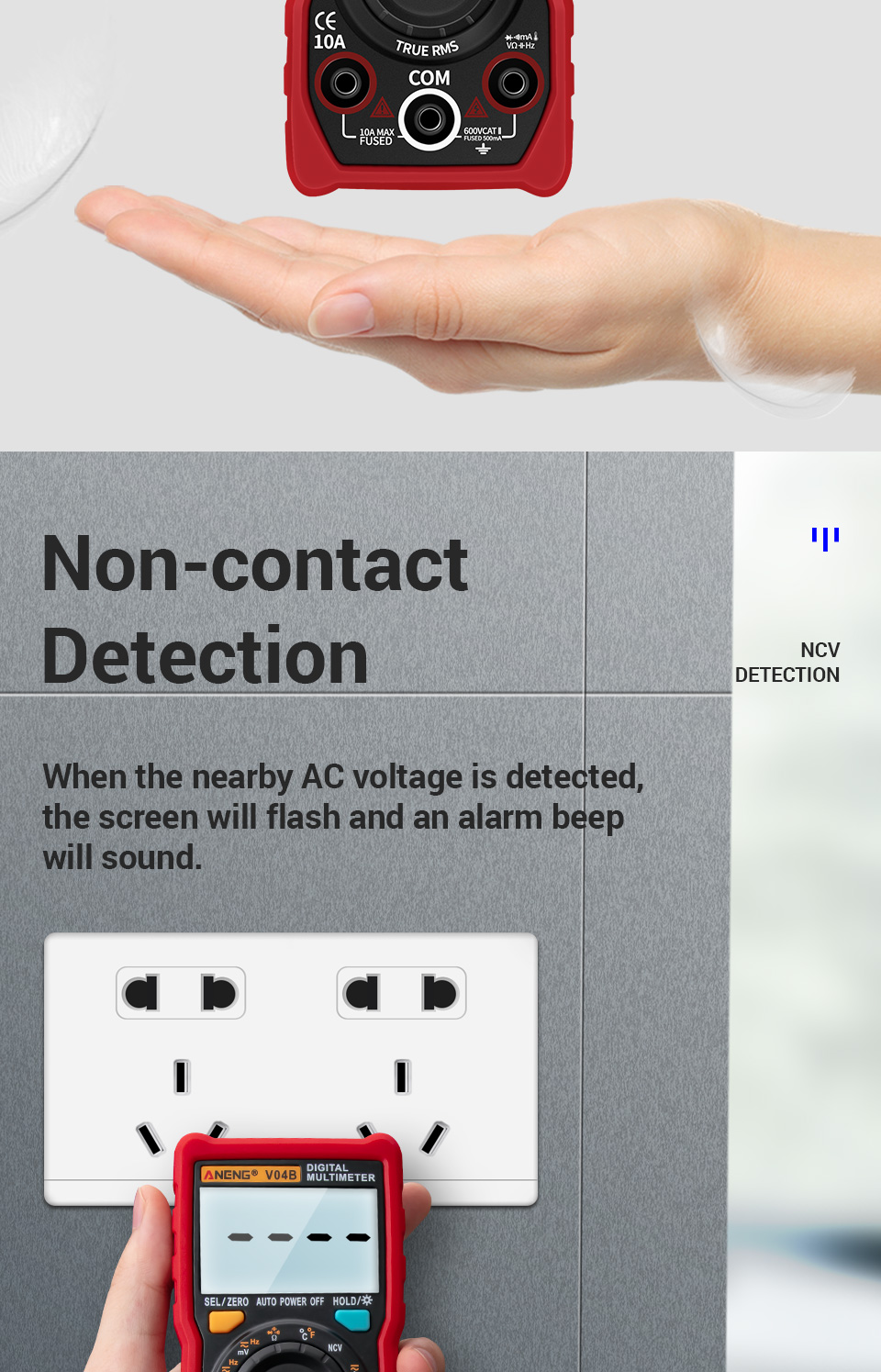

Test for Continuity: Yes NCV (Non-contact voltage detection): Yes
Display: 4000counts Ranging: Auto

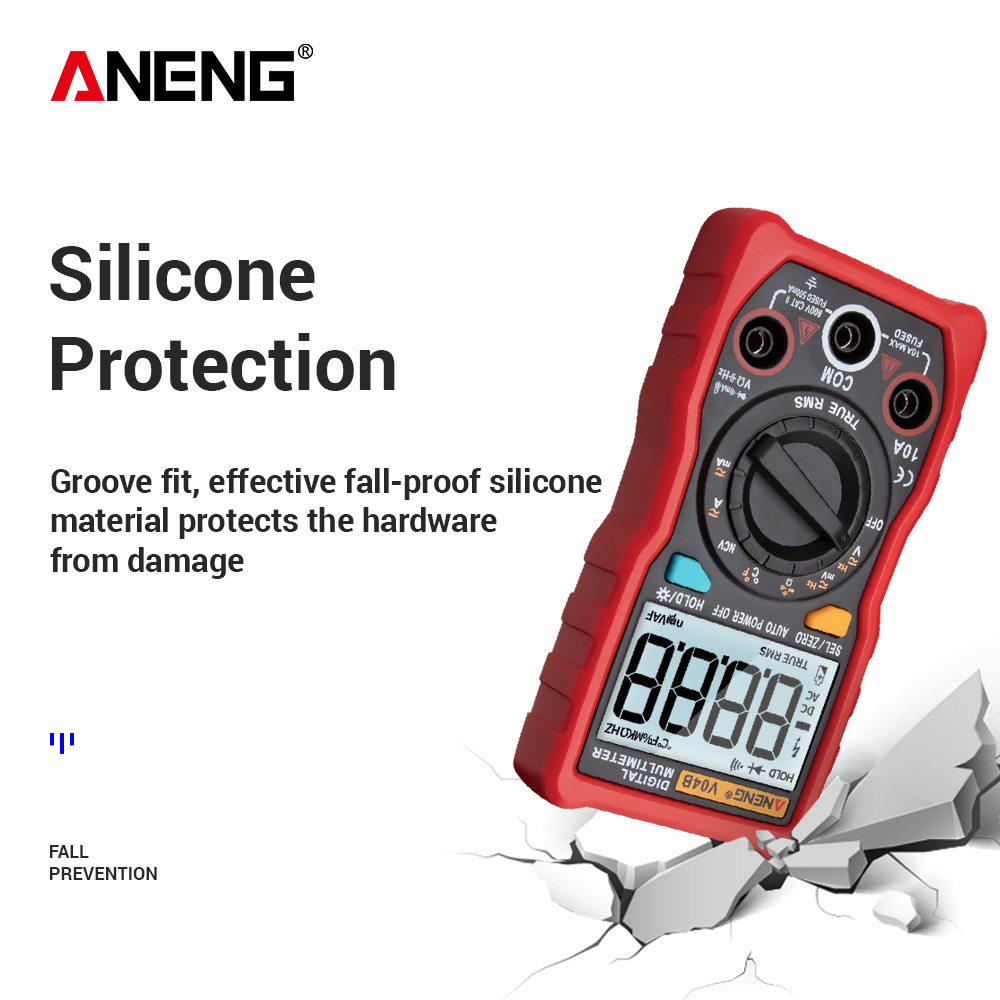

Material: ABS+PVC Update Rate: 3/s
Low Battery Indication: Yes
Data Hold: Yes Backlight: Yes

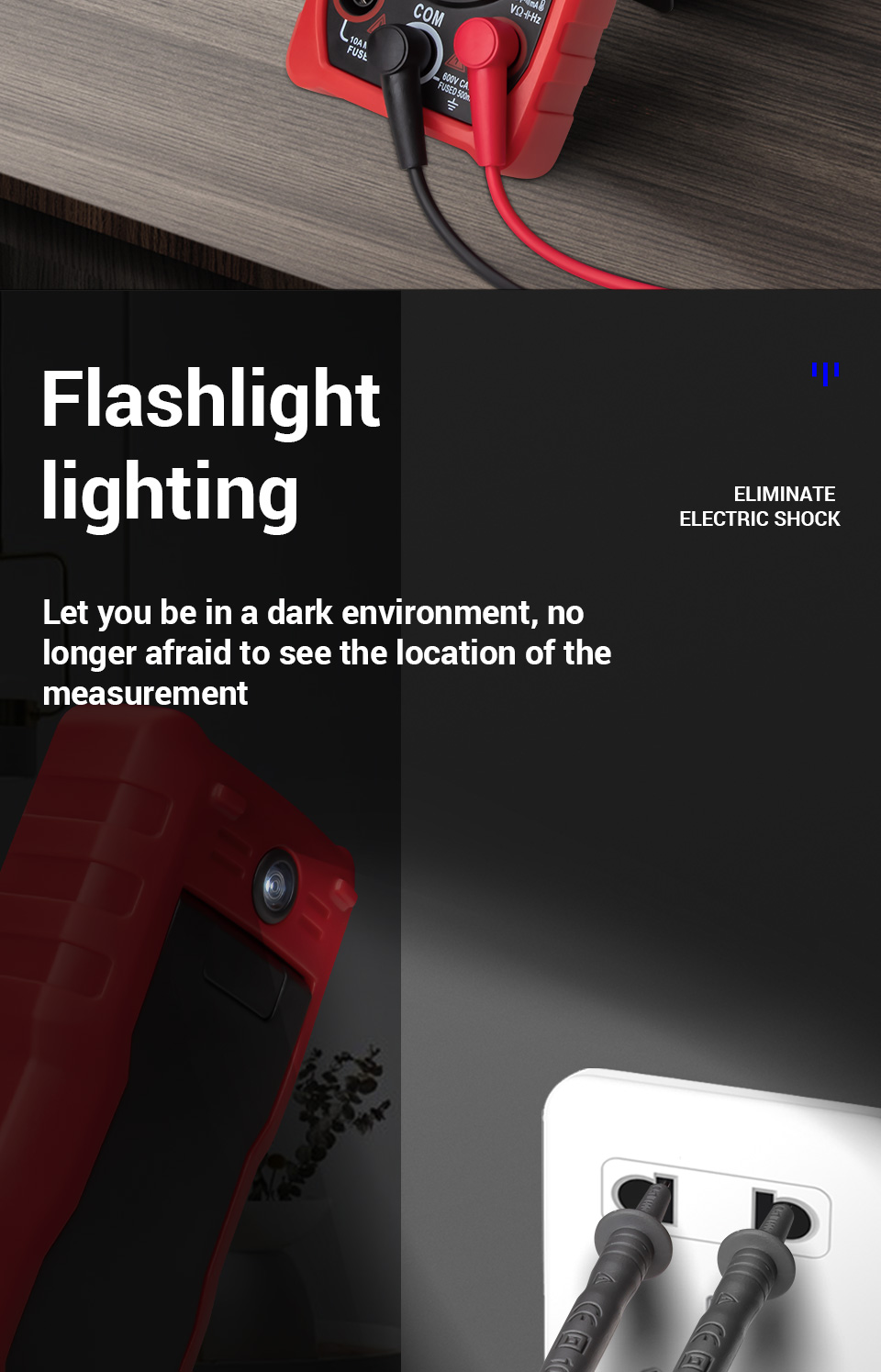

Flashlight: Yes Auto Power Off: Yes
Driving mode: AAA x2 (Batteries do not contain)

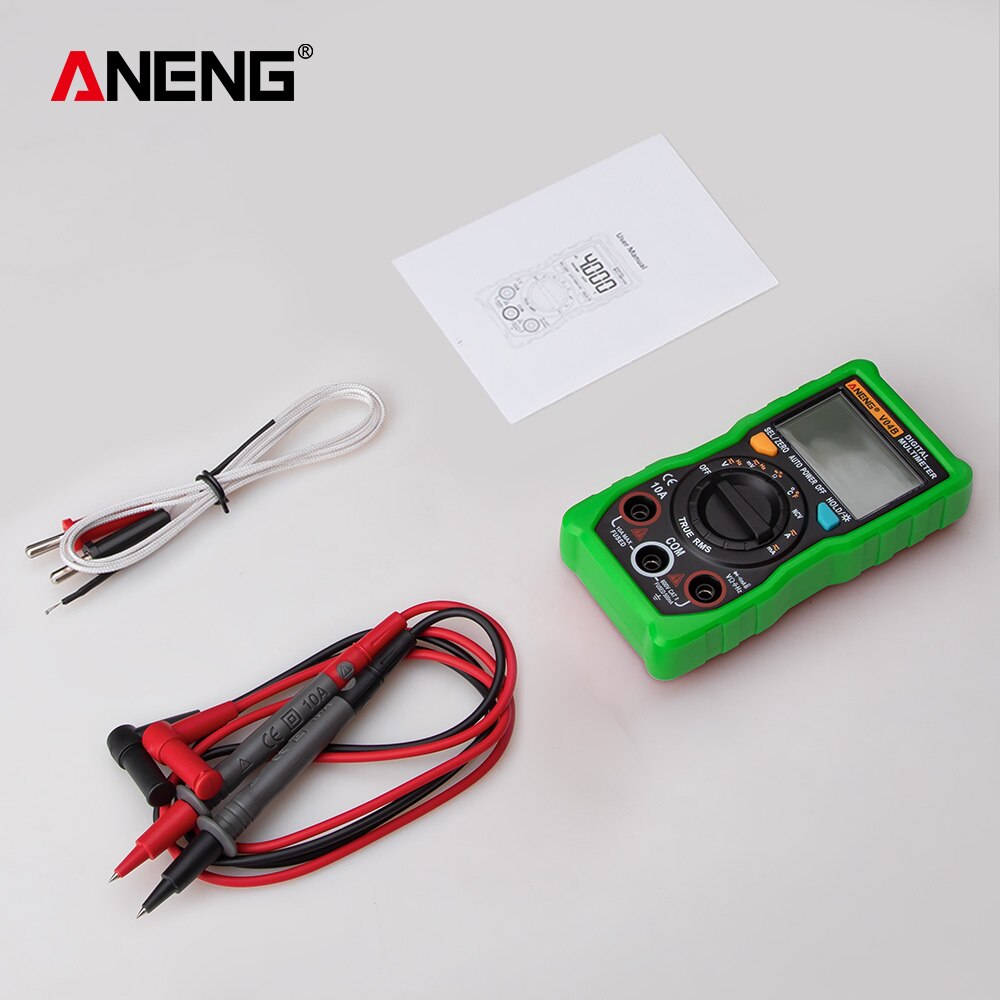

Product List:
Digital multimeter mV file appears to be non-zero, mainly in the following cases:
1: If the ambient temperature and humidity in the air change too much, it will not return to zero;
2: There is a strong electric field or magnetic field disturbance around.
3: The multimeter itself is faulty.
When the multimeter does not return to zero, it can be judged as follows: the multimeter is dialed to the mV file, the corresponding input hole is inserted into the red and black pen line, and the red and black pen line is shorted.
At this time, the multimeter displays "0000" to judge the multimeter. The phenomenon of zero return is due to interference from environmental factors. The non-return to zero in this state does not affect the use of the multimeter. However, it is recommended to eliminate environmental interference factors so as not to affect the measurement accuracy and produce erroneous measurement results.
