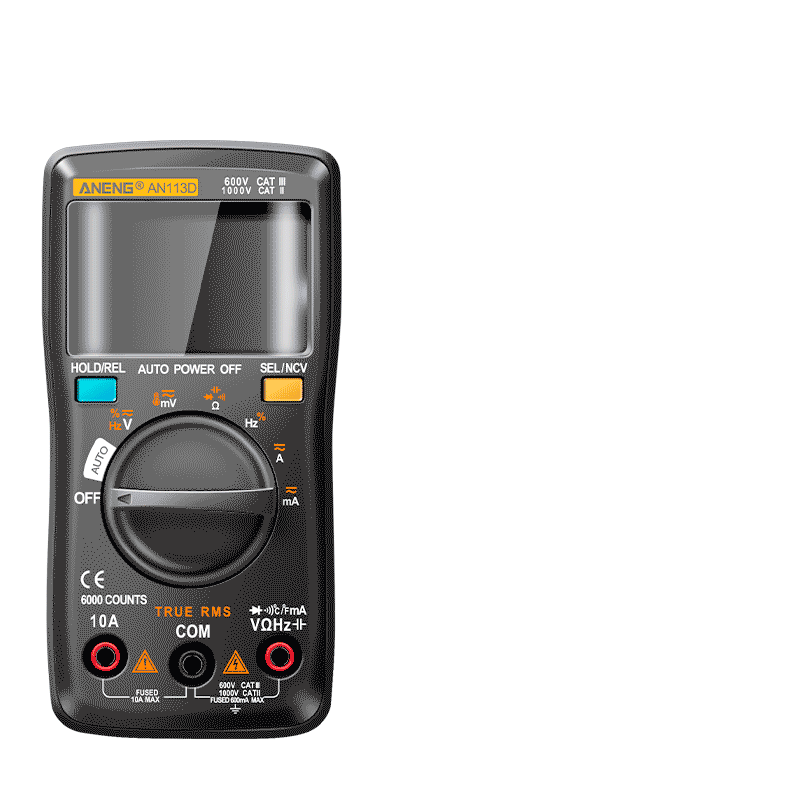

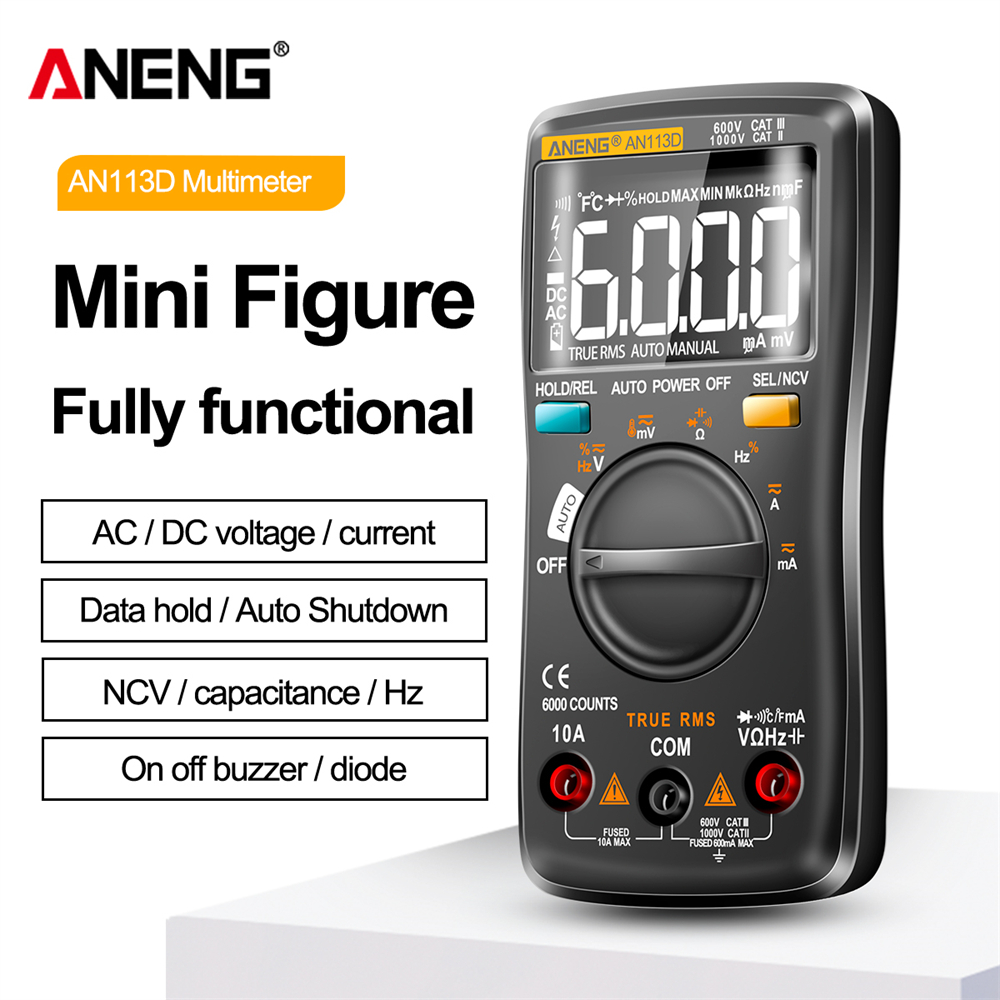

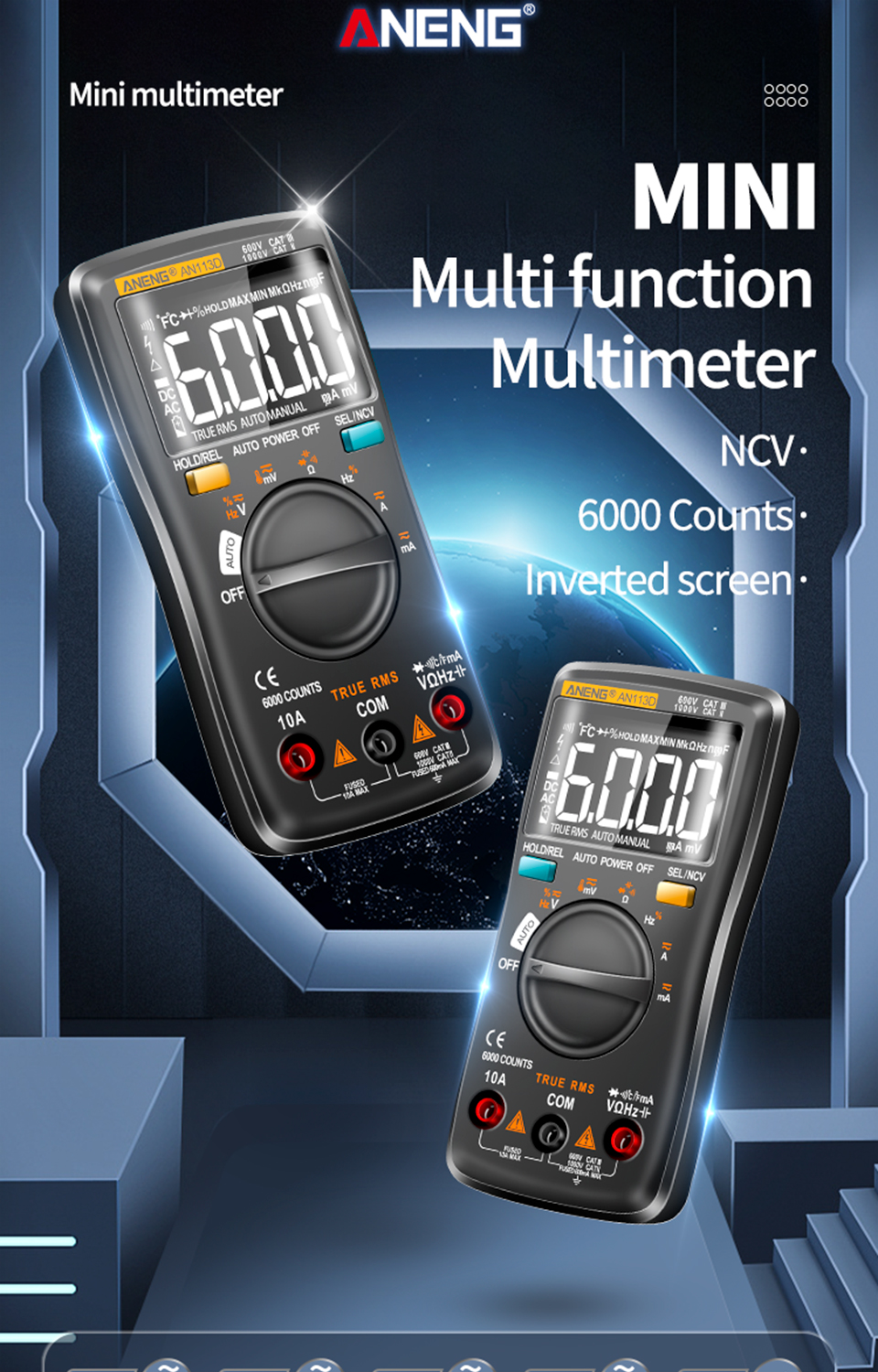

ANENG AN113D 6000 counts NCV Digital Multimeter
Auto Ranging AC/DC voltage meter Back light Large Screen
Introduction:
AN8002 lacks "automatic" function
This product is a multi-functional, auto-ranging digital multimeter with a 6000 counts LCD display.

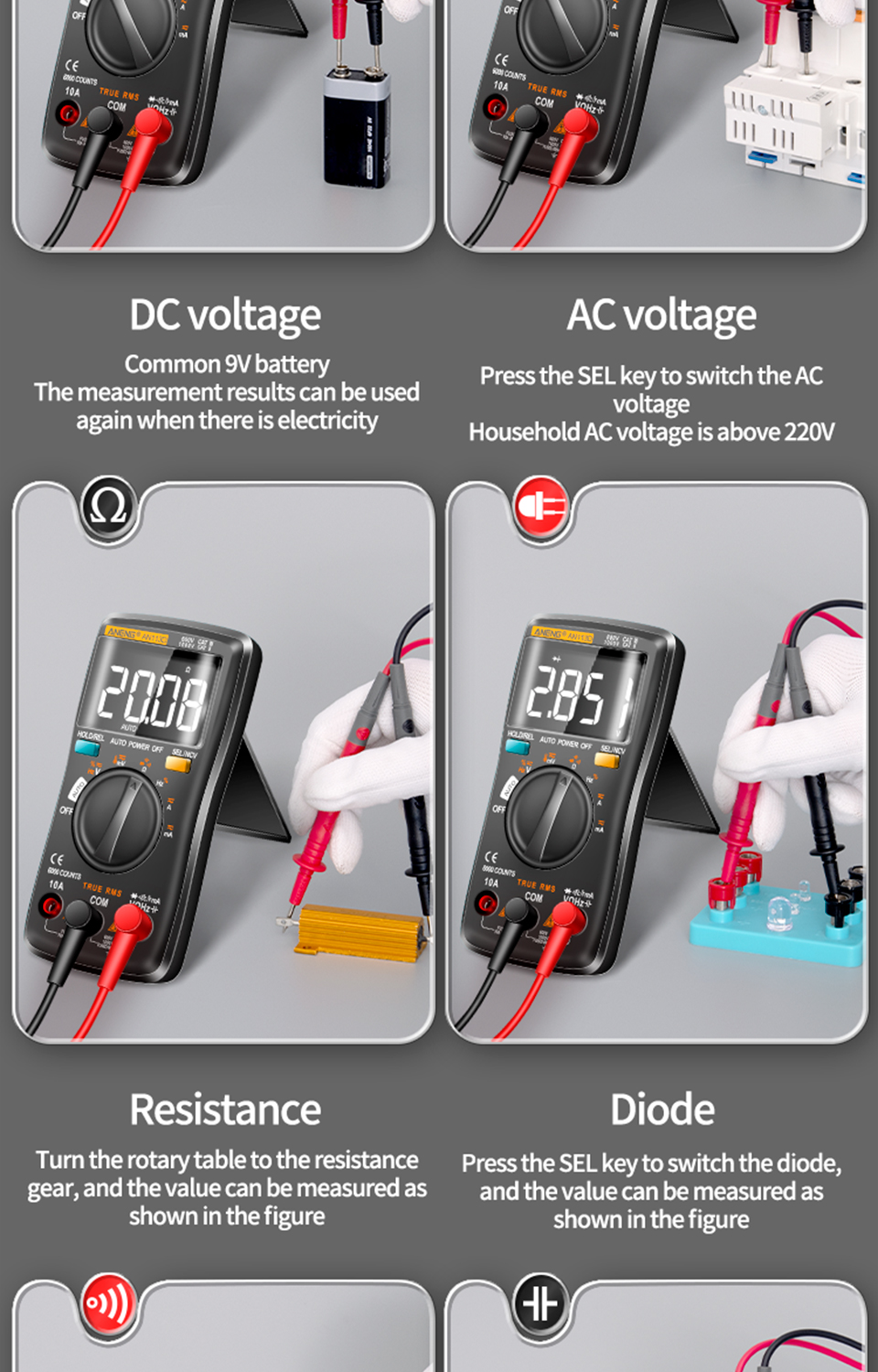

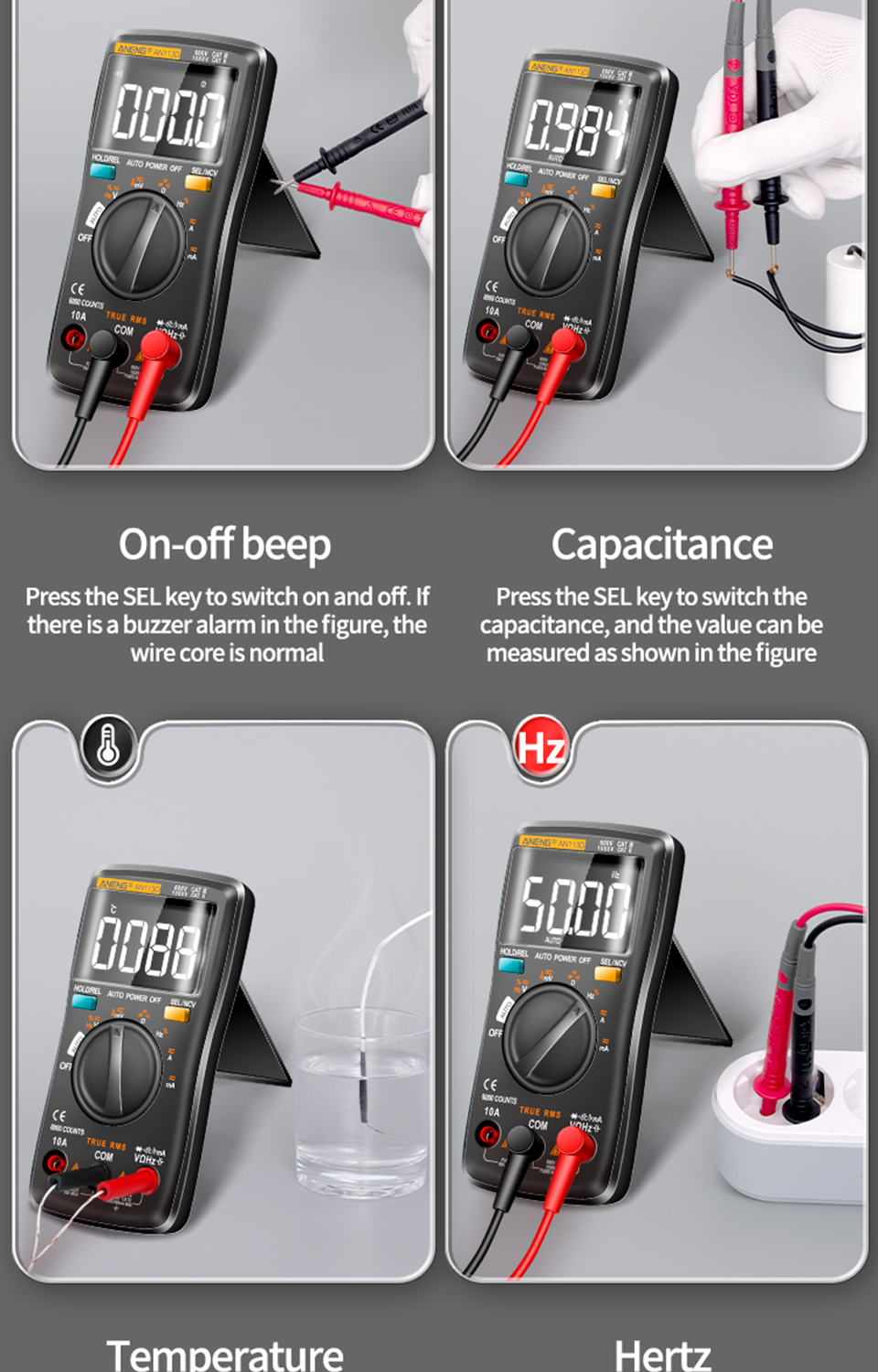

1. Measurement functions include AC/DC voltage, AC/DC current, resistance, diode test/continuity, NCV, frequency/duty cycle, capacitance.
2. Support True- RMS

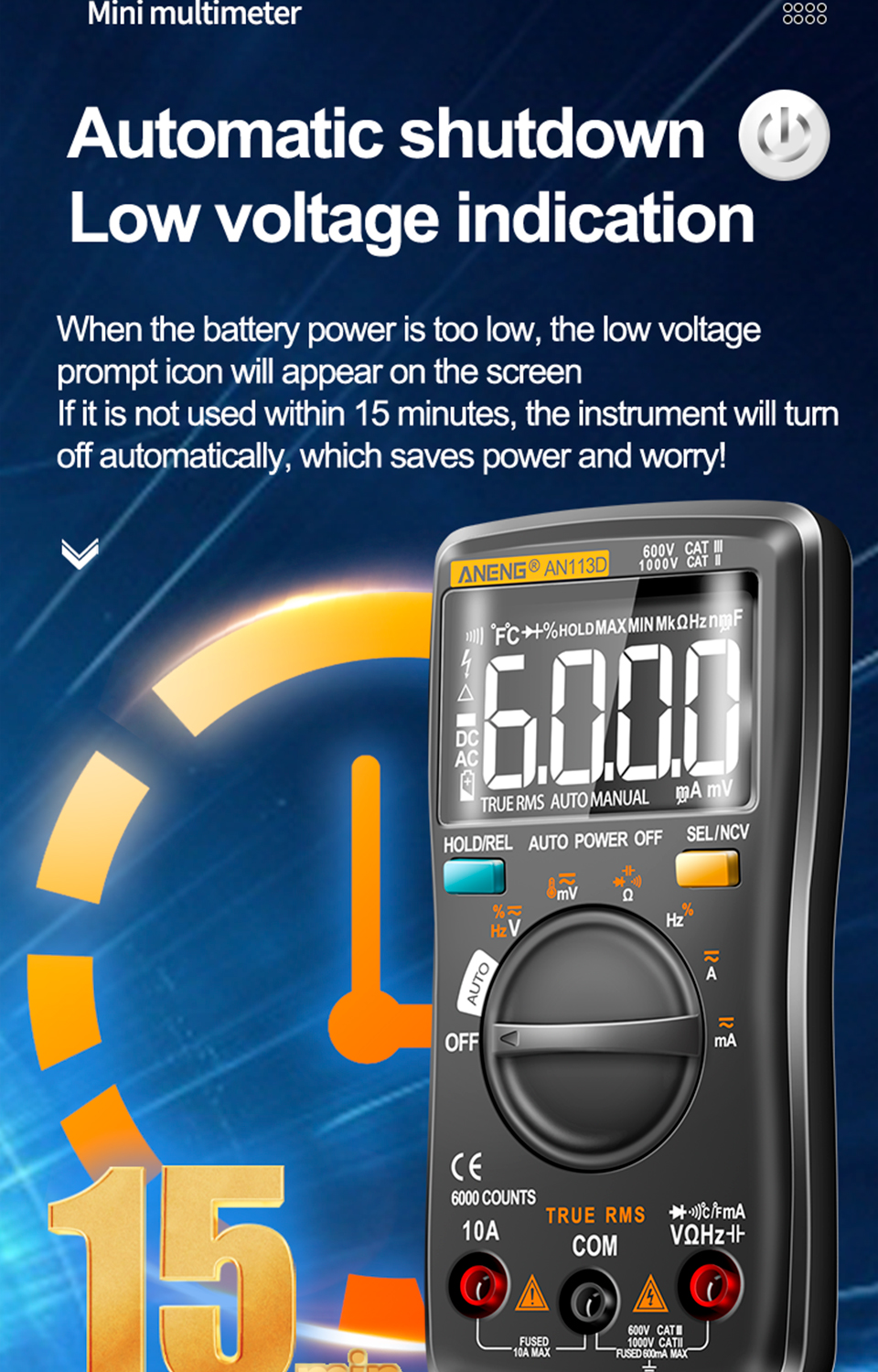

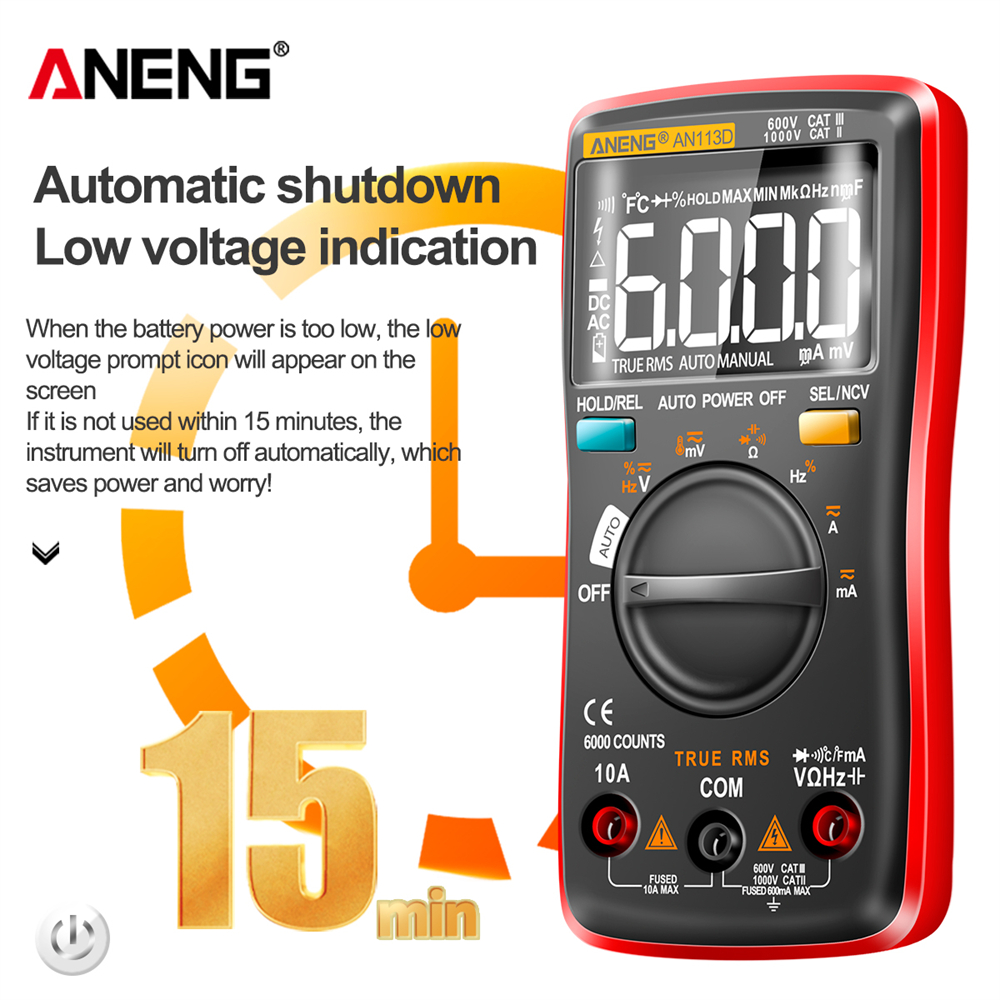

3. Support Auto Power Off
4. Support temperature measurement
5. Support data hold
Feature:
Display(LCD): 6000 counts
Ranging : Auto
Material : ABS/PVC
Update Rate : 3 times / second
Low Battery Indication : √

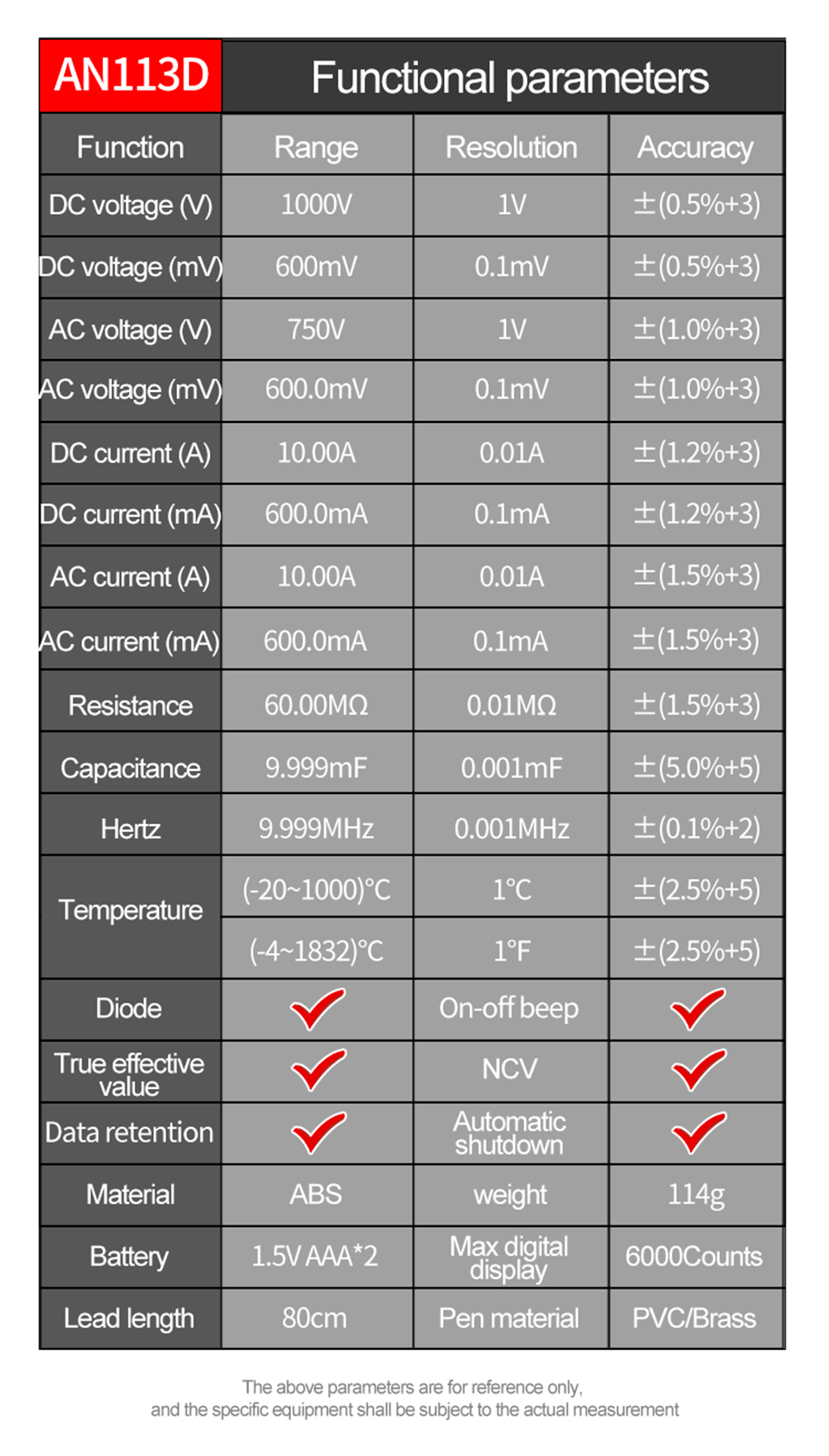

Specification:
DC Voltage : 6.000V (0.001V) / 60.00V( 0.01V)/ 600.0V (0.1V )/1000V (1V) ±(0.5%+3)

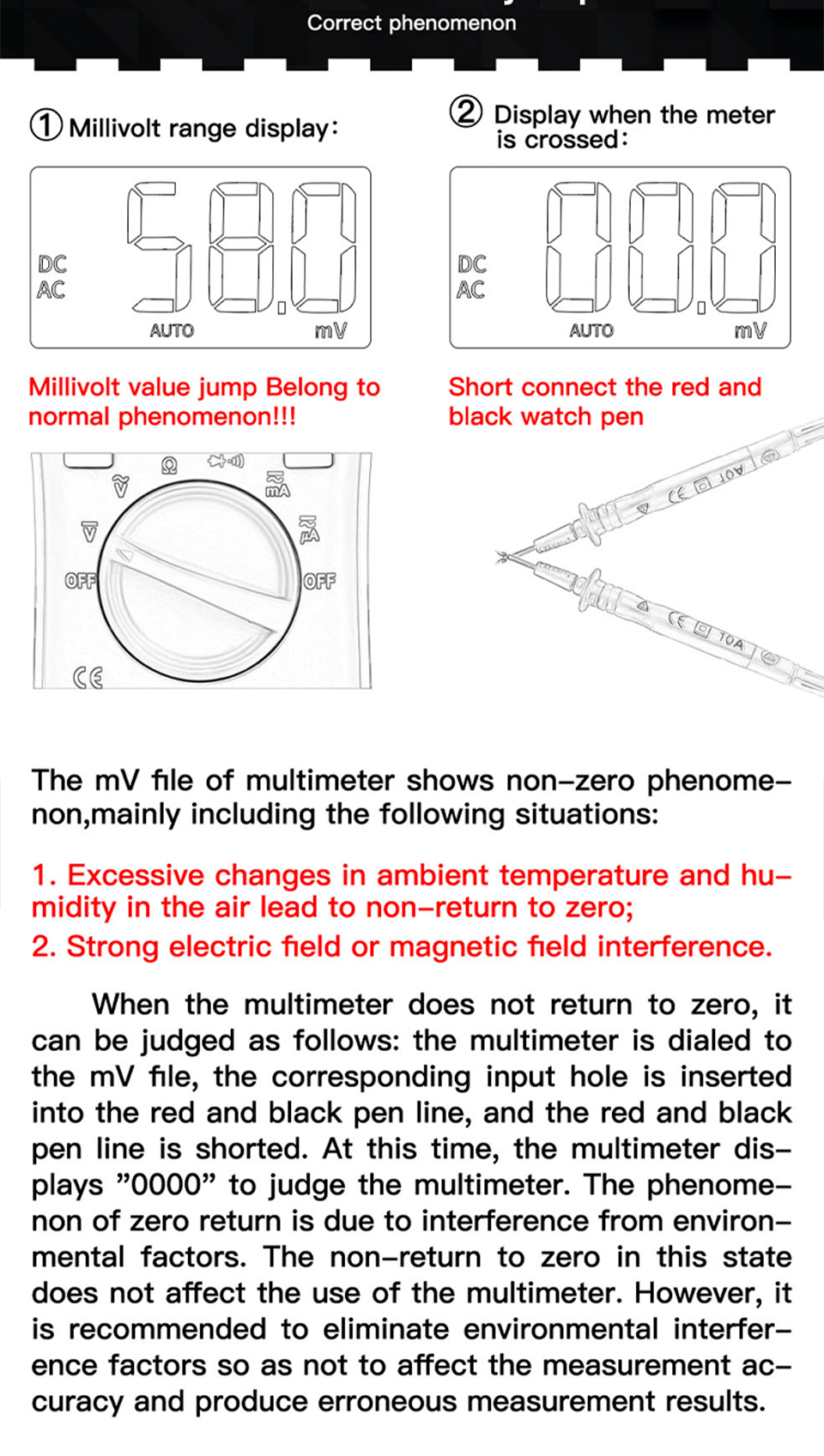

DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ±(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)

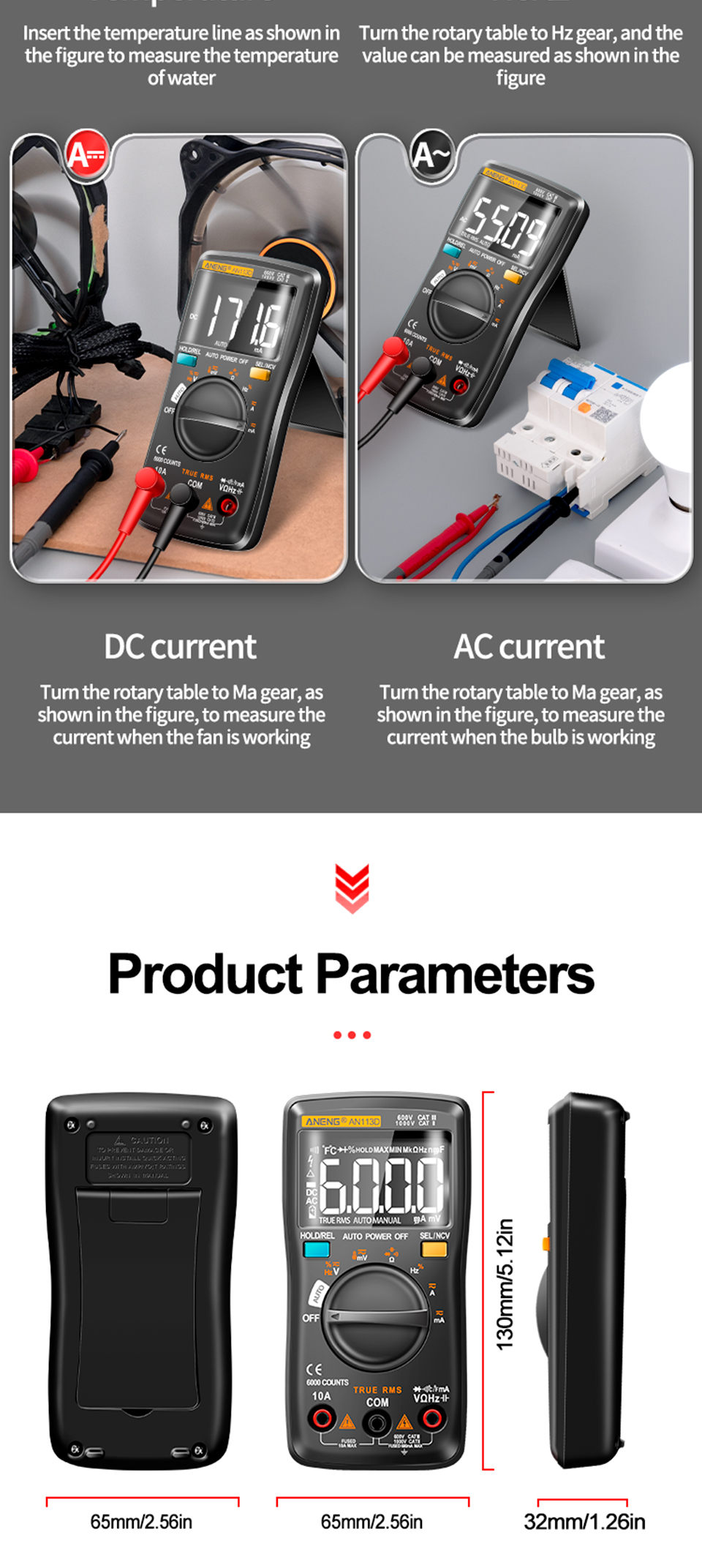

DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ±(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ±(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)
Resistance : 600.0Ω (0.1Ω)/6.000kΩ(0.001kΩ)/60.00kΩ (0.01kΩ) /600.0kΩ(0.1kΩ) / 6.000MΩ (0.001MΩ) ±(0.5%+3) /60.00MΩ (0.01MΩ) ±(1.5%+3)
Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ±(0.1%+2)
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)
1000℃ (-4~1832)℉ 1℉ 1832℉
Diode: √
Continuity :√

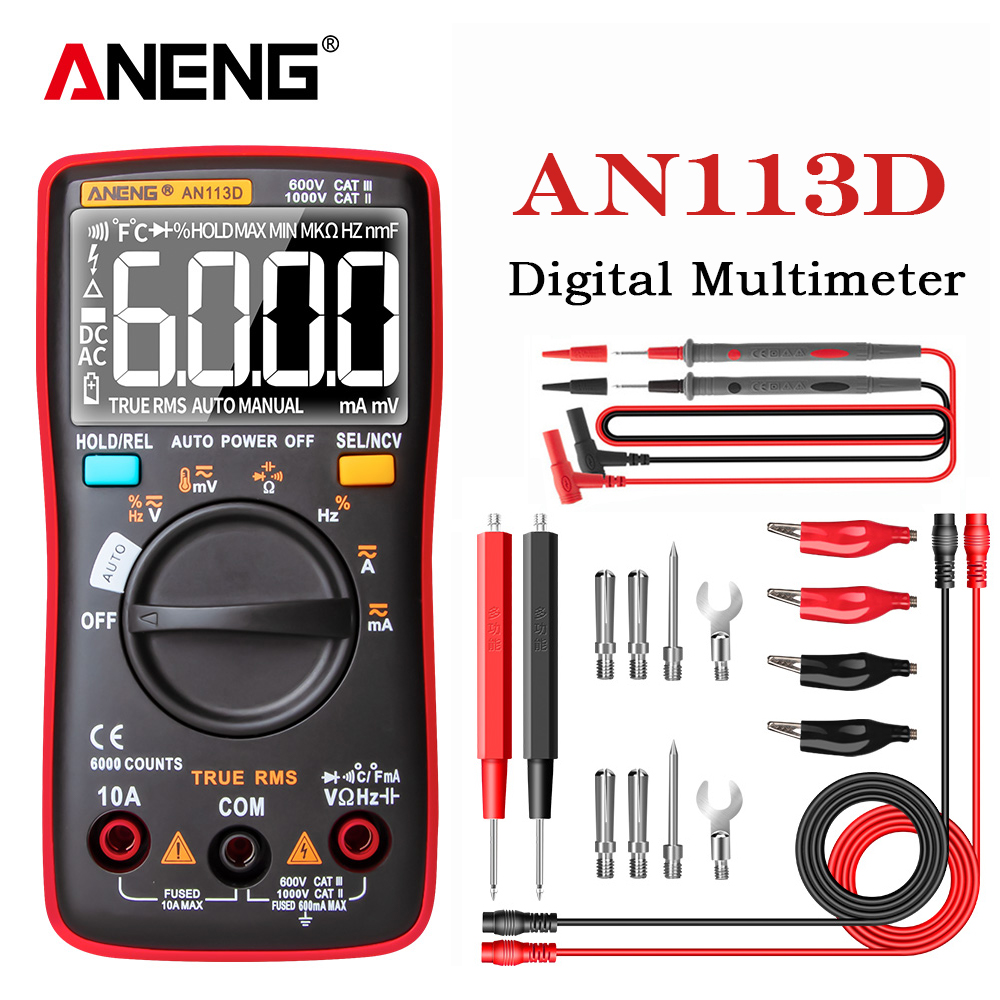

Package list:
1 * Multimeter
1 * Pair of test leads
1 * Thermocouple
1 * English user manual
