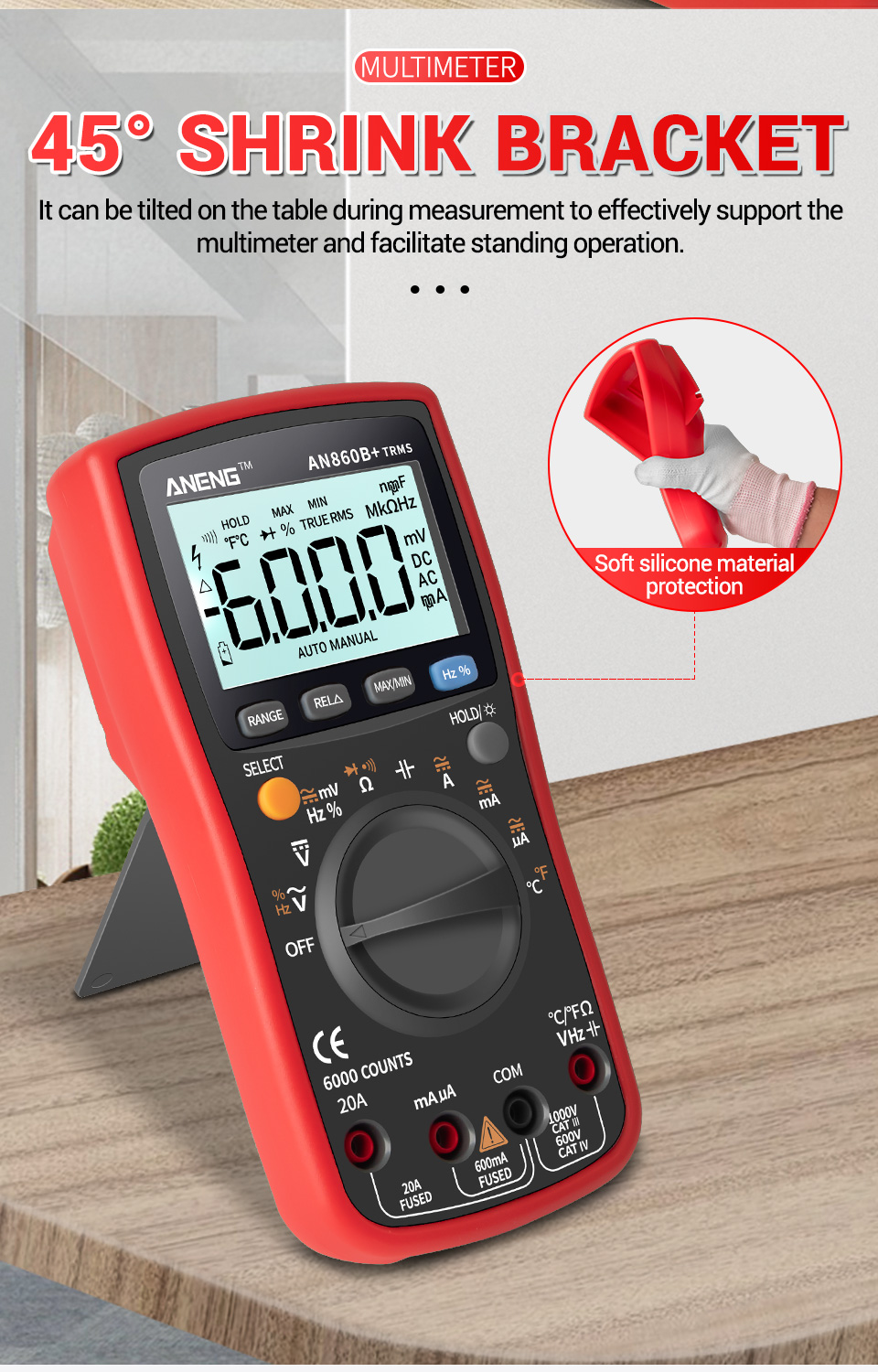

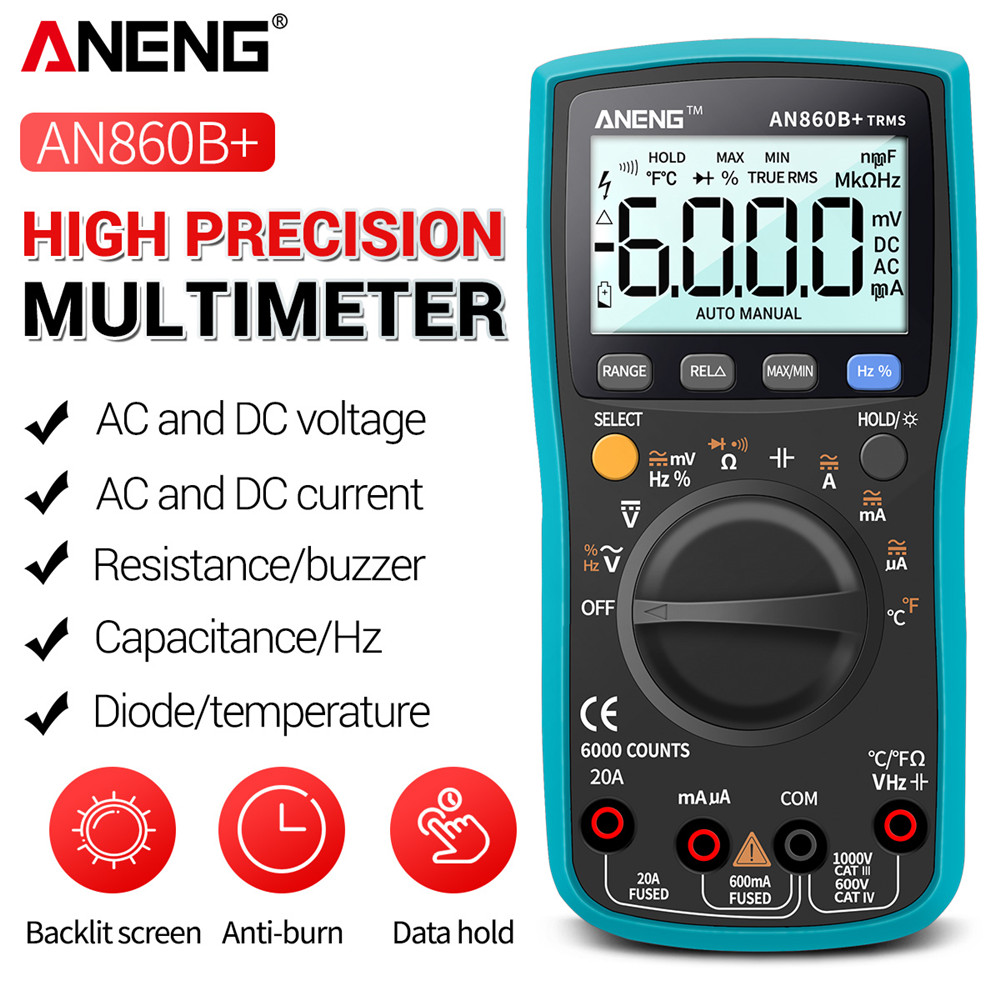

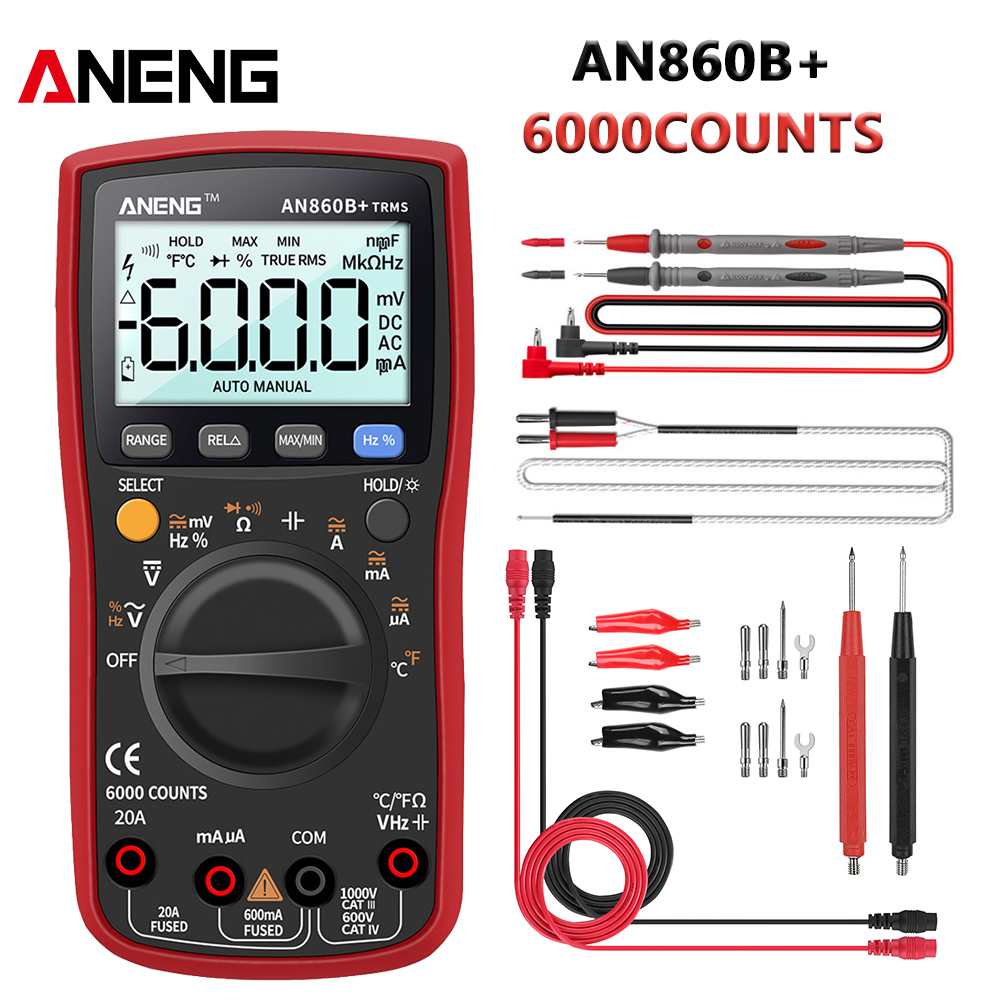

ANENG AN860B AN860B+ 6000 Counts Digital Multimeter
LCD DMM Detector DC AC Voltage Current Meter Resistance Capaticance Tester

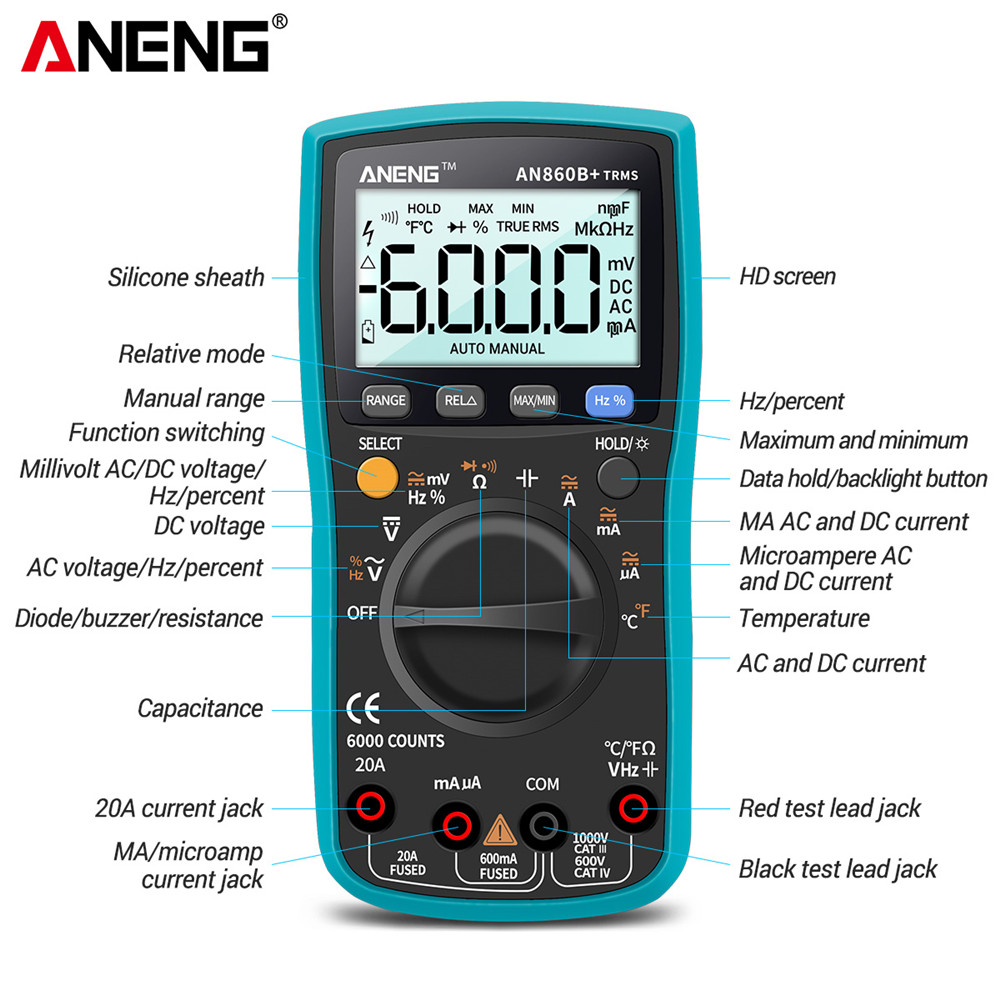

Features:
Auto/manual ranges
True RMS measurement
550V protection in resistance and capacitance ranges
Large LCD display backlight,MAX display 6000 counts
Sample rate: 3 times per second
MAX/MIN data hold
Polarity identification
Low voltage indication
20A high current measurement is available
Auto power off can be cancelled manally

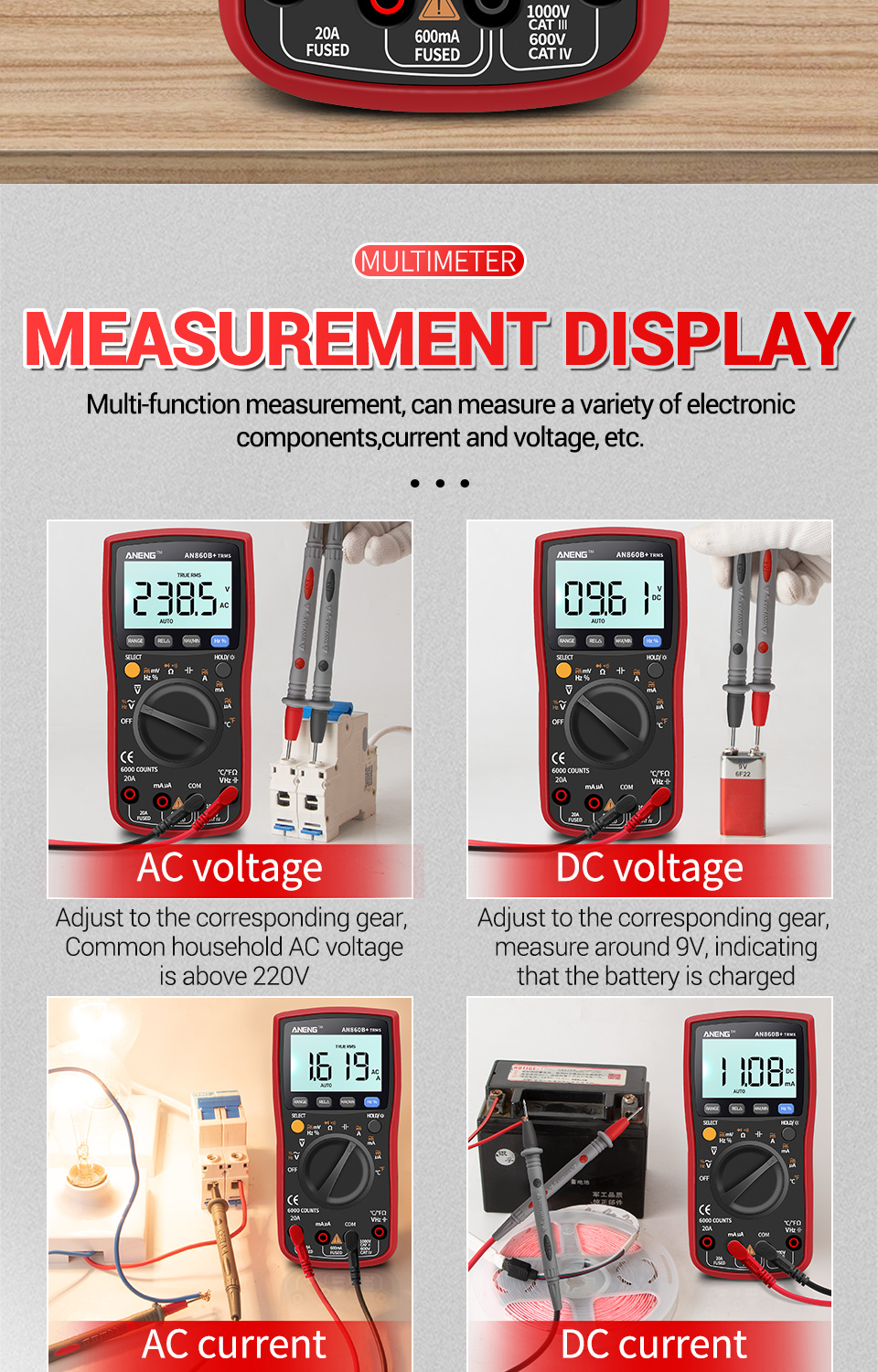

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Diode and Continuity Testing,Temperature, Frequency and duty cycle.
Specifications:
| Brand | ANENG | Model | AN860B+ |
| Diode:Yes | Continuity Test:Yes | Temperature:Yes |
| Function | Range | Accuracy |
| DC Voltage(V) | 6V/60V/600V/1000V | +-(0.5%+3) |
| DC Voltage(mV) | 60mV/600mV | +-(0.5%+3) |

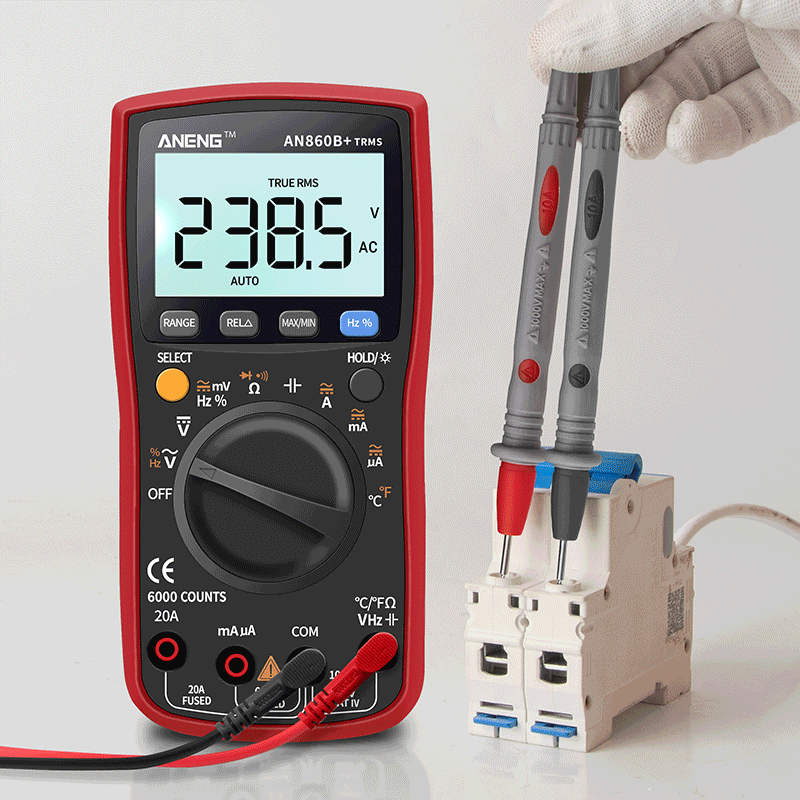

| AC Voltage(V) | 6V/60V/600V/750V | +-(1.0%+3) |
| AC Voltage(mV) | 60mV/600mV | +-(1.0%+3) |
| DC Current(A) | 6A/20A | +-(1.2%+3) |
| DC Current(mA) | 60mA/600mA | +-(1.2%+3) |
| DC Current(uA) | 600uA/6000uA | +-(1.2%+3) |
| AC Current(A) | 6A/20A | +-(1.5%+3) |
| AC Current(mA) | 60mA/600mA | +-(1.5%+3) |
| AC Current(uA) | 600uA/6000uA | +-(1.5%+3) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | +-(0.5%+3) |
| 60MΩ | +-(1.5%+3) | |
| Capacitance | 9.999nF | +-(5.0%+20) |
| 99.99nF/9.999nF/9.999uF/99.99uF / 999.9uF | +-(2.0%+5) | |
| 9.999mF | +-(5.0%+5) | |
| Frequency | 99.99Hz / 999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | +-(0.1%+2) |
| Temperature | (-20~1000)℃/(-4~1832)℉ | ±(2.5%+5) |

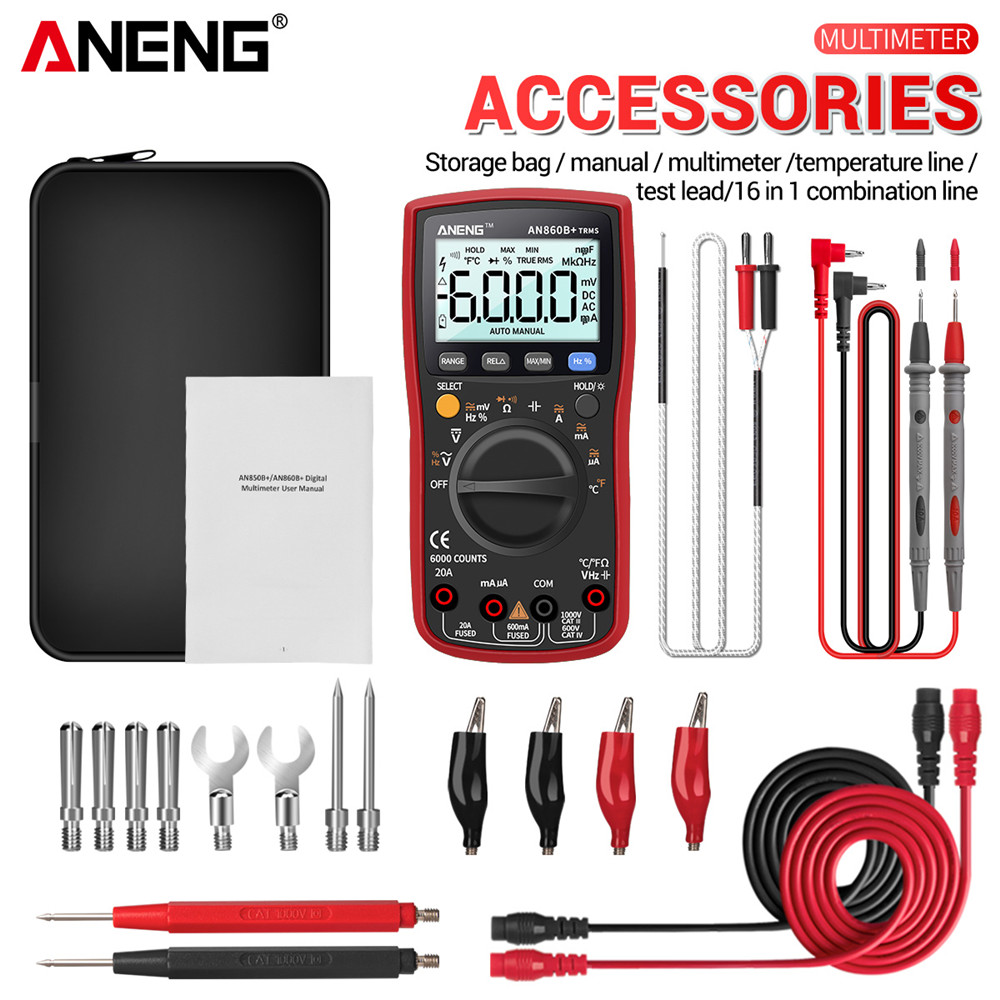

Packaging
1 x 1 x Device (Battery not included)
2 x Test Lead Set
1 x Temperature Sensing Cable
1 x User Manual
