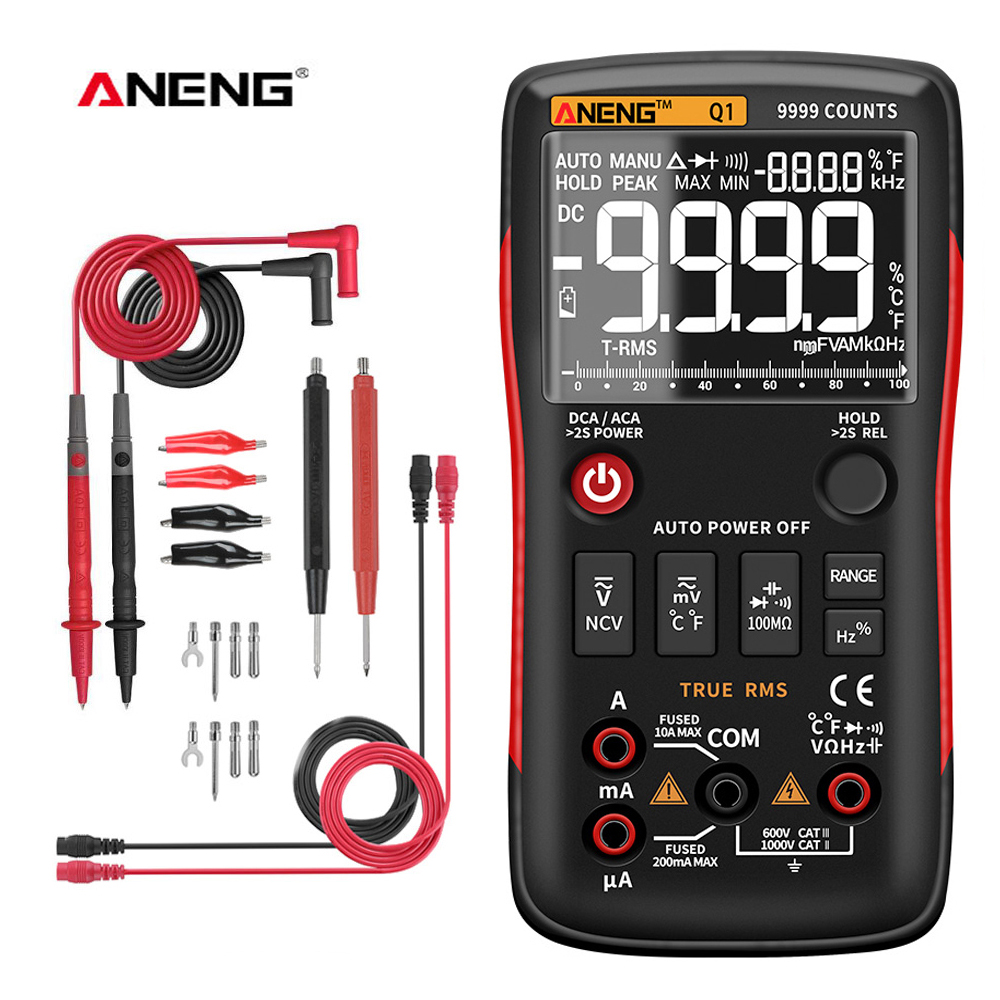

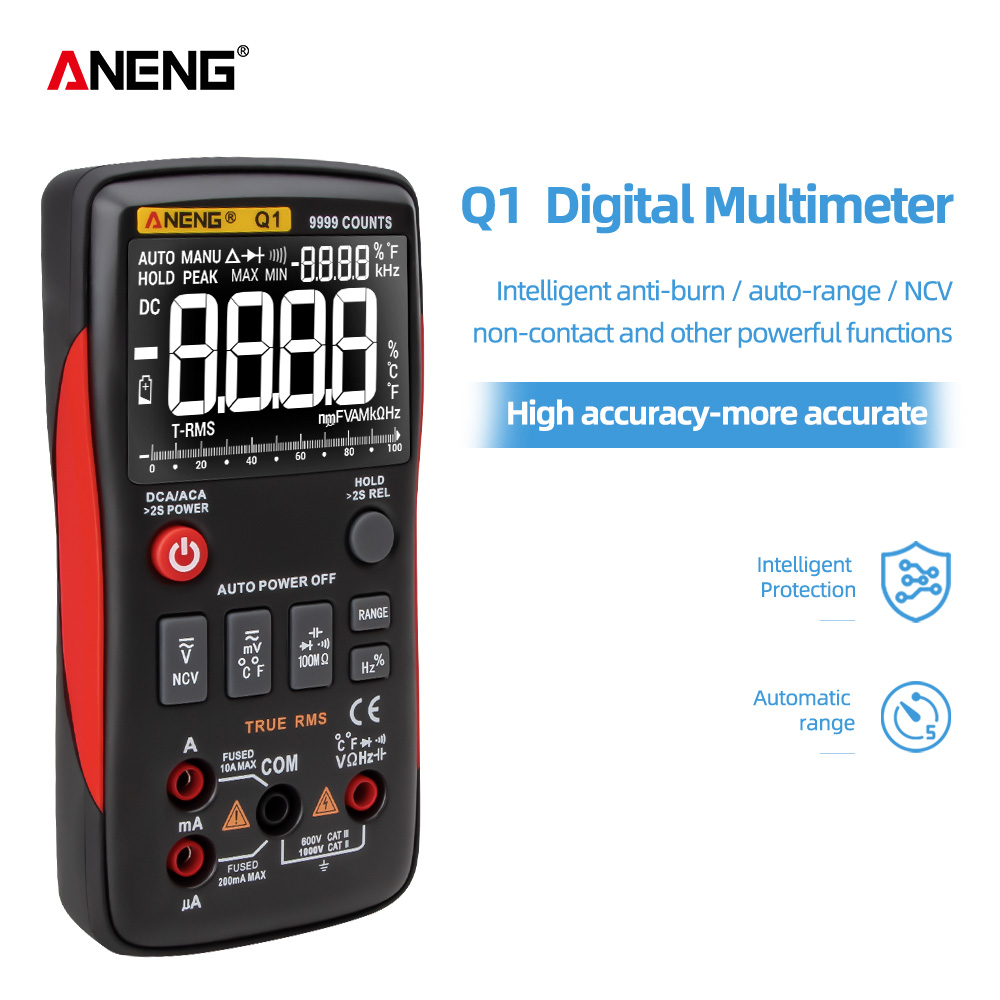

ANENG Q1 True-RMS Digital Multimeter Button 9999 Counts With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm Auto/Manual
Q1 Specifications:
| Funtion | Range | Accuracy |

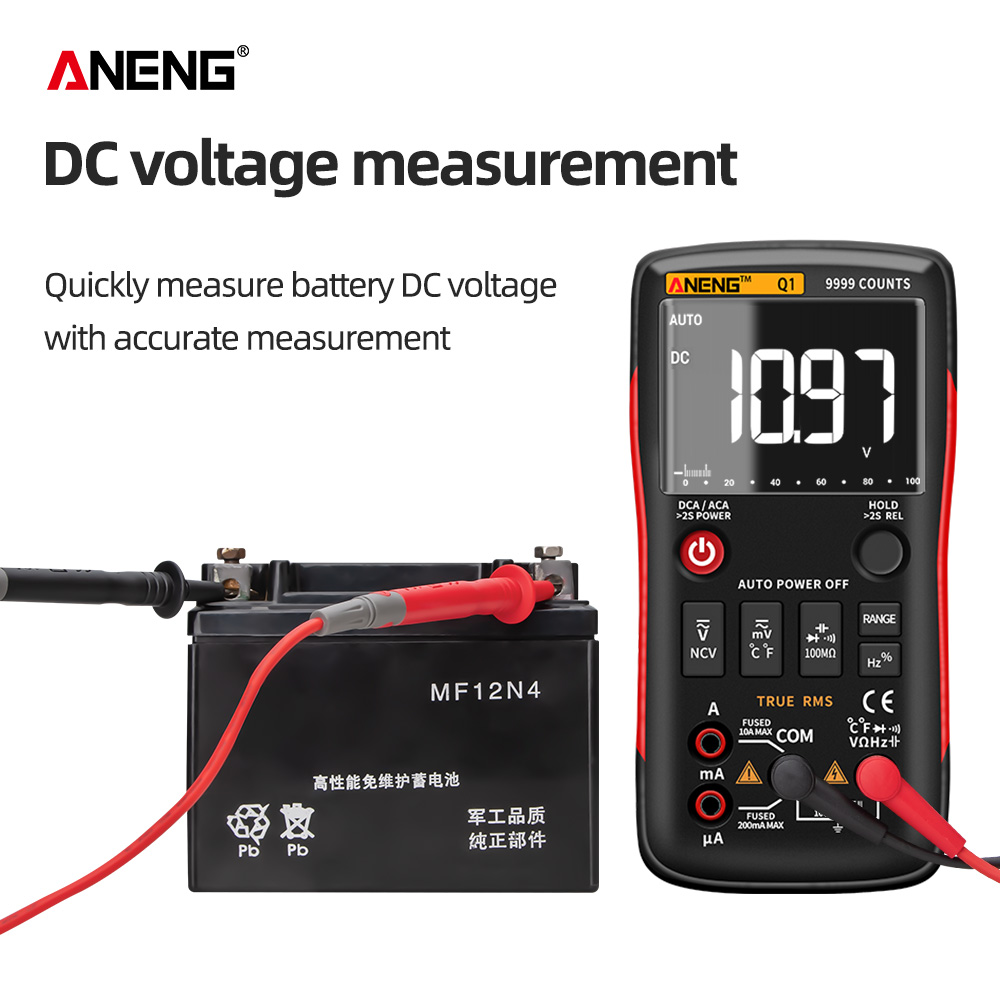

| DC voltage (V) | 999.9mV/9.999V/99.99V/999.9V | ±(0.5%+3) |
| DC voltage (mV) | 9.999mV /99.99mV | ±(0.5%+3) |
| AC voltage (V) | 999.9mV/9.999V/99.99V/750.0V | ±(1.0%+3) |
| AC voltage (mV) | 9.999mV /99.99mV | ±(1.0%+3) |
| DC Current (mA&A) | 999.9mA/9.999A | ±(1.0%+3) |
| DC Current (A) | 9999A | ±(0.8%+3) |
| AC Current (mA&A) | 999.9mA/9.999A | ±(1.0%+3) |
| AC Current(A) | 9999A | ±(1.0%+3) |

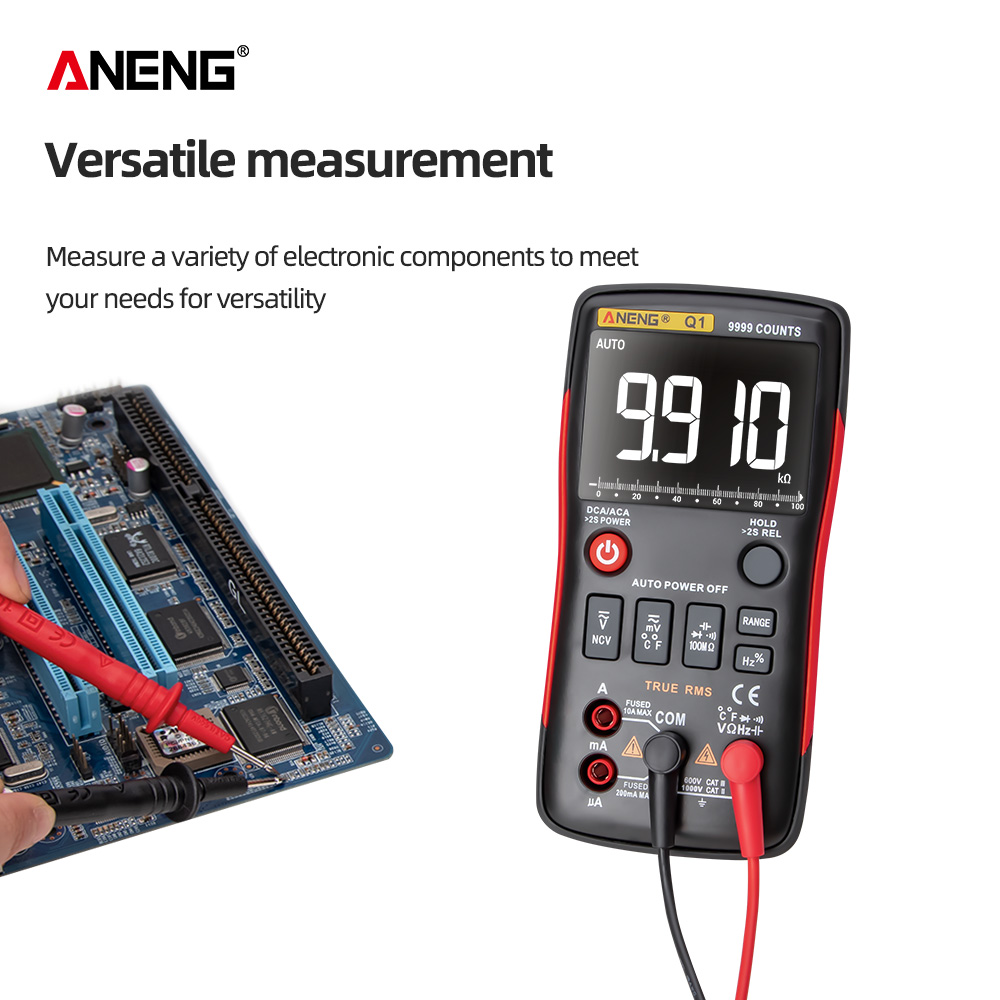

| Resistance | 99.99 | ±(1.0%+3) |
| Resistance | 999.9 /9.999k /99.99k /999.9k / | ±(0.5%+3) |
| Resistance | 9.999M | ±(1.5%+3) |
| Resistance | 99.99M | ±(3.0%+5) |
| Capacitor | 9.999nF | ±(5.0%+20) |
| Capacitor | 99.99nF /999.9nF /9.999F /99.99F /999.9F | ±(2.0%+5) |
| Capacitor | 9.999mF | ±(5.0%+5) |
| Frequency | 99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz | ±(0.1%+2) |
| Duty cycle | 1%~99% | ±(0.1%+2) |

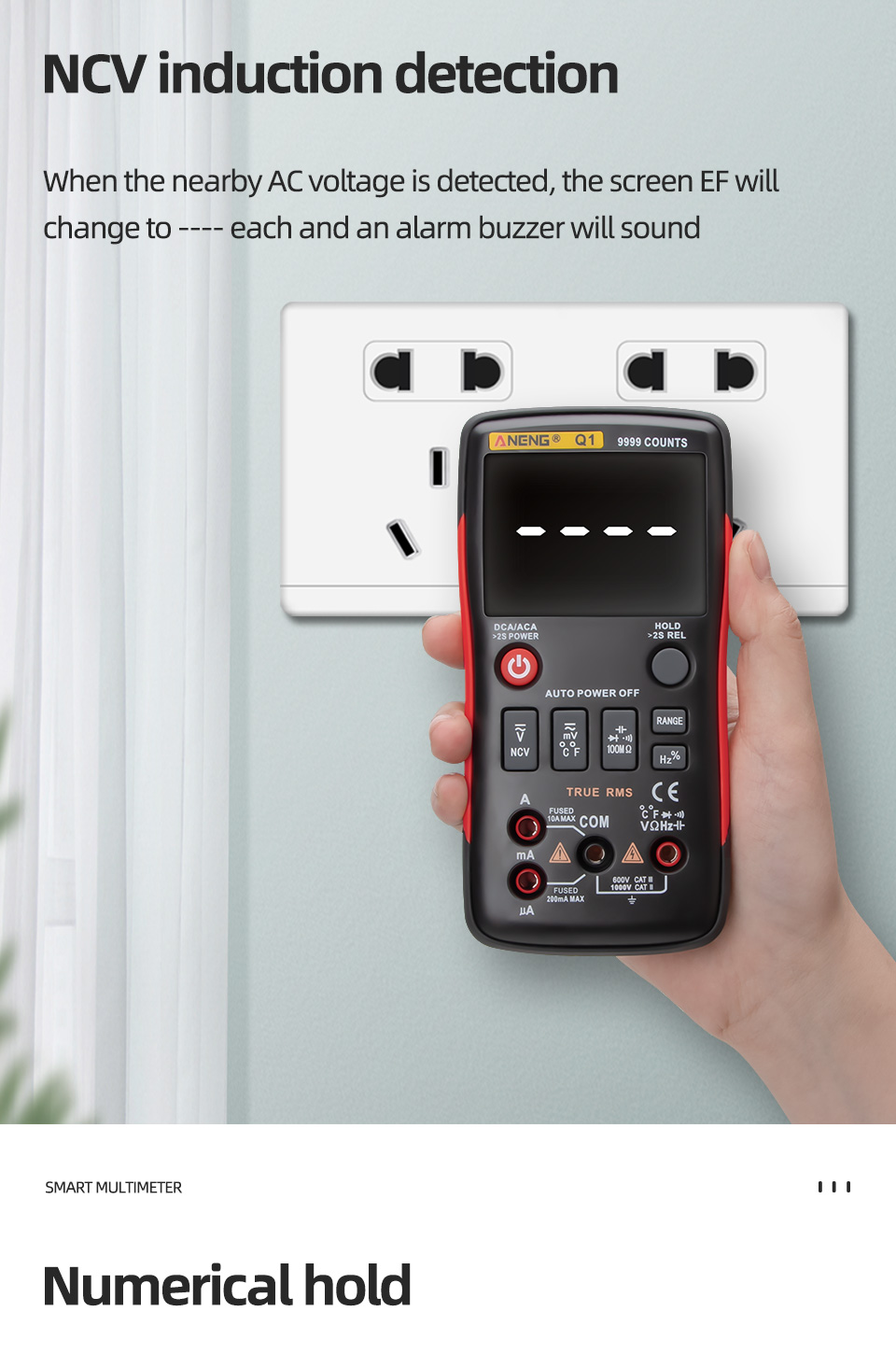

| Diode :YES | Continuity :YES | NCV :YES |

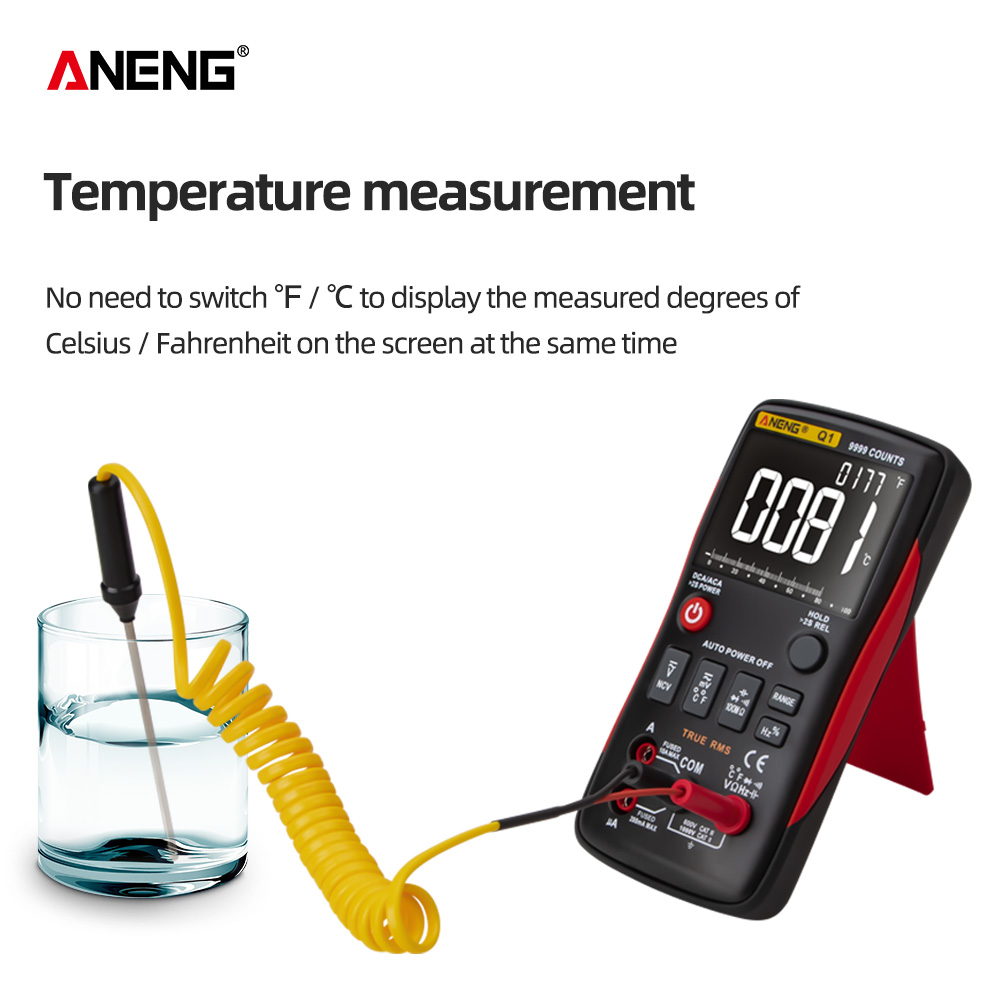

| Temperature | (-20~1000)° /(-4~1832)° | ±(2.5%+5) |
| Power | 2 * 1.5V AA batteries | (Not Included) |
| Sample Rate | 3 times per second |

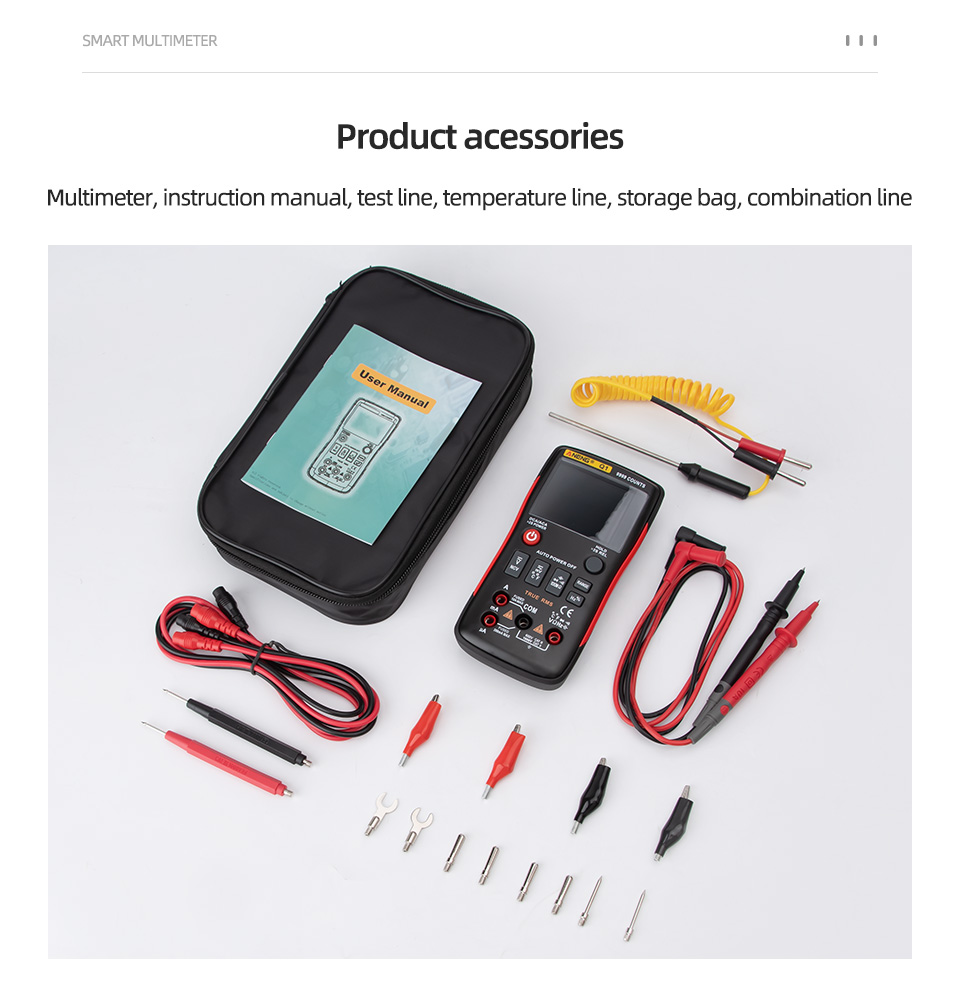

Packaging content:
1 x Multimeter
1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag
1 x 16pc Test probe
