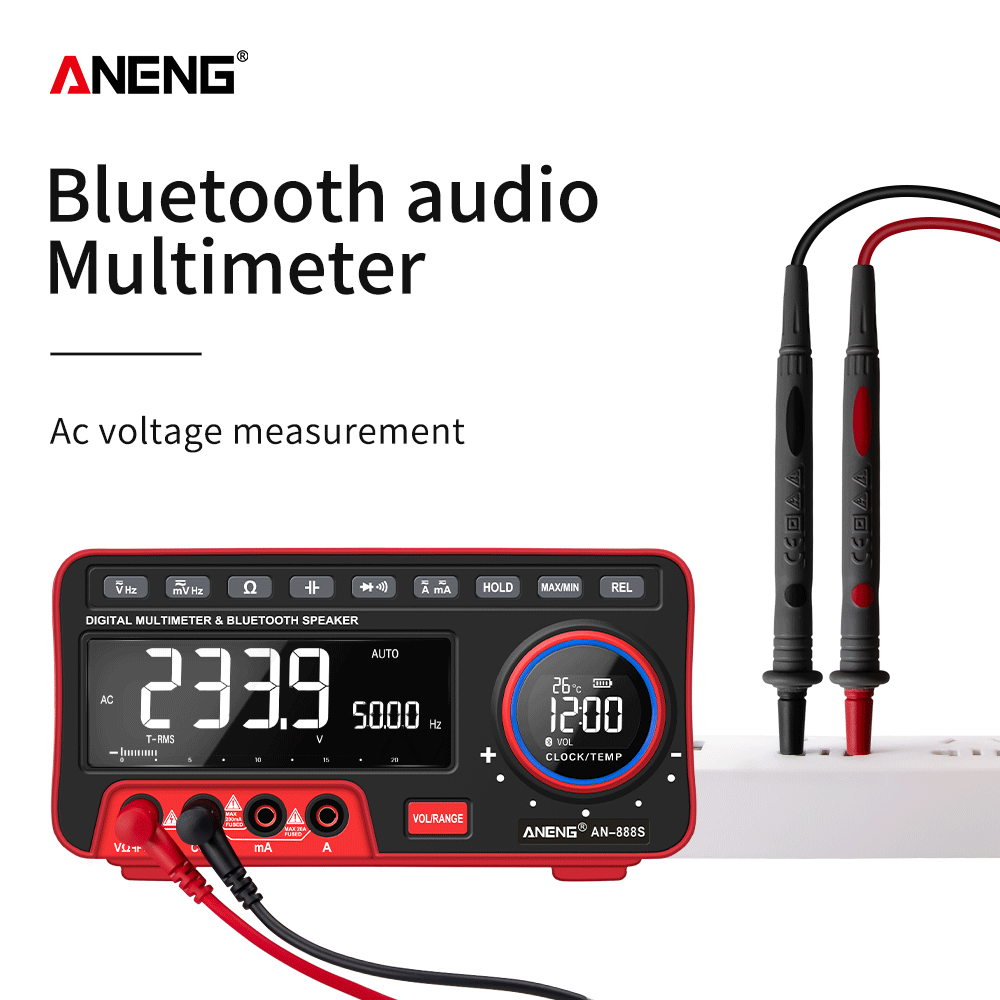

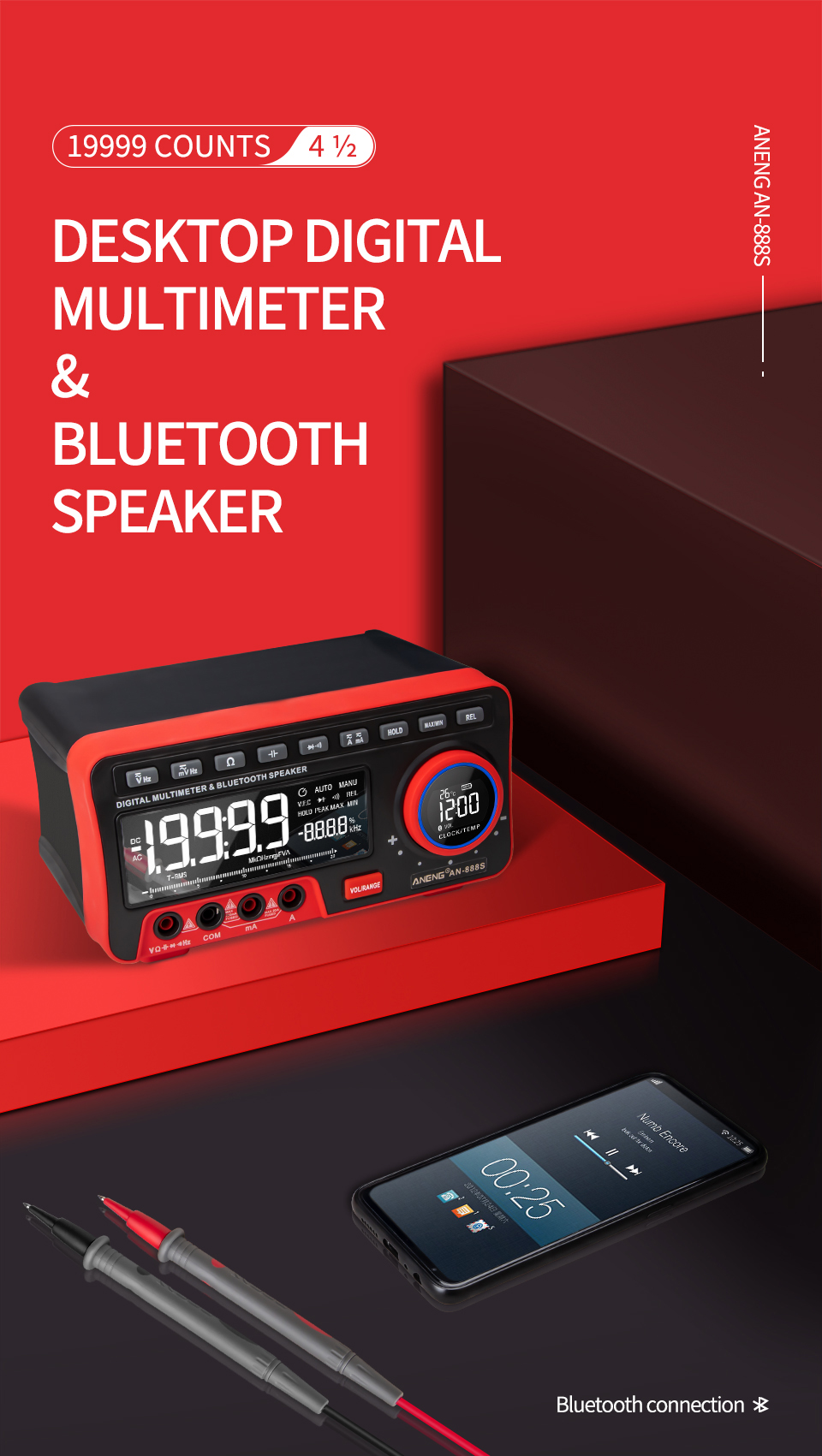

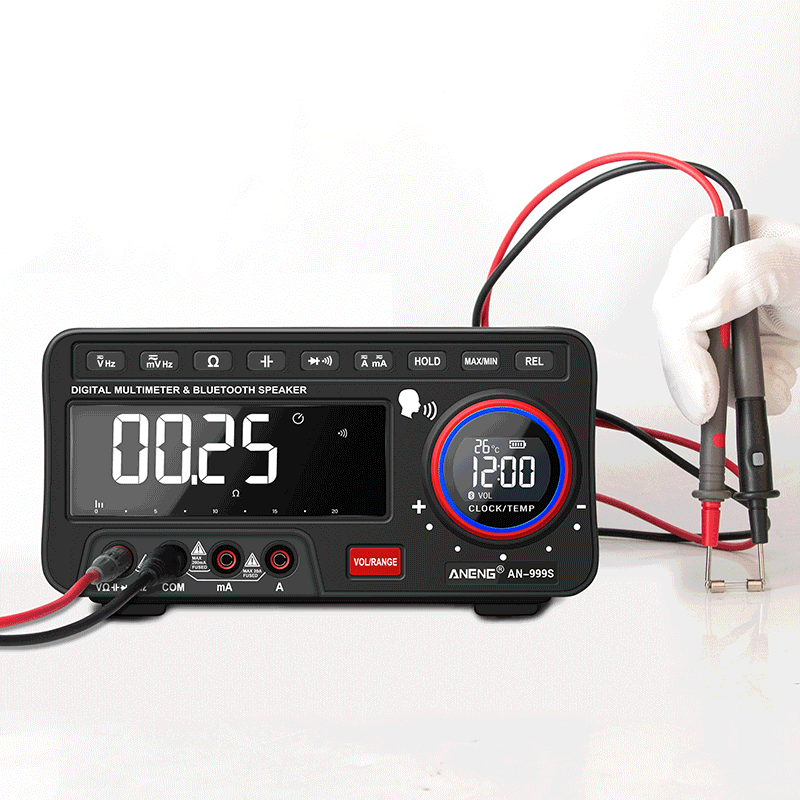

ANENG AN999S Bench Voice Multimeter Bluetooth Tester
19999 Counts Profesional Digital True Rms Autorange Transistor Tool Meter
A.Feature:

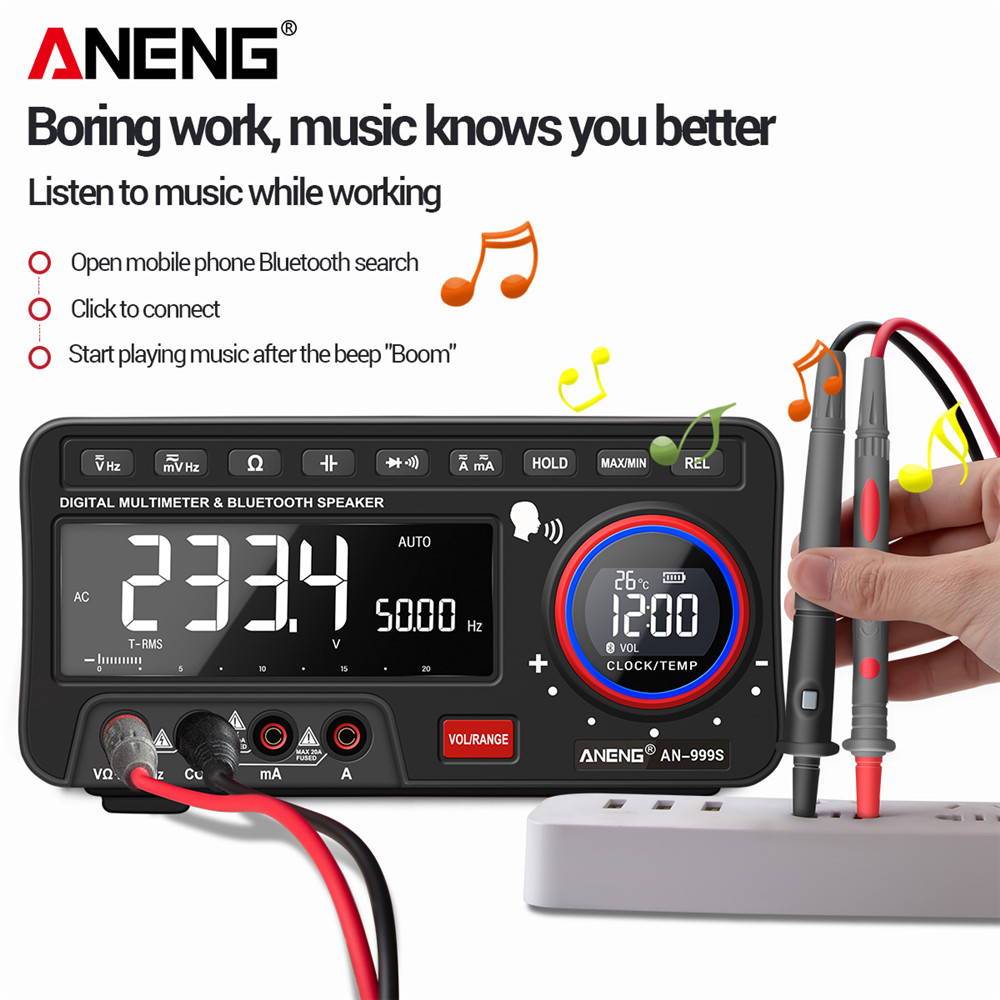

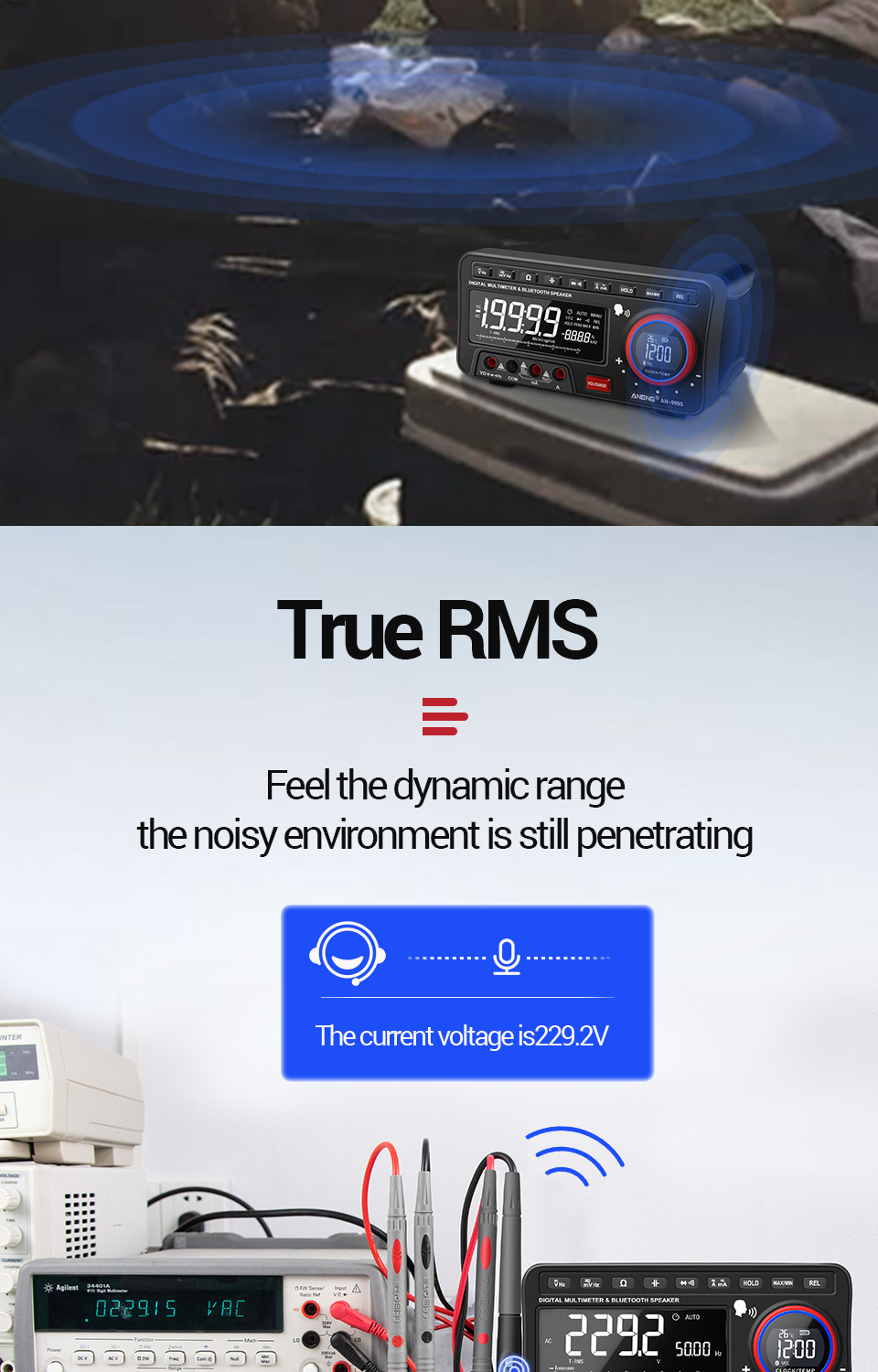

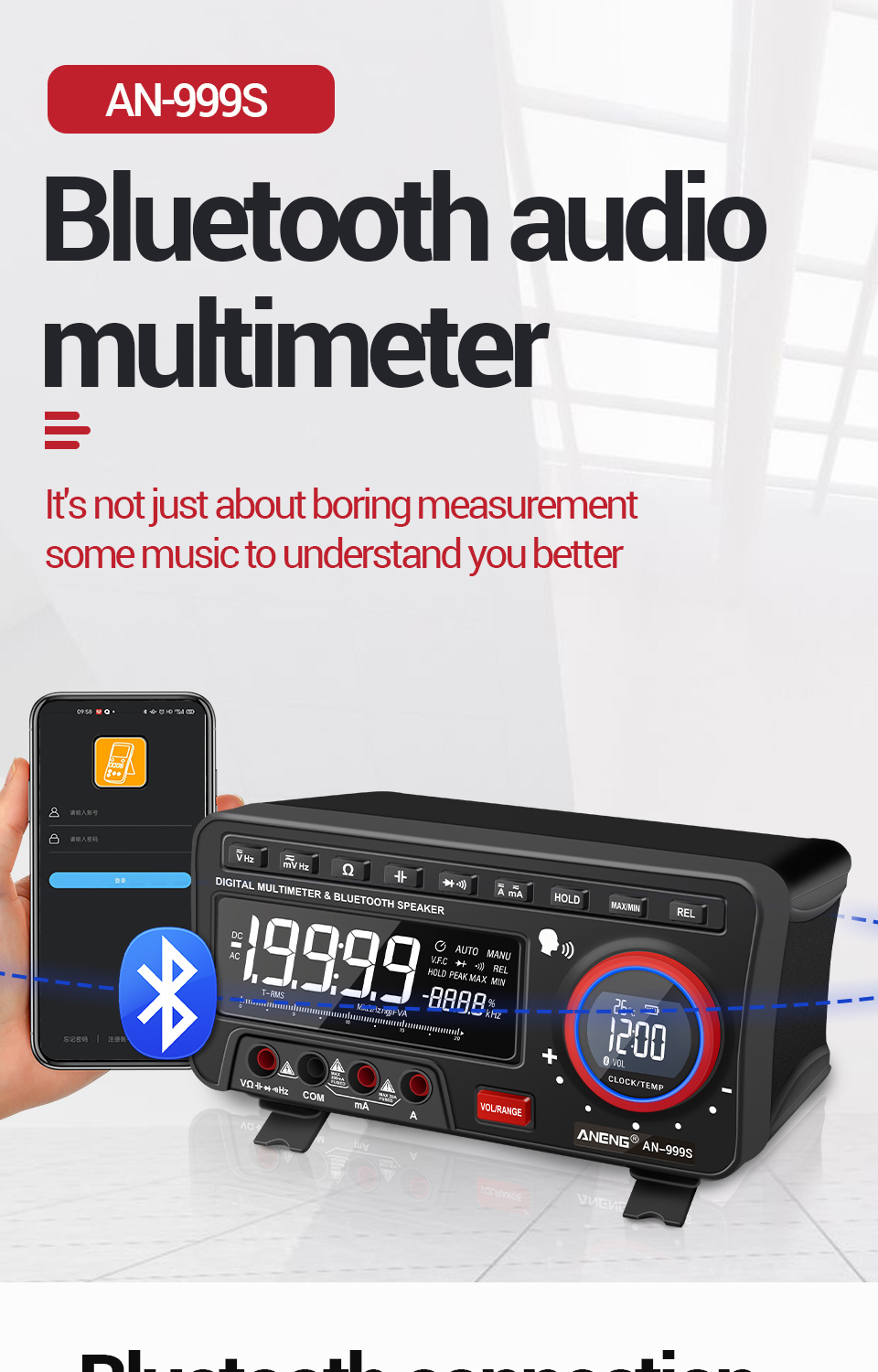

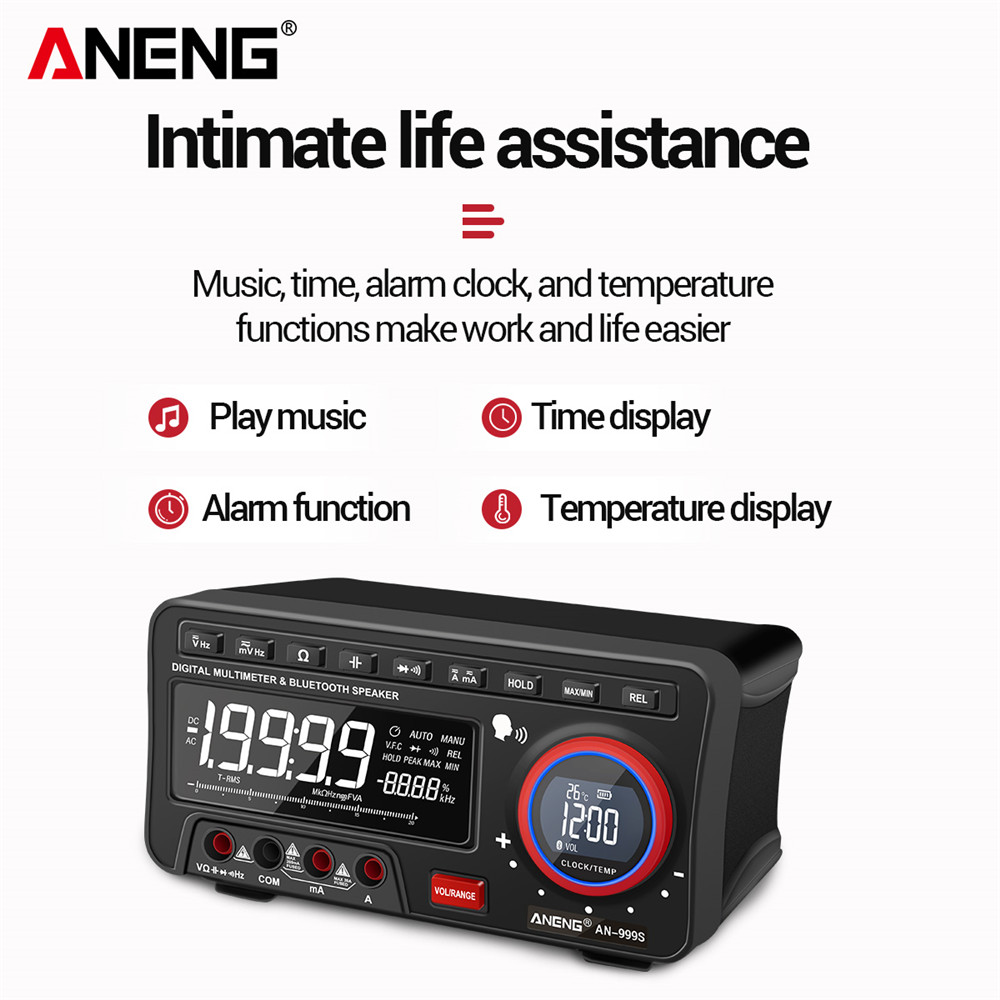

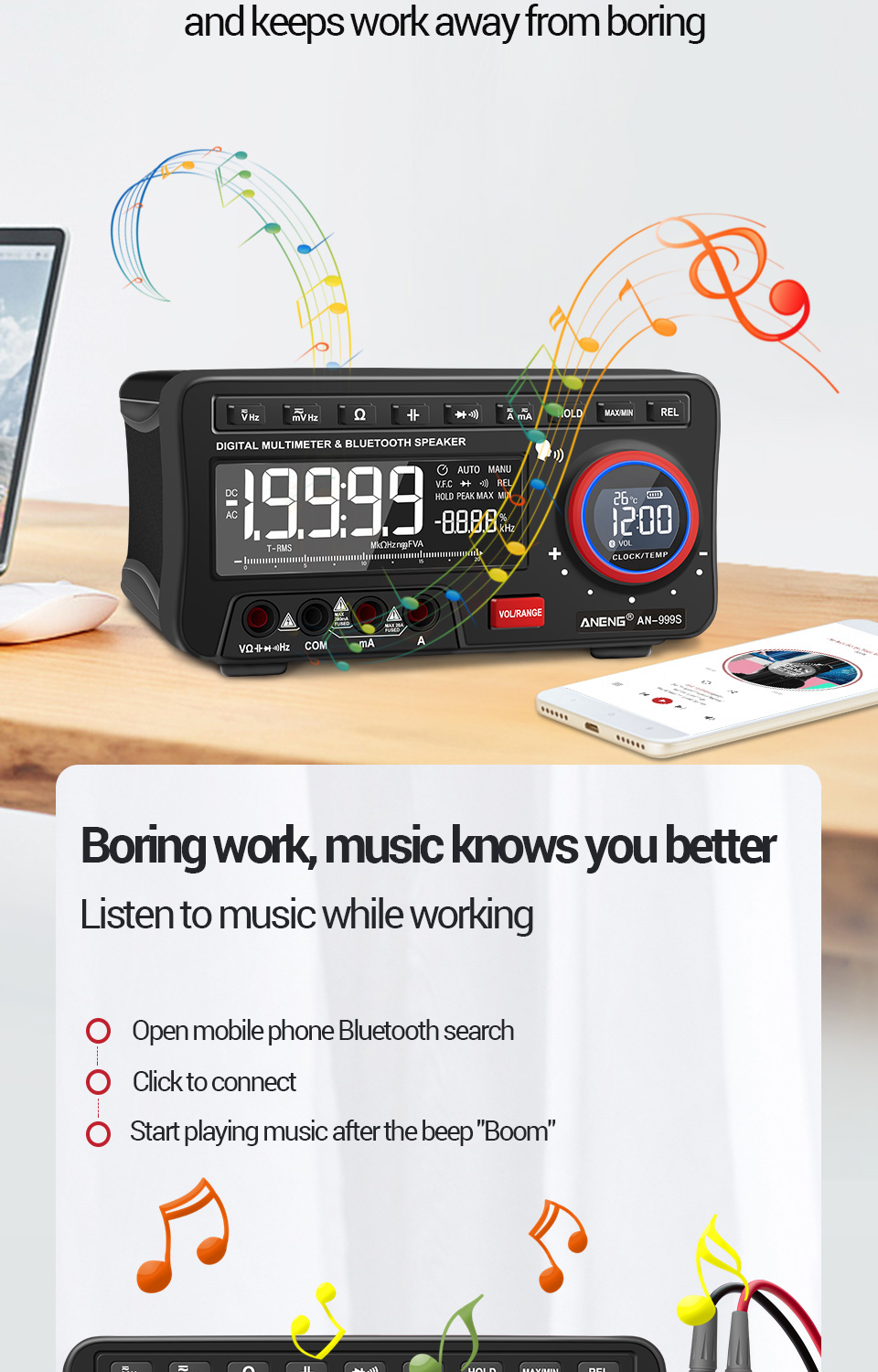

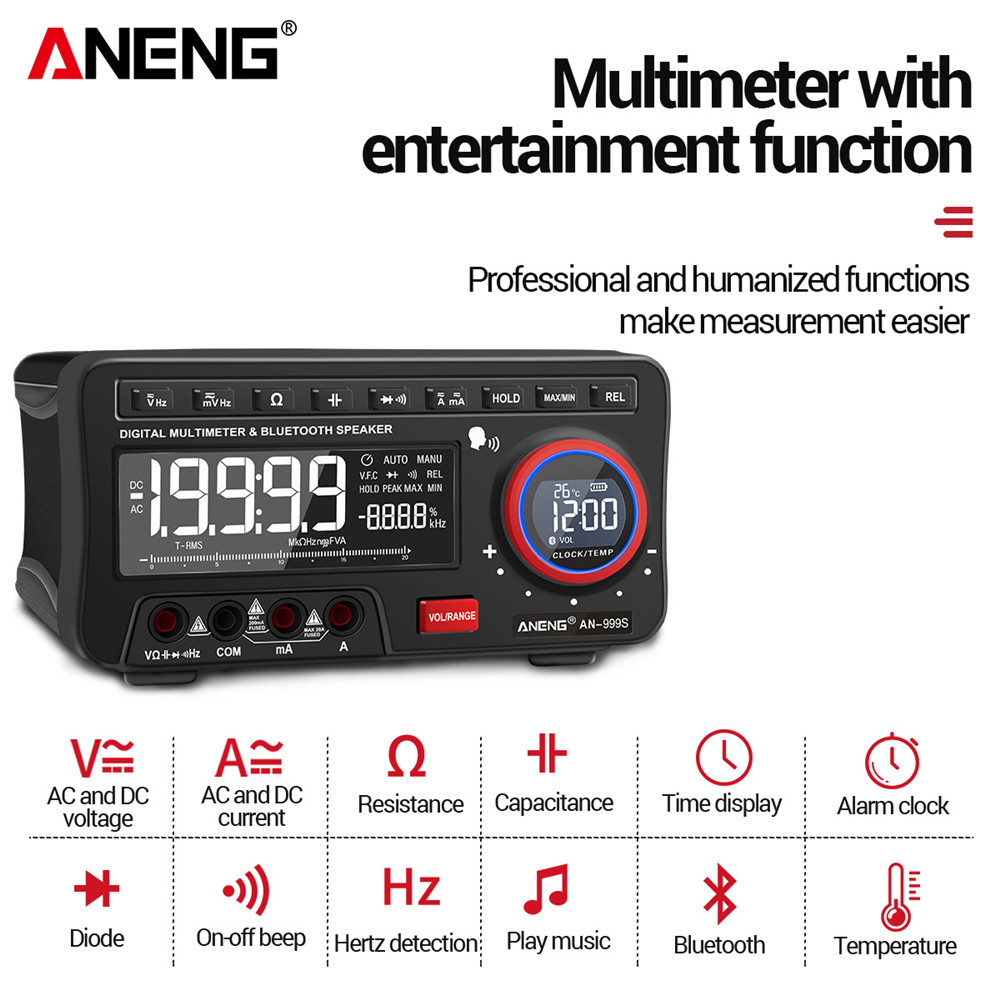

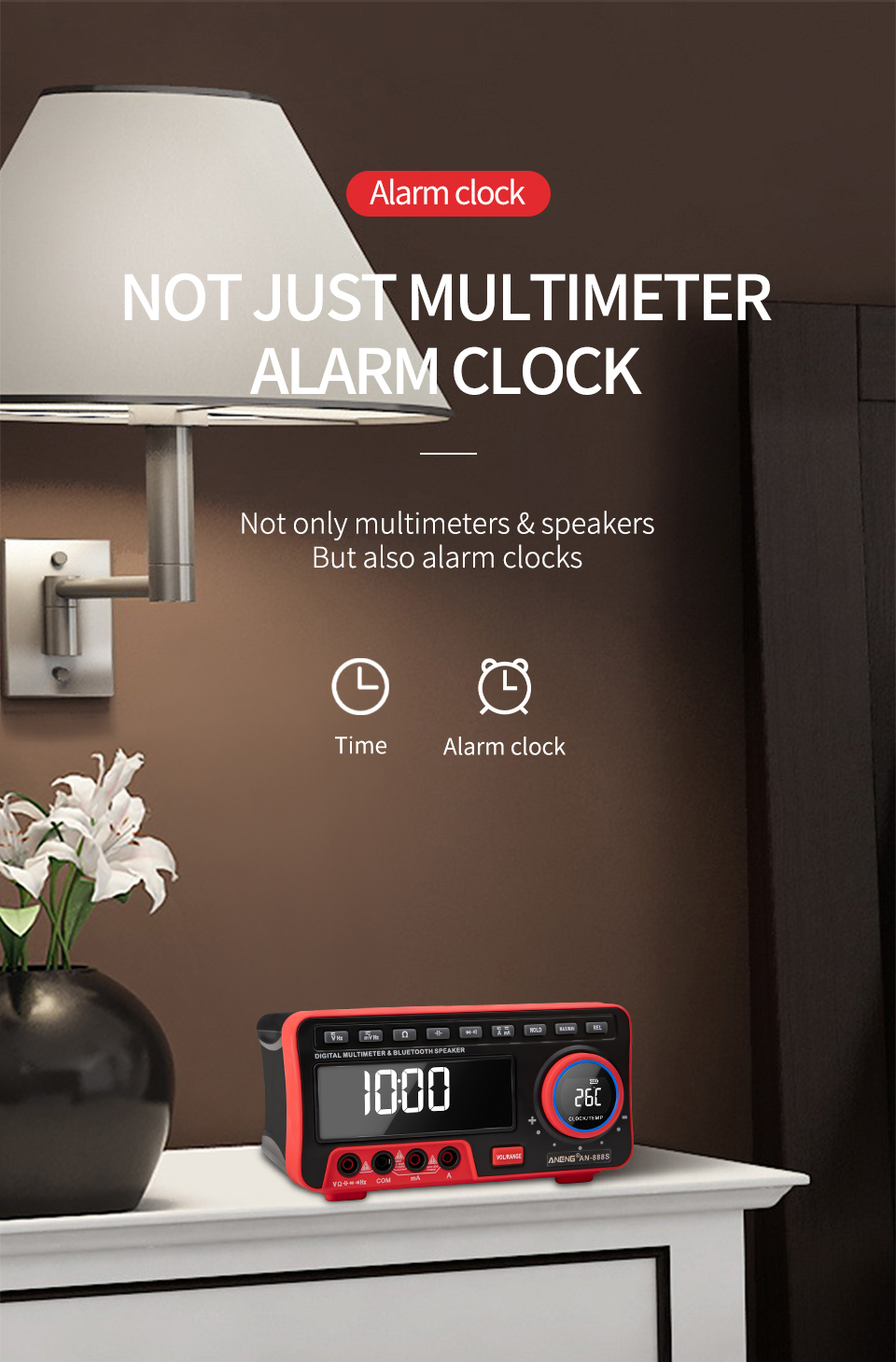

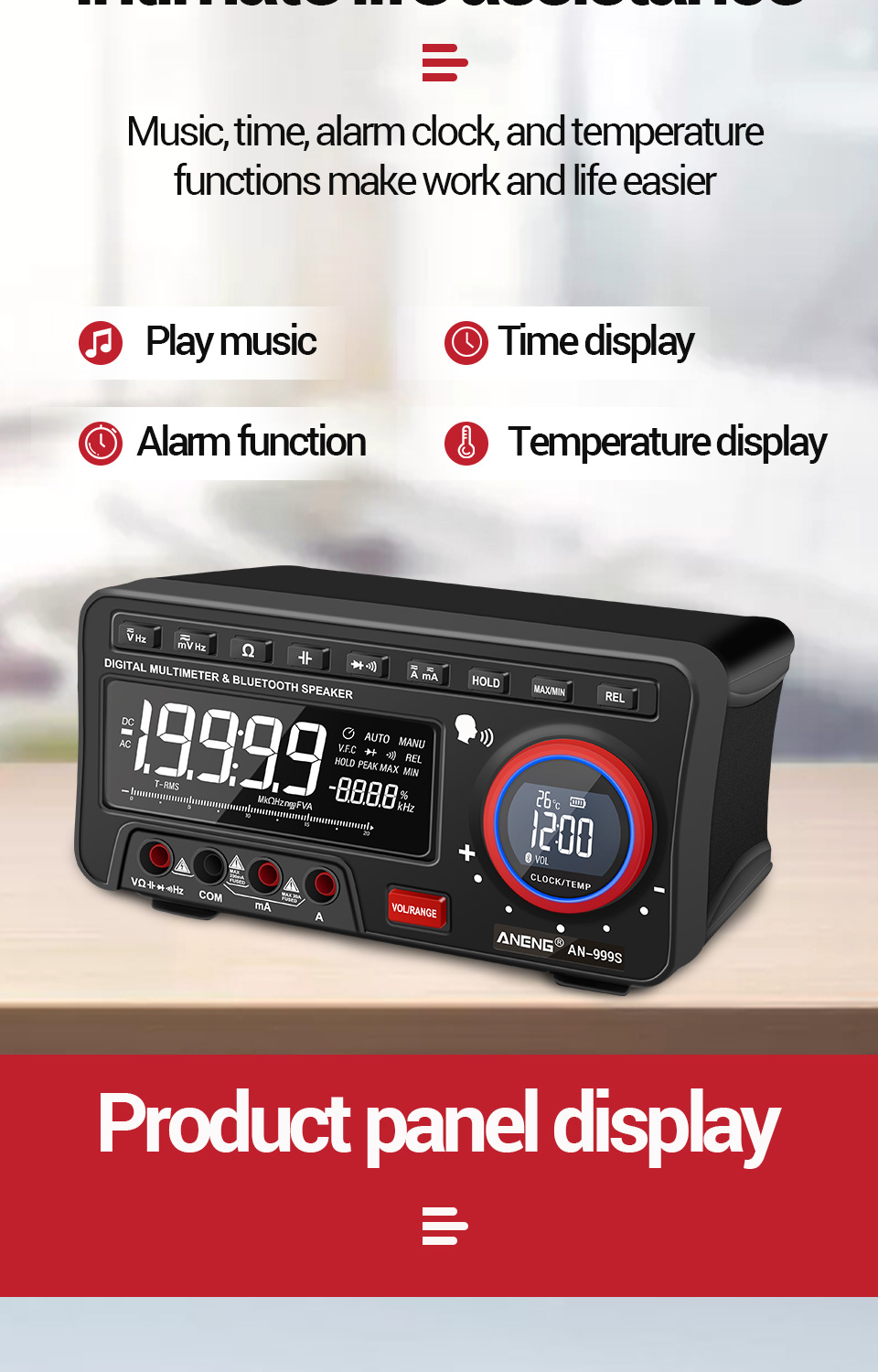

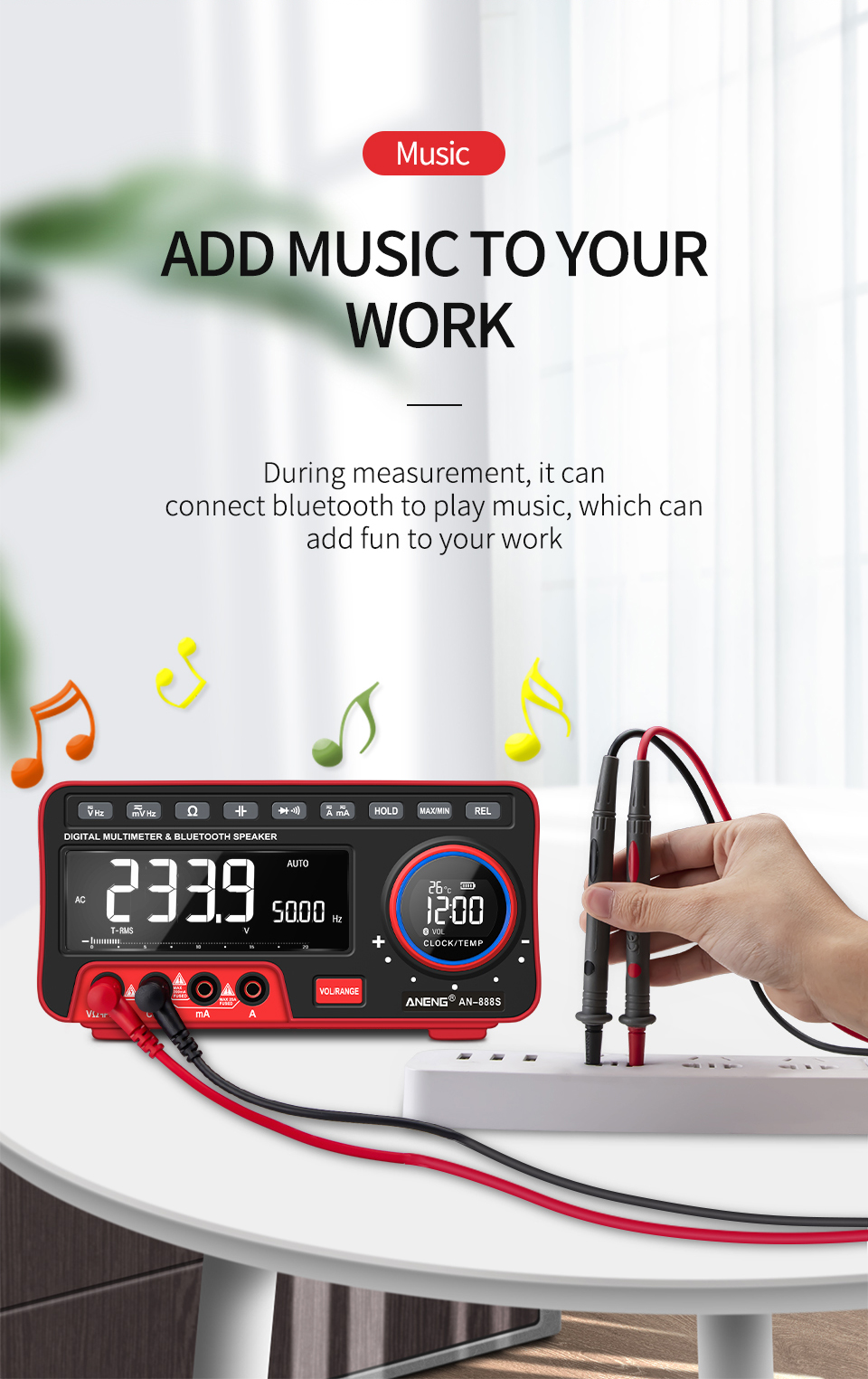

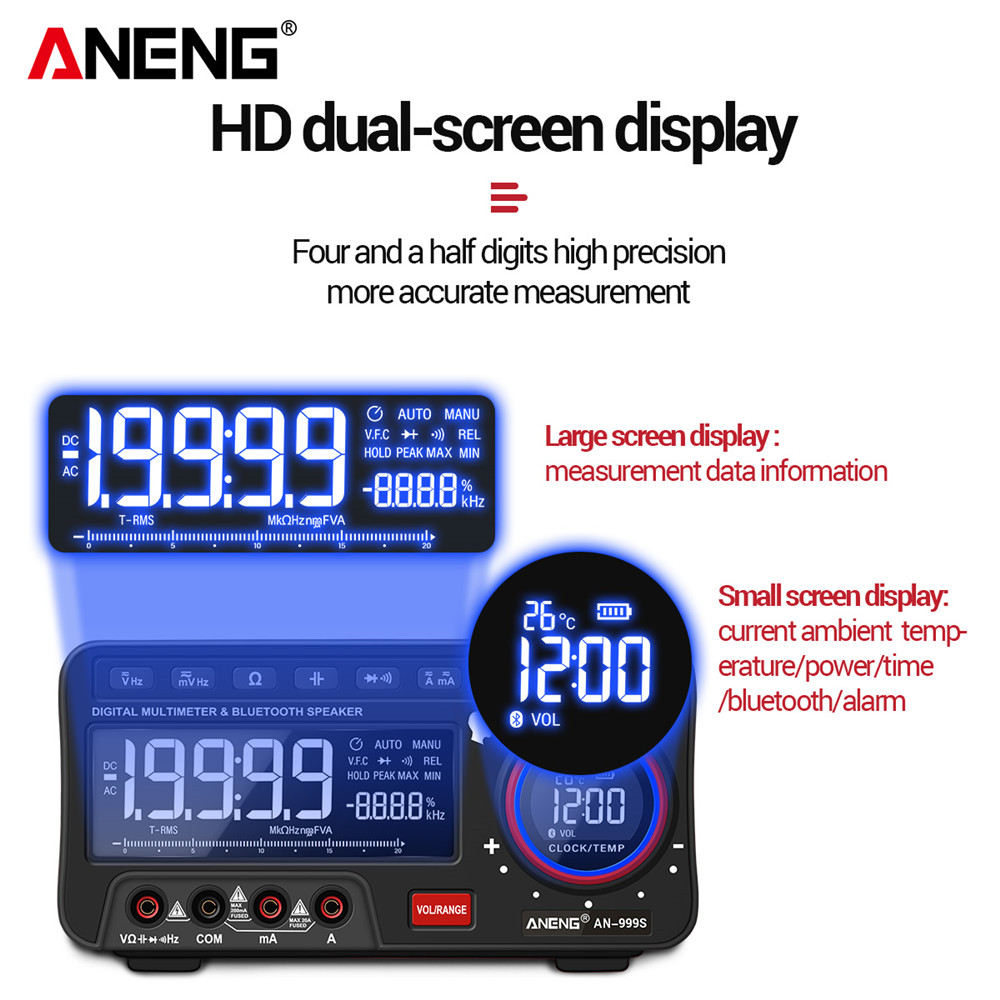

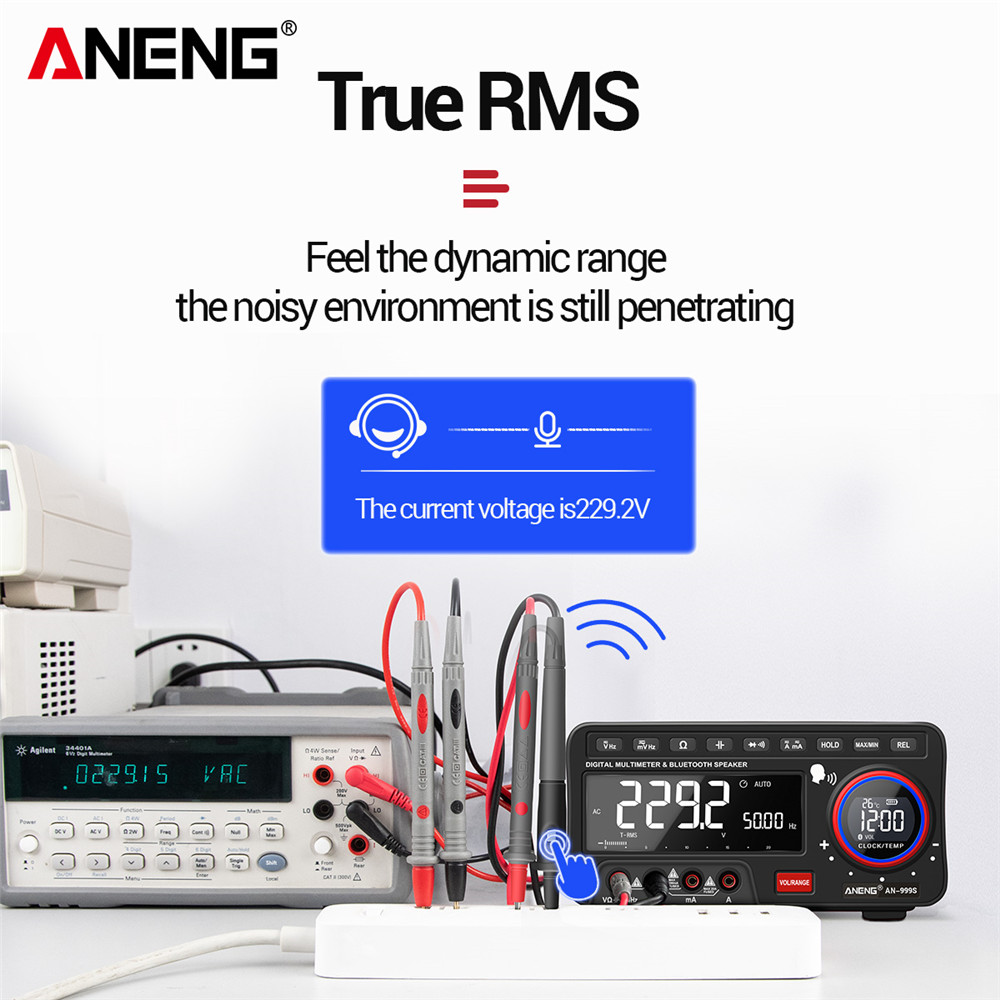

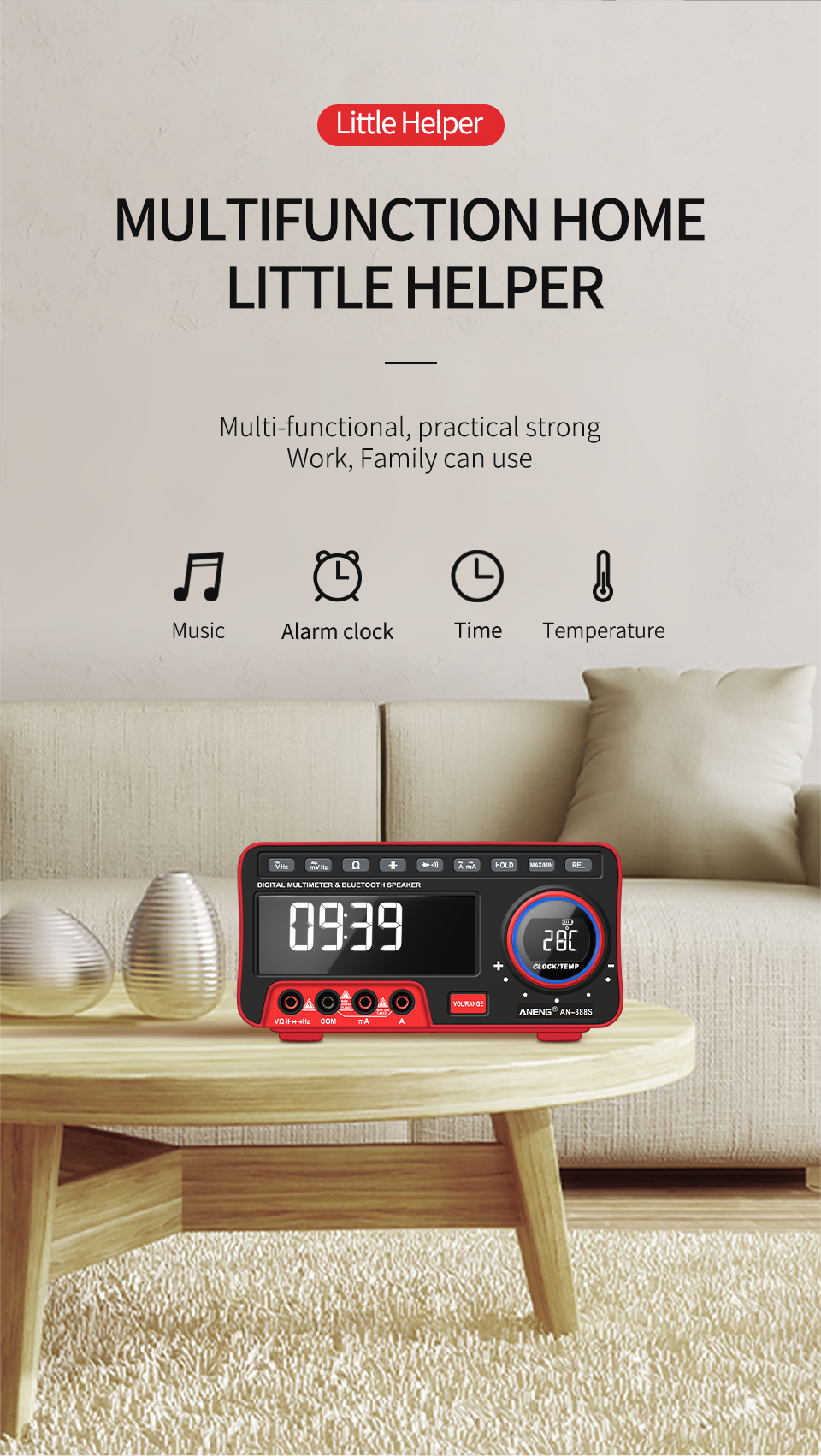

This product is a lithium battery-powered, true RMS, auto-range multi-function digital multimeter with 19999 counts LCD display and adjustable backlinght brightness.It is equipped with clock,alarm clock,Bluetooth to play music,temperature display.
B.Specification
| Display (LCD) | 19999 COUNT | Range | automatic / manual |
| Material | ABS+TPE | Sampling rate | 3 times / sec |
| True RMS | √ | Data retention | √ |
| Backlight | √ | Low battery prompt | √ |

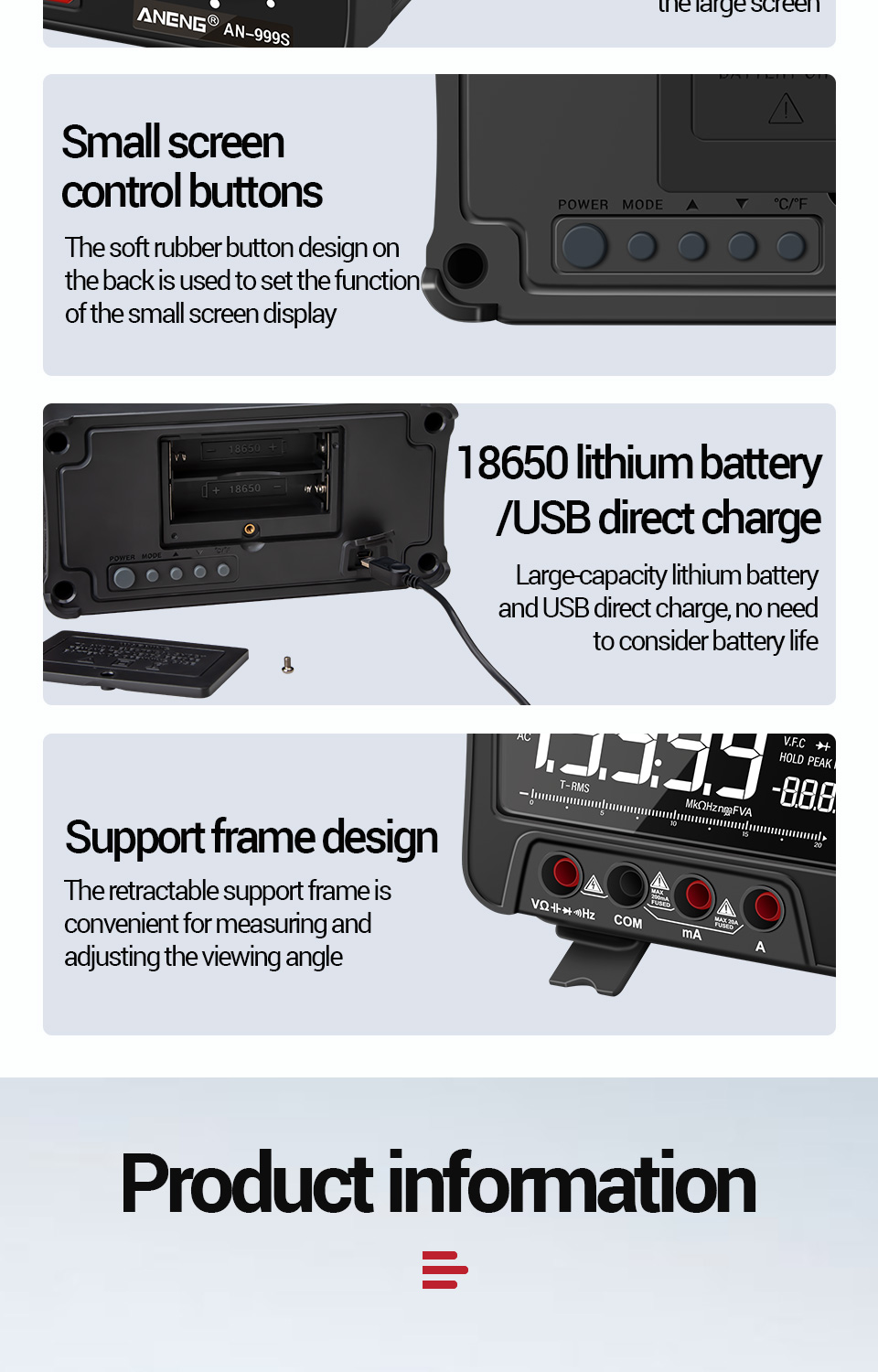

| Automatic standby | √ | type of battery | 18650 lithium battery |

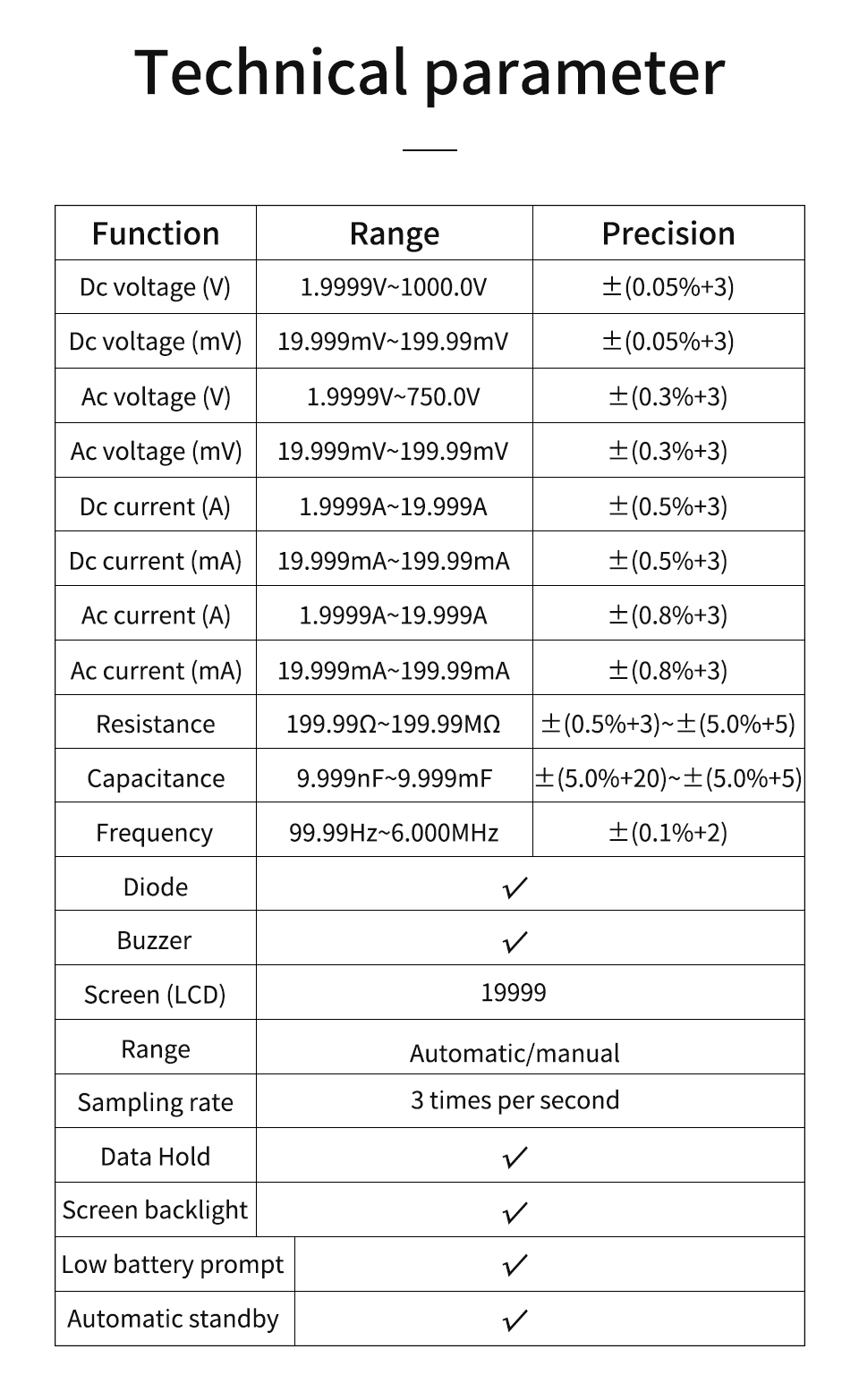

| Feature | Range | Precision |
| DC voltage (V) | 1.9999V/19.999V/19.999V/1000.0V | ±(0.05%+3) |
| DC voltage (mV) | 19.999mV/199.99mV | ±(0.05%+3) |
| AC voltage (V) | 1.9999V/19.999V/199.99V/750.0V | ±(0.3%+3 |
| AC voltage (mV) | 19.999mV/199.99mV | ±(0.3%+3 |
| DC (A) | 1.9999A/19.999A | ±(0.5%+30) |
| DC (mA) | 19.999mA/199.99mA | ±(0.5%+10) |
| AC (A) | 1.9999A/19.999A | ±(0.8%+30) |
| AC (mA) | 19.999mA/199.99mA | ±(0.8%+10) |
| Resistance (Ω) | 199.99Ω | ±(0.5%+3) |
| Resistance (KΩ) | 1.9999kΩ/19.999kΩ/199.99kΩ | ±(0.2%+3) |
| Resistance (MΩ) | 1.9999MΩ/19.999MΩ | ±(1.0%+3) |
| Resistance (MΩ) | 199.99MΩ | ±(5.0%+5) |
| capacitance | 9.999nF | ±(5.0%+20) |
| capacitance | 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF | ±(2.0%+5) |
| capacitance | 9.999mF | ±(5.0%+5) |
| frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/6.000MHz | ±(0.1%+2) |
| diode | YES |
| On and off | YES |
| Bluetooth version | V5.0 |
| Transmission distance | ≤10M |
| rated power | 2 x 4W RMS |
| Frequency response range | 100Hz-18KHz |
| Distortion | ≤1% |
| Signal to noise ratio | ≥76dB |
C.Package

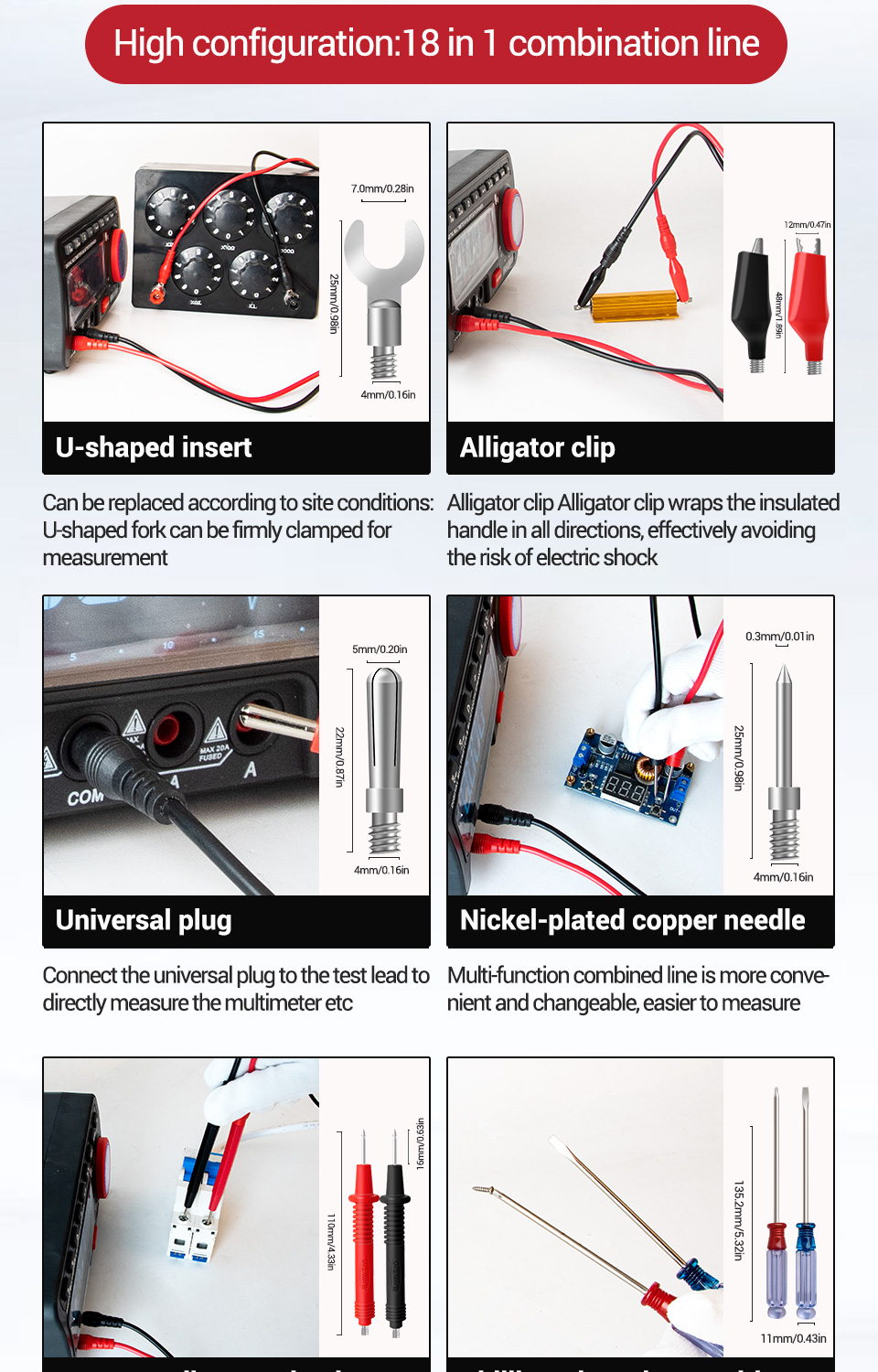

Choose by option(AS Picture.)

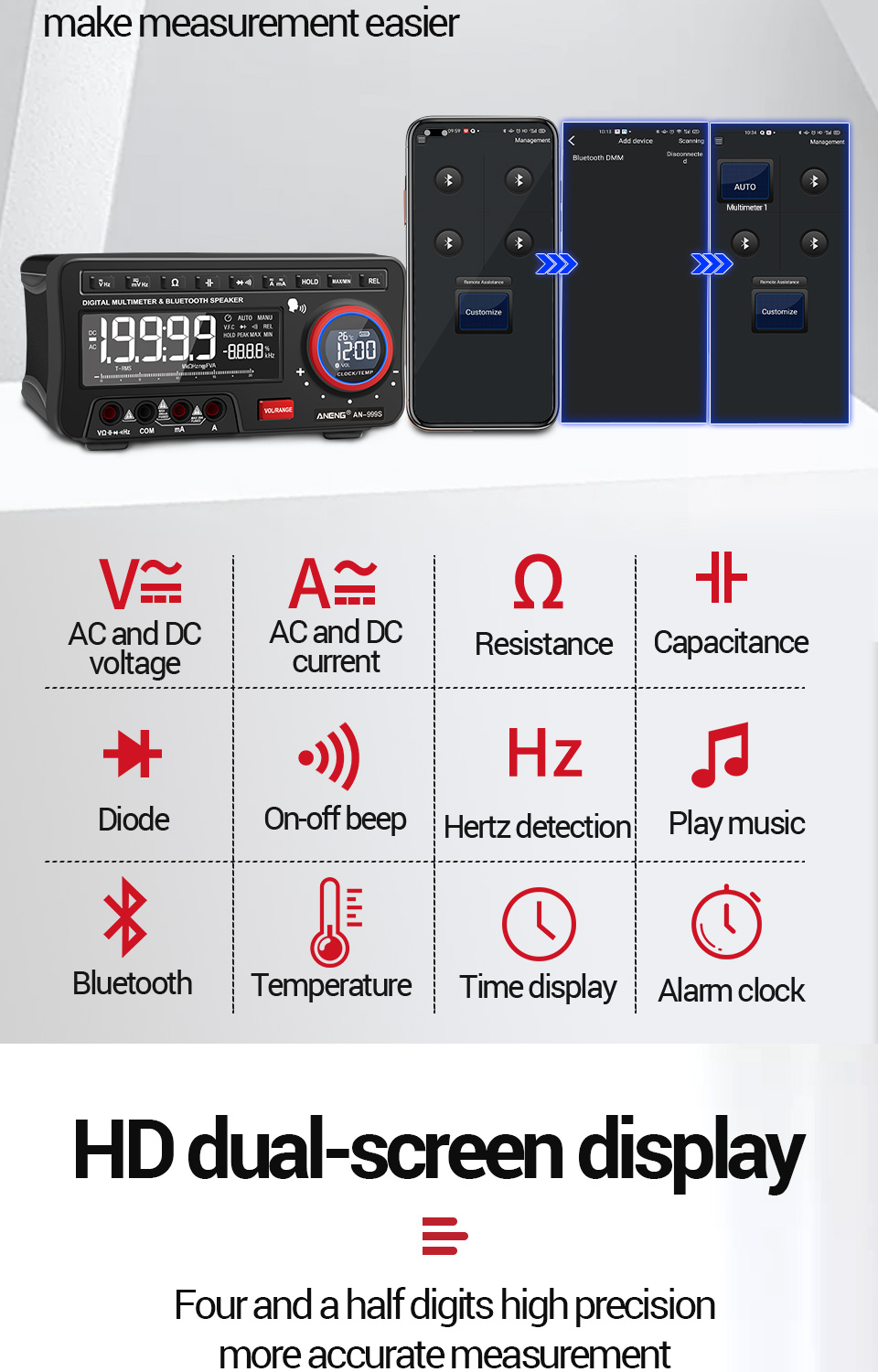

The meter is driven by a lithium battery, with true rms measurement, LCD display, adjustable backlight brightness, clear reading, clock, alarm clock, Bluetooth audio, ambient temperature display.
| Display (LCD) | 19999 COUNT | Range | automatic / manual |
| Material | ABS+TPE | Sampling rate | 3 times / sec |
| True RMS | √ | Data retention | √ |
| Screen backlight | √ | Low battery prompt | √ |
| Automatic standby | √ | type of battery | 18650 lithium battery |
| Features | Range | Precision |
| DC voltage (V) | 1.9999V/19.999V/19.999V/1000.0V | ±(0.05%+3) |
| DC voltage (mV) | 19.999mV/199.99mV | ±(0.05%+3) |
| AC voltage (V) | 1.9999V/19.999V/199.99V/750.0V | ±(0.3%+3 |
| AC voltage (mV) | 19.999mV/199.99mV | ±(0.3%+3 |
| DC (A) | 1.9999A/19.999A | ±(0.5%+3) |
| DC (mA) | 19.999mA/199.99mA | ±(0.5%+3) |
| AC (A) | 1.9999A/19.999A | ±(0.8%+3) |
| AC (mA) | 19.999mA/199.99mA | ±(0.8%+3) |
| Resistance (Ω) | 199.99Ω | ±(0.5%+3) |
| Resistance (KΩ) | 1.9999kΩ/19.999kΩ/199.99kΩ | ±(0.2%+3) |
| Resistance (MΩ) | 1.9999MΩ/19.999MΩ | ±(1.0%+3) |
| Resistance (MΩ) | 199.99MΩ | ±(5.0%+5) |
| capacitance | 9.999nF | ±(5.0%+20) |
| capacitance | 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF | ±(2.0%+5) |
| capacitance | 9.999mF | ±(5.0%+5) |
| frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/6.000MHz | ±(0.1%+2) |
| diode | YES |
| On and off | YES |
| Bluetooth version | V5.0 |
| Transmission distance | ≤10M |
| rated power | 2 x 4W RMS |
| Frequency response range | 100Hz-18KHz |
| Distortion | ≤1% |
| Signal to noise ratio | ≥76dB |
