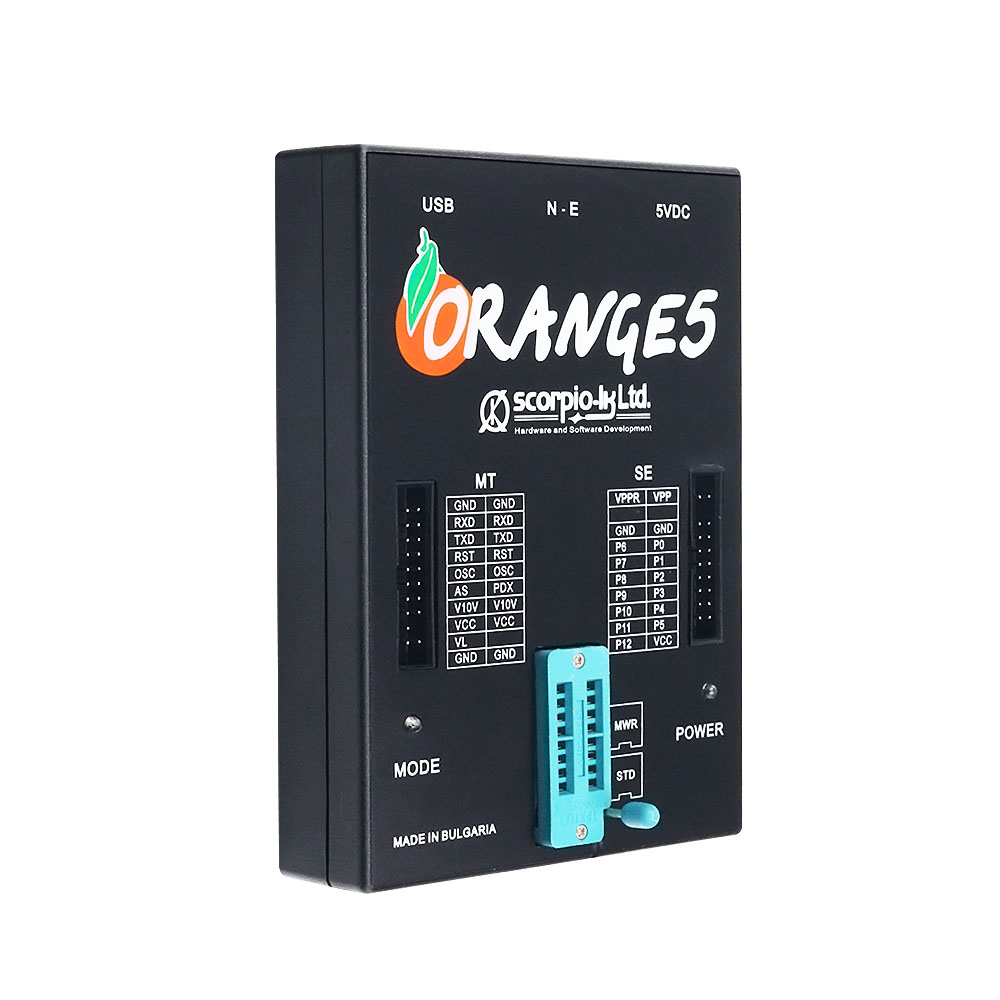

OEM Orange5 V1.34 Professional Programming Device With Full Packet Hardware + Enhanced Version Orange 5 Software
Get Four Additional Software Free
Software Version: V1.34, Software Does not Support Update.
Language: English and Russian
Systems: XP WIN7 WIN8
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

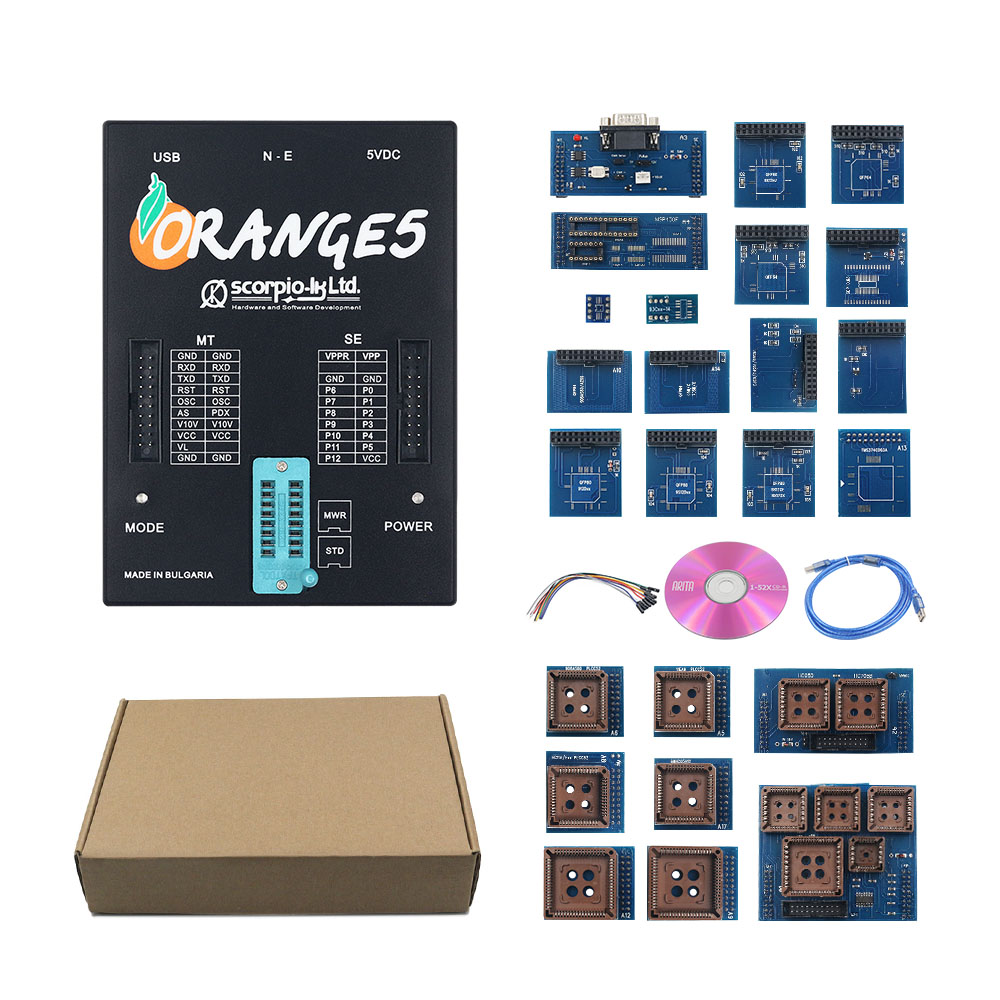

Packing List :
1 x Orange 5 Programmer
1 x SOIC8/DIP8 Expert adapter
1 x SSOP8/DIP8
1 x SOIC8/DIP8 adapter
1 x SOIC8_14_93Cxx adapter
1 x Lead 11E9(20) with power
1 x Adapter 05L28/05B
1 x Adapter 908AS60/AZ60 QFP64
1 x Adapter 68HC(7)05P3/E6
1 x Adapter 05B/X_705B/X QFP64 V2
1 x Adapter 11PA8/11E9 QFP64
1 x Adapter 68HC05H12
1 x Adapter 68HC11EA9
1 x Adapter 908AS60
1 x Adapter 9S12Dxx
1 x Adapter 912Dxx
1 x Adapter 9S12X
1 x Adapter 912B32 QFP80
1 x Adapter 68HC11F1
1 x Adapter 68HC11L6
1 x Adapter 68HC11KA4
1 x Adapter 9S12XE
1 x Adapter PCF7941
1 x Adapter TMS374C003A
1 x Adapter MSP430F
1 x Adapter 68HC11KA4 PLCC68
1 x Adapter 908JL
1 x USB cable
10 x Incircuit wire
