XTOOL X100 Tablet X-100 PAD Key Programmer with EEPROM Adapter 2 Years Free Update

XTOOL X-100 Tablet X100 PAD Key Programmer with EEPROM Adapter Comes with Special Functions

TOP 10 Reasons to get X-100 Tablet X100 PAD Car Key Programmer:

1. A Key Programmer working via tablet

2. PIN Code reading with EEPROM

3. Hexadcimal editor(Win Hex)

4. Reads keys from immobilizer's memory

5. New immobilizer programming

6. Vehicle Identification Number programming

7. Reset ECM & reset immobilizer

8. New remote controller programming

9. With full and strong database for the most important vehicle makers

10. 2 Years Free update online, X100 PAD dealer code: XT0240
One button click to update the tool by WIFI or cable.

Xtool X100 PAD,based on WIFI, you can directly update the software via PAD with WIFI connection. If you do not have WIFI, you can use lan cable to connect the internet for update.
Update is very easily. When new software released, you will see the new software on update option. Just click the "update" button for the software and wait for the finish. Then you will update your software to the latest version.

Language: English

Free Download Xtool X100 Pad V3.1.6 C96.apk

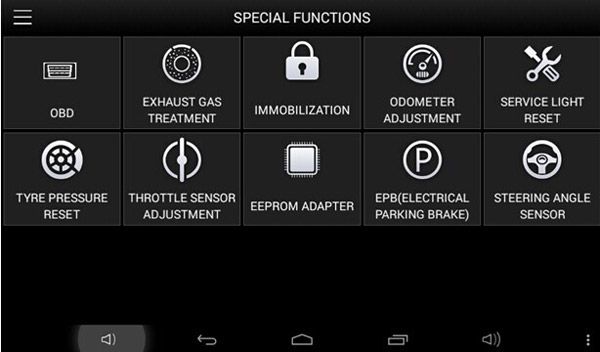

Xtool X-100 Pad Functions:

* Key Programming
* Oil Reset/Engine oil light reset
* Odometer Adjustment
* Tire Pressure Warning Light Reset (Manual Operation)
* Timing belt light reset (Manual Operation)
* EPB Electrical Parking Brake Adaptation
* TPS Throttle Body Adaptation
* Steering Angle Calibration
* Battery Reset
* PIN Code Reading
* Hexadcimal editor(Win Hex)
* OBD2 Diagnosis
* Supports the latest vehicles with CAN BUS and UDS protocol
* Update Via WIFI (always equip your device with the latest software)
* More…

X100 PAD Key Programming Vehicle Coverage:

Asia: Toyota, Lexus, for Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, SUZUKI, Kia, Hyundai, Daewoo, SSANGYONG,etc
Europe: Audi, VW, Skoda, Seat, for Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc
America: GM, Cadillac, Buick, Chrysler, FORD etc
China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.

Note:

1. X100 PAD can't support Key Programming for 2007 Porsche 997 turbo.
2. X100 PAD is not for Indian market,Malaysian Proton and Produa

X100 PAD Oil Reset Functions Feature:

* Innovative one-click oil reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
* Supports engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
* Supports Mercedes Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.
* Supports the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
* Supports Porsche Cayenne, Panamera till 2012
* Supports maintenance light reset for Volvo, Land Rover.

X100 PAD Oil service light reset Coverage:

America: Buick, Cadillac, Chevrolet, Chrysler, Chevrolet/GMC, FORD/Mercury/Lincoln, Oldsmobile, Pontiac, Saturn, GM, Jeep and more…
European: VW, Audi, Porsche, BMW, Mercedes-Benz, Volvo, Land Rover, Peugeot, Citroen, SAAB, Seat, Skoda and more…
Asia: Toyota/Lexus, Nissan/Infiniti, Honda, Acura, Isuzu, Chery, FORD Transit, Roewe, MG and more…

X100 PAD Odometer Adjustment:

VW /AUDI/SEAT/SKODA, BUICK, CADILLAC, CHEVROLET, CHRYSLER, FORD, MAZDA, NISSAN, SUZUKI, KIA, HYUNDAI, Jaguar, LAND ROVER, Porsche and more…

X100 PAD EPB Electrical Parking Brake Adaptation:

VW ( R36, CC, Magotan etc.), Audi ( A4L, A6L, Q5 etc.), Seat, Skoda and more…

X100 PAD Tire Pressure Warning Light Reset (Manual Operation):

Mercedes-Benz, GM, VW, BMW, Toyota and more…

Timing Belt Light Reset (Manual Operation)

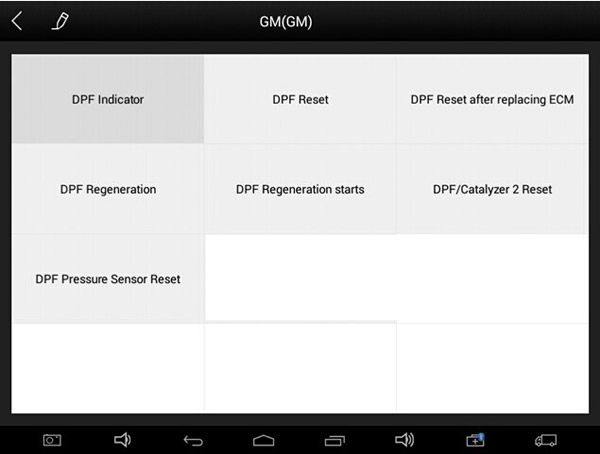

X100 PAD Exhaust Gas Treatment (DPF) Features:

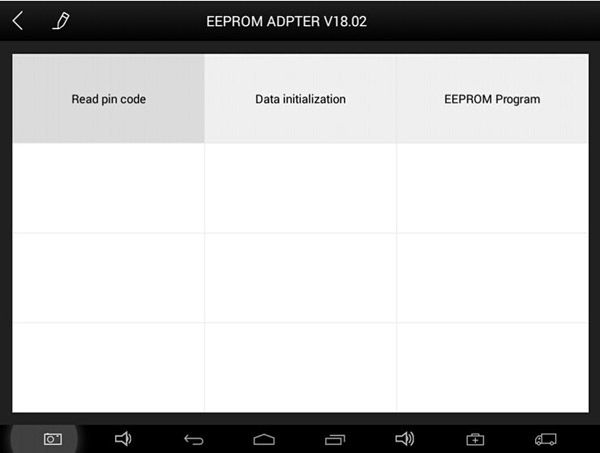

X100 PAD EEPROM Adapter Features:　

1. PIN Code Reading
2. ECU Initializing
3. Chip Programming

X-100 Pad Specifications:

Operating System: Android
Processor:Quad-core 1.30GHz Processor
Memory: 1G RAM,8G FLASH
Display: 7 inch IPS 5-point multi-touch screen with 1024×600P resolution
Sensors: Gravity Sensor, Light Sensor
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
Power and Battery: 2400mAh, 3.7V lithium-polymer battery
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension (L*W*H): 208*140*15.5mm

How to Connect X100 PAD with cars?

Detail of Brands, models and their functions source: xtooltech.com (You can download zip files from top of this webpage as well)

• BMS Battery Management (Battery Management System)
• EPB Electronic Brake (Electronic Parking Brake)
• EPS Electronic Power Steering
• OBDII (OBD2 scanning motor)
• Odometer / Mileage
• TPS Body Throttle Calibration (Throttle Position Sensor)
• EEPROM PinCode, Initializaicon ECU (EEPROM Aadaptation)

Programming Keys, (IMMO KEY): source: xtooltech.com

• VAG (VW, Seat, Audi)
• Fiat
• Ford
• GM General Motors- Buick
• Mazda
• Honda, Acura
• Hyundai
• Jaguar
• KIA
• LandRover
• Lincoln
• Maserati
• Mitusbishi
• Nissan
• Opel-GM
• Peugeot
• Porsche
• Renault
• Romeo Alfa
• Subaru
• SUZUKI
• Toyota
• Mazda
• Nissan

Xtool X100 Pad vs. Xtool EZ500 vs.EZ400 vs. Xtool EZ300

	Xtool X100 Pad	Xtool EZ500	Xtool EZ400	Xtool EZ300
OBDII Diagnosis		Full System	Full System	Engine,ABS,SRS,AT
IMMO	Yes	Yes
Service Light Reset	Yes	Yes	Yes	Yes
EPB Electrical Parking Brake Adaptation	Yes	Yes	Yes
TPS Throttle Body Adaptation	Yes	Yes	Yes
Odomter correction	Yes	Yes
Steering Angle Calibration	Yes	Yes
Gear Learning	Yes	Yes
ABS bleeding	Yes	Yes
ECU Reset	Yes	Yes
TPMS Reset	Yes	Yes
Battery Reset	Yes	Yes

The VCI Box is conencted to the X-100 Tablet via Bluetooth:

Q: How to use EEPROM Adapter?
A: It is used to weld the chip.

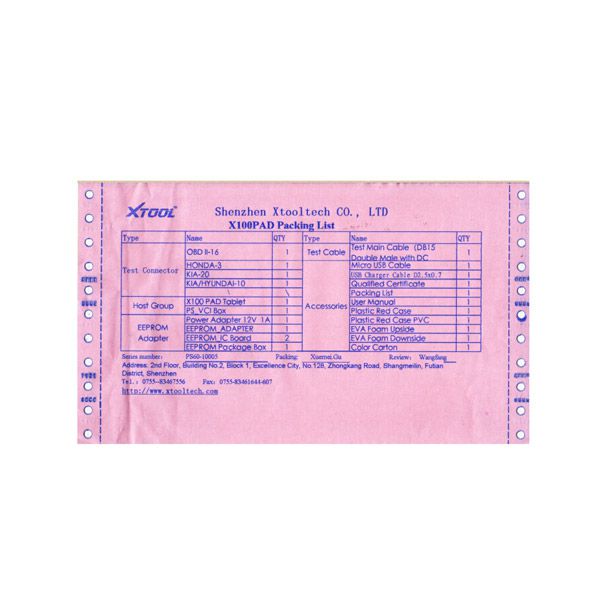

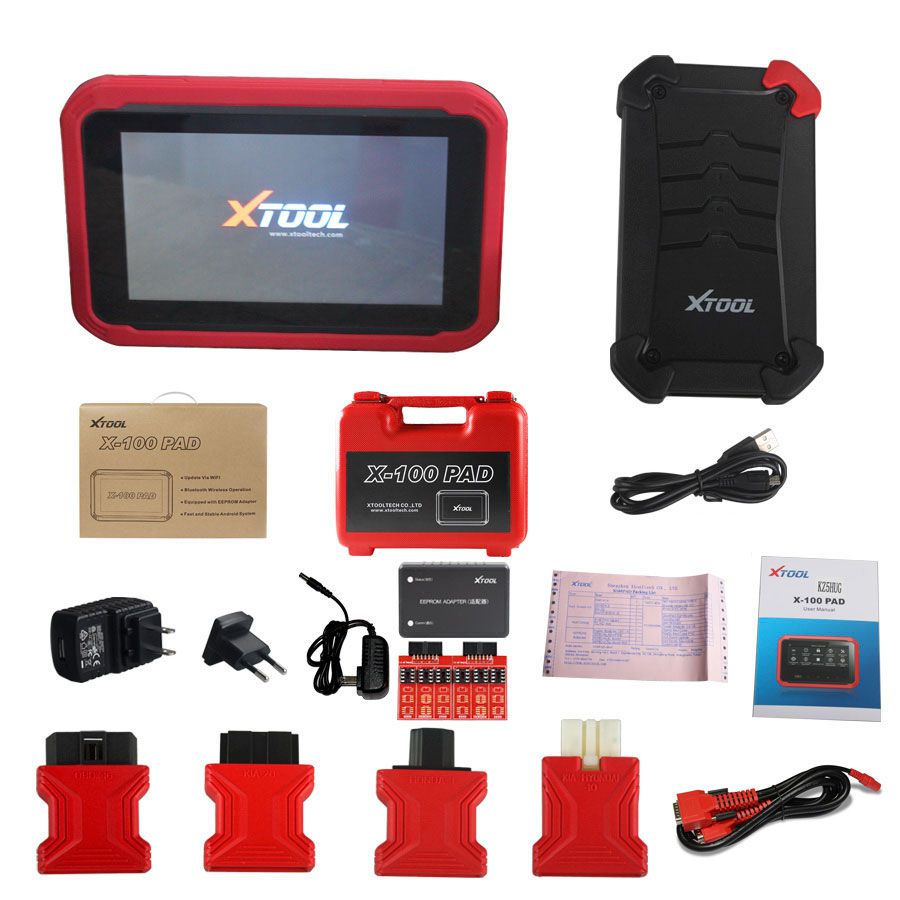

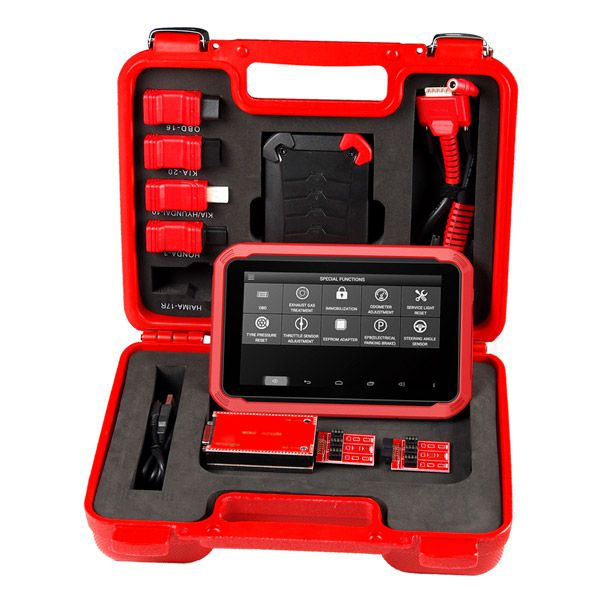

X100 PAD Package including:

1pc x X100 Pad
1pc x PS_VCI Box
1pc x OBDII 16Pin Adapter
1pc x Honda-3
1pc x Kia-20
1pc x Kia/Hyundai-10
1pc x Power Adapter
1pc x EEPROM Adapter
1pc x EEPROM IC Board
1pc x EEPROM Package Box
1pc x Test Main Cable
1pc x Mirco USB Cable
1pc x User's Manual
