Original XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function(Same function as PS80)

Original XTOOL EZ500 HD Heavy Duty Diagnostic System with Special Function

Top 6 Reasons to Buy XTOOL EZ500 HD:

1. Easy registration with EZ500 HD connected to WIFI

2. One-click software update online via WIFI

3. Remote access,Record and playback live data

4. Diagnosis reports in PDF file

5. 8.0 inch multi-touch screen,On-board battery

6. Extensive vehicle coverage for most US, Asian and European vehicle makes

Layout of EZ500 HD

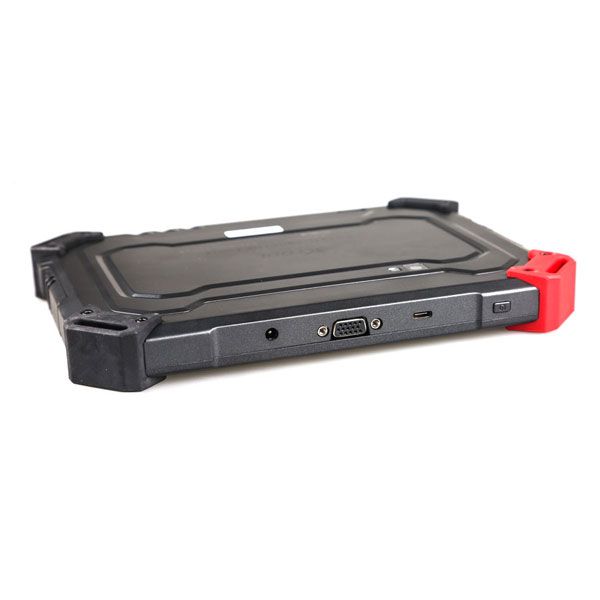

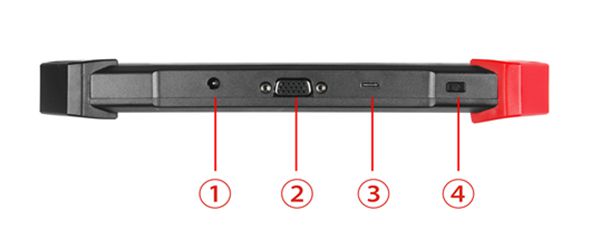

Top View of EZ500 HD Tablet

① DC Charging Interface: Battery charge, DC 12V.
② DB15 Interface: Directly connect with Truck to establish wire connection.
③ USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
④ Power Button

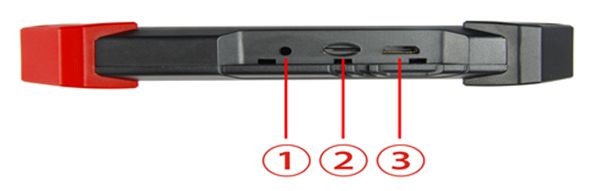

Side View of EZ500 HD Tablet

①　Headphone Jack
②　TF Card Slot
③　Mini HDMI Port

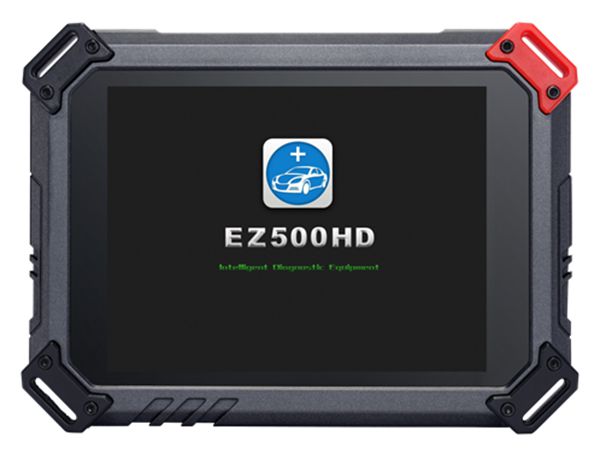

Front View of EZ500 HD Tablet

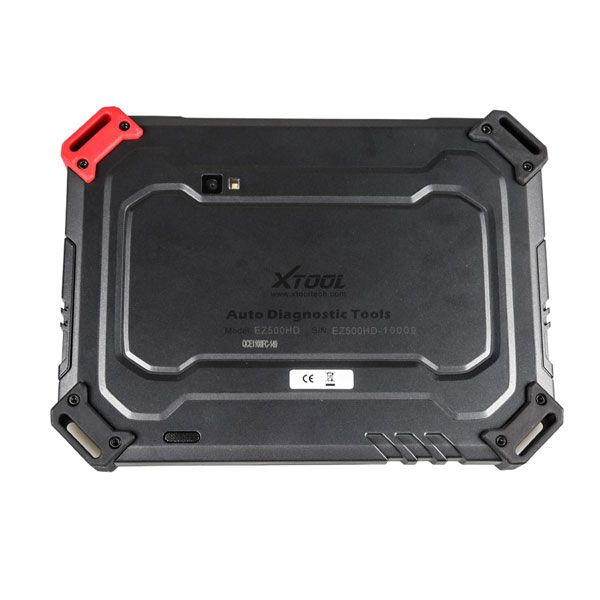

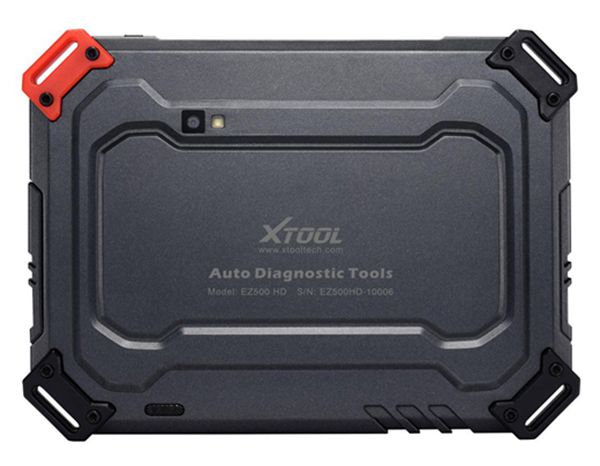

Back View of Xtool EZ500 HD Tablet

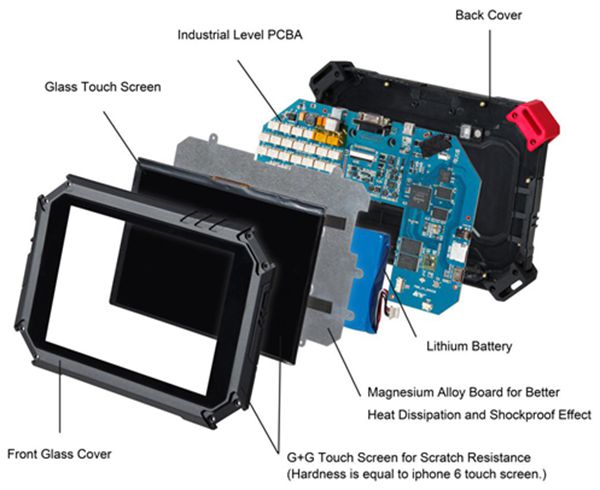

EZ500 HD Truck Scanner Exploded Diagram

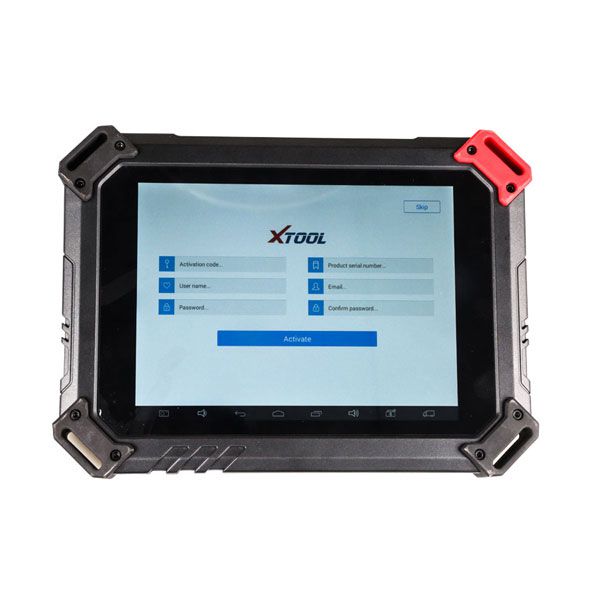

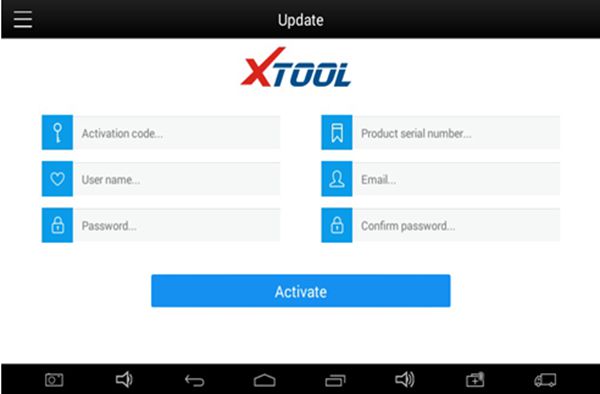

Easy registration with EZ500 HD connected to WIFI. Don’t bother to use PC for registration

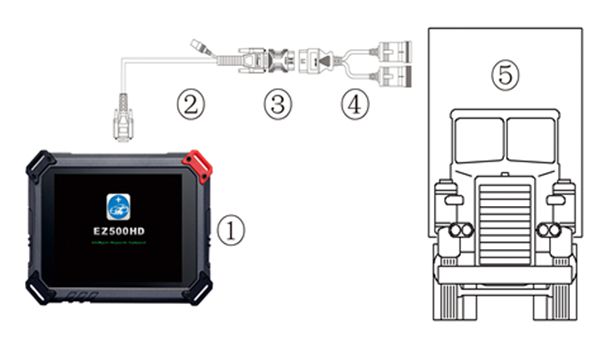

Connect to the vehicle directly with cable

① EZ500 HD Mainframe
② Main Test Cable
③ OBD2 16pin Connector
④ OBD 6+9 Pin Connector or other connectors
⑤ Vehicle

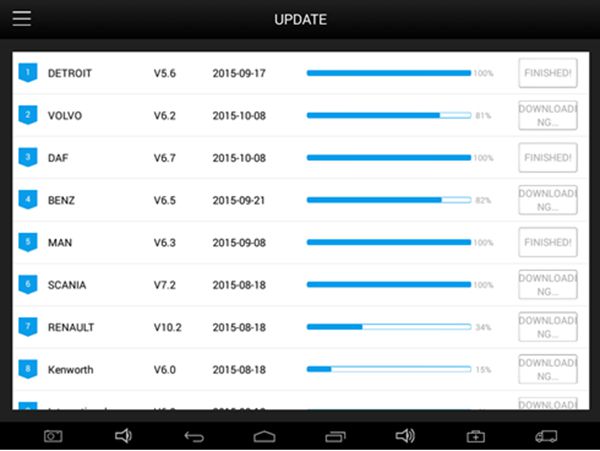

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

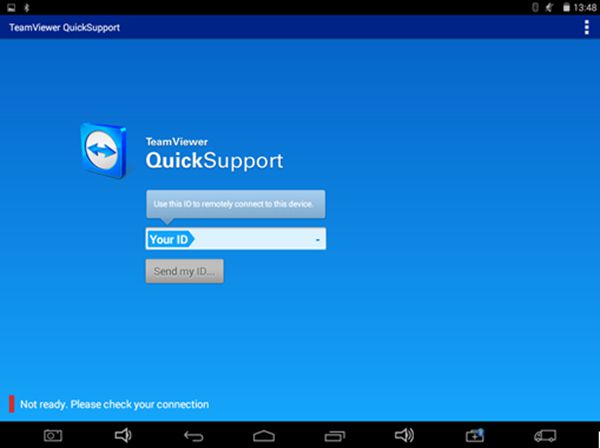

Remote access, which is perfect for training, demonstration and even remote diagnosis.

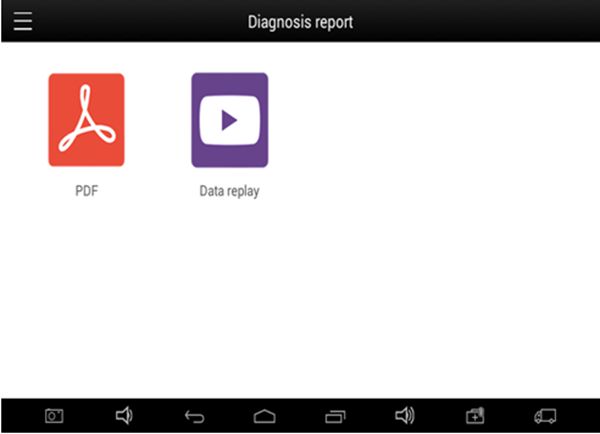

Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles.
They will be really happy knowing what kinds of problems have been fixed for their vehicles.

Extensive vehicle coverage for most US, Asian and European vehicle makes

DIESEL: VOLVO, Allison, Bendix, Mercedes-BENZ, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, ISUZU, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA, Nissan UD, WABCO, etc

It can also diagnose Trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc

It can also diagnose trucks via ELECTRONIC: Cummins and more

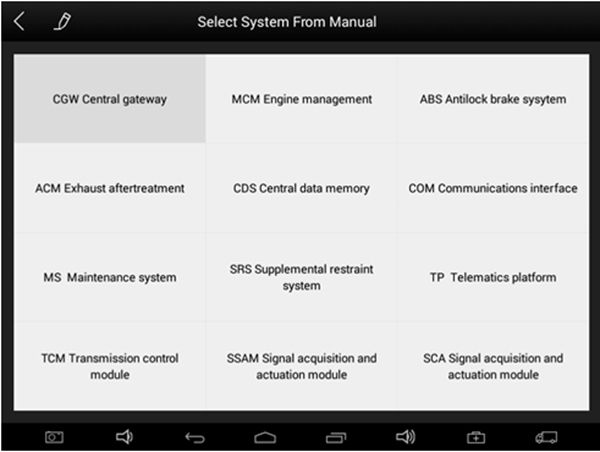

Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.

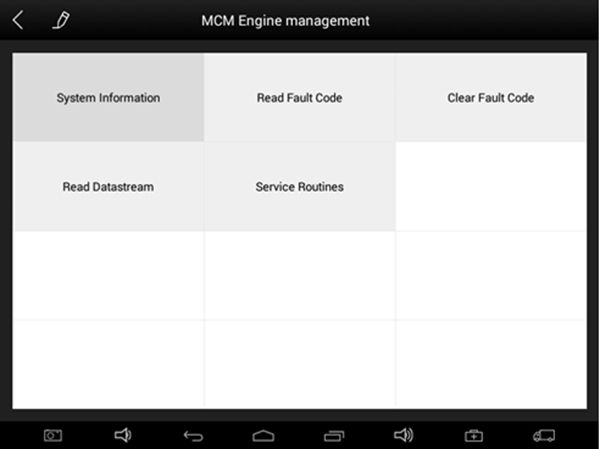

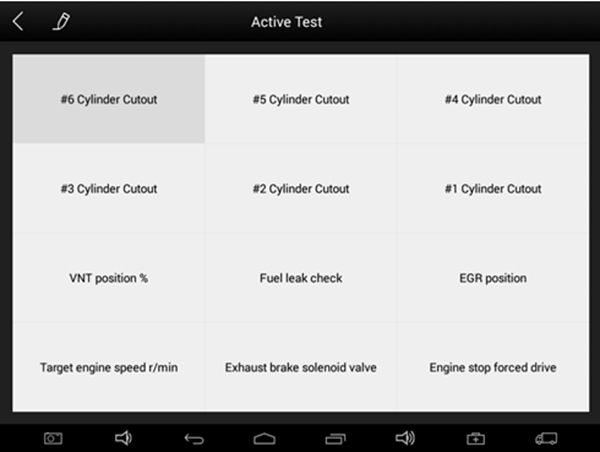

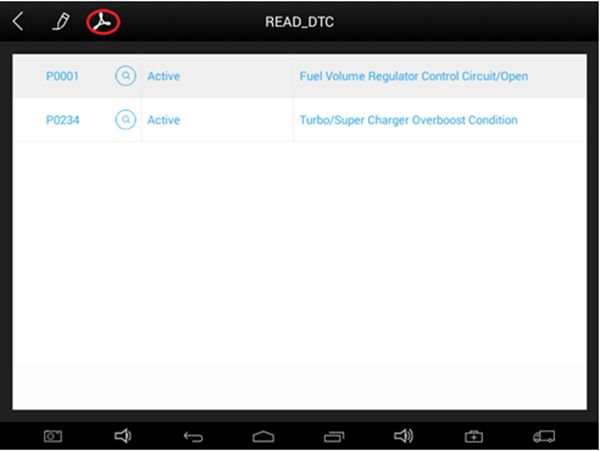

Basic Function: read fault codes, clear fault codes, live data, actuation, active test

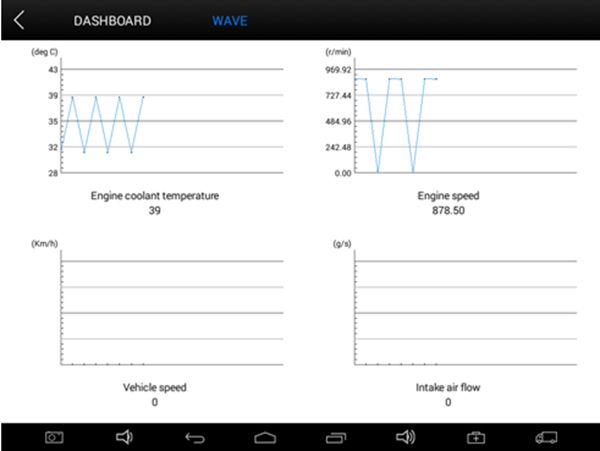

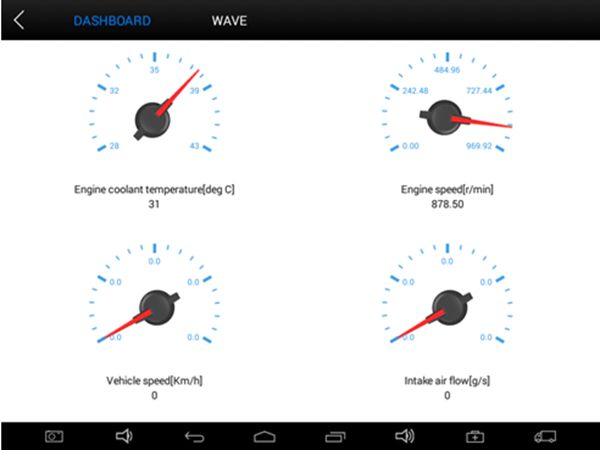

Accurate Live Data in Both Wave and Dashboard Form

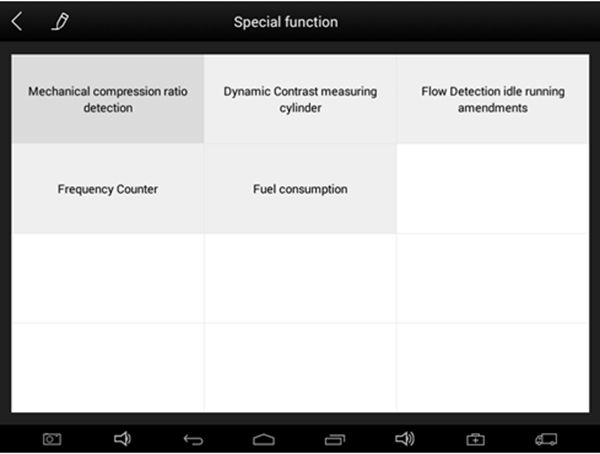

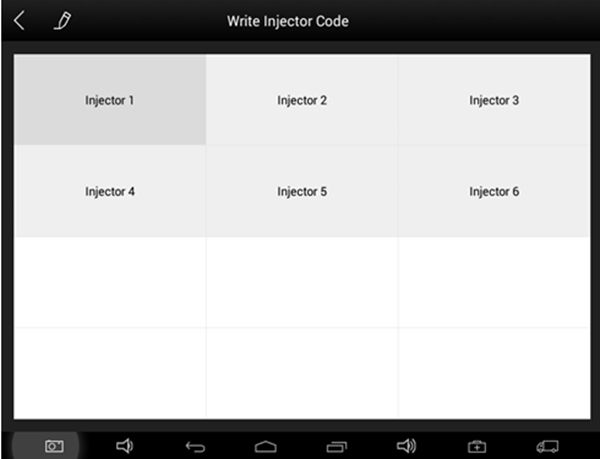

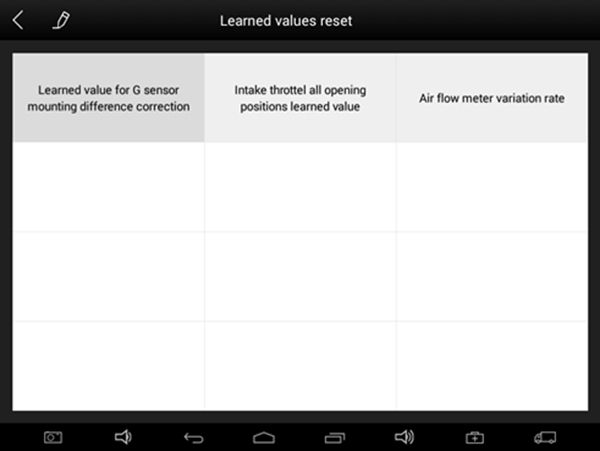

Special Function: Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.

Specifications:

Operating System:	Android 4.4.4
Memory:	1GB RAM，16GB Flash
CPU:	Quad Core, 1.6GHz
Display:	8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution
Sensors:	Gravity Sensor, Light Sensor
Input/Output:	Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port
Battery:	4000mAh, 7.4V
Wi-Fi:	WIFI 2.4Ghz
Power Voltage:	12V
Power Consumption:	29.6W
Operating Temperature:	-20 to 50℃(-4 to 126℉)
Humidity:	<90%
Dimension:	(L*W*H): 240*177*30mm

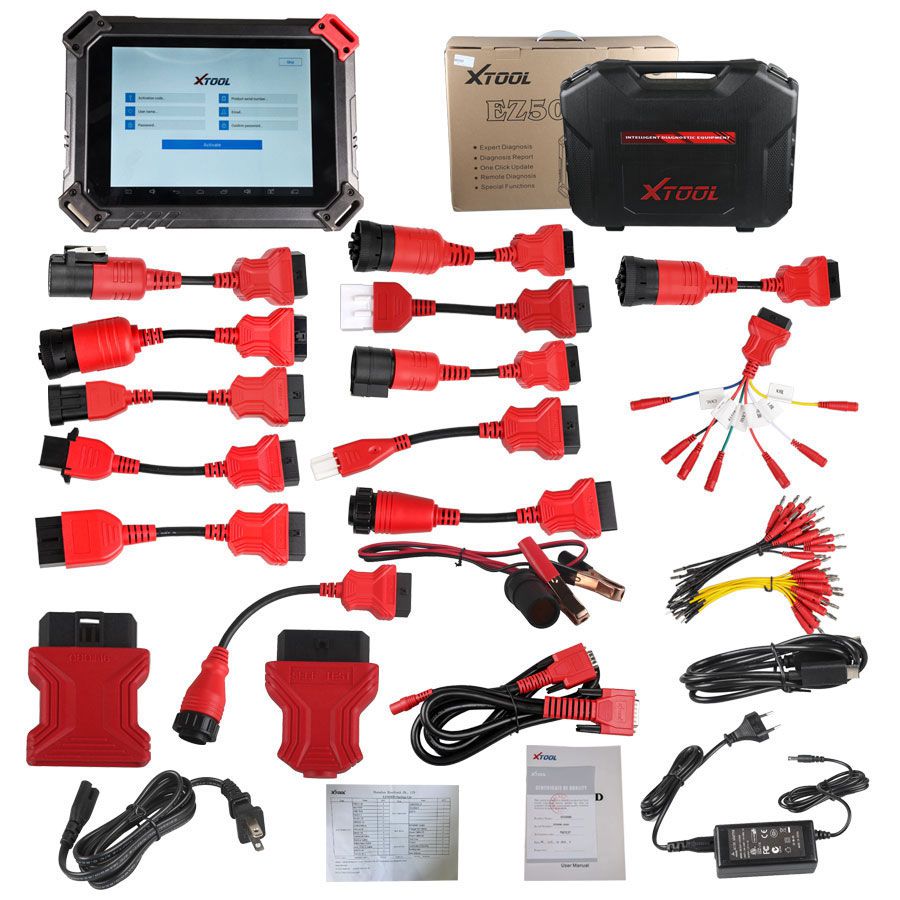

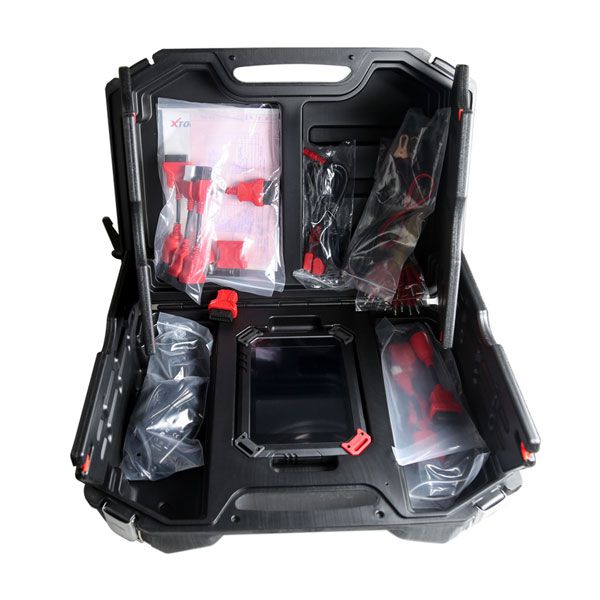

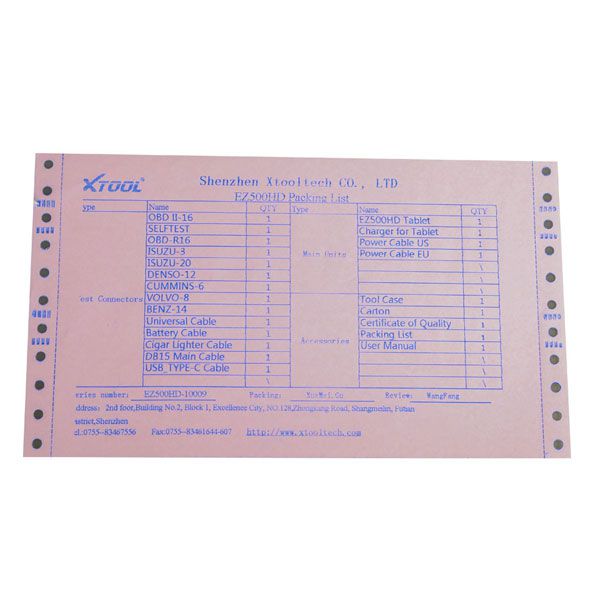

Package including:

1pc x EZ500 HD Tablet

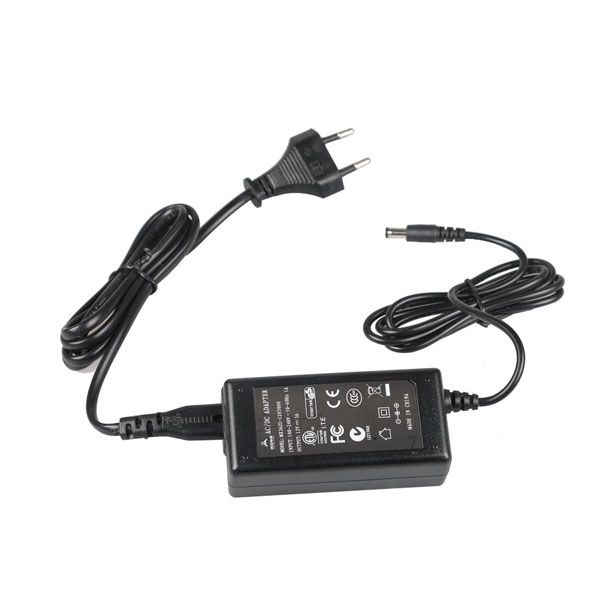

1pc x Charger for Tablet

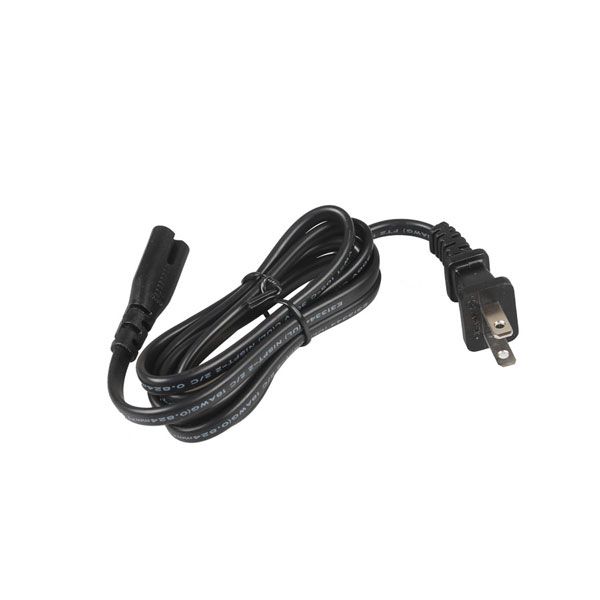

1pc x Charger Cable US
1pc x Charger Cable EU

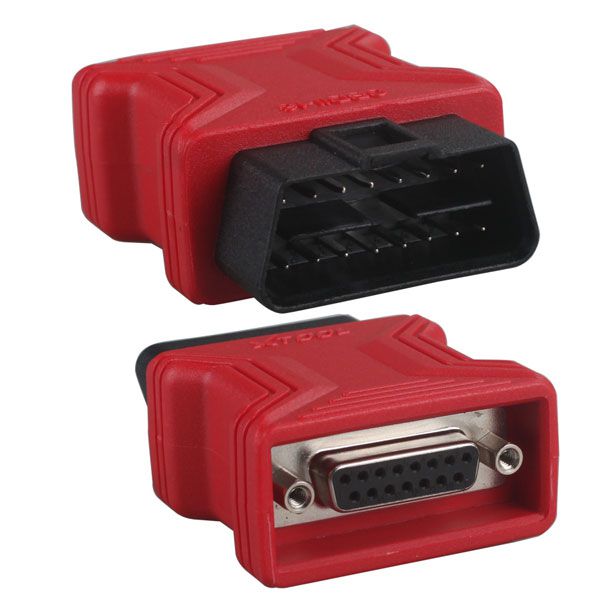

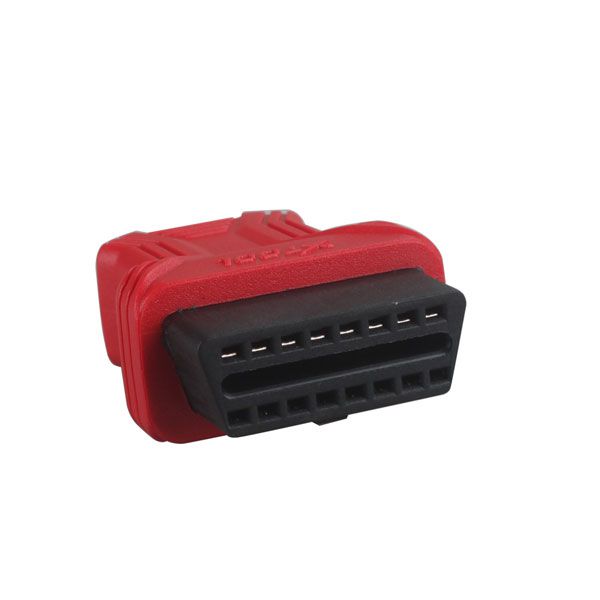

1pc x OBD II-16
1pc x SELFTEST

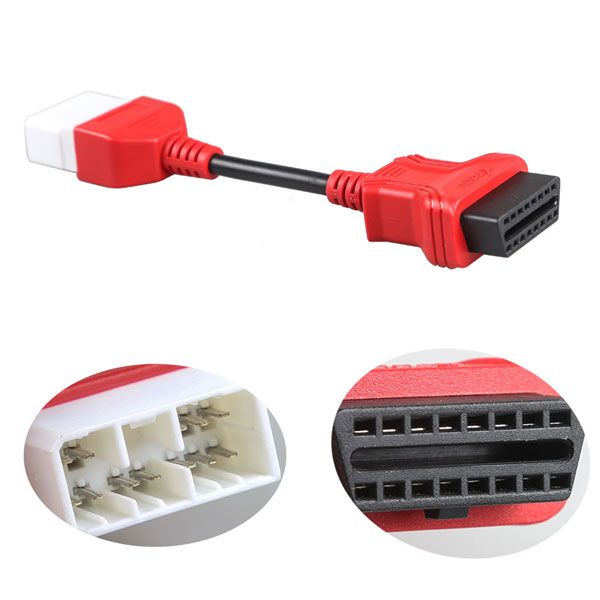

1pc x OBD-R16
1pc x CAT-9
1pc x ISUZU-3
1pc x ISUZU-20
1pc x DENSO-12

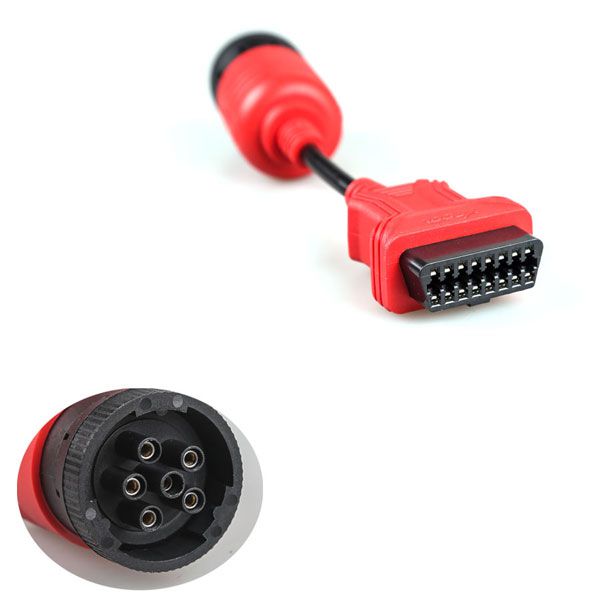

1pc x CUMMINS-6
1pc x CUMMINS-9
1pc x IVECO-30
1pc x VOLVO-8

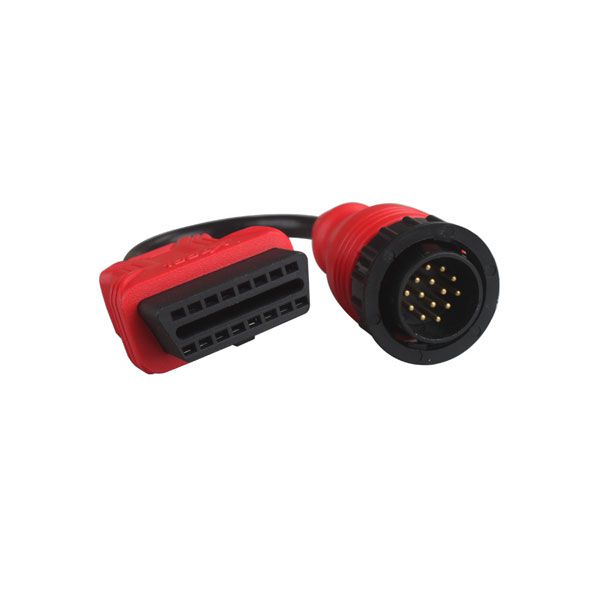

1pc x BENZ-14

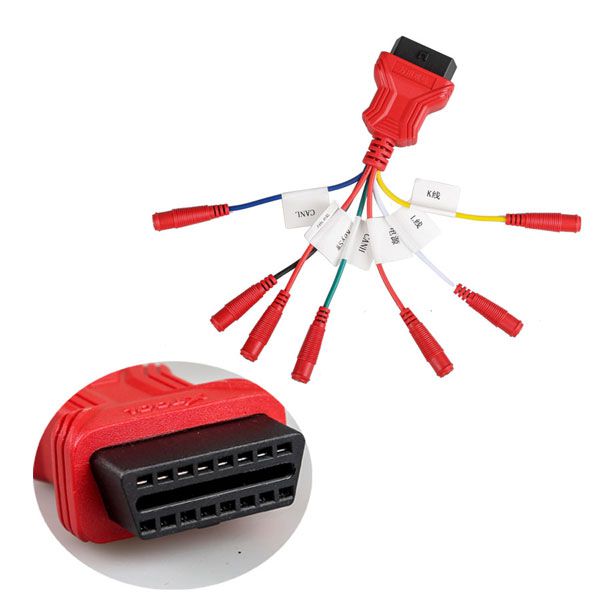

1pc x Universal Cable

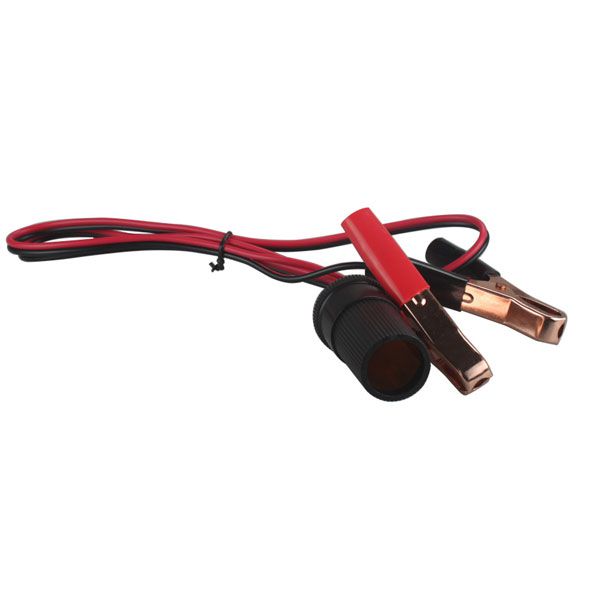

1pc x Battery Cable

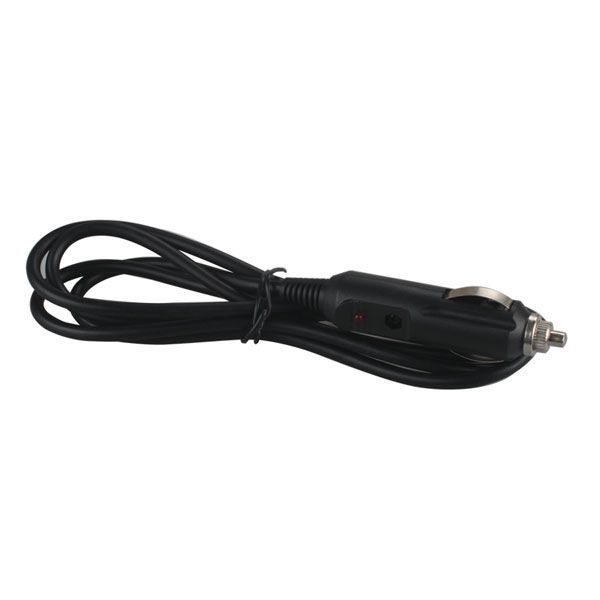

1pc x Cigar Lighter Cable

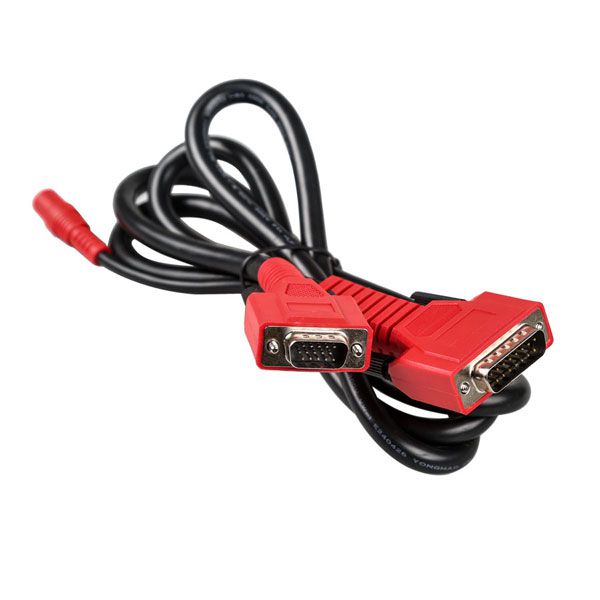

1pc x DB15 Main Cable

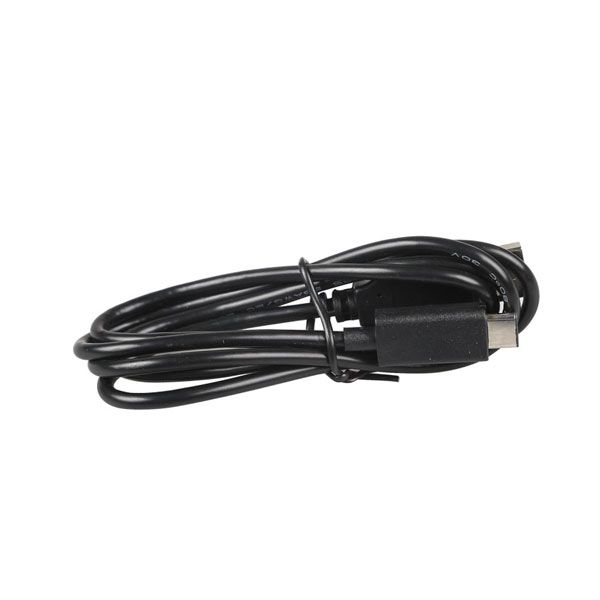

1pc x USB TYPE-C Cable
1pc x IVECO-30
1pc x IVECO-30-1
1pc x CUMMINS-9
1pc x YUCHAI-4
1pc x CAT-9

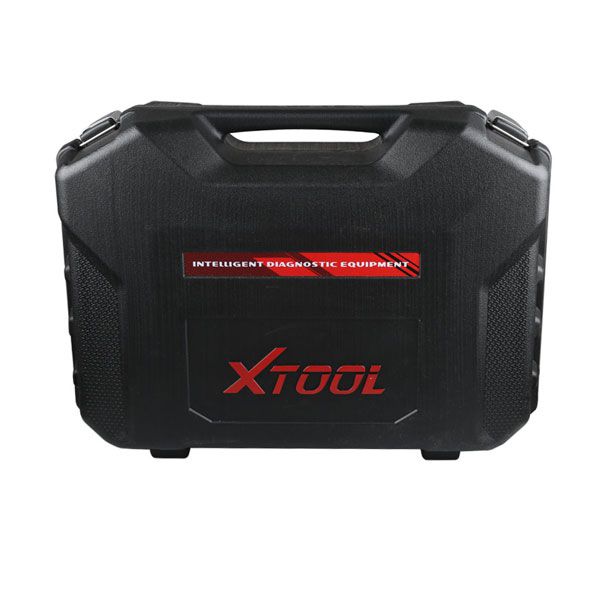

1pc x Tool Case
1pc x Carton
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
