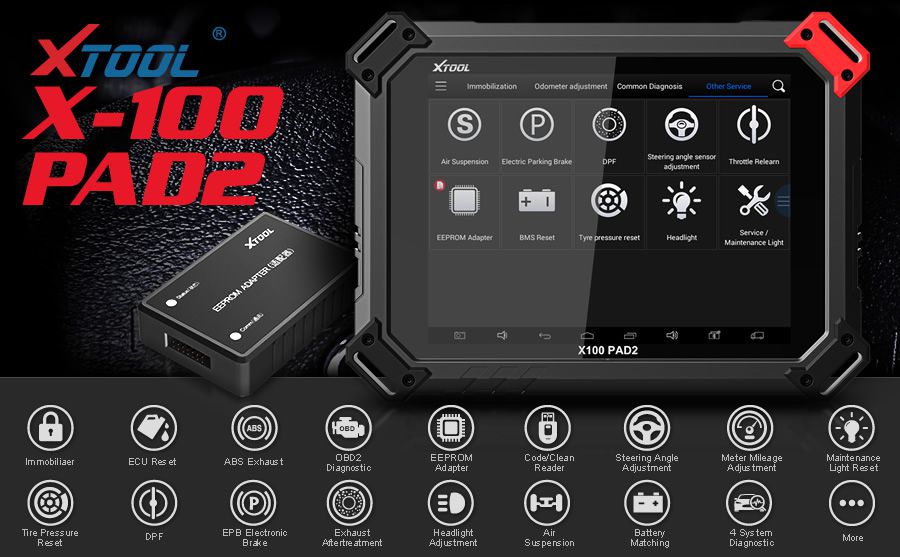

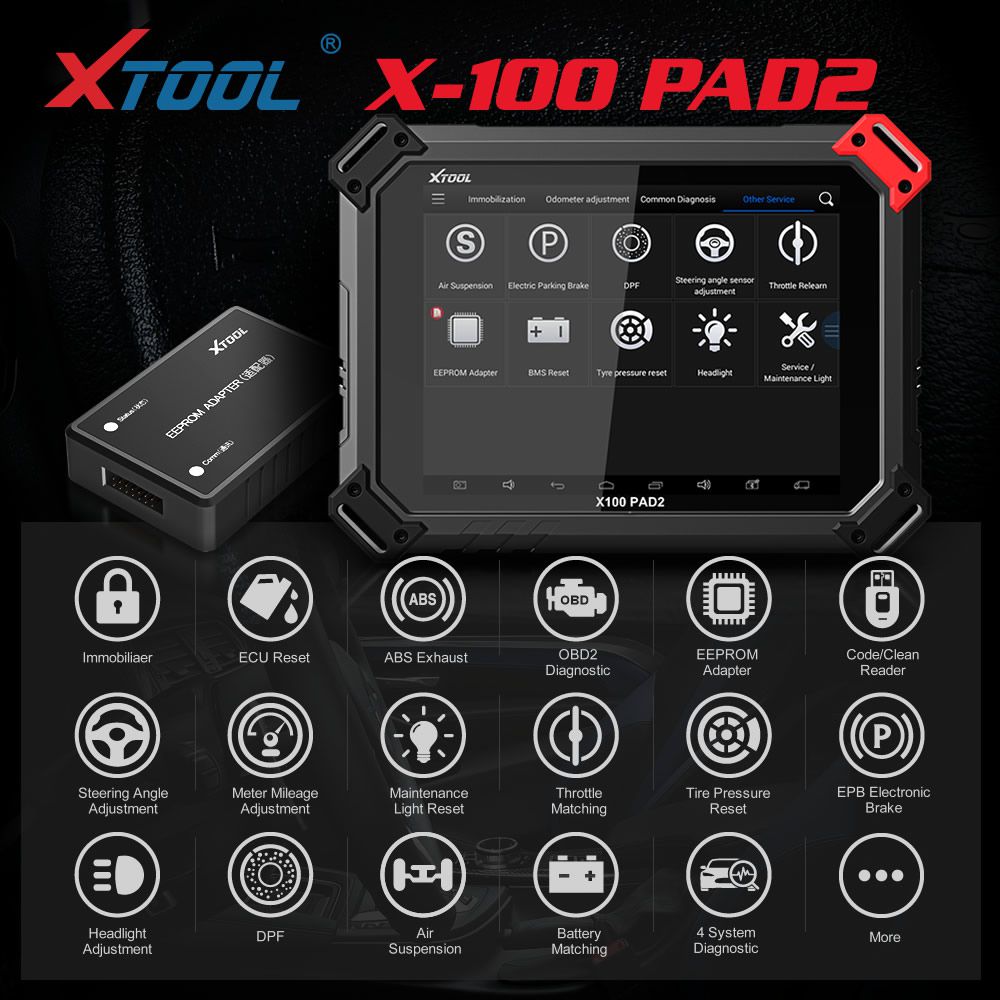

XTOOL X-100 PAD 2 Special Functions Expert Update Version of X100 PAD

XTOOL X100 PAD2 is a tablet with the latest technologies to perform Key Programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, battery reset, steering angle calibration, and OBD-II engine diagnosis.

XTOOL X100 PAD2 Special Functions Expert

Main Features

• Key Programming
• Oil Reset / Engine Oil Light Reset
• Odometer Adjustment
• Tire Pressure Warning Light Reset
• Timing Belt Light Reset (Manual Operation)
• EPB Electrical Parking Brake Adaptation
• TPS Throttle Body Adaptation
• Steering Angle Calibration
• Battery Reset
• DPF Regeneration
• PIN Code Reading
• Hexadecimal Editor (Win Hex)
• OBDII Diagnosis

Important Notes

• If you are from Brazil or France, please purchase the Portuguese or French version from local dealers directly.
• Does not support Indian cars.
• Free online updates for 2 years. After 2 years, annual update service is required: One Year Update Service for XTOOL 100 PAD2/PAD2 Pro.
• For comparison, see: Xtool X100 PAD and X100 PAD2 Comparison Table

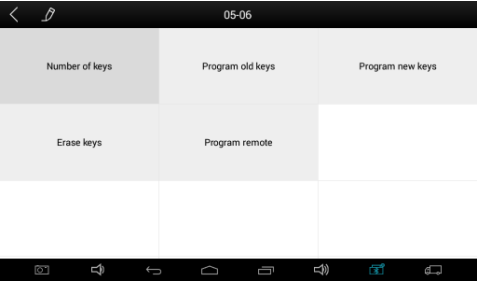

Key Programming Features

1. New keys programming
2. PIN Code reading with EEPROM
3. Hexadecimal editor (Win Hex)
4. Reads keys from immobilizer's memory
5. New immobilizer programming
6. Vehicle Identification NuMBer programming
7. Reset ECM & reset immobilizer
8. New remote controller programming
9. Full and strong database for major vehicle makes
10. Read original key's information and copy to new keys via PCF7991AT and TMS3705 (125KHz) frequency
11. Test remote key's frequency through MB506 (433MHz)
12. Host's Type C connector can be connected with KC100 via Micro USB

Supported Vehicle Models

Immobilizer Models Supported

Europe: Audi, Benz, Citroen, FORD, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, FORD

Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, SUZUKI, Toyota

China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery

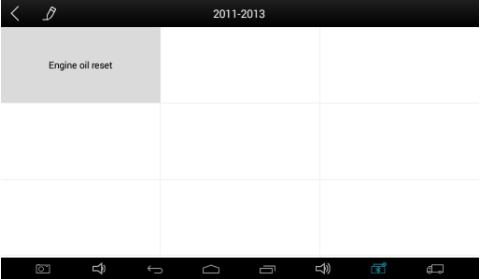

Oil Reset Models Supported

Oil reset functions include engine oil, spark plugs, front/back brake pads, air conditioner, brake fluid, coolant, and vehicle inspection reminders.

• VAG Vehicles: One-click oil reset for VW, Audi, BMW, Mercedes, Seat, Skoda, Volvo, etc.
• BMW: F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
• Mercedes-Benz: New C Class, E Class, VITO, VIANO, SPRINTER
• Buick, Cadillac: Reset engine oil lifespan percentage
• Porsche: Cayenne, Panamera up to 2012
• Volvo, Land Rover: Maintenance light reset

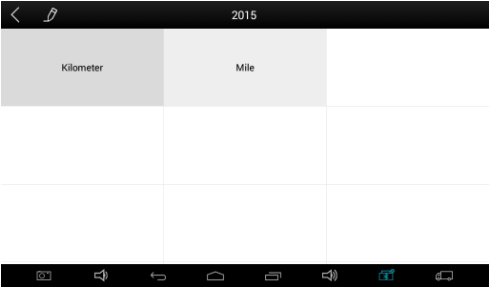

Odometer Adjustment Models Supported

VW, AUDI, SEAT, SKODA, BUICK, CADILLAC, CHEVROLET, CHRYSLER, FORD, MAZDA, NISSAN, SUZUKI, KIA, HYUNDAI, Jaguar, Land Rover, Porsche and more…

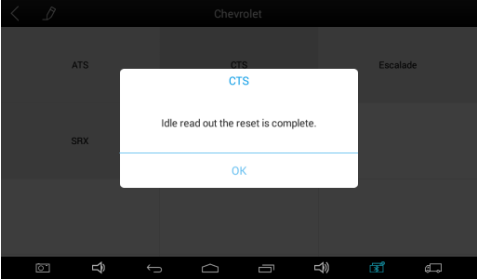

TPS Throttle Body Adaptation

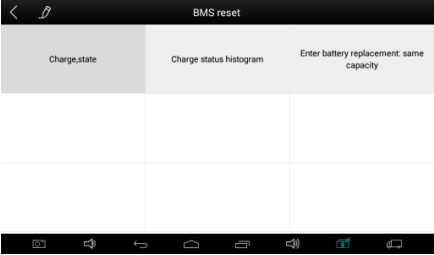

BMS Reset (Battery Reset)

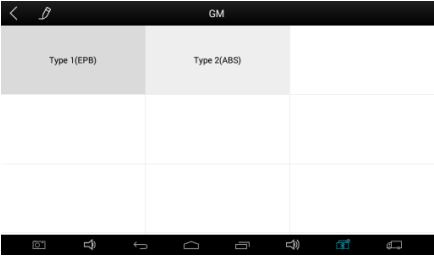

EPB Electrical Parking Brake Adaptation

Supported models: VW (R36, CC, Magotan), Audi (A4L, A6L, Q5), Seat, Skoda and more…

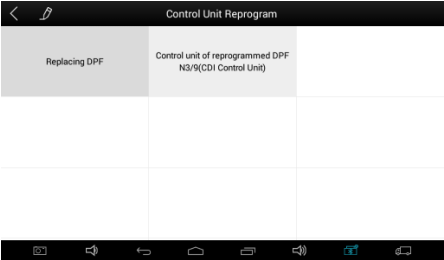

DPF Regeneration

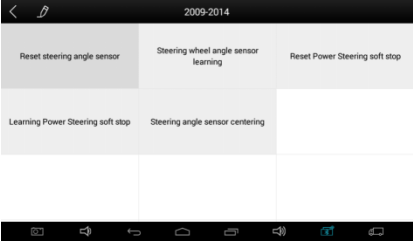

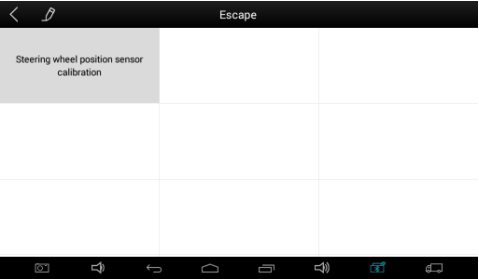

Steering Angle Calibration

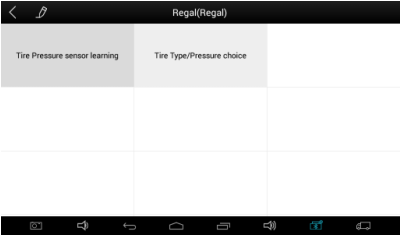

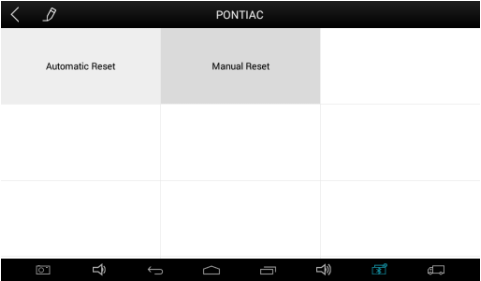

Tire Pressure Warning Light Reset (Manual Operation)

Models supported: Mercedes-Benz, GM, VW, BMW, Toyota and more…

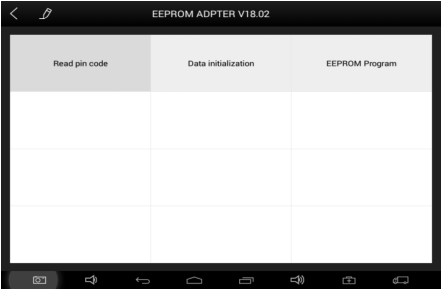

EEPROM Adapter Features

1. PIN Code Reading
2. ECU Initializing
3. Chip Programming

Four System Diagnosis

XTOOL X100 PAD2 Device Details

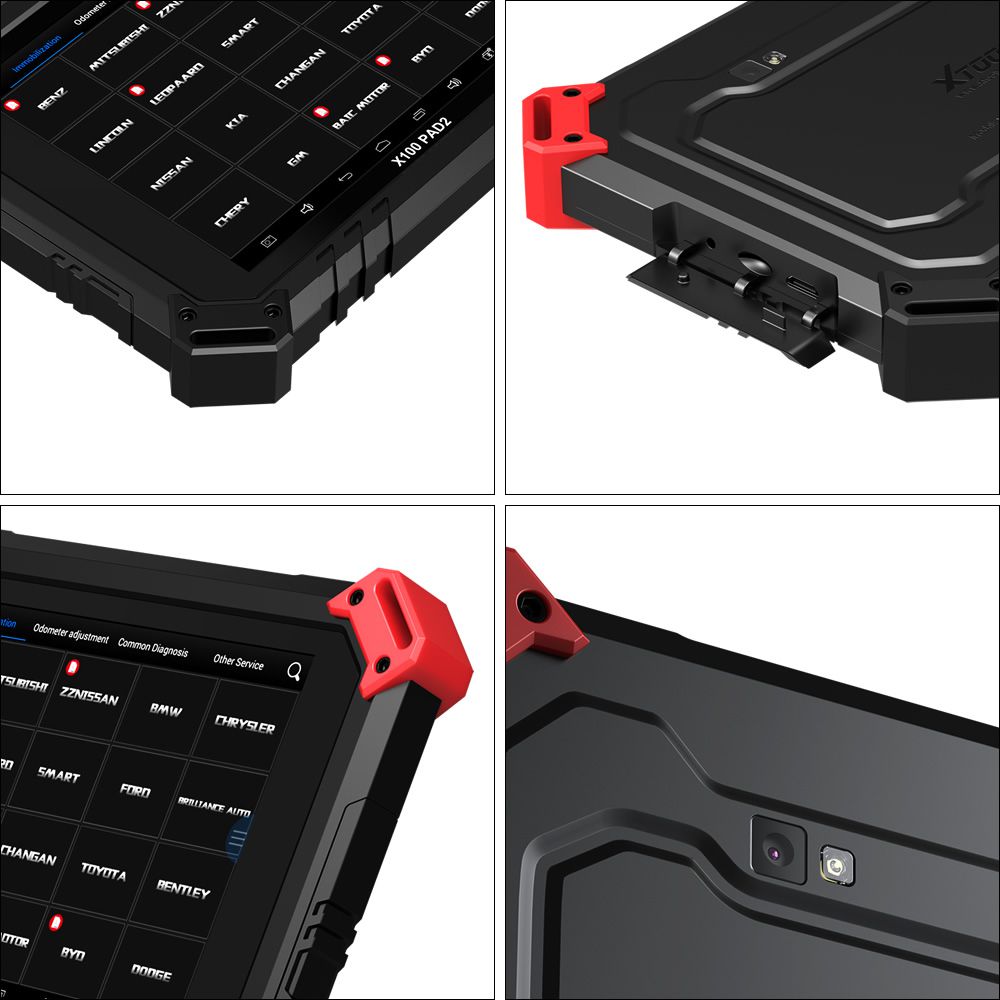

Device Layout

Top View:

1. USB Type C Port: Compatible with HDMI TV port
2. Power Button: Power on or off
3. DC Charging Port: Battery charging
4. DB15 Port: Supports wired connection with car via cable

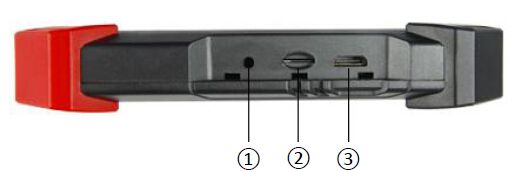

Side View:

1. Earphone jack
2. USB 2.0 Port: Data synchronization with PC
3. Mini HDMI Port

Usage Features

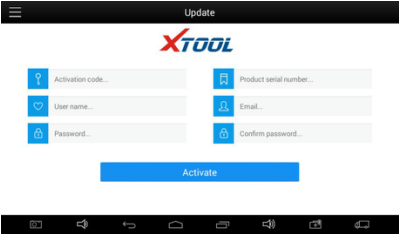

Easy registration with X-100 PAD2 connected to WiFi – no PC required.

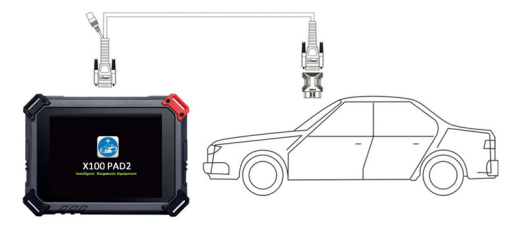

Direct Connection to Vehicle via Cable:

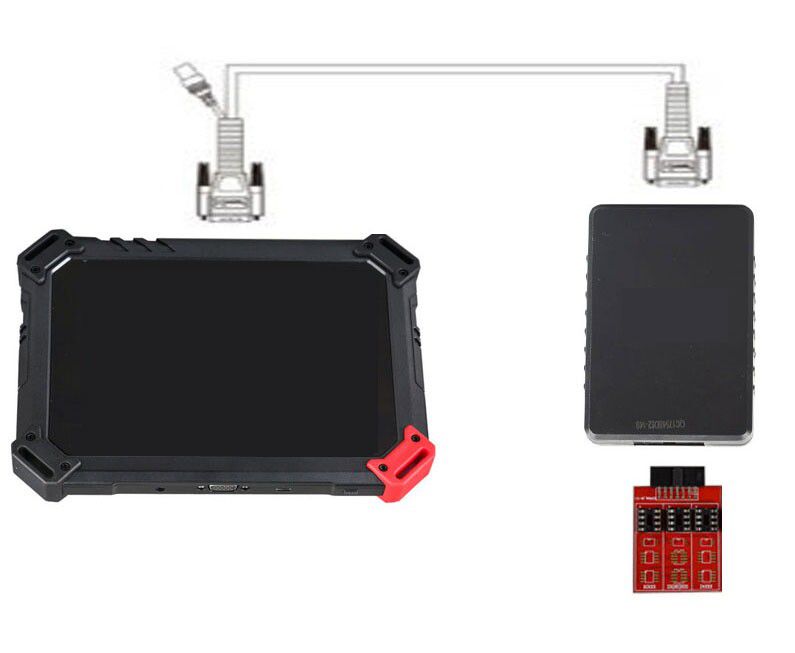

Connection via EEPROM Adapter:

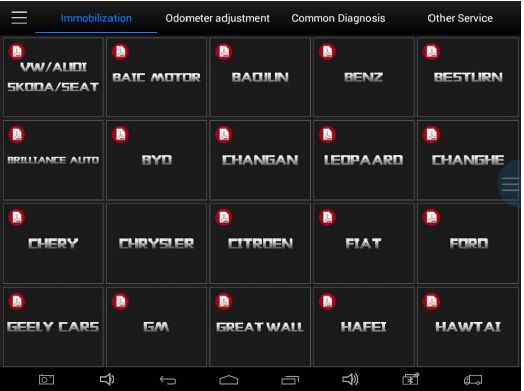

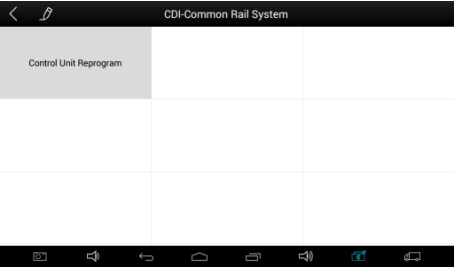

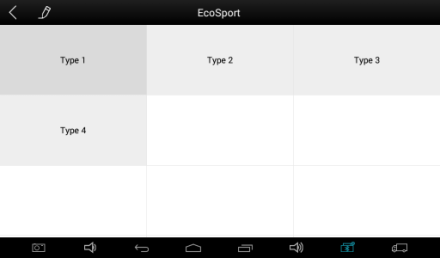

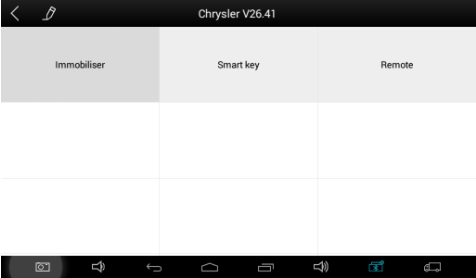

Diagnosis Interface – Select Vehicle Model:

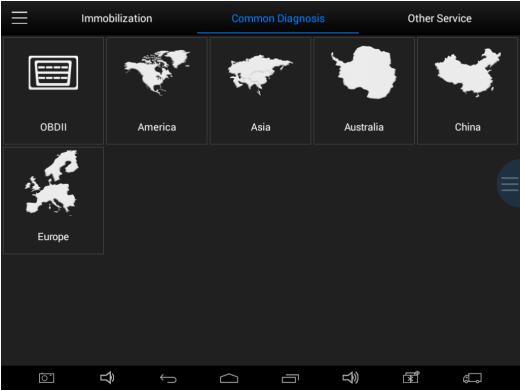

Select Your Region Before Starting:

Remote Access: Ideal for training, demonstrations, and remote diagnostics.

Generate PDF Diagnosis Reports: Print and provide detailed reports to customers, showing exactly what issues were resolved.

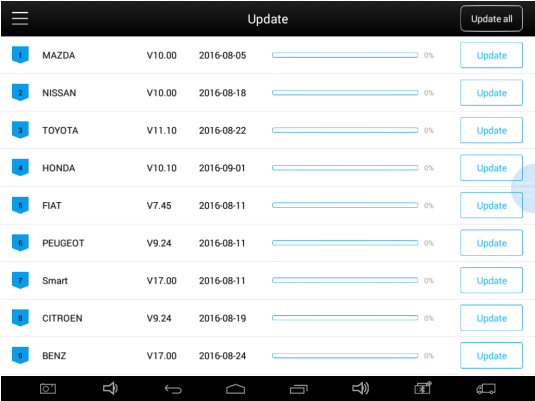

How to Update XTOOL X100 PAD2?

One-click WiFi update. Get the latest software instantly! Automatic pop-up reminders ensure you never miss an update.

Customer Feedback and Real-World Usage

Successful Key Programming Examples

Chevy: Onix 2014, Cruze 2013, Cobalt 2015 – all keys added successfully.

Opel/Chevy: Montana 2009 (PIN read and key added), Corsa C 2010 (Brazilian model – key added).

Ford: Fiesta 2011, Focus 2012, Focus Titanium 2014, C-Max 2011 – all keys added successfully.

Renault: Sandero 2014/2009, Kangoo 2011 – key added. Megane Scenic 2 before 2008 works well; after 2008 may show wrong PIN but programs correctly with correct PIN.

Citroen: C3 2008 (PIN read and key added), C4 2010 (key added). C4 2005 fails in French version but works in English.

Peugeot: 207 2010, 206 2007 – key added successfully.

Honda: Civic 2011/2007/2002 (ID48), HR-V 2015 – all keys added.

VW: Golf 2003, Gol 2012 G5, Voyage 2009, Santana 2005, Parati 2007, Fox 2008, Sharan 2003 – key added. Golf 4 2001: no PIN read, but key programmed. Passat 2004: PIN read and key programmed successfully.
Note: For VW 4th & 5th immobilizer, use with XTOOL KC100 VW 4th & 5th IMMO Adapter.

Fiat: Uno Way 2013, Palio 2010, Strada 2008/2009, Doblo 2003, Siena 2001, Sportage 2015/16 – keys added using OBD + PIN code. Most use BC 1K79X or 1K59H systems.

Other Brands: Dacia Sandero 2016, Toyota Corolla 2015 (Brazil), Blazer 2014, Hyundai HB20 2016, Mitsubishi ASX 2013, LR Sport 2009, RAM 1500 2012, Nissan Note 2015 – all keys added successfully. Mazda BT50 2017 Odometer change completed in 30 seconds.

XTOOL PAD2 Limitations

• Opel Vectra C Euro – not supported
• Audi A4 B5 (VDO dash or separate immo) – no communication, no PIN read
• Audi A6 pre-facelift diesel/petrol – no PIN read
• Nissan Qashqai 2+2 / Pathfinder – keyless entry not supported; chip programming may brick car
• Opel key learning function not working

No Chinese tool can read PSA PIN codes before 2005 (except C4). Options:

1. Main dealer or customer code card
2. Read PIN from ECU or BSI EEPROM

Nissan Navara 2009: BCM code read OK, but communication fault during key programming. Completed using FVDI.

Customer Reviews

Review 1:
Excellent coverage with regular weekly updates. Successfully reset oil service reminder on a 2006 Porsche Cayman – other tools couldn’t do it. User-friendly interface and easy update process. Great value for small shops or hobbyists.

Review 2:
Successfully programmed a key and remote for a 2016 Camry H-Chip for under $35, saving over $250 vs dealership. Failed to communicate with a 2017 Explorer Smart Key initially, but later added admin keys using two working fobs without the tool. Essential for avoiding mechanic fees for simple resets.

Review 3:
Excellent for Toyota models like Harrier, Camry, Prado120/150 – supports all-key-lost scenarios via OBD2. Also strong on Nissan for BCM reading and PIN calculation via OBD2.

Frequently Asked Questions (FAQs)

Q1: Does this adjust Odometer for a 2017 Dodge Challenger?
A1: No, it does not support this model.

Q2: Does it support Indian cars?
A2: No, it does not support Indian cars.

Q3: Can it program keys and reset Odometer for Ford Fusion 2006–2010 and Focus 2008–2011?
A3: Yes, key programming is supported.

Q4: Can it program a new key fob for a 2014 Cadillac ATS?
A4: Yes.

Q5: Does it support odometer correction for a 2017 Ford Fusion Hybrid?
A5: No. It only supports 93C86 dashboard chips and does not support 2017 models of this type.

XTOOL Product Function Comparison

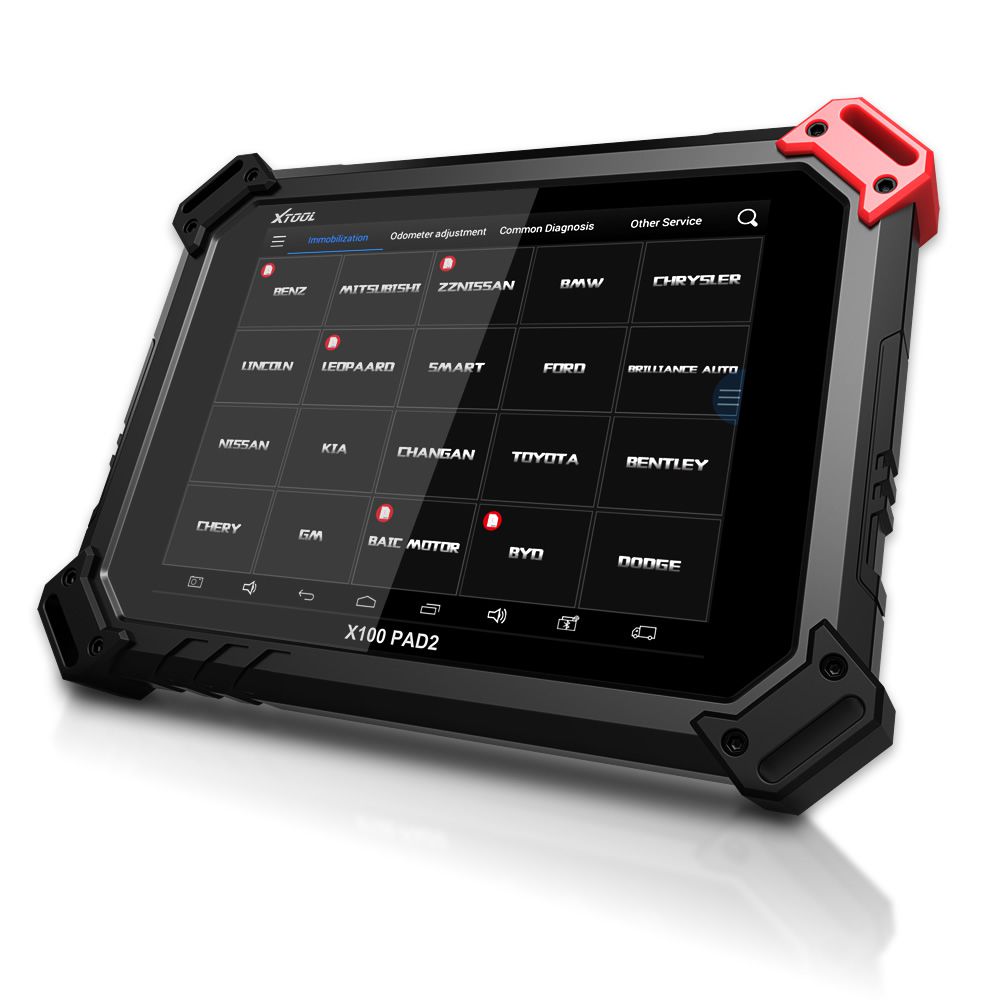

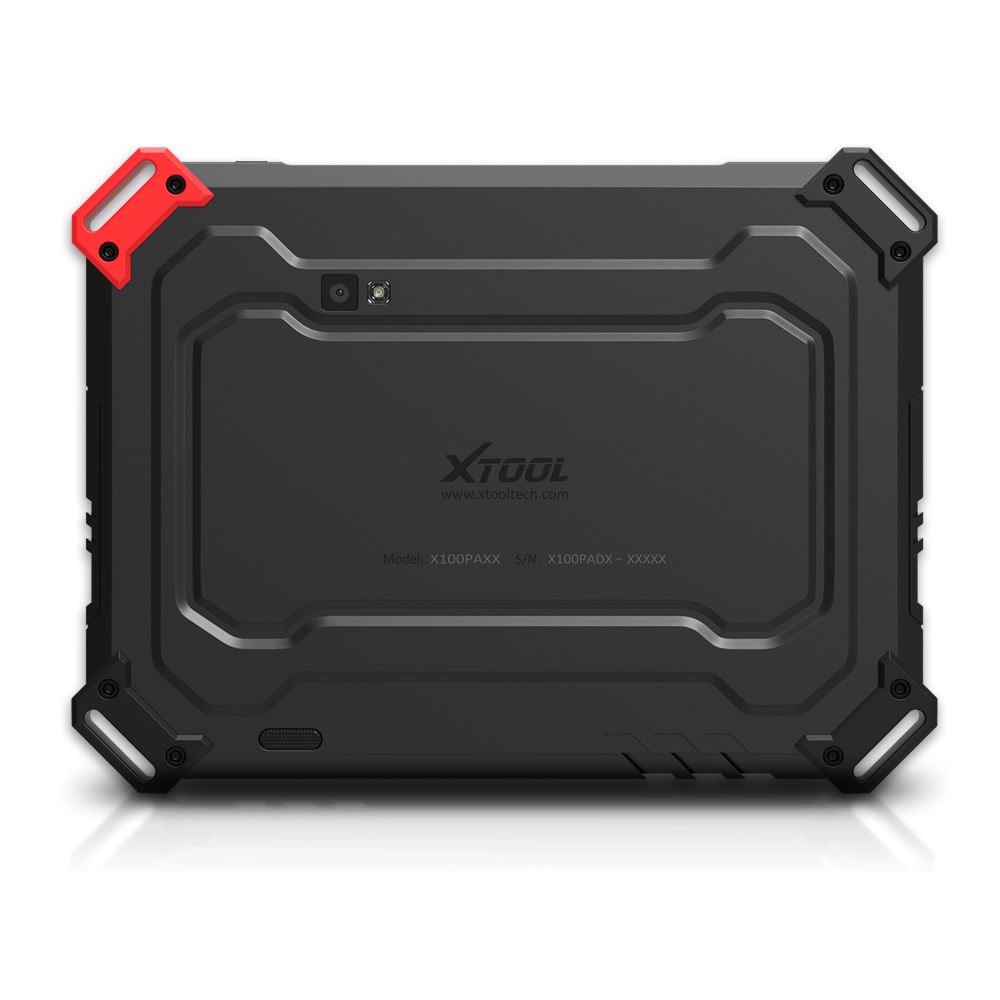

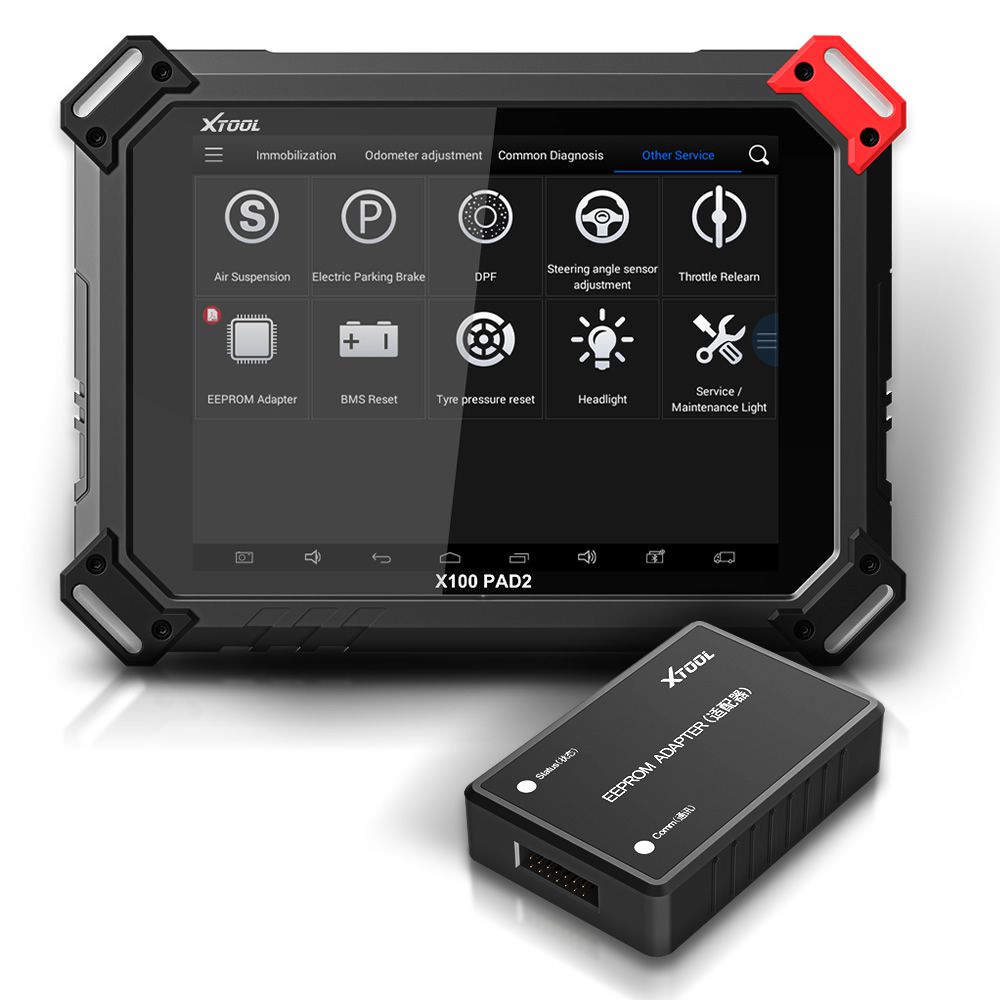

Product Images

XTOOL X100 PAD2 Specifications

• Operating System: Android 4.4.4
• Memory: 1GB RAM, 16GB Flash
• CPU: Quad Core, 1.6 GHz
• Display: 8.0 Inch IPS 5-Point Multi-touch Screen, 1024×600P Resolution
• Sensors: Gravity Sensor, Light Sensor
• Input/Output: Microphone, Dual Speakers, 3.5 mm Headset Jack, Mini HDMI Port, USB 2.0 Port, TF Card Port
• Battery: 4000mAh, 7.4V
• WiFi: 2.4GHz
• Bluetooth: 100 Meters
• Power Voltage: 12V
• Power Consumption: 29.6W
• Operating Temperature: -20 to 50℃ (-4 to 126℉)
• Humidity: <90%
• Dimensions: 240 × 177 × 30mm (L×W×H)

XTOOL X100 PAD2 Package Contents

• 1pc x X-100 PAD 2
• 1pc x OBD II-16
• 1pc x HONDA-3
• 1pc x KIA-20
• 1pc x MAZDA-17R
• 1pc x HYUNDAI/KIA-10
• 1pc x Main Cable (DB15 Male to VGA Male)
• 1pc x DC12V (AC100~240V) 3A Charger
• 1pc x US Power Adapter
• 1pc x EU Power Adapter
• 1pc x EEPROM
• 1pc x USB Type-C to Mini USB Cable
• 1pc x Type-C Cable
• 1pc x Certificate of Quality
• 1pc x Packing List
• 1pc x User Manual
