V3.9 VDM UCANDAS Wireless Automotive Diagnosis System with Honda Adapter Support Andriod V5.2

1. Software Version: 3.9 [ If You Need The Software,You Can Download it Directly From Official Website] Software Name: UCANDAS_UI_V3.8z
2. Support Multi-Languages
3. WIFI and USB Connection: The WIFI direct distance is less than 50M
4. Online Update: you can go to Website to update your device. After one year, you need pay about 80USD for each update
5. VDM UCANDAS can support new computer system: Windows XP, Windows 7, Windows 8. No WP8/Win8 RT
6. Our Customers feedback VDM UCANDAS better than Autocom
7. No need Activation or Register before using.
8. VDM UCANDAS Covers 47 Car Brands,

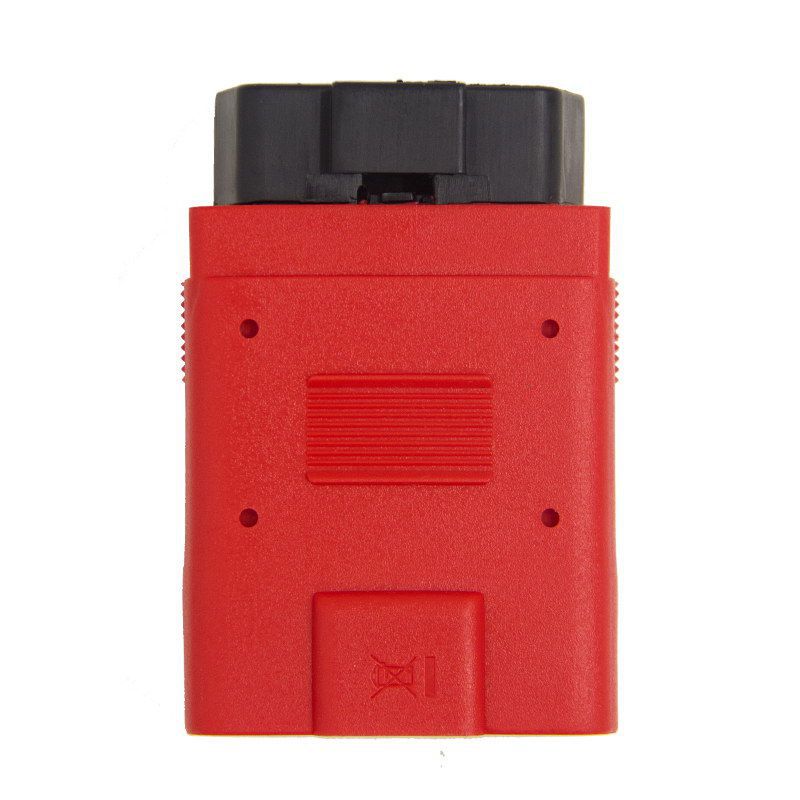

9. Newly Added Honda Adapter for Free

VDM UCANDAS for Android:

1. Supporting Andriod 5.2 or newer
2. Supporting screen resolution: above 720P
3. Supporting English language at the moment. As for multi-language.
4. Supporting read code, version information, clear code, live data.Special functions will be released later
5. More update coming soon.

1. Dealer Code: 000000 or 111111
2. Please Don't Use VDM UCANDAS on Windows XP SP2 System, Or Wifi Function Can't Work
3. Very Few type of car can do key programming function,such as HONDA, and there is no supported car coverage list for this function
4. There is update version for Russian,German, French, Italian and Portuguese language, you can update to the latest online now for free.

VDM UCANDAS Supported Systems:

WIFI VDM UCANDAS Function List:

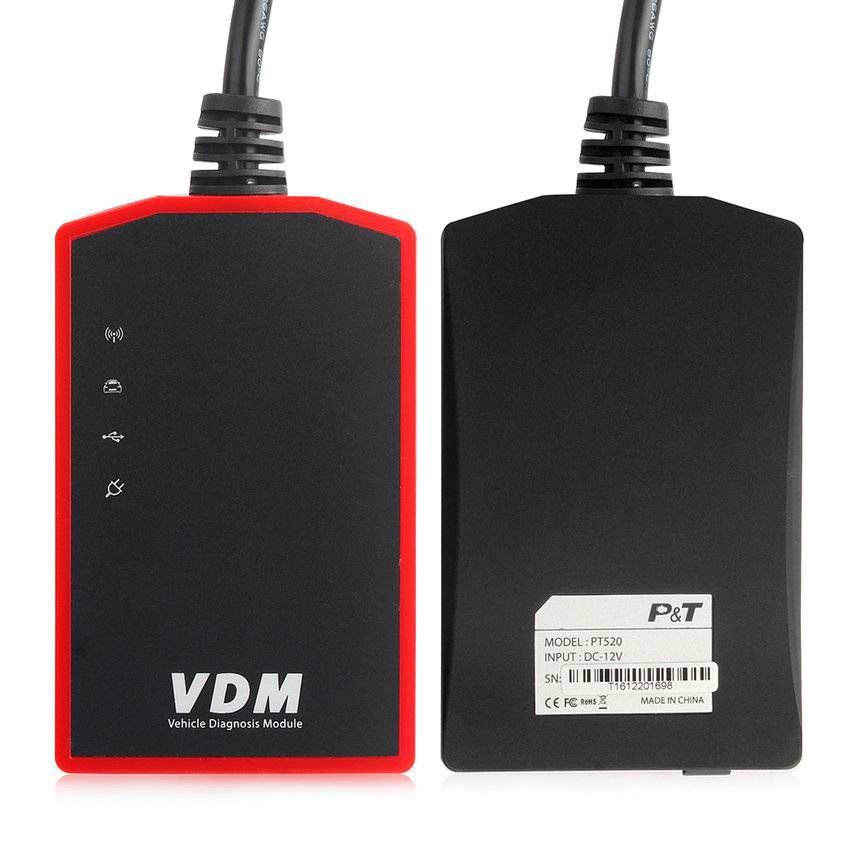

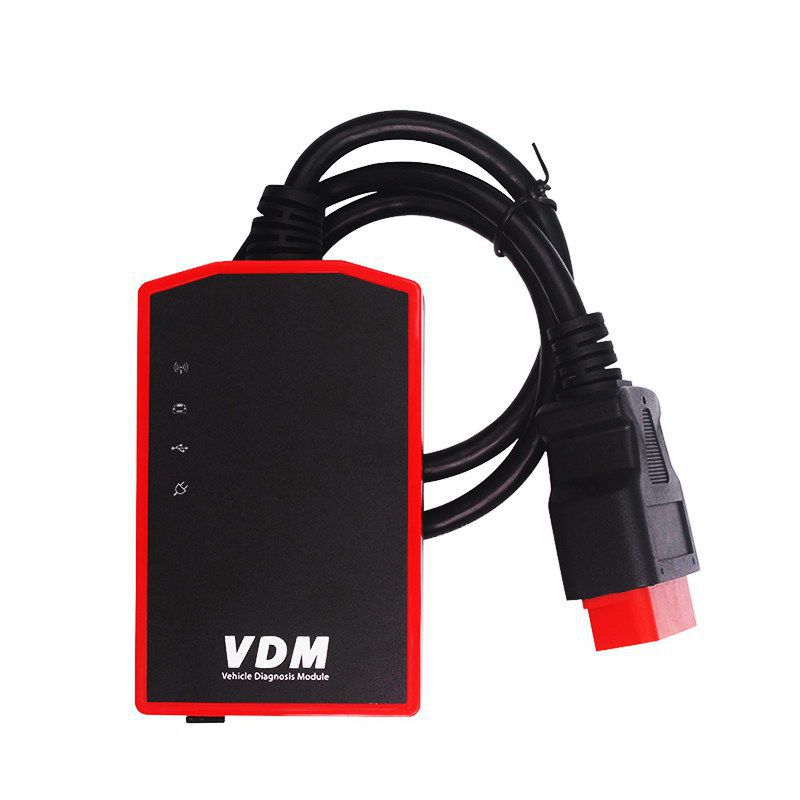

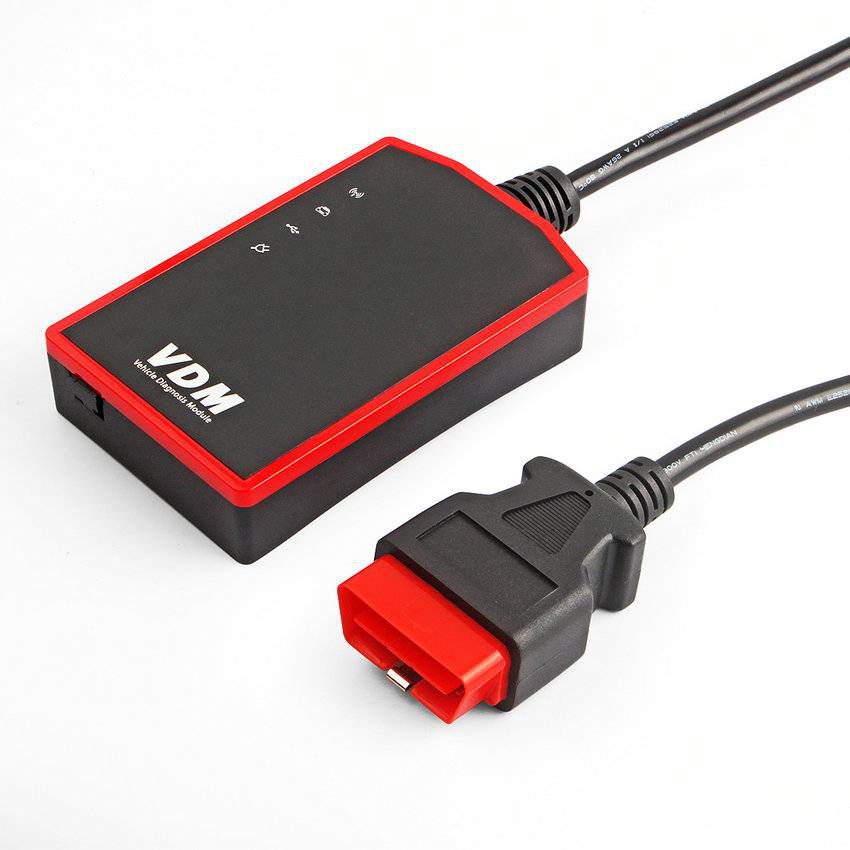

Hardware Introduction:

VDM UCANDAS Features

• Supporting ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols.
• High-speed, medium speed and low speed CAN-BUS, Single CAN-BUS diagnosis protocols is supported.
• Can check out the year and model of the vehicles automatically and quickly.
• All inclusive software coverage - European, American, Asian and Australian prevalent vehicles.
• OBDII diagnostic connector has a wide compatibility, which don’t need to replace other connector, during the testing.
• Hardware architecture uses new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking.
• Can work stably in high and low temperature environment, and work well.

UCANDAS VDM Software Free Download:

UCANDAS VDM Software Update:

• Step 1: browse www.ucandas.com, click “Downloads”, and select “Product Trials”, select the newest VDM UCANDAS update software, click “Download”.
• Step 2, after finish download “UCANDAS UI UPDATE Vxx”, install it and Launch it after finish installation. ucandas update tool is shown as following icon.
• Step 3, click the yellow icon “Ucandas”, and install the driver for your CP210x USB to UART Bridge device.
• Step 4, connect UCANDAS VDM with computer and car.
• Step 5, Launch “Ucandas”, and click the third icon at the left side to read Hardware version and Software Version.
• Step 6, click “update application” – the fourth icon at the left side, then a window pops up, click “ok” to update.
• Step 7, register personal information by clicking the human head icon.
• Step 8, select the language you get authorized at the upper right corner, then download diagnostic program list with the language installed. Important note: the language is car model software language, not device menu language.
• Step 9, return back to “Update tool”, click operating menu language to reset the language you want, then all language is reset. Only when the car model language matches menu language, the car model can be displayed; otherwise it will have no car model after download.

How To Use UCANDAS:

Please connect VDM to the OBD diagnostic block of the car and the power indicator will then illuminate. The fixed SSID of VDM is UCANDAS. If
you fail to connect the device to Wi-Fi, please set it manually. The VDM wireless icon will come on after you successfully connecting it to Wi-Fi.
Then start UCANDAS software and click the “car diagnose” icon, as shown below:

Click the corresponding auto icon, choose software version, and enter car diagnosis interface, as shown below:

VDM UCANDAS Reviews:

D.Lackey: I saw VDM UCANDAS advertised as better than autocom, it claims one-year free update at official website, and works with newest cars up to 2014.
chanasims: I tested UCANDAS VDM successfully many car models after 2000 year, like 2012 honda cr-v, Jeep, Dodge, a part of cars up to 2014 year. I had problem with Renault Fluence, Saab 93 and Ford, I thought VDM can’t cover these cars, later I learned they are before 2000 year, VDM can’t cover.
hish7am:I installed VDM UCANDAS on Win7 successfully (ukobd2.com claims Windows XP, Windows 7, Windows 8. No WP8/Win8 RT support), easy to install, no need to activate. WIFI connection and Bluetooth supported.
Eve Chenevert: I spent about 209USD, got one, it arrived this week, it came with main unit with OBDII cable, software driver and USB cable, package is very simple compared with Launch X431 and Autel scanner which packed with many adapters.

VDM UCANDAS Customers Feedback:

I have ucandas they recently roll out the 2015 update for GM and it’s very up to date on Ford. I scanned 2014-2015 Fords before with it. Its somewhat ok on SRS.
I have had success with Chrysler 300cc when snap on tool diag car as dpf problem when infact ucandas diag correct as egr, also merc slk airbag it diagnose car good
I got ucandas when first came out and it used to diag nissan very good until i did firmware update, I even have the first disc they sent with tool before they had the online register service.
It’s not a bad scanner…They use to listen to me and take my input.I love the wireless scan..and since they actually listen to me and been adding seat cal for most of the car its gotten better.
They are very outdated on Nissan thought…up to 2011…I have my eye on the GreenDS GDS+ 3, updates for Autel is a B****.

VDM UCANDAS Specifications:

• MCU: ARM7 processor, 66MHz
• Input Voltage: DC 8-18V
• Communication Mode: USB and WIFI
• Storage Temperature: -30 to 120 C(-22 to 248 F), Relative Humidity: <90%
• Operating Temperature: -30 to 120 C(-22 to 248 F), Relative Humidity: <90%
