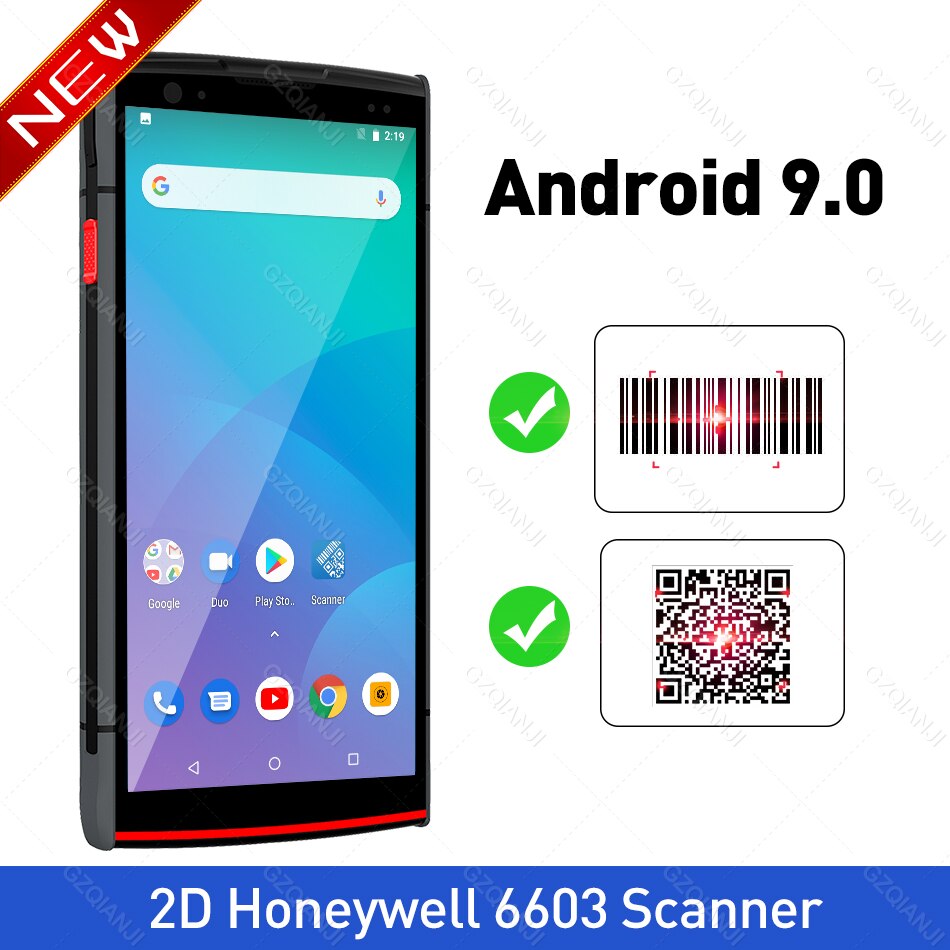

Handheld PDA Android 9.0 Rugged POS Terminal Honeywell 6603 2D Barcode Scanner Reader WiFi 4G Bluetooth NFC PDA
- Shipping:
- Express Shipping Service
Estimated delivery time: 3-15 working days.See details » - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products

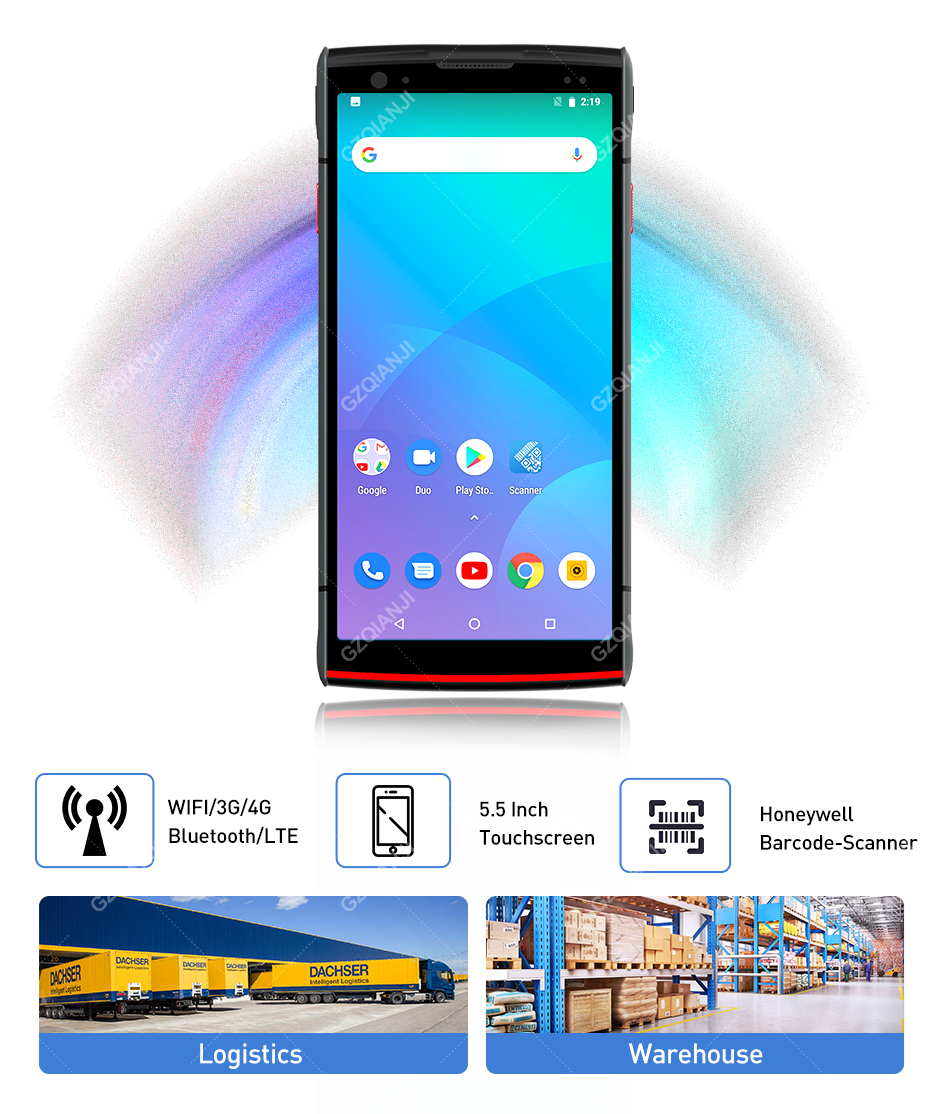

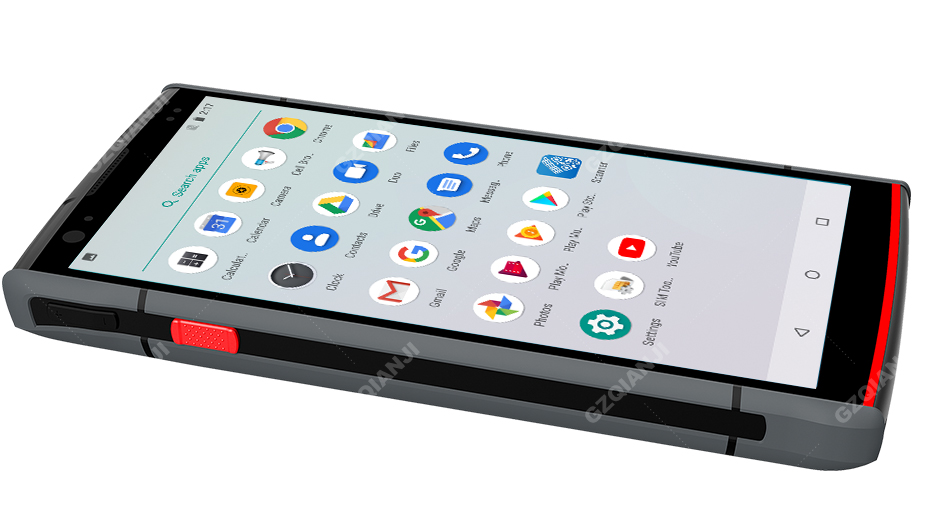

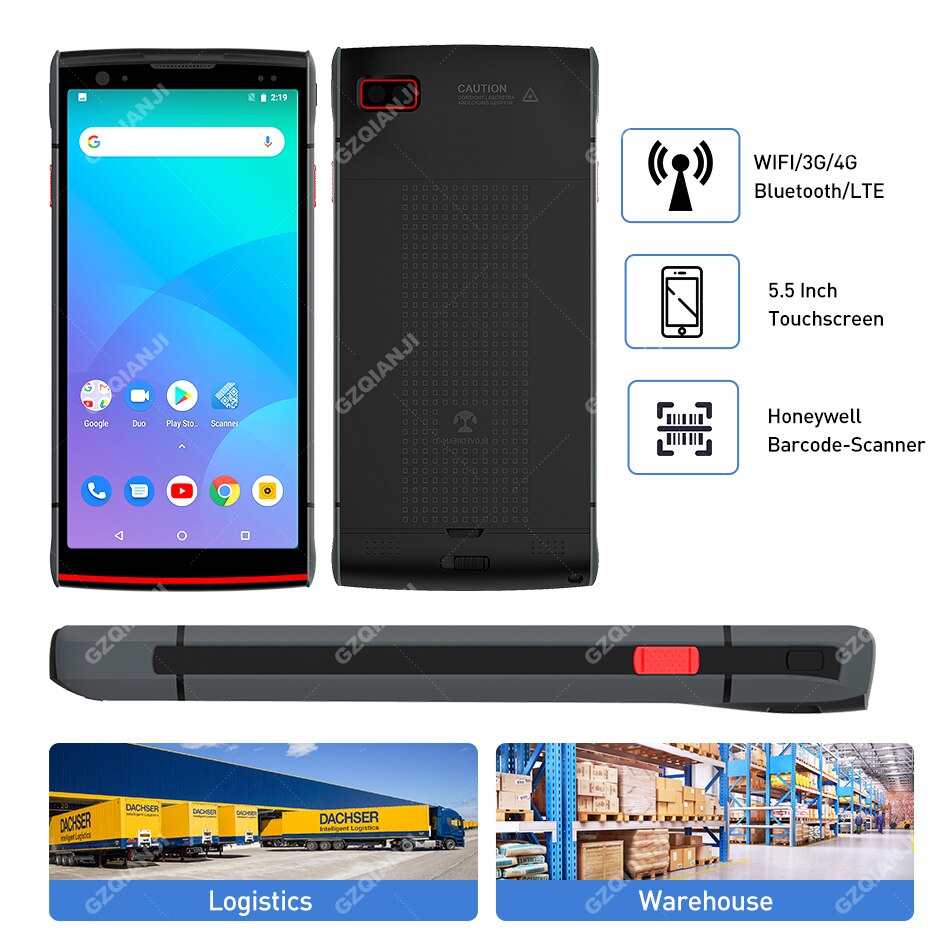

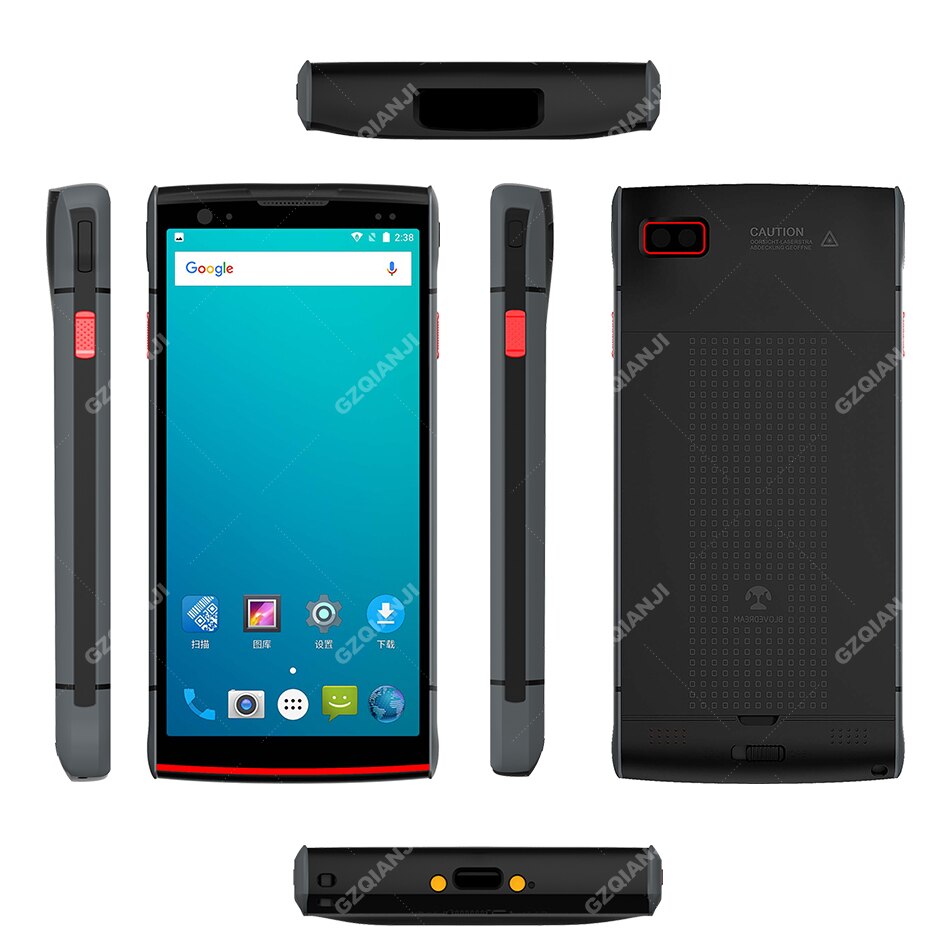

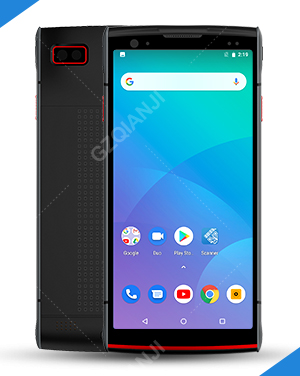

GZPDA10 Android 9.0 Handheld Warehouse Terminal
5.5'' Screen+2G RAM+16GROM+Wifi+Bluetooth2.1+2D Scanner(option)+3G/4G+GPS+Camera
1.5.5 inchIPS 720 * 1440 px with Multi-point touch capacitive screen

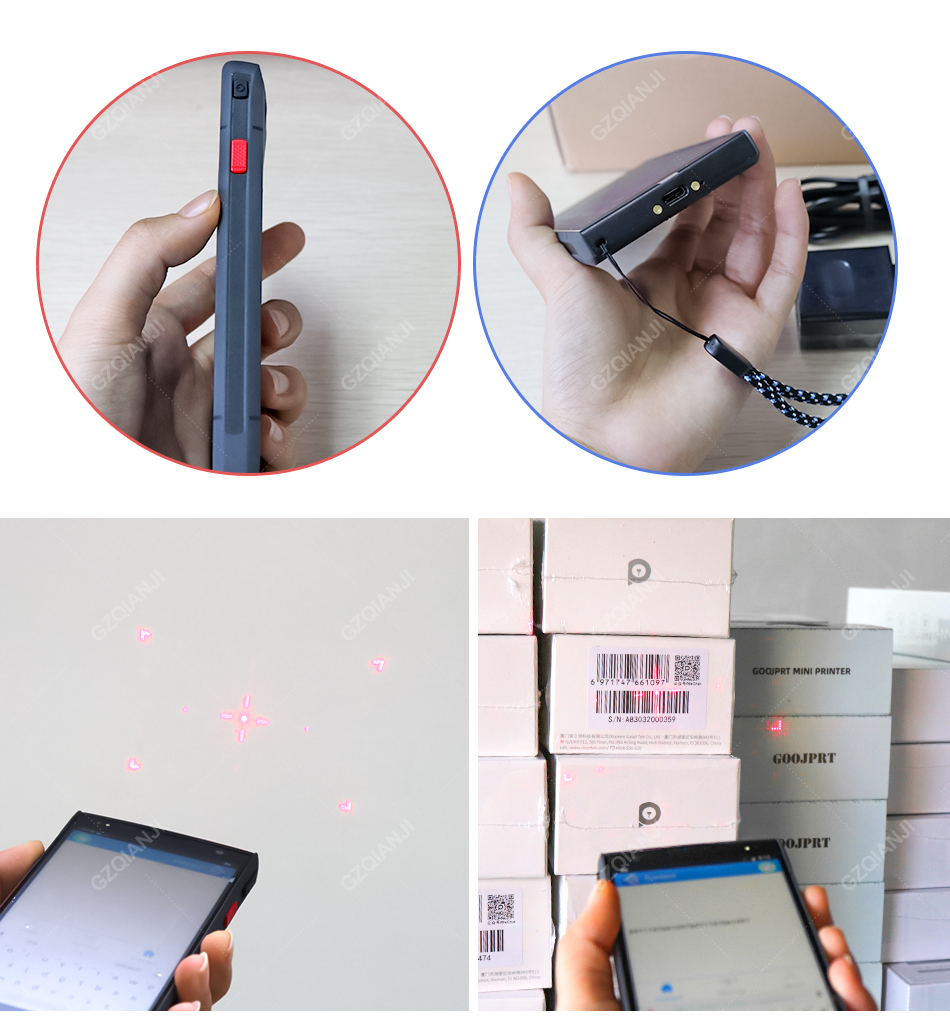

2. Scan wedge function: support scan barcodes wherever you can enter text fields, such as excel, word, URL search box, etc.
3.Thirteen-megapixel camera: can shoot easily to record important information

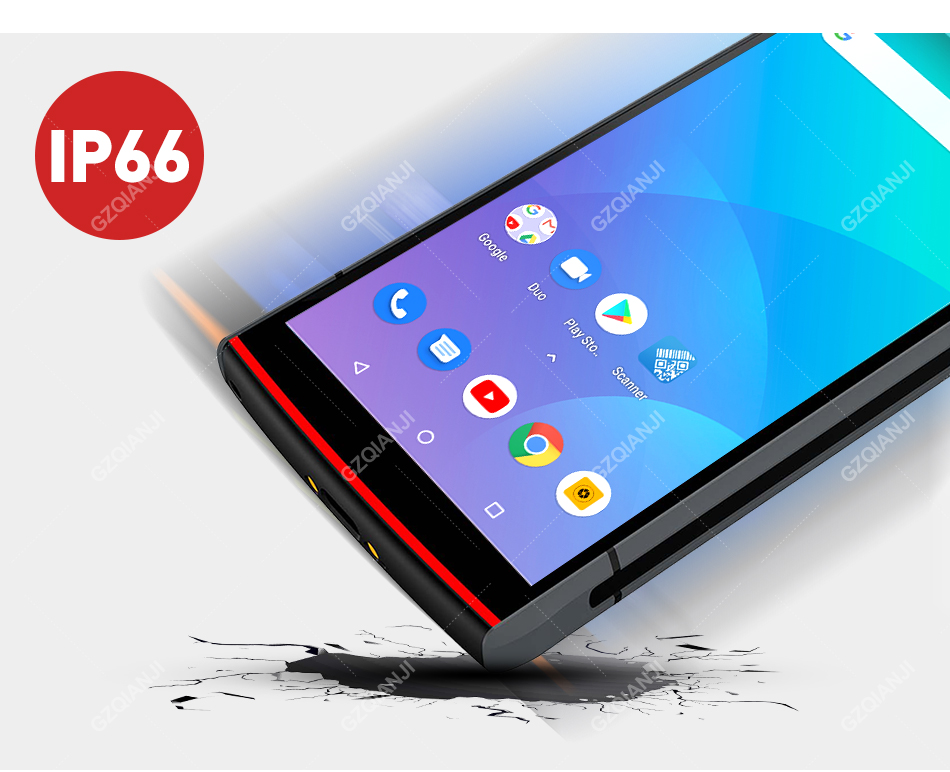

4.Industrial Rugged DesignIP66: Dustproof/ Waterproof, 6 sides can bear impact from 1.5m drop to the cement floor in the range of operating temperature
5. Comes with PDA Charger: Convenient for you to charge the device
6.Free SDK: You can customize your own app with our SDK

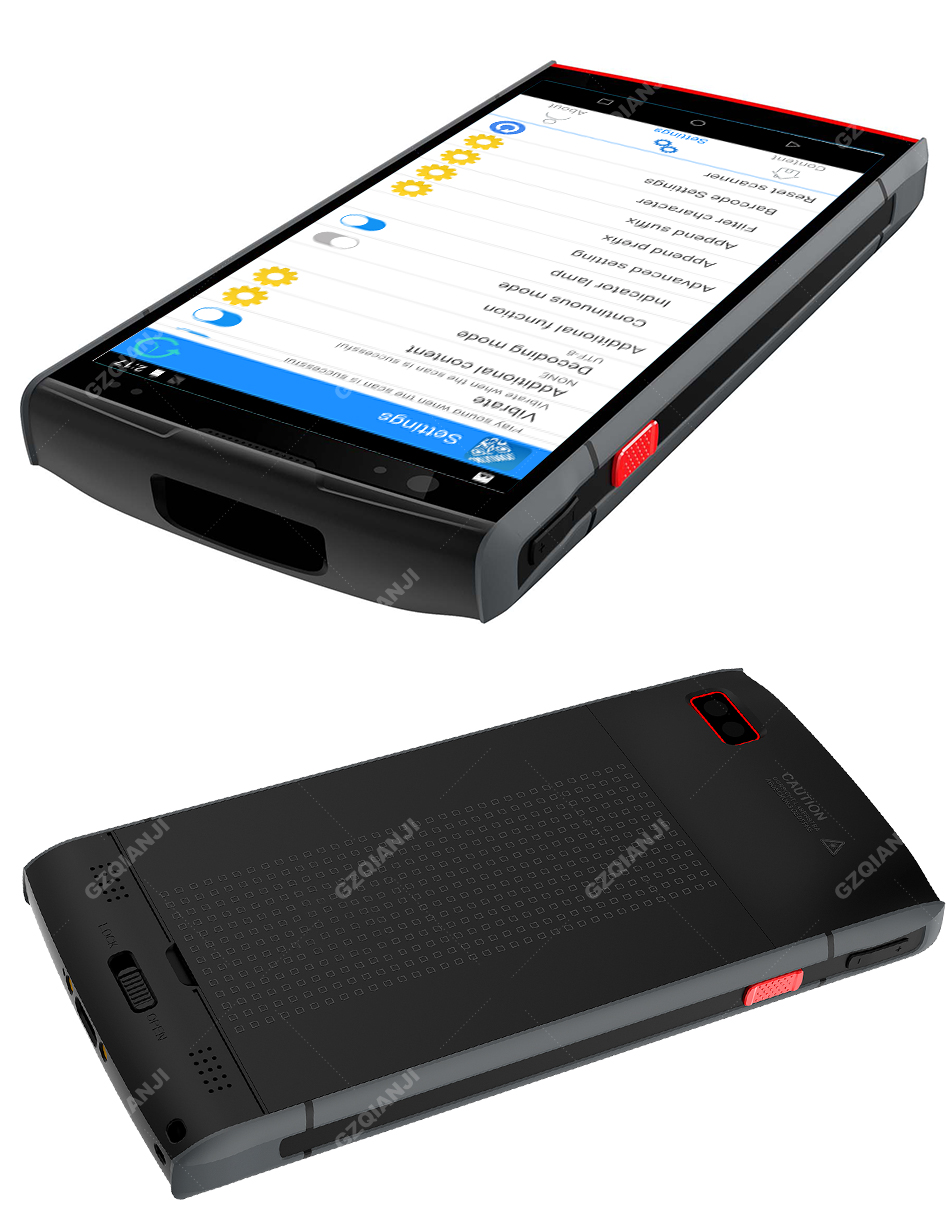

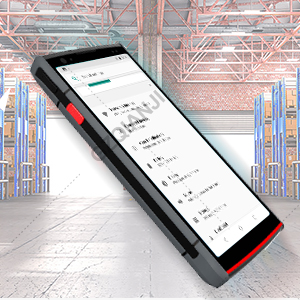

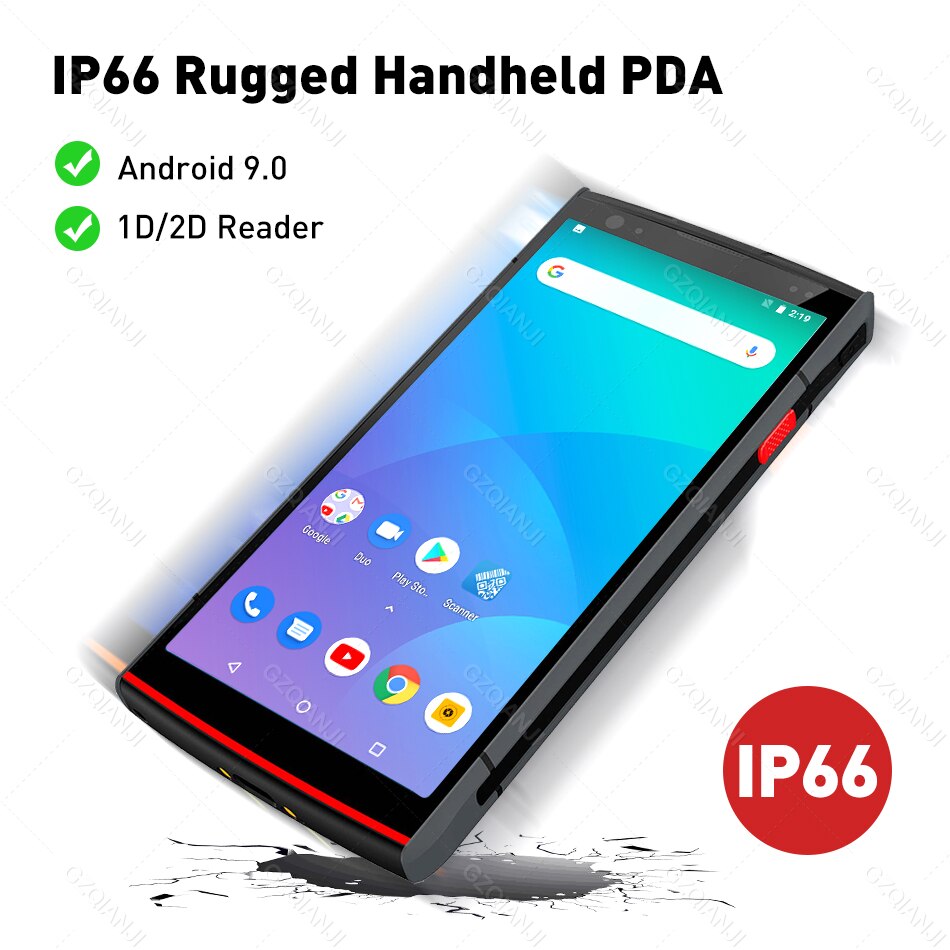

IP66 Rugged PDA Handheld Warehouse Terminal
|
Get your best barcode collector assistant
High-end Configuration 1. OS:Android 9.02. CPU:Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor 3. RAM:2G RAM 4.Flash ROM: Standard 16G NAND Flash Storage 5. Micro SD/TF port(Max up to 32G) 6. Display Screen:5.5-inch IPS color display with a resolution of 720 * 1440 touch screen Interface Type:USB2.0 Device, RS-232(Optional) 7. Battery Capacity:Rechargeable Li-polymer Battery 3.8V 5600 mAh | Built-in 2D Newland/ HoneywellBarcode Scanner1. Accurate and Fast, High Decoding Capability, can read the barcode on the screen2. Sensor Resolution:752(level)x480(vertical)pels(gray level) 3. Ambient Light:All dark 9000ft.candles/96900 lux 4. Focus element (VLD):655nm ± 10nm 5. Support bar code type(1D/2D/QR) 6. 1D:UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS 2D:PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 | Super Endurance Power+ Multiful Wireless Connection1. Whole day’s work-Battery Capacity:Rechargeable Li-polymer Battery 3.8V 5600 mAh2. Support AT&T, offer you high-speed and stable wireless connectivity anywhere anytime, never interrupt your work 3. WI-FI:Support IEEE802.11 a/b/g/n protocol, it need effective wireless LAN signal cover 2G:GSM(850/900/1800/1900MHz) 3G:WCDMA (850/900/1900/2100MHz) 3G:TD-SCDMA(B34/B39) 4G:TDD-LTE(B40) 4G:FDD-LTE (B1/B2/B3/B5/B7/B8/B20) 4. BT:BT 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
6 sides Supports1.2 metersdrops and30 timesto the concrete within the operating temperature.

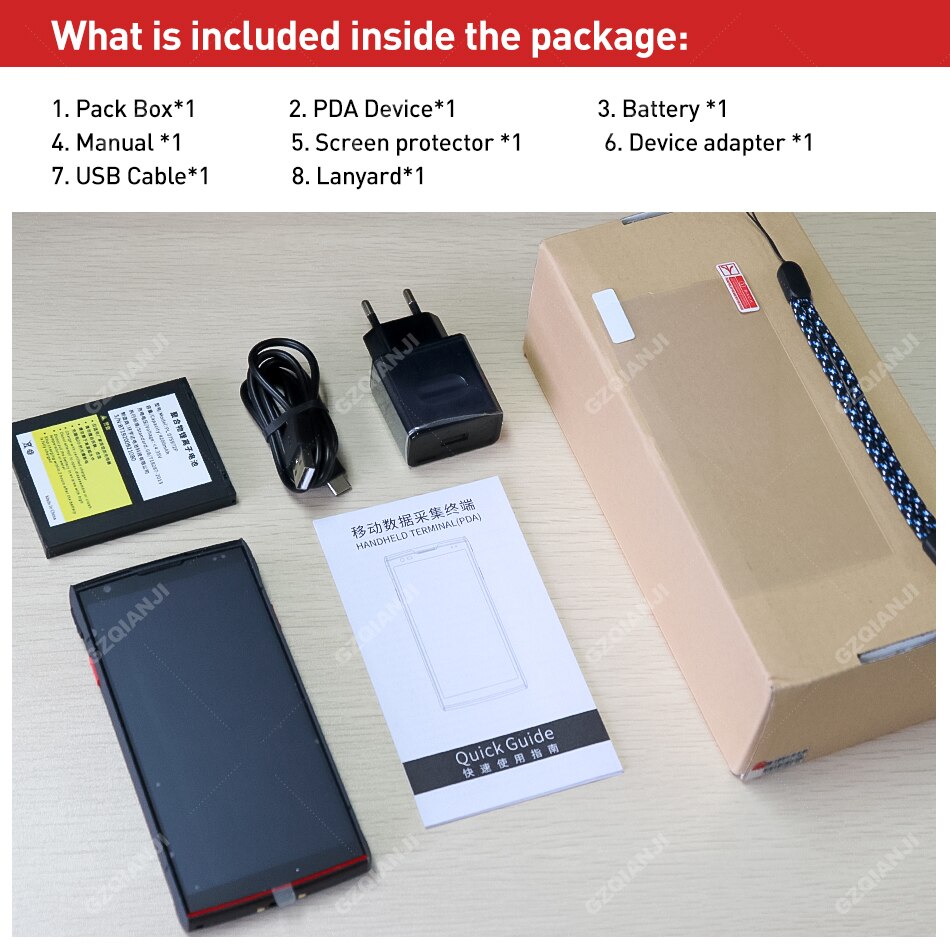

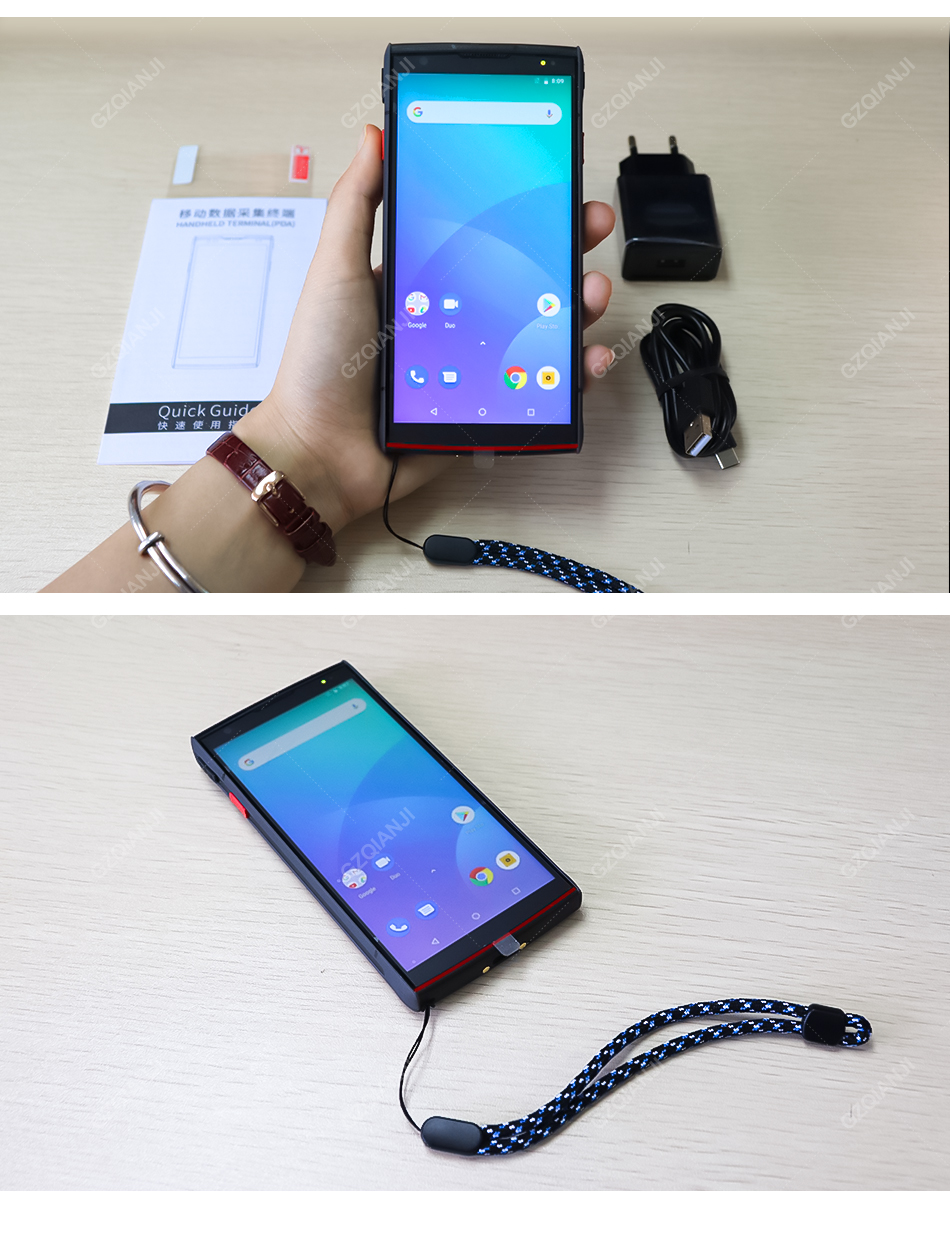

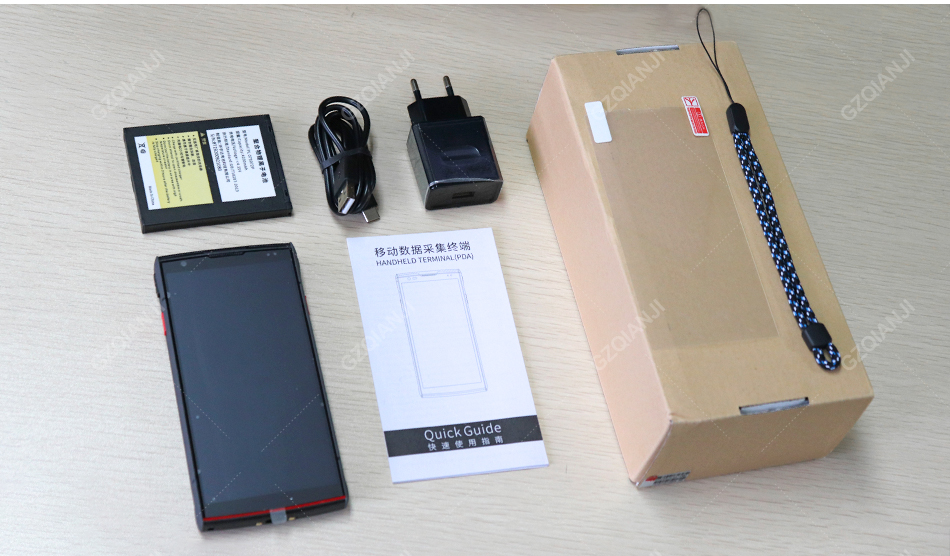

What is included inside the package:
Pack Box*1
PDA Device*1
Battery *1
Manual *1
Screen protector *1
Device adapter *1
USB Cable*1
8. Lanyard*1
Performance |
|
CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor |
RAM+ROM | 2GB+16GB Supports up to 3GB+32GB |
Expand memory | icro SD(TF) Supports up to 128GB |
System | Android 9.0 |
Data communication |
|
WLAN | Dual-band 2.4GHz / 5GHz,Supporting IEEE 802 a/b/g/n/ac protocol |
WWAN | 2G:GSM(850/900/1800/1900mhz) 3G:WCDMA(850/900/1900/2100mhz) 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
Bluetooth | Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters |
GNSS | Support Gps, Galileo, Glonass, Beidou |
Physical parameter |
|

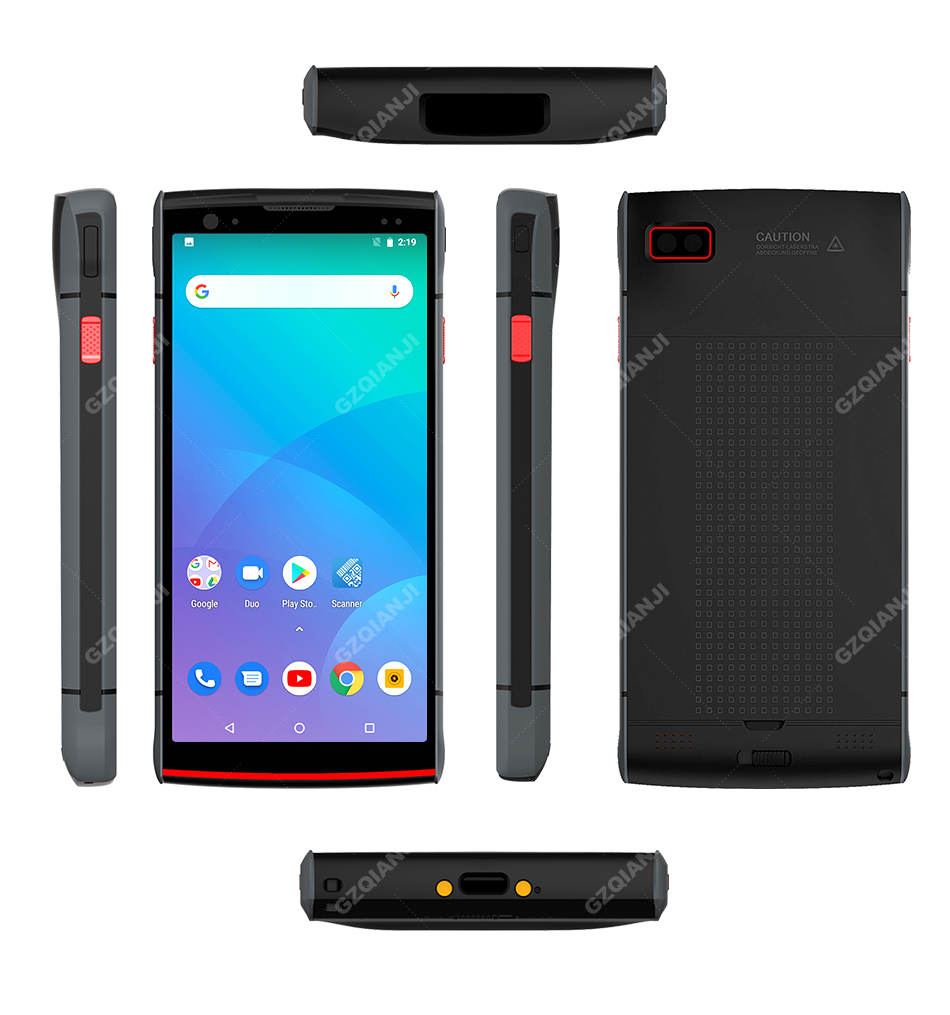

Dimensions | 177mm×72mm×(23.7-48.8)mm |
Weight | <500g (Depends on device function configuration) |
Display | 5.5 inch IPS color display with resolution 720*1440 |
TP | Corning gorilla glass, Supports multi-touch Supported gloves and wet hands |
Battery capacity | Rechargeable polymer battery (3.8V 5600MAh) removable Standby time >350 hours Working time > 12 hours Charging time 3-4H, Using standard power adapter and data cable Fast charging:1.5H(Optional) |
Expansion Card slot | PSAM x 2, Micro SIM card x 1 , TF card × 1 |
Communication interface | Type-C USB x 1, OTG |
Audio | Speaker (mono), Microphone, Earpiece |
Keypad | Silicone button: Power button, Volume +/- button, Scan button × 2 |
Sensors | Gravity sensor, Light sensor, Proximity sensor, Vibration motor |
Data collection |
|
Barcode scanning (Optional) |
|

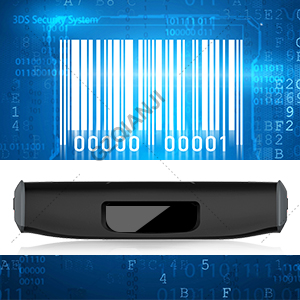

2D Imager scanner | NewlandE483 / Honeywell N3601/ Honeywell N6603 |
1D Symbologies | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93,ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |
2D | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, |
Symbologies | Maxicode,Hanxin Code,etc. |
Camera |
|

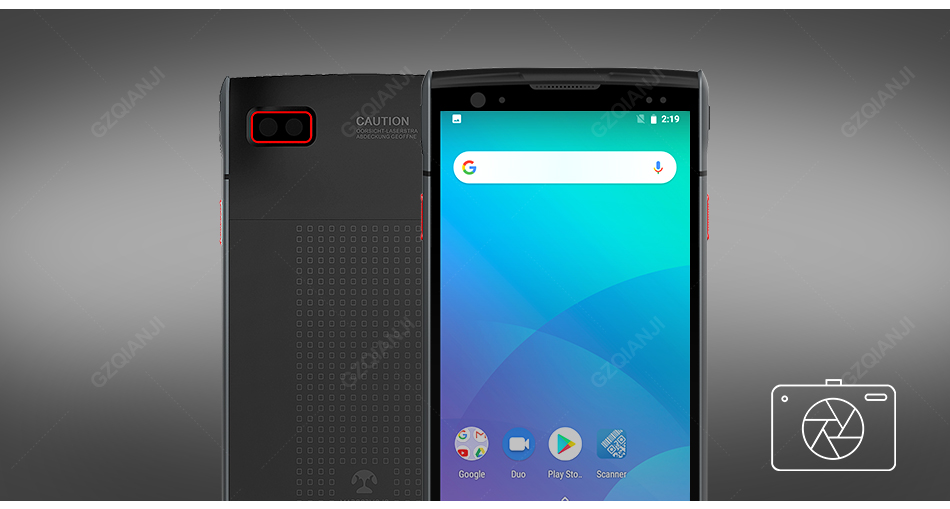

Rear camera | 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
Front camera | 2MP color camera |
NFC (optional) |
|
Frequency | 13.56MHz |
Protocol | Support ISO14443A/B, 15693 agreement |
Distance | 2cm-5cm |
Language/input method |
|
Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. |
User environment |
|

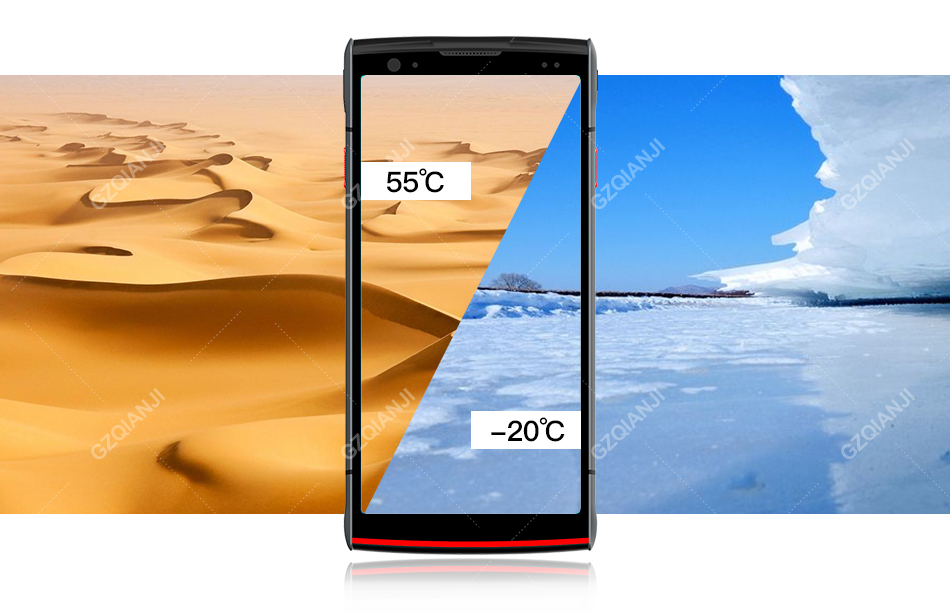

Operating temperature | -20℃ - 55℃ |
Storage temperature | -40℃ - 70℃ |
Environment humidity | 5%RH--95%RH(no condensation) |
Drop specification | 6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Rolling test | 500×0.5m rolling for 6 sides |
Sealing | IP66 |
Accessories |
|
Standard | Adapter, Data cable, Protective film Instruction manual, USB cable |
