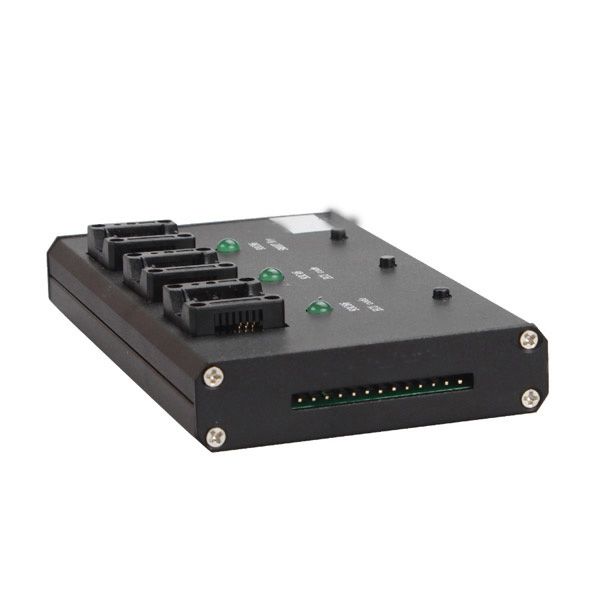

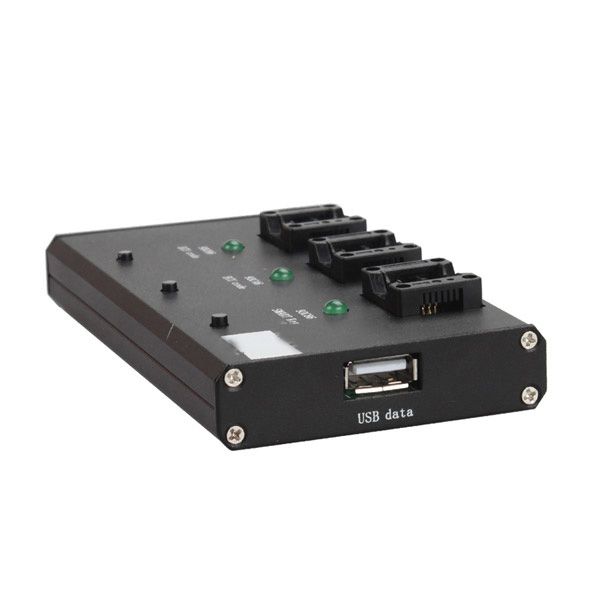

G Chip and Smart Key Maker with Chip Adapter for Toyota and Lexus

G Chip and Smart Key Maker with Chip Adapter for Toyota and Lexus is a 2 in 1 Key Programmer for Toyota G chip and Lexus smart card, no need installing driver software. It support all key lost and can increase 1-3 keys, it is secure and stable for matching new keys for toyota and lexus smart card.

It has chip adapter in the package, no need wire the chip on to the programmer, can directly place it on the chip adapter for key programming.

Please try to use ordinary programmer to read 93C66/93C46/93C86 data, save the following way operation.

1. Remove the ECU security module, installed in the 93C66 eeprom IC programmer Toyota models corresponding to the transposition.

2. Connect the USB cable to the computer, and then switch to the features Toyota-G position, you can see the relative position of 93C66 the indicator light flashes slowly into the state.

3. Now click on the relative position of the touch switch, indicator light starts to flash at the moment, a few seconds after the light is off, the operation was successful.

4. Replace the 93C66 ECU security module, replace the vehicle anti-theft module is inserted after the first key, anti-theft module indicator light turns off remove the key, and then insert the second key, anti-theft module can be directly after indicator goes out to start the vehicle, completely not synchronous operation, convenient and quick.

Note: a match one IC, regardless of the order, do not leave the key sensing area

1. The ECU IMMO module removed, the 93C46 eeprom IC programmer installed in Toyota models corresponding to the transposition

2. Connect the USB cable to the computer, and then switch to Lexus Key functional position, you can see the relative position of 93C46 LED flashes slowly into the state, put the key into the induction circle

3. Click on the relative position of the touch switch, indicator light starts to flash at the moment, a few seconds after the light is off, initialization is successful. Replace the eeprom IC ECUsecurity module, replace the vehicle anti-theft module

State: Z type machine simply IC pin cleaned with alcohol placed within the transposon, H-type machine choose the IC solder pads on the corresponding

1pc x G Chip and Smart Key Maker with Chip Adapter for Toyota and Lexus

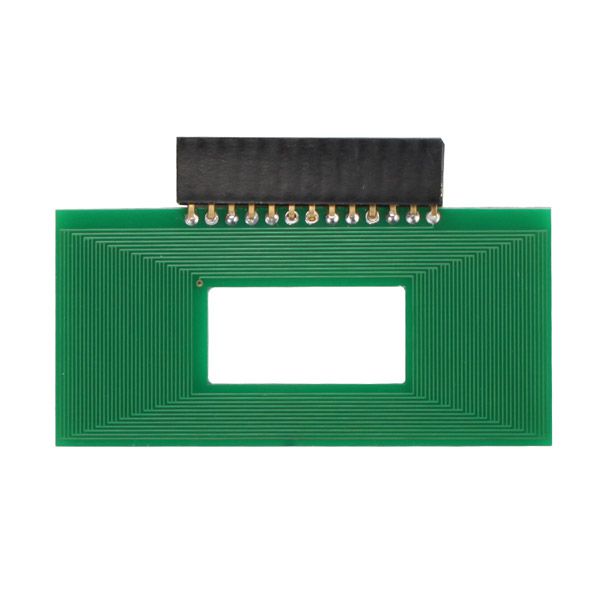

1pc x Chip Adapter

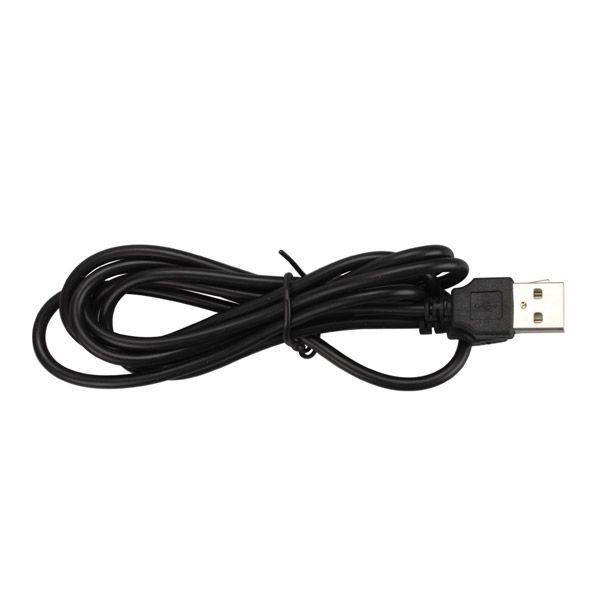

1pc x USB Cable
