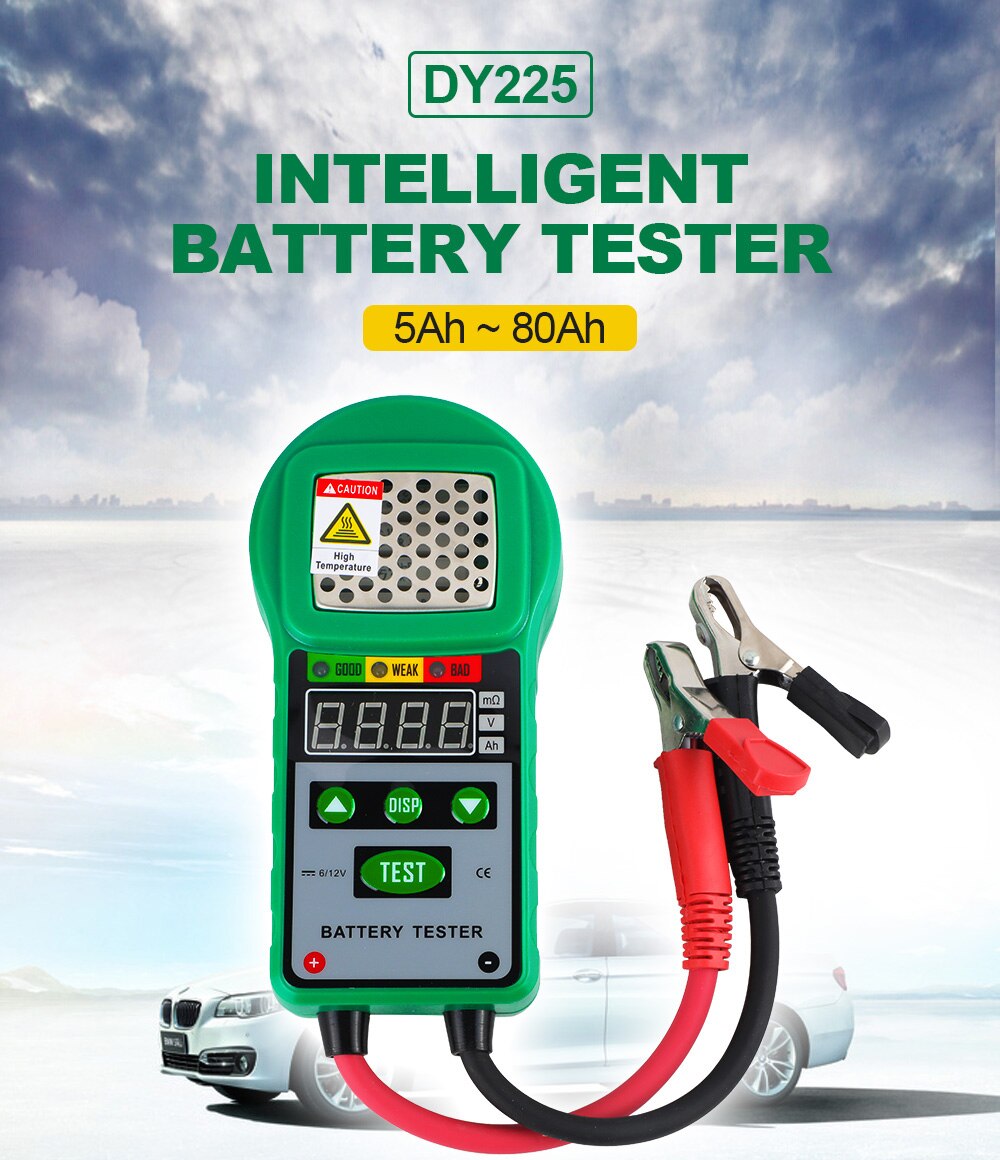

DY225 3 In 1 Electric Vehicles Battery Tester 6V 12V DC Power Load Starting Charge UPS Test Tool Battery Capacity Tester

DY226 3 In 1 Electric Vehicles Battery Tester 6V 12V DC Power Load Starting Charge UPS Test Tool Battery Capacity Tester

The instrument can quickly, simply, accurately and reliably judge the no-load energy, the on-load condition,the internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid accumulator.

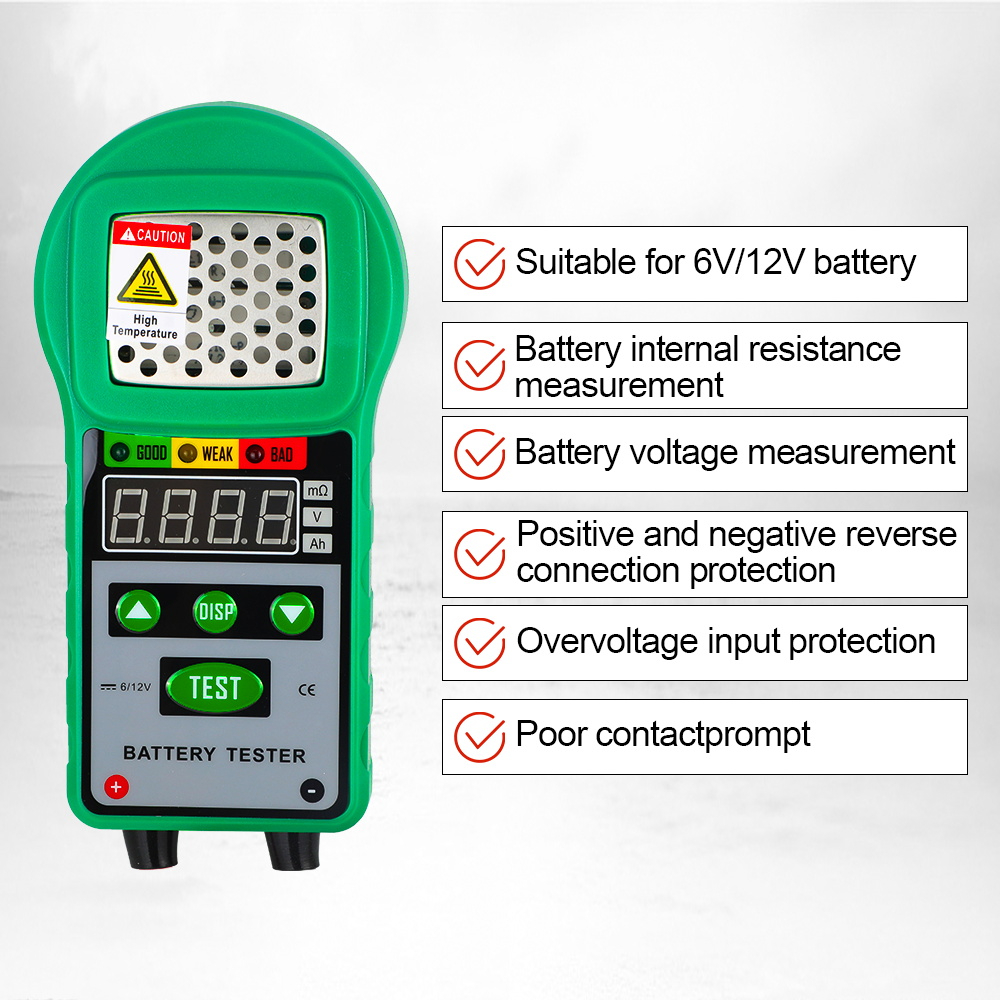

Features

1. Full protection intelligent detection

2. Battery internal resistance data synchronization detection

3. Anti-burn/anti-reverse connection/temperature protection

4. Three-color LED indicator light

5. Test results automatically keep data

6. Battery Condition Test

7. Charging system detection

8. The load test current is about 20 amps

9. Test battery capacity 5- 80Ah

application

• Electric vehicle battery

• UPS battery

• Solar energy storage battery

• Automotive battery

• Marine battery

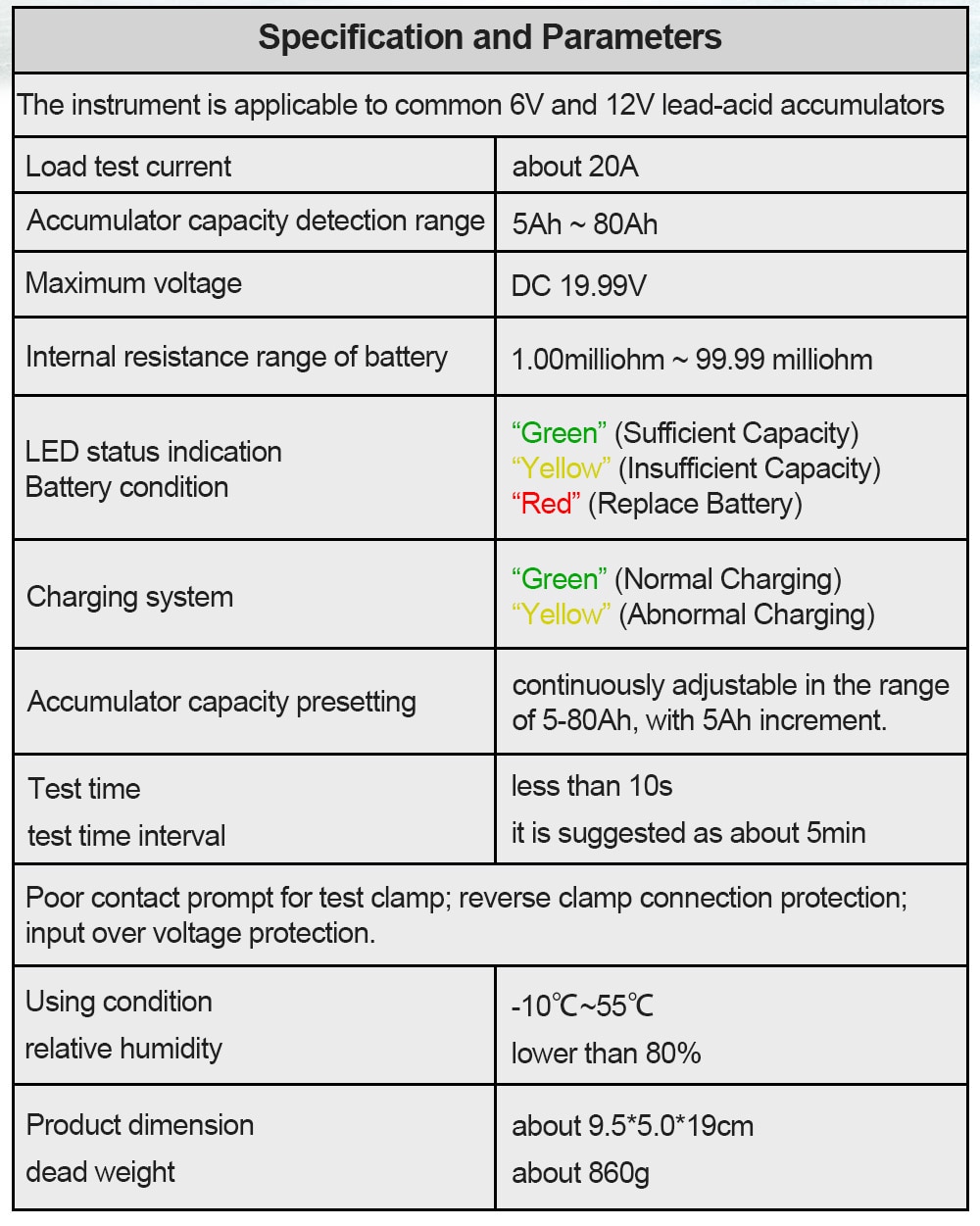

Specification and Parameters:
1. The instrument is applicable to common 6V and 12V lead-acid accumulators.
2. Load test current: about 20A.
3. Accumulator capacity detection range: 5Ah ~ 80Ah.
4. Maximum voltage: DC 19.99V.
5. Internal resistance range of battery: 1.00milliohm ~ 99.99 milliohm.

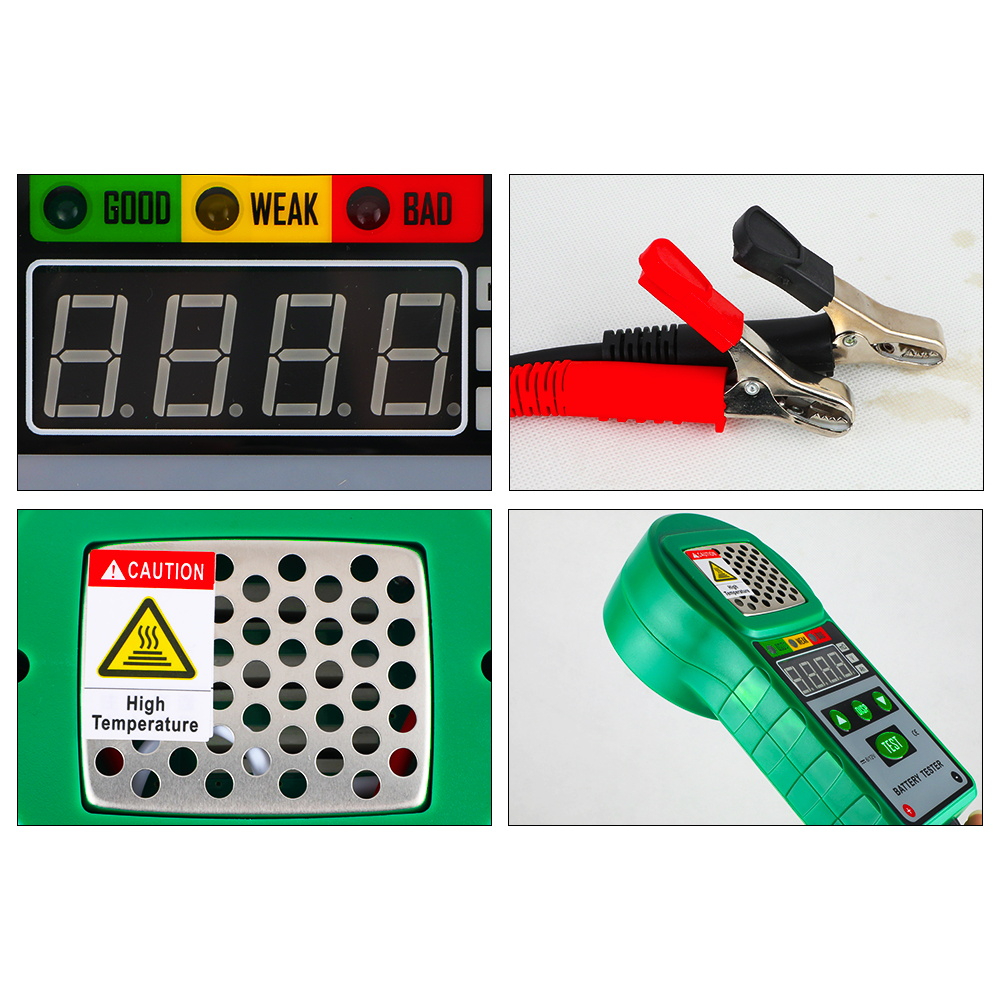

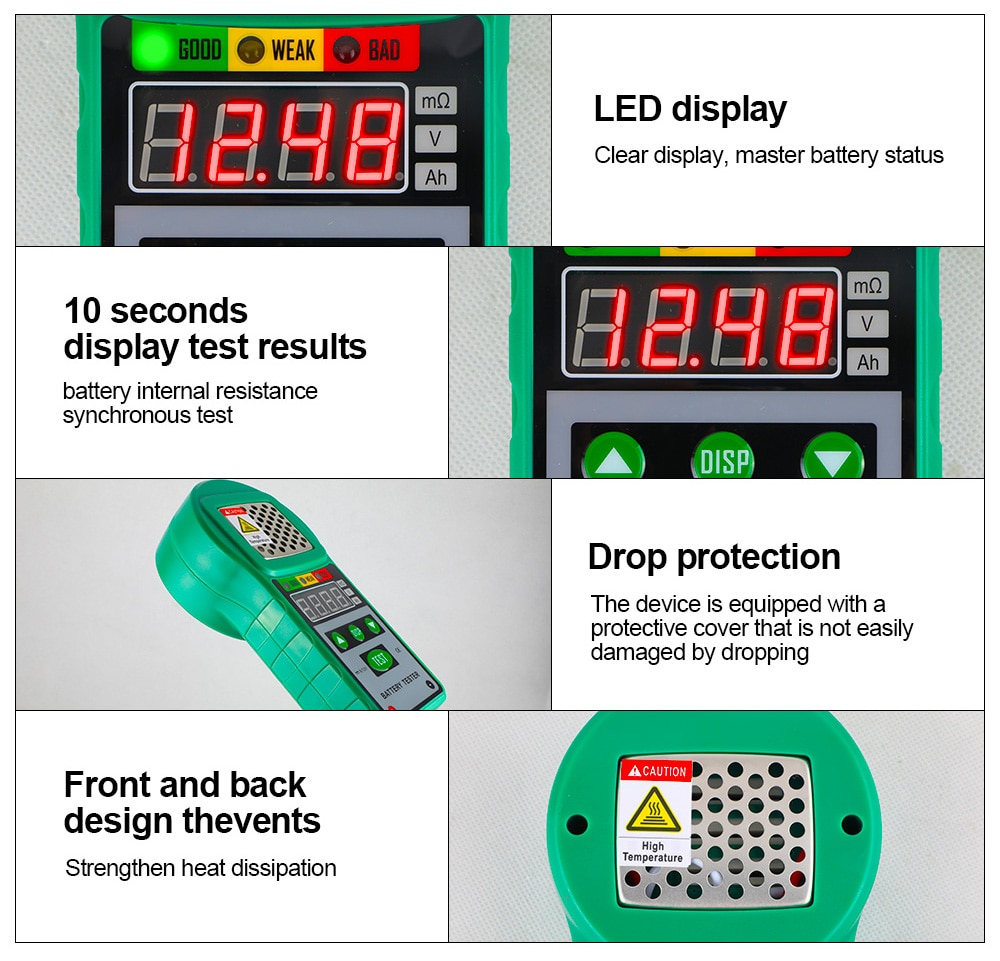

The instrument shell is made of solid ABS engineering materials, and the load heating simulation part is up and down installed with stainless steel porous plate, and the fan is configured to strengthen heat dissipation in order to make the test process more stable and more reliable. The test line part is composed of thick pure copper test wire, and is also configured with four-wire Kelvin test clamp for connection. The test sampling data are directly sampled from the outgoing terminal of the battery in order to really recover the battery working condition in the battery working process and make the test result more accurate. 4-wires internal resistance test, 4 digits display for clear reading .

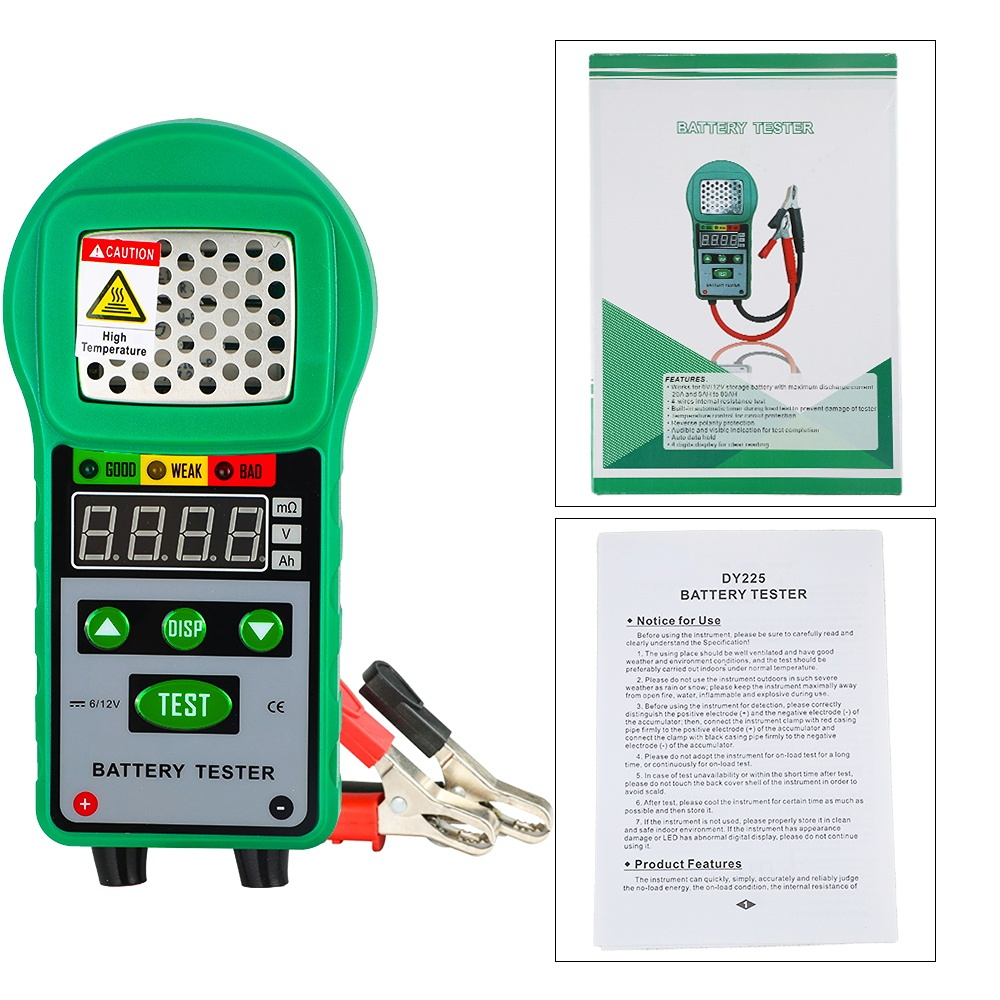

PRODUCT DETAIL PRESENTATIONPacking list:

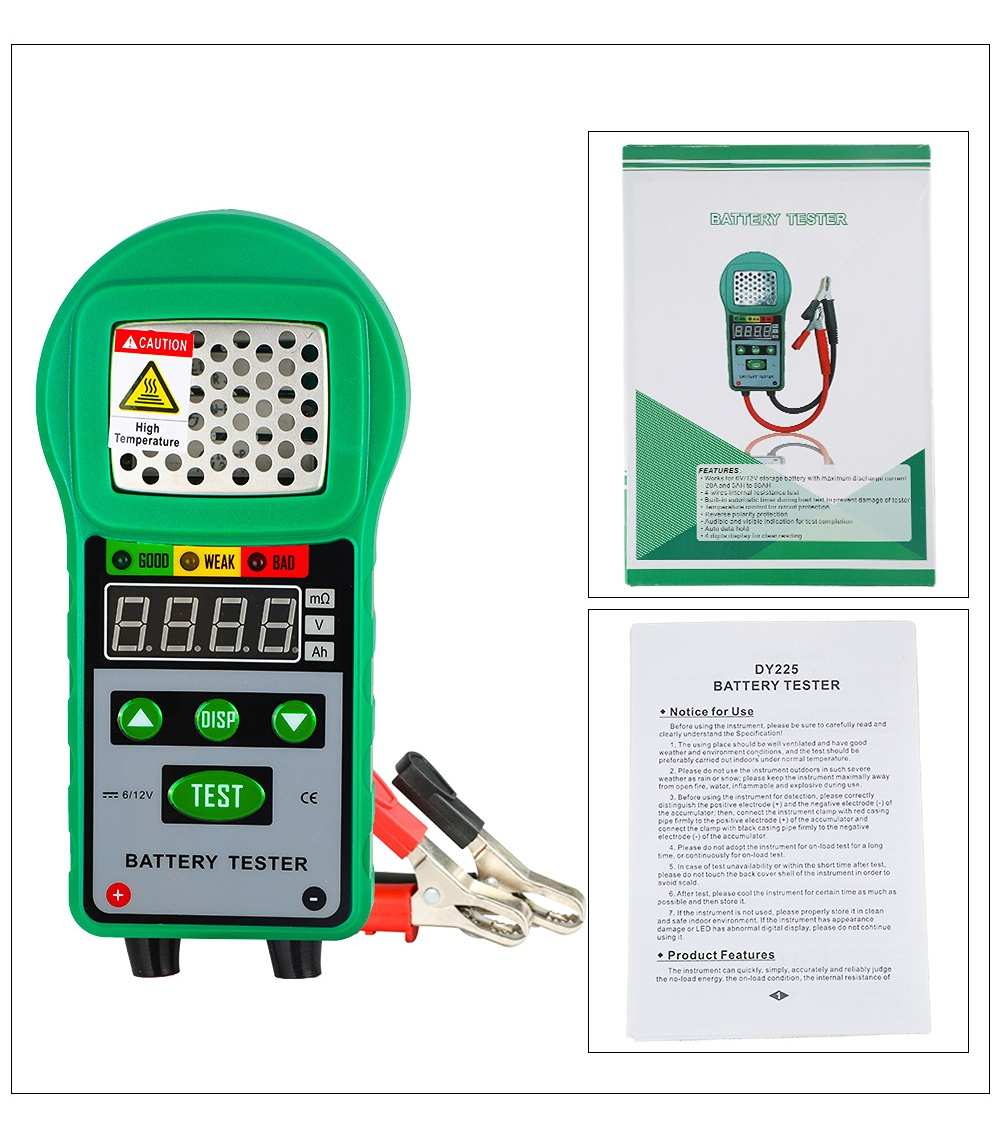

1x Battery tester
1x Manual (in English)
