BM560 6V 12V Car Motorcycle Battery Tester 100-2000CCA Battery System Analyzer Charging Cranking Test Tools PK BM550

BM560 is a 6V 12V battery tester that can quickly and accurately check the health of the battery. Equipped with a 1.8-inch color screen.

BM560 battery Tester support startup test, charging test, load test, Ripple test, Voltage waveform test, reverse protection, Screenshots function, Lifetime Free upgrade, to meet your basic battery test needs.

1. BM560 Battery tester with 1.8inch HD Screen.

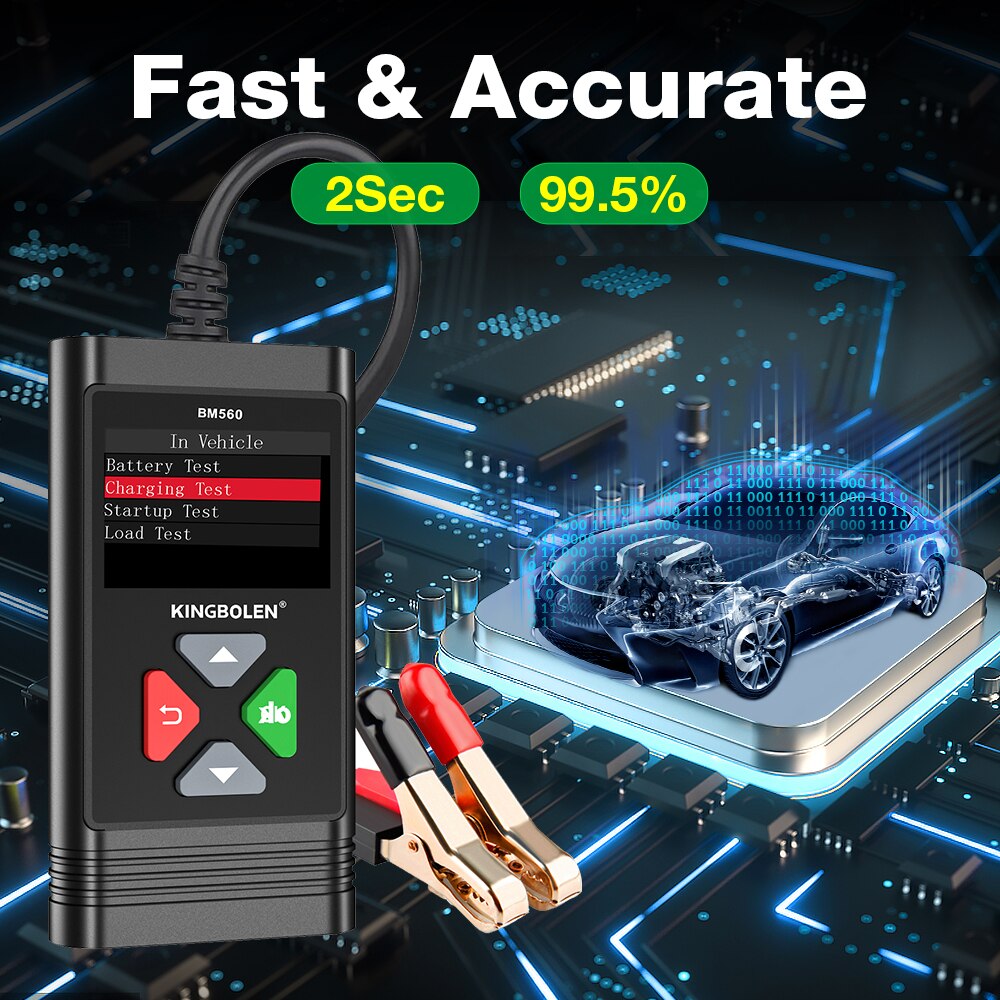

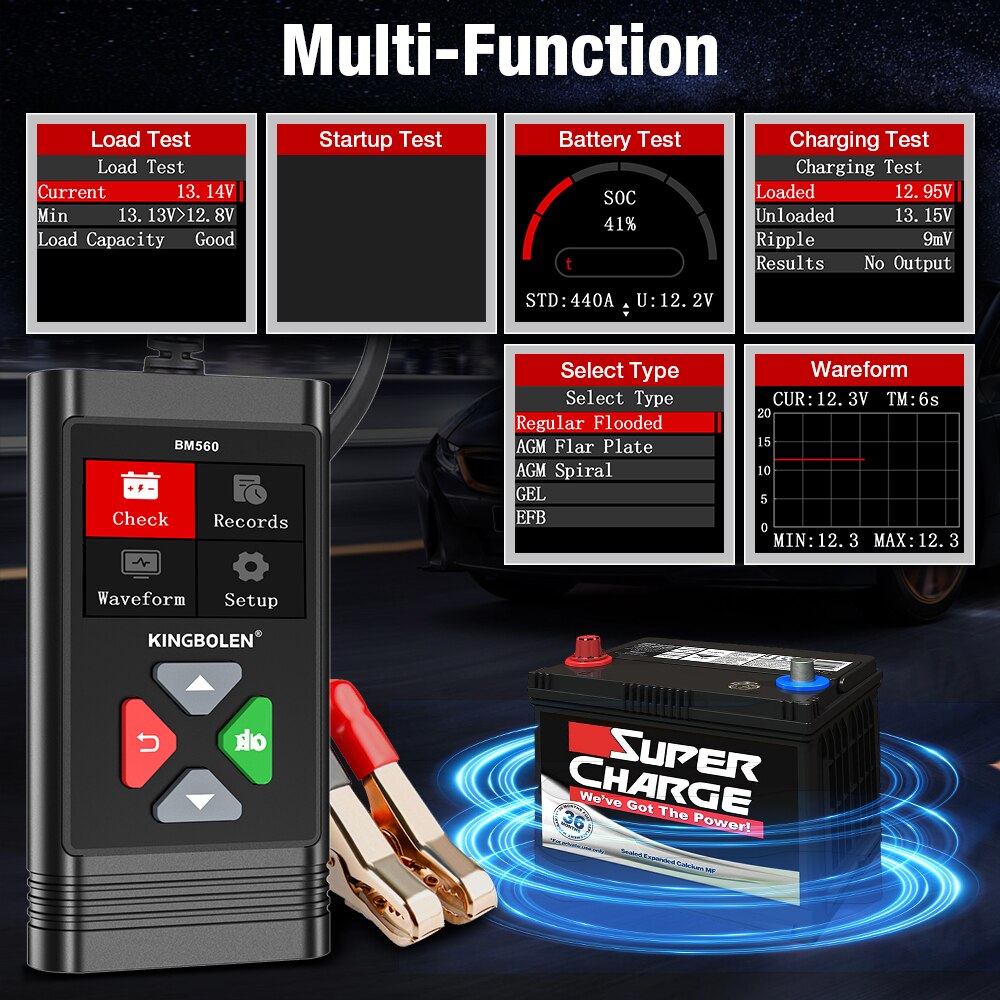

2. BM560 support multiple test functions: battery health test, Startup Test, charging testing, cranking testing and load test. Ripple test, Voltage waveform monitoring, 10Pcs Waveform Record.

3. BM560 Waveform Monitoring Function: Enter the waveform monitoring interface, you can monitor the voltage fluctuation in real time, and the device will automatically save the record

4. BM560 Reverse Polarity Protection Function: High quality copper clip with reverse polarity protection and spark protection, even if you accidentally reverse the positive and negative poles, it will not cause damage to the battery and battery detection tool.

5. BM560 support review last time data: BM560 can view the data of the last battery check. You can compare the data of this time with the data of the last time to understand the recent battery usage.

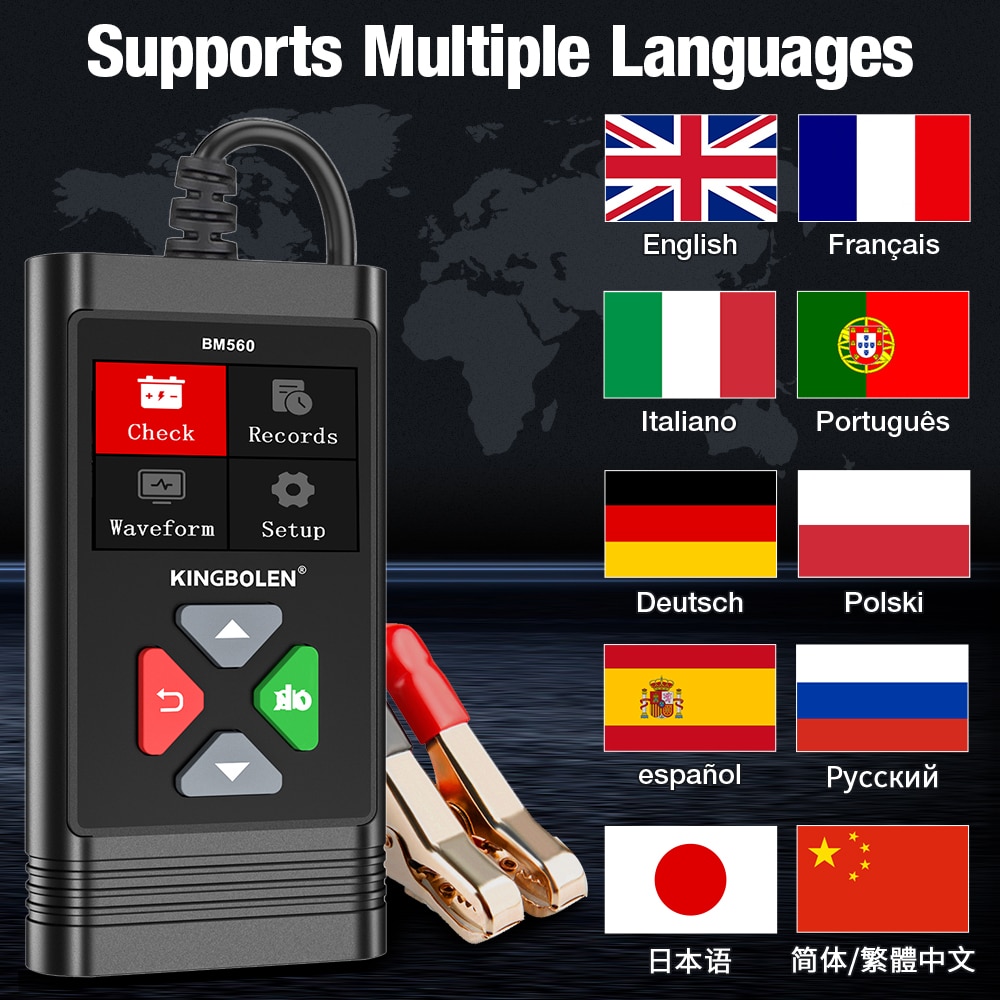

6. BM560 Support multi-language: Russian, Portuguese, English, German, French, Spanish, Italian, Japanese, Polish, Simplified Chinese, Traditional Chinese.

7. BM560 Support a variety of batteries: For regular Battery, AGM flat plate, AGM spiral, GEL and deep cycle batteries.

8. BM560 Support 6V 12V batteries: BM560 car battery tester can work on all 6V and 12V 100-2000 CCA 2AH-220AH batteries, can detect cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts.

9. BM560 Support 10 standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE GB.

10. Easy to carry: The BM560 as big as a slap can be carried with you to monitor your battery status at any time

11. BM560 supports lifetime free update and view screenshot test data.

High-quality product and service, whether you own your personal mechanic shop or private owner, you’ll fall in love with this battery analyzer!

Portuguese, Russian, English, German, Spanish, French, Italian, Japanese, Polish, Simplified Chinese, Traditional Chinese

for 6V 12V battery

battery type, Regular Flooded, AGM Flat Plate, AGM Spiral, EFB battery, GEL battery

Life / Voltage / CCA / Internal resistance

Tell if the battery is in good working condition

The cranking test is used to test and analyze the actual required cranking current and cranking voltage to check the starting motor works properly or not. The test result displays cranking time, voltage, and status.

If the stating malfunction may cause an increased starting loaded torque; or rotor friction of the starting motor generates increasing friction of the starting motor itself.

Check whether the battery has enough load capacity to run all electrical equipment such as playing car music etc.

This handy auto battery analyzer makes sure your summer road trips won’t end on a flat.

Charging test is used to check and analyze the charging system (generator, rectifier, rectifier diode, etc.) status, displays load voltage, unloaded voltage, ripple status, charging system status, thus to find out whether the output voltage of the generator is normal, the rectifier diode works properly or not, which avoids damaging the battery and shortening its life greatly due to overcharging or incomplete charging.

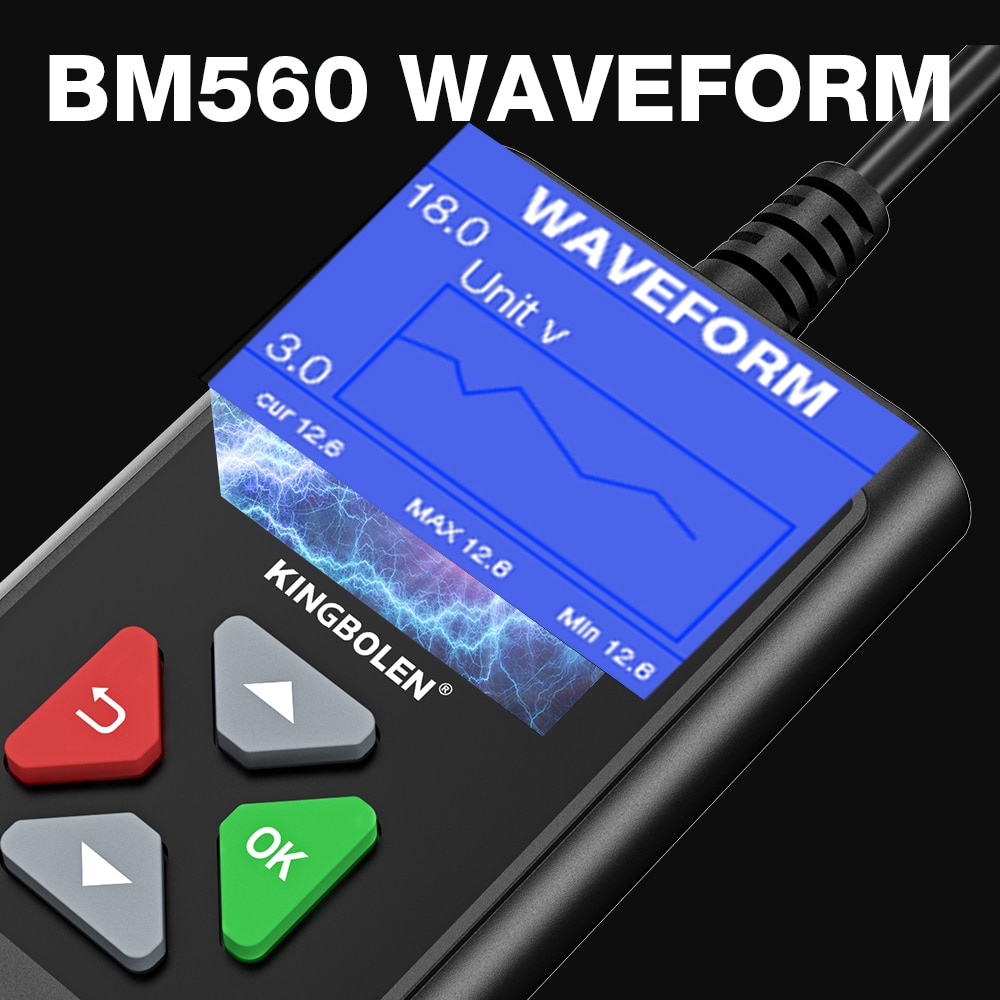

Monitor the battery status in real time, understand the current floating size of the battery voltage, and have automatic storage and playback functions.

Displayed voltage readings in a chart to better analyzing the status of your car battery! You could playback the waveform in the tester or upload it to the computer for more precise analysis.

High quality copper clip with reverse polarity protection and spark protection, even if you accidentally reverse the positive and negative poles, it will not cause damage to the battery and battery detection tool.

Long press the "Up" and "Down" buttons to store up to 10 pictures, which are used to collect and save important data quickly and easily.

Before using the print data function, it is necessary to connect the tool to a computer via the USB cable. Once ready, please insert the CD to the computer.

BM560 support lifetime free update and View Screenshot test data.

You can upload the last test result and multiple waveform graphs of voltage value change, then print them out, which is easier to analyze the battery health state. It supports Windows, Mac, Linux and Android operating systems.

Whether it's a battery in or out of the car, the BM560 does the test job well, and its compact size lets you take it anywhere you want.

BM560 Battery Tester is extremely low power and won’t discharge the battery. Because of its menu-driven operation, it is quite simple to use. And the premium-quality copper clamps feature polarity reverse protection and spark proof, if cables are inadvertently connected for a stable and safe connection in testing process.

It has a one-click screen capture function, which is used to capture and save important data, fast and convenient. (Note: The device can store up to 10 pictures)

* Long press the Up/Down button to take screenshot
* Long press the Return Key to Return to the main interface

High-definition TFT LCD screen display, will not appear ordinary LCD lack of characters and broken strokes, etc., with backlight function.

It supports a variety of battery standards around the world, can test almost all car start-up lead-acid batteries, and has a wide range of applications.

●EPS lead-acid battery;
●Car start battery;
●AGM / EFB start-stop battery ;
●Electric vehicle battery ;
●UPS lead-acid battery ;
●Gel battery

Note: UPS battery/electric vehicle battery/motorcycle battery can only measure internal resistance/power/voltage, not battery life.

Geometry supports all current common battery standards, and a wide range of tests can meet your various needs.
●CCA (100 - 2000 )
●IEC (100 - 1400 )
●EN (100 - 2000 )
●DIN (100 - 1400 )
●CA (100 - 2000 )
●BCI (100 - 2000 )
●MCA (100 - 2000 )
●SAE (100 - 2000 )
●GB (2AH - 220AH ) Important breakthrough
●JIS (26A17 - 245H52 )

Exquisite industrial manufacturing, Stylish personality.

【Non-slip Design】Conducive to one-handed operation.

【Integrated Line Machine Design】The interface is stable to prevent falling off and loss, and the wire is strong and not easy to break.

【Physical Button】 Fast response and Excellent finger feeling.

【Alligator Clip】Pure copper plating, large opening range, strong bite force.

【high-quality wire】Selected high-quality environmentally friendly materials, good elasticity, not easy to break, tough and durable.

* Models: BM560
* Product Size: 4.72x2.56x0.79 inch
* Connection Method: Big Bite force clip
* Screen Size: 1.8 inch TFT Color Screen
* Test Range: 6V/12V
* Operating VOltage: 5~20V
* Operating Temperature: -20°C~65°C
* Product Material: PVC Industrial Material

(PS. all data are measured in the laboratory with reasonable erroes, please refer to the actual product.)

1pc * Packaging Box
1pc * BM560 Battery Tester With Alligator Clip
1pc * English User Manual
