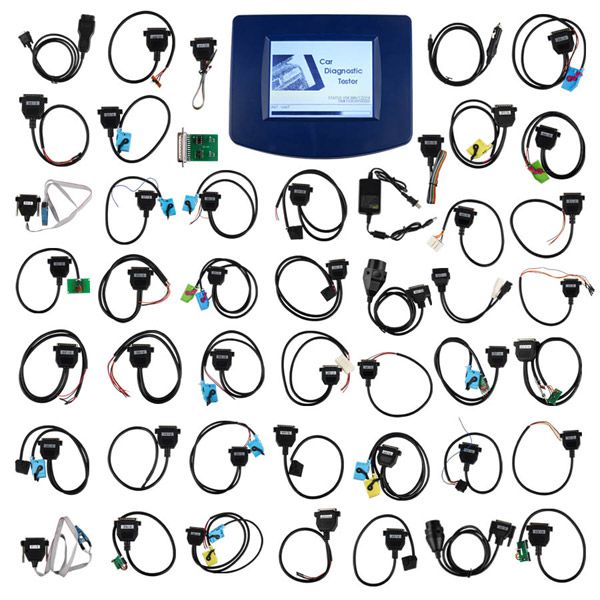

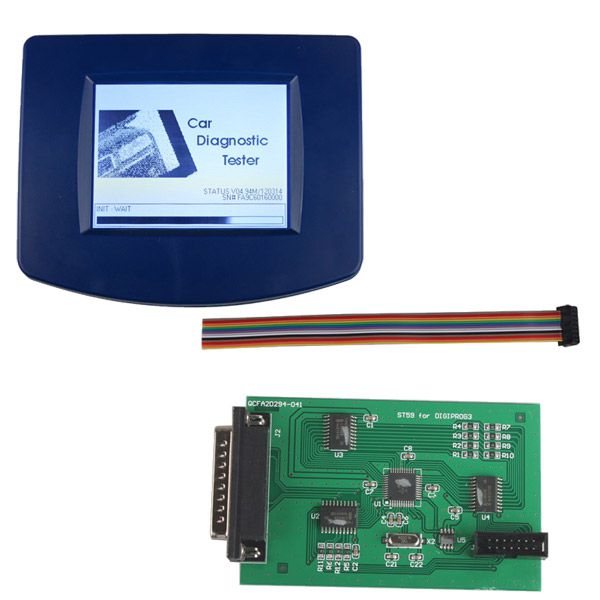

Cheapest V4.94 Digiprog III Digiprog3 Odometer Master Programmer Entire Kit with ST59 Plug

The first option on the main menu is the Eeprom menu. Reading, writing and saving Eeprom information is all done using this menu. A more detailed guide to using this menu follows later on in the introduction.

This is the menu you will use for correcting and reprogramming vehicles. Manufacturers are set out in alphabetical order and models of vehicles are set out in a simple sub-menu format.

This menu is the same as the CAR/TRUCK menu but is used for reprogramming motorcycles.

The special functions menu is for use only by official DigiProg dealers.

This menu is where settings on your DigiProg can be changed. Language, password, brightness, volume, and the time/date can all be set and changed in this menu. You can also change whether your machine is working in kilometres or miles.

On some of the vehicles you will come across, an eight pin Eeprom chip will be used to store the vehicle data. These chips hold vital information from the vehicle such as ignition and immobiliser codes. Loss of this information could result in anything from minor faults, to major faults involving the vehicle not starting and having to be taken to the main dealer. This is why it is very important to read and save the original information from the Eeprom before programming, this way if any errors do occur you can always return to the point you started.

The process of reading and saving this information is very simple. The Eeprom chip itself will have a mask number printed across the top of it, for example a widely used chip is a 93C46. You can connect the chip to your DigiProg by using adaptor ST01 or ST04. Most chips are surface mount eeproms which will use ST01, but the larger DIL chips will use ST04.

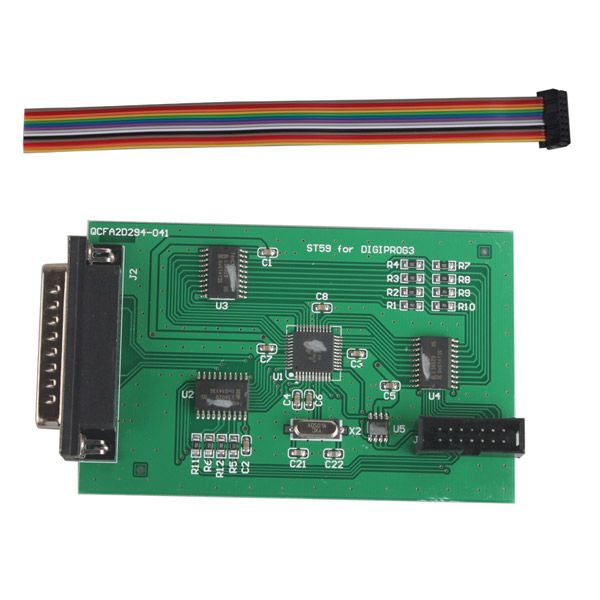

ST59 Plug for DIGIPROG3 Used for NEC Cluster Vehicles

Compatible with DIGIPROG3 any version.

Installation example: FORD NEC

1. Remove the dashboard and open it . Search on dash the Soldering Points.
2. solder on same points as in picture the cables from ST59 on it. All Pins must be Lift up From Board
3. Connect the Cables to ST59 you can nothing make Wrong
4. Now connect the ST 59 with the Digiprog.
5. Select the program: cars / trucks - FORD - KA NEC.
6. The DIGIPROG denotes old / wrong Mileage.

1pc x ST59 Plug
