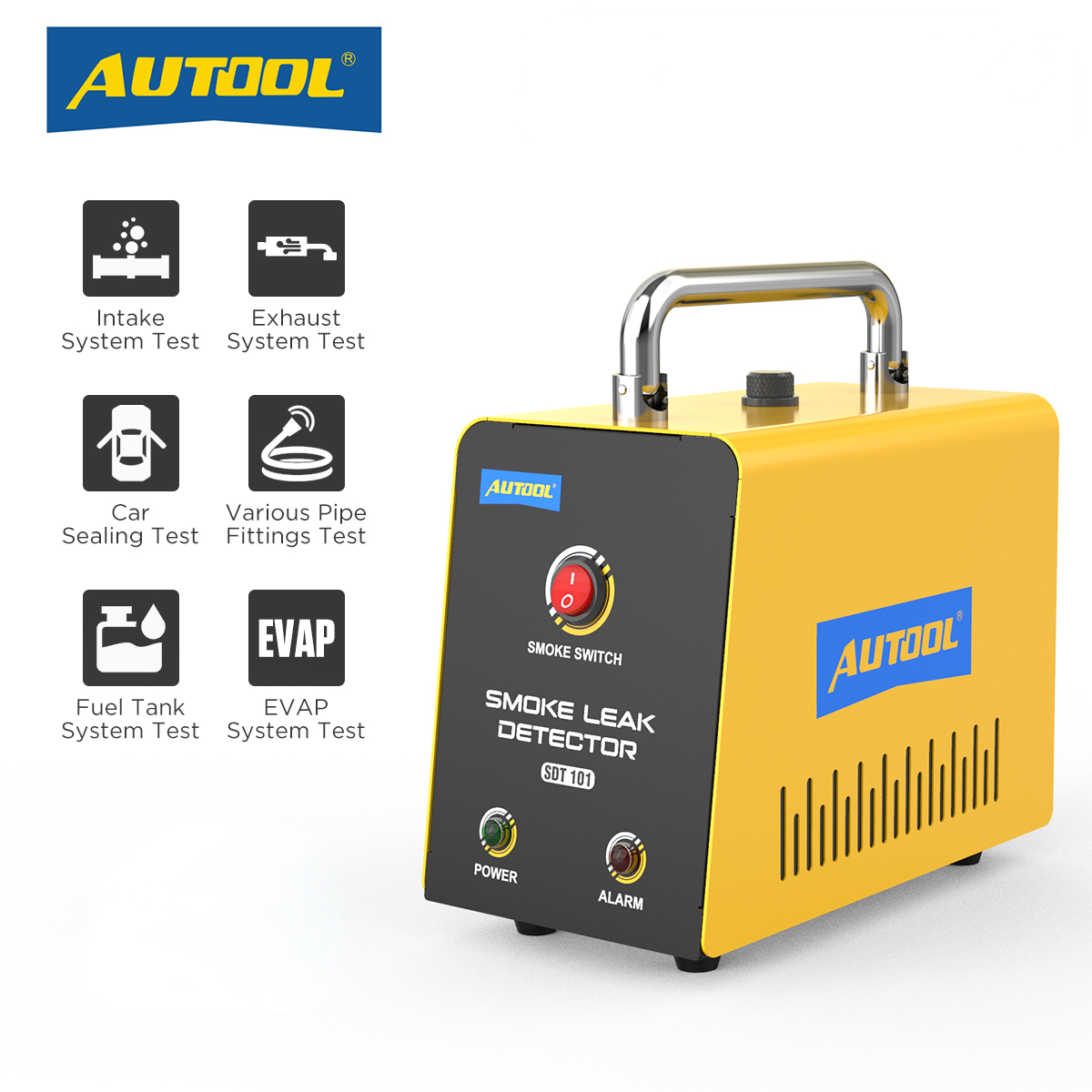

AUTOOL SDT101 Car Smoke Leak Detector 12V Automotive EVAP Leakage Gas Leakage Locator Oil Pipe Generator Diagnostic Tool

AUTOOL SDT101 Car Smoke Leak Detector is a professional auto pipe leak detect tool and without air pump.It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as : Intake System Test, Exhaust Systems Test, Car Sealing Test, Fuel Tank System Test.
Note:
If you want to buy a leak detector with air pump, it is recommended to buy SDT106.

1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

1.[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

2.[Powerful and easy to operate] The AUTOOL SDT 101 need rely on other air machine ,Connect the detector with DC12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.

3.[Advanced technology] It works on the EVAP system (we also have another version that specially designed for EVAP system).

4.[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

5.[3 years warranty] For damage caused by non-human factors, we promise to resend parts for free within 3 years.

Hook: To hang the detector when detecting.

Working Indicator: It is lit when the detector works

Power Switch: Power it on, and the detector works

Smoke Output Tube: The smoke outlet which connecting with detection port

Power Clamp: To connect with vehicle battery. The voltage is DC12V.

1.When you use this AUTOOL SDT 101 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

1pc * AUTOOL SDT101 Car Smoke Leak Detector Main Unit

1pc * EVAP Special Connector

1pc * Standard Cone Adapter

1pc * Power Cord Clamp

1pc * Valve Core Wrench

1pc * Test Oil Refill Bottle(oil not included)

1pc * Smoke Hose

1pc * User Manual
