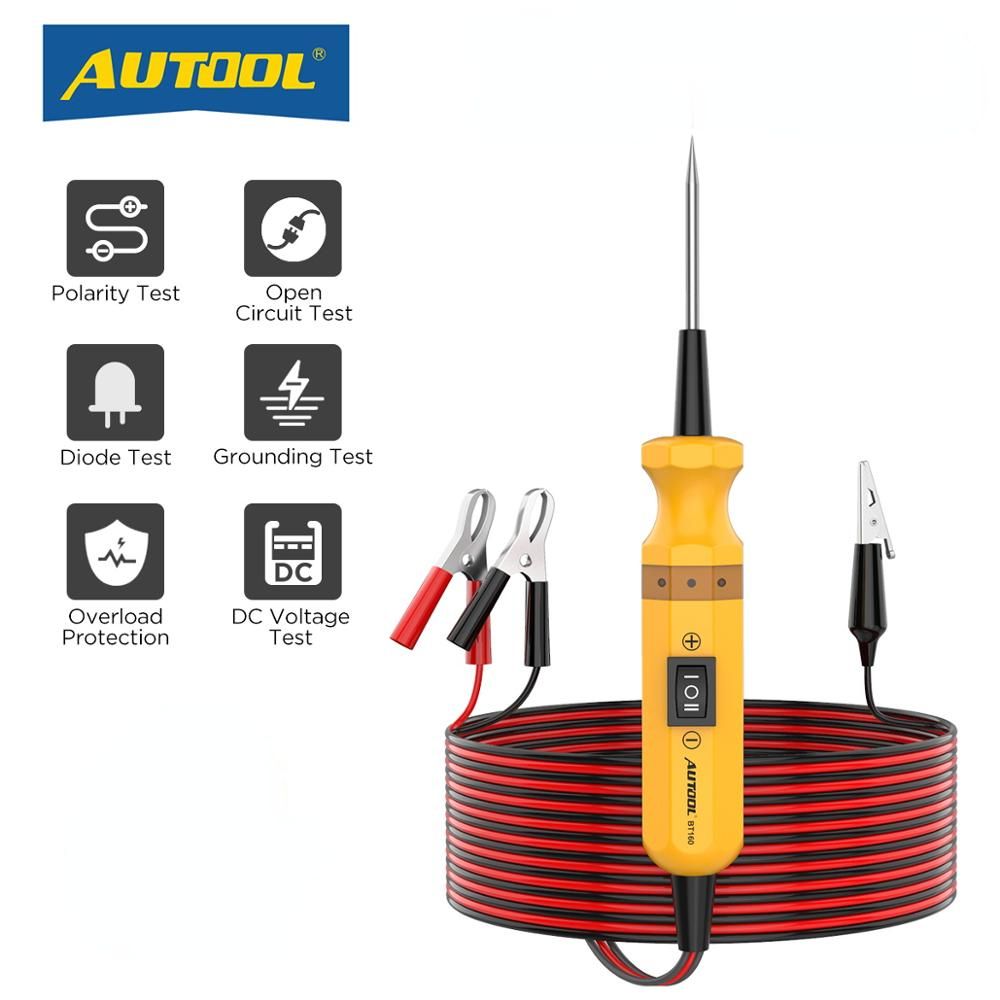

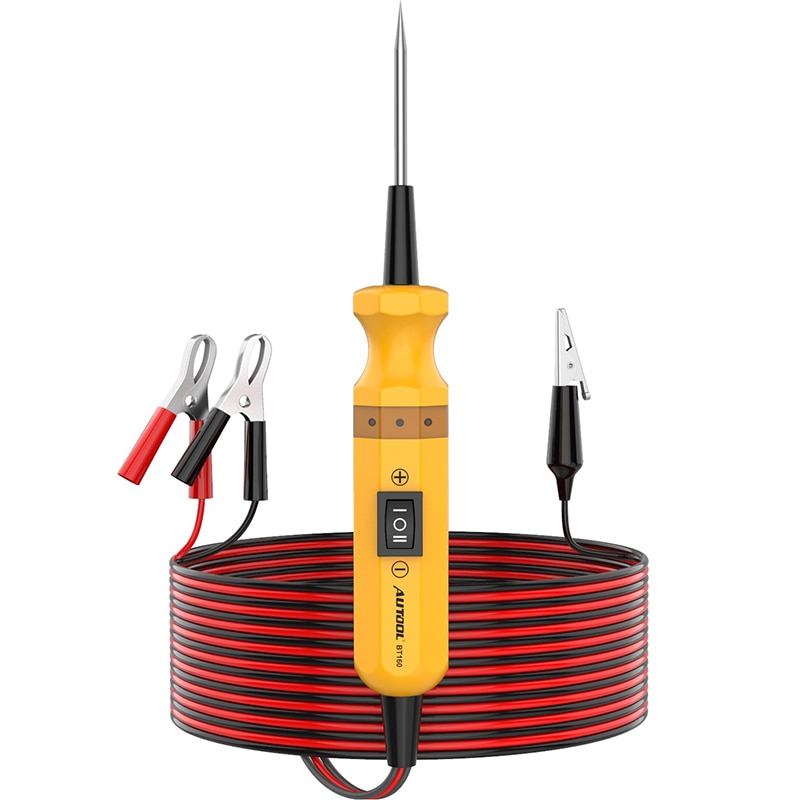

AUTOOL BT160 Car Circuit Tester Power Probe Car Diagnostic Tool Electric Voltage Integrated Scanner for 12V Car 24V Heavy Truck

AUTOOL BT160 Car Circuit Tester is the best electrical tester to reduce the diagnostic time in automotive electrical systems.After a simple connection of the unit to the vehicle's battery, the automotive technician can conduct a positive or negative battery current to the tip by turning the switch forward or backward.The unit has short circuit protection and can check for bad ground contact instantly.It allows you to track and locate short circuits.

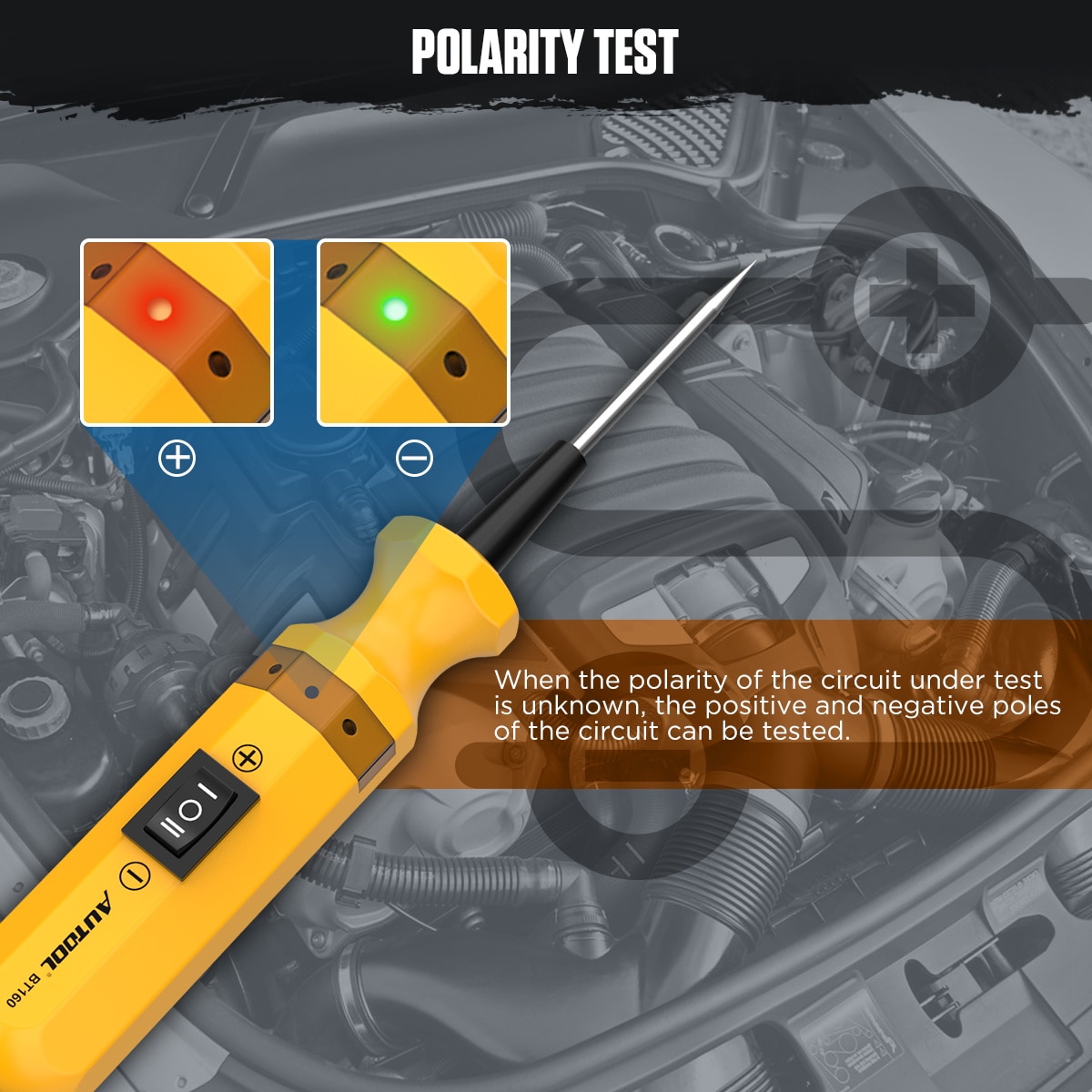

1.【Polarity test】 When the polarity of the circuit under test is unknown, the positive and negative poles of the circuit can be tested.(Red light indicates positive pole, green light indicates negative pole.)

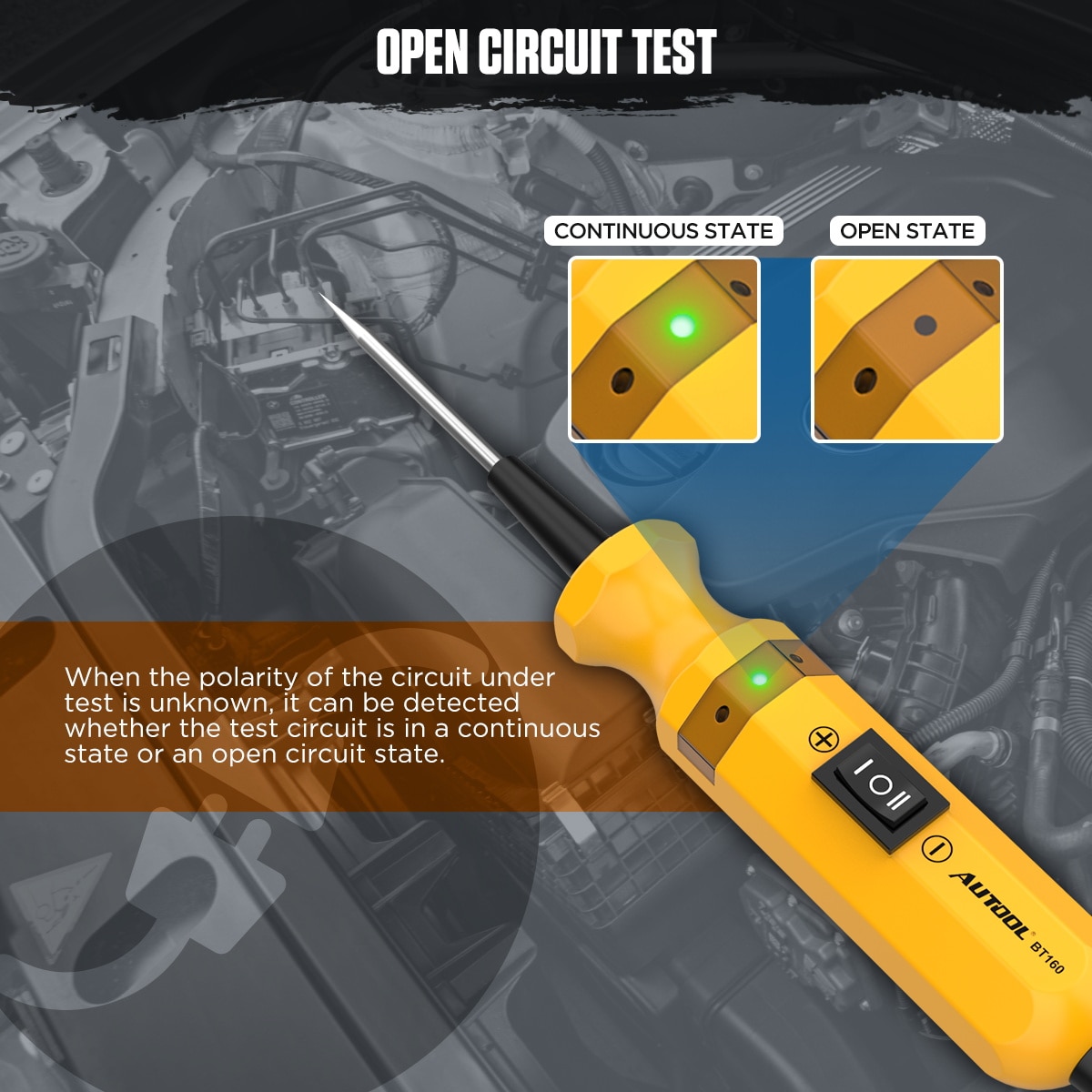

2.【Open circuit test】With the polarity of the circuit under test unknown,it can be tested to see if the circuit is in a continuous state or in an open-circuit state. (The green light is on means the circuit is in a continuous state; the green light is off,
it means the circuit is open.)

3.【Diode test】Quickly test the working status of the diode assembly and determine whether the circuit is open or continuous. .

4.【Grounding test】It can detect whether the component has a large current flow, and test whether the negative grounding of the
component is good.(The green light is on with a beep, indicating that the grounding is good; the green light is on without beep,indicates poor grounding.

5.【Overload protection】 In case of overload or load of current, the machine will automatically open circuit protection and alarm beep to reduce unnecessary losses.

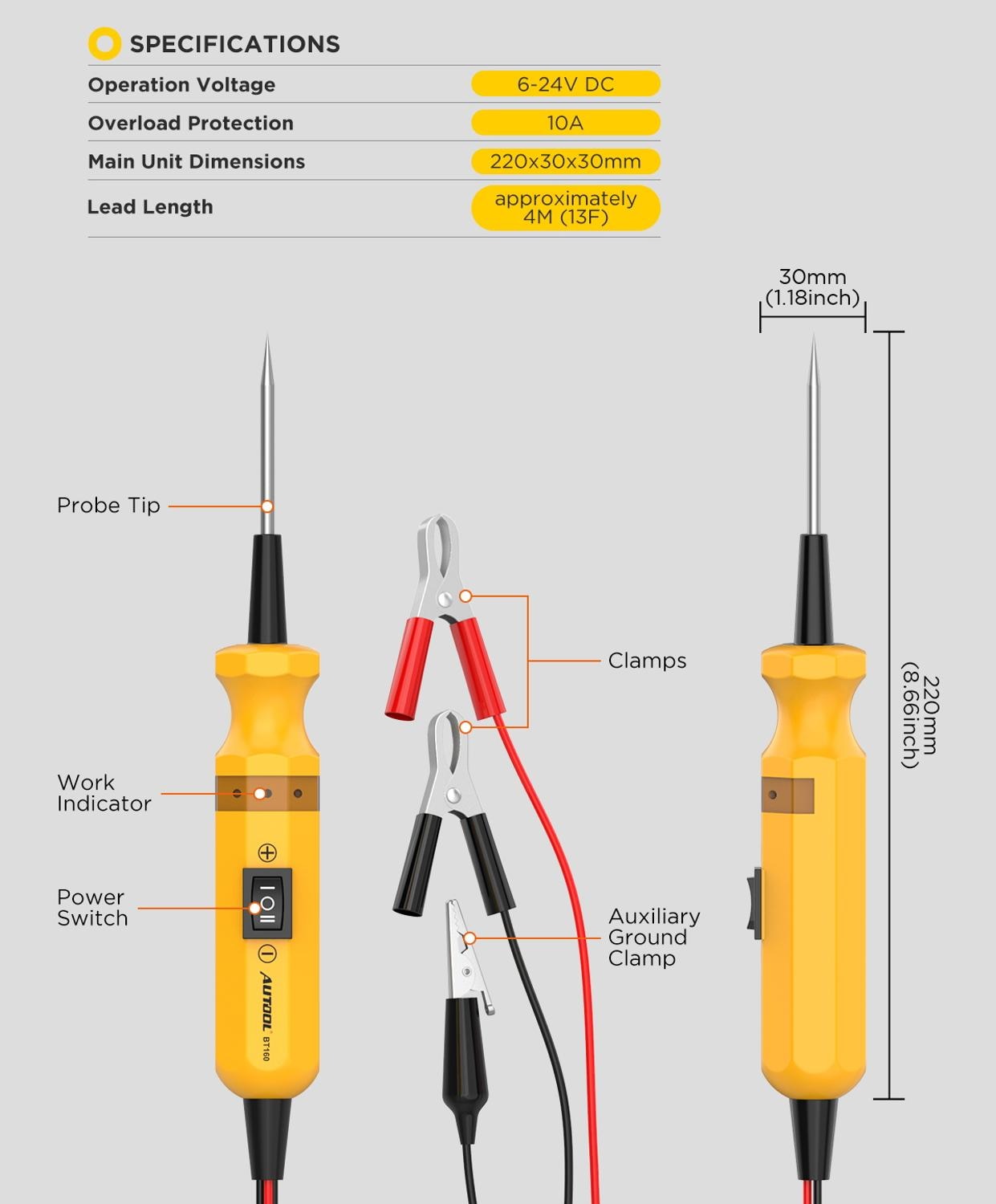

6.【DC voltage test】The test range is 6~24V DC voltage.
