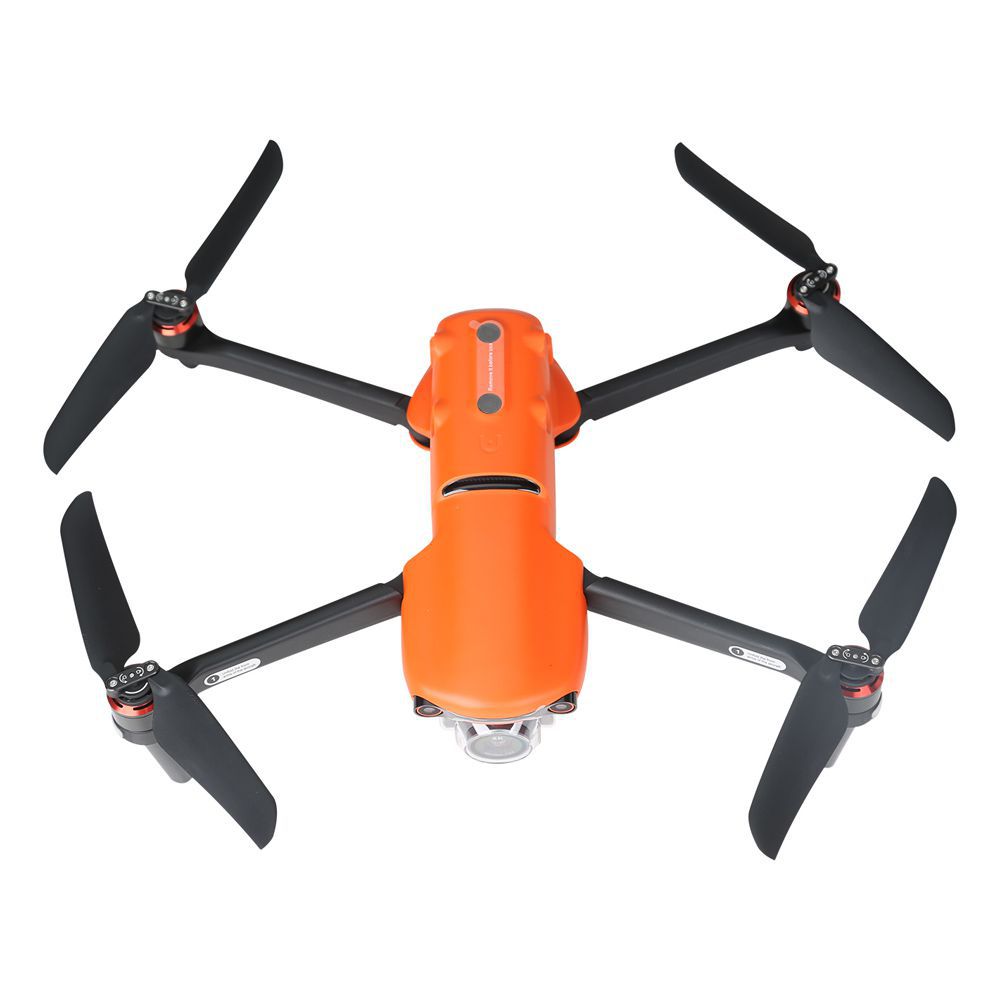

Original Autel Robotics EVO II Pro 6K Drone Rugged Bundle (With One Extra Battery)

Highlights

1. 1-Inch Sensor & Adjustable Aperture

EVO II Pro 6K drone features an Ultra-HD camera with a 1-inch sensor: takes photos with a resolution of up to 5472 x 3648 and records 5.5K video at 60 fps or 4K video at 120 fps, with a bit rate of up to 120 Mbps. The lens aperture is adjustable within the range of f/2.8 to f/11.

2. Variety of Shooting Modes

All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio).

3. Connect Autel Live Deck to Display Live on Any Device

A high-definition live feed from the EVO 2 drone camera can be displayed on your remote control's screen or connected with Autel Live Deck to display on any device including computer, TV, phone, etc. Images and videos can be stored in the aircraft's onboard memory or on a micro SD card.

4. Adjust Field-of-View to Any Angle from 0° to 90° While Flying

EVO II Pro Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.

5. Cameras Interchangeable

Autel EVO II Series Drones are one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

Description

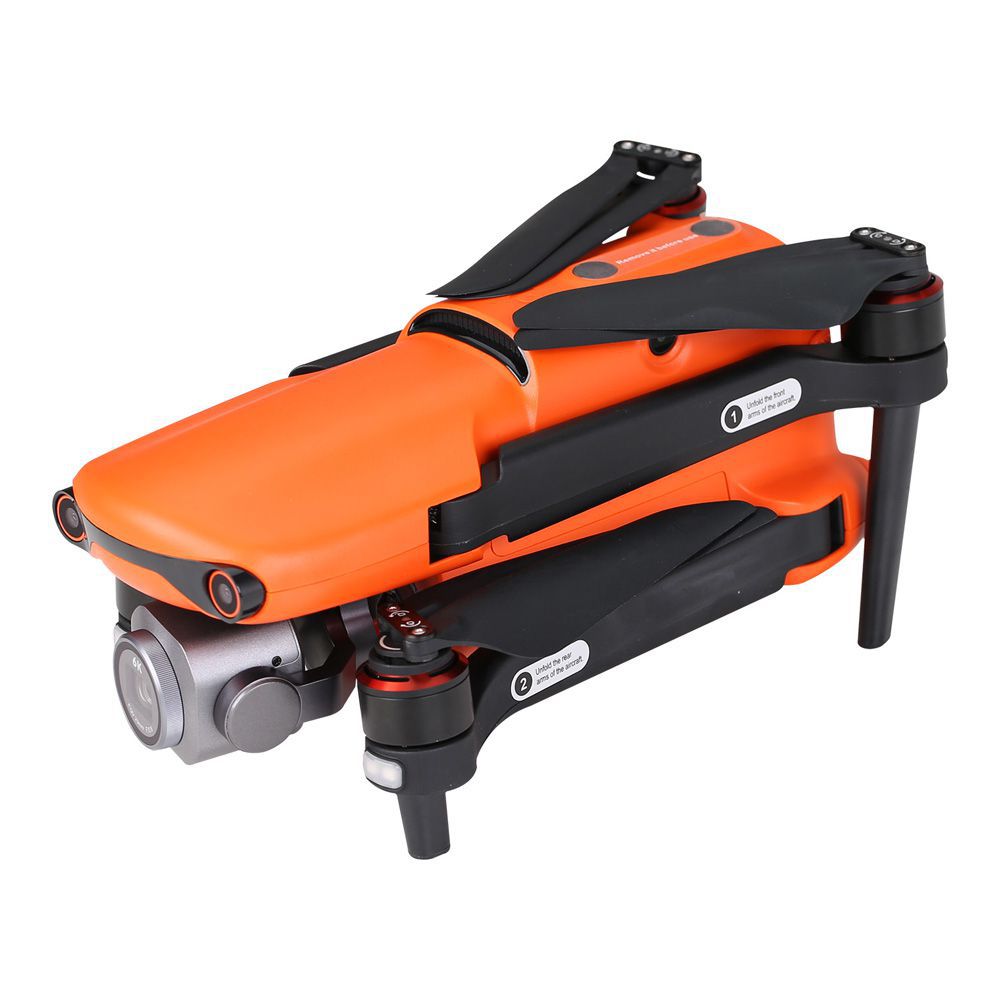

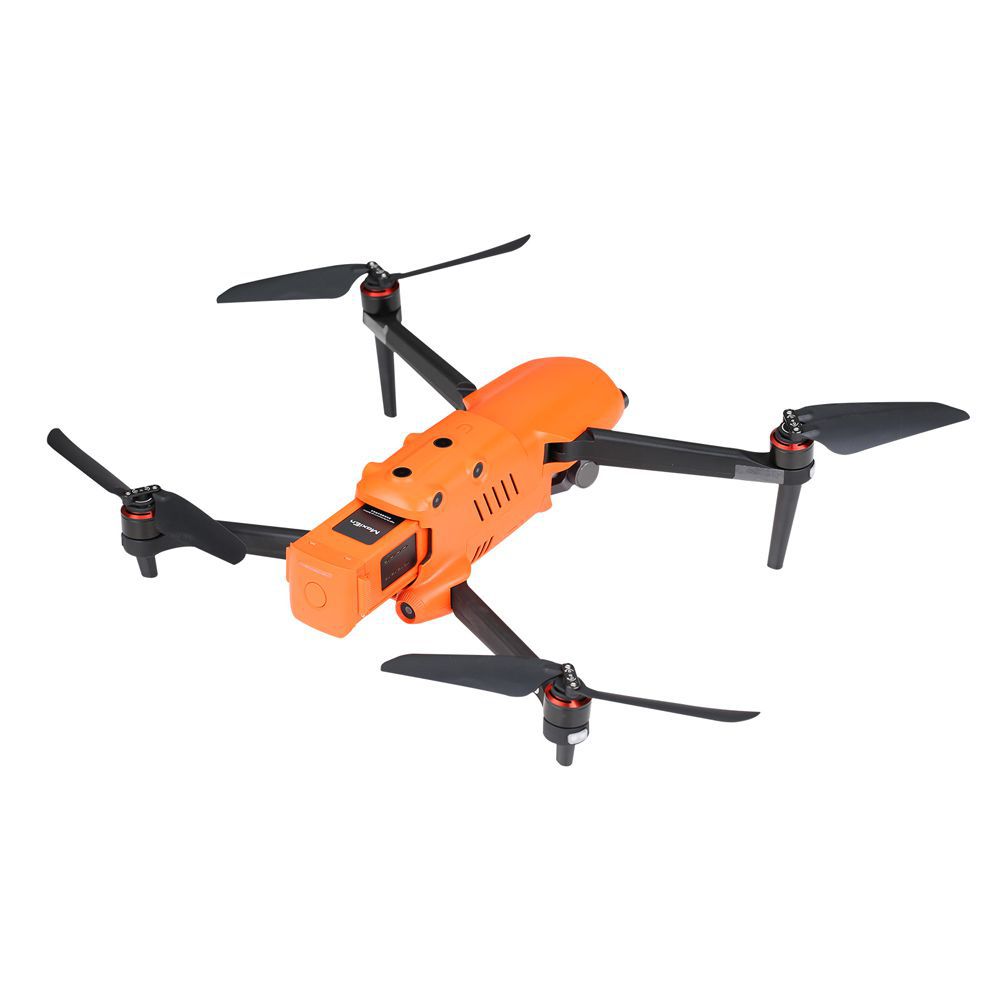

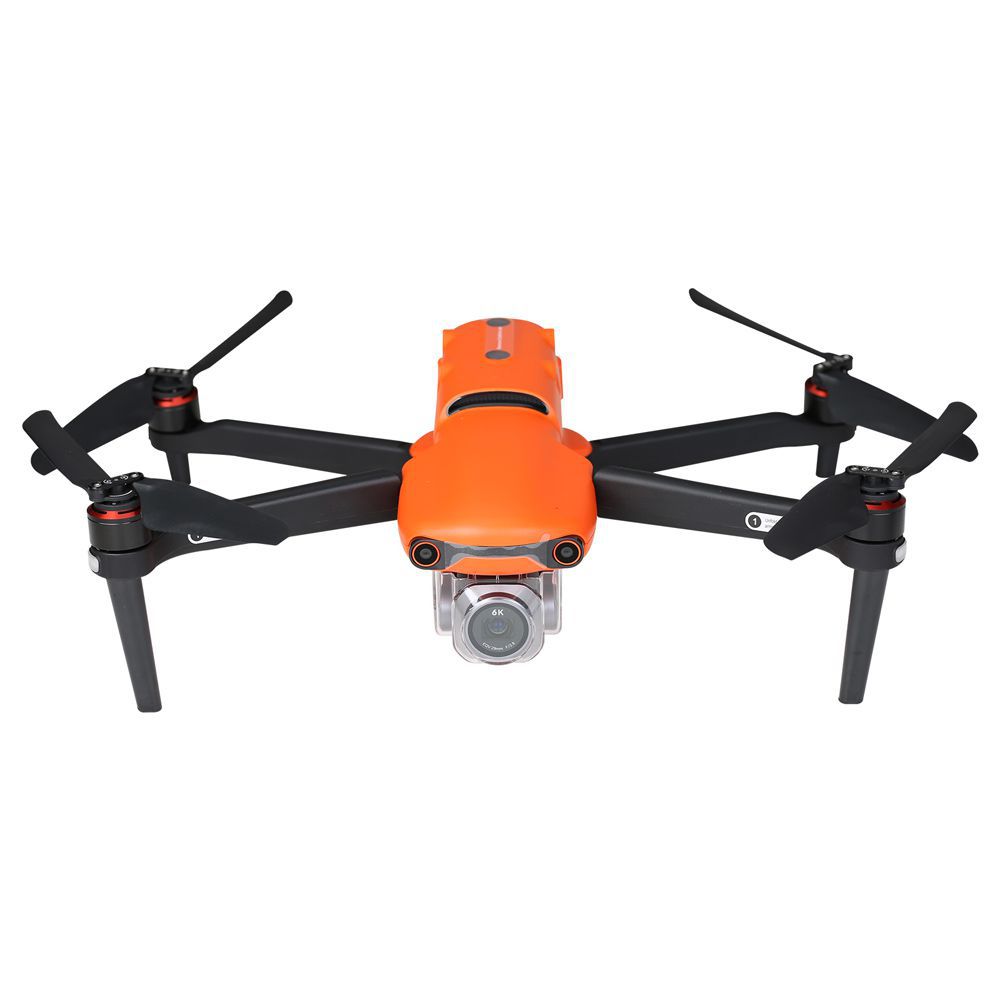

Autel Robotics EVO II Pro is a 6K foldable drone for professionals! EVO II Pro drone comes with 6K interchangeable gimbal, 1" CMOS sensor, capable of capturing dynamic 20MP stills and HDR videos. EVO II Pro provides the longest 40 minutes flight time (35 minutes hover time) in all foldable drones with 7100 mAh battery. EVO II Pro features Omnidirectional Obstacle Avoidance that comes with 12 optical sensors and 2 sonar sensors working actively to detect all important directions. You can adjust the aperture from F/2.8 to F/11 and ISO range from 100–12800 for photo and 100–6400 for video to capture stunning detail not previously available on an aerial platform of this size. With Dynamic Track 2.0, EVO II Pro is a huge improvement compared to EVO I.

The EVO II and EVO II PRO are similar drones but the difference between the two lies in the camera: indeed, EVO II comes with a 1/2" camera that's capable of shooting 8K video and 48MP stills. The EVO II Pro features a 1" sensor that has an adjustable aperture and can shoot 6K video. We would recommend the EVO II PRO for drone pilots who are looking for a more "professional" use for their drone such as cinematography, photography or mapping.

Autel EVO II PRO Features

1. EVO II - AI Enhanced Dynamic Track

EVO II Pro smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

2. 360° Obstacle Avoidance

EVO 2 Pro's front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. It begins detecting potential hazards at up to 30m away and lets EVO II accurately control the speed of the drone to avoid a collision.

3. Viewpoint

Viewpoint allows the user to send the aircraft to a selected destination by touching a point on the screen. Featured with the same waypoints function as EVO to program autonomous flight routes. EVO II can even save multiple waypoint missions making it easy for surveying.

4. Auto Go Home & Accurate Landing

EVO 2 Pro will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2's bottom binocular vision camera creates a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

5. 40 Mins Flight Time

EVO II Pro Drone camera comes standard with a 7100mAh rechargeable battery, providing up to 40 minutes of flight time in forward motion and 35 minutes at a hover. EVO II Pro also uses patented Battlock system to guard against battery ejection in high-speed maneuvers or hard landings.
With max wind speed resistance up to 39–46 mph (62–74 kph), EVO II Pro simply flies more stable than other drones.

6. Super Battery Life & 9KM Extended Range

Autel EVO 2 Pro comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km away and 35min at a hover. Top speed up to 45MPH. Additionally, there is no geofencing or cellular service restrictions on any of EVO II.

7. Omnidirectional Obstacle Avoidance + Dynamic Track 2.0

EVO II Pro foldable drone comes with 12 optical sensors controlled by a dual-core processor and AI machine learning, creating omni-directional protection at all important directions. It begins detecting potential hazards at up to 30 meters away and lets EVO II Pro accurately control the speed of the drone to avoid a collision. Or you can fully control the drone with the 2 sonar sensors providing more information on the environment.

EVO II Series Camera Payloads

Specification

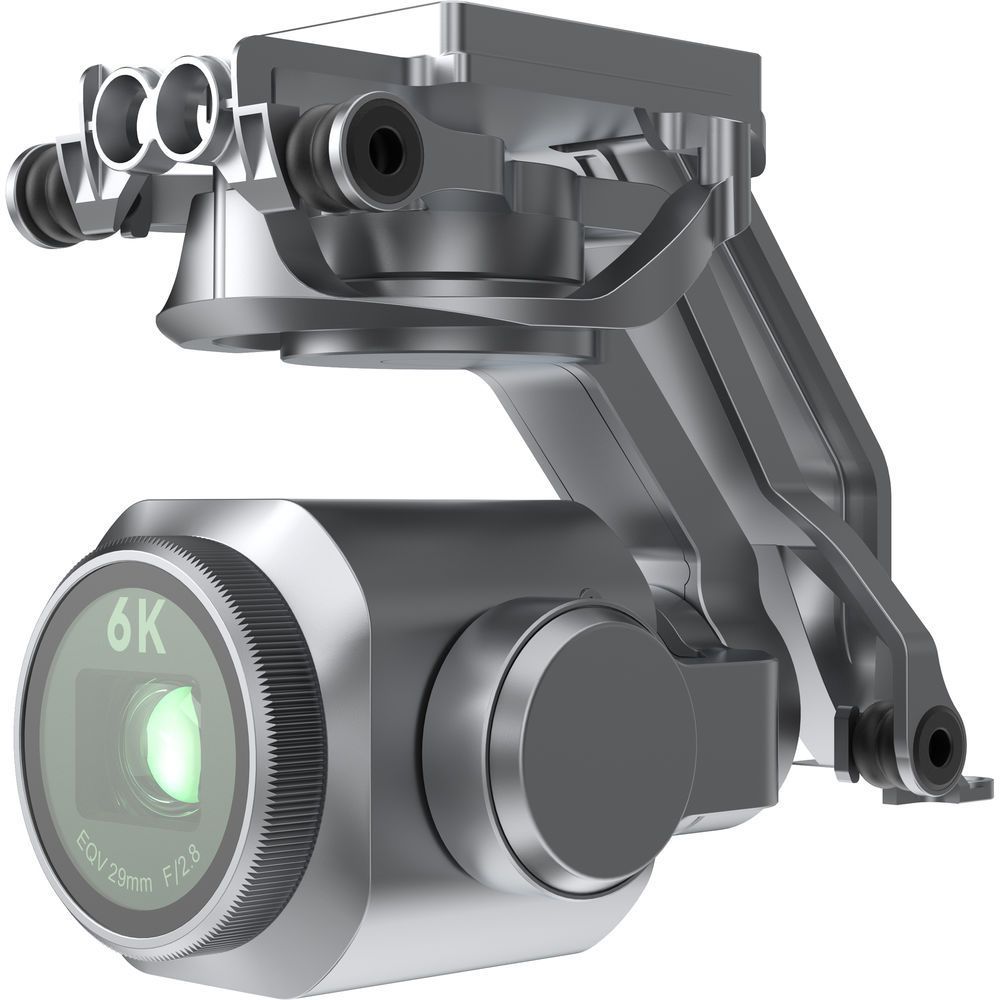

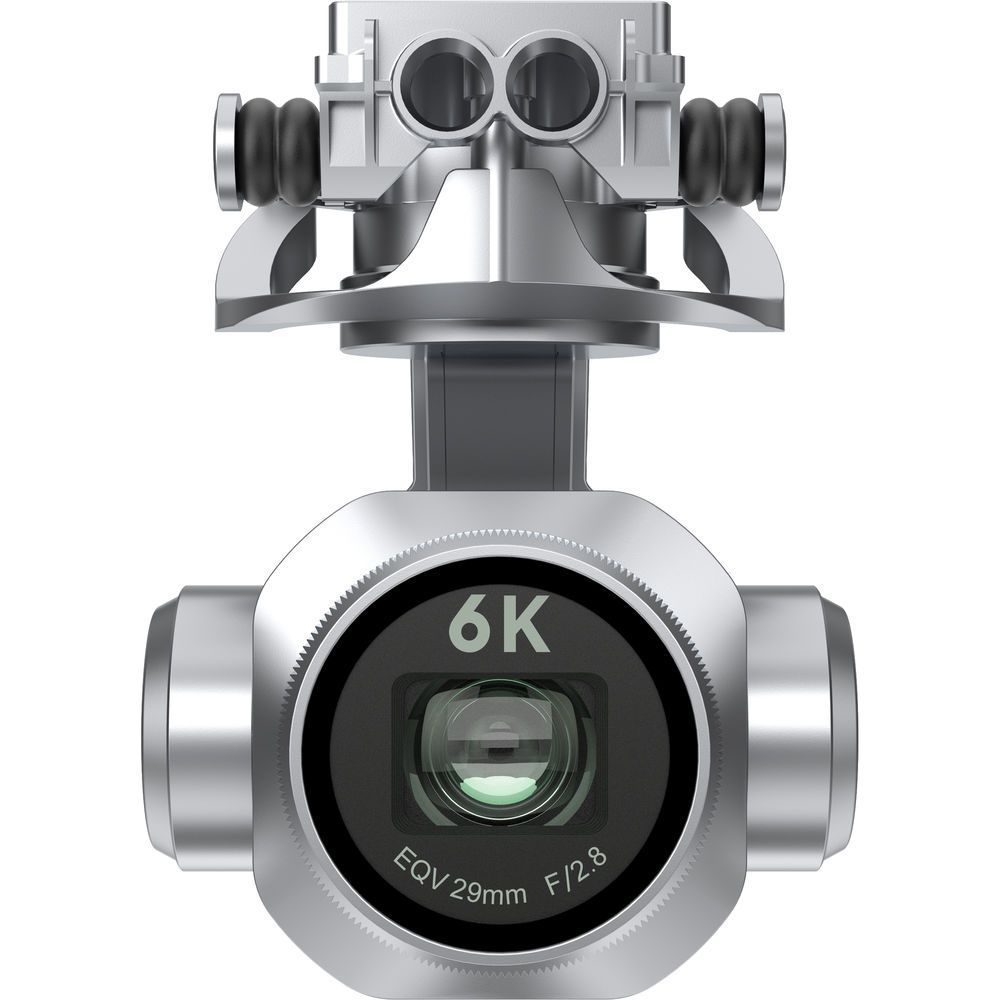

Gimbal

• Mechanical Range
  • Pitch: -135° to 45°
  • Roll: -45° to 45°
  • Yaw: ±100°
• Controllable Range
  • Pitch: -90° to 0°
  • Yaw: -90° to 90°
• Stabilization: 3-Axis (Tilt, Roll, Pan)
• Max Control Speed (Tilt): 200°/s
• Angular Vibration Range:
  • ±0.003° @ 10m/s
  • ±0.008° @ 15m/s
  • ±0.013° @ 20m/s

Battery

• Capacity: 7100 mAh
• Voltage: 11.55 V
• Max Charging Voltage: 13.2 V
• Battery Type: LiPo 3S
• Energy: 82 Wh
• Net Weight: 0.81 lbs (365 grams)
• Charging Temperature Range: 41°F to 104°F (5°C to 40°C)
• Max Charging Power: 82 W

Camera

• Sensor: 1" CMOS
  Effective Pixels: 20 MP
  Performance temperature: -10~60°C
• Lens:
  • FOV: about 82°
  • 35mm Format Equivalent: 28.6 mm @ f/2.8
  • Aperture: f/2.8–f/11
  • Shooting Range: 1 m to ∞
• ISO Range:
  • Video: ISO 100–3200 (Auto)
    Video: ISO 100–6400 (Manual)
  • Photo: ISO 100–3200 (Auto)
    Photo: ISO 100–12800 (Manual)
• Shutter Speed: Electronic Shutter: 8 ~ 1/8000s
• Digital Zoom: 1 ~ 8x (Max. 3x lossless zoom)
• Still Image Resolution:
  • 5472×3648 (3:2)
  • 5472×3076 (16:9)
  • 3840×2160 (16:9)
• Still Image Format: JPEG / DNG / JPEG+DNG
• Still Photography Modes:
  • Single Shot
  • Burst shooting: 3/5 frames
  • Automatic Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
  • Timelapse:
    • JPG: 2s/5s/7s/10s/20s/30s/60s
    • DNG: 5s/7s/10s/20s/30s/60s
  • HyperLight: support (under 4K JPEG format)
  • Long Exposure: Max 8s
  • HDR imaging: (under 4K JPEG)
• Video Resolution

Video Specifications

• Resolutions & Frame Rates:
  • 6K: 5472×3076 at 30/25/24 fps
  • 5K: 4800×2700 at 60/50/48/30/25/24 fps
  • 4K: 3840×2160 at 60/50/48/30/25/24 fps
  • 2.7K: 2720×1528 at 120/60/50/48/30/25/24 fps
  • 1080p: 1920×1080 at 120/60/50/48/30/25/24 fps
• Video Format: MOV / MP4
• Codecs: H.264 / H.265
• Max Video Bitrate: 120 Mbps

Aircraft Performance

• Max Ascent Speed:
  • Standard mode: 11.18 mph (5 m/s)
  • Ludicrous mode: 17.89 mph (8 m/s)
• Max Descent Speed:
  • Standard mode: 6.71 mph (3 m/s)
  • Ludicrous mode: 8.94 mph (4 m/s)
• Max Speed (near sea level, no wind):
  • Standard mode: 33.55 mph (15 m/s)
  • Ludicrous mode: 44.73 mph (20 m/s)
• Max Service Ceiling Above Sea Level: 22,965 ft (7000 m)
• Max Flight Time (no wind): 40 minutes
• Max Hovering Time (no wind): 35 minutes
• Max Flight Distance (no wind): 15.53 miles (25 km)
• Max Wind Speed Resistance: 39–46 mph (Level 8)
• Max Tilt Angle:
  • Standard mode: 28°
  • Ludicrous mode: 33°
• Max Angular Velocity: 120°/second
• Operating Temperature Range: 14°F to 104°F (–10°C to 40°C)
• Operating Frequency: 2.4–2.4835 GHz
• Transmission Power (EIRP):
  • 2.4–2.4835 GHz
    • FCC: ≤26 dBm
    • ISED: ≤26 dBm
    • CE: ≤20 dBm
    • RCM: ≤20 dBm
    • SRRC: ≤26 dBm
• GNSS: GPS / GLONASS / VIO / ATTI
• Hovering Accuracy Range:
  • Vertical:
    • ±0.78 in (with vision positioning active)
    • ±7.87 in (with GPS positioning)
  • Horizontal:
    • ±0.78 in (with vision positioning active)
    • ±3.28 ft (with GPS positioning)
• Internal Storage: 8 GB
• SD Storage:
  • Standard: 32 GB
  • Max Micro SD Card Supported: 256 GB

Remote Controller

• Operating Frequency: 2.4–2.4835 GHz
• Max Transmission Distance (unobstructed, free of interference):
  • FCC: 5.59 miles (9 km)
  • CE: 3.10 miles (5 km)
• Operating Temperature Range: 14°F to 104°F (–10°C to 40°C)
• Transmission Power (EIRP):
  • 2.4–2.4835 GHz
    • FCC: ≤26 dBm
    • ISED: ≤26 dBm
    • CE: ≤20 dBm
    • RCM: ≤20 dBm
    • SRRC: ≤26 dBm
• Battery: 5000 mAh
• Operating Current/Voltage: 1.7A @ 3.7V
• Charging Temperature Range: 32°F to 104°F (0°C to 40°C)
• Supported Mobile Device Size:
  • Max Length: 3.30" (84 mm)
  • Max Thickness: 0.51" (13 mm)
• Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C
• Operating Hours: 3 hours
• OLED Brightness: 330 nit

Sensing System (Obstacle Avoidance)

• Sensing System: Omnidirectional Obstacle Sensing
• Forward:
  • Precision Measurement Range: 0.5–20 m
  • Detectable Range: 0.5–40 m
  • Effective Sensing Speed: <15 m/s
  • FOV: Horizontal 60°, Vertical 80°
• Backward:
  • Precision Measurement Range: 0.5–16 m
  • Detectable Range: 0.5–32 m
  • Effective Sensing Speed: <12 m/s
  • FOV: Horizontal 60°, Vertical 80°
• Upward:
  • Precision Measurement Range: 0.5–12 m
  • Detectable Range: 0.5–24 m
  • Effective Sensing Speed: <6 m/s
  • FOV: Horizontal 60°, Vertical 50°
• Downward:
  • Precision Measurement Range: 0.5–11 m
  • Detectable Range: 0.5–22 m
  • Effective Sensing Speed: <6 m/s
  • FOV: Horizontal 90°, Vertical 70°
• Sides:
  • Precision Measurement Range: 0.5–12 m
  • Detectable Range: 0.5–24 m
  • Effective Sensing Speed: <10 m/s
  • FOV: Horizontal 60°, Vertical 50°
• Operating Environment:
  • Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
  • Downward: Surface with clear pattern and adequate lighting (lux > 20)
  • Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

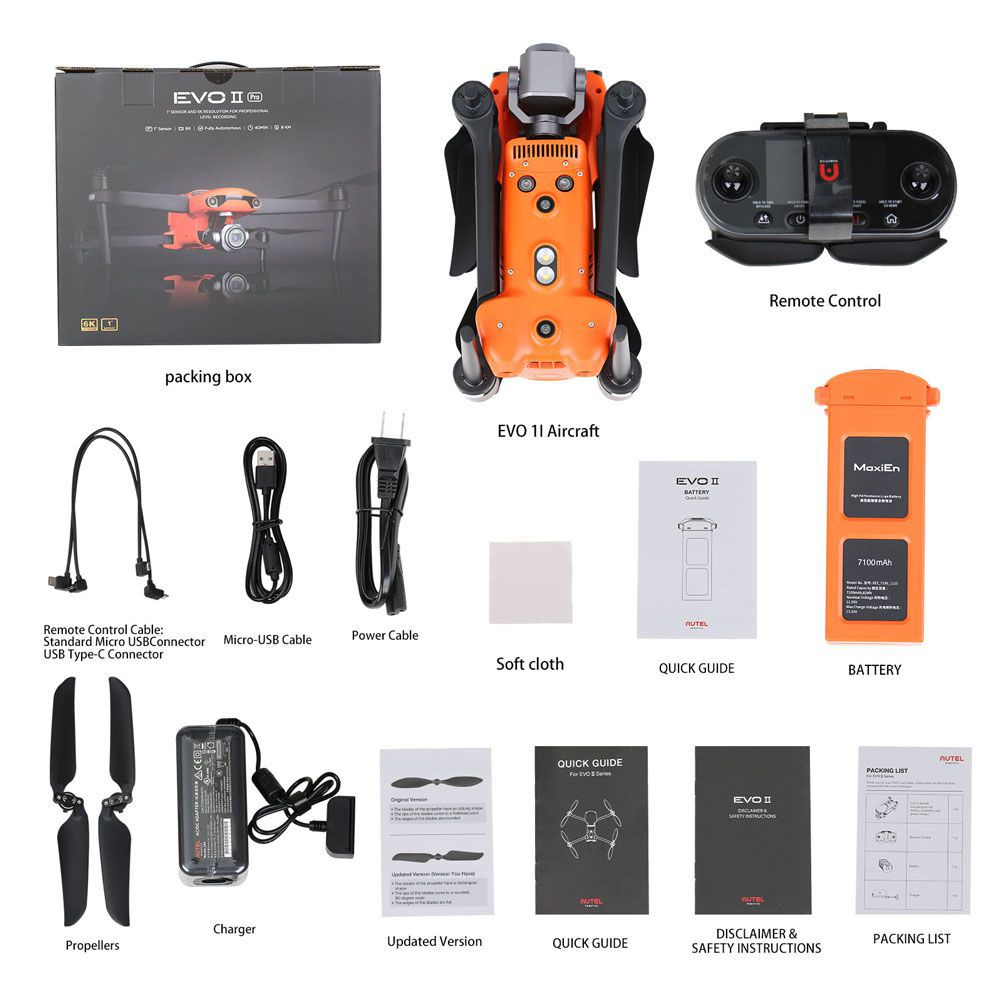

Package List

• 1× Aircraft, Battery and Gimbal Holder
• 1× 32GB SD Card (installed in the aircraft)
• 1× Extra Battery
• 1× Remote Control
• 1× Charger
• 1× Remote Control Cable – Type B
• 3× Propellers (pairs)
• 1× Hard Case
• 2× USB connection cable (Micro Type B & Type C)
• 1× Packing List
• 1× Quick Guide
• 1× Disclaimer & Safety Instructions
• 1× Battery Safe Use Guide
