ANCEL BZ700 OBD2 Scanner for Mercedes Benz – Full-System Diagnostic Tool with ABS, SRS, Airbag, SAS, TPMS Reset

Why You Need the ANCEL BZ700

• Reads and clears fault codes across all major systems—including engine, airbag (SRS), transmission, ABS, SAS, EPB, DPF, TPMS—and supports diagnostics for body, chassis, powertrain, and all control modules.
• Performs advanced service functions: Transmission Adaptation, Battery Registration, Battery Voltage Test, Throttle Relearn, ABS Bleeding, TPMS Reset, EPB Reset, SAS Reset, Oil Reset, and more.
• Features Auto VIN technology that automatically identifies Mercedes-Benz model and year information instantly. (Mercedes-Benz vehicles only.)
• Available in multiple languages: English, German, French, Spanish, Russian, Portuguese, Finnish, Danish, Swedish, and Norwegian.
• Compatible with Mercedes-Benz vehicles from 1991 to 2022.

Manufacturer-Level Diagnostics for Mercedes-Benz

To keep your Mercedes-Benz running reliably for years, routine maintenance is essential—oil changes, electric brake pad replacement, throttle relearn procedures, and especially battery care. The ANCEL BZ700 registers new batteries and tests battery voltage to prevent unexpected breakdowns.

• Supports full OBDII modes: quickly identifies issues, turns off check engine lights, helps pass emissions tests, saves fuel, and enhances performance.
• Detects early transmission problems by reading fault codes before they escalate into costly repairs.
• Diagnoses the SRS (Supplemental Restraint System), reads/clears airbag codes, and turns off the airbag warning light.
• Monitors ABS functionality, which prevents wheel lock-up during braking by maintaining optimal slip rate (~20%) for maximum traction.
• Evaluates battery charge level, monitors short-circuit current, registers battery replacements, activates vehicle hibernation mode, and enables battery charging via the OBD port.
• Displays sensor IDs from the vehicle’s ECU, supports TPMS sensor ID input after replacement, and performs sensor testing.
• Calibrates the steering angle sensor (SAS) to straight-ahead position or recalibrates after steering component replacement.
• Supports air conditioning system maintenance, including adaptation reset, compressor reset, compressor run-in, and stepper motor initialization.

Advanced Mercedes-Benz-Specific Service Functions

• Performs transmission module maintenance: resets adaptation values and adjusts oil levels.
• Battery registration updates the vehicle’s system when a new battery is installed.
• Battery test measures voltage through the OBD port during engine start-up.
• Throttle relearn function recalibrates throttle valve control after cleaning or replacement.
• ABS bleeding releases trapped air to restore brake sensitivity or relearns system parameters after ABS component replacement.
• TPMS reset allows retrieval of tire sensor IDs from the ECU and resets the system after sensor replacement or tire rotation.
• EPB maintenance deactivates and reactivates the Electronic Parking Brake for pad replacement and system initialization.
• SAS calibration stores the current steering wheel position as “straight-ahead” and automatically clears fault memory upon successful calibration.
• Resets service indicators, including service mileage and maintenance intervals.

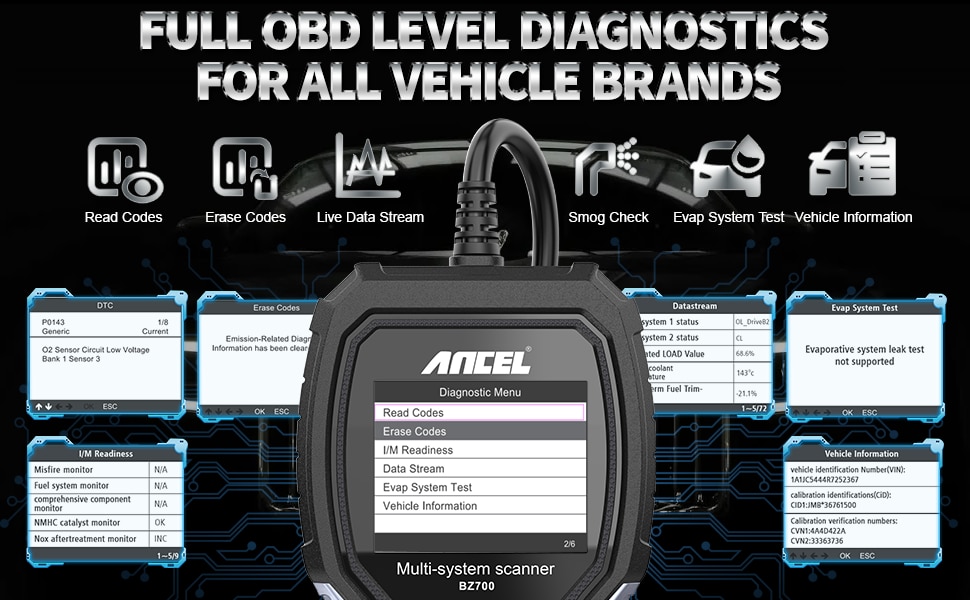

Fully Compliant OBD2 Diagnostics for All Vehicle Brands (2000–2022)

• Reads fault codes in under 3 seconds, clears pending codes, and turns off the check engine light.
• Retrieves live data streams and freeze frame data—including fuel system status, engine coolant temperature, RPM, and sensor parameters—to monitor real-time vehicle performance.
• Checks readiness monitors (emission monitors) to verify if the vehicle is prepared for a smog or emissions test.
• Initiates EVAP system leak tests; consult your vehicle’s service manual for proper test termination procedures.
• Displays key vehicle information such as VIN (Vehicle Identification Number) and CVN (Calibration Verification Number).

Vehicle Compatibility

• Supports all OBD2-compliant vehicles from 2000 to 2022.
• Does not support 38-pin Mercedes-Benz models, including:
  • 107 (1971–1989)
  • 124 (E-Class 1984–1994)
  • 129 (SL-Class 1989–2001)
  • 126 (S-Class 1979–1991)
  • 140 (S-Class 1991–1998)
  • 170 (SLK-Class 1996–2004)
  • 201 (190 1982–1993)
  • 202 (C-Class 1993–2000)
  • 208 (up to 2002)
  • 210 (E-Class 1995–2002)
  • 461 (G-Class)
  • 463 (G-Class 1990–)

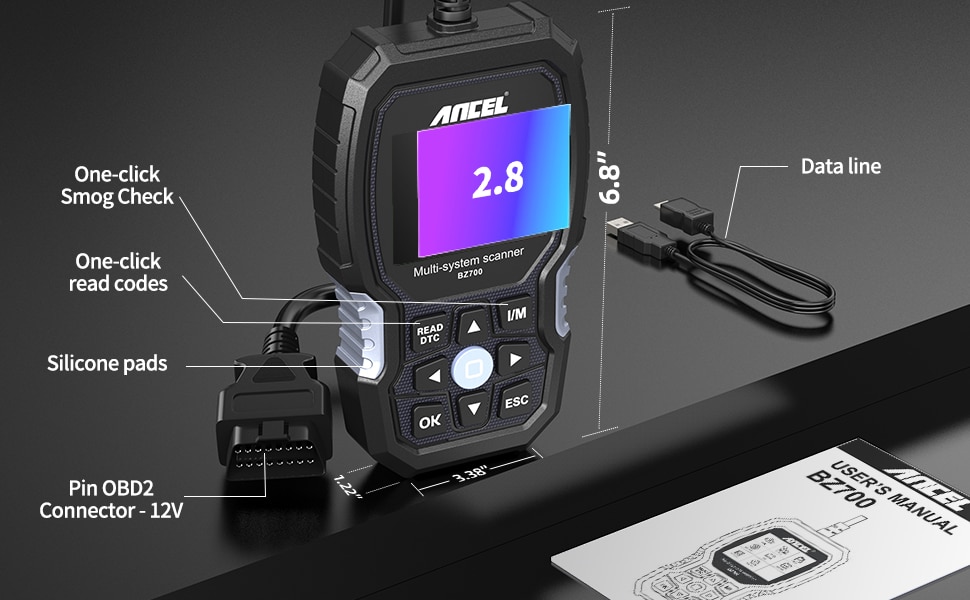

Product Specifications

• Display: 2.8″ TFT LCD, 320×240 pixels
• Operating Voltage: 8V–18V
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Dimensions: 6.8 × 3.38 × 1.22 inches (L × W × H)

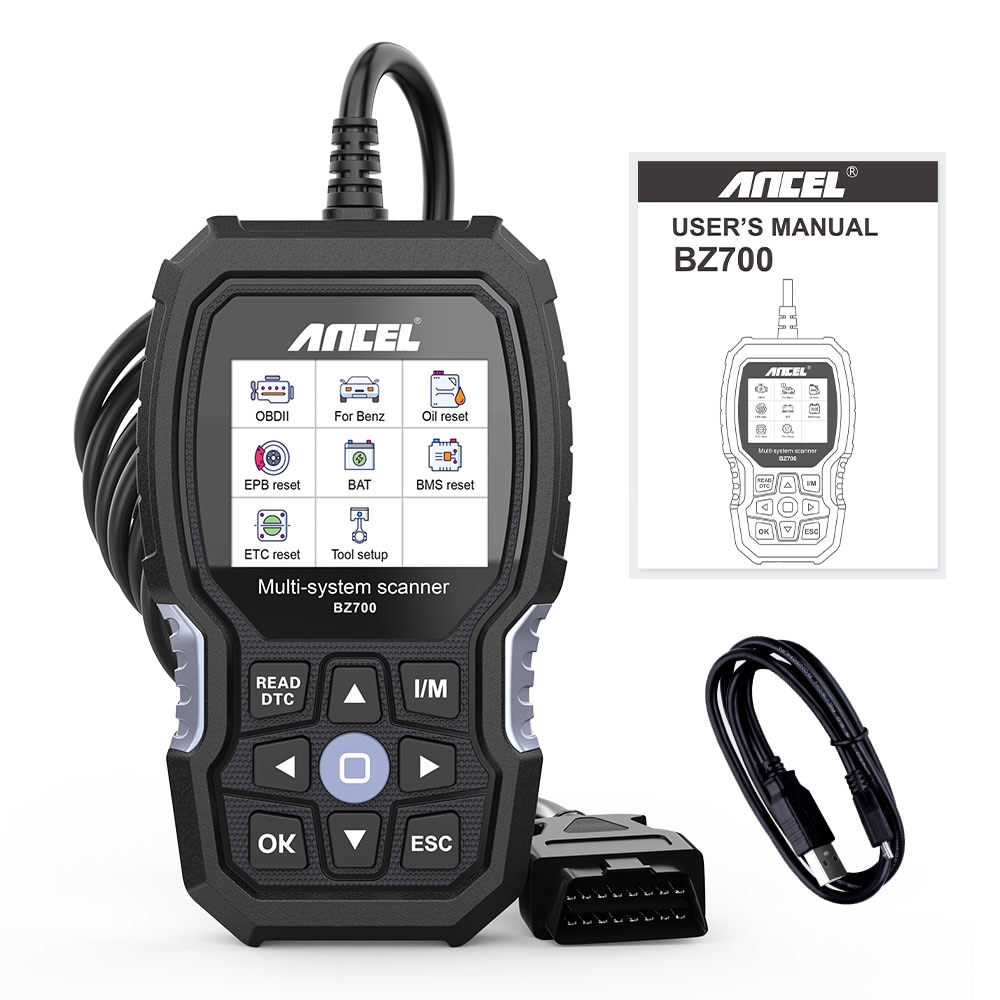

What’s Included

• 1 × BZ700 OBD2 Scanner
• 1 × Data Cable
• 1 × User Manual
