Allscanner VCX HD Truck Diagnostic System for Hino, Cummins, CAT, Nissan and Volvo

Allscanner VCX HD Heavy Duty Truck Diagnostic System for Hino, Cummins, CAT, Nissan and Volvo

Top 6 Reasons to Get Allscanner VCX HD:

1. Industry standard RP1210 A/B compliance

2. Flexible configuration supports USB wired and 802.11b/g WIFI wireless connectivity

3. Adapters and cables self-determination for molding, durable and facility usage

4. Support 12V and 24V vehicles communication, Available to diagnose heavy and Light Trucks

5. CE and FCC compliance for hardware

6. Firmware Updatable , Keep improving

Protocol coverage for automotive to heavy duty vehicles:

CAN - J1939/CAN125/CAN250/CAN500
2nd CAN - J1939/CAN125/CAN250/CAN500
J1587/J1708
J1850
ISO9141
ISO14230
ALDL

Support car model:

CAT,Volvo,CUMMINS,HINO,NISSAN

Hardware specification:

Processor: Special Dual Cell Processor for automotive
Flash: 512KH
Wired Socket: USB2.0/USB1.1 Compatible
Diagnostic Socket: 24PIN Adapter(self-determination design)
Wireless Socket: 802.11b/g wireless WIFI
Indicator Light: 4 LED indicator lights, indicate power and operation state
Power: DC 9V-28V Vehicle's power input
Consumption: 3W
Size: LxWxH=156x86x35(mm)
Working temperature: -20-70°C
Storage temperature: -40-85°C

Software specification:

1. VCX HD provide driver program compliance with industry standard of RP1210A/B
2. VCX HD is a standard reprogramming tool of Pass through, ECU reprogramming online can be realized.

Compatible software:

CAT ET2009B(Electronic Technician)
Cummins Insite
HDX(HINO Diagnostic explorer)

HINO Diagnostic Software display:

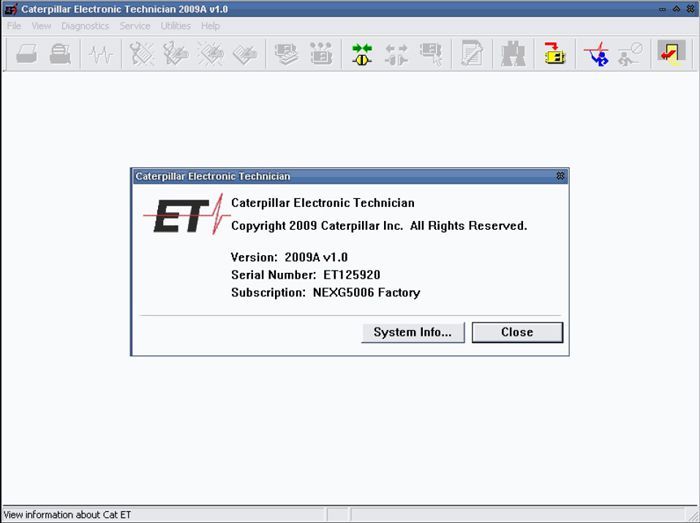

CAT software display:

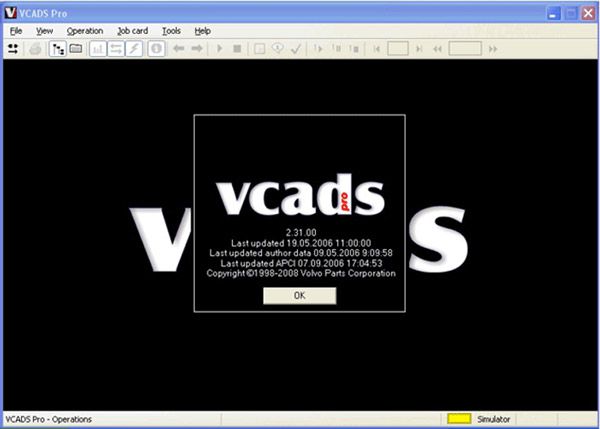

Volvo Truck Software Display:



What is included in package?

1pc x VCX HD Vehicle Communication Module
