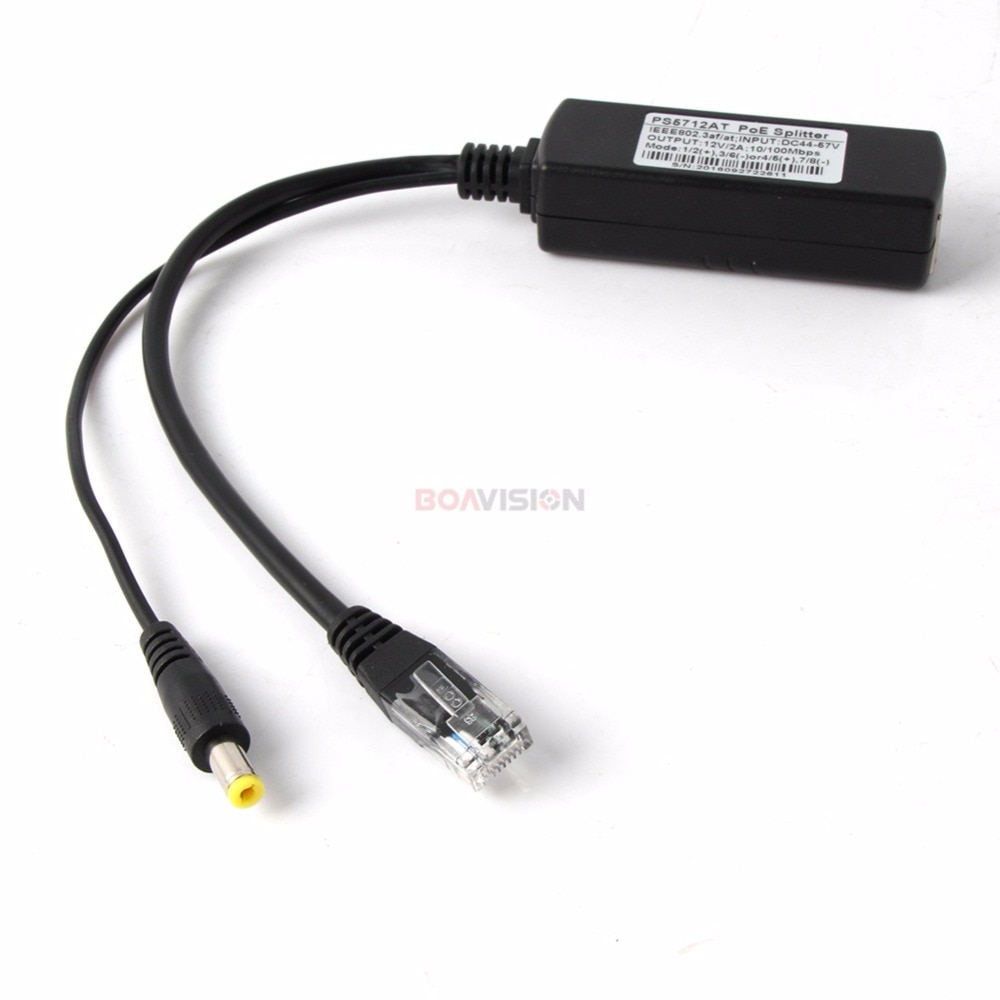

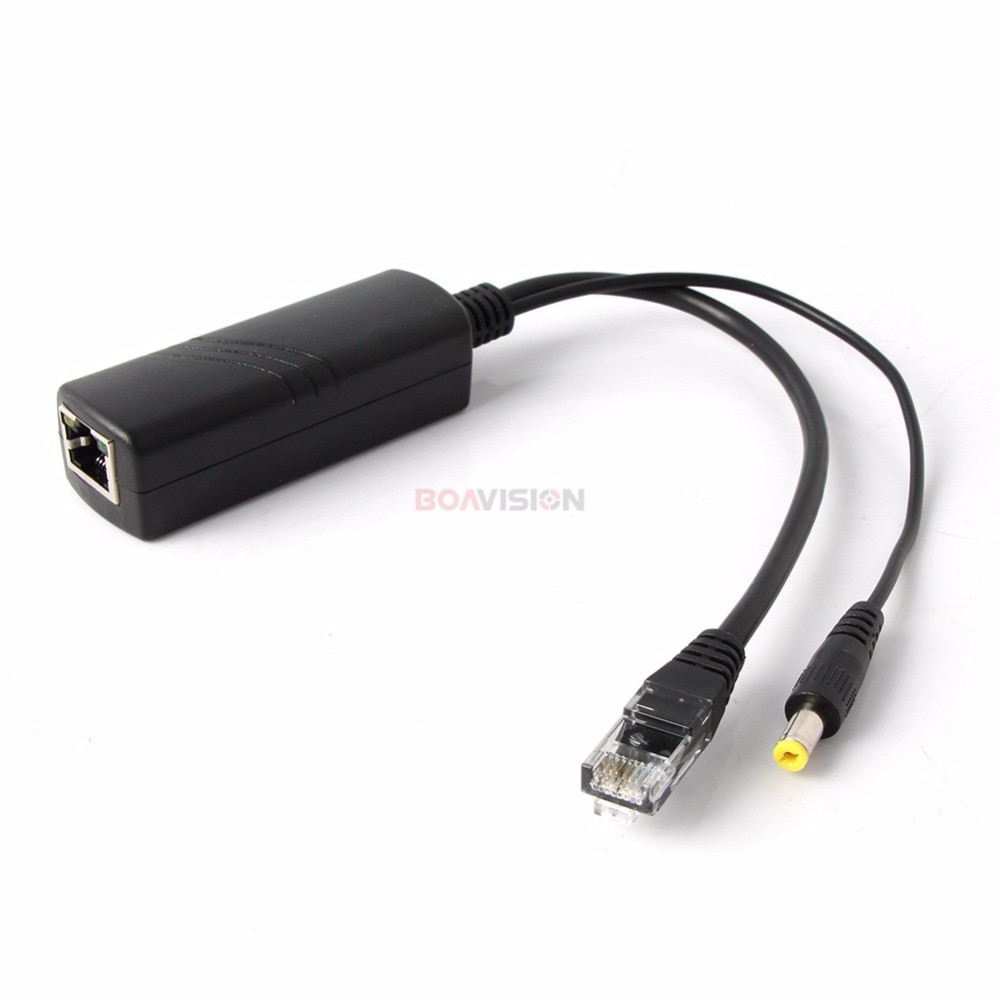

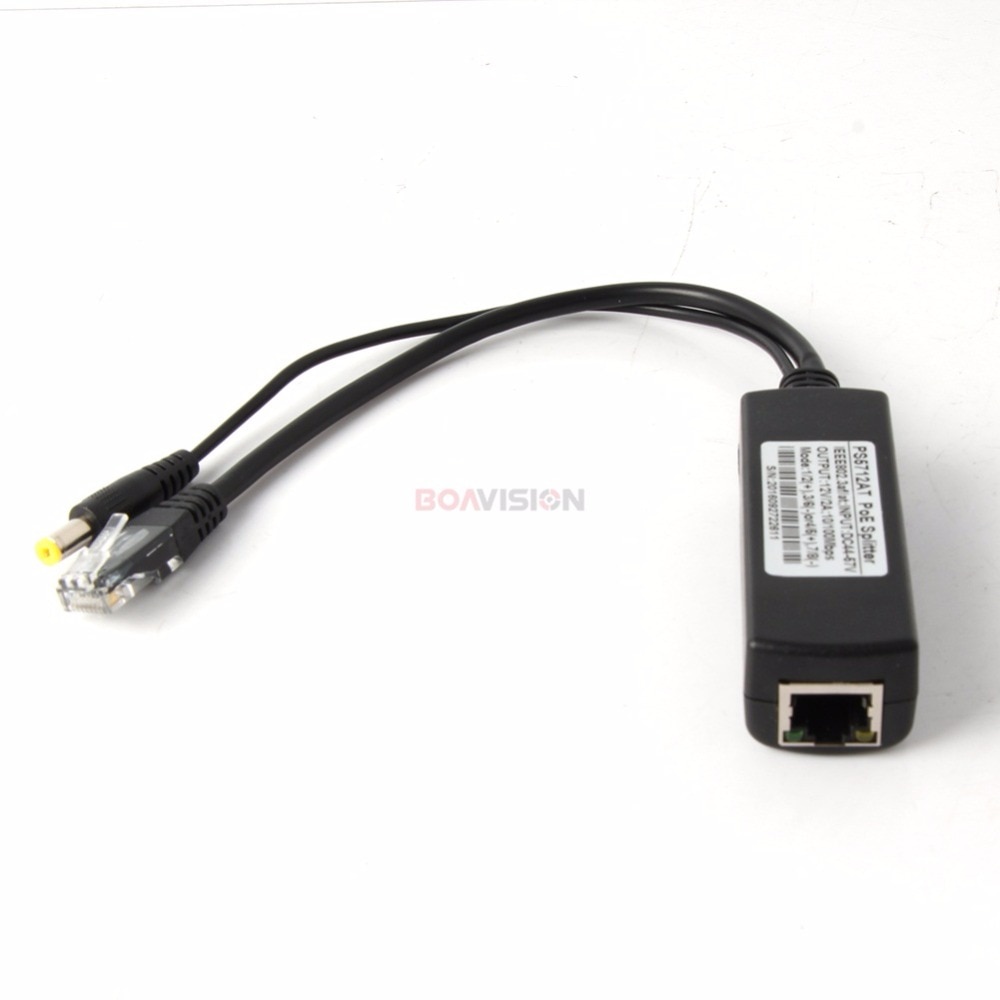

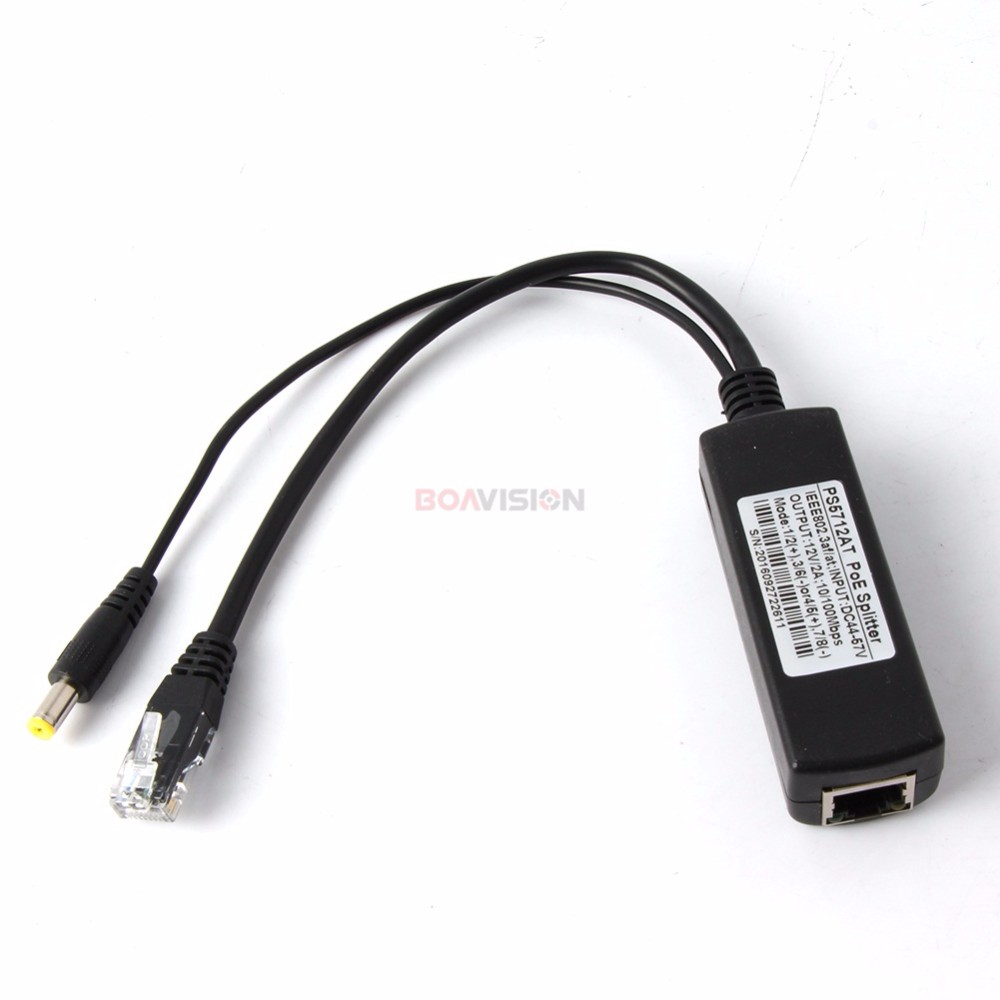

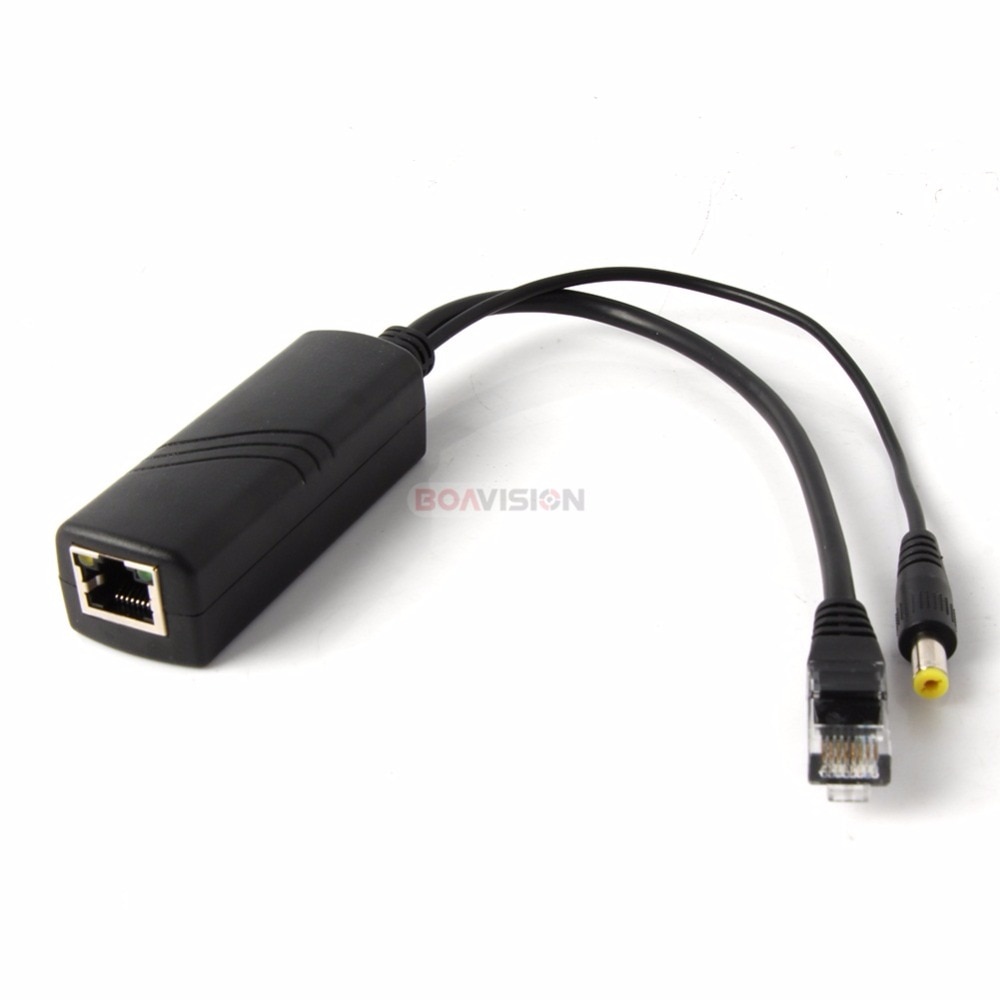

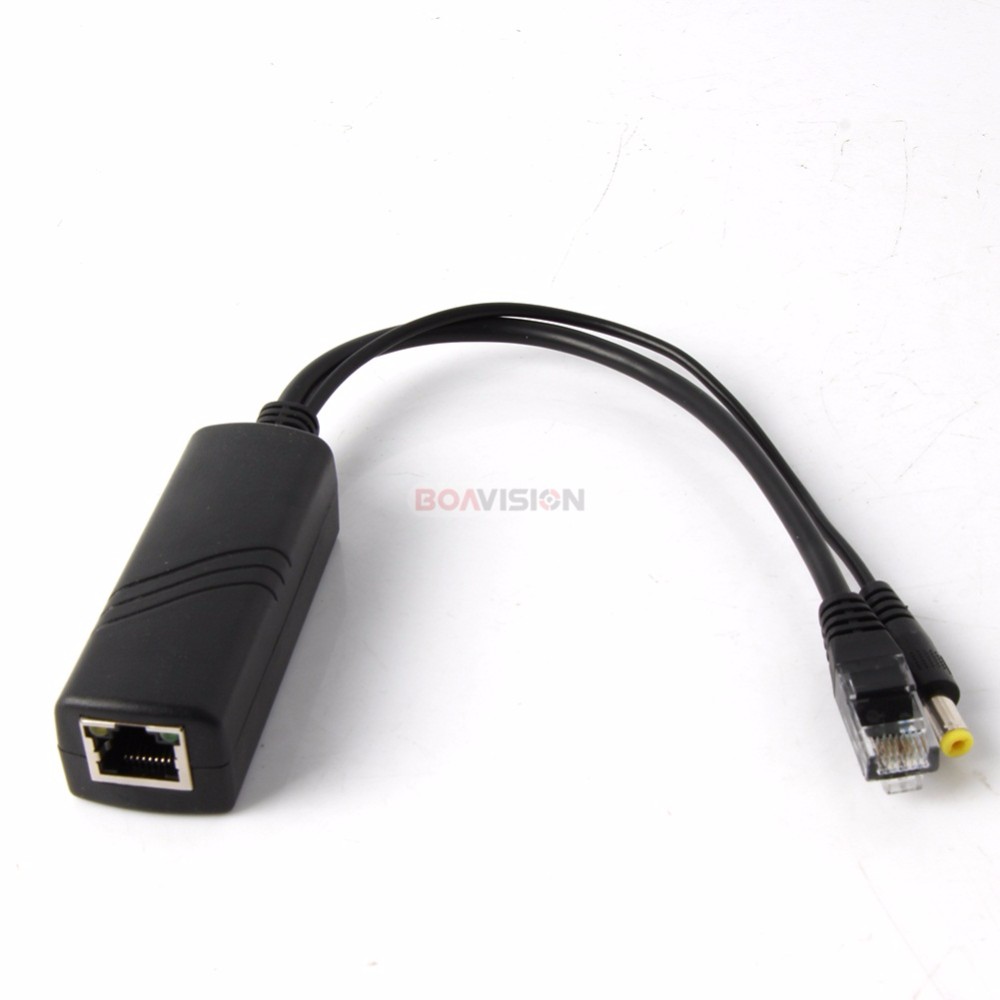

10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
  • 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
  • 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
  • 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
  • 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
  • 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
  • 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver

10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver

10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver, wholesale PoE Splitter
Item No. COBD27511 Price Down Notice
In Stock
Price:
US$12.96/ piece
Discount Price:
US$7.76/ piece 40%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver

Power Over Ethernet SplitterPOE AccessoriesPOE Splitter IEEE802.3ATDC 12V POE Splitter12V POE SplitterPOE Splitter

Standard IEEE802.3at 10/100Mbps Fast Ethernet PoE Splitter Input DC44-57V 0.65A Output DC12V 2A DC Plug5.5*2.1mm

Main Features:

This is a economical and pratical high performance and hgh reliability PoE distant powered equipment based on IEEE 802.3at standard, it can divide the power and data signal from network cable, can be used with power supply equipment(PoE injector) which is compatible with IEE802.3af, and supply power and data for Non PoE network equipment.

1) Support IEEE 802.3at Ethernet power standard and Support 10/100 Mbps data transmission

2) 44V-57V wide power voltage input makes it very conveniently to use direct current DC48V power from generator room or PoE power supply equipment, standard or non standard PoE injector, PoE switch, etc.

3) Supply DC12V power, which is very suitable for small network equipment.

4) Lightning protection design, effectively protect PD from lightning and save loss, please put it close to ground!

5) High quality design ensure the equipment work stably and reliably.

6) Tips: lease keep the device from water, enough space for heat-dissipating, connect the ground line correctly, so that it could extend its lifespan for a longer time.

Installation Steps:

Step 1: Connect AC power cord to PoE injector, and “Power” & PoE LED will be on.

Step 2: Connect “Data/in” port of injector to Non PoE switch via Cat5e/6/7 cable, and set the correct voltage(5V, 9V or 12V) by adjustable DIP switch on one side of the PoE splitter(Default setting 5V)

Step 3: Connect “Power+Data” port of splitter and “P+D/Out” port of injector via Ethernet cable, and make sure “Power Led of Splitter is on.

Step 4: Connect “Power Out” cable of splitter to power jack of network device, and connect “Data Out” Cable of splitter to to RJ45 port of network device.

Step 5: Check whether the network device is on. If not, please make sure that power is on for injector and splitter, and all cables are connected correctly.

Model number PS5712AT
Port 1CH 10/100M self-adaption RJ45 port
1CH RJ45 port support PoE
Network interface 100BASE-TX: CAT5 or above unshielded twisted-pair UTP(<100m)
Power input 44-57V/0.65A(30W)
Power output DC12V 2A(24W)
POE protocol Standard IEEE 802.3af/at
POE Pin 1,2(+), 3,6(-)/4,5(+), 7,8(-)
LED Indication PoE status
Lightning protection Yes
Working Environment Working temperature: 0~40C
Storing temperature: -40~70C
Working humidity: 10%~90%(no condense)
Storing temperature: 5%~90%(no condense)
Dimension(L*W*H) 94mm*35mm*28mm

Packing List

1 x 12V 2A PoE Splitter
