a.General Feature:

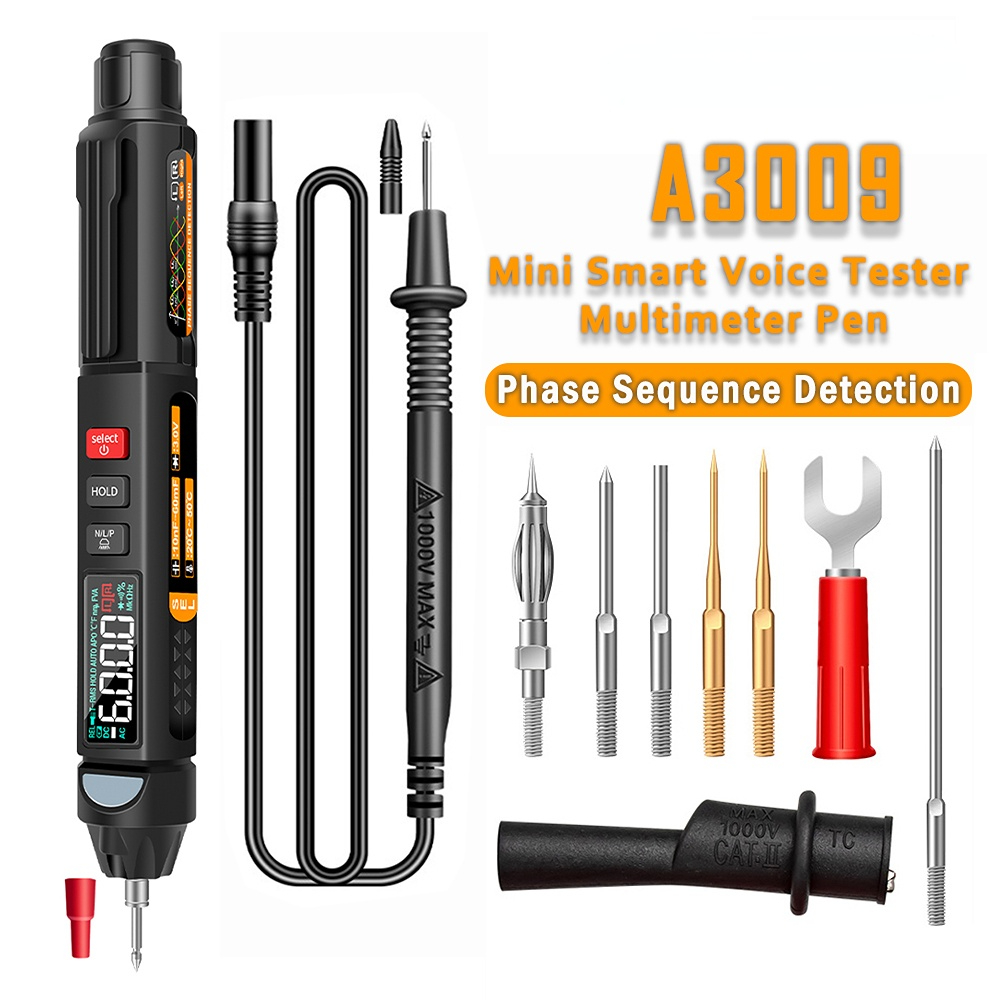

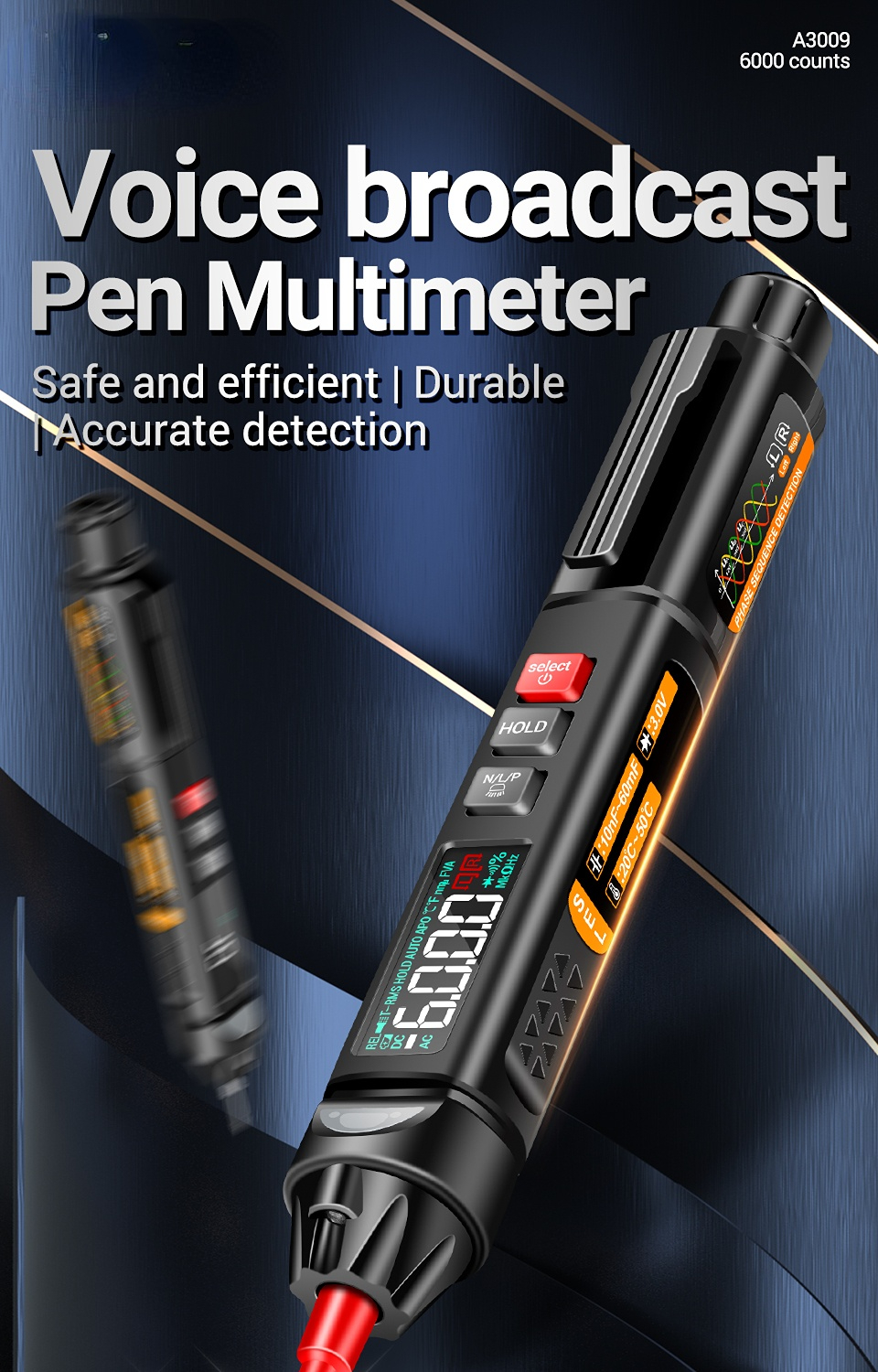

6000 counts digital mini voice pen-type smart multimeter

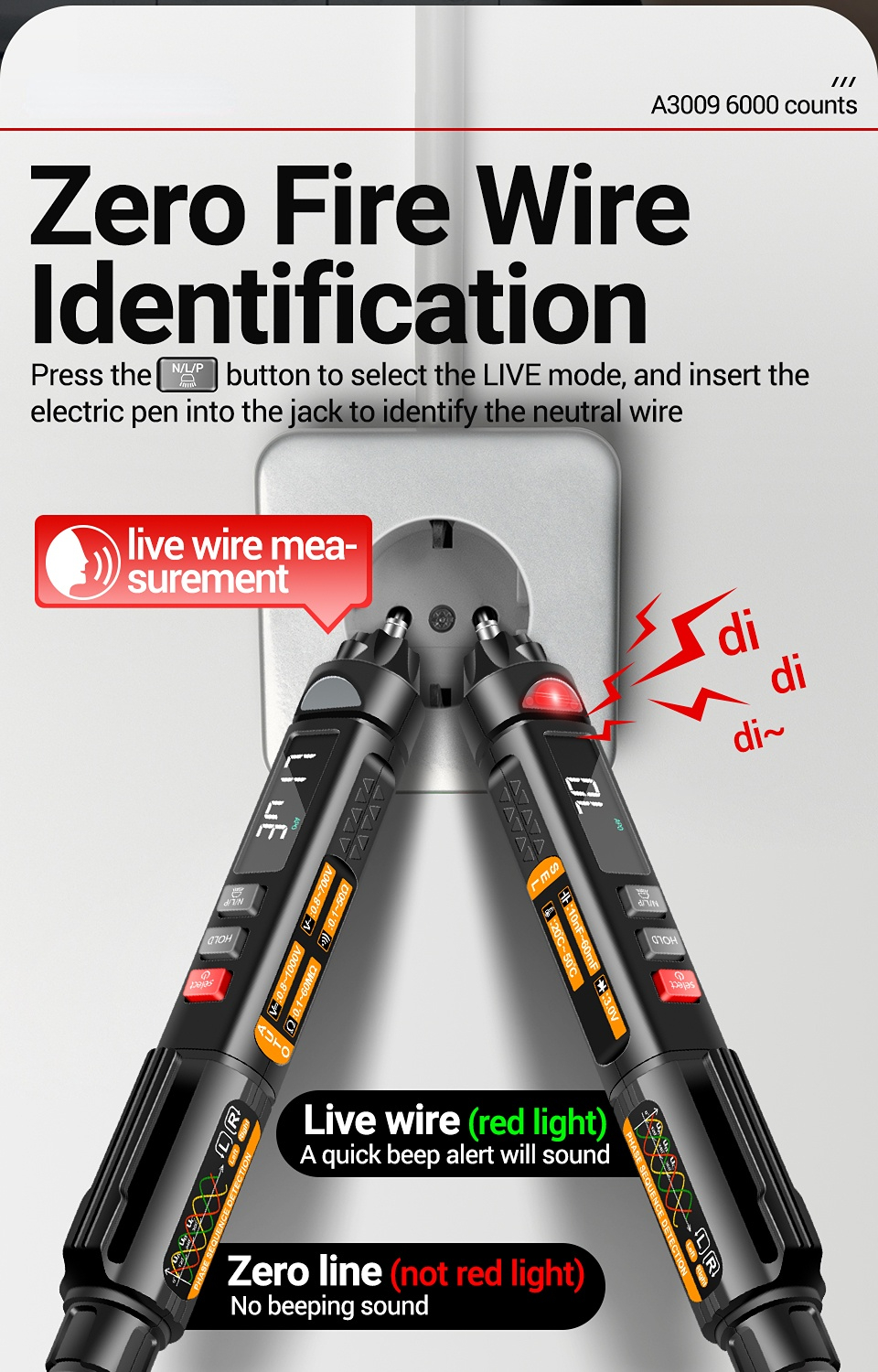

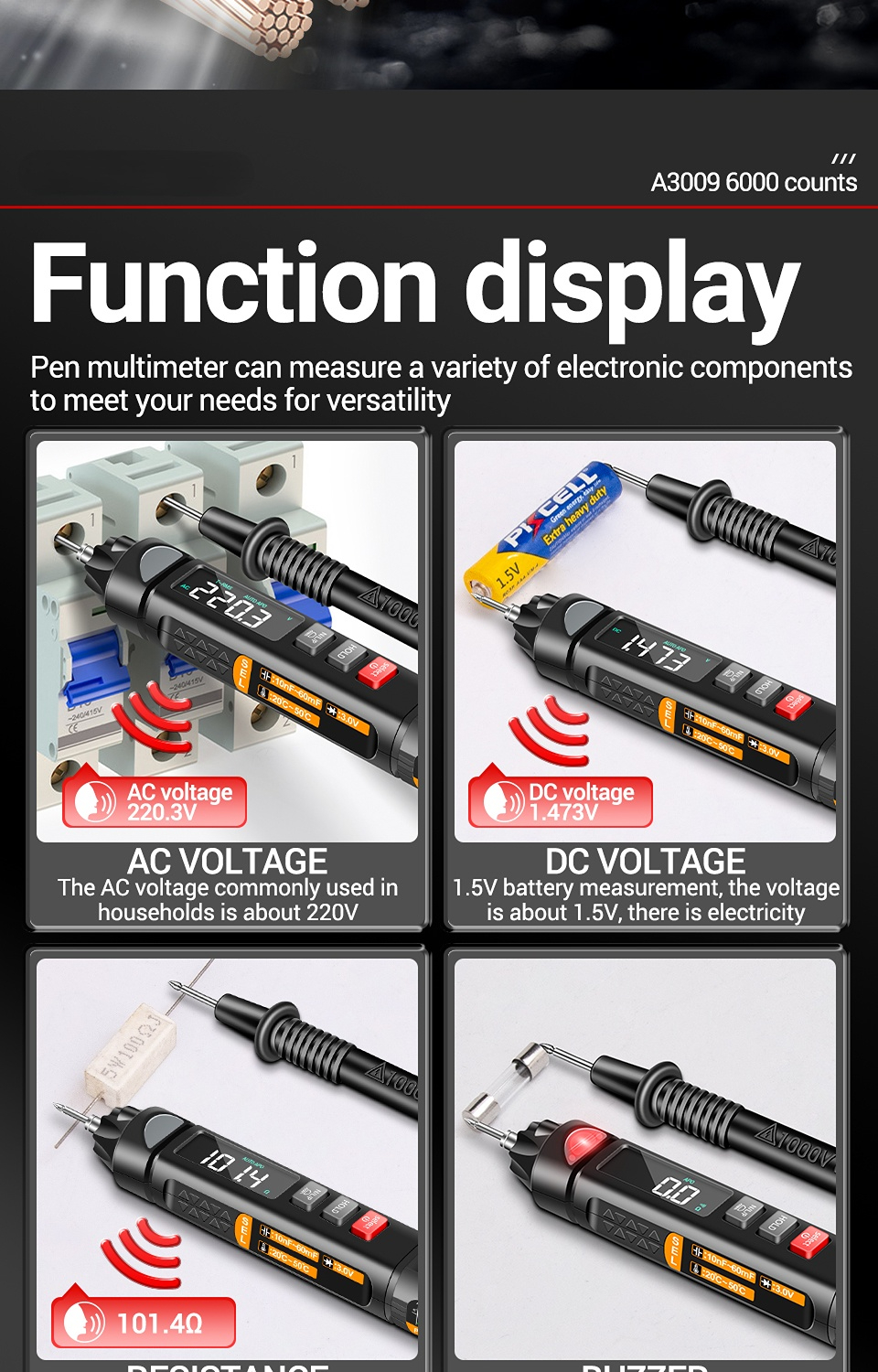

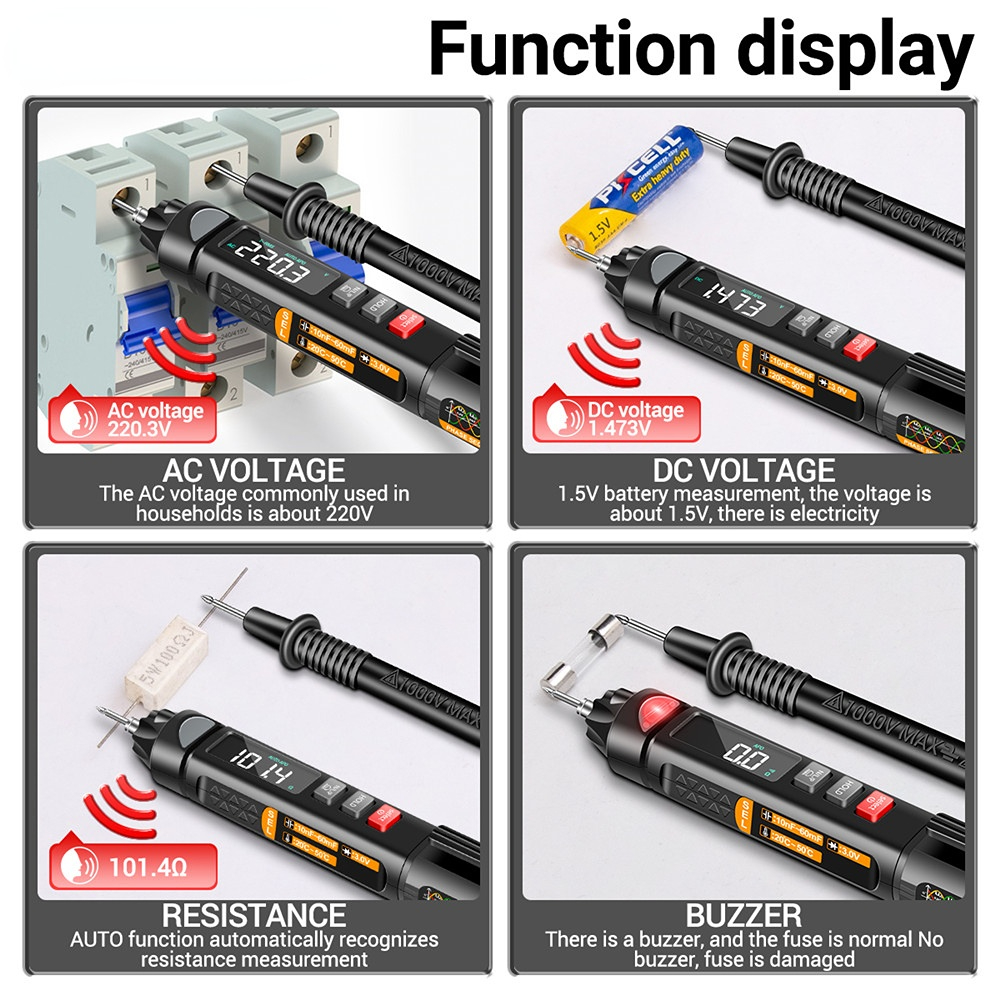

This meter can atomatically identify DC voltage and AC voltage, resistance, without any swithching , and can also manually switch to measure capacitance, diode, continuity test, non-contact voltage measurement, zero live wire measurement, phase sequence measurement.
It is a tool meter with superior performance, and it is an ideal tool for laboratories, fatories, radio enqusiasts and families.

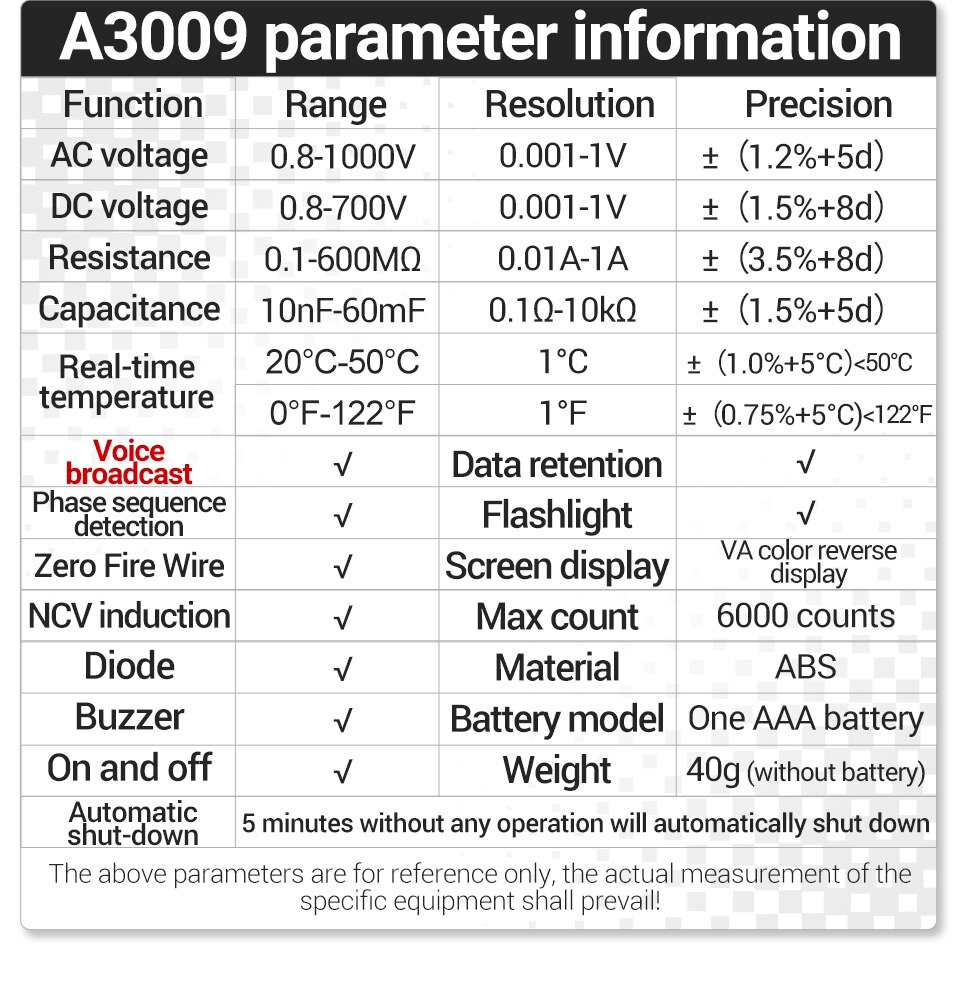

b.Parameter:
| Funticon | Range | Resolution | Precision |
| AC voltage | 0.8-1000V | 0.001-1V | ±(1.2%+5d) |
| DC voltage | 0.8-700V | 0.001-1V | ±(1.5%+8d) |
| Resistance | 0.1-600MΩ | 0.1Ω-10kΩ | ±(3.5%+8d) |
| Capacitance | 10nF-60mF | 10pF-100uF | ±(1.5%+5d) |
| Real-time | 20℃-50℃ | 1℃ | ±(1.0%+5℃)＜50℃ |
| 0℉-122℉ | 1℉ | ±(0.75%+5℉)＜122℉ | |

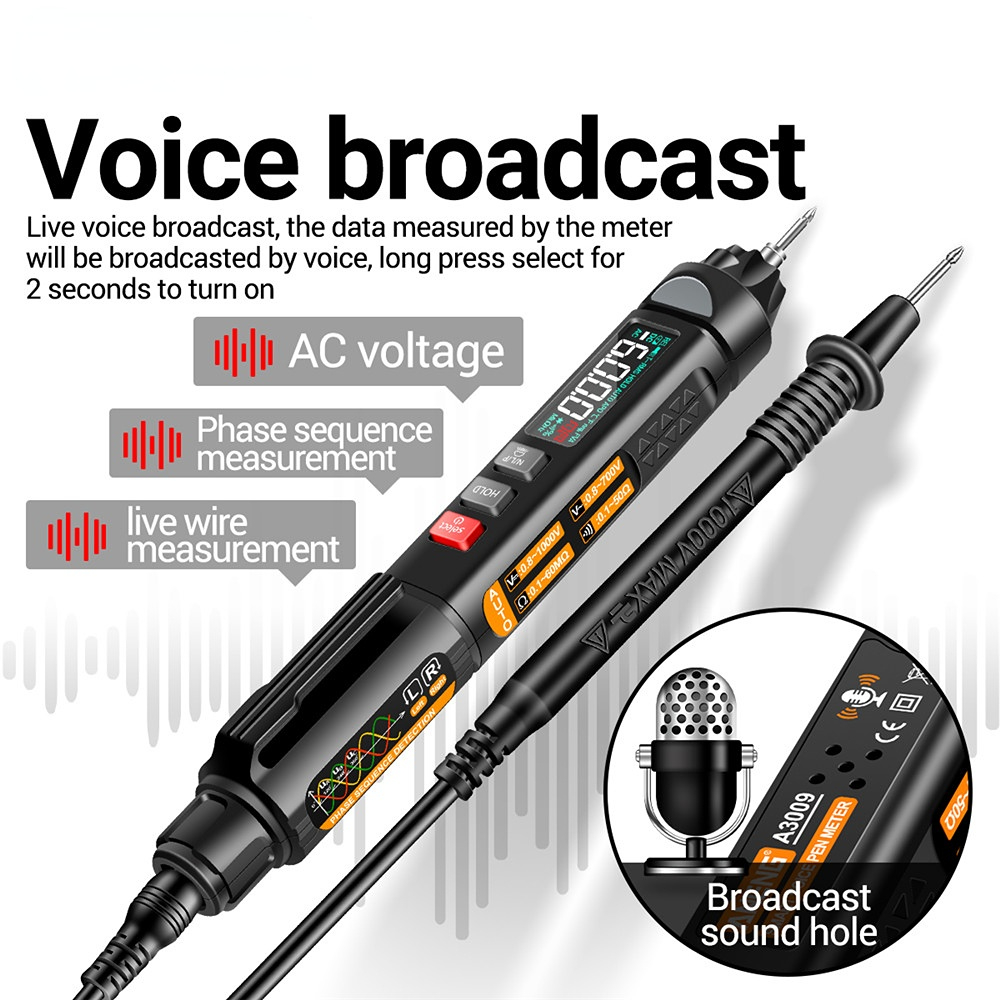

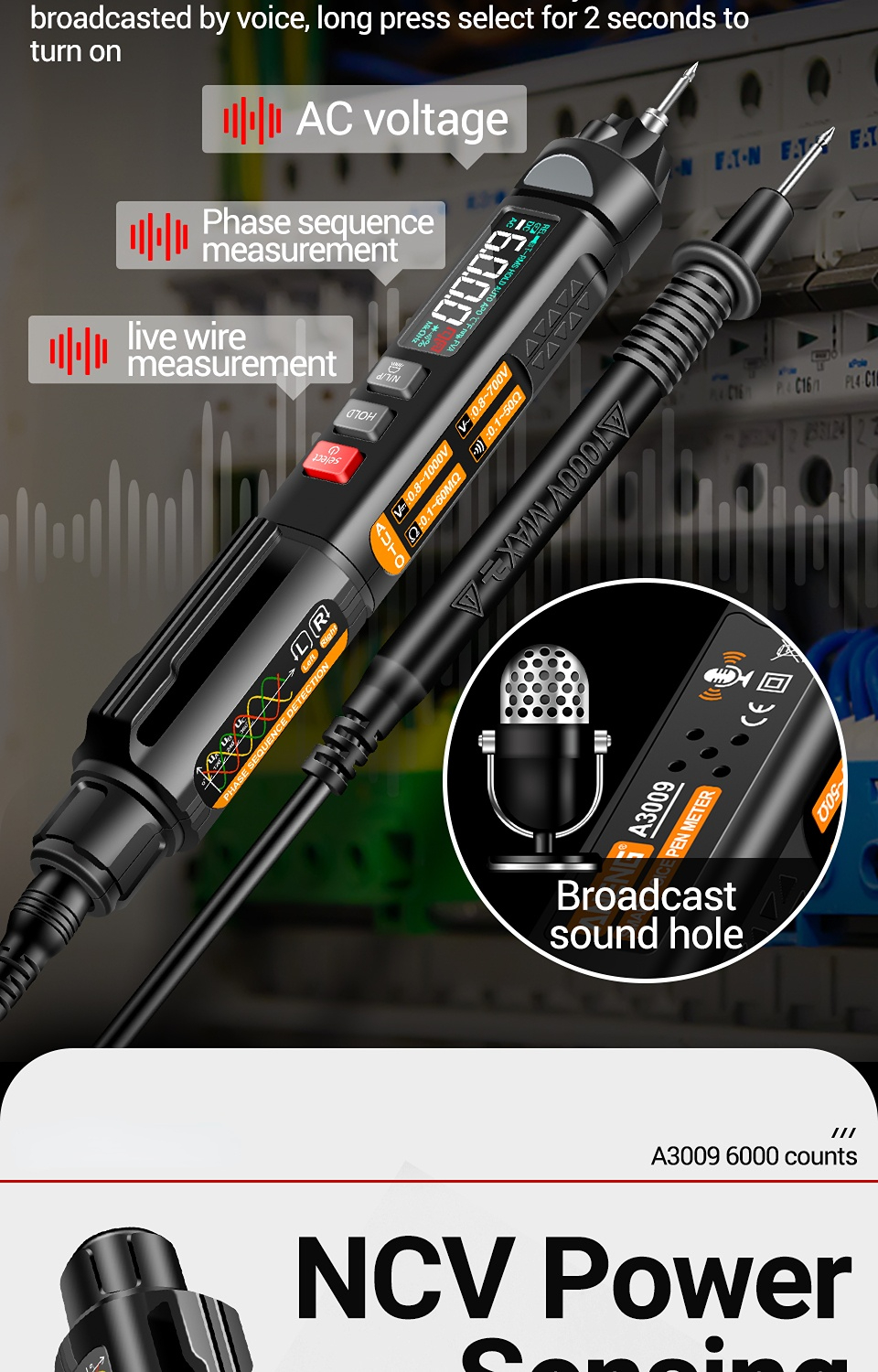

| Voice Broadcast | √ | Data retention | √ |
| phase sequence detection | √ | Flashlight | √ |

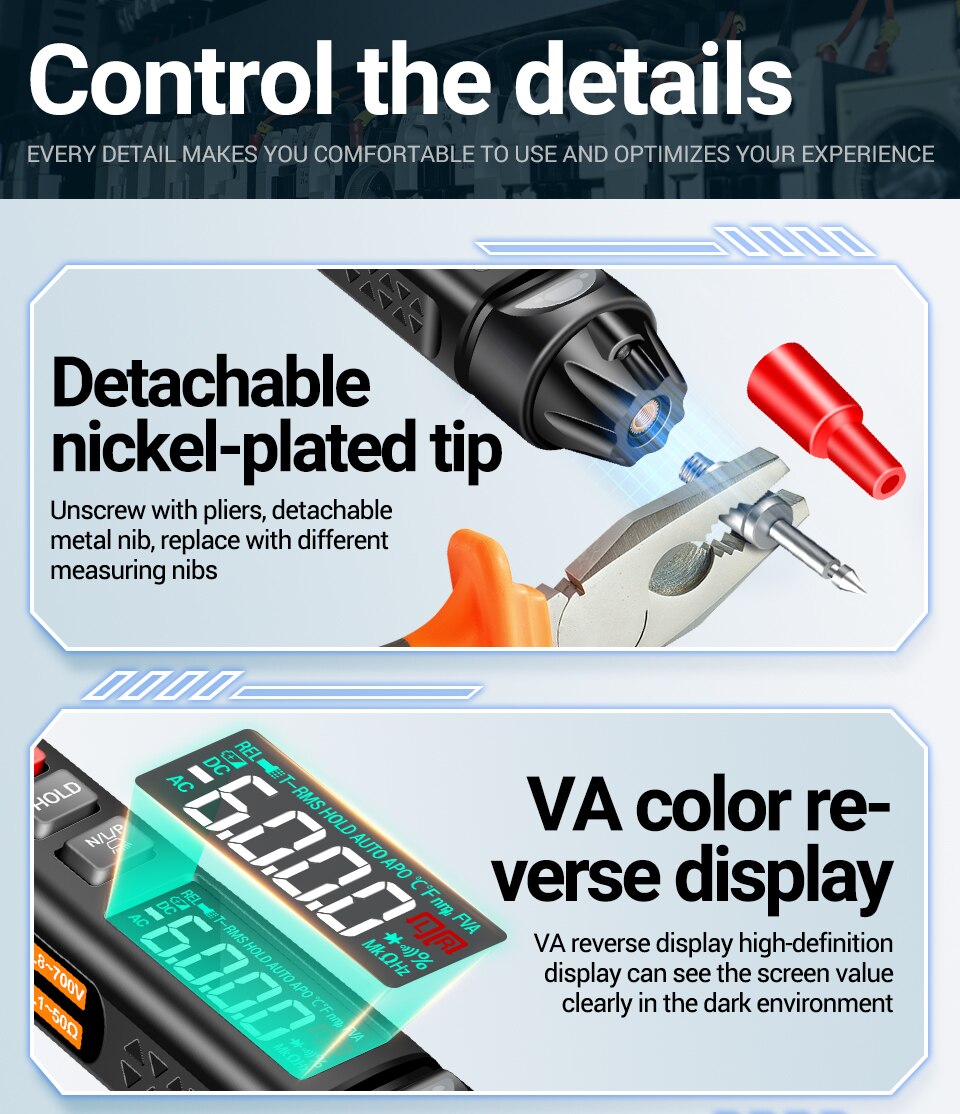

| Zero Fire Wire | √ | Screen display | VA color reserve display |
| NCV induction | √ | Max count | 6000 counts |
| Diode | √ | Material | ABS |

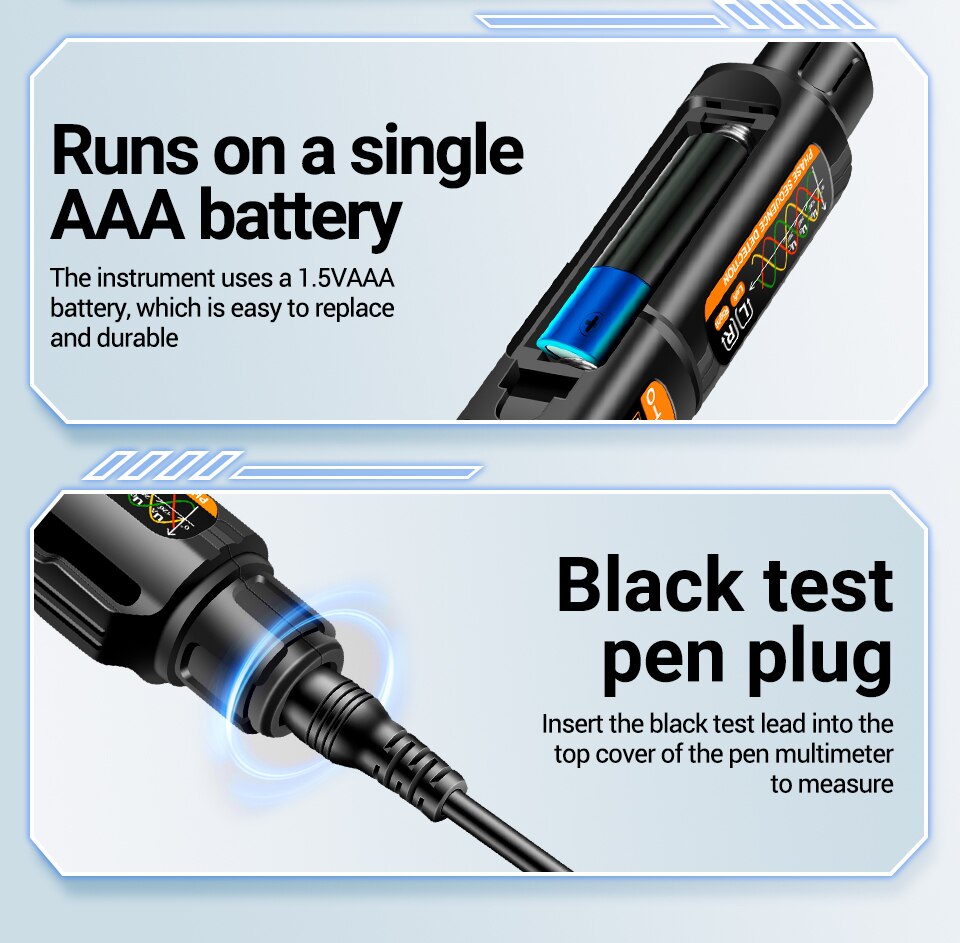

| Buzzer | √ | Battery model | One AAA battery |
| On and off | √ | Weight | 40g(without battery) |

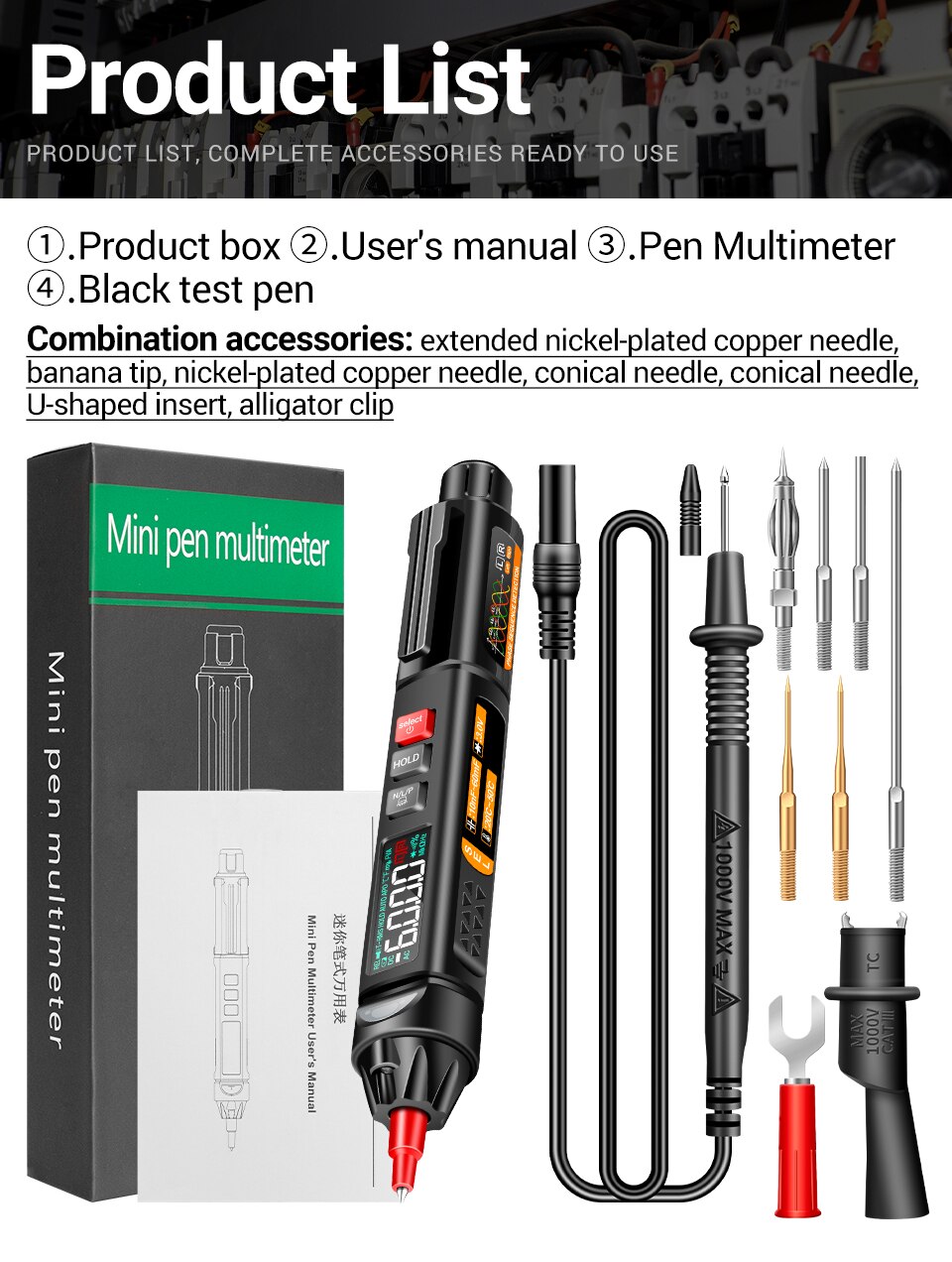

c.Package include:
1*A3009 Multimeter Sensor Pen
1*Outer box(according to the choose)
1*Manual

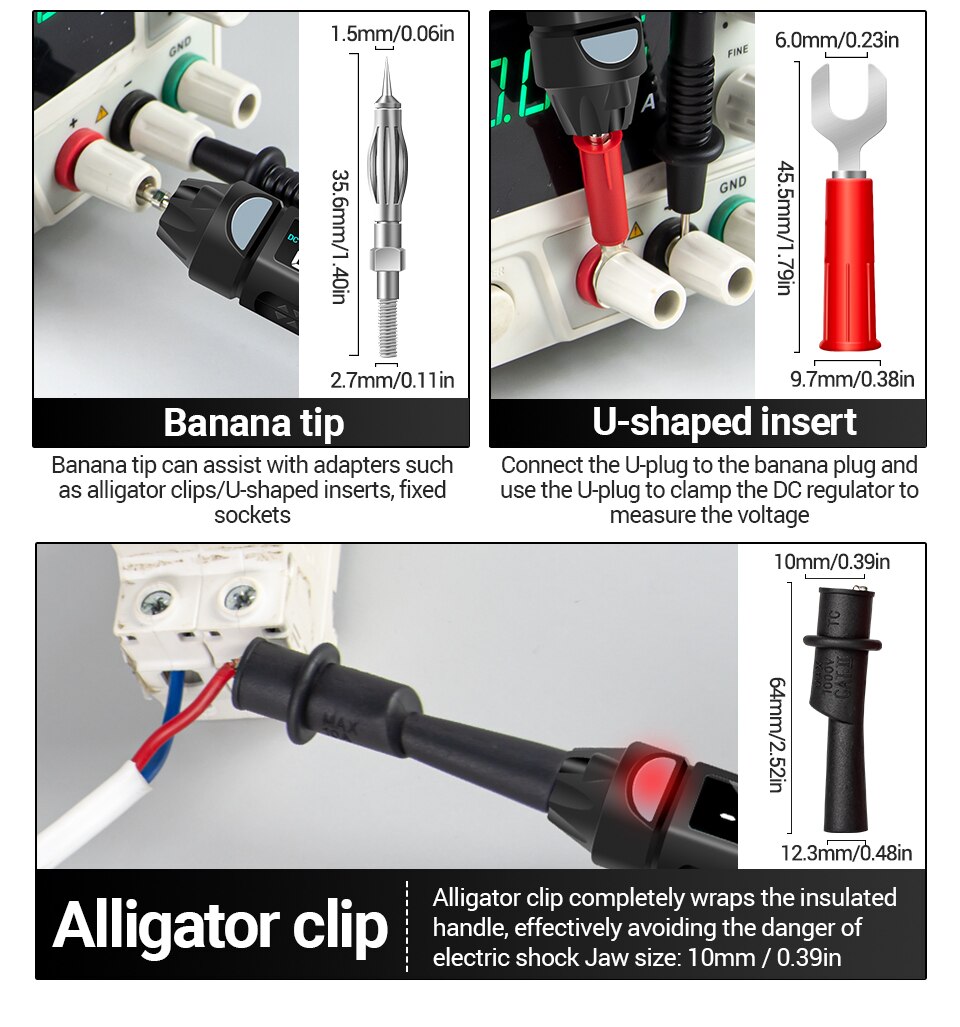

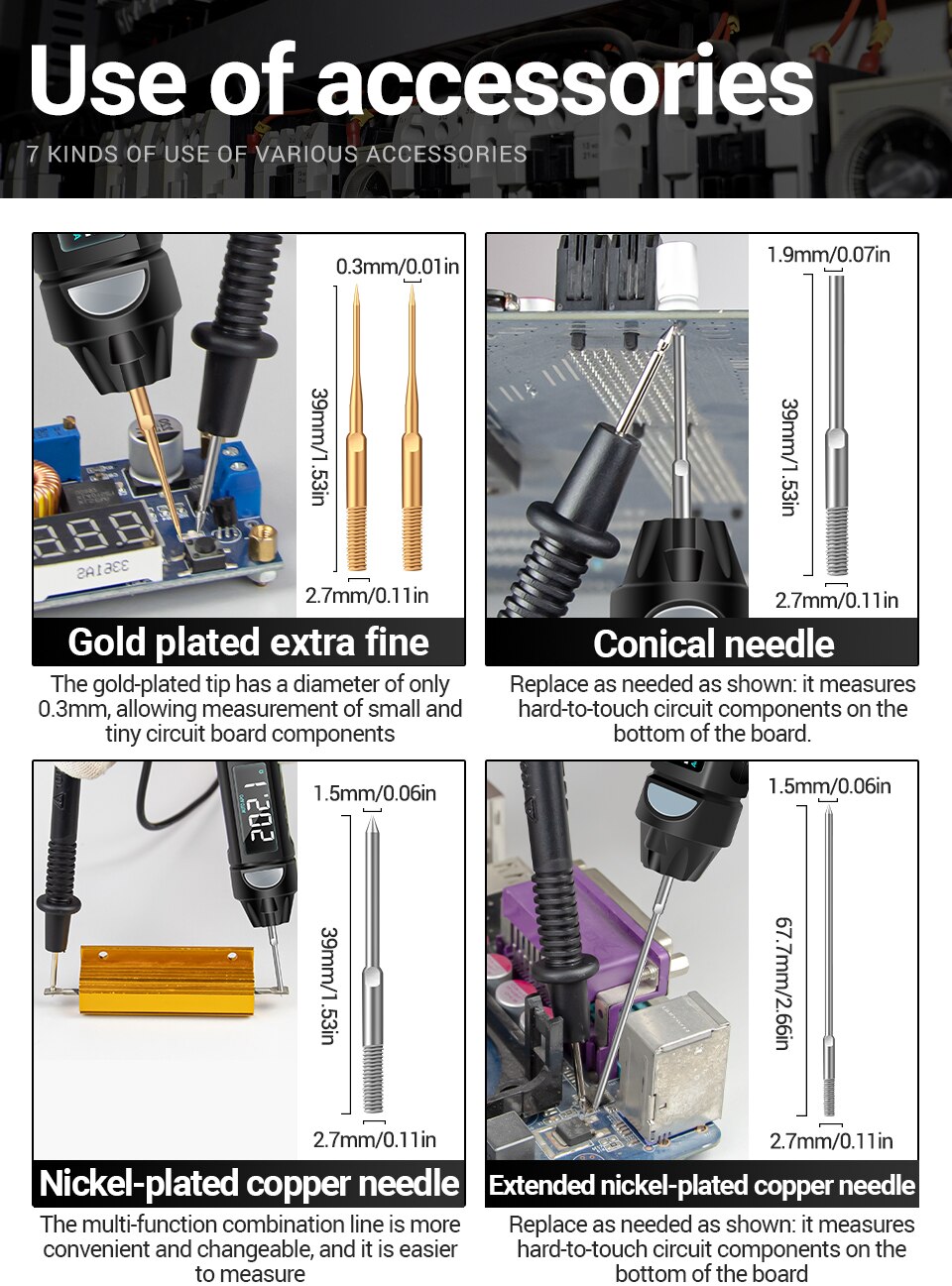

1*Combination accesorries
