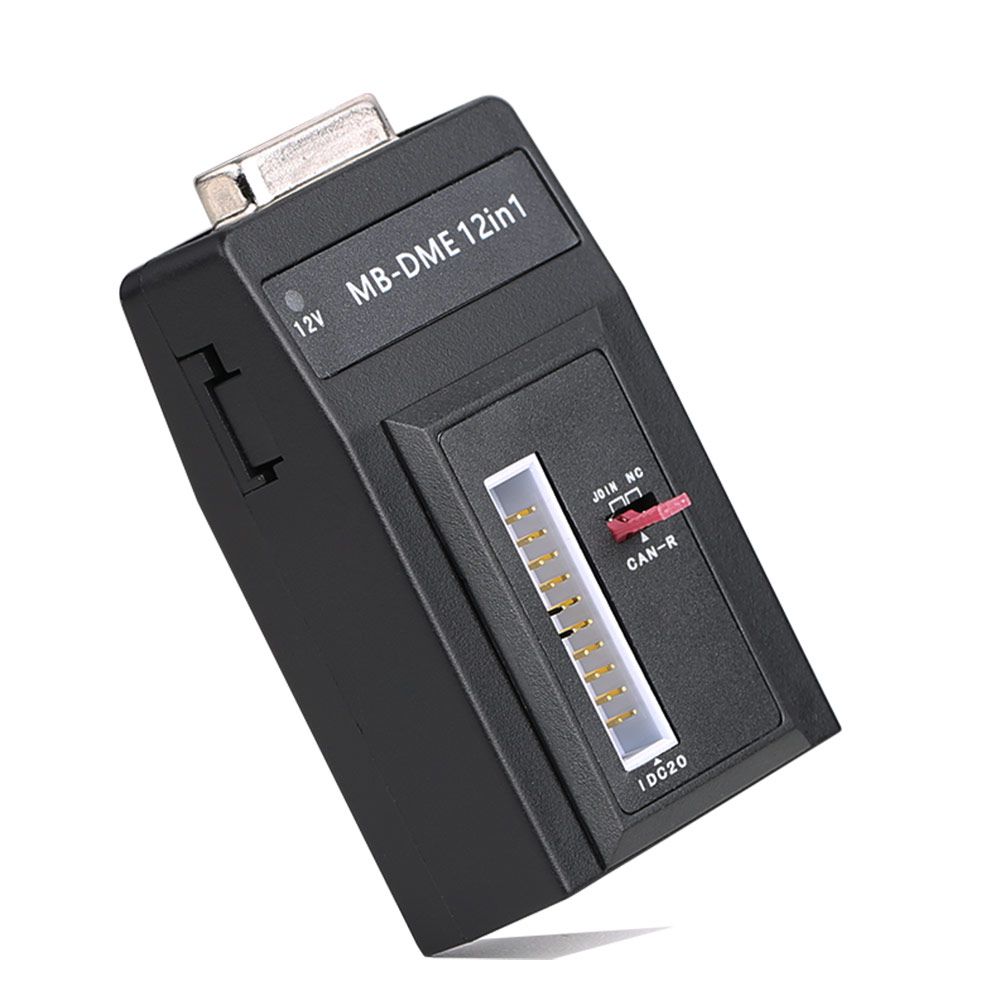

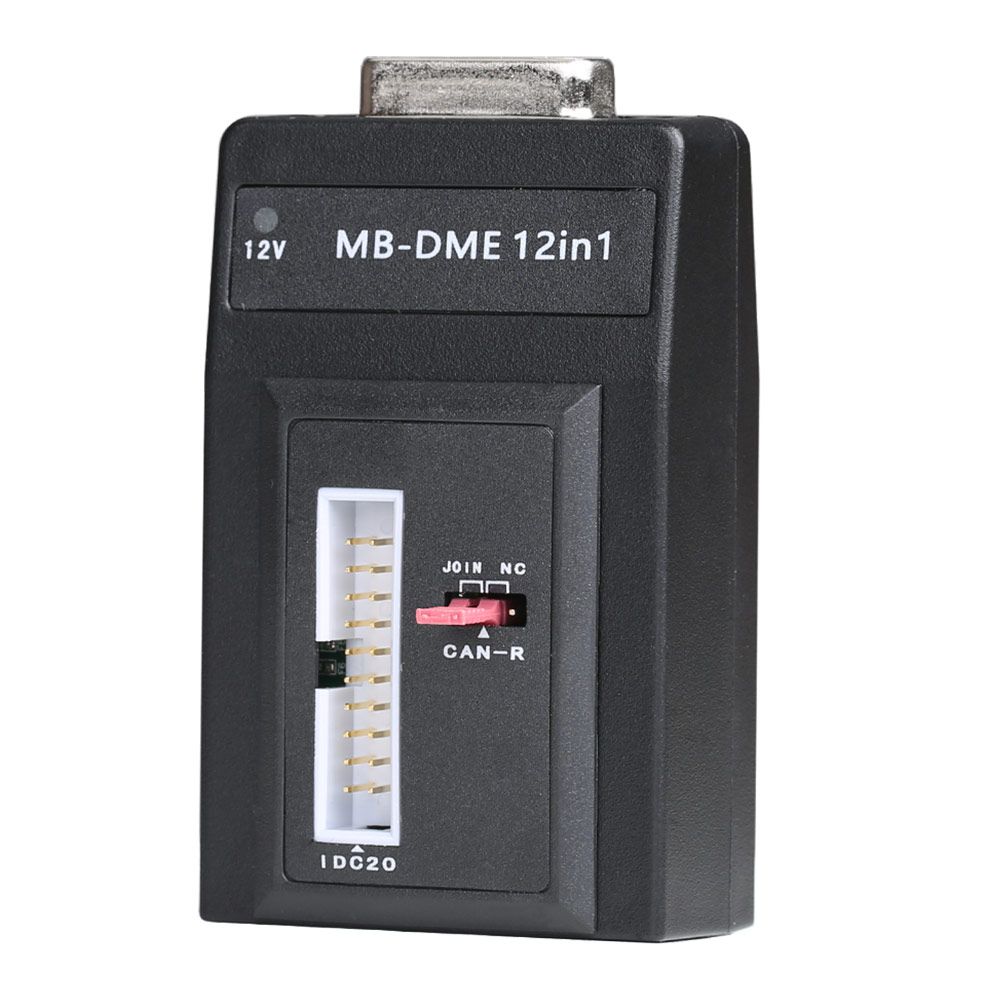

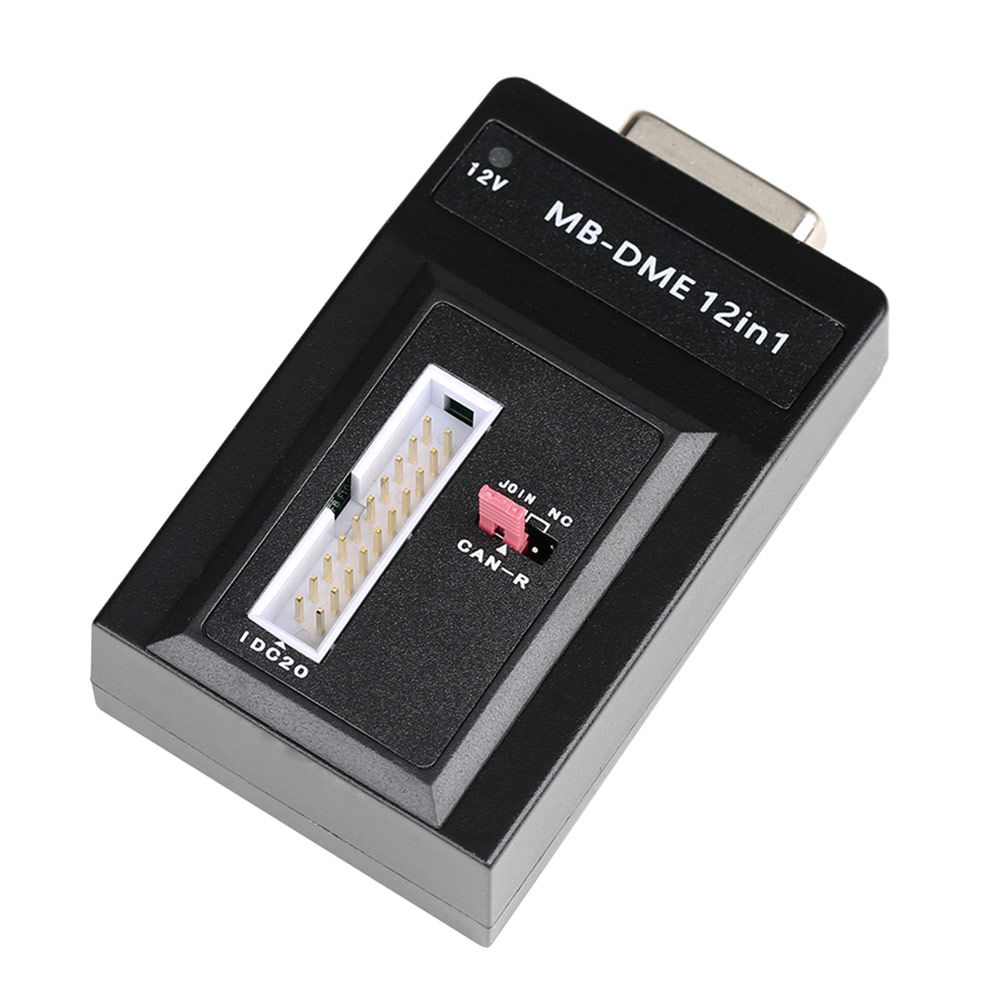

Yanhua ACDP MB 12-in-1 Interface Board Adapter for ACDP Module 18

Important Notice: This adapter cannot work alone. It must be used together with the ACDP mercedes-Benz DME/ISN Refresh Module 18.

Supported mercedes-Benz DME Models

This interface board supports refreshing the following mercedes-Benz DME units:

• CR4.XX
• CRD2.XX
• CR5
• ME9.7
• SMI271KE2.0
• CRD.11
• SIM271DE2.0
• CR3.XX
• SIM4LKE
• MED17.7X
• CR6
• SIM266

Key Features

• Mercedes-Benz dedicated interface – no wire separation required; enables quick plug-and-unplug operation.
• Automatically identifies and connects to 12 different Mercedes-Benz DME models.
• Pin automatic detection ensures safe and reliable connections, preventing wiring errors that could damage the circuit.

How to Connect the Yanhua Mini ACDP to the MB 12-in-1 Interface Board Adapter on Bench

1. Prepare the ACDP main unit, adapter, interface board, and DME.
2. Connect the interface board correctly to the DME interface as shown in the reference image.
3. Short the CAN resistor on the adapter to the “CAN-R Join” position.
4. Connect the ACDP, adapter, interface board, and DME together.

Package Includes

• 1 pc × Yanhua Mini ACDP MB 12-in-1 Interface Board Adapter
