T701 also can be used to check continuity of cable assembly. It shows test results and graphs through red LED light and LCD screen. When the cable assembly is continuous, the red LED light is On. Verse vase, the red LED light is off.
Item No. COBD23508 Price Down Notice
Out of Stock
Price:
US$39.99/ piece
Discount Price:
US$29.99/ piece 25%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

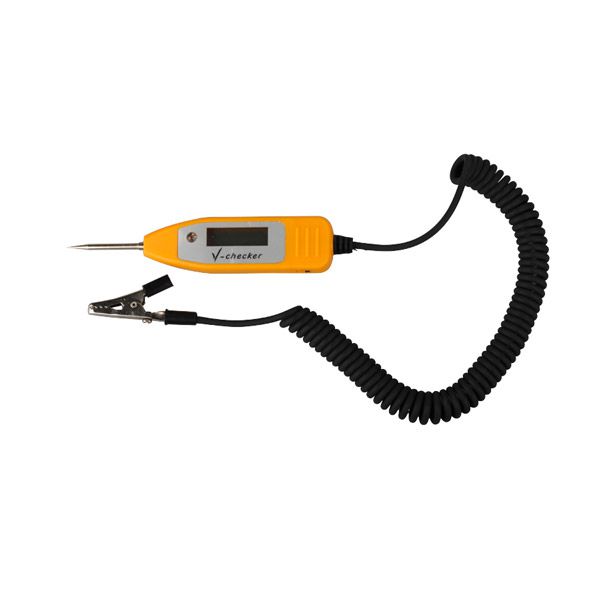

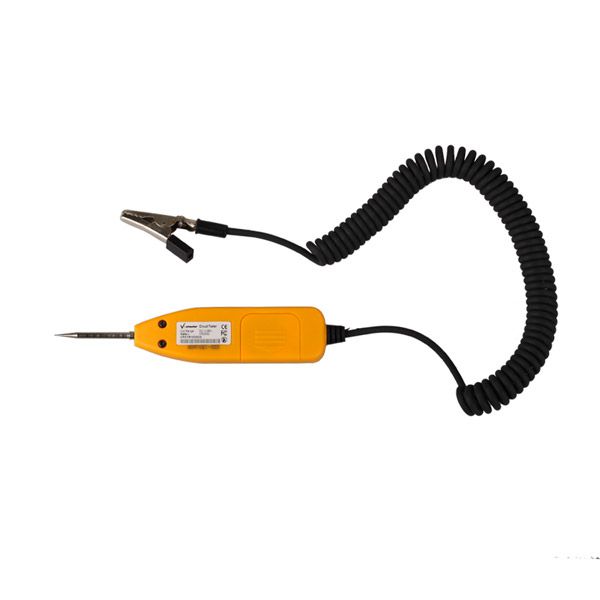

V-CHECKER VCHECKER T701 Circuit Test Pencil

Feature:


V-checker T701 circuit tester can check the cable assembly signal from 0~36V with accuracy 0.1V. When the signal voltage is over 36V, the LCD screen will show icon ">>”. The tester’s waveform range is from 0-12V.
When the tester leaves the cable, the waveform will be enlarged and the LCD displays 0.4s actual waveform. Meanwhile, the voltage range is marked and user can define waveform of 10-50Hz. When the cable assembly voltage is over 0.1V, the LCD indicates voltage value and waveform. The blue LED would be shining When voltage is over 0.5V.


V-CHECKER T701 Circuit Tester Specification:

Working voltage: 3.0-3.3V
Working current: 5mA /Standby current: 5μA
Working power: 0.9W / Standby power: 0.1mW

Package including:

1pc x V-CHECKER T701 Circuit Test Pencil
