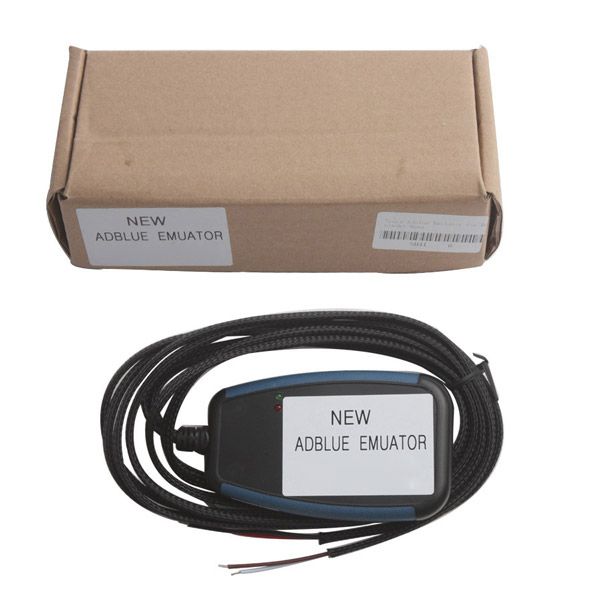

Truck Ad-blue-obd2 Emulator for Mercedez-Benz(Only with Bosch Ad-Blue-obd2 System)

BENZ Ad-blue-obd2 Emulator (only with Bosch Ad-blue-obd2 system) Trucks and other heavy vehicles

Ad-blue-obd2 Emulator Box designed to disable Ad-blue-obd2 system used in Trucks, buses and other heavy vehicles with EURO 4/5 exhaust emission rates Ad-blue-obd2 Emulator Box bypasses electronic module of the Ad-blue-obd2 system on vehicle.

Its very easy to fit Ad-blue-obd2 Emulator Box to any Truck or bus equipped with Ad-blue-obd2 system and it will override Ad-blue-obd2 system instantly, it will stop the usage of Ad-blue-obd2 liquid. Ad-blue-obd2 Emulator Box disables Ad-blue-obd2 system electronics gently so there will be no power loss of the engine or any warnings on the dashboard and in diagnostic system.

This device works without interfering to work of other electronic systems of the vehicle.
Ad-blue-obd2 Emulator Box has a wide range of supported vehicle models and there is only one version of emulator for all supported trucks, just upload the necessary program to the Ad-blue-obd2 Emulator Box and you can install it on any supported truck.

When this box connected - Ad-blue-obd2 system of the truck would be fully emulated, no errors related to Ad-blue-obd2.The box can be fast and easy installed to truck. You can disconnect it, reset and install into another truck.

The SEAS module is supplied with 5 conductors Installation:

Power feeding / activation:

RED (+15): to be connected to a 24 Volt source “under key” (24 Volt enabled when the engine key is in ON position); preferably to the same source that enables the Ad-blue-obd2 system working. This connection will supply power to the SEAS module when the engine key is in ON position (dashboard ON).

BLACK (earth): to be connected to an earth available, preferably the same as Ad-blue-obd2.

GREY (+30): to be connected to a 24 Volt source always available of Ad-blue-obd2 system,necessarily BETWEEN the F1 or F11 protection fuse and the Ad-blue-obd2 system.

CAN-Bus line connection:

The two conductors plaited together must be connected to the CAN-Bus line of the Ad-Blue-obd2 system.

WHITE (CAN H): to be connected to CAN H of the system that must be simulated.

BROWN (CAN L): to be connected to CAN L of the system that must be simulated.The connections must be made under the dashboard, into the fuse and relay box.

PCB Board:
