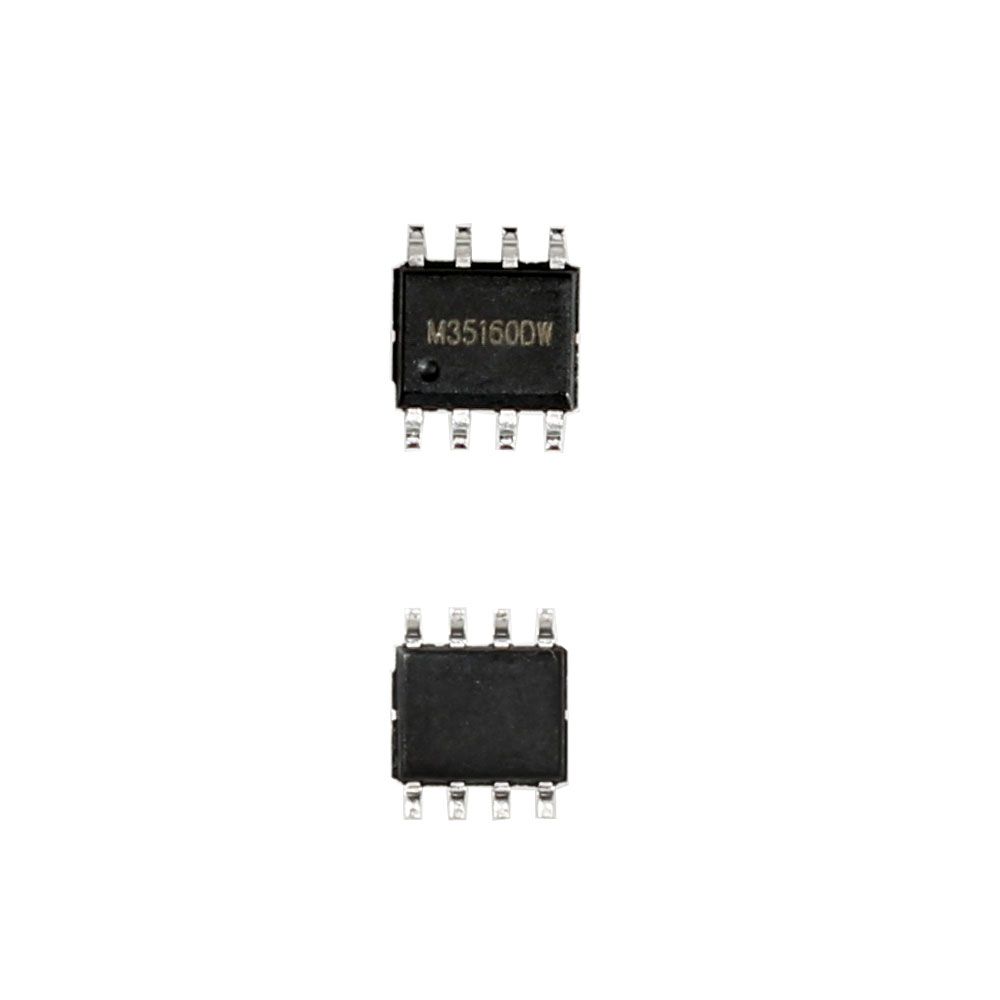

Xhorse 35160DW Chip for VVDI Prog Programmer Replace M35160WT Adapter

Xhorse 35160DW Chip for VVDI Prog

Supports chip M35080, M35080-3, M35080-6, M35080V6, M35080VP, D80D0WQ, 160D0WQ,36160WT,35128WT
Replaced M35160WT XDPG31CH Adapter

Stable and reliable

Perfect replacement of original chip

Refuse the red dot, no need simulator soldering

How to use Xhorse 35160DW chip with VVDI Prog?

Step 1. read and backup data of 3 areas (memory, LONGID, IDLOCATION) from the original dashboard IC

Step 2. write the backup-data to 3 areas on the chip

if the first two lines of the chip need change mileages, pls click on “Erase INC” on the bop right corner and then read out data

if the first two lines display all zeros, manually enter a new mileage for change

directly click on “Write” then done!

Step 3. solder the fixed chip on the dashboard to check if it starts or not, with or without a red dot

Package list:

1*pc 35160DW chipIf you have any problem, please feel free to contact us.
