New S-100 S100 Ultra-high Speed Stand-alone Universal Device Programmer Replace Beeprog

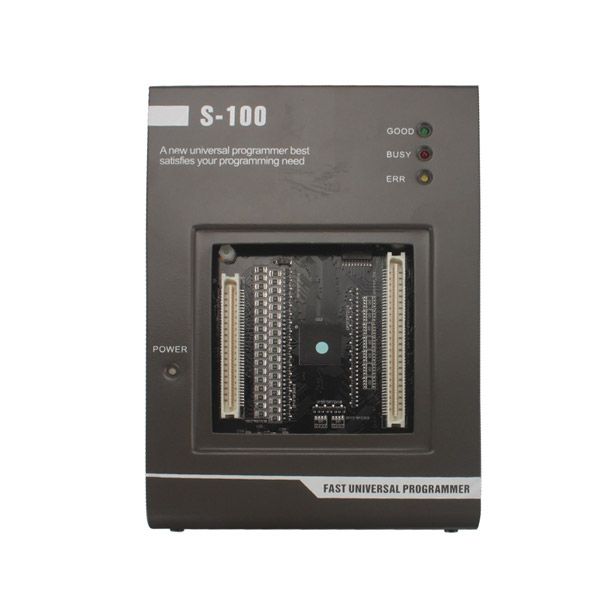

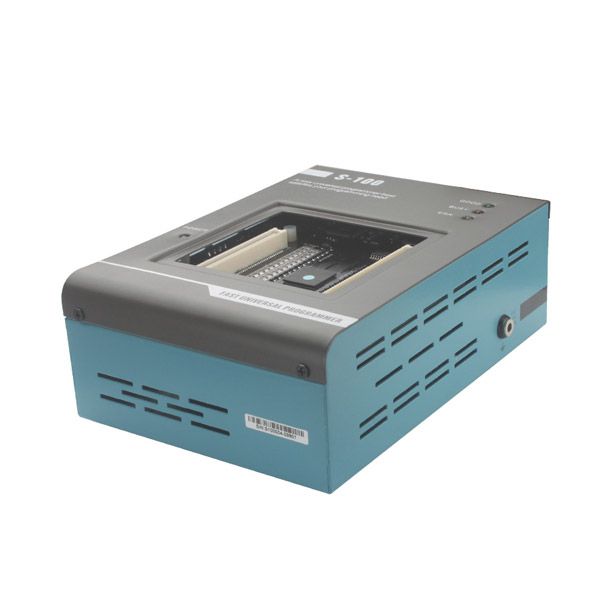

S-100 Ultra-high Speed Stand-alone Universal Device Programmer

Features and Functions:

Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.

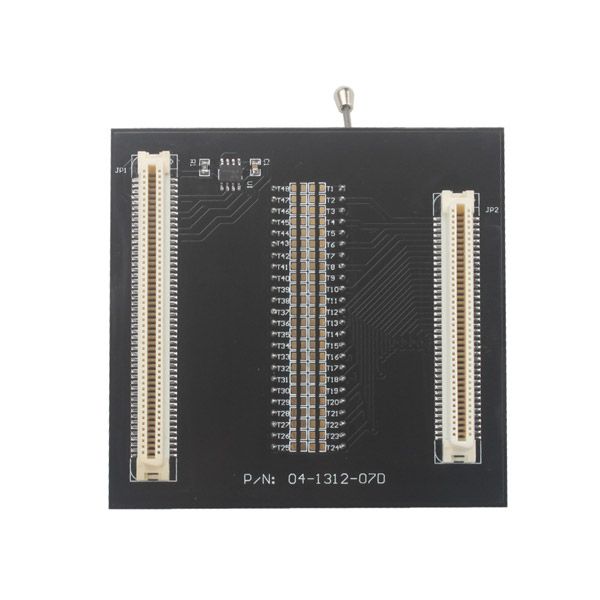

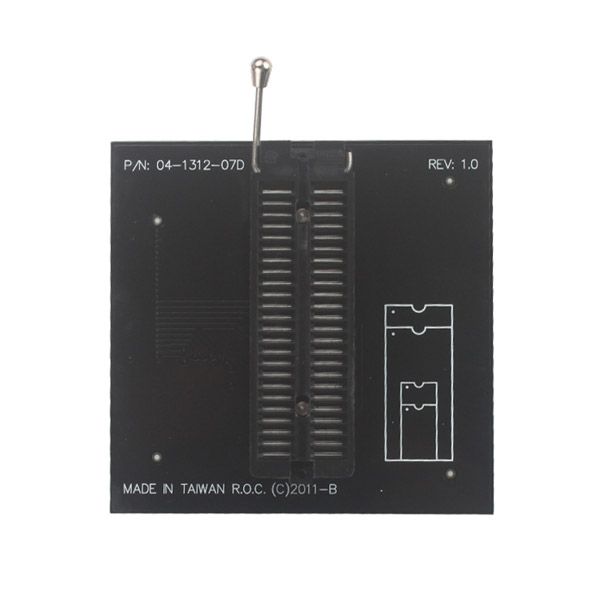

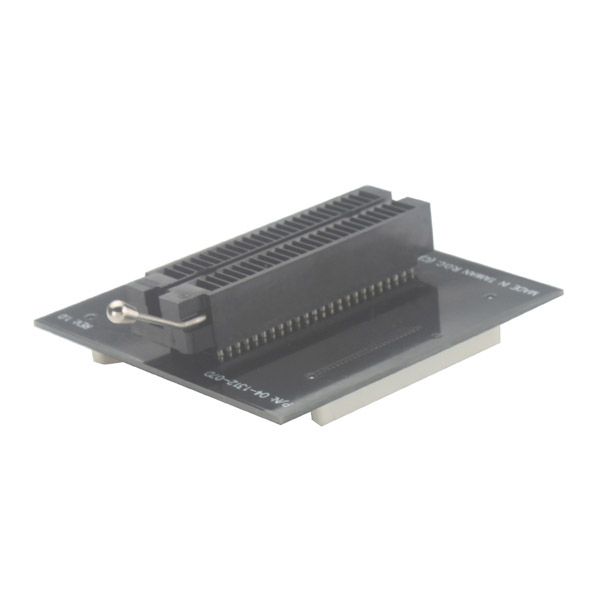

Built with 144 universal pin-drivers. Universal adaptors are available for varies packages up to 144 pins. New device support will be easier.
Extremely fast speed. 64 Mb NOR FLASH memory in 12 seconds and 1Gb NAND in 110 seconds.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
The programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
ISP/ICP programming capability available via ISP/ICP adaptor.
Support devices with Vcc Voltages as low as 1.2v
WINDOWS XP/Vista/Win7 compatibility

Specifications:

Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND)n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU. .
Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
Dimension: W x D x H 134mm x 188mm x 65mm
Operation temperature: 0 ~ 40℃ (32 ~ 105℉)

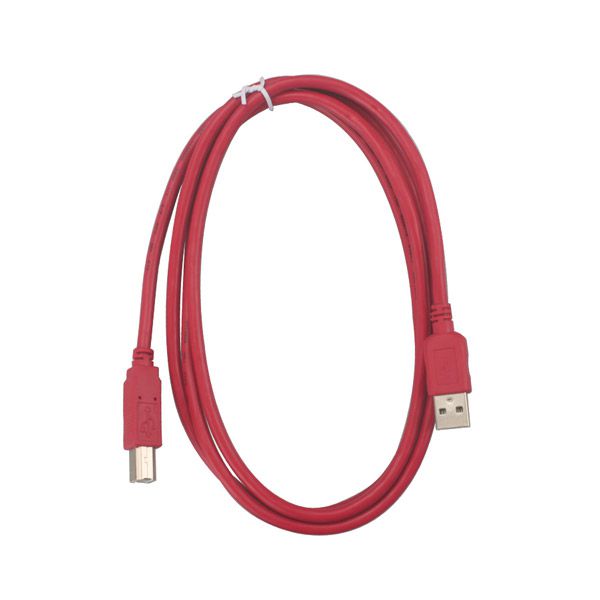

PC interface: USB2.0　
Weight : 1.5kg

power

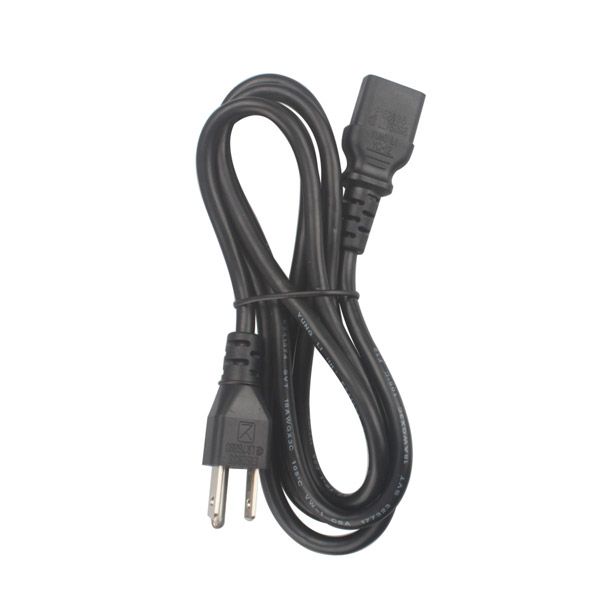

Power source: 100~240 V AC 50~60 Hz 　
Power consumption: ~ 0.5 A
