PCMtuner ECU Programmer with 67 Modules Plus KESS V2 Red PCB Plus KTAG Red PCB EU Online Version

Package Contents

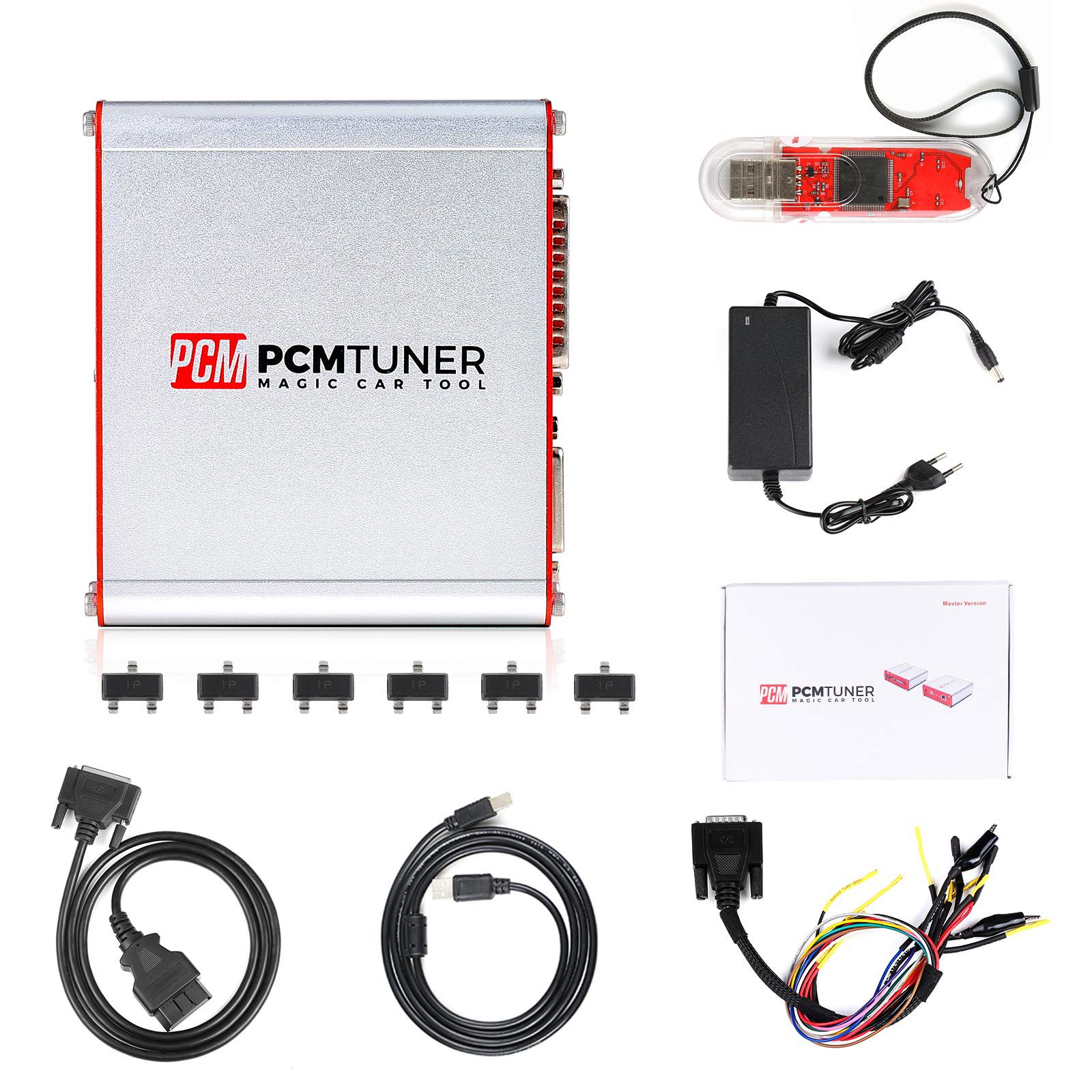

• PCMtuner ECU Programmer with 67 Modules
• KESS V2 Red PCB Online Version PLUS KTAG Red PCB EURO Online Version
• Breakout Tricore Cable for Fgtech Mpps KESS V2

PCMtuner ECU Programmer with 67 Modules Highlights

1. Master Version, save data in bin format, data not encrypted.
2. Read and write ECU data through OBD, BENCH, and BOOT modes.
   PCMtuner performs a complete backup of ECU data, enables easy ECU cloning and power upgrades, and supports reading and writing gearbox data.
   Based on data read via the PCMtuner tool, our engineers can provide customers with Stage 1, Stage 2, Stage 3 tuning files, popbangs, gearbox data for adjusting LC, sport display activation, immo off, adblue off, dpf off, dtc off, vmax removal, swirl flap off, and restoring ECU or TCU to factory settings (paid service).
3. PCMtuner provides VR files for all legal users and Helpdesk supplies free Damaos for tuners.
   Includes free WinOLS damaos, A2L, MAPPACKGE, and VR files.
   Additionally, we offer a platform to collaborate with our high-level tuners, from whom you can learn extensively.
4. PCMtuner software allows you to forcibly write (forcibly clone) without verification.
   It also supports forcibly reading and writing unknown ECUs with supported chip models.
5. Free Online Updates, No Annual Subscription Fee, 2-Year Warranty
6. Integrated Scanmatik2: The smart dongle is compatible with the original Scanmatik2 Pro.

Important Notices

• Please use only the software included in our default package. Using other software may lock or damage the PCMtuner, for which we assume no responsibility.
• Strongly recommend installing PCMtuner on Windows 10 for optimal performance.
• The PCMtuner team is currently developing support for MD1 and MG1, which will be released free soon. If you need to work on MD1 and MG1 immediately, please choose the ECU Bench Tool.
• This device functions as a Scanmatik. We have tested PCMtuner as a J2534 Pass-thru device for Techstream. You may freely test it with Ford IDS, BMW ISTA, VW ODIS, etc. This is a bonus feature; we are not liable for any resulting damage.
• The new version adds a new function: MPM Plug (requires MPM Hardware for American ECU/TCU such as GM, Chrysler, and Ford).
• Always use the original power supply (the power adapter included with the product). Using any other power adapter may burn the device’s transistor or chip.

KESS V2 V5.017 Red PCB Online Version V2.8 Plus KTAG 7.020 V2.25 Red PCB EURO Online Version

Note: It is recommended to install KESS V2 and KTAG software on separate laptops.

KESS V2 V5.017 Features

1. Software Version: V2.80, Firmware Version: V5.017, Free Online Updates
2. 100% No Tokens Required for All Vehicles: No token reset button needed—use KESS V5.017 for life.
3. Covers all major brands and protocols, including Line, CAN, EDC17, MED17, and Ford J1850.
4. Supports cars, trucks, tractors, and motorcycles! KESS V2 supports vehicles by engine type, so V5.017 can support newer vehicles.
5. Read and write ECU via OBD2 port directly, without removing the ECU from the vehicle—easy to use.
6. KESS V2 Newest Software: Ksuite V2.8, which is very easy to install—just follow the prompts and click "Next Step" to get started.
7. Multi-language support: English, German, Spanish, Italian, Portuguese, French.
8. Compatible with Windows XP, Windows 7 (32-bit), Windows 10, and more.
9. KESS V5.017 includes NEW K-Suite 2.8 with exactly 7,400 additional vehicles supported.
10. Includes free tools in software: WinOLS, Map, DTC Remover, DPF 2017, etc. (based on V2.70 example).

KESS V2 V5.017 Online Version Advantages – PCB Details

1. The notch size in the upper-left corner differs from that in the lower-right corner.
2. Includes more than just a buzzer.
3. WFS = Infineon, BCR112 NPN Digital Transistor
4. 27E = ON Semiconductor NUP2105LT1G
5. 6DW = NXP BC817,215 NPN Bipolar Transistor
6. A6c = MMUN2113LT1G / MMUN2113LT3G
7. K5B = BC807-25-7-F PNP Bipolar Transistor
8. Uses imported Japanese Murata filter: NFE61PT472C1H9L

K-Tag KTAG 7.020 Red PCB EURO Online Version – No Token Limit

K-TAG KTAG 7.020 Master Specifications

• Model name: KTAG Master
• Software Version: V2.25 (Newest)
• Firmware Version: V7.020
• Update Method: Via online link
• Vehicle Support: Cars, trucks, motorcycles, tractors, boats, heavy-duty vehicles—no year restrictions
• Languages: English, German, Spanish, Italian, Portuguese, French
• Function: ECU Programming Tool
• Connection: Via BDM
• Supported Protocols: JTAG, BDM, and Boot protocols (including Tricore and ST10)

Package List

• 1 set × PCMtuner ECU Programmer
• 1 set × KESS V2
• 1 set × KTAG
• 1 pc × Breakout Tricore Cable
