Orange5 V1.36 Full ECU Programmer Diagnostic Tool with Complete Adapter Set

Software Version: V1.34 (Software does not support updates)

Languages Supported: English, Russian

Compatible Operating Systems: Windows XP, Windows 7, Windows 8

Software Licenses Included

• MTRK (Included in Orange-5 base)
• TMS (Included in Orange-5 base)
• M08V NEW
• Immo HPX 9V0
• NEC V850ES/SJ3 V850ES/SG3 UART
• NEC V850E2 NEW

Orange5 Technical Specifications

• USB power supply (USB 2.0/3.0 compatible)
• Universal easy-to-plug ZIF16 panel for EEPROM
• Contact control in sockets
• Two expansion slots compatible with Orange4 and Omega MTRK
• Overcurrent protection
• Overvoltage protection
• Dual power supply options: Standard (USB) and Enhanced (USB + external power supply)
• Three adjustable voltage and current controls:
  • Power supply voltage: 2.0–5.0V
  • Programming voltage: 2.0–21.0V
  • Additional static 10V for microcontrollers
• High-speed bidirectional pin drivers with adjustable voltage (2.0–5.0V)
• Wave cycle generator with frequency up to 24 MHz and output voltage (2.0–5.0V) adjustment
• Functional emulation capability of CDC-class USB devices
• Built-in 32-bit virtual machine
• Supported interfaces: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
• Enclosed in a functional housing; supports operation on Windows XP/7 (32-bit) and Windows 8.1

Installation and Operation

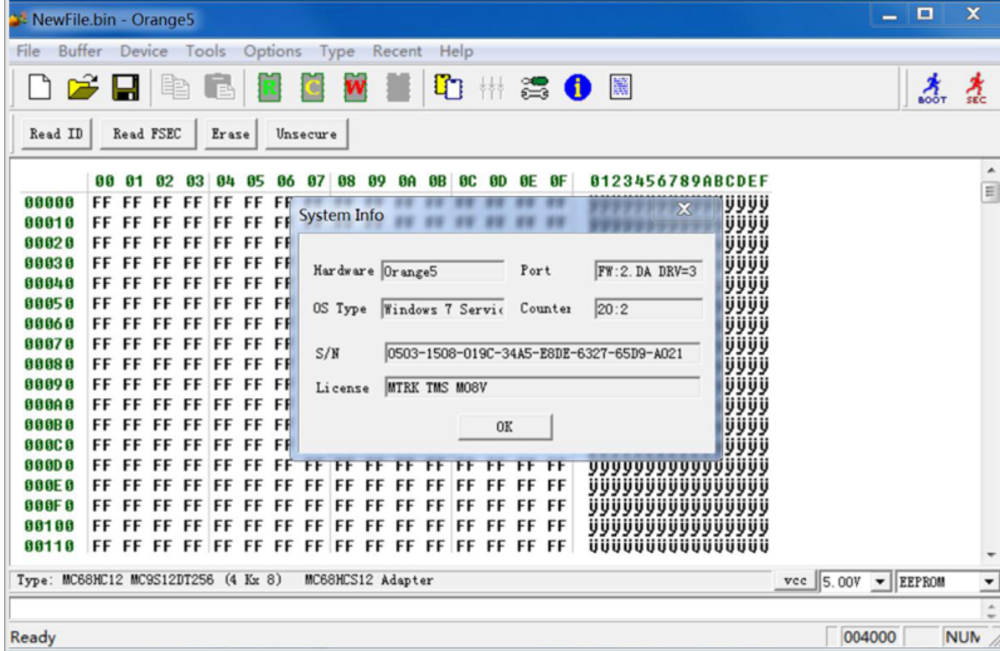

Installation and operation with Orange-5 under Windows 7 and Windows 8.1.

CnCterm Terminal Program Features

CnCterm is a terminal program designed for working with COM ports.

• Supports any COM port, including virtual ports from 1 to 20
• Operates in both text (ASCII) and HEX modes
• Command list creation with editing and quick-send functionality
• Precise baud rate tuning
• Saves files including command sets and port settings
• Stores incoming data in binary files
• Enables file transfer via serial port
• Configurable delay settings for bytes and blocks
• "Echo" mode support
• Adjustable delay between incoming data packets
• Management of DTR and RTS lines with visual indicators for DSR, CTS, CD, and RI
• Portable—no installation required
• Supports Orange5 programmer in emulation mode

Orange-5 Chip List (v1.34)

Contact seller for detailed chip compatibility information.

Package Contents

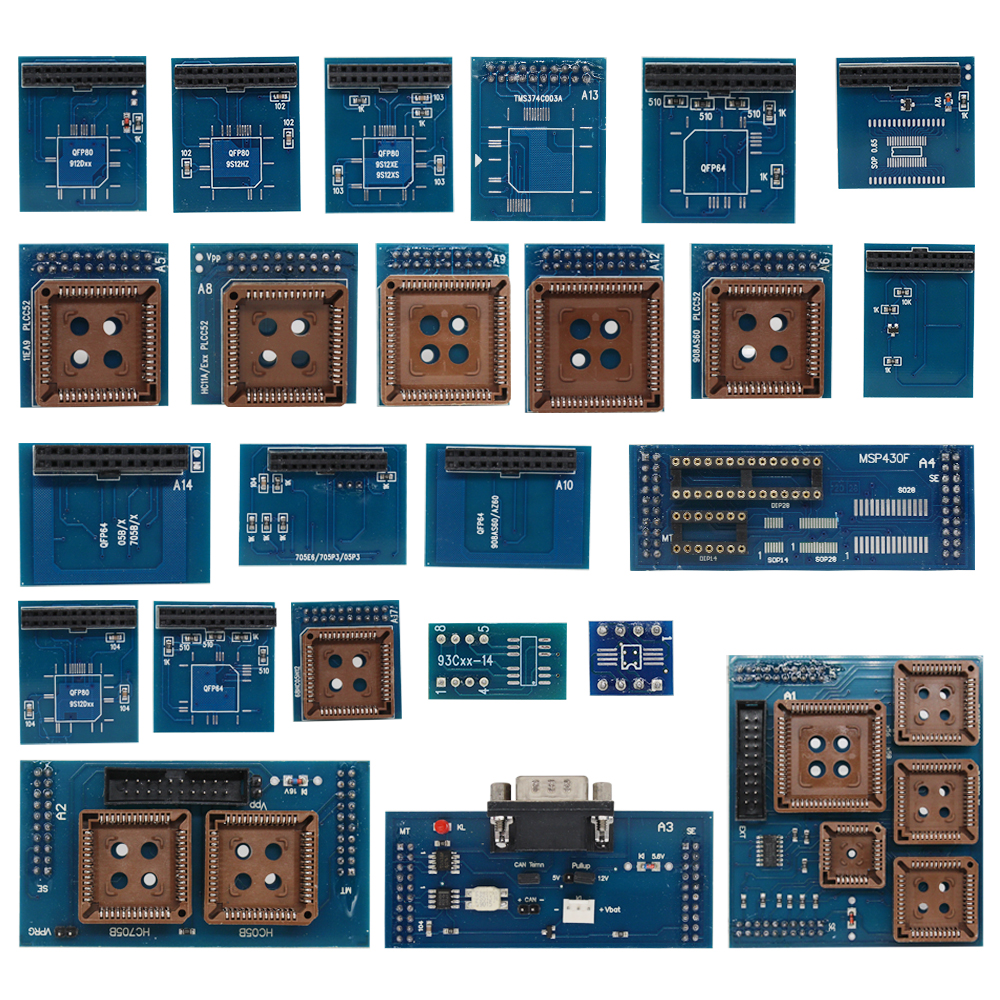

• Orange-5 programmer × 1
• Power adapter × 1

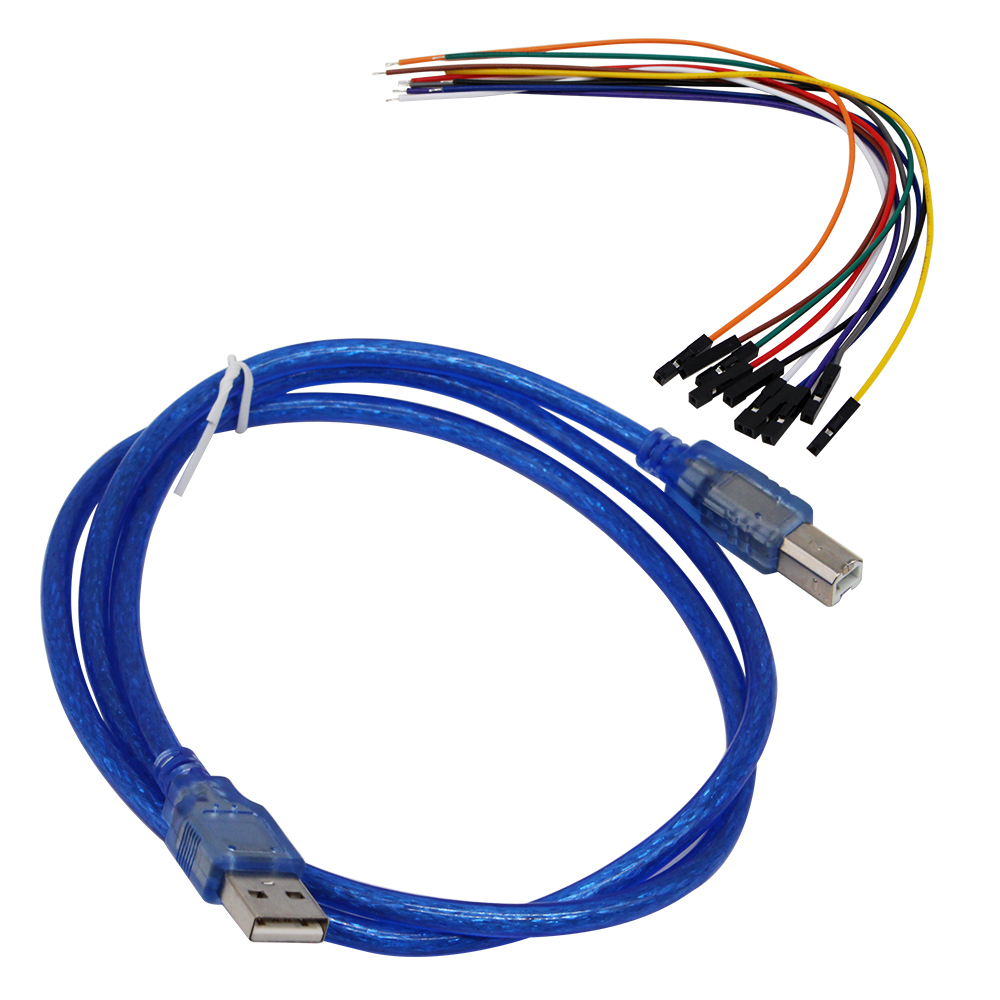

• USB cable × 1
• In-circuit wire × 10
• SOIC8/DIP8 Expert adapter × 1
• SOIC8/DIP8 adapter × 1
• SOIC8_14_93Cxx adapter × 1
• SSOP8/DIP8 adapter × 1
• Lead with clips for SOIC8 & DIP8 × 1
• Adapter 05L28/05B × 1
• Adapter 908AS60/AZ60 QFP64 × 1
• Adapter 68HC(7)05P3/E6 × 1
• Adapter 05B/X_705B/X QFP64 V2 × 1
• Adapter 11PA8/11E9 QFP64 × 1
• Adapter 68HC05H12 × 1
• Adapter 68HC11EA9 × 1
• Adapter 908AS60 × 1
• Adapter 9S12Dxx × 1
• Adapter 912Dxx × 1
• Adapter 9S12X × 1
• Adapter 912B32 QFP80 × 1
• Adapter 68HC11F1 × 1
• Adapter 68HC11L6 × 1
• Adapter 68HC11KA4 × 1
• Lead 11E9(20) with power × 1
• Lead for EWS3 mask 0D46J × 1
• Adapter TMS374C003A × 1
• Adapter MSP430F × 1
• Adapter 68HC11KA4 PLCC68 × 1
• Adapter 908JL × 1
• Adapter PCF7941 × 1
• Adapter 9S12XE × 1
• Adapter 9S12XE × 1

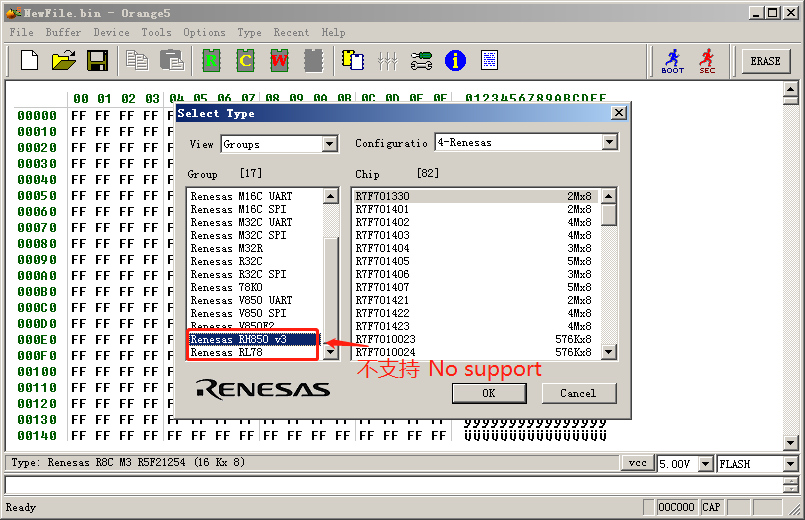

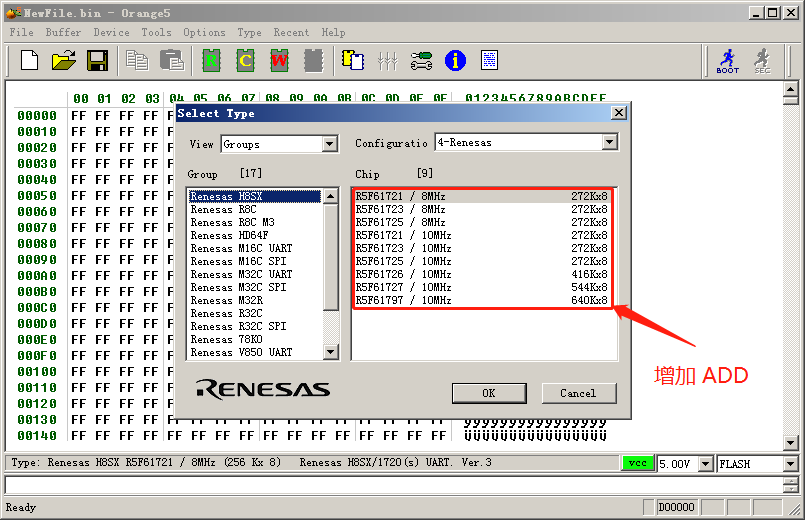

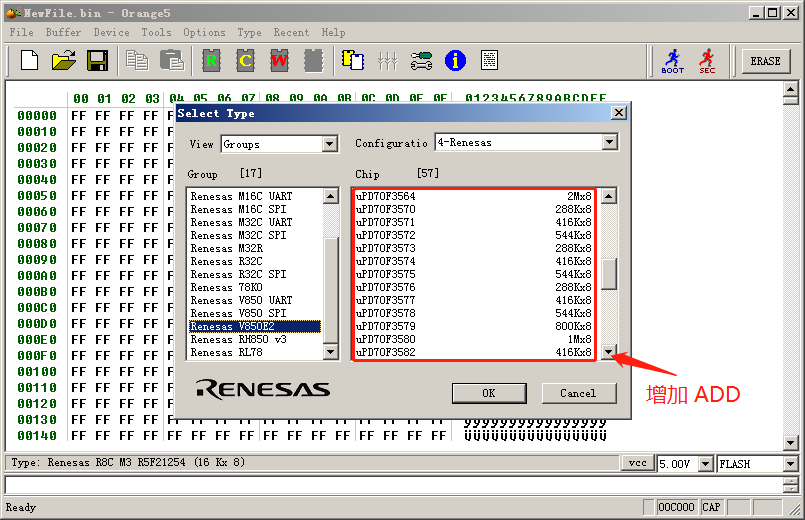

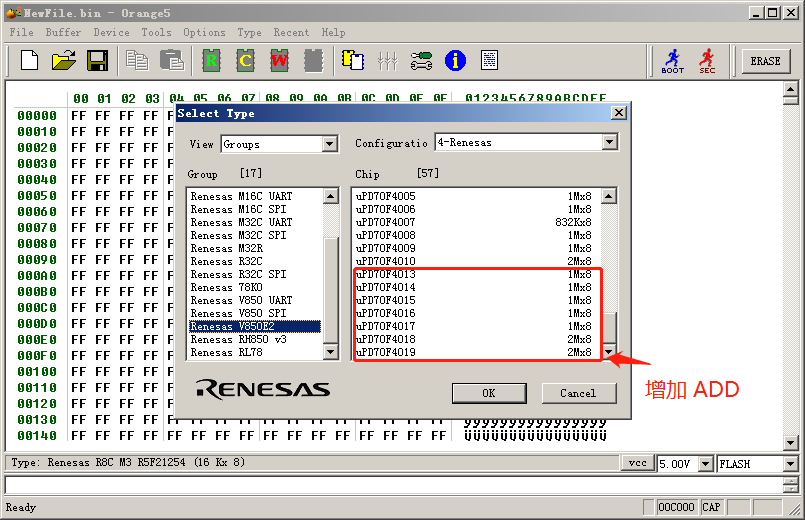

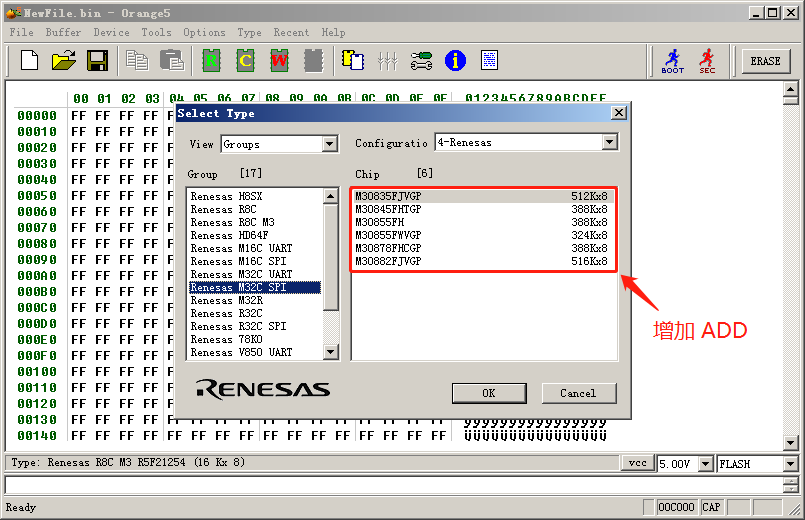

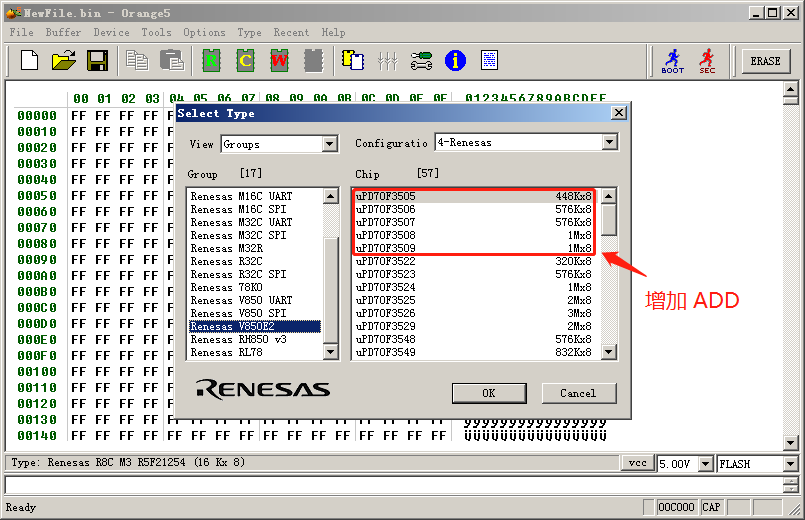

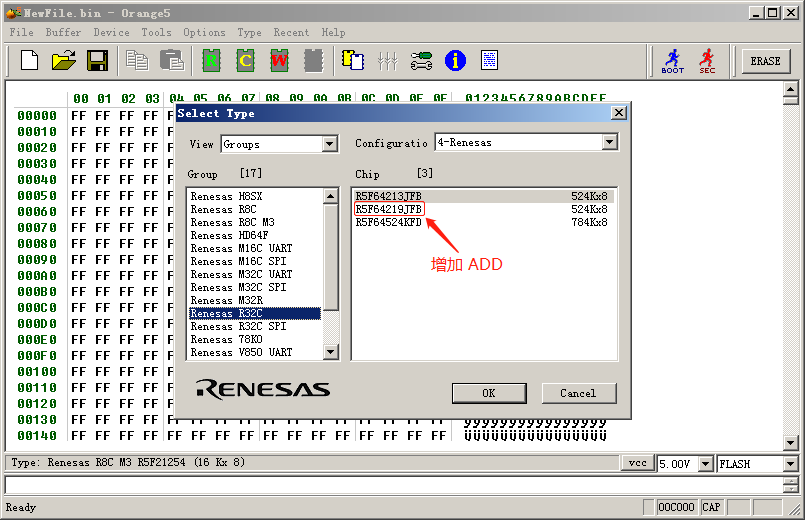

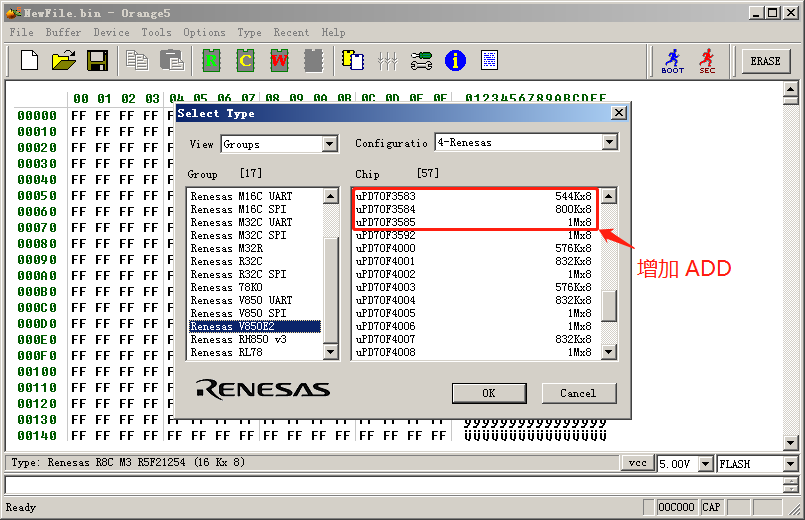

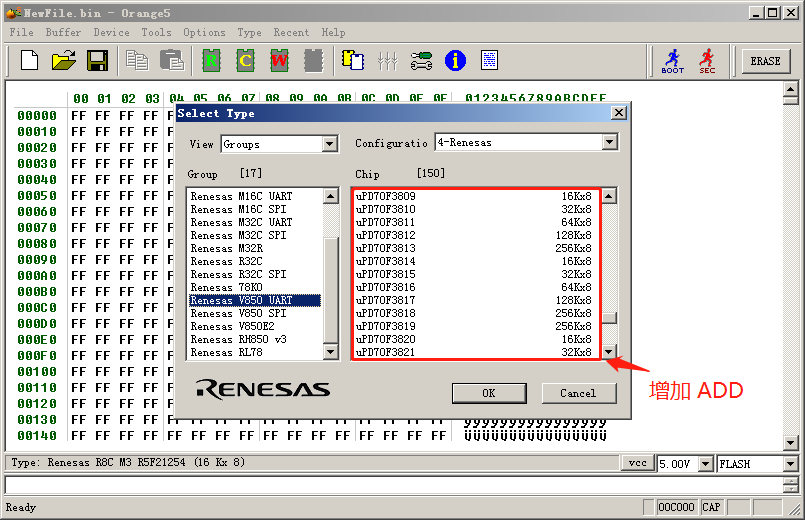

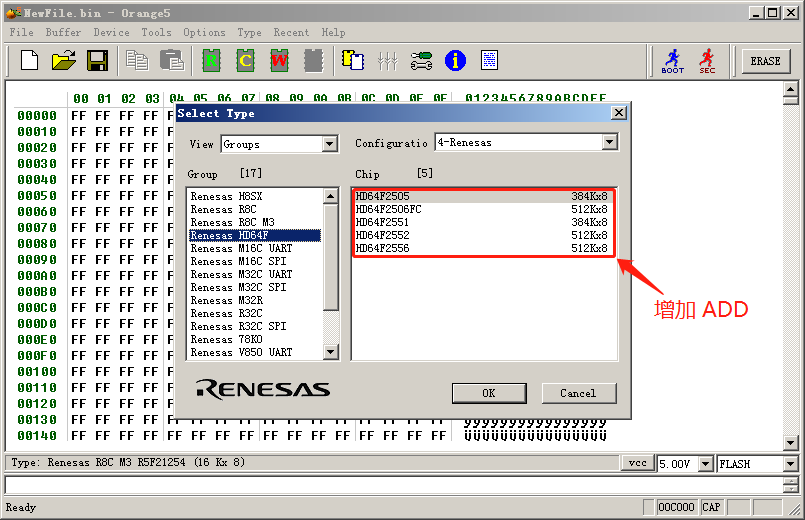

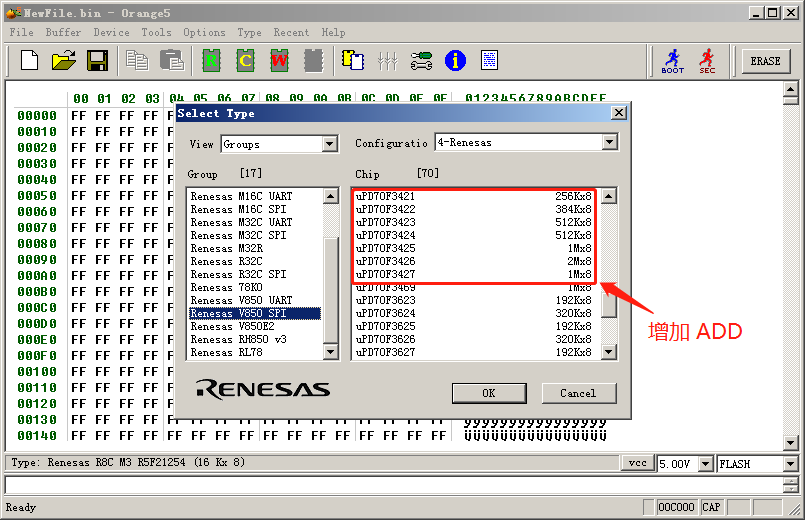

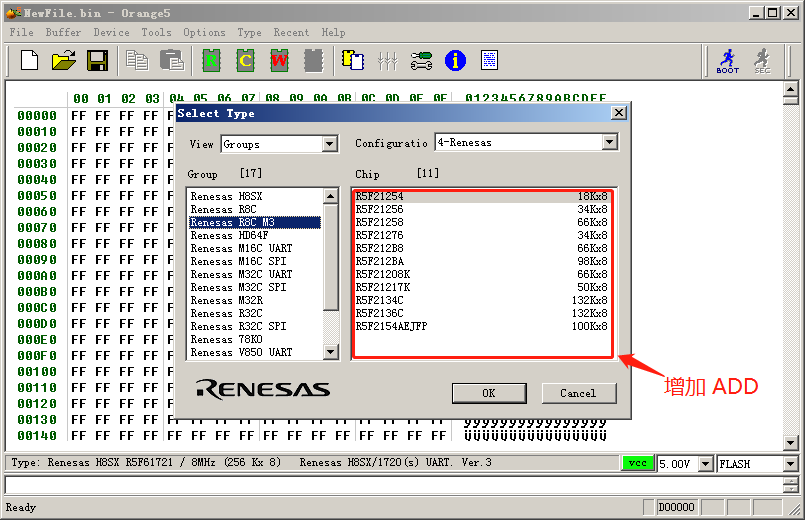

Orange 5 V1.36 New Chip Support List
