OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

Tire Pressure Monitoring System Motorcycle Scanner – Moto Diagnosis Tools

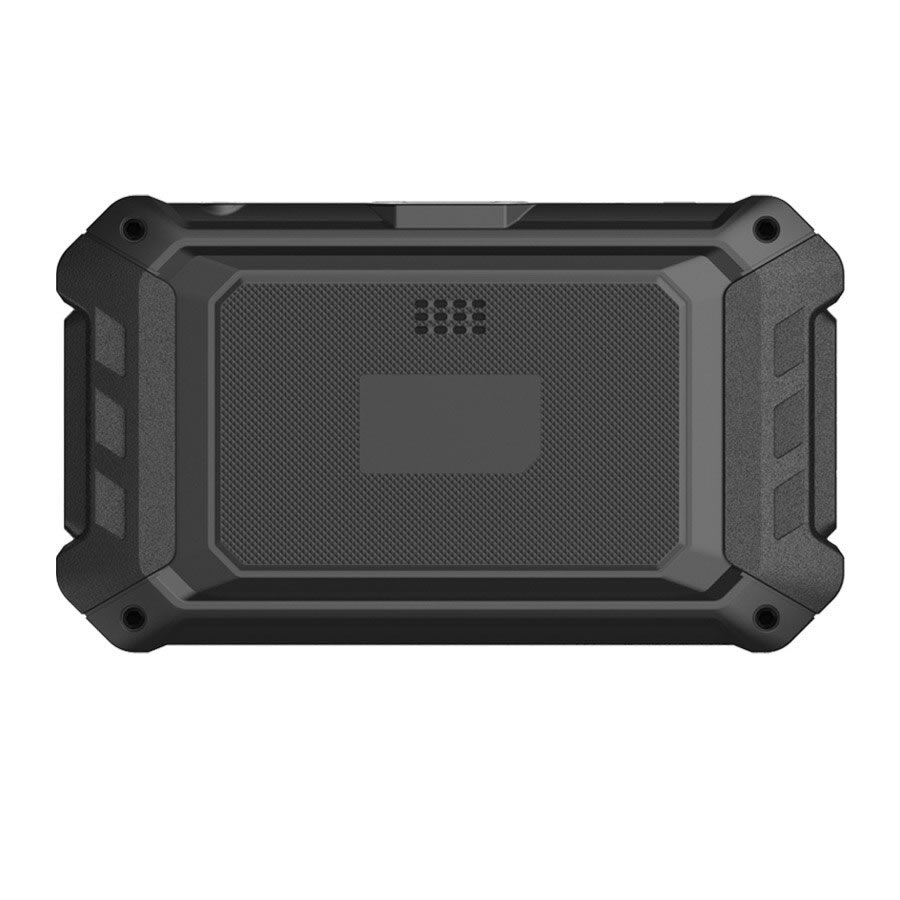

OBDSTAR MS50 is a portable tablet featuring super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on the RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, it delivers a professional diagnostic experience.

Key Features of OBDSTAR MS50

1. New Android 5.1.1 operating system
2. Simple and intuitive menu guidance allows you to quickly master equipment operation
3. Complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.
4. Arbitrary menu selection for more convenient and quicker access
5. Record and playback real-time data streams to quickly and accurately locate sensor and component faults
6. Wi-Fi connection to the Internet enables one-click software upgrades
7. One-click remote function for OBDSTAR technical staff remote assistance
8. Supports most Asian and European motorcycle models

Advanced Functions

1. First fault guidance, help data, technical bulletins, and diag socket information to support accurate and efficient diagnosis
2. Diversified data stream display modes—text, waveform diagram, and instrument diagram—for easy fault analysis
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, and clear computer memory

Supported Vehicle Types

Asia:
Honda, Kawasaki, Kymco, SUZUKI, SYM, Yamaha, PGO, HardFORD, AEON

Europe:
Benelli, KTM, Piaggio, Vespa

More functions are under development.
Different configurations include different software. For details, please contact OBDSTAR.

Function Display Overview

1. Main Page / Brand Supported
2. Help Data / Technical Bulletin / Fault Guidance
3. Supported System List / Manual Service Function
4. Manual Maintenance Reset
5. Diag Socket / Diag Connector Location
6. Data Flow: Text / Waveform Diagram / Instrument Diagram
7. Special Function – Benelli
8. Special Function – KTM
9. Special Function – Piaggio
10. Special Function – Vespa

Product Specifications

• Operating System: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9
• Battery: 2500mAh rechargeable polymer lithium battery
• Extension Memory Card: Supports 32GB Micro SD (TF) card
• Storage Capacity: 16GB
• LCD: 5.0 inch
• LCD Resolution: 800 × 600
• Touch Screen: Capacitive touch screen
• Wi-Fi: Supported
• Camera: 5-megapixel rear view camera
• Working Temperature: -20℃ to 55℃ (14℉ to 131℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)
• Weight: 700g (Main Unit)
• Dimensions: 140mm × 89mm × 18mm

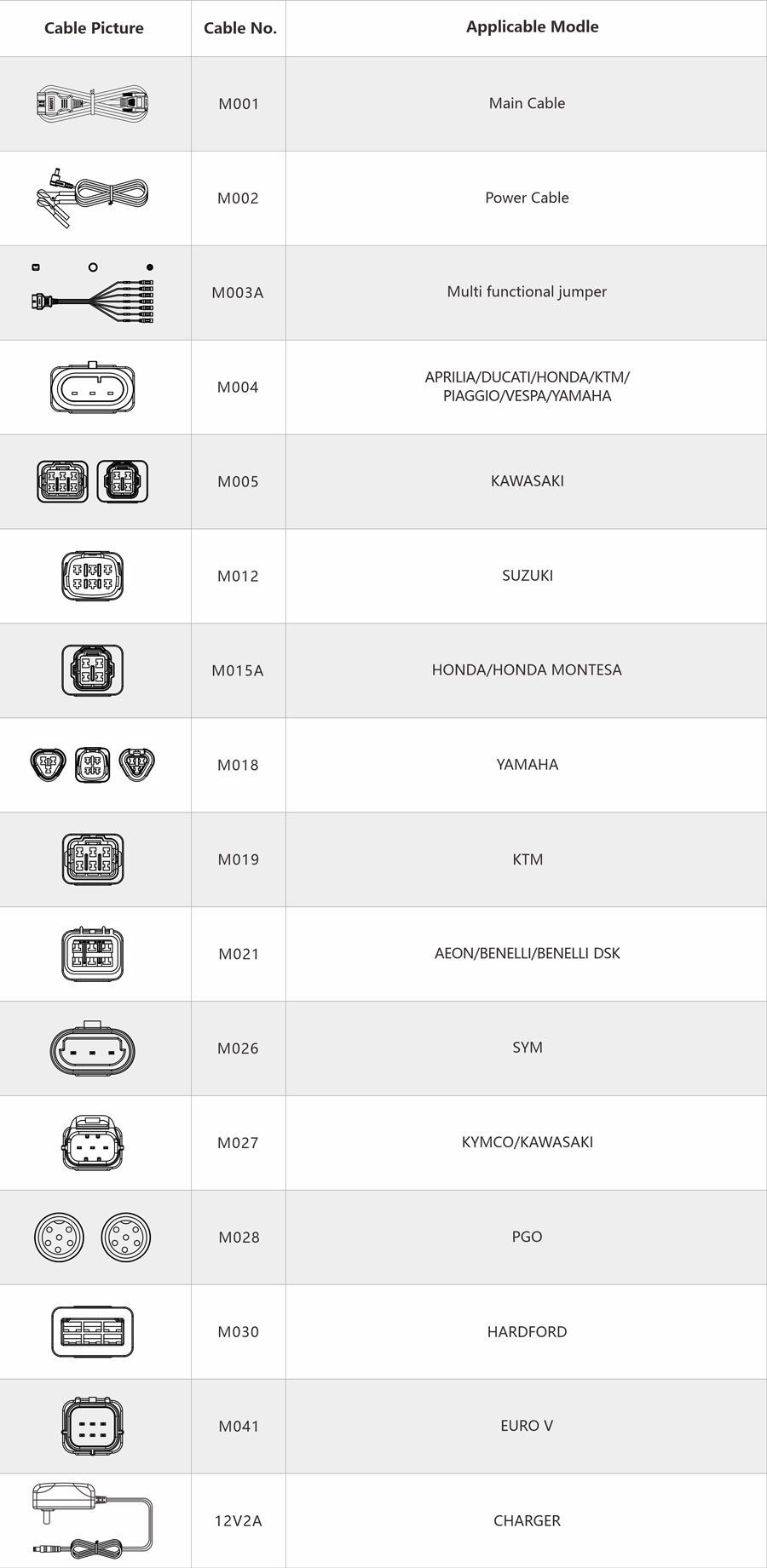

Package Includes

• 1pc × M001 Main Cable
• 1pc × M002 Power Cable
• 1pc × M003A Multi-functional Jumper
• 1pc × M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
• 1pc × M005 KAWASAKI
• 1pc × M012 SUZUKI
• 1pc × M015A HONDA/HONDA MONTESA
• 1pc × M018 YAMAHA
• 1pc × M019 KTM
• 1pc × M021 AEON/BENELLI/BENELLI DSK
• 1pc × M026 SYM
• 1pc × M027 KYMCO/KAWASAKI
• 1pc × M028 PGO
• 1pc × M030 HARTFORD
• 1pc × M041 EURO V
• 1pc × 12V 2A Charger
