iOBD2 OBDII EOBD Diagnostic Tool for Android by Bluetooth

Communication

iOBD2 communicates with Android devices via Bluetooth.

Connection Steps

1. Download the iOBD2 application from the Google Play Store and install it on your phone.
2. Connect your iOBD2 interface to your car’s OBDII connector.
3. Pair your iOBD2 interface with your Android phone or tablet via Bluetooth or Wi-Fi.
4. Activate your iOBD2 interface by entering the serial number into the software.
5. You can now use your phone to diagnose your car.

Diagnostic Functions

Supports vehicles with OBD II/EOBD protocol, including:

• Read DTC
• Clear DTC
• Read data stream
• Read freeze frame data and vehicle information
• Oxygen testing
• Mode 6 testing
• Evaporative Emission System Leak Detection

My Dashboard

The dashboard offers three driving modes with real-time metrics:

• Idle Speed Mode: Voltage, intake air flow, real-time fuel consumption (static), coolant temperature, spark advance angle, engine speed
• Cruise Mode: Vehicle travel time, average speed, continuous running mileage, average fuel consumption, vehicle speed
• Sport Mode: Vehicle speed, coolant temperature, real-time fuel consumption (dynamic), acceleration, engine speed — delivering a rich user experience

Performance Testing

Provides key vehicle performance data you care about, such as acceleration and deceleration tests from 0 to 400 meters.

Settings

You can customize speed, mileage, temperature, and fuel consumption displays. Additionally, you can configure your dashboard data and adjust the fuel consumption coefficient between 0.9 and 1.1 (default value is 1).

History Record

Saves diagnostic and performance data—including DTCs, data streams, freeze frame data, and dashboard readings—for future reference.

Information

Displays iOBD2 device information and assists users with Wi-Fi/Bluetooth setup.

User Interface

Features a human-centered UI design that matches the native style of the Android operating system.

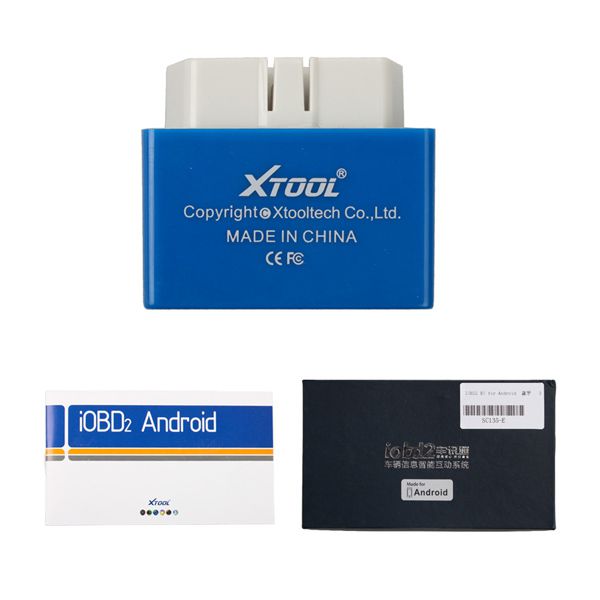

Package Includes

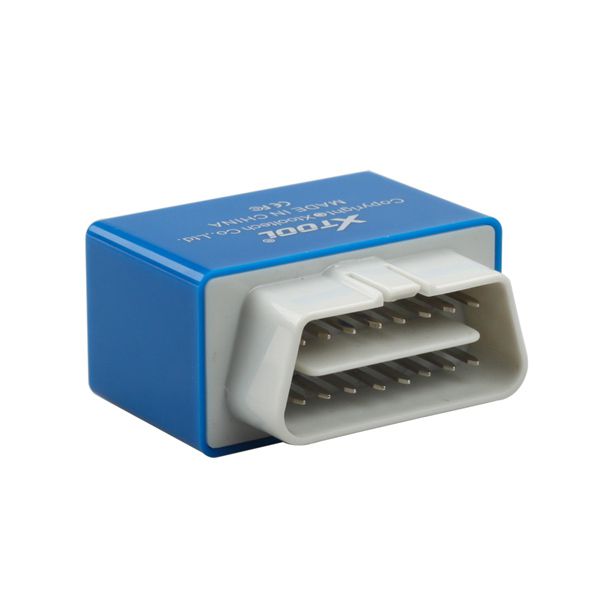

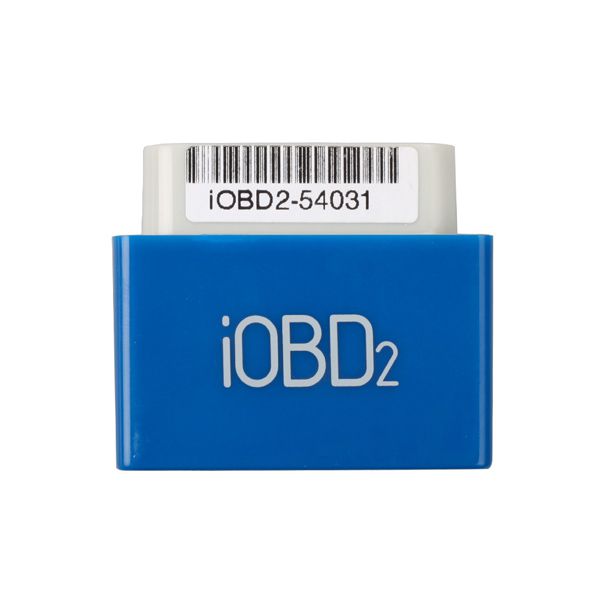

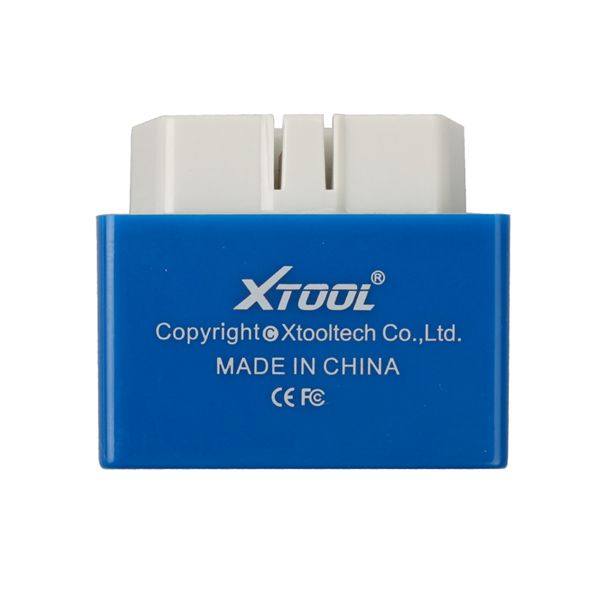

• 1pc x iOBD2 connector
• 1pc x User Manual
